Kohler Centerset K-15240 Assembly instructions

Homeowners Guide
Centerset Lavatory Faucets
K-15240, K-15241, K-15243,
K-15631, K-15632
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (e.j.
K-12345M)
Français, page “Français-1”
Español, pagina “Español-1”
1012482-5-D

Thank You For Choosing Kohler Company
Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship
offers you a rare combination of proven performance and graceful
sophistication that will satisfy you for years to come. The
dependability and beauty of your Kohler product will surpass your
highest expectations. We’re very proud of our products here at Kohler
and we know you will be too.
Please take a few minutes to study this Homeowners Guide. Pay
special attention to the care and cleaning instructions.
All information in this manual is based upon the latest product
information available at the time of publication. At Kohler, we
constantly strive to improve the quality of our products. We reserve
the right to make changes in product characteristics, packaging or
availability at any time without notice.
Your Kohler Lavatory Faucet
Your new lavatory faucet blends elegant styling and beauty with
exceptional performance and reliability. Each faucet is precision
engineered and constructed of premium quality materials to provide
trouble-free operation even under the hardest water conditions.
Care and Cleaning
For best results, keep the following in mind when caring for your
KOHLER product:
•Use a mild detergent such as liquid dishwashing soap and warm
water for cleaning. Do not use abrasive cleaners that may scratch
or dull the surface.
•Carefully read the cleaner product label to ensure the cleaner is
safe for use on the material.
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
•Do not allow cleaners to sit or soak on the surface.
•Wipe surfaces clean and rinse completely with water immediately
after cleaner application. Rinse and dry any overspray that lands
on nearby surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive
material such as a brush or scouring pad to clean surfaces.
1012482-5-D 2 Kohler Co.

Care and Cleaning (cont.)
For detailed cleaning information and products to consider, visit
www.kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537 and press 1 for Kohler Products and then 3 for
Literature.
Lifetime Limited Warranty — USA and Canada
Kohler Co. warrants its faucets manufactured after January 1, 1997, to
be leak and drip free during normal residential use for as long as the
original consumer purchaser owns his/her home. *If the faucet should
leak or drip during normal use, Kohler will, free of charge, mail to the
purchaser the cartridge necessary to put the faucet in good working
condition.
Kohler also warrants all other aspects of the faucet, except gold finish,
to be free of defects in material and workmanship during normal
residential use for as long as the original consumer purchaser owns
his/her own home. If a defect is found in normal residential use,
Kohler Co. will, at its election, repair, provide a replacement part or
product, or make appropriate adjustment. Damage to a product caused
by accident, misuse, or abuse is not covered by this warranty. Proof of
purchase (original sales receipt) must be provided to Kohler with all
warranty claims. Kohler Co. is not responsible for labor charges,
installation, or other consequential costs. In no event shall the liability
of Kohler exceed the purchase price of the faucet.
If the faucet is used commercially, Kohler warrants the faucet to be free
from defects in material and workmanship for one (1) year from the
date the product is installed, with all other terms of this warranty
applying except duration.
If you believe that you have a warranty claim, contact Kohler Co.,
either through your Dealer, Plumbing Contractor, Home Center or
E-tailer, or by writing: Kohler Co., Attn.: Customer Service Department,
444 Highland Drive, Kohler, WI 53044, USA. Please be sure to provide
all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, color, finish,
the date the product was purchased and from whom the product was
purchased. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility
nearest you, call 1-800-4-KOHLER from within the USA, 1-800-964-5590
from within Canada and 001-877-680-1310 from within Mexico.
The foregoing warranties are in lieu of all other warranties, express
or implied, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
Kohler Co. 3 1012482-5-D

Lifetime Limited Warranty — USA and Canada (cont.)
Seller disclaims any liability for special, incidental or consequential
damages. Some states/provinces do not allow limitations of how long
an implied warranty lasts or the exclusion or limitation of such
damages, so these limitations and exclusions may not apply to you.
This warranty gives the consumer specific legal rights. You may also
have other rights that vary from state/province to state/province. This
warranty is to the original consumer purchaser only, and excludes
product damage due to installation error, product abuse, or product
misuse, whether performed by a contractor, service company, or the
consumer.
This is our exclusive written warranty.
*Trend
®
faucets, MasterShowerTM Tower, polished gold finish, all items
within the ″Fixture Related″section of the KOHLER Faucets Price
Book, drains, Duostrainer
®
sink strainers, soap/lotion dispensers and
faucets used in commercial settings are covered by Kohler’s one-year
limited warranty.
One-Year Warranty — Mexico
For Mexico Only
KOHLER CO.
It is recommended that at the time of purchase, you verify that all
accessories and components are complete in this package.
This Kohler product is warranted to be free of defects in material and
workmanship for one (1) year from the date of purchase as shown on
the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its
authorized distributors.
2. To obtain warranty service, please present the invoice and
corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair
the defective product or provide a new replacement or an equivalent
model (in those cases that the model has been discontinued) when the
product is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the
date the product is received.
5. It is recommended that the consumer save the invoice or receipt as
additional protection, as it may substitute the warranty in the case that
there is a discrepancy in the validity of the warranty.
1012482-5-D 4 Kohler Co.

One-Year Warranty — Mexico (cont.)
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the
instructions concerning use and operation set forth in the owner’s
manual or installation instructions, and when the recommendations
and warnings included are not observed.
2. When the product has been modified or dismantled partially or
totally; or has been used in a negligent fashion and as a consequence
has suffered damages attributable to the consumer, individual, or
hardware not authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster
such as fire or acts of God, including flooding, earthquake, or electric
storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A.B. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
Kohler Co. 5 1012482-5-D

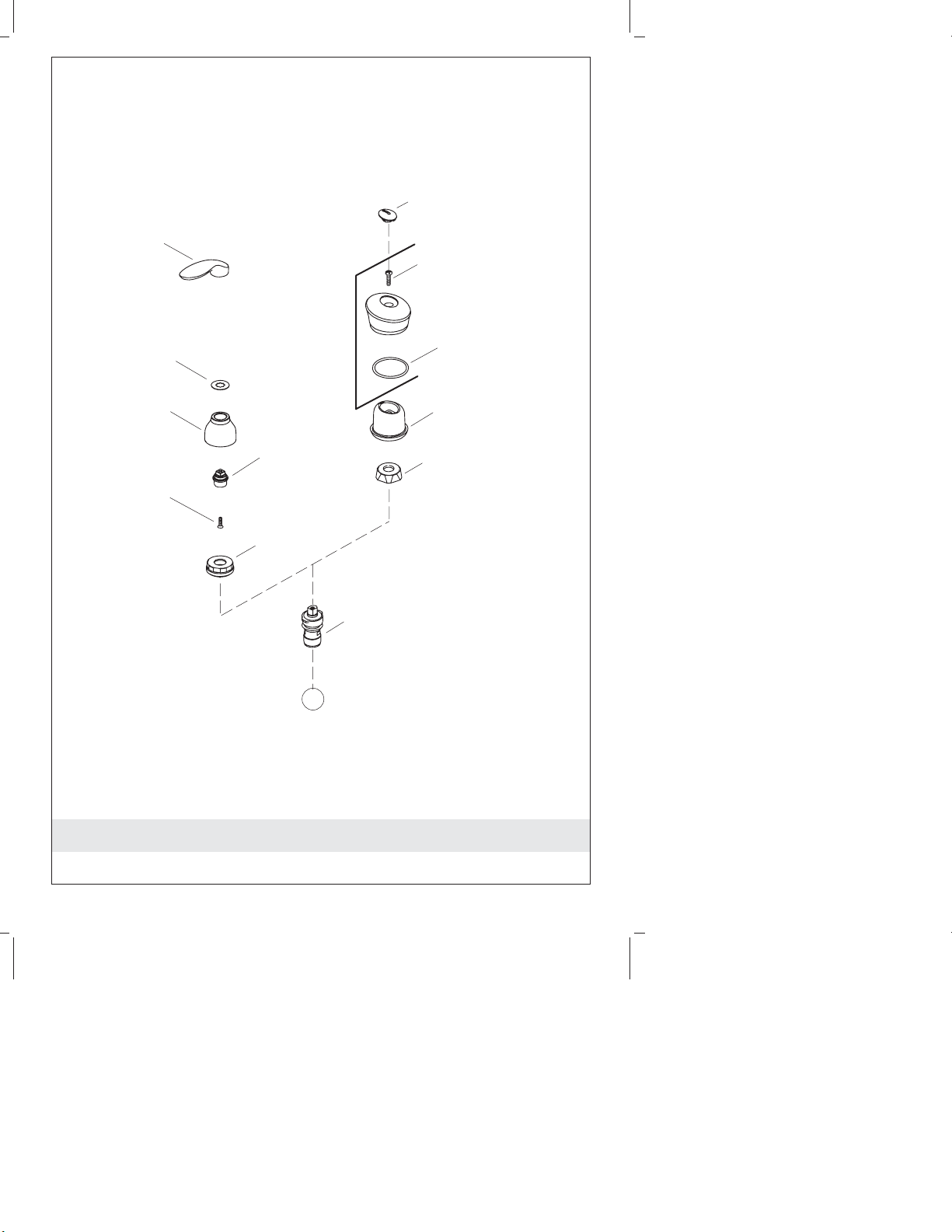

Service Parts
A
1006136
Screw
1003873
Stem
1004061**
Nut
1004101-H**
1004101-C**
Plug Button
1010900
Handle
1012468
Screw
(Clockwise Close)
(Counterclockwise Close)
76672
76671
**Finish/color code must be specified when ordering.
Valve
43167
O-Ring
1004100-A**
Insert
70008**
Bonnet
1007717**
Handle
B527203
B527201
B527202
Friction Ring
1001783**
Bonnet
(Cold)
(Hot)
(Blue)
(Grey)
(Red)
1012482-5-D 6 Kohler Co.

A
32751
Nut
1006780**
1009435**
Spout
78273-A **
Throat Plate
77538
Screw
**Finish/color code must be specified when ordering.
70007**
Retaining Ring
76973
Undercover
40243
Plug Button
1002177**
Aerator
78868
Wrench
(w/o Lift Rod Hole, VR)
(w/o Lift Rod Hole)
1006779** (w/Lift Rod Hole)
57411**
Lift Rod
40080
Nut
VR = Vandal-Resistant
1033636** (w/Lift Rod Hole, Mexico)
1010751** (w/Wrench,VR)
59619**
(Mexico)
Kohler Co. 7 1012482-5-D

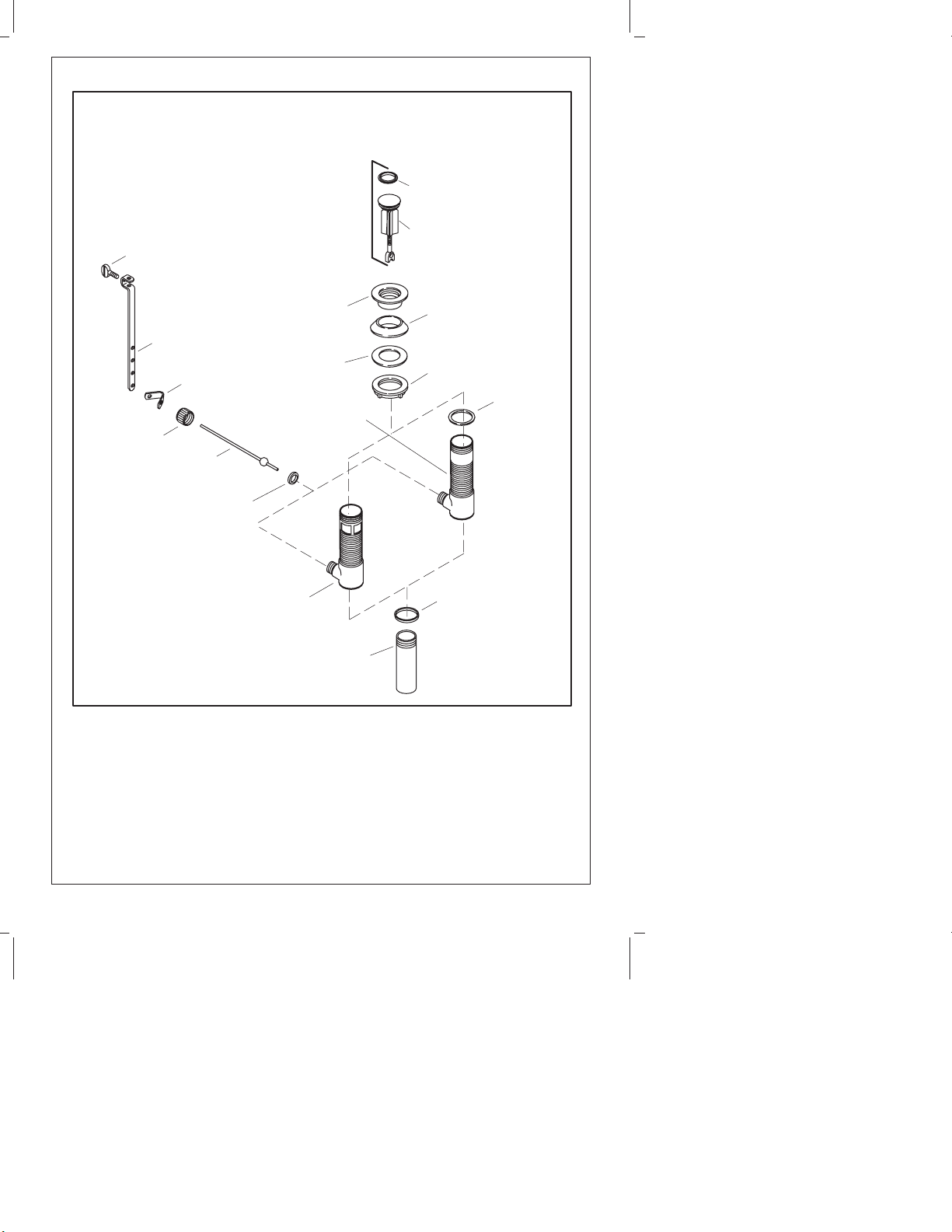

1037022**
1036932**
1037346
1035564
40228
1025645**
1037390
1025642
1036351**
1030925
1025639**
1035348**
1025678
1025650
1035350**
Stopper
Trim Ring
Screw
Link
Clip
Nut
Rod
Washer
Tailpiece
Washer
Body
Nut
Washer
Seal
Fin
(Metal stopper fins with overflow)
1037023** (Plastic stopper fins with overflow)
Drain
(Metal)
1037021** (Plastic) 1025656
O-Ring
1035351** (Metal stopper fins without overflow)
(With Overflow)
1032296**
Body (Without Overflow)
1025654
Washer
**Finish/color code must be specified when ordering.
1012482-5-D 8 Kohler Co.

**Finish/color code must be specified when ordering.
1035611**
Grid Drain
1032256**
Trim Ring
1031375**
Body
1025650
Seal
1025678
Washer
1035348**
Nut
1030925
Washer
1036351**
Tailpiece
Kohler Co. 9 1012482-5-D

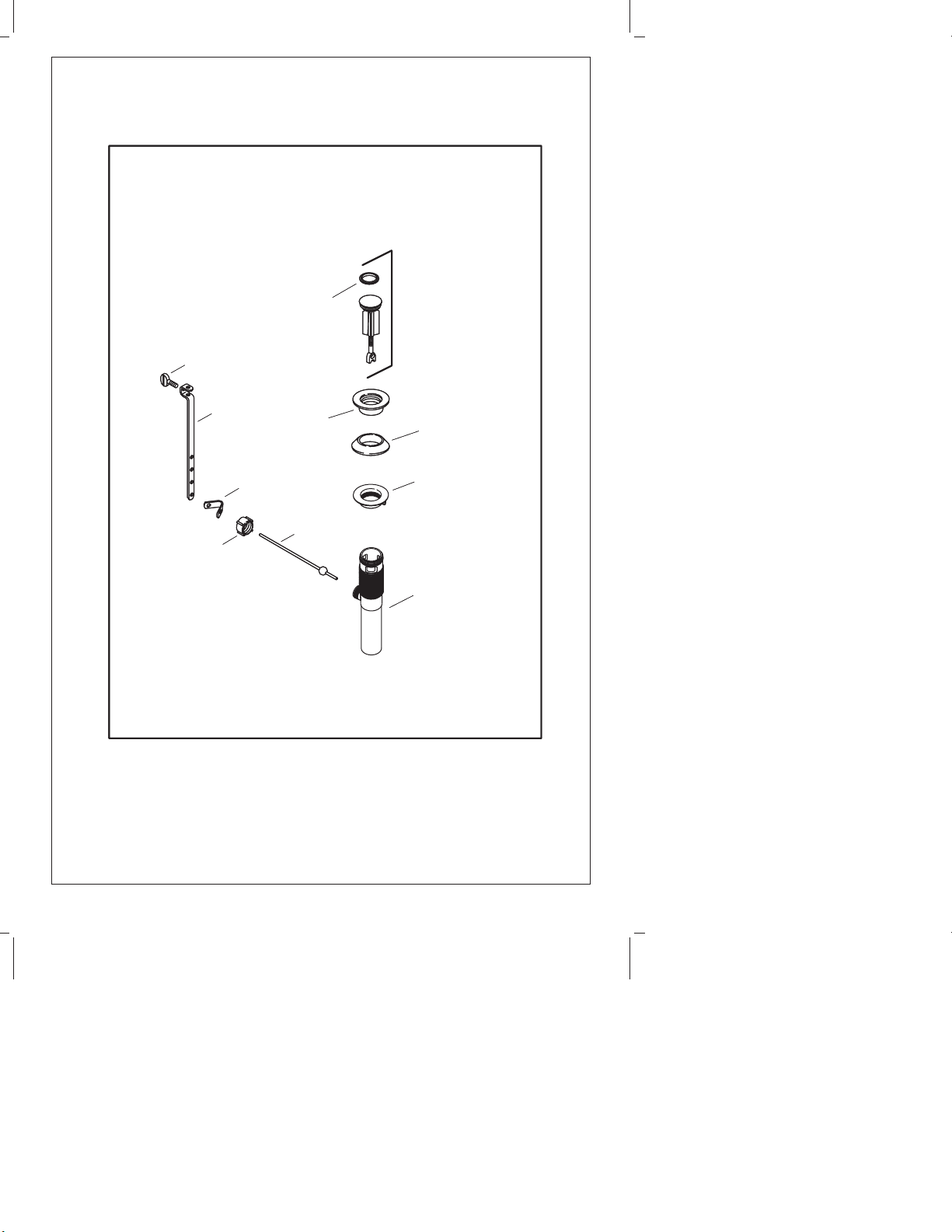

**Finish/color code must be specified when ordering.
1036994**
1025637**
1037346
1035564
40228
1034578
1057718
1025650
1025656 Stopper
Screw
Link
Clip
Retainer
Rod
Body
Nut
Seal
O-Ring
Plastic Drain
1034579
1057717
1061375**
Stopper
Trim Ring
Screw
Link
Clip
Rod
Nut
Plastic Drain
1012482-5-D 10 Kohler Co.
