Kohler K-12183 Assembly instructions

Homeowners Guide
Single-Control Lavatory Faucet
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (e.j.
K-12345M)
Français, page ″Français-1″
Español, pagina ″Español-1″
K-12183
1011034-5-E

Thank You For Choosing Kohler Company
Thank you for choosing Kohler Company. Your Kohler Company
product reflects the true passion for design, craftsmanship, artistry, and
innovation Kohler Company stands for. We are confident its
dependability and beauty will surpass your highest expectations,
satisfying you for years to come.
All information in this guide is based upon the latest product
information available at the time of publication. At Kohler Company,
we strive to fulfill our mission of improving the level of gracious living
for each person who is touched by our products and services. We
reserve the right to make changes in product characteristics, packaging,
or availability at any time without notice.
Please take a few minutes to review this guide. Pay special attention to
the care and cleaning instructions.
Care and Cleaning
For best results, keep the following in mind when caring for your
KOHLER product:
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
•Wipe surfaces clean and rinse completely with water immediately
after applying cleaner. Rinse and dry any overspray that lands on
nearby surfaces.
•Do not allow cleaners to soak on surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive
material such as a brush or scouring pad to clean surfaces.
•The ideal cleaning technique is to rinse thoroughly and blot dry
any water from the surface after each use.
For detailed cleaning information and products to consider, visit
www.kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537.
1011034-5-E 2 Kohler Co.

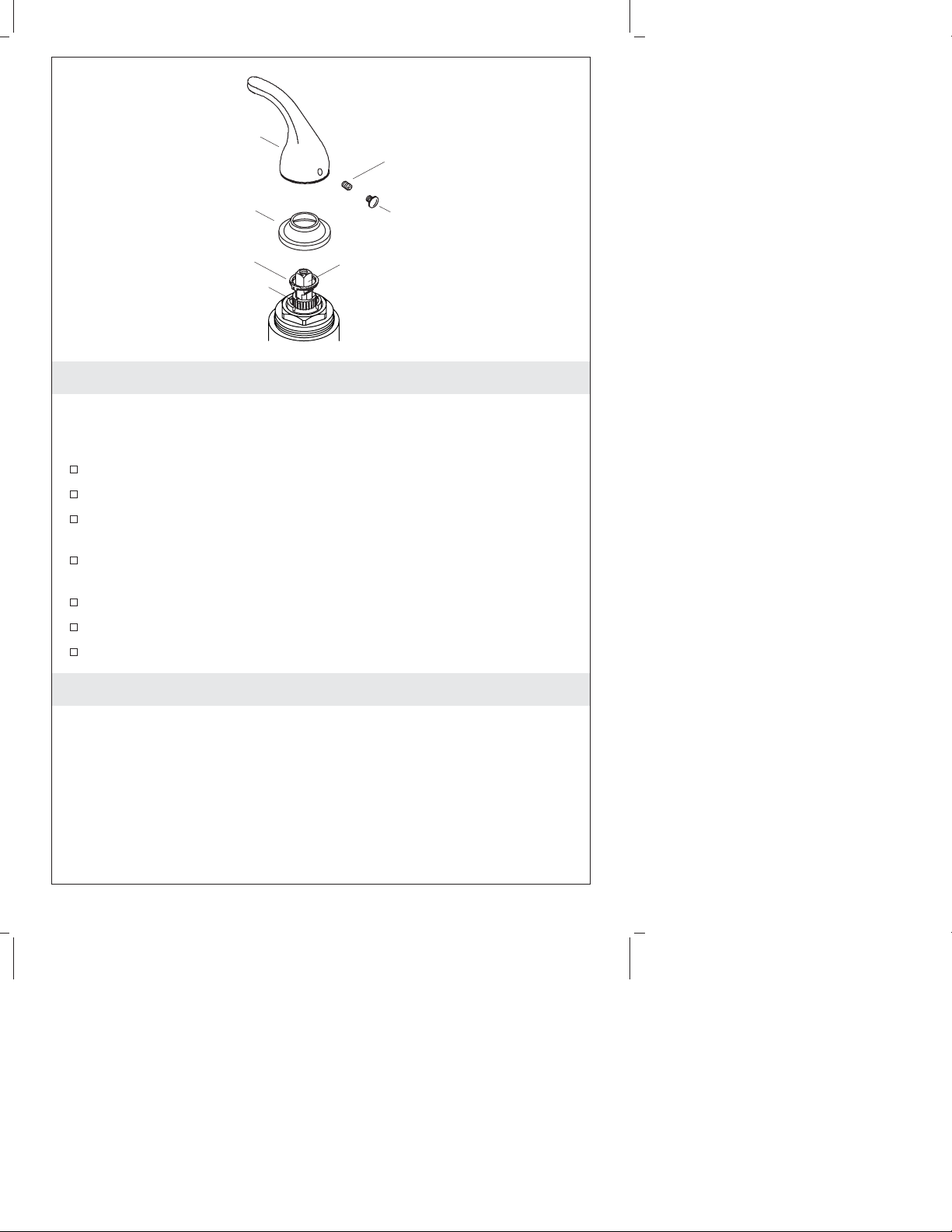

Optional Temperature Limiting Adjustment
If desired, use the following procedure to adjust the maximum water
temperature setting:
Remove the plug button.
Loosen the setscrew and remove the handle and bonnet.
Position the indexer to stop the valve stem at the desired
maximum temperature.
Turn the water on and rotate the valve stem to full hot to confirm
the setting.
Reinstall the bonnet and handle.
Tighten the setscrew.
Reinstall the plug button.
Lifetime Limited Warranty
Kohler Co. warrants its faucets manufactured after January 1, 1997, to
be leak and drip free during normal residential use for as long as the
original consumer purchaser owns his/her home. *If the faucet should
leak or drip during normal use, Kohler will, free of charge, mail to the
purchaser the cartridge necessary to put the faucet in good working
condition.
Kohler also warrants all other aspects of the faucet, except gold finish,
to be free of defects in material and workmanship during normal
Bonnet
Handle
Indexer
Splines
Valve Stem
Setscrew
Plug
Button
Kohler Co. 3 1011034-5-E

Lifetime Limited Warranty (cont.)
residential use for as long as the original consumer purchaser owns
his/her own home. If a defect is found in normal residential use,
Kohler Co. will, at its election, repair, provide a replacement part or
product, or make appropriate adjustment. Damage to a product caused
by accident, misuse, or abuse is not covered by this warranty. Proof of
purchase (original sales receipt) must be provided to Kohler with all
warranty claims. Kohler Co. is not responsible for labor charges,
installation, or other consequential costs. In no event shall the liability
of Kohler exceed the purchase price of the faucet.
If the faucet is used commercially, Kohler warrants the faucet to be free
from defects in material and workmanship for one (1) year from the
date the product is installed, with all other terms of this warranty
applying except duration.
If you believe that you have a warranty claim, contact Kohler Co.,
either through your Dealer, Plumbing Contractor, Home Center or
E-tailer, or by writing: Kohler Co., Attn.: Customer Service Department,
444 Highland Drive, Kohler, WI 53044, USA. Please be sure to provide
all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, color, finish,
the date the product was purchased and from whom the product was
purchased. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility
nearest you, call 1-800-4-KOHLER from within the USA, 1-800-964-5590
from within Canada and 001-877-680-1310 from within Mexico.
The foregoing warranties are in lieu of all other warranties, express
or implied, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
Seller disclaims any liability for special, incidental or consequential
damages. Some states/provinces do not allow limitations of how long
an implied warranty lasts or the exclusion or limitation of such
damages, so these limitations and exclusions may not apply to you.
This warranty gives the consumer specific legal rights. You may also
have other rights that vary from state/province to state/province. This
warranty is to the original consumer purchaser only, and excludes
product damage due to installation error, product abuse, or product
misuse, whether performed by a contractor, service company, or the
consumer.
This is our exclusive written warranty.
*Trend
®
faucets, MasterShowerTM Tower, polished gold finish, all items
within the ″Fixture Related″section of the KOHLER Faucets Price
Book, drains, Duostrainer
®
sink strainers, soap/lotion dispensers and
faucets used in commercial settings are covered by Kohler’s one-year
1011034-5-E 4 Kohler Co.

Lifetime Limited Warranty (cont.)
limited warranty.
Kohler Co. 5 1011034-5-E

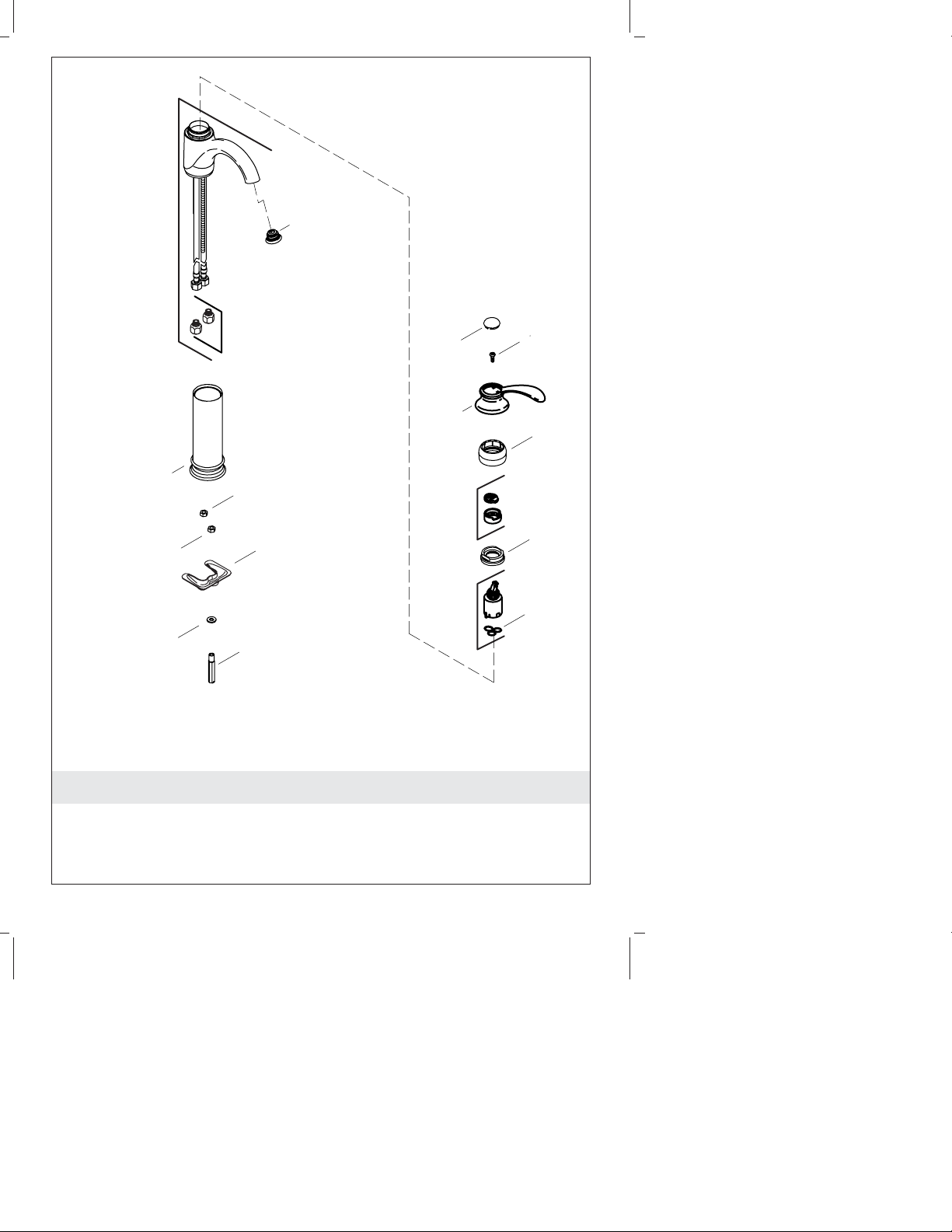

Service Parts
**Finish/color code must be specified when ordering.
78205**
Plug Button
78155
Screw
78139**
Handle
78064**
Cap
78065**
Nut
86828
Seal
1101447**
Escutcheon
23094
Nut
52202
Washer
78150
Nut
77555
Limit Stop
77548
Valve
23094
Nut
1002856
Bracket
1101638**
Spout (Mexico)1101639**
1032045 (Mexico Only)
Compression Fittings
79402**
Aerator (Mexico)1002110**
1011034-5-E 6 Kohler Co.

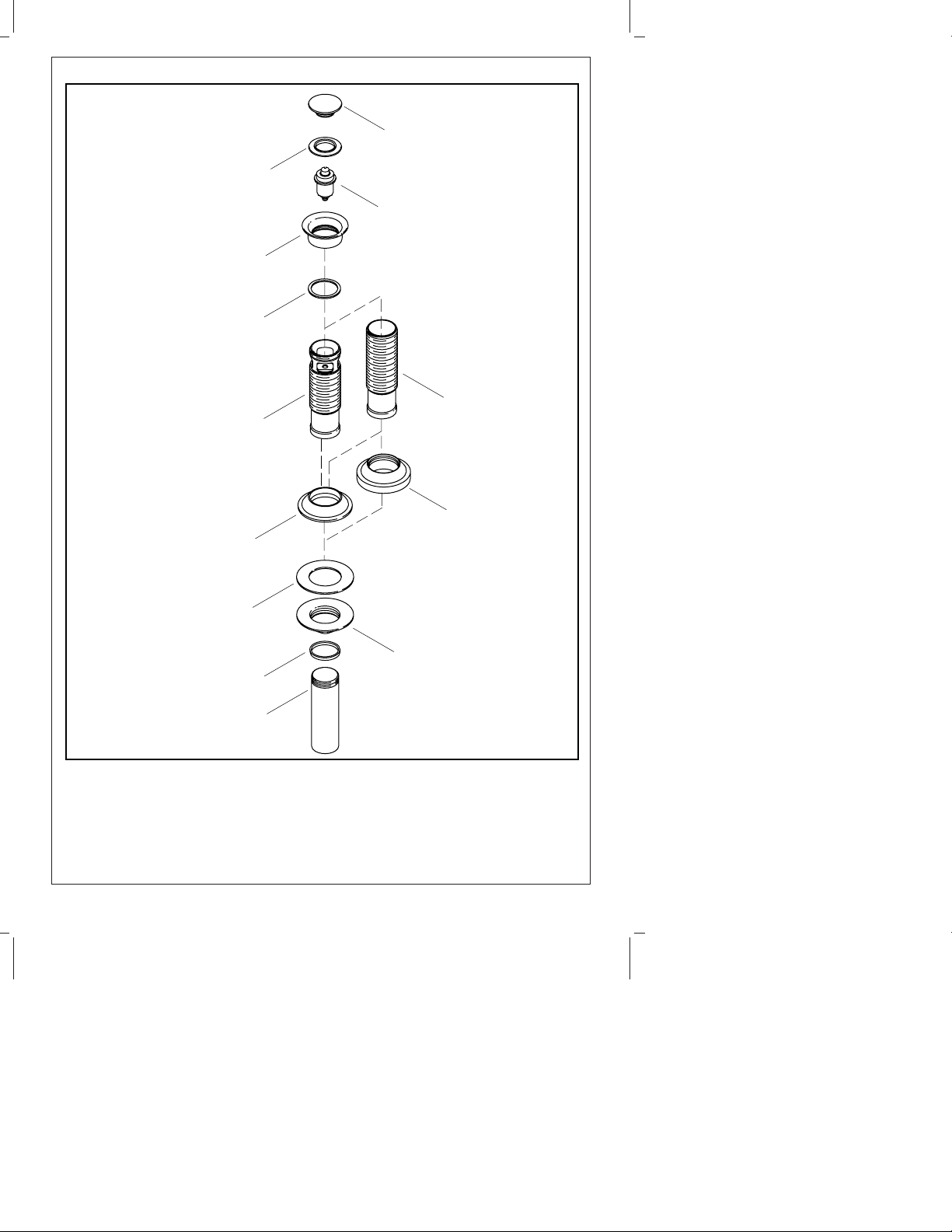

1035625**
Drain
1032297**
(with Overflow)
(without Overflow)
Seal
1032250
Clicker
1000315
Drain Body
1035627**
Washer
1025654
Drain Body
1032253**
Friction Washer
1025678
Tailpiece
1036351**
Washer
1030925
Trim Ring
1036932**
Nut
1035348**
Stopper
1032249**
**Finish/color code must be specified when ordering.
Drain Seal
1025650
1066735
Seal
Kohler Co. 7 1011034-5-E

Guide du propriétaire
Robinet mono-contrôle de lavabo
Merci d’avoir choisi la compagnie Kohler
Merci d’avoir choisi la compagnie Kohler. Votre produit de la
compagnie Kohler reflète la véritable passion du design, d’artisanat,
d’art et d’innovation représentant la compagnie Kohler. Nous sommes
confiants que sa fiabilité et beauté surpasseront vos exigences les plus
élevées, vous satisfaisant pendant les années à venir.
Toute information contenue dans ce guide est basée sur l’information
la plus récente du produit disponible au moment de la publication. A
la compagnie Kohler, nous aspirons à remplir notre mission
d’améliorer le niveau de vie gracieux pour chaque individu affecté par
nos produits et services. Nous nous réservons le droit d’apporter des
modifications aux caractéristiques, emballages et disponibilités des
produits à tout moment, et ce sans préavis.
Veuillez prendre s’il vous plaît quelques minutes pour étudier ce
guide. Prêter une attention toute particulière aux instructions
d’entretien et de nettoyage.
Entretien et nettoyage
Pour de meilleurs résultats, prendre ce qui suit en considération lors de
l’entretien de votre produit KOHLER:
•Toujours tester la solution de nettoyage sur une surface la moins
évidente avant de l’appliquer sur la totalité de la surface.
•Éssuyer les surfaces et rincer complètement avec de l’eau
immédiatement après l’application de nettoyant. Rincer et sécher
tout éclaboussement sur les surfaces avoisinantes.
•Ne pas laisser les nettoyants sur les surfaces.
•Utiliser une éponge ou un chiffon doux et humide. Ne jamais
utiliser de matériau abrasif tel que brosse ou éponges à récurer
pour nettoyer les surfaces.
•La technique idéale de nettoyage est de bien rincer et de sécher
toute eau de la surface après chaque usage.
Pour l’information détaillée de nettoyage et des produits à considérer,
visiter www.kohler.com/clean. Pour commander des informations
Kohler Co. Français-1 1011034-5-E

Entretien et nettoyage (cont.)
d’entretien et de nettoyage, composer le 1-800-456-4537.
Kohler Co. Français-2 1011034-5-E

Réglage optionnel de limitation de température
Si désiré, utiliser la procédure suivante pour ajuster le réglage de
température maximum d’eau:
Retirer le bouchon.
Desserrer la vis de retenue et retirer la poignée et le chapeau.
Positionner l’indexeur pour arrêter la tige de la valve à la
température maximale désirée.
Ouvrir l’eau et pivoter la tige de la valve complètement vers le
côté chaud pour confirmer la sélection.
Réinstaller le chapeau et la poignée.
Serrer la vis de retenue.
Réinstaller le bouchon.
Garantie limitée à vie
Kohler Co. garantit que ses robinets fabriqués après le 1 Janvier 1997
ne goutteront pas, et seront sans fuites pendant leur utilisation normale
à domicile, aussi longtemps que l’acquéreur initial en soit le
propriétaire. *Si le robinet gouttait ou présentait des fuites en cours
d’utilisation normale, Kohler vous enverra par courrier, sans frais, la
cartouche nécessaire pour réparer le robinet.
Kohler garantit aussi que toutes les autres caractéristiques du robinet, à
l’exception de la finition dorée, sont exemptes de défauts de matériau
Chapeau
Poignée
Indexeur Tige de
la valve
Vis de
retenue
Bouchon
Cannelures
1011034-5-E Français-3 Kohler Co.
