AmazonBasics B084XPB4SL User manual

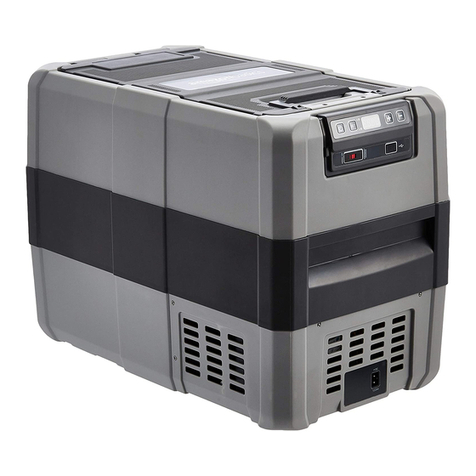

Portable Compressor Fridge 28L
Réfrigérateur Portatif à Compresseur 28l
Tragbare Kompressor-Kühlschrank 28L
Frigorifero Portatile a Compressore 28l
Nevera Portátil con Compresor, 28l
Draagbare Koelkast met Compressor 28liter
B084XPB4SL, B08434QLXZ, B083PDMR8T

English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Deutsch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Italiano . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Nederlands . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

3
EN
IMPORTANT SAFEGUARDS
Read these instructions carefully and retain
them for future use. If this product is passed to
a third party, then these instructions must be
included.
When using electrical appliances, basic safety
precautions should always be followed to reduce the
risk of fire, electric shock, and/or injury to persons
including the following:
WARNING Do not use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer.
WARNING Risk of product damage. Keep
ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
WARNING Risk of accident and/or serious
injury! When installed in a vehicle: The appliance must
be fastened so that it does not cause a safety hazard
in case of collision or hard braking.
WARNING When positioning the appliance,
ensure the supply cord is not trapped or damaged.
WARNING Do not locate multiple portable socket-
outlets or portable power supplies at the rear of the
appliance.
• The appliance is only to be used with the power
supply unit provided with the appliance.
• Appliance must only be supplied at safety extra
low voltage corresponding to the marking on the
appliance.
• If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.

4
EN
• This appliance is considered to be suitable for use in
temperatures between 50 to 110°F (+10 to 43°C).
• When using the appliance in a vehicle or boat, make
sure the power supply circuit is properly fused and
can meet the electrical power requirement. Use
of a residual current device (RCD) having a rated
residual operating current not exceeding 30mA is
recommended.
• The appliance is suitable for camping use.
• The appliance shall not be exposed to rain.
• Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household
and similar applications such as:
– staff kitchen areas in shops, offices and other
working environments;
– farm houses;
– by clients in hotels, motels and other residential
type environments;
– bed and breakfast type environments. This
appliance is intended to be used in household
• Do not use extension cords or ungrounded (two
prong) adapters.
• Do not touch the internal metal shell of the
appliance with wet hands/skin.
• Do not use this appliance near direct heat sources,
for example, a cooker or a radiator. Do not expose
the appliance to a direct sunlight.
• Do not place hot products or hot food in the
appliance.

5
EN
• Do not place ice, foods or liquids which are not
sealed in containers. Food may only be stored in its
original packaging or in suitable containers.
• Place the products so that they do not knock
against each other or break when the appliance is
being moved.
• This appliance is not designed to operate at an
angle greater than 25degrees.
• Do not use sharp, corrosive or abrasive cleaners to
clean or defrost the appliance.
• To avoid contamination of food, please respect the
following instructions:
– Opening the door for long periods can cause
a significant increase of the temperature in the
compartments of the appliance.
– Clean regularly surfaces that can come in contact
with food and accessible drainage systems.
– Store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip
onto other food.
– If the refrigerating appliance is left empty for long
periods, switch off, defrost, clean, dry, and leave
the door open to prevent mould developing within
the appliance.
• Before carrying out any maintenance operations on
the refrigerator, disconnect the product from any
power supply.

6
EN
For Europe only:
• This appliance can be used by children aged from
8years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made
by children without supervision.
• Children aged from 3to 8years are allowed to load
and unload refrigerating appliances.
For North America only:
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that they do not play with
the appliance.
Grounding Instructions
This appliance must be grounded while in use to protect the operator
from electrical shock. The appliance is equipped with a 3-conductor
cord and a 3-prong grounding-type plug to fit the proper grounding-type
receptacle. The appliance has a plug that looks like sketch A in the figure
below. An adaptor, sketch B, should be used for connecting sketch-A
plugs to two-prong receptacles. The grounding tab which extends
from the adaptor must be connected to a permanent ground such as a
properly grounded outlet box as shown in sketch C using a metal screw.

7
EN
Grounding prong
Circuit grounding
conductor connected
properly
Metal
mounting
screw
Cover of grounded outlet box
Adapter
Grounding means
AC
B
Intended Use
• This product is intended for cooling foods and beverages.
• This product is intended for household and camping use only. It is not
intended for commercial use.
• The product is not suitable for a permanent operation.
• This product is intended to be used in dry indoor areas only.
• No liability will be accepted for damages resulting from improper use
or non-compliance with these instructions.

8
EN
Before First Use
• Check the product for transport damages.
• Remove all the packing materials.
• Clean the product before first use. Wash the inside of the appliance
with lukewarm water. Use 1part vinegar to 3parts water solution.
Donot use soap or detergent as the smell may linger. Dry the
appliance thoroughly.
• Before connecting the product to the power supply, check that the
power supply voltage and current rating corresponds with the power
supply details shown on the product rating label.
NOTICE Risk of product damage! Before switching on, place the
product on a level surface and let it stand in an upright position for at
least 24hours. This is to allow the compressor oil to properly settle.
DANGER Risk of suffocation! Keep any packaging materials
awayfrom children – these materials are a potential source of danger,
e.g. suffocation.
Explanation of Symbols
This symbol stands for “Conformité Européenne”, which
means “Conformity with EU-directives”. With the CE-marking
the manufacturer confirms that this product complies with
applicable European directives and regulations.
This symbol indicates the user must refer to the manual for
further information.
This symbol indicates that, under normal use, hazardous
voltages may be present.
The product is classified as protection class III and therefore
operates with a completely safe voltage range.
VI
This product complies to US energy efficiency VI standard.
This product is for indoor use only.
Plus (+) and minus (-) polarity marking.
Direct current (DC).
~Alternating current (AC).

9
EN
Product Description
C
D
B
A
EFG
ALid with latch ECigarette lighter cable
BControl panel FPower adapter
CVentilation openings GPower cable
DDC input

10
EN
Control Panel
N O R M A L U S E
EM ERGEN C Y
O V ERR ID E
H I J K L
MN
O
HPower button LIncrease/decrease
temperature +/–
ISetting button SET MUSB charging port
JOperating indicator NEmergency switch
KDisplay OError indicator
Operation
Connecting to a power source
1. Connect the cigarette lighter cable (E) to the DCinput(D).
2a. For vehicles: Connect the cigarette lighter cable (E) to a vehicles
cigarette lighter socket.
2b. For socket-outlets:
– Connect the cigarette lighter cable (E) to the power adapter (F).
– Connect the power cable (G) to the power adapter (F).
– Connect the power cable (G) to the socket outlet. The power
indicator on the power adapter (F) lights up green.
NOTICE
After connecting the product to the power source, the
display (K) shortly shows A-01 and the power indicator (J) lights up
orange.

11
EN
Switching on/off
1. Slide the emergency switch (N) to NORMAL USE position.
2. Switching the product on or off: Press and hold the power button
(H) for 3seconds.
NOTICES
• The product saves the last used settings, even after interruption of
power supply.
• The product switches off and on at intervals to maintain the
temperature. When the compressor is running, the operating indicator
(J) lights up green.
• During normal operation, the display (K) shows the cooling
compartment’s current temperature.
• For best results only store already cooled food/beverages. Select a
place that is protected from a direct sunlight.
Adjust temperature (0 to 50 °F / –18 to +10 °C)
1. Press the settings button SET (I). The cooling temperature flashes.
2. Press the buttons +/– (L) to adjust the cooling temperature.
3. Press the settings button SET (I) 3 times to confirm the setting.
Select temperature unit
1. Press the settings button SET (I) twice. The temperature unit flashes.
2. Press the buttons +/– (L) to toggle between Fahrenheit and Celsius.
3. Press settings button SET (I) twice to confirm the setting.
Vehicle battery protection
NOTICE To prevent the vehicle battery from being fully discharged,
the product automatically stops operation when the battery voltage drops
below a preset value.
1. Press the settings button SET (I) 3 times. The set battery mode
LO/NE/HI flashes.
2. Press the buttons +/– (L) to toggle between different battery modes.
3. Press settings button SET (I) to confirm the setting.

12
EN
The following tables explain the setting for 12 V and 24 V batteries.
Thebattery voltage is recognizes automatically.
12 V DC Low mode
(LO)
Medium mode
(NE)
High mode
(HI)
Cut-off voltage 10.1 ±0.3 V 11.4 ±0.3 V 11.8 ±0.3 V
Restaring
voltage 11.1 ±0.3 V 12.2 ±0.3 V 12.6 ±0.3 V
24 V DC Low mode
(LO)
Medium mode
(NE)
High mode
(HI)
Cut-off voltage 21.5 ±0.3 V 24.1 ±0.3 V 24.6 ±0.3 V
Restaring
voltage 23.0 ±0.3 V 25.3 ±0.3 V 26.2 ±0.3 V
NOTICE If the product is powered by 100–240VAC socket outlet
and the power adapter (F) set the battery protection to low mode (LO).
Otherwise the lower voltage of the power adapter can activate the
battery protection and switch off the product. In such a case the error
indicator (O) flashes once every 4seconds.
Opening/closing
1. Opening: Open the lid (A) by pulling the latch.
2. Closing: Carefully close the lid (A) by holding it by the latch. The lid
must be level with the outer housing.
USB charging port
The USB charging port (M) provides 5 V and 500 mA.
1. Carefully take out the rubber cover.
2. Connect the USB device to the USB charging port (M).
3. After use, put the rubber cover back in place.
Emergency mode
In case of a malfunction of the control panel (B), set the emergency
switch (N) to EMERGENCY OVERRIDE position.
NOTICES
• In this mode no settings can be changed.
• The default settings are:
– Cooling temperature: –0.4°F / –18 °C
– Vehicle battery protection: Low
• This mode is not intended for long-term use.

13
EN
Cleaning and Maintenance
WARNING Risk of electric shock! To prevent electric shock,
unplug the product before cleaning.
WARNING Risk of electric shock! During cleaning do not
immerse the product in water or other liquids. Never hold the product
under running water.
Defrosting
Frost can be formed in the interior of the cooling compartment of the
product.
Defrosting the cooler prevents the cooling capacity being decreased or
objects being frozen on the inner surfaces of the cooling compartment.
To defrost, follow the below steps:
• Empty the cooling compartment. If necessary, place the foods/
beverages in other refrigerator.
• Remove the frost by wiping it off or melting it naturally by switching
the product off and opening the lid.
NOTICE Never use hard or pointed tools to remove ice or to
loosen frozen objects, as this can damage the inner surfaces of the
compartment.
NOTICE Do not empty the frost or water in the compartment by
turning the cooler over. Wipe the water with an absorbent cloth.
Cleaning
• Empty the cooling compartment. If necessary, place the foods/
beverages in other refrigerator.
• To clean the product, wipe with a soft, slightly moist cloth. Use 1 part
vinegar to 3parts lukewarm water solution.
• For stubborn stains or buildups, use a small amount of white
toothpaste and a soft brush.
• Dry the product after cleaning.
• Never use corrosive detergents, wire brushes, abrasive scourers,
metal or sharp utensils to clean the product.

14
EN
Storage
• Store the product in an upright position.
• Store the product in its original packaging in a dry area. Keep away
from children and pets.
• To prevent odors and mold growth, leave the door open slightly,
blocking it open if necessary.
Cigarette lighter plug fuse replacement
The cigarette lighter plug is equipped with a fuse
rated 15 A. In case the fuse is blown, replace it
with a fuse of the same type.
1. Open the cap of the plug (E) by screwing it
in a anti-clockwise direction.
2. Change the fuse against a fuse with the
same type (15 A).
3. Close the cap of the plug (E).
Plug fuse replacement (for UK only)
1. Use a flat screwdriver to open the plug cover.
2. Remove the fuse and replace with the same type (13 A, BS1362).
Refit the cover.
LED light replacement
The LED lamp contained in this product is non-user replaceable. Contact
a professional repair centre.
Maintenance
Any other servicing than mentioned in this manual should be performed
by a professional repair center.
Cap
Fuse

15
EN
Troubleshooting
Problem Possible cause Solution
The product
does not
switch on.
• No power
input.
• Check whether input power is
matching.
• Check whether power cable
(E/G) is connected properly.
The product
does not
switch on.
• Cigarette
lighter plug
fuse blown.
• Replace the fuse.
• Vehicle-
mounted fuse
blown.
• Refer to vehicle operating
manual and replace the fuse.
• Cigarette
lighter
plug is not
connected
properly.
• Plug in the cigarette lighter
cable (E) properly.
For UK only:
The product
does not
switch on.
• Fuse in the
plug (G) is
blown.
• Use a flat screwdriver to open
the plug cover. Remove the
fuse and replace with the
same type (13 A, BS1362).
Refit the cover.
Cooling
temperature
cannot be
set.
• Temperature
transmitter is
broken.
• Contact a professional repair
centre.
• Emergency
mode is
switched on.
• Set the emergency switch (N)
to NORMAL USE position.
Error indicator
(O) light
flashes.
• Fast:
Compressor
operating
trouble.
• The compressor tries to restart
every 60seconds. If the
problem persists, Contact a
professional repair centre.
• Every
4seconds:
Input voltage
too low.
• Set the vehicle battery
protector to low mode (LO).
• Charge the vehicles battery.
Error code
Err1 or Err2.
• Temperature
sensor
broken.
• Contact a professional repair
centre.

16
EN
FCC – Supplier’s Declaration of Conformity
Unique Identifier B083PDMR8T – Portable
Compressor Fridge 28L
Responsible Party Amazon.com Services, Inc
U.S. Contact Information
410 Terry Ave N.
Seattle, WA
98109, United States
Telephone Number [phone]
FCC Compliance Statement
1. This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
Canada IC Notice
• This Class B digital apparatus complies with Canadian
CANICES-3(B) / NMB-3(B) standard.

17
EN
Disposal
The Waste Electrical and Electronic Equipment (WEEE) Directive
aims to minimise the impact of electrical and electronic goods
on the environment, by increasing re-use and recycling and by
reducing the amount of WEEE going to landfill. The symbol on
this product or its packaging signifies that this product must be
disposed separately from ordinary household wastes at its end
of life. Be aware that this is your responsibility to dispose of
electronic equipment at recycling centers in order to conserve
natural resources. Each country should have its collection
centers for electrical and electronic equipment recycling. For
information about your recycling drop off area, please contact
your related electrical and electronic equipment waste
management authority, your local city office, or your household
waste disposal service.
Specifications
Main unit
Model number:
DS-YT-B-30PN-US
DS-YT-B-30PN-UK
DS-YT-B-30PN-EU4
Rated voltage: 12/24 V DC
Current consumption: Max. 4.6/2.3A
Power consumption: Max. 55.2W
Protection class: Class III
USB port: 5 V DC, 500 mA
Average power consumption: 1324.8W/24 hours
Cooling temperature range: 0 to 50 °F (–18 to +10 °C)
Capacity: 7.4 gal (28 L)
Refrigerant type: R134a 1.94 oz (55g)
Foaming agent: C5H10
Operating temperature: 50 to 110°F
(+10 to +43°C)
Climate class: SN, N, ST, T
Net weight: approx. 30 lbs (13.5 kg)
Dimensions (W x H x D): approx. 22.8 x 13.2 x 16.4"
(58 x 33.5 x 41.6cm)

18
EN
Power adapter
Model number: ZF120A-2404750
Rated voltage: 100–240 V AC
Rated current: Max. 2 A
Protection class: Class II
Output current: 4.75 A
Output voltage: 24 V
Average active efficiency: 88 %
Efficiency at low load (10 %): 89 %
Efficiency level: VI
No-load power consumption: 50 W
Cigarette lighter cable
Rated voltage: 12/24 V DC
Fuse type: Fast blow, 15 A
Feedback and Help
Love it? Hate it? Let us know with a customer review.
AmazonBasics is committed to delivering customer-driven products
that live up to your high standards. We encourage you to write a review
sharing your experiences with the product.
US: amazon.com/review/review‑your‑purchases#
UK: amazon.co.uk/review/review‑your‑purchases#
US: amazon.com/gp/help/customer/contact‑us
UK: amazon.co.uk/gp/help/customer/contact‑us

19
FR
MESURES DE SÉCURITÉ
IMPORTANTES
Veuillez lire attentivement les présentes
instructions et les conserver afin de pouvoir
vous y référer ultérieurement. En cas de cession
de ce produit à un tiers, le présent manuel
d’utilisation doit également lui être remis.
Lorsque vous utilisez des appareils électriques, vous
devez toujours prendre des mesures de sécurité
de base afin de réduire tout risque d’incendie,
d’électrocution et/ou de blessures corporelles.
Cesprécautions incluent notamment les suivantes:
AVERTISSEMENT N'utilisez pas d'appareils
électriques dans les espaces de conservation des
aliments de l'appareil, à moins qu'ils ne soient du type
recommandé par le fabricant.
AVERTISSEMENT Risque de dommages
causés au produit. N’obstruez pas les évents de
ventilation présents à l’extérieur et à l’intérieur de
l’appareil.
AVERTISSEMENT Risque d'accident ou de
blessure grave! Lorsqu'installé dans un véhicule:
l'appareil doit être fixé de telle sorte qu'il ne présente
pas de danger pour la sécurité en cas de collision ou
de freinage brutal.
AVERTISSEMENT Lors du positionnement de
l'appareil, assurez-vous que le câble d'alimentation
n'est pas coincé ni endommagé.
AVERTISSEMENT Ne placez aucune multiprise
mobile ni aucune alimentation électrique portative à
l'arrière de l'appareil.
• L’appareil ne doit être utilisé qu'avec le module
d’alimentation électrique fourni avec l’appareil.

20
FR
• L'appareil ne doit être alimenté qu'à une très basse
tension de sûreté correspondant à la signalétique
apposée sur l'appareil.
• Si le câble d’alimentation est endommagé, il doit
être remplacé par un câble spécial disponible
auprès du fabricant ou de son service de réparation.
• Cet appareil est considéré comme pouvant être
utilisé à des températures comprises entre 50 et
110°F (de +10 à 43°C).
• Lorsque vous utilisez l'appareil dans un véhicule
ou un bateau, assurez-vous que le réseau
d'alimentation électrique est correctement protégé
par des fusibles et qu'il peut répondre aux
exigences de puissance électrique. L'utilisation d'un
dispositif différentiel à courant résiduel (DDR) dont
l'intensité nominale de fonctionnement ne dépasse
pas 30mA est recommandée.
• L'appareil est adapté à une utilisation en camping.
• L'appareil ne doit pas être exposé à la pluie.
• Ne gardez pas de substances explosives,
notamment des contenants d'aérosol avec des gaz
propulseurs inflammables, dans cet appareil.
• Cet appareil est destiné à une utilisation domestique
ou similaire telle que:
– dans les cuisines réservées au personnel de
magasins, bureaux et autres environnements de
travail;
– dans des maisons de campagne;
– par les clients d’hôtels et d'autres environnements
de type résidentiel;
– dans les environnements de type chambre d'hôtes.
Cet appareil est destiné à un usage privé
