Amberg Technologies AG Tunnel 2.0 - Tunnelscan User manual

Amberg Tunnelscan
Adding value to your scan data
User manual
30/04/2018 (Application version 2.13)
© Amberg Technologies, 2018
Art.No. 21789
Amberg Technologies AG
Trockenloosstrasse 21
8105 Regensdorf
Switzerland
Phone: [phone]
Mail: [email protected]
http://www.amberg.ch/at

User manual
© Amberg Technologies, 2018 Page 3 of 68
Table of Contents
Introduction ................................................................................................................................. 5
1 What is Amberg Tunnel 2.0 - Tunnelscan ..................................................................... 5
2 Scanner measurements in general ................................................................................ 5
1 General introduction ................................................................................................................ 7
1.1 General work flow ........................................................................................................ 7
1.2 Concepts ....................................................................................................................... 7
1.2.1 Measurements and construction stages ........................................................... 7
1.2.2 Measurement source independence ................................................................ 7
1.2.3 Analysis setup ................................................................................................... 7
1.2.4 Calculations ....................................................................................................... 8
1.2.5 Create analysis once, reuse many times ......................................................... 9
1.3 Shortcuts ....................................................................................................................... 9
2 Preparations ............................................................................................................................ 11
2.1 Design data .................................................................................................................. 11
2.2 Addresses ..................................................................................................................... 11
2.3 Custom report templates ............................................................................................. 11
3 Point cloud measurements ..................................................................................................... 13
3.1 Point clouds editor ....................................................................................................... 13
3.1.1 Overview editor ................................................................................................. 13
3.1.2 Detail editor ....................................................................................................... 14
3.2 Synchronize measurement data with Amberg Navigator Tablet ................................. 14
3.2.1 Export measurement data to Amberg Navigator Tablet ................................... 15
3.2.2 Synchronize measurement data with Amberg Navigator Tablet ...................... 15
3.3 Import measurement data ............................................................................................ 15
3.3.1 Import point cloud data ..................................................................................... 16
3.4 Export measurement data to PTS ............................................................................... 16
3.5 Edit measured points ................................................................................................... 16
3.5.1 Select points with polygon ................................................................................ 16
3.5.2 Delete point cloud selection ............................................................................. 17
3.5.3 Copy point cloud selection ............................................................................... 17
3.5.4 Increase / Decrease point cloud density .......................................................... 17
3.5.5 Downsample point cloud ................................................................................... 17
3.5.6 Point cloud filter ................................................................................................ 17
3.6 Point cloud filter ........................................................................................................... 18
3.7 Copy & paste measured point clouds ......................................................................... 19
3.8 Reposition measured point clouds .............................................................................. 19
3.8.1 Reposition of instrument ................................................................................... 20
3.8.2 APM reposition of point cloud .......................................................................... 22
3.8.3 Reposition with checkerboard or sphere targets .............................................. 23
4 Analysis and reporting ............................................................................................................ 27
4.1 Analysis type Line scan ............................................................................................... 27
4.1.1 Add analysis wizard .......................................................................................... 27
4.1.2 Analysis editor ................................................................................................... 28
4.1.3 Analysis settings ............................................................................................... 30
4.1.4 Reporting ........................................................................................................... 36
4.1.5 Export data ........................................................................................................ 37
4.1.6 Additional functions ........................................................................................... 39
4.2 Analysis type Layer thickness ..................................................................................... 39
4.2.1 Add analysis wizard .......................................................................................... 39
4.2.2 Analysis editor ................................................................................................... 40

User manual User manual
Page 4 of 68 © Amberg Technologies, 2018
4.2.3 Analysis settings ............................................................................................... 42
4.2.4 Reporting ........................................................................................................... 43
4.2.5 Export data ........................................................................................................ 44
4.3 Analysis type Blast round scan ................................................................................... 46
4.3.1 Add analysis wizard .......................................................................................... 46
4.3.2 Analysis editor ................................................................................................... 47
4.3.3 Analysis settings ............................................................................................... 48
4.3.4 Reporting ........................................................................................................... 52
4.3.5 Export data ........................................................................................................ 52
4.4 Analysis type Undulation ............................................................................................. 52
4.4.1 Add analysis wizard .......................................................................................... 53
4.4.2 Analysis editor ................................................................................................... 53
4.4.3 Analysis settings ............................................................................................... 54
4.4.4 Graphical reports ............................................................................................... 56
4.5 Analyses type High resolution image .......................................................................... 57
4.5.1 Add analysis wizard .......................................................................................... 57
4.5.2 Analysis editor ................................................................................................... 57
4.5.3 Analysis settings ............................................................................................... 58
4.5.4 Reporting ........................................................................................................... 59
4.5.5 Export data ........................................................................................................ 59
5 Additional project elements ..................................................................................................... 61
5.1 Scan settings ................................................................................................................ 61
Glossary ...................................................................................................................................... 63

User manual
© Amberg Technologies, 2018 Page 5 of 68
Introduction
This is the user manual of the Amberg Tunnel 2.0 - Tunnelscan module. It contains all infor-
mation about scan measurements, processing and analysis.
This manual builds on the manual Amberg Tunnel 2.0 - Base. General information about the
software, e.g. creation of projects, definition of headings, axes, construction stages, etc., can
be found in the manual Amberg Tunnel 2.0 - Base.
1 What is Amberg Tunnel 2.0 - Tunnelscan
Amberg Tunnel 2.0 - Tunnelscan contains the modules Amberg Tunnelscan Basic and Amberg
Tunnelscan Plus.
The module Amberg Tunnelscan Basic serves the management, analysis and reporting of
measured point cloud data from a tunnel project. Measurement data from various sources can
be imported, managed, analyzed and converted to reports. A tight integration with the field
software Amberg Navigator Tablet allows an automated data synchronisation.
On top of the functionality of Amberg Tunnelscan Basic, Amberg Tunnelscan Plus offers
more analysis types and advanced export functionality.
2 Scanner measurements in general
Doing scan measurements at the different construction stages of the tunnel documents the as-
built geometry, allows deviation checks and layer thickness calculation. Scan measurement
and evaluation is a repetitive task executed on each underground site on a daily basis.
Amberg Tunnelscan will support you to manage and analyse your measured scans in a seam-
less work flow. Minimizing the time from measuring the scan data to handing out the reports
to your customer improves your efficiency.

Page 6 of 68

User manual
© Amberg Technologies, 2018 Page 7 of 68
Chapter 1 General introduction
1.1 General work flow
The general work flow when working with Amberg Tunnel 2.0 - Tunnelscan consists of the
following steps:
1. Create a new project with the New project wizard. Please refer to the Amberg Tunnel 2.0
- Base manual for more details.
2. Input the design data of the project like tubes, sites, headings, axes, construction stages
with theoretical profiles and theoretical sections. Please refer to the Amberg Tunnel 2.0 -
Base manual for more details.
3. Import measurements to a construction stage through measurement data synchronisation
with Amberg Navigator or using import functionality in the Measured point clouds editor.
4. Create a analysis using the New point cloud analysis wizard.
5. Customize the Analysis settings to your needs.
6. Check the measured scan data and create graphical or tabular reports.
7. Import new measurements, analyse and create reports as the project continues.
1.2 Concepts
This chapter describes the most important concepts of Amberg Tunnel 2.0 - Tunnelscan. Fur-
ther basic concepts are explained in the chapter Concepts in the manual Amberg Tunnel 2.0
- Base.
1.2.1 Measurements and construction stages
In an Amberg Tunnel project, each heading has a Measurements node which handles vari-
ous types of measurement data. Measured point clouds are managed per construction stage,
allowing comparison between construction stages and easy filtering to keep the overview. In

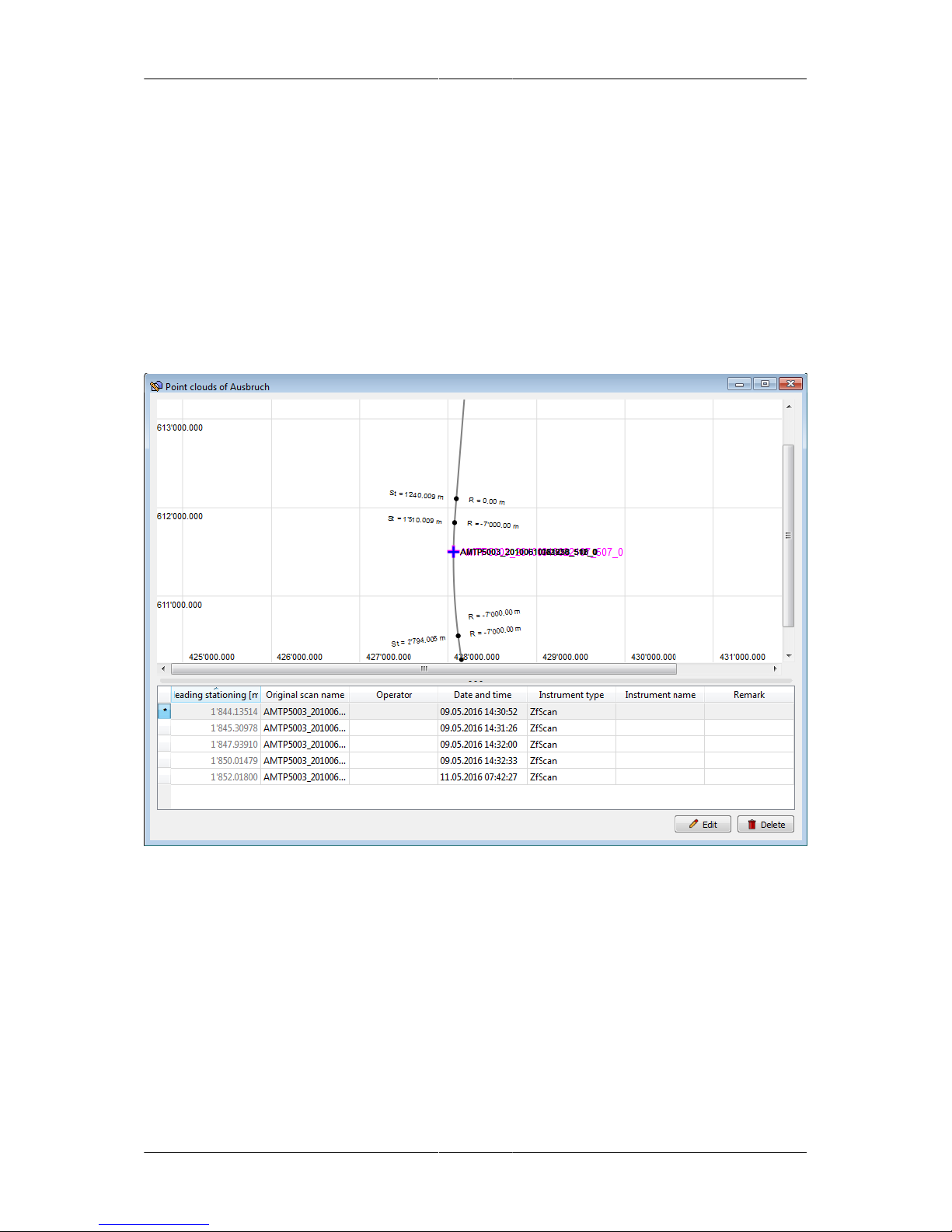

the point clouds editor, all imported point clouds are stored, listed and displayed. The user can
check the imported point clouds and clean up the data if necessary.
1.2.2 Measurement source independence
Measurement data can be synchronized with Amberg Navigator Tablet enabling the user to
handle design data as well as measured data in Amberg Tunnel 2.0. For being independent
of the measurement source, also scan measurement data from other devices can be imported
with the flexible ASCII import wizard. Pointclouds available in other formats (e.g. ZFS, PTS,
FLS, PCD, LAS/LAZ) can be also imported to the Point clouds editor.
1.2.3 Analysis setup
When creating a new point cloud analysis, a wizard helps to configure the essential settings.
During this process, the user is asked to specify construction stages from which the design
data and the measurement data are used.

General introduction User manual
Page 8 of 68 © Amberg Technologies, 2018
1.2.3.1 Design data
The construction stage set as Reference construction stage in the settings is used to read the
design data from. The design data (theoretical profiles, theoretical sections, transverse slope,
block information) of this construction stage is used for all the calculations.
1.2.3.2 Line scan analyses
In a point cloud analysis of type Line scan, the user can select one or multiple construction
stages to analyse the measured point clouds.
1.2.3.3 Blasting round scan analyses
In an analysis of type Blasting round scan, the user can select one or multiple construction
stages to analyse the measured point clouds. The measured point clouds of different excava-
tion steps can be automatically merged together without any manually masking of the data.
Only the relevant parts of the scan will be used to create the model. The result will be a com-
plete measured model of the tunnel from different scans.
1.2.3.4 Layer thickness analyses
The user can select a construction stage as Original construction stage. The measured point
clouds of this construction stage will be used as original point cloud for deviation calculation.
Furthermore, the user can select a second construction stage as Comparison construction
stage. The measurements of this construction stage will be calculated against the one of the
original construction stage to derive deviation values.
1.2.3.5 Undulation analysis
The analysis type Undulation is made for a evenness control of the tunnel surface. The user
can select one or multiple construction stages to analyse the measured point clouds. The mea-
sured point clouds will be used for evenness calculation of the tunnel surface. This analysis
is used for quality cheeks of the shotcrete before the membrane system for waterproofing will
be applied in the tunnel.
1.2.4 Calculations
1.2.4.1 Deviation
The deviation value represents a distance to a 3D model. The distance is calculated on a
straight line perpendicular to the theoretical model of the reference construction stage. It starts
from the measured point and ends at the intersection with the theoretical model.
1.2.4.2 Under-/overprofile area
The under-/overprofile area is calculated by intersecting the current profile either with the the-
oretical profile (for analysis type measured vs. design) or with the profile of the original con-
struction stage (for analysis type measured vs. measured). All areas that are outside of the
profile, are summed up to a total over profile area value. All areas that are inside of the profile,
are summed up to a total underprofile area value.
1.2.4.3 Over- / under profile volume
The under-/overprofile volume is calculated by multiplying under-/overprofile area values of a
measured profile with the stationing difference to the next one.

User manual General introduction
© Amberg Technologies, 2018 Page 9 of 68
1.2.4.4 Area classification report
This application allow to calculate the classification values for the point clouds (e.g. under- and
overprofile). These values define how many points of all measured points are within a defined
range e.g. how many points have an under profile value between 0.2 and 0.3m. This is only
a text report stored in TXT.
1.2.4.5 Area coverage report
This application allow to calculate the coverage percentage values for the point clouds. These
coverage values define how many points of all possible grid points are measured. This is only
e text report in TXT.
1.2.5 Create analysis once, reuse many times
To work efficiently with Amberg Tunnel 2.0 - Tunnelscan it is recommended to create analyses
for a certain purpose, customize them to your needs and reopen when new measurements
need to be evaluated or reports need to be delivered. Every time after new measurements have
been imported to the project, the analysis can be reopened. This will automatically recalculate
and update all diagrams to the new data. All settings remain unchanged to make sure the
generated reports stay consistent over time.
1.3 Shortcuts
Ctrl + N New Project...
Ctrl + O Open project...
Ctrl + S Save editor
Ctrl + C Copy selected input field content to clipboard
Ctrl + V Paste clipboard content to selected input field
Ctrl + A Select all content of a input field or table
TAB Navigate forward through input forms and table cells
Shift + TAB Navigate backward through input forms and table cells
Alt + Arrow left/right Navigate between tables of multi-table editors
Alt + Arrow up/down Navigate between tabs of tabbed editors
F5 Refresh print preview tabs in analyses

Page 10 of 68

User manual
© Amberg Technologies, 2018 Page 11 of 68
Chapter 2 Preparations
2.1 Design data
The module Amberg Tunnelscan is based on the Base module of Amberg Tunnel 2.0. The
project definition and all design data are shared between the modules of Amberg Tunnel 2.0.
For information about how to set up a project and design data, please refer to the manual
Amberg Tunnel 2.0 - Base.
2.2 Addresses
It is possible to create and manage several sender and recipient addresses including the re-
spective logos. Select them for printing on reports. Please find more information about address-
es in the manual Amberg Tunnel 2.0 - Base.
2.3 Custom report templates
Custom report templates allow to generate reports from the point cloud analysis that have a
different layout than the default layout of Amberg Tunnelscan. Please find more information
about custom report templates in the manual Amberg Tunnel 2.0 - Base.

Page 12 of 68

User manual
© Amberg Technologies, 2018 Page 13 of 68
Chapter 3 Point cloud measurements
Point cloud measurements of a heading are stored as part of the project and managed with the
Point clouds editor. To open the editor, go to the Measurements node in the project tree and
double-click on Points clouds of a construction stage.
3.1 Point clouds editor
3.1.1 Overview editor
The Overview editor lists all measured point clouds of a construction stage.
Figure 1. Point clouds editor
The graphical area displays a overview of the selected point clouds from the table in top view.
The measured point clouds table holds all measured point clouds imported to a construction
stage. In the table, each point cloud is listed with its attributes.
Heading stationing / 3D Tun-
nelmeter
Computed average Heading stationing / 3D Tunnelmeter
value of all points of the measured point cloud. Select the
stationing mode in the settings of this editor.
Point cloud name Point cloud name of the point cloud (optional).
Operator Operator that carried out the measurements (optional).
Date and time Date and time the measurements were carried out (option-
al).

Point cloud measurements User manual
Page 14 of 68 © Amberg Technologies, 2018
Instrument type Instrument type used for carrying out the measurements
(optional).
Instrument name Instrument name (serial number) of the instrument used for
carrying out the measurements (optional).
Remark Remark to the measured point cloud (optional). This remark
can be included the reports generated from an analysis.
To open the selected measured point cloud in the Detail editor, press the Edit button at the
bottom of the table or double-click on the point cloud in the table. To remove point clouds from
the project, select one or multiple point clouds in the table and press the Delete button at the
bottom of the table or in the toolbar.
3.1.2 Detail editor
The Detail editor is an 3D overview of all measured points of a point cloud.
Figure 2. Measured point clouds detail editor
The graphical area displays the measured point cloud in 3D.
To remove or edit points from a point cloud, select one or multiple points in the graphic with
the different selection tools in the toolbar and press the different tool buttons in the toolbar
or in the context menu. (see Section 3.1.2, “Detail editor” on page 14)
3.2 Synchronize measurement data with Amberg Navigator
Tablet
Using Amberg Navigator Tablet allows a two-way synchronisation of measured point clouds.
This synchronisation work flow is described below.

User manual Point cloud measurements
© Amberg Technologies, 2018 Page 15 of 68
3.2.1 Export measurement data to Amberg Navigator Tablet
To export data from Amberg Tunnelscan to Amberg Navigator Tablet, right-click on the
Project node in the Project tree and select Export to Amberg Navigator Tablet. Select a
filename and a target directory to save the *.at2nav file.
In the synchronisation process with Amberg Navigator Tablet, Amberg Tunnelscan
acts as the master. If data is exported to Amberg Navigator Tablet, the measured point
clouds are handled as described below.
■All measured point clouds available in Amberg Tunnelscan are exported to the Am-
berg Navigator Tablet.
■Measured point clouds imported from Amberg Navigator Tablet that were edited in
Amberg Tunnelscan will replace the original point cloud on the tablet.
■Measured point clouds imported from Amberg Navigator Tablet that were deleted
in Amberg Tunnelscan will also be deleted on the tablet and no longer available for
evaluation there.
3.2.2 Synchronize measurement data with Amberg Navigator Tablet
3.2.2.1 Export measurement data to Amberg Navigator Tablet
To export data from Amberg Tunnelscan to Amberg Navigator Tablet, right-click on the
Project node in the Project tree and select Export to Amberg Navigator Tablet or Synchro-
nise with Amberg Navigator Cloud. Select a filename and a target directory to save the
*.at2nav file for the file export to Navigator Tablet. If the data transfer should be done via Navi-
gator Cloud connection, please define the Cloud synchronisation settings for the data trans-
fer in the project tree.
For more information, please see the Amberg Navigator or Amberg Navigator Tablet manual.
3.2.2.2 Read measurement data from Amberg Navigator Tablet
To read measured point clouds from Amberg Navigator Tablet, right-click on the Project
node in the Project tree and select Import from Amberg Navigator Tablet or Synchronise
with Amberg Navigator Cloud. Select for import via file a *.nav2at file exported from Amberg
Navigator Tablet to read the measured point clouds back to Amberg Tunnelscan. If the data
transfer should be done via Navigator Cloud connection, please define the Cloud synchroni-
sation settings for the data transfer in the project tree.
For more information, please see the Amberg Navigator or Amberg Navigator Tablet manual.
3.3 Import measurement data
Open the Point cloud editor of the construction stage that the measured point clouds should
be assigned to. Use the Import button from the menu, the toolbar or the context menu to start
the Import point cloud data wizard. The wizard supports importing measurement data from
point cloud measurements. Select the data source according to your measurement data.

Point cloud measurements User manual
Page 16 of 68 © Amberg Technologies, 2018
Figure 3. Import measurement data wizard
3.3.1 Import point cloud data
The Import point cloud data wizard supports importing of point cloud data from various
sources. The wizard guides you through the following steps:
1. Select the data source type that suits your data.
2. Select the files that you want to import. Note that importing of multiple files is supported for
some file formats.
3. ASCII import only: Specify the file format.
4. ASCII import only: Specify the content of data columns.
5. ASCII import only: Specify the attributes that will be set for all imported profiles.
In case your point cloud data does not fit one of the standard file formats, but is stored
in an ASCII file, use the flexible ASCII import. This option allows to specify the format
of the source files.
3.4 Export measurement data to PTS
Open the Point cloud editor of the construction stage and select the point clouds that should
be exported. Use the Export to PTS button from the menu, the toolbar or the context menu
to start the export.
3.5 Edit measured points
Open the Point cloud editor of the construction stage containing the point cloud that should
be edited. Select a point cloud and open it (use the Edit button at the bottom of the table or
double-click on the table entry). The Detail editor displays the points of the point cloud.
3.5.1 Select points with polygon
Use the select points inside or outside buttons from the menu, the toolbar or the context menu
to start the point selection. To delete the point cloud selection use the cancel point cloud
selection button in the toolbar.

User manual Point cloud measurements
© Amberg Technologies, 2018 Page 17 of 68
3.5.2 Delete point cloud selection
Select one or multiple points in the graphics. To delete the selected points, press the Delete
button in the toolbar or in the context menu.
3.5.3 Copy point cloud selection
Select multiple points in the graphics. Use the copy point cloud selection button to copy all
selected points to a other construction stage. (For example if point cloud contains measure-
ments from excavation surface and shotcrete surface)
3.5.4 Increase / Decrease point cloud density
The preview of the point cloud can be increased or decreased for better handling and more
details.
3.5.5 Downsample point cloud
Use the downsample point cloud button to downsample the point cloud. A reduction of the
point cloud with the defined grid will be done.
3.5.6 Point cloud filter
To filter a point cloud manually in the detail editor use the filter tools in the point cloud filter
dialog. Normally only points in a defined distance around the scanner should be used for the
analyses. The accuracy of closer points around the scanner center will have a higher absolute
coordinate accuracy the points far away. More than 80 percent of the scan points will be in
overlapping areas (e.G. Available in a other scans). That points can be also filtered to increase
the performance of the analyses significant. To use the analyses later in a full automatic way
it is recommenced to have only two different CS measurements in one scan (E.g. excavation
and shotcrete layer 1 or shotcrete layer 1 and shotcrete layer 2). Other CS in the same scan
can be copied to a other CS point cloud measurement folder.
There are two different filter types available.
The filter are also in the point cloud editor available without open every scan manually
Filtered points are deleted from the project and are not available for other analyses.
Distance filter The distance filter selects all measured points from the center of the
scanner up to a defined range. Input the distance value or move the
slider to the distance that should be used for filtering. Select if points
inside ore outside of the defined sphere should be filtered.
Plane Filter The plane filter selects points on defined HS/TM values. Input the dis-
tance value or move the slider to the distance that should be used for
filtering. Select if points inside ore outside of the defined planes should
be filtered.

Point cloud measurements User manual
Page 18 of 68 © Amberg Technologies, 2018
Figure 4. Measured point cloud detail filter
3.6 Point cloud filter
The filters used in the point cloud detail editor and the down sampling of data can be used
in the point cloud editor. Select one or multiple scans in the list and use the point cloud filter
button to input the value for the filtering of all selected scans. Input the values for the filter and
press OK to start the filter function.

User manual Point cloud measurements
© Amberg Technologies, 2018 Page 19 of 68
Figure 5. Import measurement data wizard
3.7 Copy & paste measured point clouds
To copy existing point cloud to the clipboard, open the Point cloud editor of the construction
stage containing the point clouds that should be copied. Select one or multiple point clouds
that you want to copy. Use the function Copy measured point cloud from the toolbar or from
the context menu. Instrument positioning information is preserved.
To paste copied point cloud, open the Point cloud editor of the construction stage where
the point clouds should be pasted to. Use the function Paste measured point cloud from the
toolbar or from the context menu.
Profiles are copied relative to the stationing on the axis. This means that you can paste
point clouds to a different construction stage or site. You can even copy point clouds
to a different project if you have two instances of Amberg Tunnel 2.0 running at the
same time.
3.8 Reposition measured point clouds
The point cloud measurement methods listed in the table below store the positioning infor-
mation of the instrument (measurements to control points) with the point cloud. If this posi-
tioning information is available, the coordinates of the point cloud points can be repositioned
based on the control points stored in Amberg Tunnel 2.0.
Table 1. Measurement methods providing positioning information
Software Hardware Re-positioning type
Amberg Navigator
Tablet
Multistation Instrument Resection

Point cloud measurements User manual
Page 20 of 68 © Amberg Technologies, 2018
Software Hardware Re-positioning type
Amberg Navigator
Tablet
Instrument with: Amberg Scanner, ZF Scan-
ner and Faro Scanner
Resection and APM
Amberg Scan Con-
trol
Amberg Scanner, ZF Scanner and Faro
Scanner
APM
Amberg TMS Office Amberg Scanner, ZF Scanner and Faro
Scanner
APM
Faro Scene Faro Scan Checkerboard,
Spheres
Z+F LaserControl ZF Scan Checkerboard,
Spheres
Other E.g PTS, ASCII ... not available
Open the Point cloud editor of the construction stage containing the point clouds that should
be repositioned. Select the measured point cloud that you want to reposition (Multi selection
with same point cloud type is possible). Use the function Reposition button from the toolbar
or from the context menu. The Reposition point cloud data wizard will guide you through
the process.
The selected point clouds must contain positioning information in order to enable the
Reposition measured point cloud function. Check the property Repositioning infor-
mation available in the property window to see if a profile contains positioning infor-
mation.
To reposition measured point clouds successfully, the control points used during the
point cloud measurement must be available in the Control points editors of the project.
3.8.1 Reposition of instrument
The steps of the Reposition of the instrument for point cloud data wizard are described
following.
1. Select the state (date and time) at which the control point coordinates should be used.
2. Check the recalculation of the resection.
