AMC Wireless HDMI Video Link XN-11n User guide

Page: 1 of 10
AMC XN-11n
Wireless HDMI Video Link
Real-time, high-definition wireless video streaming
Full HDTV Standard, up to 1080 at 25 fps resolution
Support all other standards like 720 x 576, 720 x 480, 640 x 480 etc.
up scaling standard DVD (i.e. 720 x 480) to high-definition(1920 x 1080)
Fully standard compliant: HDMI(V1.2), HDC , H.264 and Homeplug AV( 200Mbps)
HOME
Entertain ent
Center
AMC
TM
INSTRUCTIONS FOR INSTALLATION AND OPERATION
PIF
-AMC/XO_H
Date: 10-26-2
INSTRUCTIONS FOR INSTALLATION AND OPERATION
P a g e 1 o 1 0
P N : 2 1 - X N - 1 1 n _ I M _ A
IA
AMC

Page: 2 of 10
APPLICATION AND FEATURE LIST
FEATURES OF THE AMCTM MODEL XN-11n
* Real-time, high-de inition wireless video streaming
* Full HDTV standard, up to 1080p at 25 ps resolution.
* Support all other video standards like 720 x 576, 720 x 480, 640 x 480
etc.
* up scaling standard DVD (i.e., 720 x 480) to high-de inition video
(1920 x 1080) or user to watch standard DVD with HDTV quality.
* Fully standard compliant –
HDMI (V1.2), HDCP, H.264 and Homeplug AV (200Mbps)
* Using Homeplug AV technology, you can watch your HD video without
obstruction o walls or around 150 meters power line distance.
P a g e 2 o 1 0
P N : 2 1 - X N - 1 1 n _ I M _ A

Page: 3 of 10
I. Features:

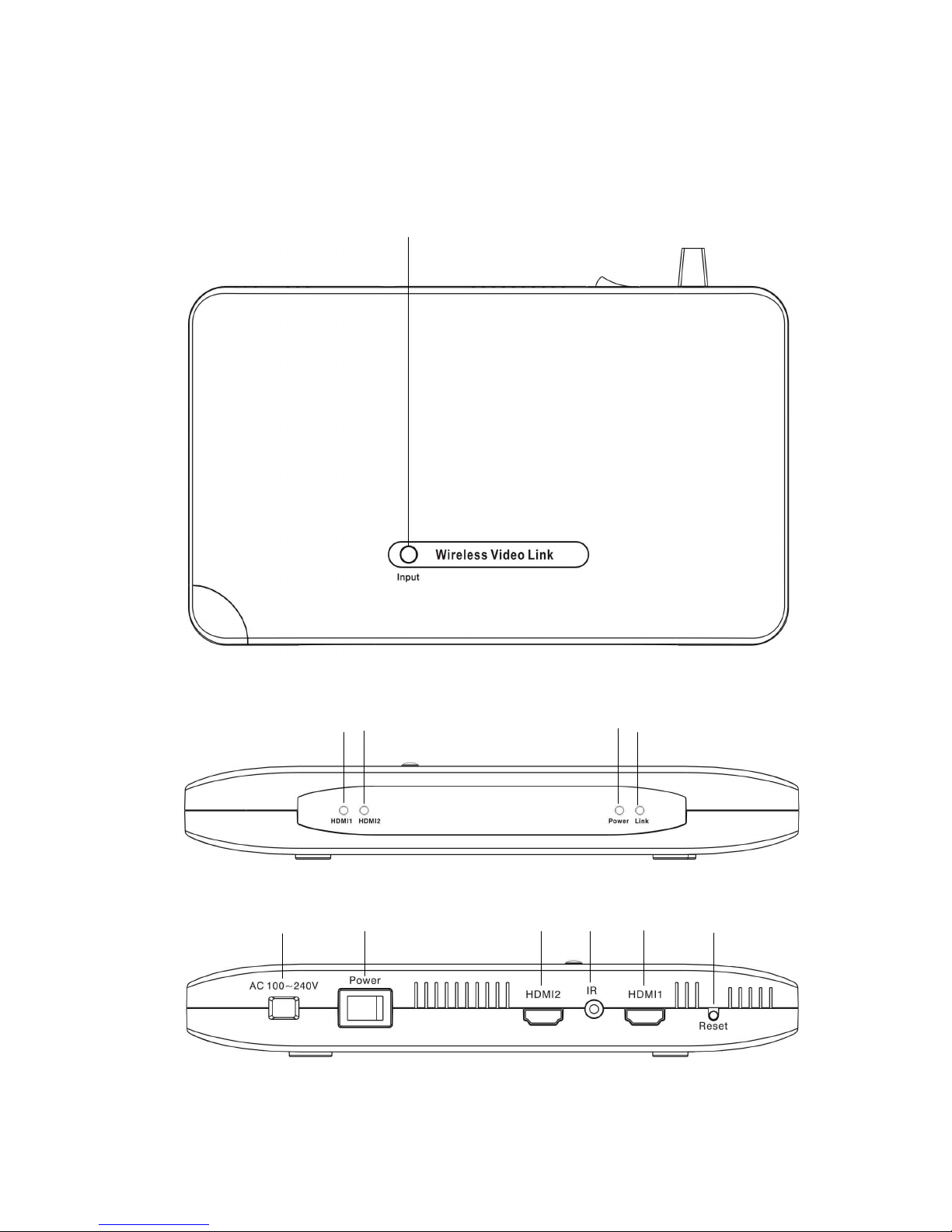

XN-11n Trans itter
Top View
1
Front View
2 3 4 5
Rear View
6 7 8 9 10 11
P a g e 3 o 1 0
P N : 2 1 - X N - 1 1 n _ I M _ A
AMC

Page: 4 of 10
1. Input Selector
2. LED indicator o HDMI 1
The LED will be light up when HDMI 1 input will be selected
3. LED indicator o HDMI 2
The LED will be light up when HDMI 2 input will be selected
4. Power LED
The LED will be light up when Power is ON.
5. Link indicator
6. Power Cord
100 ~ 240VAC
7. Power Switch
8. “HDMI 2” Input
9. IR Blaster output connector
10. “HDMI 1” Input
11. Reset
P a g e 4 o 1 0
P N : 2 1 - X N - 1 1 n _ I M _ A

Page: 5 of 10

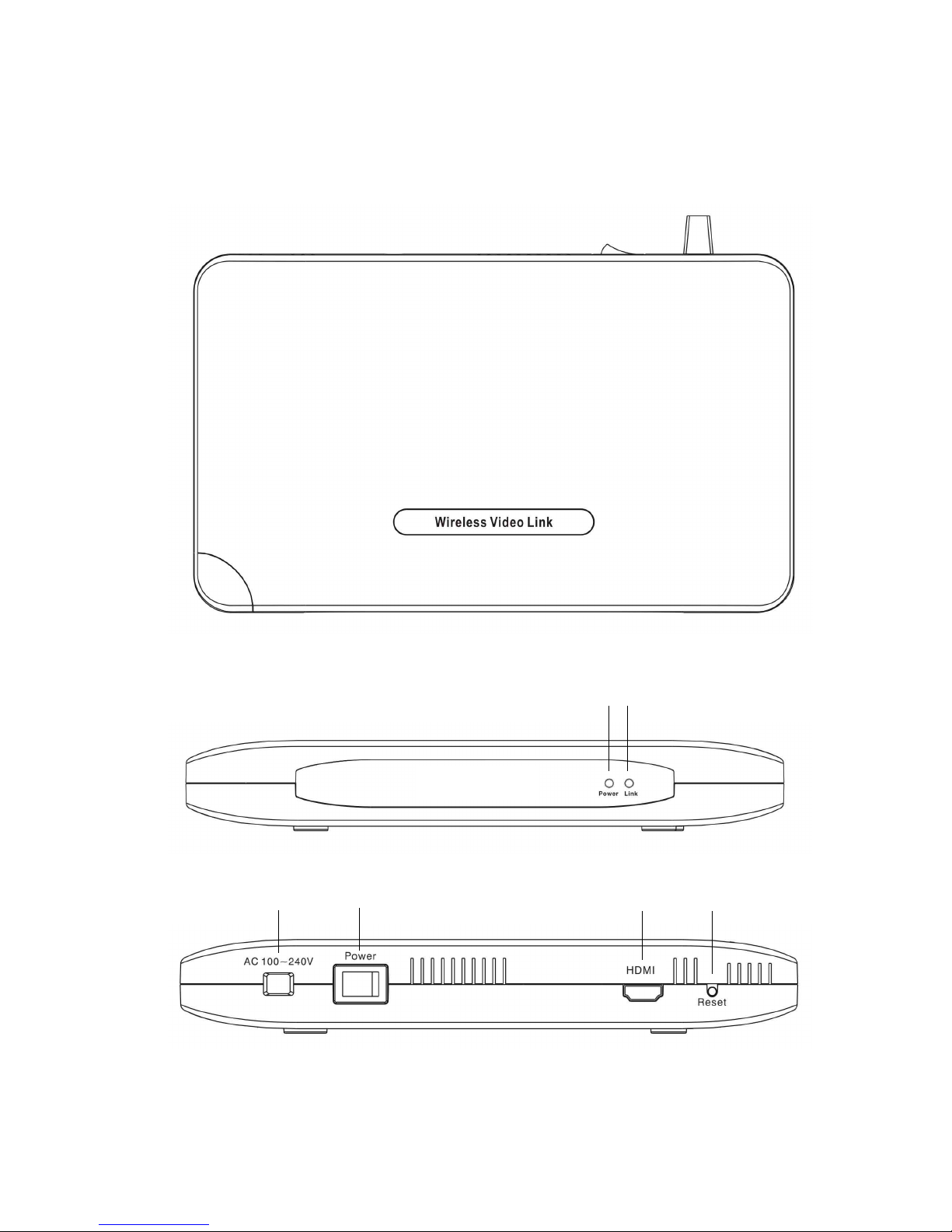

XN-11n Receiver
Top View
Front View
1 2
Rear View
3 4 5 6
P a g e 5 o 1 0
P N : 2 1 - X N - 1 1 n _ I M _ A
AMC

Page: 6 of 10
1. Power LED
The LED will be light up when Power is ON.
2. Link LED
The LED will be light up when the Receiver is Linked to Transmitter through 802.11n.
3. Power Cord
100 ~ 240VAC
4. Power Switch
5. HDMI output
6. Reset
P a g e 6 o 1 0
P N : 2 1 - X N - 1 1 n _ I M _ A

Page: 7 of 10
Touch Panel TP1
Touch Panel TP2
Mobile Touch Panel MTP1
Residential Ter inal RT1
Re ote Control
P a g e 7 o 1 0
P N : 2 1 - X N - 1 1 n _ I M _ A

Page: 8 of 10
J. Installing the XN-11n Wireless HDMI Video Link,
1. No Pre-wiring required
The XN-11n is using wireless 802.11n to link between HDMI sources to Video Monitors
with HDMI inputs. So there will be no pre-wiring or the system installation required.
2. Using HDMI cables to connect Sources with HDMI outputs to HDMI 1 & HDMI 2 inputs o
AMC XN-11n Transmitter.
3. Using HDMI Cable to connect Video Monitor with HDMI input (TV or Video Monitor) to
HDMI output o AMC XN11-n Receiver.
4. Plug power cords o XN-11n Transmitter and Receiver to AC wall power.
5. Switch Power Switches on rear panels o XN-11n Transmitter and Receiver to ON. The
Power and Link LED's will be lighted up indicating the XN-11n Transmitter and Receiver
are linked together through wireless 802.11n
6. Select HDMI 1 or HDMI 2 input by pressing INPUT selector button on the XN-11n
Transmitter. The selected corresponding HDMI 1 or HDMI 2 LED on XN-11n ront panel
will be lighted up.
7. When you want to turn o the system, please switch OFF the power switched on rear
panel o XN-11n transmitter and receiver.
P a g e 8 o 1 0
P N : 2 1 - X N - 1 1 n _ I M _ A

Page: 9 of 10
SPECIFICATIONS
Audio .................................................................................. 2 channel stereo
Support video resolutions ...... 480i, 480p, 576i, 576p, 720i, 720p, 1080i,
1080p, 640x480, 800x600, 1024x768,
1152x864, 1280x960, 1280x1024, 1360x768,
1440x900, 1440x1050, 1600x1200, 1680x1050,
1920x1200
Lan ............................................................................. 10/100Mbps Ethernet
Inputs ............................................... 2 x HDMI with HDCP key (HDMI V1.2a)
Output .................................... 1 x HDMI inputs with HDCP key (HDMI V1.2a)
PHYSICAL
Dimensions (W x H x D)........................................................... x x mm
Net weight...............................................................................…............. Kgs
Shipping weight (4 pieces)..................................................................... Kgs
Power consumption................................ 5.5W (Transmitter), 5.5W (Receiver)
AC voltage…………………………………………… 100 ~ 240VAC, 50 /60 Hz
Weltronics Corp. reserved the right to improve its products at any time.
Speci ications are subject to change without notice.
P a g e 9 o 1 0
P N : 2 1 - X N - 1 1 n _ I M _ A
