AMC Navigenio User manual

3MF
AMC Navigenio
User Manual
Eat better.
Live better.
The Premium
Cooking system
www.amc.info
10043676

Working steps are highlighted in blue.
Validity
This user manual is applicable for the model Navigenio, type C8100. The type label is engraved below one of the handles.
Read this user manual carefully before you use the Navigenio. Preserve the user manual and pass it on to
the next owner.
Meaning of the symbols
Important instructions for safety.
Non-compliance can lead to injuries
or damages.
Valuable information for users.
Poor operating conditions or improper usage. Tips for environment protection, ecology and
economy.
Good operating conditions or right usage.
1. Usage and safety in accordance
with regulations 4
Suitable pots 4
Avoiding damages,
avoiding improper usage 4
Possible dangers through electricity 5
Possible dangers through heat,
danger of fire 6
Monitoring 6
Maintenance and care 7
Disposal 7
2. Your Navigenio
2.1 Construct 8
2.2 Function and application 9
Usage as mobile hotplate 9
Usage as mini baking oven (overhead
function) for gratinating and baking 9
3. Handling 10
3.1 Usage as mini baking oven 10
3.2 Usage as mini baking oven (overhead
function) for gratinating and baking 11
Usage for gratinating 11
Usage for baking 12
4. Magnet holder assembly 12
5. Maintenance and care 13
6. Technical data 13
7. What to do, when... 14
8. AMC customer service 14

54
1. Usage and safety in
accordance with regulations
The Navigenio serves as mobile hotplate and as
mini baking oven. It should be used only for this
purpose. The Navigenio is designed exclusively for
use in the household and not for use in the
commercial field.
Improper usage could lead to danger. Please
observe and follow the user manual – particularly
the information in this chapter.
Suitable pots
For usage as mobile hotplate:
AMC pots 16, 20 and 24 cm up to max. 6.5 l,
besides pans 28 cm
Wok 36 cm, Oval Griddle and Oval Grill 38 cm
Arondo 28 cm, Eurasia 24 and 28 cm
For usage as mini baking oven (overhead
function):
AMC pots 20 and 24 cm
Avoiding damages, avoiding improper
usage
To avoid improper usage …
use the Navigenio with a coaster. This is
especially important on heat-sensitive
surfaces (e.g. plastic, antique tables).
never use wobbly bases like for e.g. an
inverted lid.
do not transport pots on the Navigenio.
never prepare food directly or in packed
form (plastic containers or bowls of
aluminium foil) on the glass-ceramic
cooking zone.
do not use the combi-bowls and the
serving bowls for gratinating with the
Navigenio.
with the overhead-application, leave
enough space between Navigenio and
the food. As a rule, the volume filled in
the pot should not exceed 2/3.
before cooking begins, always ensure
that the base of the pot and the
glass-ceramic cooking zone are clean
and dry.
always clean the Navigenio properly.
Tampering of the Navigenio is to be
avoided.
do not use the Navigenio to heat a
room as the durability of the radiator
might be reduced considerably by it.
the Navigenio is not meant to be opera-
ted with an external timer or a separate
remote control system, e.g. an auto-
matic remote-controlled socket.
follow instructions in chapter 4
“Maintenance and care”.
Possible dangers through electricity
The appliance is operated electrically.
Avoid danger of electrocution:
Connect only to a power supply with
voltage mentioned in the model-label.
Use only the original connection cable.
Extension cable must be of the same
type.
The power cord should not under any
circumstances, come in contact with the
hot stove or cooking utensil.
In case the glass-ceramic cooking zone is
damaged or breaks, pull out the power
plug immediately.
To avoid overheating …
with the Navigenio in hotplate function,
do not heat an empty pot longer than
10 minutes.
do not operate the Navigenio as mini
baking oven (overhead function) on an
empty pot.
For usage as mini baking oven (over-
head function) with pot on the stove,
to avoid overheating, switch it on only
at low level.
To avoid damages …
do not use Navigenio as mini baking
oven (overhead function) over an open
gas stove.
do not use the glass-ceramic cooking
zone as space for cutting. Do not use
pointed objects on the glass-ceramic
cooking zone and avoid single point
concentrated loads.

76
A damaged appliance is not to be
operated again. Contact an AMC
service centre.
Replace a damaged power cord
immediately.
Repairs are to be carried out solely by
trained personnel of an authorised AMC
service centre.
Possible dangers through heat,
danger of fire
The Navigenio and the pot used would
become hot on cooking.
Danger of burning, fire.
a cloth – never extinguish with water.
After using the Navigenio as mini baking
oven (overhead function), do not place
it with the hot cooking zone facing
destroyed. Danger of accident and fire.
The appliance can be used by children
of 8 years or more or by people with
reduced physical, sensory or mental
abilities or a lack of experience or
knowledge, if they are monitored or
instructed regarding the safe usage of
the appliance and understand the
Hold only the handles of the Navigenio.
Use a suitable hand-protector, if requi-
red.
Cover food particles that have caught
fire and are in flames (e.g. fat) only with
downwards.
When using the Navigenio as mini
baking oven (overhead function) always
set the pot on a heat-resistant base, like
for e.g. the stove.
Never set the Navigenio on a hot stove.
The appliance will be damaged.
Monitoring
The cooking process must be monito-
red. If the Audiotherm is used for
audible monitoring of the cooking
process, you must be within hearing
distance.
Unsupervised, uncontrolled cooking
can lead to overheating. The dishes can
be ruined, the pot can be damaged or
dangers that result from it.
Children may not play with the appliance.
Children younger than 8 years are to be
kept away from the appliance and
power cord.
Maintenance and care
Maintain and care for the Navigenio regularly so
that function and safety are guaranteed.
Clean the Navigenio before the first use with a
clean, moist towel and a mild detergent. Then
dry with a clean, soft towel. Remove the
adhesive foils of the AMC logo and rotary knob.
Clean after every use.
Before each cleaning, pull out the power cord
from the socket.
Let the Navigenio cool down before cleaning
and storing.
Never dip the Navigenio in water or put in
dishwasher.
Disposal
The Navigenio does not belong in the household
garbage, the material is reusable. When necessary,
dispose in an environmentally appropriate manner
and in accordance with local regulations (dispose
at a collection point for recycling of electronic
appliances).

98
1
8
3
4
2
3
5
6
7
10
11 12
4
13
9
...
...
...
...
...
...
...
...
...
Power indicator/radio indicator (5)
glows red Navigenio is switched on
flashes blue Navigenio has radio
contact with the Audio-
therm* and will be control-
led by it
flashes red Residual heat indicator, as
long as the Navigenio is hot
Power indicator/radio indicator in overhead function
(12)
alternately
flashes blue /red
Navigenio has been
switched on, radio contact
with the Audiotherm* can be
made
glows red Navigenio is switched on in
normal mode
flashes blue Navigenio is switched on in
automatic mode in
connection with Audio-
therm*
flashes red Residual heat indicator, as
long as the Navigenio is hot
* For functions with the Audiotherm, see user manual of
“AMC Audiotherm”.
Residual heat indicator
Display is out: Glass-ceramic cooking zone is cooled
down enough so that no more danger of burning exists.
For safety reasons, this function is so performed that the
indicator will possibly keep flashing even though the
glass-ceramic cooking zone is already almost cold to the
touch (in favourable cooling down conditions).
Overhead function
(view from below)
10 Level indicator
11 Rotary knob (levels high and low
for overhead function)
12 Power indicator/radio indicator
13 Rubber feet
2. Your Navigenio
2.1 Construct
Hotplate
(view from above)
1Navigenio
2Glass-ceramic cooking zone
3Handle
4Connector plug for power cord
5Power indicator/radio indicator
6Level indicator
7Rotary knob (6 levels, A)
8Type label (engraved)
9Power cord
The residual heat indicator is active only
when the Navigenio is connected to the
power. If the power cord is pulled out
immediately after switching o, there
could be danger of burning.
...
2.2 Function and application
Usage as mobile hotplate
As mobile hotplate for kitchen and leisure, ever-
ywhere where an electrical connection is available.
Usage as mini baking oven (overhead
function) for gratinating or baking
For gratinating, the Navigenio can be placed
overhead on the pot (i.e. with the glass-ceramic
cooking zone facing down). Quick, uncomplicated
and energy-saving.
For baking, the Navigenio can be placed as an
additional source of heat overhead on the pot on
a electrical stove.
Along with the Audiotherm, possibilities of further
applications for automatic cooking and baking
arise:
Usage as automatic hotplate with Audiotherm
Usage as mini baking oven (overhead function)
with Audiotherm (Timer-Automatic for gratinating
and baking)
See user manual of “AMC Audiotherm”.

1110
1....... 6
0
0
3. Handling
Use only suitable pots, see “suitable AMC
pots” page 4.

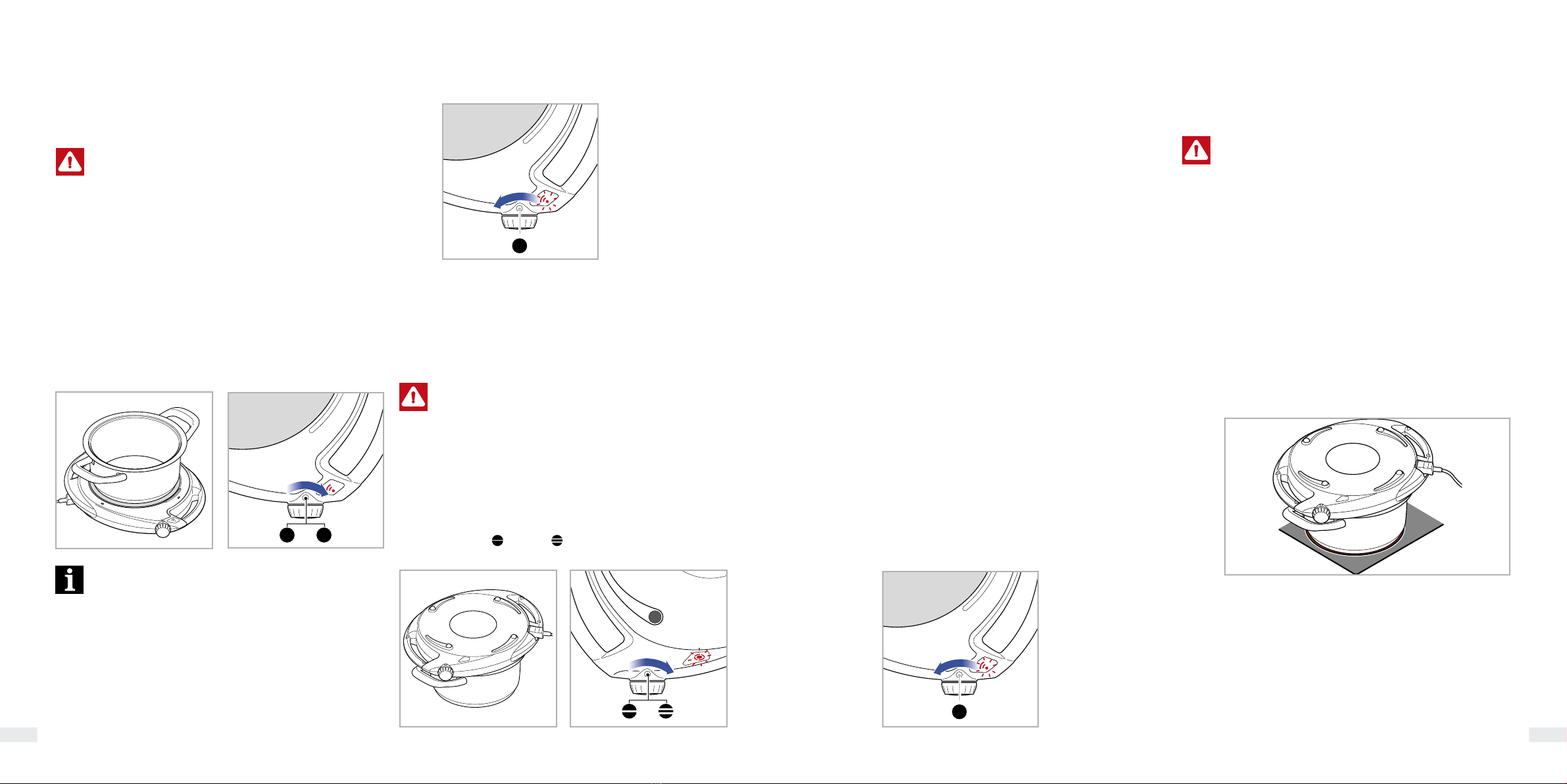

➔Connect power cord to the Navigenio and
power supply.
➔Set pot centred on the glass-ceramic cooking
zone.
➔Switch on: set rotary knob at the desired level.
• Level 1 (lowest power) to 6 (highest power).
• The power indicator glows red.
• The Navigenio begins to heat immediately.
Suitable levels according to AMC cooking
methods:
• Level 6 for heating for cooking or frying.
• Level 2 for frying, cooking completely or frying
completely, depending on size of pot and
quantity of food to be cooked.
• Also see details in the AMC cookbook or in
the recipe section.
With the rotary knob in setting “A”, you can (in
connection with an Audiotherm) cook auto-
matically, see user manual of “AMC Audiotherm”.
➔Switch o: set rotary knob at “0”.
• The residual heat indicator flashes red.
Usage for gratinating
Use only pots 20 and 24 cm.
Always set pot on a heat-resistant base,
like for e.g. the stove.
➔Connect power cord to the Navigenio and
power supply.
➔Set pot centred on a heat resistant base.
➔Place Navigenio on the pot.
➔Switch on: set rotary knob at the desired level.
Level (low) or (high).
• The power indicator flashes blue and red
alternately for 1 minute and glows red after
that.
• The Navigenio begins to heat immediately.
You will find information on the suitable level for
usage as mini baking oven in the recipe section.
As long as the power indicator flashes blue and
red alternately, the Audiotherm can be set for
automatic control of the Navigenio (see user
manual of “AMC Audiotherm”).
While gratinating or baking, steam can escape.
If the Navigenio is removed and inverted during
the overhead mode, a repetitive beep is heard
and the appliance no longer heats up. To switch
on again in overhead mode, turn rotary knob
(by at least one resting point) and set again at
desired level.
➔Switch o: set rotary knob at “0”.
➔Remove Navigenio, invert and store.
• The residual heat indicator flashes red.
If the Navigenio is not removed after gratinating or
baking, the crust can become soaked.
3.1 Usage as mobile hotplate
3.2 Usage as mini baking oven
(overhead function) for gratinating
or baking
Usage for baking
For this, the Navigenio is placed on a pot on a
stove.
The power cord should not under any
circumstances, come in contact with
the hot stove or cooking utensil.
To avoid damages, do not use Navigenio
over an open gas stove.
To avoid overheating, do not operate
Navigenio on an empty pot.
To avoid overheating, switch on stove
only at low level.
Handling, as described above.

1312
1
2
3
4
5
15.0 cm
10.5 cm
4.3 mm
A
1
2
4
3
C
E
BD
FGH
5.Maintenance
and care
Before each cleaning, pull out the
power cord from the socket.
Let the Navigenio cool down before
cleaning and storing.
Never immerse the Navigenio in water
or put in dishwasher.
Never use organic solvents or petrol.
Likewise, the following are unsuitable
for cleaning:
• abrasive cleaning material and scou-
ring agents in powder or liquid form
• saponified steel wool
• coarse abrasive side of sponges
• hand wash pastes
Maintain and care for the Navigenio as follows:
Clean after every use.
Sugar, sugar-containing and sour dishes as well
as aluminium can damage the glass-ceramic
surface, hence remove immediately.
Remove burnt food particles on the glass-cera-
mic cooking zone with a glass-ceramic scraper.
Clean handle and plastic parts with a moist
cloth and a mild detergent. We recommend
Magic Foam.
Remove stubborn stains with Magic Stone.
The glass-ceramic cooking zone can be
re-polished with Magic Stone.
Sand and similar dirt can cause scratches on
the glass-ceramic surface and the base of the
pot, hence remove immediately.
Remove food that is boiling over immediately.
6.Technical
data
Model C8100
Voltage 220–240 V
Frequency 50/60 Hz
Power 1800 W
Diameter of heating circuit 18 cm
Marking

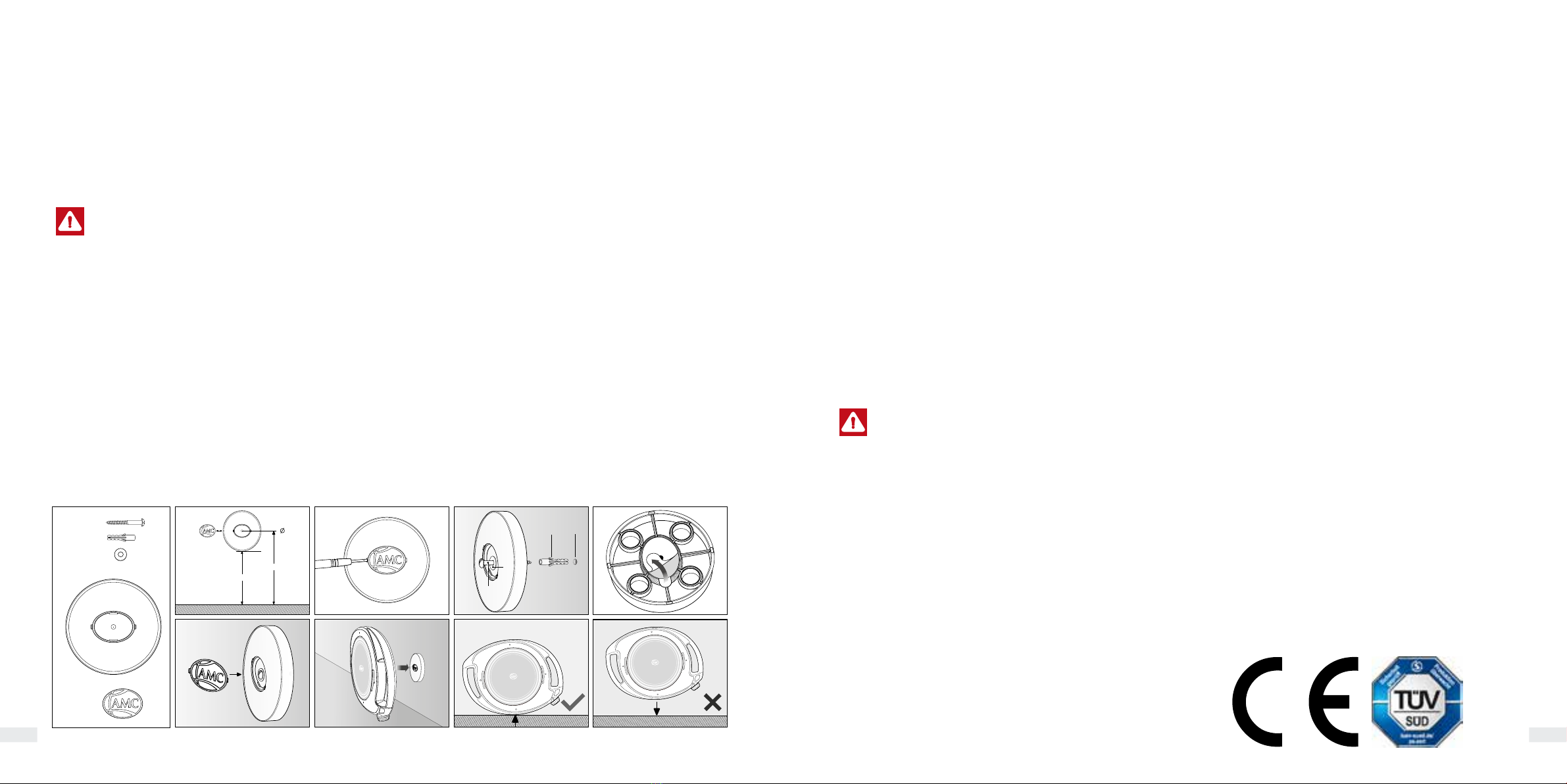

4.Magnet holder
assembly
(optional accessories)
There are 4 strong magnets in the magnet
holder. These can damage TVs, laptops,
computer, hard disks, credit cards and
debit cards, data mediums, mechanical
clocks, hearing aids and loudspeakers.
Take particular care with pacemakers and
implanted defibrillators. Make sure to have
a distance of minimum 20 cm.
1 Screw
2 Dowel
3 Washer
4 Magnet holder
5 Cover plate
Assembly with gluing
The attachment point (wall) has to be clean,
fat free and dry. The attachment per sticky tape
is recommended for plain surfaces. For this the
sticky tape on the back of the magnet holder
can be used.
A Measure height (Lower edge of magnet
holder to tabletop 10.5 cm, screw hole
to tabletop 15.0 cm).
DPeel o sticky tape on the back and
press it firmly at the wall.
F,G,H Place Navigenio with the stainless steel
surface on the back at the magnet
holder, so that Navigenio is standing
on the kitchen tabletop – not
free-floating! (G,H)
Assembly with screwing
The attachment point (wall) has to be clean,
fat free and dry. The attachment per screw is
recommended for rough or rugged surfaces
(wooden or plastered walls).
A Measure height (Lower edge of magnet
holder to tabletop 10.5 cm, screw hole
to tabletop 15.0 cm).
BRemove cover plate
CDrill a hole in the wall with a drilling
machine (Drilling machine diameter
5 mm) (1), insert dowel (2), peel o
sticky tape on the back (D), drill magnet
holder with washer (3) and screw (4) on
the wall so that Navigenio is standing
on the kitchen tabletop – not
free-floating!(G,H)
E Refit cover plate

1514
8.AMC customer
service
… the Navigenio is removed and inverted
during the overhead mode and a constant ,
intermittent beep is heard
The Navigenio switches o so that the appliance
does not heat further when it is removed.
When the overhead mode has ended: switch o
Navigenio.
When the overhead mode is to be continued: fit
Navigenio on the pot again, turn the rotary knob
(by at least one resting point) and set at the
desired level again.
… the fuse is blown constantly?
Check if the selected socket is suciently fused
(minimum 10 Ampere).
Disconnect other electronic appliances in the
same electrical circuit.
At AMC, customer service is a constant endeavour
to meet the wishes and needs of our customers!
If you have further questions or suggestions,
please do contact us! We would be pleased to
help you!
7. What to do,
when...
… the Navigenio automatically shuts o a
long time?
For safety reasons, the appliance is equipped
with a temperature protection switch that
switches o the appliance on overheating.
Wait until the Navigenio switches on again by itself.
This can take up to 30 minutes.
… the Navigenio switches o because the
radio contact with the Audiotherm* is broken
(power indicator, dark)
Set rotary knob at “0” and then again at “A”.
Initialise Audiotherm* again.
* For functions with the Audiotherm, see user
manual of “AMC Audiotherm”.

AMC Singapore
80 Bendemeer Rd #01-06 Singapore 339949
AMC InternationalamcsingaporeAMC Singapore
