Amcor SF 12000E User manual

PORTABLE AIR CONDITIONER
SF 12000E 10000E
GB

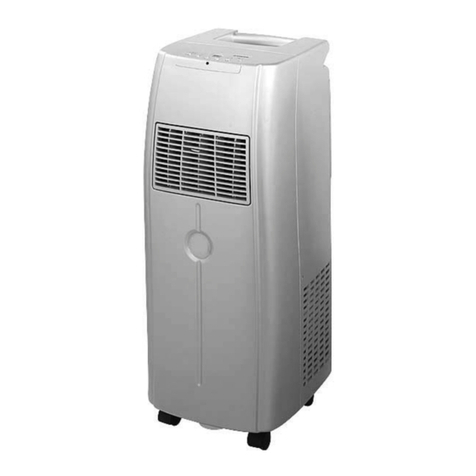

Portable air conditioner

2

3
GB
PARTS
Caster
Fan Blade
Back SideFront Side
Check packing accessories and read your user’s manual to learn how to use them.
Handle
Upper
Filter frame
Exhaust
Connector
Power
Cord
Location
Lower
Filter Frame
Rubber plug
Plug cap
Power
Supply
Cord
Control
Panel
Air Outlet
Exhaust Hose Slide Bar
Connector
Remote
Control
Adjustable Slide Bar

4
SAFETY INSTRUCTIONS
Thank you for choosing this innovative Amcor air conditioner. We suggest that you
keep this manual in a safe place for future reference. It describes the many benefits
and advanced features this unique product has to offer. Before you use your air
conditioner you should carefully read these instructions to maximise this product’s
performance.
For over 50 years Amcor has specialised in complete indoor environmental control,
manufacturing and marketing; dehumidifiers, portable air conditioners, coolers, air
purifiers, ionisers and aroma therapy scent diffusers. These world class products
incorporate the latest technological developments.
THANK YOU
IMPORTANT!
• The unit is designed for indoor operation.
• Rating: This unit must be connected to a 220-240 V / 50 Hz earthed outlet.
• The installation must be in accordance with regulations of the country where the
unit is used.
If you are in any doubt about the electrical installation, have it checked and if
necessary modified by a qualified electrician.
• The air conditioner is safe. However, as with other electrical appliances, use it
with care.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not clean the unit by spraying it or immersing it in water.
• Do not insert any object into the openings of the unit.
• Disconnect it from the mains before cleaning the unit or any of its components.
• Never connect the unit to an electrical outlet using an extension cord. If an outlet
is not available, one should be installed by a licensed electrician.
• Never operate this appliance if it has a damaged cord or plug. Do not lead the
cord over sharp edges.
• A damaged supply cord should be replaced by the manufacturer, its service agent
or a qualified person in order to avoid a hazard.
• Any service other than regular cleaning or filter replacement should be performed
by an authorized service representative. Failure to do so could result in a loss of
warranty.
GB

5
GB
Close to a heat
source
Inside unit exposed
to the weather
outdoors
In a permanent
very humid
environment
If the power cable
wires are frayed
or cut
When small
children may be
left unattended
If an extension
lead may become
overloaded
Where the power
cable may be
damaged
On a slope or
uneven surface
Where it may
be damaged by
chemicals
Where there is a
risk of interference
by foreign objects
This products is
not made for DIY
repair
If there is a risk of
liquid falling on
the unit
Do not use your air conditioner:
Disposal:
Waste electrical products must not be disposed of with household waste.
This product should be taken to your local recycling centre for safe treatment.

6
POSITIONING
GB
Installing Exhaust Hose to Window Slide Bar
Note: The window kit is only designed to be installed with sliding windows or doors.
The window kit is not designed or to be used with casement style windows.
Step 1:
Measure your window kit according to the dimensions of your sliding window. If in case the unit is larger than
your required dimensions, it can be cut using a saw or power tool of the sort. If the unit is too short for your
opening, you can order an additional window kit from our online store to extend it.
Step 2:
Screw slide bar connector into exhaust hose �rst (Figure A) , then spin the exhaust hose into the air outlet located
at the rear of the unit (counter-clockwise) (Figure B).
Step 3:
Insert slide bar connector into adjustable slide bar (Figure C). Extend the Slide Bar length to match the
width of the window (vertically or horizontally), and then tighten the screw to hold the length of the slide bar
(Figure D). Make sure the adjustable slide bar �ts snug in your window and stays in place.
Proceed to close and lock your window on the Slide Bar to secure in place (Figure E).
IMPORTANT
The �exible exhaust hose can be extended from 10.25" to 58.5" for mounting.
We recommend that you keep the hose as short as possible to minimize possible loss back in the room.
This length has been designed especially according to the speci�cations of the air conditioner.
Do not use an extension or exchange for a different hose as that may lead to malfunctioning.
The exhaust air must �ow freely. Any blockage can lead to overheating of the air conditioner.
Handle with care to prevent any kink or bend in the exhaust hose.
This unit can easily be moved from one room to another. In doing, so keep this in mind:
• The air conditioner must stand upright on an even surface.
•Do not position near bath, sink, or other permanent, wet or damp area.
• Keep unit at least 18" from wall, curtains, draperies, or heat sources to insure adequate air circulation.
18"
45cm
18"
45cm
Exhaust
Hose
Exhaust
Hose
Slide Bar
Connector
Slide Bar
Connector
Window
Adjustable
Slide Bar
Adjustable
Slide Bar
Fasten
one screw
Air Outlet
Figure A
Figure B
Figure C
Figure E
Figure D

7
OPERATION
GB
Cooling Mode
·After machine turns on, default value is cooling mode with 22ºC and low fan speed.
·Press “MODE” to select cooling mode, cooling mode indictor turns on .
·Press “UP” or “DOWN” to adjust temperature (from 16ºC to 31ºC).
·Press “FAN” to select fan speed (low, high)
Fan Mode
·Press “MODE” to select fan mode, fan mode indicator turns on .
·Press “FAN” to select fan speed (low, high)
·Temperature and sleeping function cannot be setup.
Timer Mode
·Under standby mode, press “TIMER” to setup the power-on time,
press “UP” and “DOWN” to adjust the timer (from 1 to 24 hours). Timer indicator turns on.
·Under power-on mode, press “TIMER” to setup power-off timer.
Press “UP” and “DOWN” to adjust the timer (from 1 to 24 hours). Timer indicator turns on.
Sleeping Mode
·Press key “SLEEP” enter into sleeping mode, default value of fan speed is low.
·When sleeping mode turns on , under cooling mode, the one hour later, setting temperature will go up
1ºC, the second one hour later, setting temperature will go up another 1ºC, and then keep the same;
·Sleeping mode is invalid under dehumidifying and fan mode.
Under water full, machine standby and mode conversion, sleeping mode will be cancelled .
Compressor Protection
·Three minutes later after power on / restart, compressor starts to run.
On/Off
Press “POWER” to switch the unit On or Off

8
Remote control
The air conditioner responds to all signals that are sent by the remote
control. Two AAA-batteries are required to use the remote control.
Note: the air flow direction can not be adjusted with the remote control.
Important:
• The compressor will start approximately 3 minutes after the unit is turned on
(this will help prolong the life of the compressor). After switching the unit off,
please wait at least 3 minutes before turning the unit back on.
• The cooling will switch off when the room temperature is lower than the set one.
Ventilation will however continue to work at the set level. When the ambient
temperature rises above the chosen value, the cooling will resume.
GB
Power
Timer
Down
Mode
Up
Fan
Sleeping

9
GB
EMPTYING THE WATER CONTAINER
In case of the WATER FULL (W.F.) LED alert, the unit is required to be
drained. At the end of AC Season, this unit should be drained prior
to storage. In both situations, we recommend that you take the
following steps.
Switch off the unit and remove the plug from the outlet.
•Position a �at container or dish on the �oor under
the drain hole. Use container only for temporary
draining of the unit, do not allow the water to drip
continuously into the container, as it might easily
over�ow.
•Remove the drain knob.
•Remove the rubber plug, the water will �ow in the
container. When this is nearly full, replace the plug
to stop the water �ow and empty it. Repeat this
process until all water has been removed.
•For seasonal storage purposes, put the unit ON in fan mode on a warm, dry day for
a couple of hours to ensure that the inside can dry out completely. We also recom-
mend allowing the unit to air dry for a period of 24 hours without the drain plug and
cap in place.
•Insert the rubber plug into the drain hole �rmly,
the WATER FULL LED (W.F.) should not �ash any longer.
• Screw on the drain knob.
Additional maintenance/tasks prior to storage.
•Clean the �lters.
•Store the power cable as shown, protect the unit against dust (put back into its
original carton) and store in a dry place not accessible for children.
•To protect the unit against dust, store in a dry place not accessible by children
•Do not stock heavy objects on top of the unit
Rubber Plug Drain Knob

10
GB
CLEANING
Always unplug the unit from the power supply (wall outlet) before beginning the
cleaning.
Housing
Use a soft, damp cloth to wipe the body clean. Never use strong chemicals, oil-
based products, detergents, chemically treated cloths or other cleaning solutions.
These could possibly damage the housing.
Filter
The active carbon filter must not be rinsed.
Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt from
the filters and then rinse only the dust filter thoroughly under running water (not
warmer than 31 °C). Dry thoroughly before replacing.
Notice! Never operate the air conditioner without the filters.

11
GB
Never try to repair or dismantle the air condition yourself. Incompetent repairs result in loss of warranty
and can endanger the user and the property.
Problem Cause Solution
The air
conditioner does
not function.
No power supply. Connect to a functioning outlet and switch on.
Is the power light flashing? Empty the drain pan.
Timer function is active. Deactivate the TIMER function.
The air
conditioner does
not seem to
perform.
The unit is in direct sunlight. Close curtains.
Windows or doors open, many
people or a heat source in the room.
Close doors and windows, place an extra air
conditioner.
The filter is dirty. Clean or replace the filter.
Air inlet or air outlet blocked. Remove the blockage.
Room temperature lower than the
selected value.
Change temperature selection. Set at the
lowest possible setting: 18 °C.
The unit is noisy. Unit stands uneven. Place on an even, solid surface (less
vibrations).
The compressor
does not work.
The overheat protection is probably
activated.
Wait 3 minutes until the temperature has
decreased, then turn on the unit again.
The remote
control does not
function.
Distance too great. Make sure the remote control is correctly
aimed at the control panel.
Remote control signal not detected
by the control panel.
The batteries are drained. Replace the batteries.
To correct problems that have not been described in the table and/or if the recommended solutions fail
to solve the problem, contact an authorized service centre.
TROUBLE SHOOTING
STORAGE
See the instructions "Emptying the water container".
• Drain the condensed water completely.
• Clean or change the filter.
• Put the unit on a warm day in fan mode for a couple of hours to ensure that the
inside can dry out completely.
• Store the power cable as shown, protect the unit against dust (put back into its
original carton) and store in a dry place not accessible for children.
-• Do not stock heavy objects on top of the unit.

12
SF12000ESF10000EledoM
Cooling capacity BTU/h 10000 12000
hP1/zH05/V042–022sniaM
Power consumption W 890 1100
4.9595.3AtnerruC
Dehumidification L/24h 20 24
A014R*tnaregirfeR
yratorrosserpmoC
2sdeepsnaF
13–16C°tatsomrehT
24–1hremiT
Dimensions (W x H x D) mm 320 x 730 x 360
2312gkthgiewteN
Subject to modifications without prior notice. Please refer to the rating label for greater precision.
TECHNICAL DATA
GB

63

AF 913125650A
Amcor (Guangzhou) Ltd - China
Room 2903, 29/F Renfeng Tower,
490 Tianhe Road, Tianhe District,
Gianzhou, China 510630
Tel: [phone]
Fax: [phone]
[email protected]
Amcor Ltd - Dong Guan, China
8/F Changwang Bldg, Dongxing Road
Changping Town, Dongguan City,
Guangdong Province, China
Tel: [phone]
Fax: [phone]
[email protected]
Amcor Industries Ltd - China Factory
Xialiao village, Iongxi Town,
Boluo County, Huizhou City
Guandong Province, China
Tel: [phone]
Fax: [phone]
[email protected]
Amcor Ltd - Hong Kong
Suite 1010–1011, 10/F, Ocean Centre
Harbour City, 5 Canton Road,
Tsim Sha Tsui, Kowloon, Hong Kong
Tel: [phone]
Fax: [phone]
[email protected]
Amcor Ltd - United Kingdom
9 Ryan Drive, West Cross Centre,
Great West Road, Brentford,
Middlesex, TW8 9ER, United Kingdom
Tel: [phone]
Fax: [phone]
[email protected]
Amcor Inc. - USA
685-A Gotham Pkwy, Carlstadt,
New Jersey 07072,
United States of America
Tel: [phone]
Fax: [phone]
[email protected]
Amcor B.V. - The Netherlands
Anton Philipsweg 9-11,
1422 AL Uithoorn,
The Netherlands
Tel: [phone]
Fax: [phone]
[email protected]
Amcor International Ltd - Israel
1 Sapir St.,
Herzelia Pituach,
46733 Israel
Tel: [phone]
Fax: [phone]
[email protected]
Amcor Investments Pte Ltd - Singapore
545 Orchard Road,
13-02, Far East Shopping Centre,
Singapore 238882
Tel: [phone]
Fax: [phone]
[email protected]
