AMD Lasers PICASSO Instruction Manual

AMD LASERS™, LLC. Operating Instructions Manual
- 2 -
Information in this document is subject to change without notice.
©2009 AMD LASE S™, LLC. All rights reserved.
www.amdlasers.com

PIv 809
- -
TABLE OF CONTENTS
TABLE OF CONTENTS - -
INTRODUCTION - 5 -
SAFETY - 5 -
Precautions - 5 -
Safety Instructions - 5 -
Safety Features - 6 -
Energy Monitor - 6 -
Circuit Breaker - 6 -
System Monitor - 6 -
Keyswitch - 6 -
READY Button - 6 -
Footswitch - 6 -
Emergency Stop - 6 -
Remote Interlock - 6 -
Functional Display - 6 -
Safety Questions - 6 -
Safety Classification - 7 -
EQUIPMENT DESCRIPTION - 8 -
General - 8 -
Components - 8 -
PICASSO Setup - 9 -
Control Panel - 9 -
Language selection - 10 -
AIMING BEAM brightness settings - 10 -
VOLUME settings - 10 -
Setting PICASSO - 10 -
Custom presets - 10 -
Programming Presets - 10 -
POWE SETTINGS AND USE - 11 -
CUTTTING AND COAGULATING SOFT TISSUE - 11 -
TOOTH-WHITENING - 11 -
Delivery System - 12 -

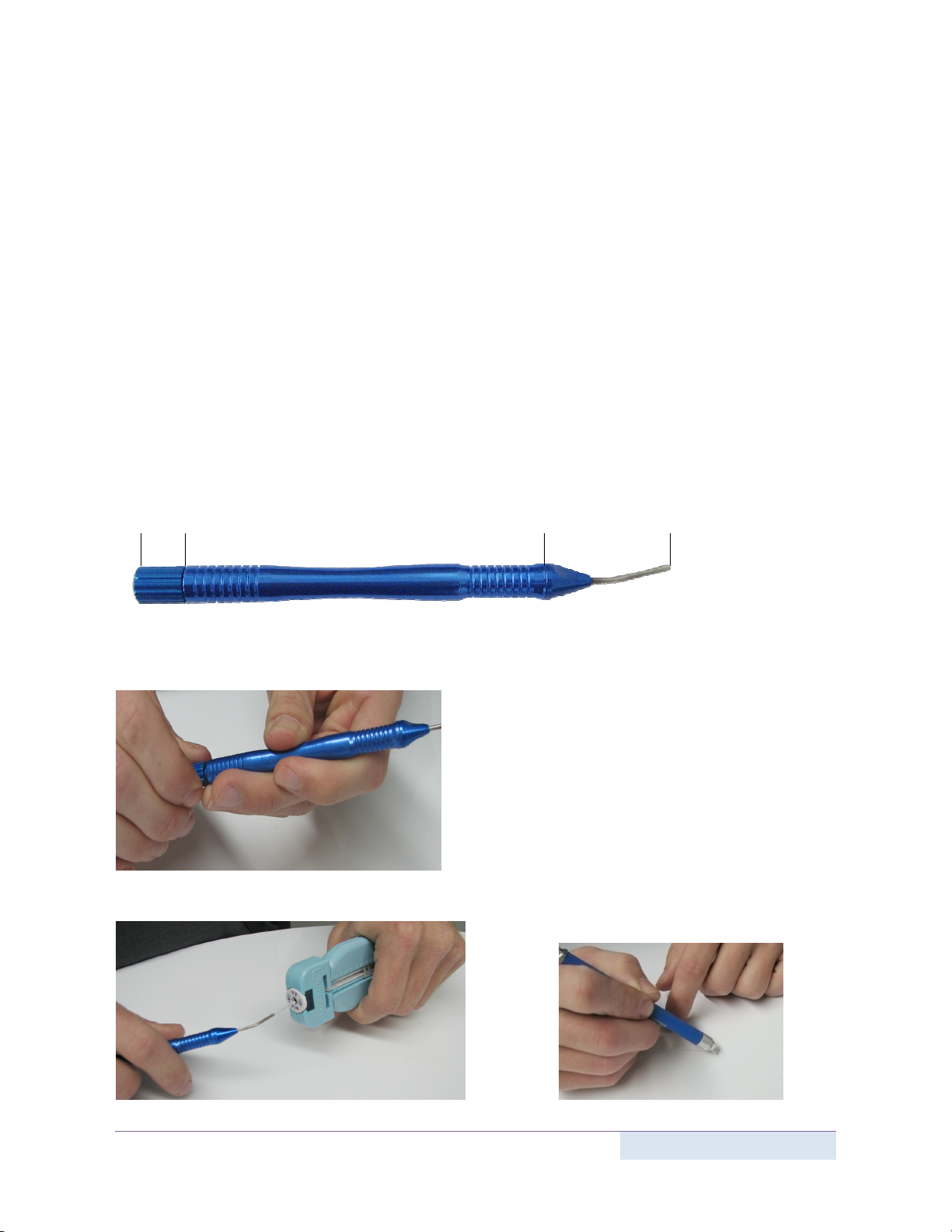

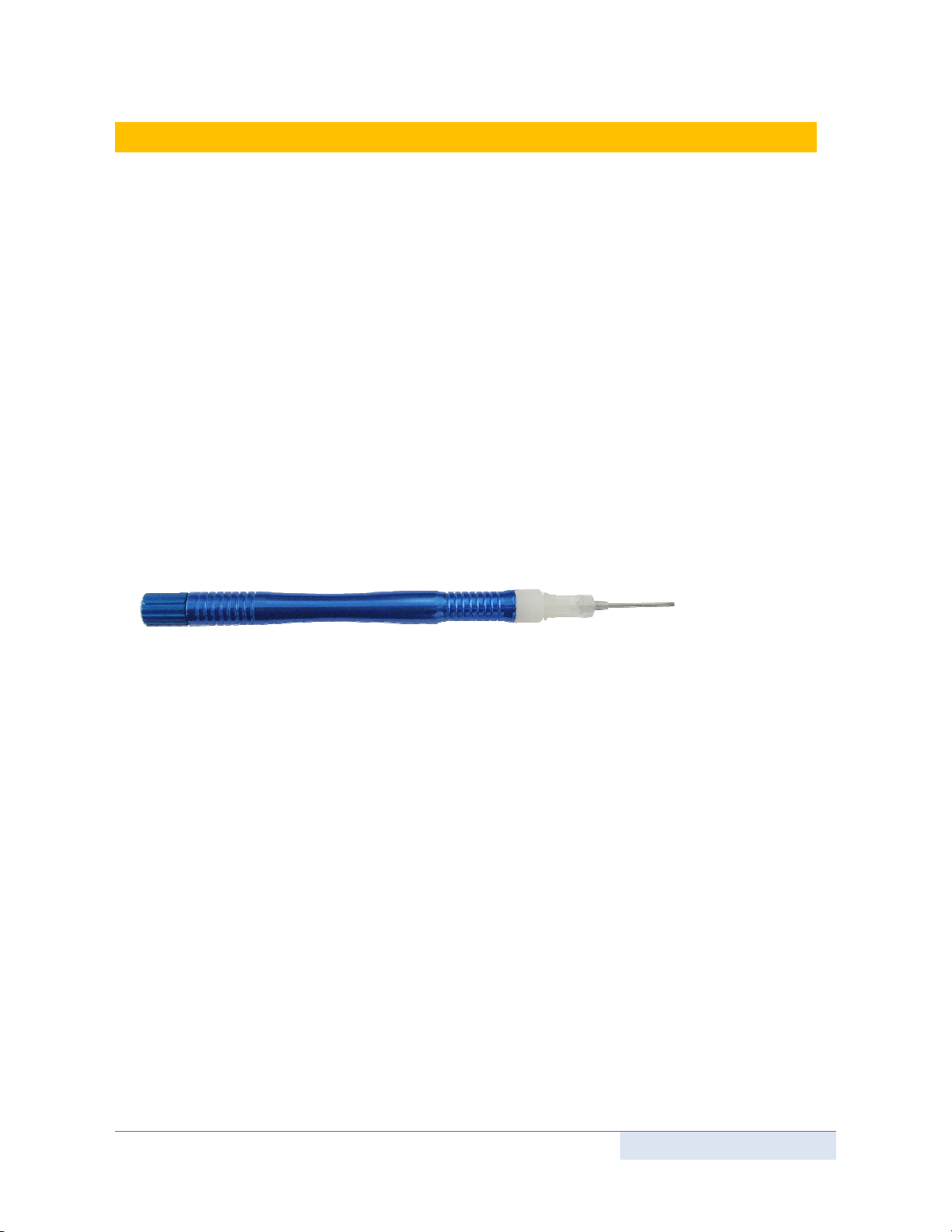

PICASSO Handpiece - 12 -
Directions for Stripping and Cleaving PICASSO Fiber - 1 -
OPERATION INSTRUCTIONS - 14 -
Turn ON PICASSO - 14 -
Turn OFF PICASSO - 14 -
Warm-up mode - 14 -
PICASSO SPECIFICATIONS - 15 -
General - 15 -
Electrical - 15 -
Laser - 15 -
Other Light sources - 15 -
CONTRAINDICATIONS, WARNINGS, AND PRECAUTIONS - 16 -
Contraindications - 16 -

AMD LASERS™, LLC. Operating Instructions Manual
- 4 -
Warnings - 16 -
Eyewear - 16 -
Anesthesia - 16 -
Adjacent Structures - 16 -
Suction - 16 -
Training - 16 -
CLINICAL APPLICATIONS - 17 -
Introduction - 17 -
Indications of Use: - 17 -
MAINTENANCE - 18 -
Annual Maintenance - 18 -
Daily Maintenance - 18 -
Contamination Control Procedures - 18 -
Cleaning Instructions for PICASSO Surgical Handpiece and the Fiber Optic Cable - 18 -
High-level Disinfection Instructions for the Fiber Optic Cable - 18 -
Steam Sterilization for PICASSO Surgical Handpiece - 19 -
Transportation - 19 -
Storage - 19 -
CALIBRATION - 20 -
Calibration schedule - 20 -
APPENDIX A – LABELS - 21 -
APPENDIX B – PARTS AND ACCESSORIES - 21 -
PICASSO DESC IPTION - 21 -
APPENDIX C – (LIMITED WARRANTY) - 22 -
APPENDIX D – (LIMITED LIABILITY) - 2 -

PIv 809
- 5 -
INT ODUCTION
PICASSO Dental Soft Tissue Laser is a surgical device at the cutting edge of technology, designed for a
wide variety of oral soft tissue and tooth whitening procedures. PICASSO utilizes a solid state diode
as a laser energy source. The energy is delivered to the operating area by means of a delivery system
consisting of a flexible fiber connecting the laser source and the handpiece. The device is activated by
means of a footswitch.
PICASSO is intended for use by dentists in oral soft tissue and tooth whitening procedures. The use of
this device requires proper clinical and technical training. This manual provides instructions for
professionals that have completed the appropriate training.
When used and maintained properly, PICASSO will prove a valuable addition to your practice. Please
contact your authorized representative or AMD Lasers™, LLC if you have any questions or require
assistance.
SAFETY
Precautions
Failure to comply with the precautions and warnings may lead to exposure to dangerous voltage
levels or optical radiation sources. Please comply with all safety instructions and warnings.
CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein
may result in hazardous radiation exposure.
CAUTION: This unit has been designed and tested to meet the requirements of electromagnetic,
electrostatic, and radio frequency interference testing. However, the possibility of electromagnetic or
other interference may still exist.
DANGE : D O NOT USE THIS UNIT IF YOU SUSPECT IT OF FUNCTIONING IMP OPE LY O OTHE THAN DESC IBED HE EIN .
Safety Instructions
Follow these safety instructions before and during treatments:
•All operatory entrances must be marked with an appropriate warning sign.
•Do not operate in the presence of explosive or flammable materials.
•All persons present in the operatory must wear protective eyewear.
CAUTION:
Periodically inspect eyewear for pitting and cracking.
Note: For replacement, additional or prescription protective eyewear, please contact your
authorized service representative or AMD Lasers ™, LLC.
•Do not look directly into the beam or at specular reflections.
•Never direct or point the beam at anyone’s eyes.
•emove or cover all highly reflective items in the treatment area.
•Press STANDBY (Standby button) on the control panel before turning off unit.
•Always press STANDBY on the control panel before exchanging handpieces or removing
the fiber optic connector from the unit.
•Move the circuit breaker (located on rear panel) to OFF (0) position and remove the key
before leaving unit unattended.

AMD LASERS™, LLC. Operating Instructions Manual
- 6 -
DANGE :
D
O NOT OPEN UNIT HOUSING AT ANYTIME
.
D
ANGE F OM HIGH VOLTAGE MAY EXIST AND WA ANTY IS
VOIDED .
NOTE: Please be aware that metal/plastic cannula may become hot during use. Avoid contact of
cannula with tissue.
Safety Features
Energy Monitor
Measures and verifies power output. Power deviations of more than 20% from the selected value
will cause the display to show either error message “DIODE CALIBRATION”, or “LASER POWER”.
The unit will not operate until the system is reset by pressing any key on the keypad. If error
messages persist, please contact your authorized service representative or AMD Lasers™, LLC.
Circuit Breaker
Serves as a line switch to separate the unit form the main power supply (0 = OFF, ׀ = ON)
System Monitor
The system monitors emergency stop switch, remote key, footswitch attachment, fiber attachment,
and output power. An error in any one of these will stop the system. The text display will indicate the
type of error. Operation will not resume until the error is cleared, and the text once again displays
“PICASSO”.
Keyswitch
The unit can only be switched ON (key in horizontal position) with the proper key. The key cannot be
removed while in the ON position. Always turn unit OFF (vertical position) and remove key when not
in use.
EADY Button
Once the circuit breaker and keyswitch are set to the ON position, the READY button on the keypad
must be pressed to enable the footswitch. One beep will sound to indicate that the system is ready
for use.
Footswitch
PICASSO will not emit laser energy until the user presses down on the footswitch.
Emergency Stop
Press the red Emergency Stop button to instantly turn off the unit. To reset the Emergency Stop
button, simply press RESET. Do not use the Emergency Stop for normal stops.
emote Interlock
This feature allows the device to be connected to the remote sensor, which will prevent its operation
when triggered (i.e., by opening door). This feature may be overridden by inserting the remote
interlock plug.
Functional Display
The System Text Display and the Light Emitting Diode (LED) indicators on the front of the unit and
control panel show the functional conditions of the system.
Safety Questions
Please direct any safety questions to an authorized representative or AMD Lasers™, LLC.

PIv 809
- 7 -
Safety Classification
The following safety classifications are applicable to the device:
•Laser Radiation – Class 4
•Type of protections against electrical shock – Class 1
•Degree of protection against electrical shock – Type B Applied Part
•Not protected against water ingress – Ordinary Equipment
•Not suitable for use in presence of flammable anesthetic mixture
•Operation Mode – Continuous Operation

AMD LASERS™, LLC. Operating Instructions Manual
- 8 -
EQUIPMENT DESC IPTION
General
Components
•Delivery System (FIGURE 1)
•Console (FIGURE 2 and )
Item# Item Item Description
1
LCD COLOR TOUCH SCREEN
Displays and controls the parameters, such as working status
of the system, operation mode, pulse duration, output energy,
etc.
2
EMERGENCY STOP BUTTON
Disables the unit in the event of an
emergency. Push once to
disable Picasso. Push again to enable.
HANDPIECE AND TIPS
Handpiece and optional tips for
a
variety
of
operation
4
HANDPIECE HOLDER
Holds handpiece when not in use
5
FIBER SPOOL
Stores
fiber
6
KEYSWITCH
Turns display of the
un
it
ON
and
OFF
7
AC ADAPTER
Connects the unit and
net power supply
Input: 100-240 V 50-60Hz
Output: 9V-- A
8
CIRCUIT
BREAKER
Master ON/OFF switch
9
REMOTE INTERLOCK
CONNECTOR
Connects interlock to the unit
10
FOOTSWITCH CONNECTOR
Connects
footswitch
to
the unit
11
POWER SUPPLY CONNECTOR
Connects
power supply
to
the
unit
12
FIBER CONNECTOR
Connects fiber to the unit
FIGURE
[1]
[2]
[6]
[5]
[4]
[3]
[7]
[8]
[9]
[11]
[12]
[10]
FIGURE 1 FIGURE 2

PIv 809
- 9 -
PICASSO Setup
For Details refer to "Quick Start Guide" (Figure 4). See page 7
for identification of components.
1. Place unit in a clean, dry, and well ventilated area.
2. Verify circuit breaker is in OFF position.
. Connect key into key switch. Verify it is in the OFF
position.
4. Verify Emergency Stop button is disengaged (UP position).
5. Connect footswitch.
6. Connect remote interlock.
7. Connect power cord to power connector on unit and plug
into wall outlet.
8. Connect fiber into fiber connection port.
9. Program Presets (see “Programming Presets”, page 9).
10.Set up Delivery System handpiece and fiber (see page 10).
11.See Operation Instructions on page 12.
Control Panel
There are the 8 keys on the touch screen:
1. CONT/REP: Continuous or Repeating Modes
2. PRESETS: 1,2, ,4
. POWER: 0.1-7W
4. INTERVAL: 20ms – 9.9 secs increments of .1ms
5. DURATION: 20 ms – 9.9 secs, setting increment is .1ms
6. AIMING BEAM: 5 steps: Off->Weakest->Weak->Strong->Strongest
7. STANDBY/READY: Standby/ Ready button
8. SAVE: Save button
1
2
4
5
6
7
8
FIGURE 4
FIGURE 5

AMD LASERS™, LLC. Operating Instructions Manual
- 10 -
Language selection

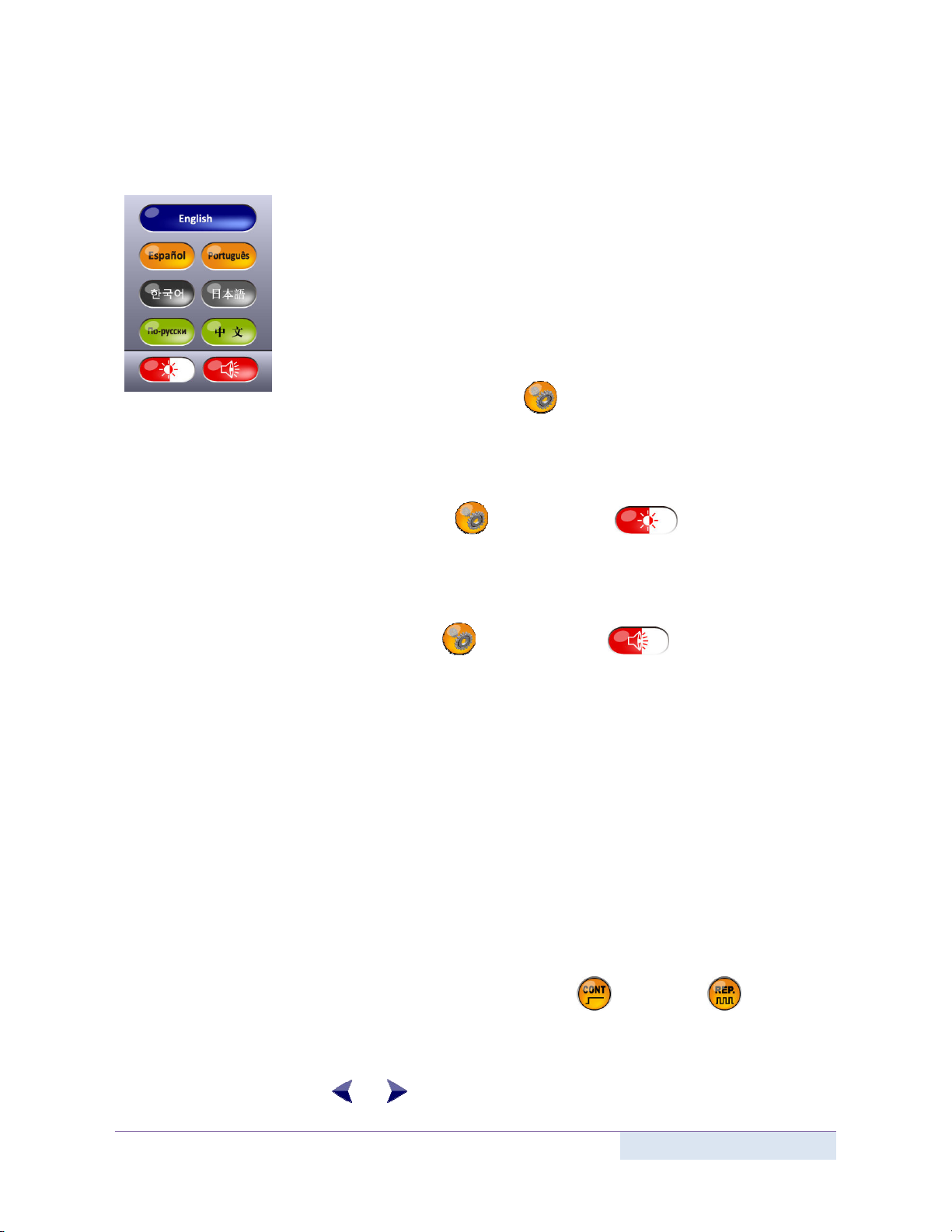

Seven languages can be selected (Figure 6):
•English
•Spanish
•Portuguese
•Korean
•Japanese
•Russian
•Chinese
English is the default language.
To select another language, press button then the system will enter into
the language selection display (Figure 5). Press desired language for 2 seconds, and the system will
restart in the chosen language
AIMING BEAM brightness settings
To select the brightness for aiming beam, press button. Press the button to change the
brightness settings.
5 steps: Off->Weakest->Weak->Strong ->Strongest
VOLUME settings
To select the volume of the unit, press the button. Press the button to change the
volume settings.
5 steps: Mute->Quiet->Normal->Loud ->Very Loud
Setting PICASSO
PICASSO IS PRESET TO THE FOLLOWING PARAMETERS:
Custom presets
The user is able to select parameters as POWER, INTERVAL, DURATION, CONT or REP modes
according to the operation. Then, press the SAVE button to store the selected parameters to PRESETS
1-4.
The data is saved when the confirmation beep sound is heard. User can select the desired mode by
selecting number 1-4.
Programming Presets
STEP 1: Select desired type of laser operation mode: Continuous or Repeating .
Continuous mode. In this mode, INTERVAL and DURATION are not available. POWER is able to be
selected and saved as a preset.
epeat mode. In this mode, all the parameters (INTERVAL, DURATION and POWER) are able to be
selected as a preset. Use the and buttons (Figure 5, #4 and #5) to select desired interval and
duration from 20ms to 9.9 secs.
FIGURE 6

PIv 809
- 11 -
STEP 2: Select desired preset 1-4 (Figure 5, #2)
STEP 3: POWE . Select desired power settings 0.1 – 7 watts using the and buttons (Figure 5,
# ).
STEP 4: INTE VAL / DU ATION. Select desired interval and duration (figure 5, #4 and #5) (available
only on REP mode).
STEP 5: SAVE. Save desired settings by pushing the SAVE button for 2 seconds until the beep is
heard (Figure 5, #8).
STEP 6: EADY. Push STANDBY button (Figure 5, #7) to put unit into EADY mode.
Press the footswitch to emit laser.
STEP 7: Repeat steps 1 through 6 to program additional presets.
POWE SETTINGS AND USE
CUTTTING AND COAGULATING SOFT TISSUE
Cutting and coagulating soft tissue procedures can be utilized with the standard handpiece and fiber
and at a range between 0.5 WATTS to 5.0 WATTS on either REPEAT or CONTINUOUS MODES.
Operator should try to use the least amount of power (WATTS) to achieve desired results.
TOOTH-WHITENING
Tooth whitening should be performed on single teeth at a distance of 10 mm at 7.0 WATTS in the
CONTINUOUS MODE for 0 seconds per tooth with the standard hand-piece and fiber (uninitiated),
or as indicated with the directions for bleaching materials as indicated by the manufacturer.

AMD LASERS™, LLC. Operating Instructions Manual
- 12 -
FIGURE 9
FIG
URE 8
Delivery System
NOTE: The fiber optic cable, handpiece, and tips are shipped non-sterile.
The Delivery System consists of:
•Fiber Optic Assembly
NOTE: The standard fiber optic cable assembly is a 400µm fiber. Other sizes are available upon
request.
•Handpiece
•Accessories: Adapter (To be used with Disposable/Bendable Tip)
•PICASSO Handpiece Kit
NOTE: The fiber optic cable, handpiece, and tips are reusable accessories that require cleaning and
sterilization before and after each use. For instructions on cleaning and sterilization of the fiber optic
cable, handpiece, and tips, refer to section “MAINTENANCE” (see page 17). Fiber optic cable is not
autoclaveable unless labeled as “autoclaveable”.
PICASSO Handpiece
1)Handpiece Base 2)Handpiece Handle ) Handpiece Tip
FIGURE 7
To connect Handpiece to fiber optic assembly:
1. Loosen Handpiece Base (FIGURE 8).
2. Slide fiber through Handpiece Base, Handle
and Tip
. Approximately 2 inches (5cm) should protrude
4. Strip and cleave fiber (FIGURES 9 AND 10) See
Directions Page 12
5. Adjust to desired length
6. Gently tighten Handpiece Base to secure
Handpiece and the Fiber Optic Assembly
1
2
FIGURE 10

PIv 809
- 1 -
Directions for Stripping and Cleaving PICASSO Fiber
PICASSO fiber should be cleaved after each procedure.
To cleave the fiber:
1. Loosen the proximal end of the Handpiece by unscrewing the Handpiece base (Figure 8).
2. Push fiber optic cable into the base of the handpiece until fiber appears from the tip. Pull
fiber approx. 2- inches (5-6 cm) out of the tip.
. Select a fiber stripper that corresponds to the fiber diameter size.
4. Insert approximately 1 inch (25 mm) of the fiber optic cable into the stripper. Squeeze the
stripper handles to get a firm grasp on the fiber optic cable. While keeping a firm grip on the
fiber optic cable, pull the stripper away from the handpiece in a smooth motion to ensure
that the jacket is cleanly removed (Figure 9).
5. Use a diamond/carbide cleaver to cut the end of the fiber. Place the fiber against a flat
surface. Position the edge of the cleaver approximately ¼ inch (7mm) from the end of the
fiber, and make a scratch around half the circumference of the fiber (Figure 10). Make sure
that the edge of the cleaver is always perpendicular to the fiber during scratching.
6. Hold the end of the fiber above the scratch between fingers and bend the end of the fiber
until the end section breaks off. If the fiber end is removed properly, the fiber should be flat.
7. Verify the cleave quality by aiming the fiber at a flat
surface and observe the shape of the spot created by
the visible aiming beam. If the visible spot is a full
circle, then the power output is optimal. If the circle is
distorted, repeat only the cleaving procedure
presented in steps 5 and 6 until you obtain a perfect
circle beam.
8. After the fiber is successfully cleaved, pull the fiber
back through the Handpiece, adjust the fiber end to
desired length. Tighten the Handpiece Base. Ensure
that the fiber is not loose by pulling lightly on the
fiber optic cable at the proximal end (Figure 11).
FIGURE 11

AMD LASERS™, LLC. Operating Instructions Manual
- 14 -
O
PE ATION INST UCTIONS
Turn ON PICASSO
•Turn circuit breaker to ON position. See Set-UP Page 8 for
Circuit Breaker Location
•Rotate key clockwise to ON position. The unit will turn on
and begin a self-diagnostic routine for 4-5 seconds (Figure
12).
•Select PRESET 1 – 4 or select custom power, interval and
duration settings
•Press STAND-BY to place unit in READY Mode (See page 8)
•Depress foot control switch to fire laser and release to stop
Turn OFF PICASSO
•Press the STANDBY button.
•Place handpiece back on handpiece holder.
•Switch circuit breaker to OFF position.
•Remove key from the unit, and place in a secure area.
Warm-up mode
If, during the self-diagnostic routine, the diode laser temperature is below 64°F (18°C) the system
will go into warm-up mode. Follow the instructions on the display.
1. Press the READY key.
2. Press and hold the footswitch until the system stops.
. The LASER FIRING light will flash and a beep will sound until the system is sufficiently
warmed up. This may take up to two minutes. The handpiece should be left in the holder
with the fiber pointing down.
NOTE: While output power is negligible, wear protective glasses during the warm-up. The warm-up
mode will not function at temperatures below 41°F (5°C), as a “Thermistor Error” will appear on the
display. Do not leave the system in an uncontrolled environment where the temperature might drop
below 41°F (5°C) (i.e., the trunk of a car). If this happens, the system should be left to warm up in a
controlled environment for ten to fifteen minutes before the warm-up mode is activated.
CAUTION:
Verify that fiber optic tubing assembly is not twisted
when returning
the
handpiece
to the
holder. Fiber may break if it is twisted.
FIGURE 12

PIv 809
- 15 -
PICASSO SPECIFICATIONS
General
•Dimensions L x W x H -> 9.5'' x 6'' x 6.2'' (240 x 150 x 160mm)
•Weight 6.6 lbs ( kg)
Electrical
•Operating Voltage AC 110/2 0V 50/60 Hz ± 10%
•Current Rating A 1.5A
•Frequency 47-6 Hz
•External Fuses None
•Main Control Circuit Breaker
•On/Off Controls Keyswitch, Circuit Breaker, Emergency Stop
•Remote Interruption Remote Interlock Connector.
Laser
•Laser Classification IV (4)
•Medium GaAlAs
•Wavelength 810 ± 10 nm
•Power Accuracy ± 10%
•Power Modes Continuous, Repeat Pulse
•Pulse Duration 20 ms – 9.9 sec
•Pulse Interval 20 ms – 9.9 sec
•Delivery Fiber Diameter 200 - 1000µm
•Mode Multimode
•Max Output
Power Range 7 watts output 600µm or 400µm fiber
Other Light sources
•Aiming Beam LED, max 5 mW, 6 0-670nm

AMD LASERS™, LLC. Operating Instructions Manual
- 16 -
CONT AINDICATIONS, WA NINGS, AND P ECAUTIONS
Contraindications
•All clinical procedures performed with PICASSO must be subjected to the same clinical
judgment and care as traditional techniques. Patient risk must always be considered and fully
understood before clinical treatment. The clinician must completely understand the patient’s
medical history prior to treatment. Exercise caution for general medical conditions that
might contraindicate a local procedure. Such conditions may include allergy to local or
topical anesthetics, heart disease, lung disease, bleeding disorders, sleep apnea, or an
immune system deficiency. Medical clearance from a patient’s physician is advisable before
treatment.
Warnings
Eyewear
The doctor, patient, assistant, and any others in the operatory must wear appropriate laser eyewear
protection for the diode laser wavelength of 810 ± 10 nm.
Anesthesia
In soft tissue cases, anesthesia may not be required. Patients should be closely monitored for signs of
pain or discomfort. If such signs are present, adjust settings, apply anesthesia, or cease treatment, if
required.
Adjacent Structures
PICASSO is designed to remove soft tissue. Therefore, always be aware of adjacent structures and
substructures during procedures. Be extremely careful not to inadvertently penetrate or ablate
underlying or adjacent tissues. Do not direct energy towards hard tissues, such as tooth or bone. Do
not direct energy towards amalgam, gold or other metallic surfaces. Do not direct energy toward any
filling material.
Suction
Use high-speed suction as required to maintain a clear field of vision during treatment. Do not use
PICASSO if you cannot clearly see the treatment site.
Training
Only licensed professionals who have successfully completed a PICASSO training seminar and have
read and understood this Operating Instructions Manual should use this device. AMD LASERS
™
, LLC
assumes no responsibility for parameters, techniques, methods, or results. Physicians must use their
own clinical judgment and professionalism in determining all aspects of treatment, technique, proper
power settings, interval, duration, etc.

PIv 809
- 17 -
CL
INICAL APPLICATION
S
Introduction
To efficiently remove tissue, it is imperative to understand the nature of the PICASSO. PICASSO
operates unlike traditional devices. The techniques mentioned below must be practiced and
perfected to ensure efficient operation. Please study this section carefully, practice on model tissues,
and attend a quality diode laser-training seminar before using this device in a clinical situation.
Indications of Use:
Use of PICASSO is generally indicated for incision, excision, vaporization, ablation and coagulation of
oral soft tissues including the following:
oGingival troughing for crown impressions
oGingivectomy
oGingivoplasty
oGingival incision and excision
oHemostasis and coagulation
oExcisional and incisional biopsies
oExposure of unerupted teeth
oFibroma removal
oFrenectomy and frenotomy
oImplant recovery
oIncision and drainage of abscess
oLeukoplakia
oOperculectomy
oOral papillectomies
oPulpotomy
oPulpotomy as an adjunct to root canal therapy
oReduction of gingival hypertrophy
oSoft Tissue crown lengthening
oTreatment of canker sores, herpetic and aphthous ulcers of the oral mucosa
oVestibuloplasty
Laser periodontal procedures, including:
oSulcular debridement (removal of diseased or inflamed soft tissue in the periodontal
pocket to improve clinical indices including: gingival index, gingival bleeding index,
probe depth, attachment loss and tooth mobility.)
oLaser soft tissue curettage
oLaser removal of diseased, infected, inflamed, and necrosed soft tissue within the
periodontal pocket
oRemoval of highly inflamed edematous tissue affected by bacteria penetration of the
pocket lining and junctional epithelium
Tooth whitening Indications
oLaser assisted whitening/bleaching of teeth
oLight activation for bleaching materials for teeth whitening

AMD LASERS™, LLC. Operating Instructions Manual
- 18 -
MAINTENANCE
Annual Maintenance
PICASSO should be serviced annually by a qualified, trained, and certified technician.
Please contact your authorized representative or AMD LASERS
™
, LLC to discuss extended services
contracts and annual maintenance options.
Daily Maintenance
Use a disinfectant to wipe down the front panel of PICASSO system after each procedure. Do not use
bleach or abrasive cleansers.
Contamination Control Procedures
The contamination control suggested for PICASSO fiber optic cable, handpiece, and interchangeable
tips is the system sterilization method. However, before sterilization, PICASSO reusable accessories
(handpiece, fiber optic cable, and interchangeable tips) should be carefully cleaned per the following
procedure.
NOTE: Fiber optic cable is not autoclavable unless labeled “autoclavable”.
Cleaning Instructions for PICASSO Surgical Handpiece and the Fiber Optic
Cable
FIGURE 1
The cleaning process is intended to remove blood, protein, and other potential contaminants from
the surface and crevices of reusable accessories. This process will also reduce the quality of particles,
microorganisms, and pyrogens present. Cleaning should be performed prior to sterilization and must
be conducted only by qualified office personnel trained to perform the procedure and handle the
PICASSO Fiber Optic Delivery System.
Wear protective latex gloves when handling the contaminated delivery system. To disconnect the
delivery system, follow the instruction for delivery system assembly presented in the "Equipment
Description" section (see page 6).
High-level Disinfection Instructions for the Fiber Optic Cable
•Transport the delivery system to a decontamination/sterilization work area.
•Take the fiber and strip 1 inches (25mm) off of the distal end of the fiber using the fiber
cleaver. Make sure the part that has debris is removed entirely. Dispose of the contaminated
fiber tip accordingly.
•Prepare a sterilizing and disinfecting solution of CAVICIDE and submerge approximately 12
inches ( 0cm) of the fiber’s distal end into the solution for 5 minutes. For high level of
disinfecting, immerse the fiber end for 0 minutes at 68°F (20°C).
•After this process is completed, thoroughly rinse and dry the fiber.
•For disposal of CAVIVIDE disinfecting solution, please follow the manufacture’s instructions.

PIv 809
- 19 -
Steam Sterilization for PICASSO Surgical Handpiece
Before sterilization, the handpiece must be cleaned and disassembled. For cleaning, follow the
procedures previously described. To disassemble the handpiece from the fiber optic cable, carefully
loosen the handpiece base and slide handpiece off of the fiber optic cable.
The process of thermal sterilization with saturated steam under pressure is carried out in an
autoclave. To perform this procedure, follow these step-by-step instructions:
•Place the handpiece and interchangeable tips inside a single wrap self-seal autoclave pouch.
•Remove autoclave tray and place pouch(s) on the tray.
•Place tray inside the autoclave chamber and set controls to the following values:
Temperature: 250°F (121°C)
Pressure: 15 PSI (1 Bar)
Time Cycle: 20 minutes
•At the completion of the autoclave cycle, remove the tray and let the handpiece, fiber optic
cable, and interchangeable tips cool and dry.
•Attach the handpiece and the fiber optic cable to the unit for the next procedure.
CAUTION: DO NOT place or stack other devices on top of the fiber optic cable.
Transportation
PICASSO is susceptible to misalignment if not handled properly. The unit should ALWAYS be handled
carefully and never banged, jarred, jolted, dropped, or hit.
Do not transport the unit unless it is completely packaged inside of its shipping box. If you have any
questions regarding transportation, please call your authorized representative or AMD LASERS
™
, LLC.
Storage
PICASSO should be stored in a cool, dry place when not in use. Cover the unit when not in use for
extended periods of time. Store the system in a place where it will not be accidentally hit.
PICASSO is shipped inside a custom shipping box. Please save and store the box in a cool, dry place.
