FEATURES

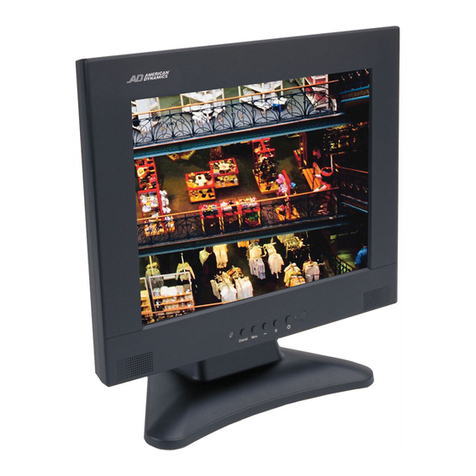

American Dynamics now offers 15 and 17-inch
LCD flat panel monitors designed for
demanding security professionals. These
monitors provide high resolution display of
computer or motion video signals via multiple
inputs. Using bright, active matrix displays
offering up to 1280 x 1024 resolution, these
monitors can be used for any computer
application or as direct replacements for
conventional CRT security monitors.
Both monitors are able to automatically detect
and display all inputs, including composite
NTSC/PAL video or computer signals. Using
universal power supplies at 100/240 VAC, these
monitors also offer looping inputs for S-Video
(Y/C) or BNC type connections.
Looping audio connectors are also included in
easy access locations on the back panel of each
monitor. Offering integrated power supplies
and detachable bases, these monitors include
VESA compliant mounting holes and can be
easily adapted to the available wall or pole
mounts.
•NTSC/PAL auto detect
•VGA (D-sub), and
looping S-VHS (Y/C),
BNC (composite video)
connectors
•RCA-connector looping
audio
•Detachable desk base
stand included
•Support up to
1280 x 1024 resolution
(ADMNM1LCD17),
1024 x 768 resolution
(ADMNM1LCD15)
•Auto brightness
•Contrast ratio up
to 400:1
•Speakers included
•Low power consumption
(45 watts)
•100/240 VAC 60/50 Hz
universal power supply
•Looping audio
www.americandynamics.net
Front side – Single sheet – Letter size – print 4/c
15 and 17-inch CCTV
Flat Panel Monitors
WITH MULTI-MODE INPUTS
15_17_FltPnlMntrCCTV.qxd 4/7/04 9:38 AM Page 1

SPECIFICATIONS
Model Number
ADMNM1LCD15 . . . . . . . . . . . . .15-inch LCD Flat Panel Monitor LCD,
NTSC/PAL
ADMNM1LCD17 . . . . . . . . . . . . .17-inch LCD Flat Panel Monitor LCD,
NTSC/PAL
Accessories
ADMNMTLCDW . . . . . . . . . . . . .Wall Mount Kit
ADMNMTLCDWA . . . . . . . . . . . .Wall Mount Kit with adjustable arms
ADMNMTLCDP . . . . . . . . . . . . . .Pole Mount Kit
ADMNLCDRKMNT . . . . . . . . . .Rack Mount for ADMNM1LCD15 and
17-inch monitors
General
LCD Panels . . . . . . . . . . . . . . . . . . .Active matrix TFT
Pixel Pitch . . . . . . . . . . . . . . . . . . . ..0.264 (H) x 0.264 (V)
Viewing Angle . . . . . . . . . . . . . . . .±75° (H) ±70° (V) ADMNM1LCD17
±60° (H) ±60° (V) ADMNM1LCD15
Viewing Area . . . . . . . . . . . . . . . . .338 (H) x 270 (V) mm (ADMNM1LCD17)
304 (H) x 228 (V) mm (ADMNM1LCD15)
Color . . . . . . . . . . . . . . . . . . . . . . . .16.7 million (max)
Brightness . . . . . . . . . . . . . . . . . . . .430 cd/m2(ADMNM1LCD17)
250 cd/m2(ADMNM1LCD15)
Contrast . . . . . . . . . . . . . . . . . . . . .400:1 (ADMNM1LCD17)
300:1 (ADMNM1LCD15)
Resolution . . . . . . . . . . . . . . . . . . .1280 x 1024 (ADMNM1LCD17)
1024 x 768 (ADMNM1LCD15)
Electrical
Power Supply . . . . . . . . . . . . . . . . .100/240 VAC, 60/50 Hz auto switch
Consumption . . . . . . . . . . . . . . . . .45 watts max, standby 5 watts
TV System . . . . . . . . . . . . . . . . . . . .NTSC/PAL auto detection
Scan Frequency . . . . . . . . . . . . . . .NTSC: 15750 Hz ± 500 Hz/60 Hz
PAL: 15625 Hz ± 500 Hz/50 Hz
Mechanical
Dimensions (H x W x D)
Without Base . . . . . . . . . . . . . . .33.02 x 40.05 x 6.35 cm
(13.0 x 15.75 x 2.50 in)
With Base . . . . . . . . . . . . . . . . . .40.05 x 40.05 x 18.41 cm
(15.75 x 15.75 x 7.25 in)
Unit Weight
Without Base . . . . . . . . . . . . . . .4.3 kg (9.5 lbs)
With Base . . . . . . . . . . . . . . . . . .5.0 kg (11.0 lbs)
Shipping Information
Dimensions (H x W x D) . . . . .47.4 x 47.4 x 21.8 cm
(18.75 x 18.75 x 8.6 in)
Unit Weight . . . . . . . . . . . . . . . .6.4 kg (14.0 lbs)
Environmental
Temperature
Operating . . . . . . . . . . . . . . . . .10° to 40° C (50° to 104° F)
Storage . . . . . . . . . . . . . . . . . . . .-20° to 60° C (-4° to 113° F)
Humidity
Operating . . . . . . . . . . . . . . . . . .20 - 80% RH (non-condensing)
Storage . . . . . . . . . . . . . . . . . . . .10 - 95% RH (non-condensing)
Altitude . . . . . . . . . . . . . . . . . . . . . .15,240 m (50,000 ft)
Inputs/Outputs
Video . . . . . . . . . . . . . . . . . . . . . . . .1 in (BNC); 1.0 V pp 75Ω
1 loop-through out (BNC)
S-Video . . . . . . . . . . . . . . . . . . . . . .1 in (DIN-4), 1 V pp 75Ω
1 loop-through out (DIN-4)
Audio . . . . . . . . . . . . . . . . . . . . . . . .2 in (RCA); 0.7 V pp at 1 KHz
2 loop-through out (RCA)
XGA . . . . . . . . . . . . . . . . . . . . . . . . .1 in (D-sub 15 pin); 0.7 V pp 75Ω
Speaker Output . . . . . . . . . . . . . . .2 x 1.0 watts built-in
Regulatory
Emissions . . . . . . . . . . . . . . . . . . . .EN50081-1, FCC Class B
Immunity . . . . . . . . . . . . . . . . . . . .EN50082-1
Safety . . . . . . . . . . . . . . . . . . . . . . . .EN60950, UL1950, CSA 950
AMERICAN DYNAMICS 15 AND 17-INCH CCTV LCD FLAT PANEL MONITORS WITH MULTI-MODE INPUTS
Product specifications and availability subject to
change without notice.
Certain product names mentioned herein may be trade
names and/or registered trademarks of other companies.
VS326-04 04/04 L
©2004 Sensormatic Electronics Corporation
