American Dynamics SpeedDome Ultra VII EIS Installation and maintenance instructions

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 1 of 37
SpeedDome®Ultra VII EIS
Day/Night Camera Dome
Installation and Service Guide

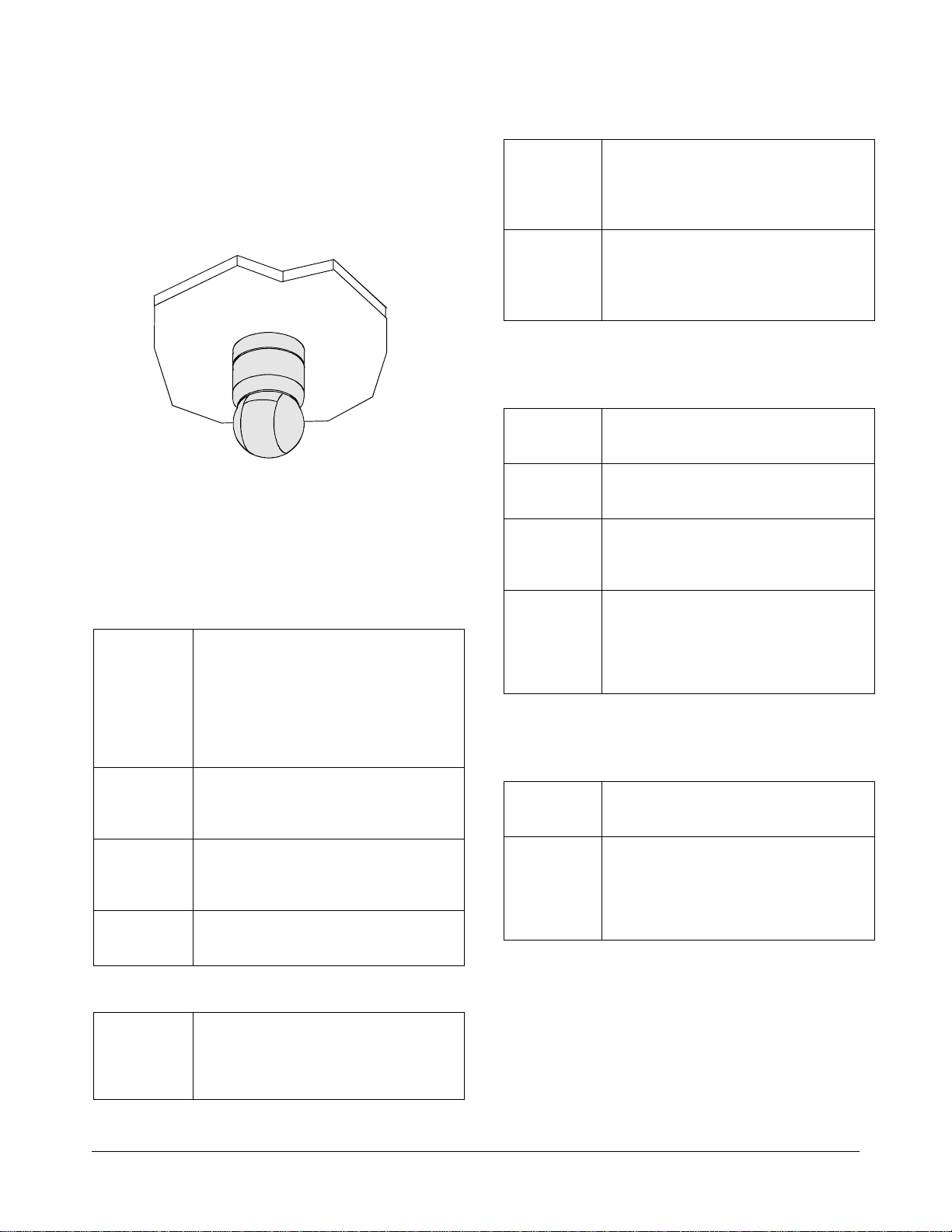

Figure 1. SpeedDome Ultra VII EIS Day/Night
Camera Dome
Camera Dome Product Codes
Product Description
RAS918LS DAY/NIGHT, EIS, 60HZ, 23X, NO BASE,
BLACK
RAS918LSP DAY/NIGHT, EIS, 60HZ, 23X, STD BASE,
BLACK (RUPTB)
RAS918LSI DAY/NIGHT, EIS, 60HZ, 23X, I/O BASE,
BLACK (RUIOB)
© 2005 Sensormatic Electronics Corp.
Contents
About this Guide ....................................................1
About the Camera Dome.......................................2
Cable Requirements..............................................7
Install/Removal Tool for Base with I/O Board........8
Power-Up Routine..................................................9
Synchronizing Domes............................................9
Diagnostic LEDs ....................................................9
Warnings and Cautions .........................................9
Indoor Installation.................................................11
Using the Install/Removal Tool............................20
Troubleshooting Indoor Domes ...........................22
Parts List for Authorized Users............................32
Specifications-Indoor Dome.................................34
Specifications-23X Camera with EIS...................35
Declarations.........................................................36
Appendix A: Vicon Wiring Configurations............37
About this Guide
This guide explains how to connect the camera
dome to a mounting base and how to service it.
It does not explain how to:
•Determine a mounting location for the camera
dome. The mounting location is determined by
customer requirements; therefore, this
information is provided separately.
•Attach the mounting base. There are two types
of mounting bases. See information shipped
with the base.
•Assemble housings and structures used with
this camera dome. See information shipped with
the housing and structure.
•Program the camera dome. See operator's
guide shipped with the dome.
Mounting
Base
Housing
Eyeball

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 2 of 37
About the Camera Dome
The SpeedDome Ultra VII EIS day/night camera
dome (Figure 1) comes in black, mounts indoors or
outdoors (with accessory outdoor enclosure), and
can communicate with the video controller over a
SensorNet 485, RS-422, Manchester, or UTC (up-
the-coax) network. The dome consists of a
mounting base, housing, and rotating eyeball
assembly.
Mounting Base
The housing and eyeball assembly connects to the
base using a twist and lock action, enabling it to be
moved easily from one location to another. The
base attaches directly to a hard or tile ceiling, or
indirectly to walls or ceilings using one of many
optional housings and mounting structures. As
shown in Figure 2, two base types are offered: a
standard base (without I/O board) and a base with
I/O board.
•Base without I/O board. With this base, video,
data, and power cables are inserted through the
base and attached to the top of the housing and
eyeball assembly, which is then connected to

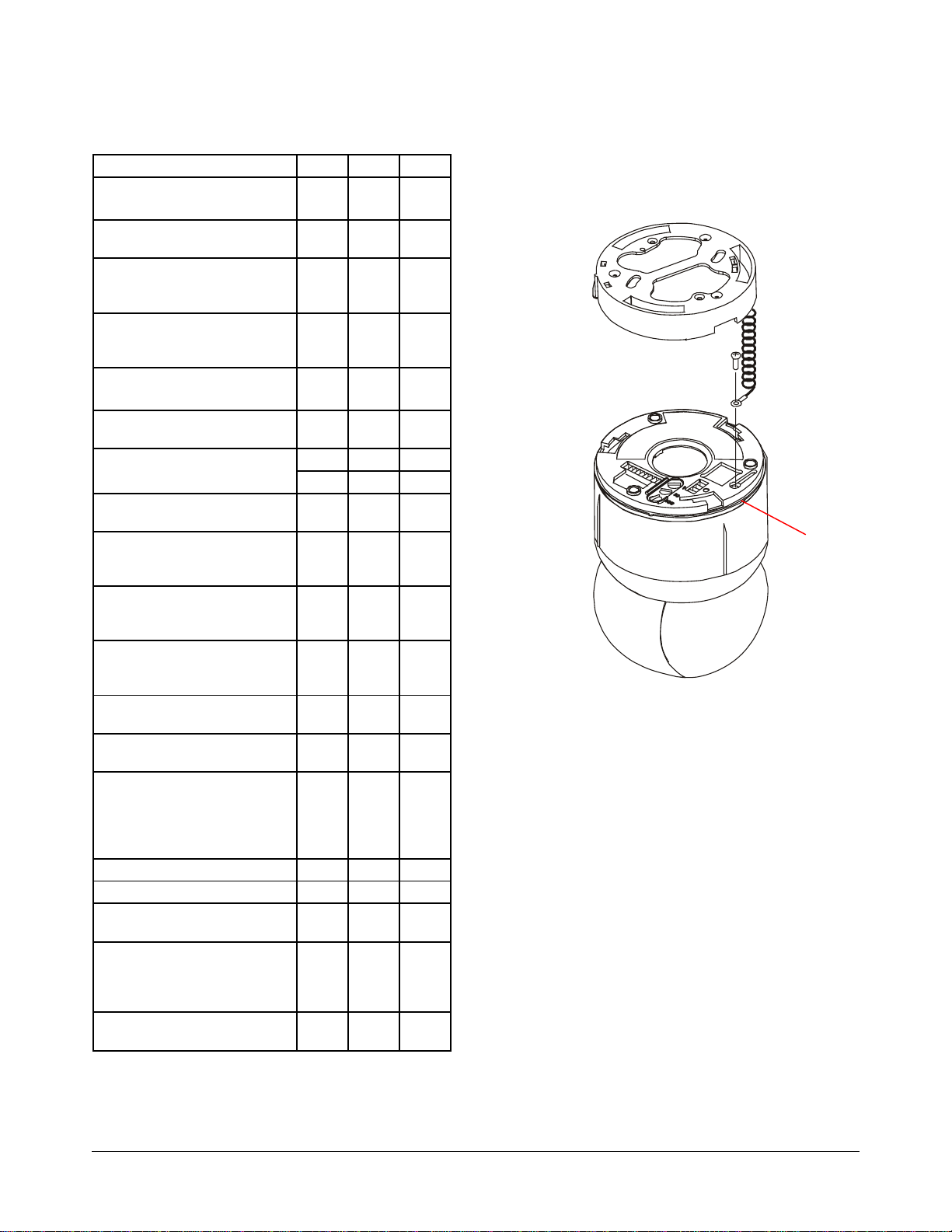

the base. A lanyard connects between the base
and the housing and eyeball assembly to
prevent cables from being pulled during
disassembly.
•Base with I/O Board. With this base, video,
data, and power cables are pre-connected to an
I/O PC board. A spring-finger connector on the
board makes electrical contact with the housing
and eyeball assembly as it connects to the
base.
Housing and Eyeball Assembly
The housing and eyeball assembly consists of the
following:
•Housing. The housing contains the dome's
power supply, pan motor, and electronics used
to operate the eyeball. The housing provides
one alarm input and one alarm output using the
base without I/O board, or four alarm inputs and
four alarm outputs using the base with I/O
board.
•Eyeball. With a diameter of 120mm (4.75in),
the eyeball contains a camera, tilt motor, and
associated electronics. The eyeball enables the
camera to pan and tilt to track a target moving
in any direction even as it moves under the
dome.
Two slot covers in the eyeball facilitate access
to the camera, one of which incorporates an
opening for the camera lens. Remove both
covers to improve ventilation when the dome is
to be used outdoors.
Figure 2. Mounting base and housing and
eyeball assembly
Base without I/O Board
Base with I/O Board

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 3 of 37
Indoor Ceiling Mounting
Using hardware shipped with the base, the camera
dome attaches directly to indoor ceilings made of
sheet rock, wood, metal, or concrete (Figure 3).
Figure 3. Surface mounting to hard ceilings
Indoor Ceiling/Wall Mounting
(Optional)
The camera dome attaches to one of the following
optional indoor mounting structures (Figure 4).
Sheet Rock, Concrete, Plaster or Wood Ceilings
RHIUTH Top hat housing with trim ring
This housing attaches to a ceiling or to
most indoor mounting structures. A trim
ring and optional magnetic bubble
provide concealment. Optional bubbles:
RUCLR (clear), RUSLV (silver), RUSMK
(smoked), or RUGLD (gold).
Dome base included.
RHIUHC Hard ceiling bracket
Enables top hat housing to be recessed
in ceiling (requires top hat RHIUTH).
Can be installed from below ceiling.
RHIUFB Fixed bracket
Enables top hat housing to be recessed
in ceiling (requires top hat RHIUTH).
Requires access from above ceiling.
RHIUPNDT† Pendant mount
Suspends dome from a hard ceiling with
3.2cm (1 1/4in) NPT pipe fittings.
Structural I-Beams
RHIUIB /
RHIUIBM† I-beam mount only.
Enables dome suspension from an
I-beam. RHIUIBM version has all related
accessories to suspend from I-beam,
except 3.2cm (1 1/4in) NPT pipe.
Electrical Box in Ceiling
RHIU3X3 3 X 3 mounting plate
Attaches dome to a standard
3.5 x 3.5 duplex electrical box.
CAUTION: Do not use the same
electrical box used for line voltage mains.
RHIU4X4 4 X 4 mounting plate
Attaches dome to a standard 4 x 4
duplex electrical box.
CAUTION: Do not use the same
electrical box used for line voltage mains.
* Option in white, but can be painted to match decor.
† Top hat housing/dome assembly also mounts to structure.
Tile Ceilings
RHIUFB Fixed bracket
Enables top hat housing to be recessed
in a 2x2 tile (requires top hat RHIUTH).
RHIUAB Adjustable bracket
Enables top hat housing to be recessed
in a 2x4 tile (requires top hat RHIUTH).
RHIU2X2M* 2 X 2 metal tile mount
Enables top hat housing to be recessed
in 2x2 openings (includes top hat
housing).
RHIU2X2P* 2 X 2 metal tile pendant mount
Enables dome to be suspended from 2x2
openings. Requires 3.2cm (1 1/4in) NPT
pipe (allow 3m (10ft) max. length)
Accepts the following housings:
RHIOTH, Dome base.
* Option in white, but can be painted to match decor.
† Top hat housing/dome assembly also mounts to structure.
Wall Mounting
RHIUCM* Wall mount with corner feature
Enables dome to attach to a flat wall,
inside corner, or outside corner.
RHIULWM*† Long 0.6m (24in) wall mount
Positions dome away from wall to enable
it to see over furniture, shelving, and
displays. This mounting structure
attaches to the flat wall, inside corner, or
outside corner.
* Option in white, but can be painted to match decor.
† Top hat housing/dome assembly also mounts to structure.

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 4 of 37
Figure 4. Indoor mounting structures (optional)
RHIUFB
RHIUAB RHIUHC RHIU2X2
RHIUTH
RHIUTR
RUCLR
RUSLV
RUSMK
RUGLD
RHIULWM
RHIUCM
RHIUWM
RHIU3X3
RHIU4X4
RHIUPNDT
RHIUIBM RHIU2X2P
A
DSDUPIHC
A
DSDUPIHS
A
DSDUPIVRC
A
DSDUPIVRS
ADSDUPIHC
ADSDUPIHS
ADSDUPIVRC
ADSDUPIVRS
V
andal Resistant
Bubble
Vandal Resistant
Bubble RD500A
RD500A
RHIUTH
RHIUTH
RHIUTH

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 5 of 37
Outdoor Mounting (Optional)
Note: This document does not include outdoor
installation and service instructions. For these
instructions, see RHODUL Outdoor Housing Install
Guide 8200-0492-01.
The camera dome attaches to outdoor walls and
ceilings using an RHODUL outdoor housing
(Figure 5) and an ROENDC end cap connected to
one of the following optional mounting structures
(Figure 7)
•RHOTR Over Roof Mount
•RHOTRF Over Roof Floor Mount
•RHOPN Pendant Mount
•RHOWPA Pole Mount
•RHOSW/RHOLW Wall Mount
•RHOWCA Corner Bracket.
The outdoor housing contains a pre-installed
mounting base, a cooling fan for hot weather, a
heater for cool weather and to prevent icing, and
surge protection circuitry.
An environmental PC board is used to pre-wire
cables. A round spring-finger connector on the
board makes electrical contact with the housing
and eyeball assembly as it connects to the base.
Note: Do not use the I/O board (designed for
indoor use) in place of the environmental board.
Figure 5. RHODUL outdoor housing (optional)
SpeedDome Housing Adapter
Bracket (Optional)
An RHSDA adapter bracket (Figure 6) enables the
dome to fit into SpeedDome indoor housings
(RD500A). Locking pins in the bracket enable the
dome to swing out for servicing or removal.
Figure 6. RHSDA adapter bracket (to used with
the RD500A housing)

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 6 of 37
Figure 7. Outdoor mounting structures
(optional).
Note: Housing is shown for reference only.
RHOTR over roof mount comes with the ROENDC
end cap (shown with RHOTRF bracket)
RHOPN pendant mount
ROENDC end cap
RHOWPA pole mount comes with the ROENDC
end cap
RHOSW/RHOLW wall mount comes with the
ROENDC end cap
RHOWCA corner bracket only (shown with RHOLW
mount)
RHOSW RHOLW

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 7 of 37
Cable Requirements
Data Cable
The table below shows requirements for
SensorNet, RS-422, and Manchester networks. For
more information about communication protocols
and cable networks, see Communication Protocols
and Cable Networks, 8000-2573-19.
Data cable requirements
SensorNet RS-422 Manchester
Cable type 1
unshielded,
twisted
pair*
2
shielded,
twisted
pair*
1
shielded
twisted
pair**
Wire gauge 22 AWG 22 AWG 18 AWG
Connection Non-
polarized Polarized Polarized
Max.
devices on
line
32 10 3
* Power, data, and video cables can be ordered
separately or within a composite cable that can be
ordered in various lengths. Plenum-rated cables must
be used in indoor ceilings used for environmental air
return (called "other air space" in the National Electrical
Code). Order parts through your distribution network.
Note: If you order cable from an outside source, wire
colors may be different.
** Belden 88760 (plenum), or Belden 8760 cable (non-
plenum) cable is recommended. Plenum-rated cables
must be used in indoor ceilings used for environmental
air return (called "other air space" in the National
Electrical Code). Order cable directly from Belden by
calling 1-800-235-3361.
Power Cable
For the camera dome to operate properly, line
voltage must not go below the worst-case low line
voltage shown in the following table. Make cable
lengths as short as possible to minimize affects of
low line voltages. As shown in the table, maximum
cable length depends on the Class 2 LPS (low
voltage) ac source (such as a J-box) and the worst-
case low line voltage. These lengths are for
Sensormatic composite cables, which use 18 AWG
ac power wires.
Note: Typically, distances are used that provide
a 15% margin between nominal and low line
conditions. For example, if the nominal voltage is
120Vac, restrict cable length to that associated
with 100Vac (0.85 x 120).
Worst-case ac line voltages
Indoor Dome Worst-Case Meters
AC Power Source Low Line V (Feet)
28 VA 117 180 (600)
Transformer 100 130 (430)
5604-0006-01 90 80 (270)
50 VA 117 180 (600)
Transformer 100 150 (500)
5604-0044-01 90 90 (300)
1-position SensorNet 117 210 (700)
RJ1SNUD 100 130 (430)
90 100 (325)
1-position SensorNet 117 210 (700)
RJ1SNUD-1 100 130 (430)
90 100 (325)
117 300 (1000)
6-position SensorNet 100 230 (750)
Indoor J-Box 90 160 (530)
RJ6SN 240 300 (1000)
200 230 (750)
180 160 (530)
10-Position RS-422 117 275 (900)
Indoor 120V/60Hz J-Box 100 200 (650)
RJ860AP 90 130 (430)
10-Position RS-422 240 275 (900)
Indoor 240V/60Hz J-Box 200 200 (650)
RJ860AP1 180 130 (430)
Universal Transformer 117 200 (650)
0300-0914-01 100 130 (430)
90 90 (300)
Universal Transformer 240 200 (650)
0300-0914-03 200 130 (430)
180 90 (300)

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 8 of 37
Twisted Pair Adapter
Figure 8. Twisted Pair Adapter
The supplied ADACTP01BNC Twisted Pair
Adapter (Figure 8) is used to transmit video or
video with UTC (up-the-coax) dome control signals
over unshielded twisted pair (UTP) cables, point-to-
point, up to 300m (1000ft).
The adapter mounts directly to the video source or
receiver without additional cabling and uses
Category 2-6 twisted pair wires to transmit the
video and dome control signals. The adapter does
not require power.
One adapter is supplied. If used, another adapter
must be ordered for the connection at the other
end of the cable. Figure 9 shows twisted pair cable
connections. See installation guide 8200-0298-01
for details.
Figure 9. Cabling overview
Install/Removal Tool for Base
with I/O Board
The install/removal tool (Figure 10) enables you to
connect or disconnect the housing and eyeball
assembly from the base with I/O board, and to
attach/detach skirts and bubbles to a top-hat
housing, without the need for a ladder. The tool
attaches to a telescopic pole (purchased
separately). See page 20.
CAUTION: Do not use this tool to connect the
dome to the base without I/O board.
Figure 10. RHIRT indoor install/removal tool
RHIRT Removal Tool
Telescopic Pole 08140
by Recreational Water
Products. See page 20
to order.
Video Switcher/
Controller
Cat 2-6 UTP Cable
Twisted Pair Adapter
(Switcher/Controller End)
American Dynamics
Dome o
r
Fixed Camera
Twisted Pair Adapter
(Fixed Camera End)
Twisted Pair Adapter
(Dome End)

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 9 of 37
Power-Up Routine
After power is connected to the dome, the dome
performs the following homing routine.
1. After a few seconds, the camera lens tilts up
into the housing and eyeball assembly.
2. The lens tilts downs until it looks at the floor.
3. Eyeball pans slowly.
4. Lens tilts up 90° (home position).
Once the lens is in its home position, you can then
use the controller to call up the camera and control it.
Synchronizing Domes
To prevent picture rolling when switching from
camera to camera, all domes can be synchronized
to a 50Hz or 60Hz ac source. A V-phase
adjustment at the control console enables the
dome to sync to any line phase.
Diagnostic LEDs
If a base without I/O board is used, LEDs in the
housing and eyeball assembly enable you to check
for power and data.
If a base with I/O board is used, LEDs on the
underside of the mounting base enable you to
check for power and data. If an RS-422 network is
used, other LEDs on the board indicate that wiring
is correct, reversed, open, or grounded.
Warnings and Cautions
Please review the following warnings and cautions
before you begin installation or service.
WARNINGS
!WARNING!
ALWAYS USE:
•Proper safety equipment for the location and
type of installation.
•Proper lift equipment to reach the installation.
•Safety features of the lift equipment.
BE SURE:
•Electrical power is not connected to the dome
when connecting wires. Dome will move when
power is applied.
•Electrical power is not connected to nearby
fixtures that you might touch during installation.
!WARNING!
DO NOT install this camera dome where highly
combustible or explosive products are stored or
used.
!WARNING!
This dome runs on 24Vac. DO NOT connect line
voltage to this dome.
North America power requirements: In North
America, this device is intended to be supplied
from a Class 2 power supply. For outdoor
installations, use Class 3 wiring techniques, liquid-
tight conduit, or liquid-tight pipe.
This installation should be made by a qualified
service person and should conform to all local
codes.

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 10 of 37
!WARNING!
EU power requirements: This product runs on
24Vac. In the EU, it is intended to be powered from
a Limited Power Source. A limited power source is
a certified source of SELV, and if inherently limited,
with 8 amps maximum output current, and a
maximum of 100VA available; or if not inherently
limited, fused with a maximum value of 3.3 Amps,
meeting section 2.11 of IEC950, and a maximum of
250VA available. The power supply can be
obtained through Sensormatic or through another
source where the provider can furnish the
verification. This is required to assure electrical
safety in the product.
Stromanforderungen in der EU: Dieses Produkt
wird mit 24 V Wechselstrom betrieben. In der EU
ist es für den Betrieb durch eine begrenzte
Stromquelle vorgesehen. Eine begrenzte
Stromquelle ist eine zertifizierte SELV-Quelle
(Schutzkleinspannung), bei inhärenter Begrenzung
mit einem maximalen Ausgangsstrom von 8 A und
100 VA maximaler Verfügbarkeit, bei nicht
inhärenter Begrenzung mit einer maximalen
Sicherung von 3,3 A gemäß Abschnitt 2.11 der
IEC950 und 250 VA maximaler Verfügbarkeit. Das
Netzteil kann über Sensormatic oder eine andere
Quelle bezogen werden, wobei der Anbieter den
Nachweis der Konformität bereitstellen sollte. Dies
ist zur Gewährleistung der elektrischen Sicherheit
des Produktes erforderlich.
CAUTIONS
Cables
- Do not run data and power cables adjacent
to or in the same conduit as line voltage
mains power.
- SensorNet 485 networks require 22 AWG
unshielded cable. Do not exceed 32 devices
per cable run.
- RS-422 networks require 22 AWG shielded
cable. Do not exceed 10 devices per cable
run.
- Manchester networks require 18 AWG
shielded cable. Do not exceed 3 devices per
cable run.
- Always terminate the dome’s CPU board
(JW1), if the camera dome is connected at
the end of a cable run or is connected to an
I/O base.
- When using the base without I/O board and
wiring cables directly to the dome, ALWAYS
connect the video cable to the dome before
you connect the 9-pin cable (which contains
power). If you connect the 9-pin cable first,
you risk shorting delicate electronics near the
connector.
I/O PC board (when used).
−If a cable clamp is on this board, remove it,
as it could damage cable connectors in the
housing during assembly.
−Use a jeweler's 2.5mm (0.1in) slotted
screwdriver to tighten connector screws. Do
not over tighten these screws.
−Keep the dust cover to protect contacts
should the environmental PC board need to
be removed from the housing.
When connecting the housing and eyeball
assembly to an outdoor housing:
−Remove both slot covers to keep the camera
from overheating.
Note: For further information, see installation
instructions shipped with the outdoor housing.
If disassembling the dome:
−Dome contains electrostatic-sensitive
devices! Use a ground strap when handling
PC boards.
−Once disassembled, parts of housing and
eyeball assembly are "extremely fragile" and
may break. Use extreme care!
−Install a new desiccant bag (Desiccant Bag
Kit 0352-0207-02) every time the bubble is
removed.

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 11 of 37
Indoor Installation
This section explains how to connect the housing
and eyeball assembly to a:
•Mounting base without I/O board (page 11)
•Mounting base with I/O board (page 17)
Items You Will Need
You should have on hand the following
tools and parts:
Install/Removal tool to attach and detach domes
and bubbles without a ladder from mounting
bases with I/O boards.
Base kit:
−RUIOB/RUWIOB (base with I/O board), or
−RUPTB/RUWPTB (standard base without I/O
board).
SpeedDome Ultra VII with EIS housing and
eyeball assembly, 0101-0120-21.
Other Preparations
To ensure a smooth and successful installation,
you must:
•Have electrical work comply with latest national
electrical code, national fire code, and all
applicable local codes and ordinances.
•Coordinate work with other trades to avoid
interference.
•Verify existing site conditions and coordinate
with the owner's representative and appropriate
utilities as required.
•Obtain copies of all related plans, specifications,
shop drawings and addenda to schedule and
coordinate related work.
•Thoroughly review the project to ensure that all
work meets or exceeds the above requirements.
Bring alleged discrepancies to the attention of
the CCTV Project Coordinator.
Connecting to the Mounting Base
without I/O Board
This procedure explains how to connect the
housing and eyeball assembly to a mounting base
without I/O board.
WARNING: Ensure that ac power and
electrical signals are off during wire
connections!

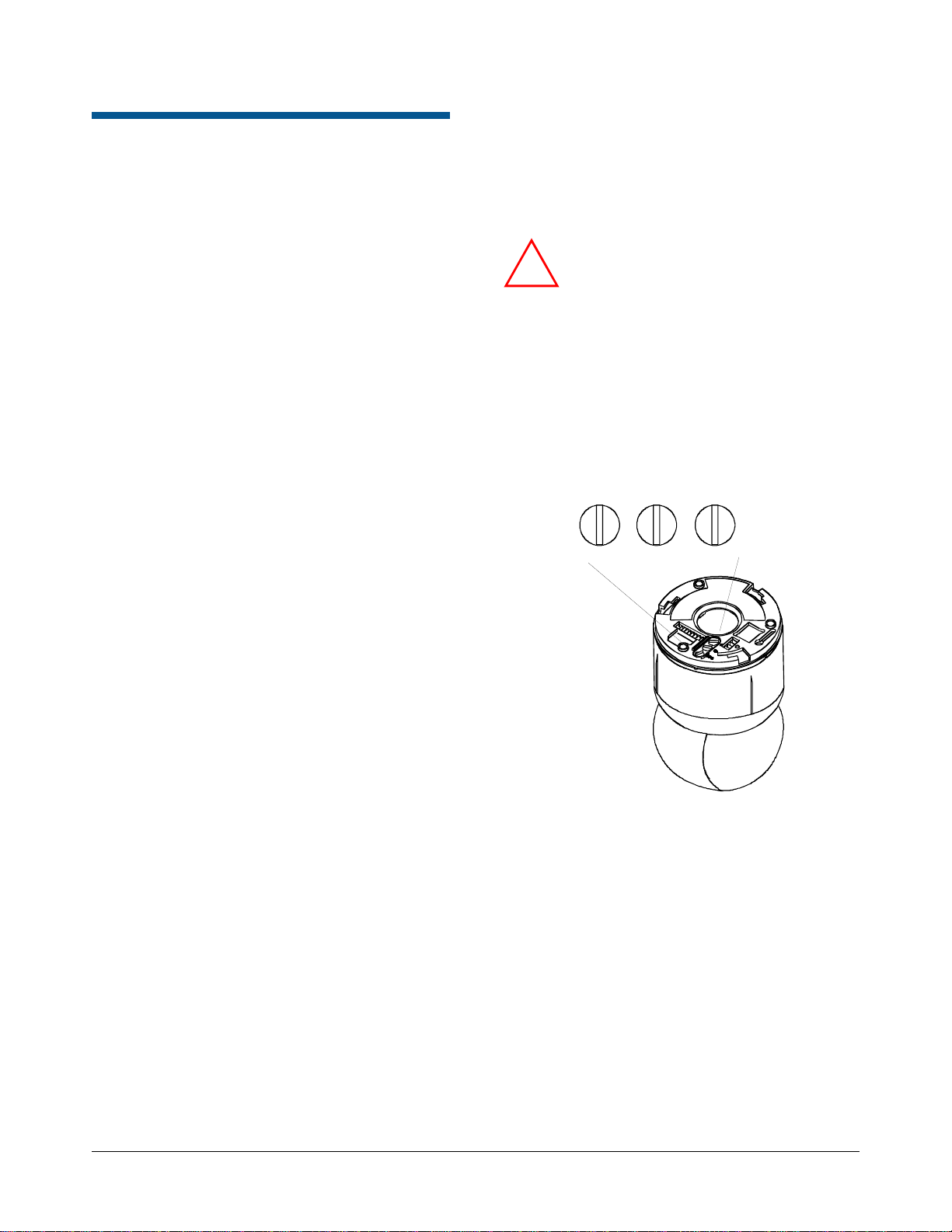

1. Set the dome address (Figure 11).
At the top of the housing are three address
switches. From left to right, set the switches to
the desired address. For example, for address
166, set SW3 to 1, SW2 to 6, and SW1 to 6).

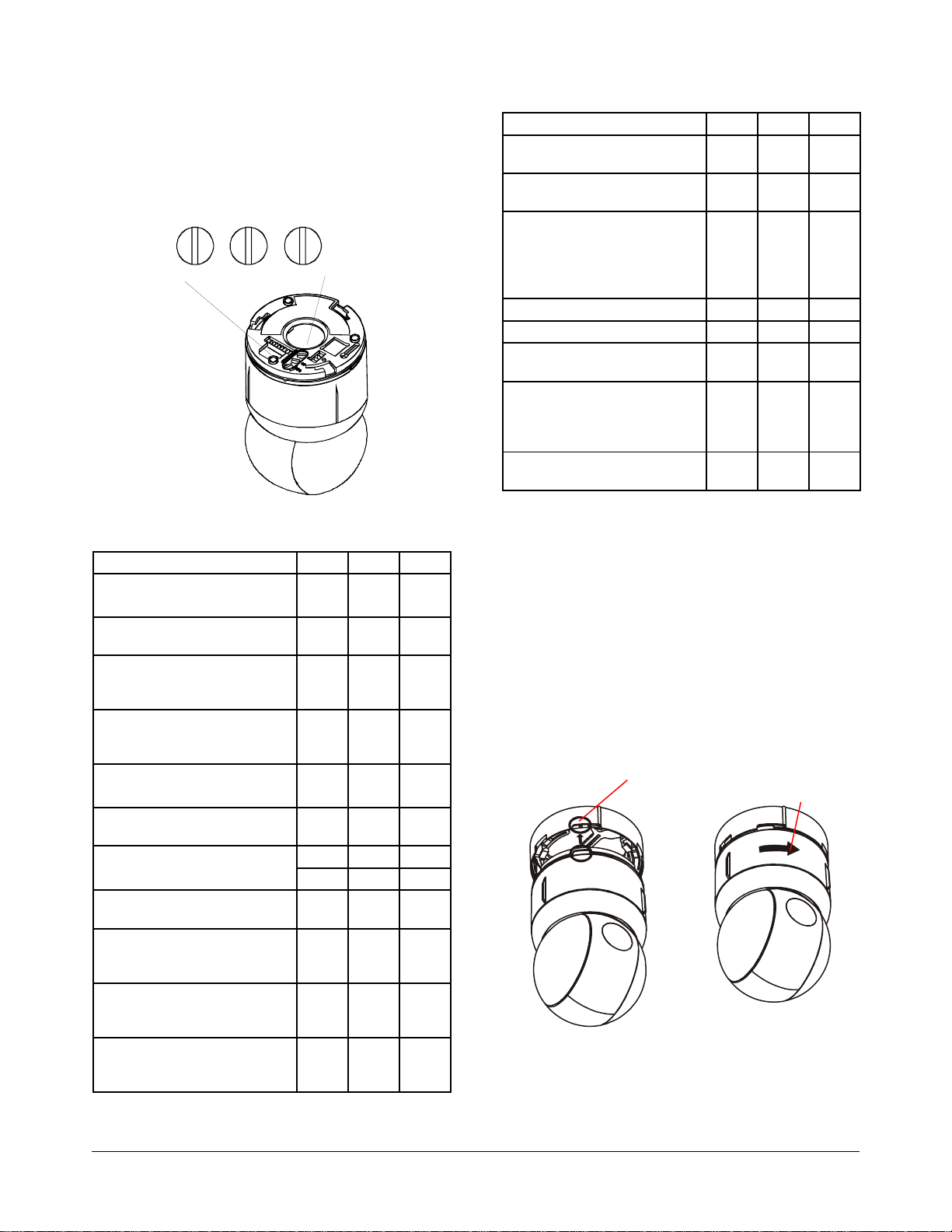

Figure 11. Setting address switches
090909
MSB LSB
SW3 SW1SW2
!

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 12 of 37
Use the following addresses for the protocols
shown:
PROTOCOL SW3 SW2 SW1
AD Manchester,
Range: 001—064 0 x x
PELCO "P," 4800 baud RS-
422, Range: 001—099 0 x x
Sensormatic, 4800 baud
RS-422, Range: 001—063,
065—099
0 x x
Sensormatic, RS-422
Address 64 is used for global
broadcasts
0 6 4
SensorNet,
Range: 001—099 0 x x
VICON, 4800 baud RS-422,
Range: 001—099 0 x x
1 x x
SensorNet,
Range: 100—254 2 x x
Address 255 is used for
global broadcasts 2 5 5
Dept. of Transportation
(NTCIP), 4800 baud RS-422,
Range: 301—399
3 x x
Dept. of Transportation
(NTCIP), 9600 baud RS-422,
Range: 401—499
4 x x
Dept. of Transportation
(NTCIP), 19.2K baud RS-422,
Range: 501—599
5 x x
PELCO "P," 2400 baud RS-
422, Range: 601—699 6 x x
PELCO "P," 9600 baud RS-
422, Range: 701—799 7 x x
Reset HITACHI VK-xxxx(E)R
camera block from 38.4K to
4800 baud (SpeedDome Ultra
VII WITH EIS 0100+ feature
only).
8 3 0
PANASONIC UTC 8 9 0
Tyco UTC 8 9 1
PELCO UTC (Origins,
Standard, & Extended) 8 9 3
RS-422, LED diagnostic
mode for dome wiring
installations without the I/O
Board
9 0 0
Manufacturing Use,
Range: 901—999 9 x x
2. Attach the safety lanyard to the cap on the
housing and eyeball assembly (Figure 12). Use
the M3x6 screw supplied with the lanyard.
Figure 12. Attaching safety lanyard
3. WITH POWER OFF, connect the video cable
(Figure 13).
a. Connect BNC of video micro coax cable
6003-0170-01 to BNC of video cable.
b. Feed cable through access hole in base.
c. Press the micro coax connector into the
mating receptacle in the top of the housing
and eyeball assembly. A firm snap indicates
a tight connection.
Only use this
location to secure
lanyard.

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 13 of 37
4. For the dome at the end of a daisy chain, set
termination jumper JW1 on the dome CPU
board (Figure 13) to “terminated.”
Position of dome in
communications line… Setting Pins
Between other devices Unterminated 1-2*
End of communications line Terminated 2-3
* Pins 1-2 are closest to 9-pin connector.
Note: You may need a small slotted screwdriver
to gently pry the jumper loose. Be careful not to
damage the underlying PC board.
Figure 13. Video cable connection and
termination jumper location
5. Connect the 9-pin plug (data and power) to the
9-pin receptacle (Figure 14). If using a Pelco
Coaxitron or Panasonic UTC protocol, no data
wires are connected, just power.
CAUTION: DO NOT connect the 9-pin plug
unless you have performed step 3 first!
a. Feed cables through the access hole in the
base.
b. Connect data and power wires to the 9-pin
plug (refer to charts below).
c. Insert the plug into the mating receptacle in
the top of housing and eyeball assembly.
Manchester data and power connections.
Order data cable 88760 (plenum) or 8760
(non-plenum) from Belden by calling
1-800-235-3361.
Pin Color Designation
1 White Manchester (–)
2 Black Manchester (+)
3 Black 24Vac
4 Red Ground
5 White 24vac
6-9 — Not used.
RS-422/Pelco P data and power connections
Pin Color Designation
1-2 — Not used.
3 Black 24Vac
4 Red Ground
5 White 24Vac
6 Orange RS-422 Data In High (+)
7 Green RS-422 Data In Low (–)
8 Yellow RS-422 Data Out High (+)
9 Brown RS-422 Data Out Low (–)
SensorNet data and power connections
Pin Color Designation
1 Orange SensorNet (unshielded)
2 Yellow SensorNet (unshielded)
3 Black 24Vac
4 Red Ground
5 White 24Vac
6-9 — Not used.
Termination
Jum
p
er JW1
Micro
Coax
Cable

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 14 of 37
6. Connect the 4-pin plug (alarm input/output) to
the 4-pin receptacle (Figure 14).
a. Feed the cable through the access hole in
the base.
b. Connect alarm wires to the 4-pin plug (refer
to chart below).
c. Insert the plug into the mating receptacle in
the top of the housing and eyeball assembly.
Alarm connections
Pin Color Designation
1 — +12Vdc
2 — Alarm Out
3 — Alarm In
4 — Common
Figure 14. Cable connections (Manchester
requires separate cables for data
and power)
7. Connect the housing and eyeball assembly to
the base (Figure 15) by aligning the Cap and
Base tabs and then turning clockwise until you
hear a click.
Figure 15. Connecting housing and eyeball
assembly to base (cables and
lanyard not shown)
8. Apply power and wait a few seconds for the
dome to begin its homing routine. The homing
routine indicates that address was placed into
dome memory and that dome is ready for
programming.
Note: If the homing routine does not occur or if
the dome does not respond to commands,
check the cable wiring by referring to the LED
response tables in Appendix A.
9-pin plug
LEDs CR2,
CR3, and CR4
visible through
opening. 4-pin plug
Note: Align tabs
on Cap and
Base.
Turn clockwise
to latch

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 15 of 37
Checking Power and Data for
Domes Using the Base without
I/O Board
Check LEDs to verify that power and data are
reaching the dome (Figure 16).
IMPORTANT! To view the LEDs, you will need to
detach the dome from its base. To prevent damage
to the dome, hold the dome by its housing, not its
eyeball assembly.
1. If the power LED (CR33) on the I/O board
glows green, then ac power is connected.
2. Green CR2, red (CR3), and yellow (CR4)
LEDs surround the video connection and are
visible through opening. Check that the
following communication protocols are properly
wired by observing these LEDs.
Figure 16. Cable connections (Manchester
requires separate cables for data
and power)
9-pin plug
LEDs CR2,
CR3, and CR4
visible through
opening.
4-pin plug

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 16 of 37
Manchester: After approximately 20 seconds, the three LEDs do the following:
Red Green Yellow Possible Cause
Blinking Steady,
Blinking, then
Steady1
Steady, then Off 2White (pin1) and black (pin 2) correctly wired.
1When the network has been detected.
2When data for this dome has been received. Thereafter,
the yellow LED will flicker when data is sent to this dome.
Blinking Steady, then
Blinking Steady White (pin 1) or white and black (pin 2) wires not connected,
or white and black wires shorted.
RS-422: Set the domes address switches to 900 test mode, then apply power.
After approximately 20 seconds, the three LEDs do the following:
Red Green Yellow Control 3Possible Cause
Mostly Off,
Blinking On Mostly Off, Blinking On Rapidly Blinking Yes RX+ (pin 6) and RX– (pin 7) correctly wired.
Mostly Off,
Blinking On Mostly Off, Blinking On Rapidly Blinking No Wire to RX+ (pin 6) not connected.
Mostly On,
Blinking Off Mostly On, Blinking Off Rapidly Blinking No Wires to RX+ (pin 6) and RX– (pin 7) reversed.
Off On Alternating Off and On
Every 60 Sec. No Wire to RX– (pin 7) not connected.
Wires to RX+ or RX– not connected or shorted
together.
Wires to RX+ and/or RX– shorted to ac ground.
3 When not in address 900 test mode.
When done testing, reset the address switches back to the camera address.
SensorNet: After approximately 20 seconds, the three LEDs do the following:
Red Green Yellow Control Possible Cause
Blinking Steady, then
Rapidly
Blinking
Steady, then Off 4Yes Pins 1 and 2 correctly wired.
4When data for this dome is received.
Thereafter, the yellow LED will flicker when data
is sent to this dome.
Blinking Steady, then
Rapidly
Blinking
Steady, then Off 5No Wires to pin 1 and/or pin 2 shorted to ac ground.
5When data for this dome is received.
Blinking Steady, then
Rapidly
Blinking
Steady No Wire to pin 2 not connected.
Blinking Steady, then
Blinking Steady No
Wires to pins 1 and 2 shorted together.
Wire to pin 1 not connected or both wires to pins
1 and 2 not connected.

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 17 of 37
Connecting to a Mounting Base
with I/O Board
This procedure explains how to connect the
housing and eyeball assembly to a mounting base
with I/O board.
WARNING: Ensure that ac power and
electrical signals are off during wire
connections!
Referring to Figure 17:
CAUTION: Detach and discard cable clamp if I/O
board has one. If not removed, clamp can damage
9-pin connector in housing and eyeball assembly
when you attempt to connect it to base.
1. Set termination jumper JW1 on the dome CPU
board to “terminated”.
Position of dome in
communications line… Setting Pins
Between other devices Unterminated 1-2*
End of communications line Terminated 2-3
* Pins 1-2 are closest to 9-pin connector.
Note: You may need a small slotted screwdriver
to gently pry jumper loose. Be careful not to
damage underlying PC board.
2. Connect video cable (or Twisted Pair Adapter)
to BNC connector P8 on I/O board.
3. Connect Manchester, RS-422, or SensorNet
485 data wires to connector P1. If using a Pelco
Coaxitron or Panasonic UTC protocol, no data
wires are connected, just power.
Manchester data connections. Order data
cable 88760 (plenum) or 8760 (non-plenum)
from Belden by calling 1-800-235-3361.
Pin Color Designation
1-4 — Not used.
5 Black Manchester (+)
6 White Manchester (–)
RS-422 data connections
Pin Color Designation
1 Orange RS-422 Data In High (+)
2 Green RS-422 Data In Low (–)
3 Yellow RS-422 Data Out High (+)
4 Brown RS-422 Data Out Low (–)
5-6 — Not used.
SensorNet data connections
Pin Color Designation
1-4 — Not used.
5 Orange SensorNet (unshielded)
6 Yellow SensorNet (unshielded)
Figure 17. Electrical connections
1
P1
P4
P3
P8
P7
JW1
I/O BOARD
JW1 Terminations
FUNCTION
Terminated
Unterminated
PINS
1-2
2-3
Pin 1
Pin 1
Pin 1
Pin 1
!

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 18 of 37

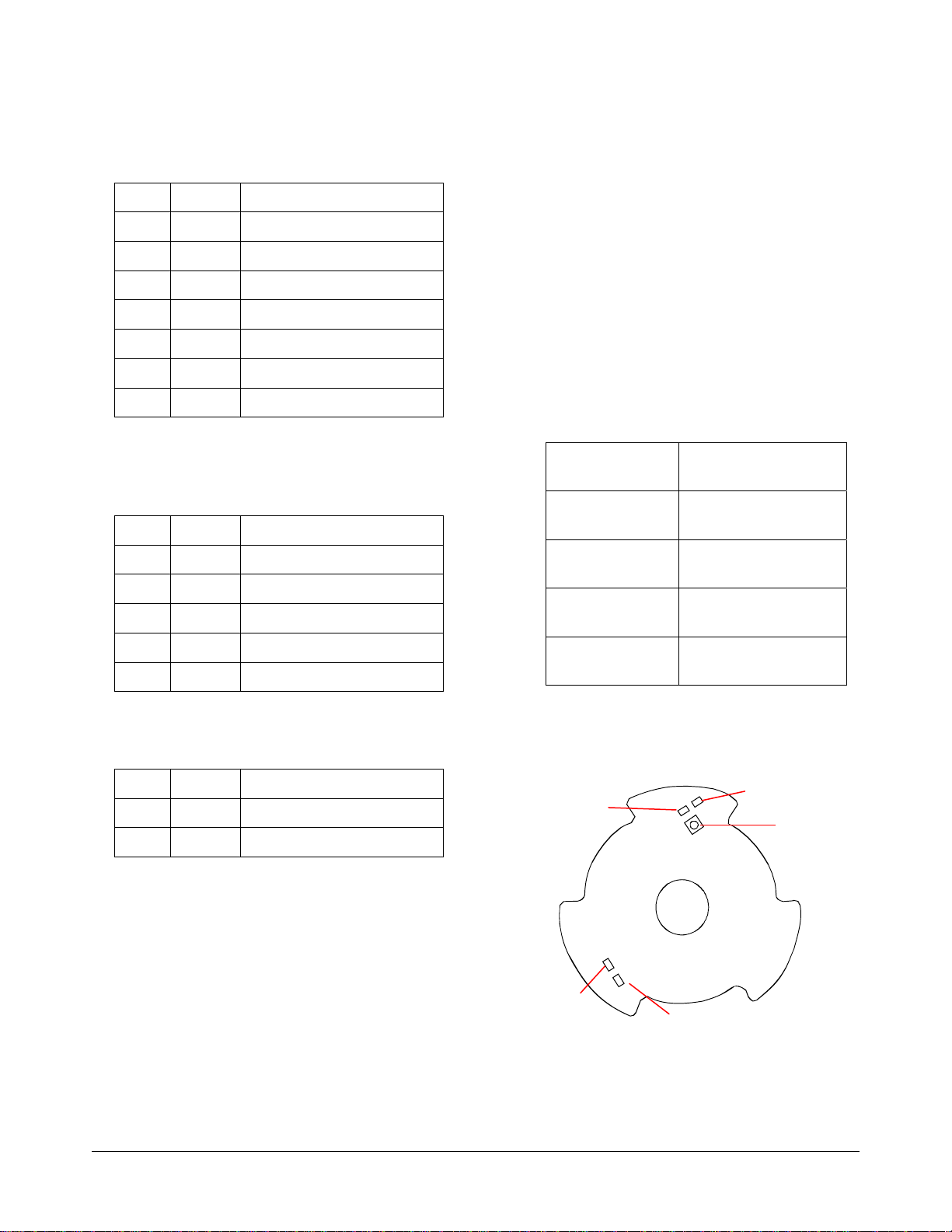

4. Connect the alarm output cable, if used,
to the P3 connector.
Pin Color Designation
1 — 12Vdc (100mA max.)
2 — 12Vdc (100mA max.)
3 — Output P0 (40mA sync. max.)
4 — Output P1 (40mA sync. max.)
5 — Output P2 (40mA sync. max.)
6 — Output P3 (40mA sync. max.)
7 — Ground
8 — Ground
5. Connect the alarm input cable, if used,
to the P4 connector.
Pin Color Designation
1 — Alarm 3 input (3.5mA sink)
2 — Alarm 2 input (3.5mA sink)
3 — Alarm 1 input (3.5mA sink)
4 — Alarm 0 input (3.5mA sink)
5 — Ground
6 — Ground
6. Connect power to P7 connector.
Pin Color Designation
1 Black 24 Vac
2 Red Ground
3 White 24 Vac
7. Reattach the I/O board.
8. Connect power to the base.
9. Check LEDs on the I/O board to verify power
and data are reaching the dome (Figure 18).
a. The green (ac power) LED glows steadily
when ac power is applied.
b. For Manchester or SensorNet: The yellow
(comm.) LED glows steadily (Manchester) or
blinks (SensorNet). If this LED is off, then
probably one or both communication wires
are open or both are shorted together.
For RS-422: Press and hold data test switch
SW1 and observe nearby red (CR34) and
green (CR35) LEDs; they indicate the
following:
Constant green,
Blinking red RS-422 line correctly
wired.
Constant green,
No red RS-422 "Data In—"
shorted to ac ground.
Constant red,
Blinking green "Data In +/—" wires
reversed.
Blinking red,
Green off "Data In +" shorted to
ac ground.
Both LEDs off "Data In +/—" wires
shorted or open.
Figure 18. Test switch/LEDs on I/O board
Comm. LED
Power LED
RS422 Test
Pushbutton
SW1
Red (CR34) Green (CR35)
Green (CR33)
Yellow
(CR28)

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 19 of 37
10. Set the dome address (Figure 19).
Figure 19. Setting address switches
090909
MSB LSB
SW3 SW1SW2
Use the following addresses for the protocols
shown:
PROTOCOL SW3 SW2 SW1
AD Manchester,
Range: 001—064 0 x x
PELCO "P," 4800 baud
RS-422, Range: 001—099 0 x x
Sensormatic, 4800 baud
RS-422, Range: 001—063,
065—099
0 x x
Sensormatic, RS-422
Address 64 is used for global
broadcasts
0 6 4
SensorNet,
Range: 001—099 0 x x
VICON, 4800 baud RS-422,
Range: 001—099 0 x x
1 x x
SensorNet,
Range: 100—254 2 x x
Address 255 is used for
global broadcasts 2 5 5
Dept. of Transportation
(NTCIP), 4800 baud RS-422,
Range: 301—399
3 x x
Dept. of Transportation
(NTCIP), 9600 baud RS-422,
Range: 401—499
4 x x
Dept. of Transportation
(NTCIP), 19.2K baud RS-422,
Range: 501—599
5 x x
PROTOCOL SW3 SW2 SW1
PELCO "P," 2400 baud
RS-422, Range: 601—699 6 x x
PELCO "P," 9600 baud
RS-422, Range: 701—799 7 x x
Reset HITACHI VK-xxxx(E)R
camera block from 38.4K to
4800 baud (SpeedDome Ultra
VII WITH EIS 0100+ feature
only).
8 3 0
PANASONIC UTC 8 9 0
Tyco UTC 8 9 1
PELCO UTC (Origins,
Standard, & Extended) 8 9 3
RS-422, LED diagnostic
mode for dome wiring
installations without the I/O
Board
9 0 0
Manufacturing Use,
Range: 901—999 9 x x
11. Connect the housing and eyeball assembly to
the base (Figure 20).
a. Align the Cap and Base tabs, then turn
clockwise until you hear a click.
12. Wait a few seconds for dome to begin its
homing routine. The homing routine indicates
that the address was placed into the dome
memory and that the dome is ready for
programming.
Figure 20. Connecting housing and eyeball
assembly to base
Note: Align tabs
on Cap and
Base.
Turn clockwise
to latch

SPEEDDOME ULTRA VII EIS DAY/NIGHT CAMERA DOME 8200-0184-14, REV. A
INSTALLATION AND SERVICE GUIDE 20 of 37
Using the Install/Removal
Tool
CAUTION: Do not use this tool to connect the
dome to the standard base (without I/O board)
Used only when the dome is connected to a base
having an I/O board, the RHIRT install/removal tool
eliminates the need for a ladder during routine
service. The tool can be used to:
•Detach skirt or bubble from housing, if used.
The skirt or bubble remains attached to the
housing during service.
•Connect/Disconnect dome from base with I/O
board.
•Reattach skirt or bubble.
Telescopic Pole Required to Use Tool
The tool attaches to a telescopic pole that is similar to
the type used to clean swimming pools. The pole should
be 5 feet-5 inches to 15 feet-5 inches long and have a
1.170 -inch inside diameter to accept the 1.125-inch
diameter stem of the tool. If this pole cannot be obtained
locally, contact the following manufacturer:
Recreational Water Products
627 E. College Ave.
Decatur, GA 33030
Ask for product code 08140
UPC: 0-14746-58140-2
Procedure
Referring to Figure 21, maneuver the stem of the
tool into the top of the pole until it snaps in place.
TO ATTACH SKIRT OR BUBBLE:
Use the tool to push up on the bubble to secure it
in place. Magnets secure the bubble. Lower the
pole.
TO DETACH SKIRT OR BUBBLE:
Lifting the pole up at an angle, use one of the
hooks on the tool to catch one of the notches at the
side of the dome and pull down. The T-lanyard will
prevent the skirt or bubble from falling.
TO CONNECT DOME:
1. Insert dome "eyeball down" into tool's
receptacle. Fins on dome mate with slots in tool.
Use fins to properly align dimple at top of dome
with label on tool.
2. Align label on tool with logo on I/O board in
base. Push dome up into place.
3. Turn dome clockwise until it clicks.
4. If power is applied, dome should begin its
"homing" routine.
5. Lower pole.
TO DISCONNECT DOME:
1. Raise pole and insert dome "eyeball down"
into tool's receptacle.
2. Fins on dome mate with slots in tool.
3. Turn dome counterclockwise until it unlocks.
4. Lower pole "vertically" to prevent camera dome
from falling out.
CAUTION: Turning pole horizontally as it is
lowered can cause camera dome to fall out of
tool and possibly break on floor.
5. Remove dome for service.
