American Home 6984013COM User manual

B346984013COM00GO
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
WARNING
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
Follow Ameriwood Home
Date of Purchase ___ / ___ / ___
Lot Number:
6984013COM
4 CUBE TALL ENTRY STORAGE
Tube
You
Assembly Difficulty Meter
Easy Tough

Do NOT return this product!
Contact our friendly customer service team first for help.
Visit ameriwoodhome.com
Assembly Tips
- Open your item in the area you plan to keep it to avoid excessive heavy lifting.
- Identify, sort and count the parts before attempting assembly.
- Compression dowels are lightly tapped in with a hammer.
- Slides are labeled with a R (right) and L (left) for proper placement.
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge.
- Use all the nails provided for the back panel and spread them out equally.
- Back panel must be used to make sure your unit is sturdy.
- Do NOT use harsh chemicals or abrasive cleaners on this item.
- Never push, pull, or drag your furniture.
ameriwoodhome.com
2
PEOPLE NEEDED FOR ASSEMBLY: 1-2
ESTIMATED ASSEMBLY TIME: 0.5-1 HOUR
Contact Us!
Helpful Hints
Call us!
1-800-489-3351
Monday-Friday
9am - 5pm CST
Tube
You
Tube
You

P
Quick
Tip
Assembly
P
P
P
ameriwoodhome.com
3
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Caution: If using a power drill or power screwdriver for screwing,
please be aware to slow down and stop when screw is tight.
Failure to do so may result in stripping the screw.
P
Before You Start
Cam Lock Fastening System
This Cam Lock Fastening System will be used throughout the assembly process.
1
3
2
4
Tube
You

Board Identification
Not actual size
ameriwoodhome.com
4
A
TOP
T6984013010GO
QTY: 1 PC
Tube
You
B
BOTTOM
T6984013020GO
QTY: 1 PC
C
LEFT PANEL-UPPER
T6984013030GO
QTY: 1 PC
D
RIGHT PANEL-UPPER
T6984013040GO
QTY: 1 PC
E
LEFT PANEL-LOWER
T6984013050GO
QTY: 1 PC
F
RIGHT PANEL-LOWER
T6984013060GO
QTY: 1 PC
G
SHELF-MID
T6984013070GO
QTY: 1 PC
H
PARTITION UPPER
T6984013080GO
QTY: 1 PC
I
SHELF-LOWER
T6984013090GO
QTY: 1 PC

Board Identification
Not actual size
ameriwoodhome.com
5
J
PARTITION-MID
T6984013100GO
QTY: 1 PC
Tube
You
K
PARTITION-LOWER
T6984013110GO
QTY: 1 PC
L
BACK PANEL UPPER
T6984013120GO
QTY: 1 PC
M
BACK PANEL LOWER
T6984013130GO
QTY: 1 PC

Board Identification
Not actual size
ameriwoodhome.com
6
Tube
You
A
B
C
E
D
F
G
H
J
I
K
L
M

Part List
ameriwoodhome.com
7
Hardware Bag Reference number:
26984013COM0GO
Actual Size
×16 ×16 ×28
CAM LOCK
TGO2100
WOOD DOWEL
TGO2900
Ø8 x 30mm
Ø15 x 10mm
1 2 3
Ø6 x 25mm
CAM BOLT
TGO2001
×12
5
Tube
You
Ø4.2 x 45mm
SCREW
TGO1008W
×45
Ø3 x 12mm
SCREW
TGO1301
×2
WOOD DOWEL
TGO2910
Ø8 x 40mm
4
×16
Ø3.5 x 14mm
SCREW
TGO1005
x1
SCREW
TGO1304
×1
SCREW
TGO1314
Not Actual Size
×1
10
WALL ANCHOR
TGO6501
Ø6 x 30mm
×1
11
WALL BRACKET
TGO3502
30x50x20mm
×8
12
HOOK
TGO3540
9
8
67
Ø4.2 x 13mm Ø4.2 x 28mm

ameriwoodhome.com
STEP
8
1

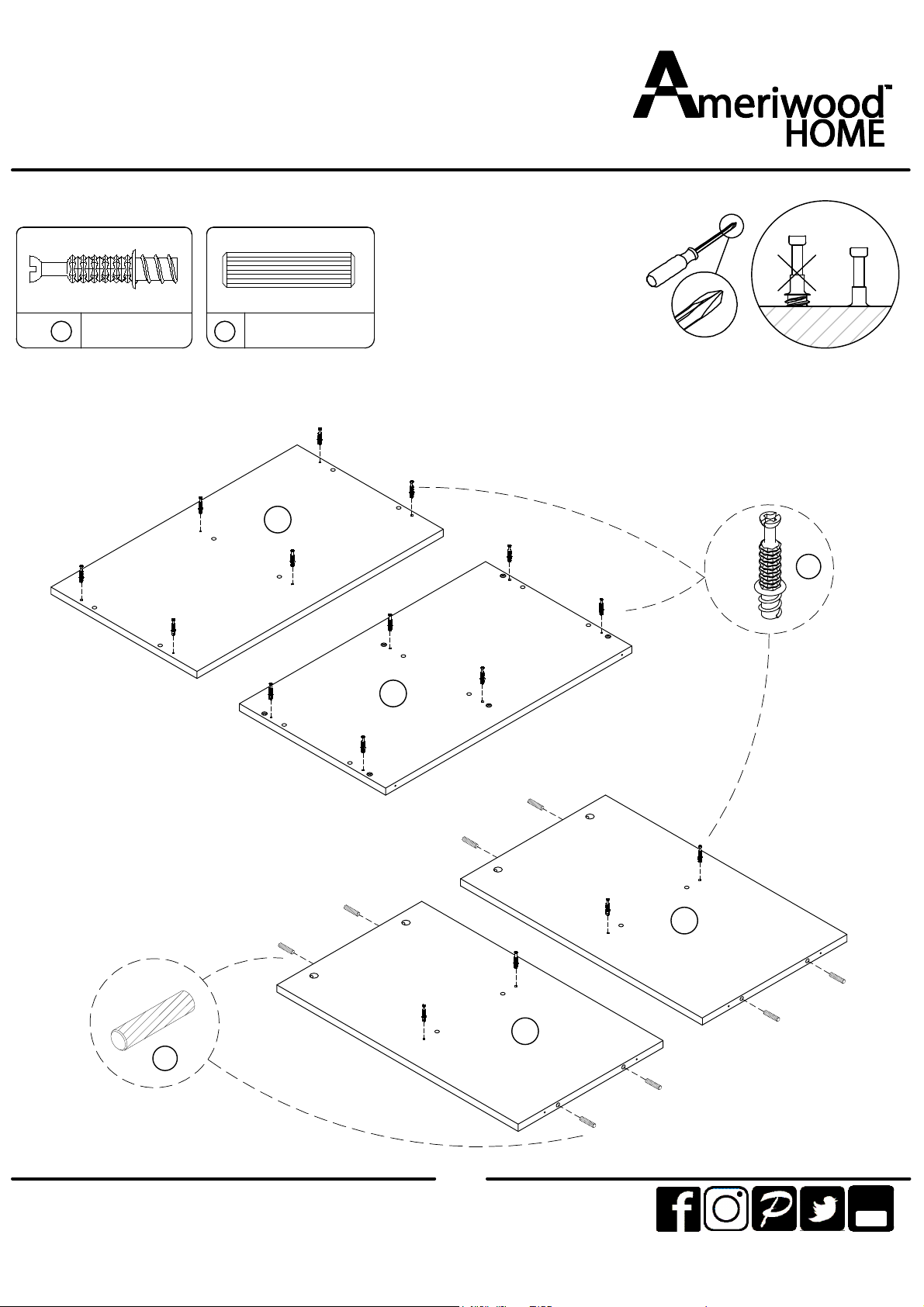

1.1 Cam bolt (2) into (A), (G), (E), (F) as illustrated
1.2 Insert (3) into (E), (F) as illustrated.
×16
23 ×8
Tube
You
A
G
bottom sunface
E
F
3
2

ameriwoodhome.com
STEP
9
2
Tube
You
2.1 Attach (12) into (C), (D) with (7) as illustrated.
2.2 Insert (3) into (C), (D), (I), (J), (K) as illustrated.
3 ×16 7 ×8 12 ×4
C
D
J
K
I
3
12
7

ameriwoodhome.com
STEP
10
3
Tube
You
H
H
Left sunface
Right sunface
12
7
3
3 ×4 7 ×8 12 ×4
3.1 Attach (12) into (H) with (7) as illustrated.
3.2 Insert (3) into (H) as illustrated.

ameriwoodhome.com
STEP
11
4
4.1 Attach (C), (D), (H) into (A) with (1) as illustrated.
Tube
You
FINISHED EDGE
FINISHED EDGE
A
H
C
D
1 ×6
1
Proper orientation of CAM LOCK
Tip
Quick
Assembly
UNLOCK
LOCK

ameriwoodhome.com
STEP
12
5
5.1 Attach (C), (D), (H) into (G) with (5) as illustrated.
5 ×6
Tube
You
C
D
H
G
FINISHED EDGE
5

ameriwoodhome.com
STEP
13
6

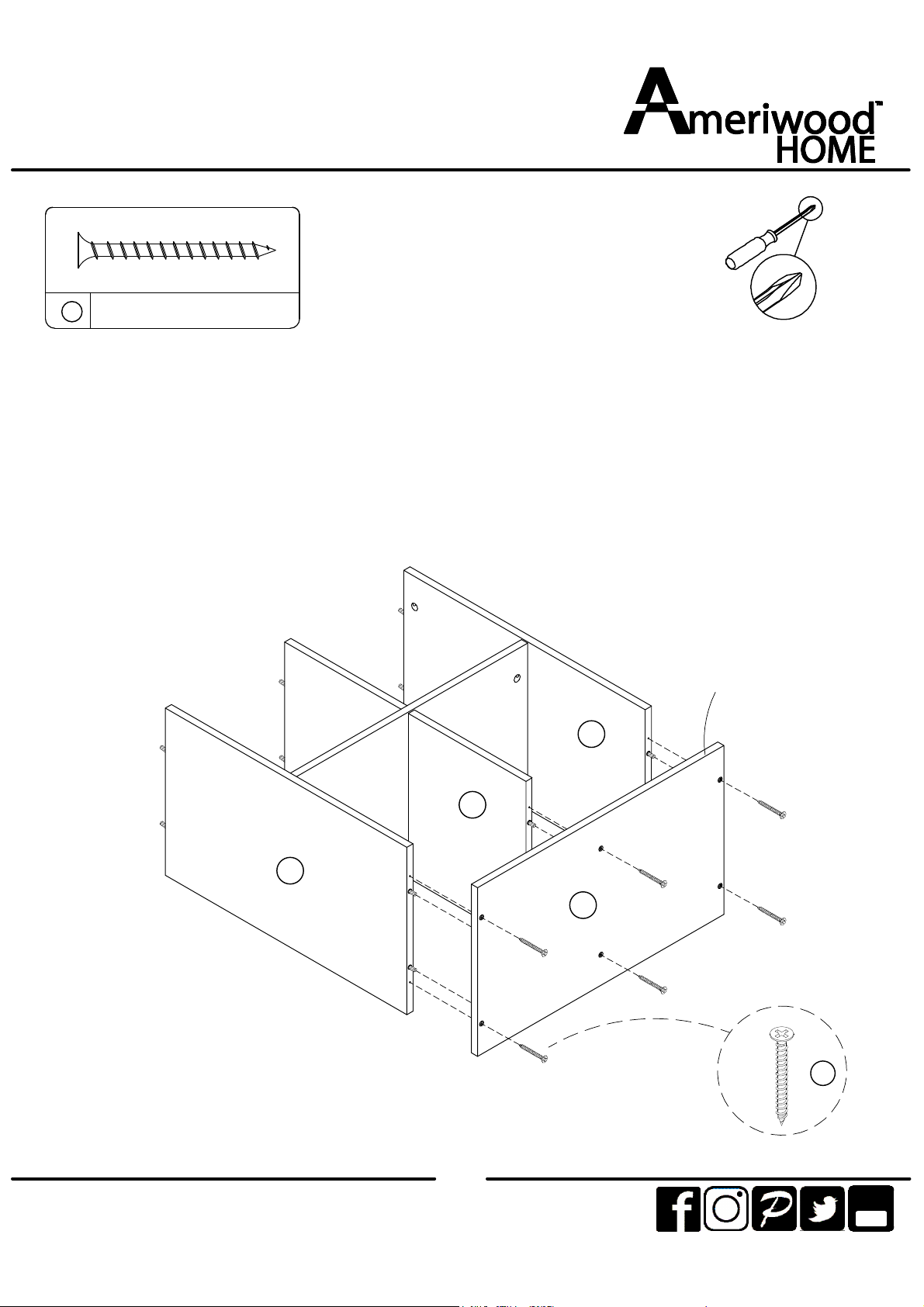

6.1 Attach (J), (K) into (I) with (4) as illustrated.
6.2 Attach (E), (F) into (I) with (1) as illustrated.
4 ×2
Tube
You
Ø8 x 40mm
J
I
K
I
E
F
4
1
1 ×4 Proper orientation of CAM LOCK
Tip
Quick
Assembly
UNLOCK
LOCK
FINISHED EDGE
FINISHED EDGE
FINISHED EDGE
FINISHED EDGE

ameriwoodhome.com
STEP
14
7

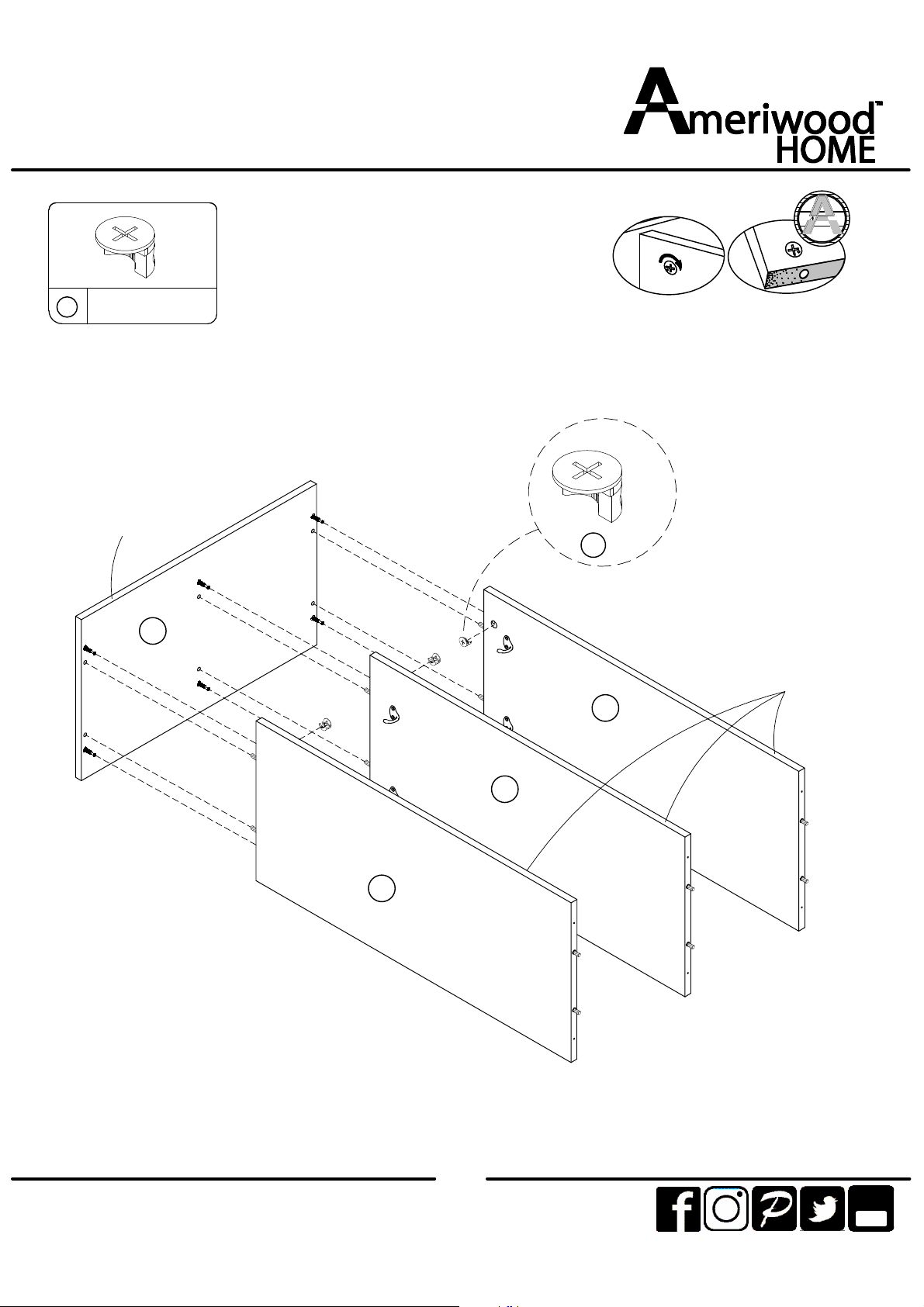

7.1 Attach (E), (F), (K) into (B) with (5) as illustrated.
Tube
You
FINISHED EDGE
E
F
K
B
5 ×6
5

ameriwoodhome.com
STEP
15
8
8.1 Attach (E), (F), (J) into (G) with (1) as illustrated.
Tube
You
Proper orientation of CAM LOCK
Tip
Quick
Assembly
UNLOCK
LOCK
1 ×6
E
F
J
G
1

ameriwoodhome.com
STEP
16
9

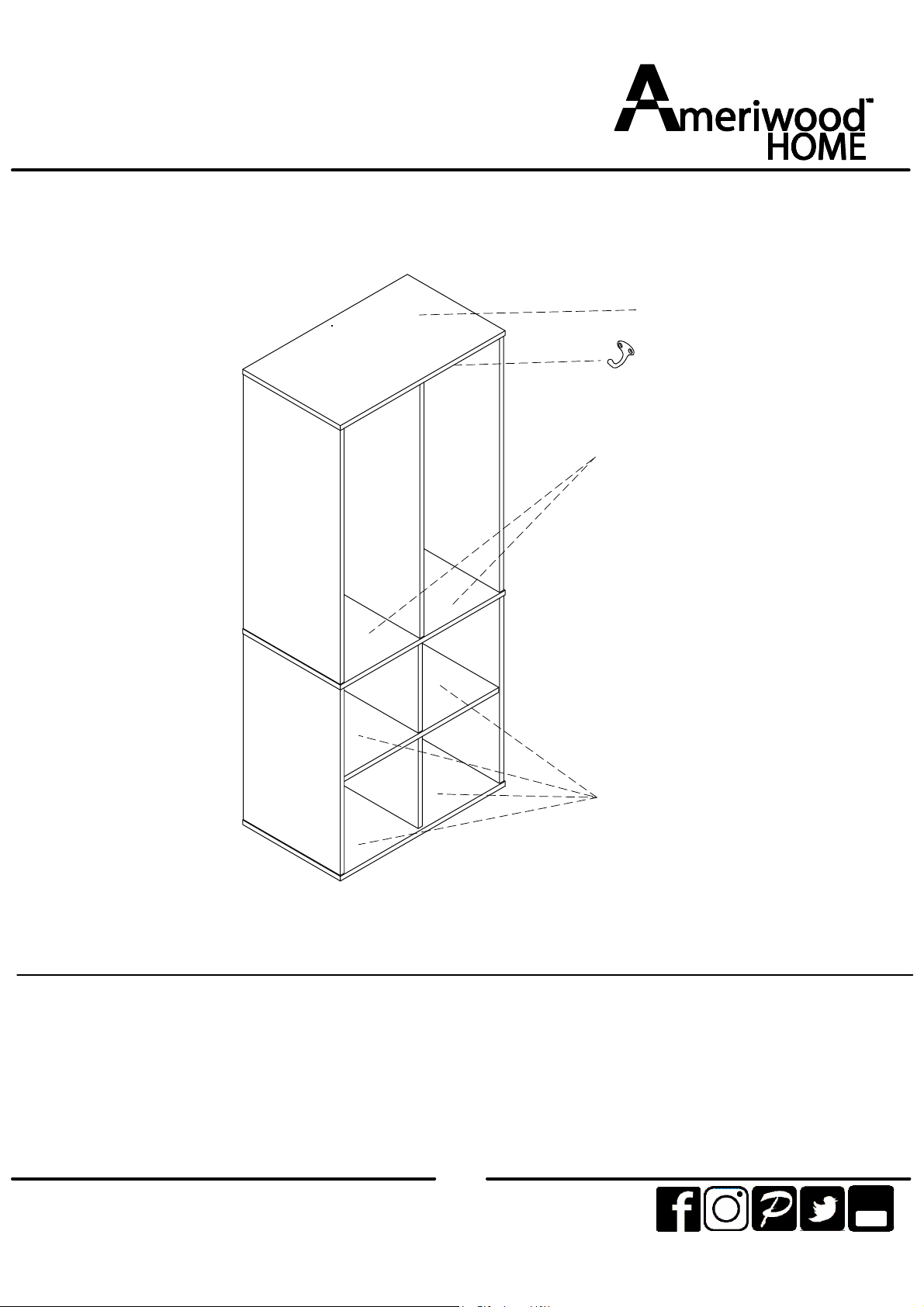

9.1 Attach (L),(M) into (A), (B), (C), (D), (E), (F), (G), (J), (K), (H) with (6) as illustrated.
Tube
You
6 ×45
5
L
M
F
D
A

ameriwoodhome.com
STEP
17
10
Tube
You
8 ×1 9 ×1 10 ×1 11 ×1
Hole
8
10
9
11

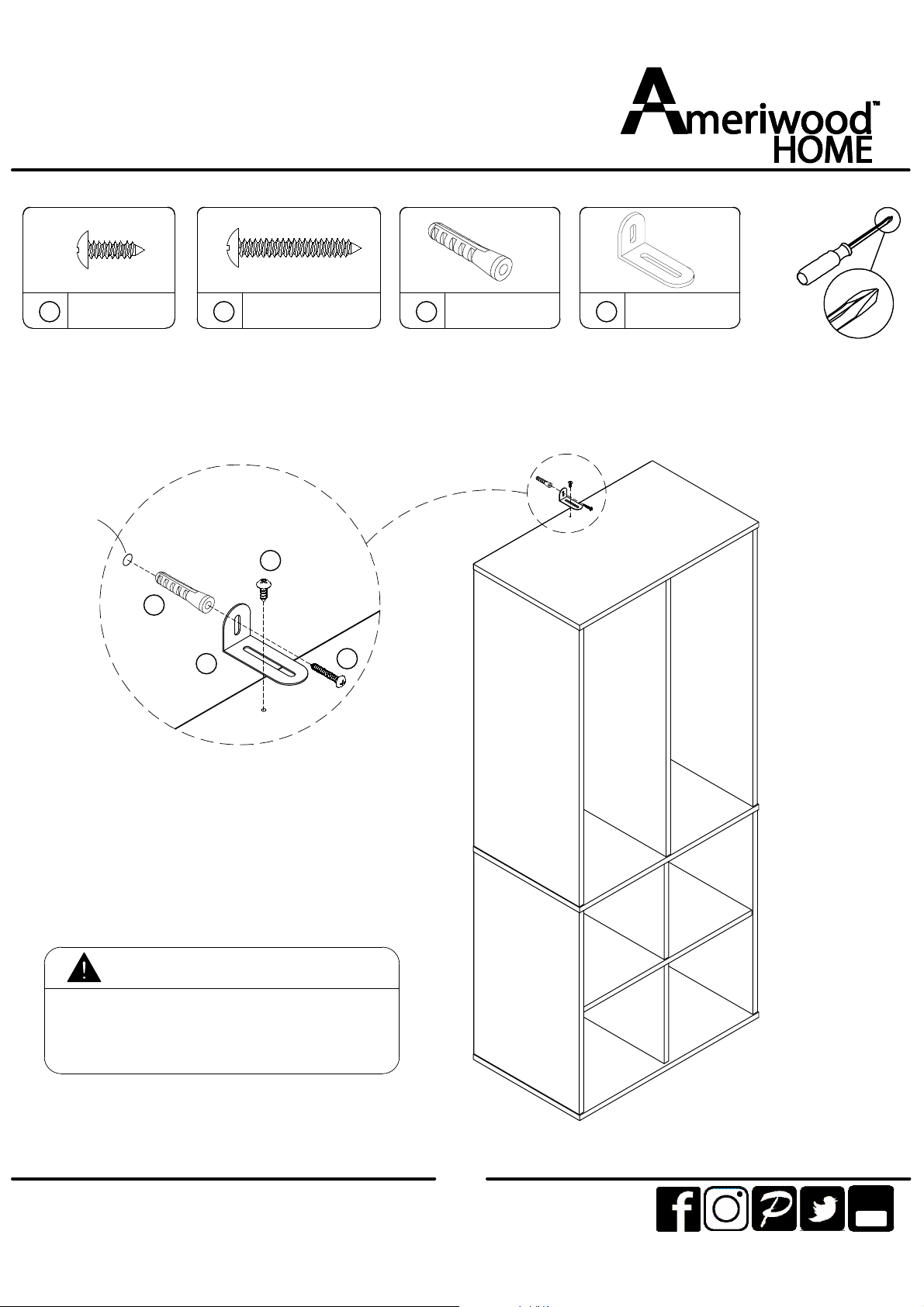

Drill a 3/16" (5mm) diameter hole
in the wall. Tap the wall anchor (10)
into the hole until it is flush.
wall
This unit must be anchored to a stud
or wall as shown. Failure to do so
could cause severe injury
Warning

Maximum Loads
Certificate of Conformity
1. This certificate applies to the Dorel Home Furnishings, Inc. product identified by this instruction manual.
2. This certificate applies to compliance of this product with the CPSC Ban on Lead-Containing Paint (16 CFR 1303).
3. This product is distributed by: Dorel Home Furnishings, Inc.
410 East First Street South
Wright City, MO 63390
636-745-3351
4. Site of Manufacture: Binh Duong, Viet Nam.
5. See front page of instruction manual for date of manufacture.
This unit has been designed to support the maximum loads shown. Exceeding these load limits could
cause sagging, instability, product collapse, and/or serious injury.
ameriwoodhome.com
18
Warning: Risk of injury to persons - do not place a television on this furniture. This furniture is
not approved for use with a television.
Tube
You
25 lbs / 11 kgs
Hook: 5 lbs / 2 kgs
25 lbs / 11 kgs
20 lbs / 9 kgs

ameriwoodhome.com
19
Register your product to receive the following:
* New trend details - sneak peek on what's new
* Surveys - have a voice within our community
* Exclusive deals and discount codes
* Quick and easy replacement part service
To register your product, visit ameriwoodhome.com
Visit your local retailer's website, rate your purchased
product and leave us some feedback!
We would like to extend a big "Thank You" to all of
our customers for taking the time to assemble this
Ameriwood Home product, and to give us your
valuable feedback.
Tube
You
