INSTALLATION MANUAL FOR
LEGEND RANGETOPS
MODEL NUMBERS:
ARSCT-244, ARSCT-304, ARSCT-366, ARSCT-364GD, ARSCT-364GR, ARSCT-486GD,
ARSCT-486GR, ARSCT-4842GD, ARSCT-484X2GR, ARSCT-6062GD,
ARSCT-6062GR, ARSCT-606GDGR
PROFESSIONAL QUALITY COOKING EQUIPMENT
13592 Desmond St., Pacoima, CA 91331 818.897.0808 888.753.9898 tel www.americanrange.com
DESIGN CLASS FUNCTION
© 2016 American Range
All Rights Reserved

Table of Contents
Warnings & Important Safety Instructions.......................................................................................1-4
Dimensions.............................................................................................................................................................5
Specications & Requirements ...............................................................................................................6-7
Clearance Dimensions...............................................................................................................................8-11
Electrical & Gas Locations ...........................................................................................................................12
Electrical & Gas Requirements..................................................................................................................13
Gas Requirements............................................................................................................................................14
General Instructions........................................................................................................................................15
Installation Instructions ..................................................................................................................................15
Installation Steps........................................................................................................................................16-19
Performance Check List................................................................................................................................20
Final Preparation ...............................................................................................................................................20
RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com

Installation, Operation and
Maintenance Instructions
RANGETOP
Installation Manual
FOR YOUR SAFETY!
Do not store or use gasoline or
other ammable vapors or liquids
in the vicinity of this or any other appliance.
Model Number: __________________________________________
Serial Number: ___________________________________________
Purchase Date: ___________________________________________
Installed By: __________________________ Install Date:__________
Gas Type: _______________________________________________
Electrical Information: ______________________________________
FOR
YOUR
SAFETY
FOR
YOUR
SAFETY
Instruction to be followed in the event the user smells gas should be posted
in a prominent location. This information should be obtained by
consulting the local gas supplier.
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
WARNING!
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury
or death. Read the installation, operating and
maintenance instructions thoroughly before
installing or servicing this equipment.
WARNING
IMPROPER
INSTALLATION
WARNING
IMPROPER
INSTALLATION
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
1

• Before beginning, please read all the instructions carefully.
• DO NOT remove permanently afxed labels, warnings, or plates from product. This may void the warranty.
• All local and national codes and ordinances must be observed, installation must conform with local codes.
• The Installer must leave these instructions with the consumer who should retain for local inspector’s use and for future reference.
• Installation and service must be performed by a qualied installer, service agency or gas supplier.
• Please ensure that the product is properly grounded.
Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
Installation Manual RANGETOP
IMPORTANT - PLEASE READ AND FOLLOW!
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
2
!
DANGER
!
WARNING
!
CAUTION
!
This is the SAFETY ALERT SYMBOL. This symbol alerts
you to hazards which will result in severe injury of death.
Hazards or unsafe practices which will result in severe
personal injury or death.
Hazards or unsafe practices which may result in severe
personal injury or death.
Hazards or unsafe practices which may result in minor
personal injury or property damage.

A Ground Fault Interrupter (GFI) shall be used as required by NFPA-70 (National Electric Code), Federal / State / Local laws or
local ordinances.
• The required use of a GFI is normally related to the location of a receptacle to any signicant sources of water or moisture.
• American Range will not warranty any problems resulting from GFI outlets which are not installed properly or do not meet
the requirements below.
IF THE USE OF A GFI IS REQUIRED, it should be:
• The receptacle type (breaker type or portable type not recommended).
• Used with permanent wiring only (temporary or portable wiring not recommended).
• On a dedicated circuit (no other receptacles, switches or loads in the circuit).
• Connected to a standard breaker or appropriate size (GFI breaker of the same size not recommended).
• Rated for class (5mA + 1mA trip current) as per UL 943 standard.
• In good condition and free from any loose-tting gaskets (if applicable in outdoor situations).
• Protected from moisture (water, steam, high humidity) as much as reasonably possible.
RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
3
IMPORTANT - PLEASE READ AND FOLLOW!
To prevent possible damage to cabinets and cabinet nishes, use only materials
that will not discolor or delaminate and will withstand temperatures up to 194ºF
(90ºC). Heat resistant adhesive must be used if the product is to be installed in
laminated cabinetry, check with your builder or cabinet supplier to make sure
that the materials meet these requirements.
WARNING
!
The use of cabinets for storage above the oven may result in potential re
or burn hazard.
WARNING
!
To avoid risk of electrical shock, personal injury or death; verify your appliance
has been properly grounded in accordance with local codes or in absence of
codes, with the National Electrical Code (NEC).ANSI/NFPA 70 latest edition.
DANGER
!

RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
4
This appliance should not be used for space heating. This information is based
on safety considerations.
WARNING
!
IMPORTANT - PLEASE READ AND FOLLOW!
Moving Hazard
To avoid risk of severe personal injury, this appliance requires two or more
personnel while handling or moving. Possible use of appliance moving devices
is recommended.
WARNING
!
Gas Leak Hazard
To avoid risk of personal injury or death, leak test of the appliance must be
conducted according to the manufacturer’s instructions, before placing appliance
in operation. Always check for gas leaks with soapy water solution.
DANGER
!
Do not use an open ame to check for gas leaks.

A
A
29"
29"
8"
13
"
TO THE KNOB
9"
TO THE KNOB
RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
5
DIMENSIONS - RANGETOP
Step up version of Rangetop.
Model “A” In.
24 Stand & 24 SU 23.875
30 Stand & 24 SU 29.875
30 Stand & 24 SU 35.875
48 Stand & 24 SU 47.875
60 Stand & 24 SU 59.875

RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
6
SPECIFICATIONS & ELECTRICAL REQUIREMENTS
RANGETOPS 24”, 30” & 36”
Description 24”Wide Models 30”Wide Models 36”Wide Models
Overall Width 24” 30” 36”
Overall Height To top of grate 9-5/16”
Step up models to the top of back island 13-1/8”
Overall Depth 29-3/4”
Gas Requirements 7”W.C. Natural & 11” LP
Gas Manifold Pressure 5”W.C. Natural & 10” LP
Electrical Requirements 120VAC, 60Hz Single Phase
Max Amp Usage 10 Amp
Surface Burner Rating Natural/LP
17,000 BTU
13,000 BTU
9,000 BTU
Griddle Burner rating N/A 20,000 BTU
Grill Burner rating N/A 30,000 BTU
Approximate Shipping Weight 90 lb. 110 lb. 150 lb.

RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
7
SPECIFICATIONS & ELECTRICAL REQUIREMENTS
RANGETOPS 48” & 60”
Description 48”Wide Models 60”Wide Models
Overall Width 48” 60”
Overall Height To top of grate 9-5/16”
Step up models to the top of back island 13-1/8”
Overall Depth 29-3/4”
Gas Requirements 7”W.C. Natural & 11” LP
Gas Manifold Pressure 5”W.C. Natural & 10” LP
Electrical Requirements 120VAC, 60Hz Single Phase
Max Amp Usage 10 Amp
Surface Burner Rating Natural/LP
17,000 BTU
13,000 BTU
9,000 BTU
Griddle Burner rating 20,000 BTU
Grill Burner rating 30,000 BTU
Approximate Shipping Weight 190 lb. 230 lb.

RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
8
CLEARANCE DIMENSIONS
• This cook top may be installed directly adjacent to existing 36” high base cabinets.
• Important: The top of the side trim must be 3/8” above the adjacent base cabinet countertop.
• The cook top cannot be installed directly adjacent to sidewalls, tall cabinets, tall appliances, or other vertical surfaces above 36”
high.
• There must be a minimum of 6” side clearance from the cook top to such combustible surfaces above the 36" counter height.
• Within 6" side clearance to combustible vertical surfaces above 36", the maximum wall cabinet depth must be 13" and wall
cabinets within this 6" side clearance must be 18" above the 36" high countertop.
• Wall cabinets above the cook top must be a minimum of 42" above the cook top cooking surface for the full width of the cook
top. This minimum height requirement does not apply if a cook top hood is installed over the cooking surface.
Note: Based on 24" deep cabinet.
Note: The minimum clearance for back wall is 0" with backguard or high shelf.
Note: If a cook top hood is installed, wall cabinets above the cook top have a different minimum clearance height.
Cook Top Width "A" Dimension
24" 30"
30" 36"
36" 48"
48" 60"
60" 66"
3/8"
25 3/4"
18" MIN.
13" MAX.
30" MIN.
A

RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
9
CLEARANCE DIMENSIONS
The bottom of a standard hood should be 30" min to 36" max above the countertop. This would typically result in the bottom of
the hood being 66" to 72" above the oor. Refer to the Cook Top Hood Installation Instructions for additional information. These
dimensions provide for safe and efcient operation of the hood.
This is a vented appliance. The appliance should not be installed with a ventilation system that blows air downward
towards the rangetop. This type of ventilation system may cause ignition and combustion problems with the gas
cooking appliance resulting in personal injury or unintended operation.
Air curtain or other overhead rangtop hood, which operates by blowing a downward airow onto a rangetop, shall
not be used in conjunction with this appliance.
Note: Minimum clearance for the back wall is 0" with backguard or high shelf.

RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
10

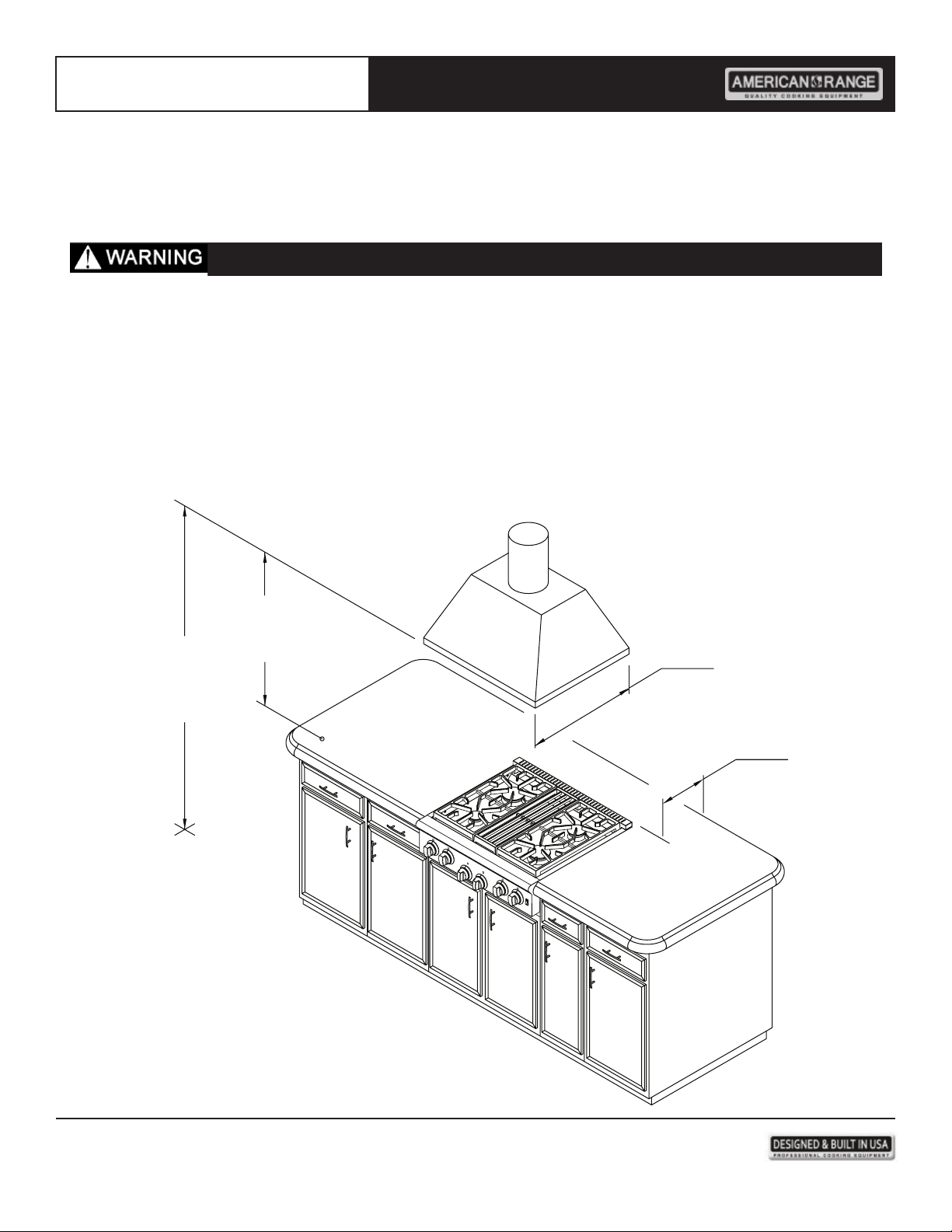

CLEARANCE DIMENSIONS
Important: This cook top comes standard with island trim. There must be a minimum of 6" clearance from rear of cook top to a
combustible wall or 0" clearance to an non-combustible wall.
This is a vented appliance. The appliance should not be installed with a ventilation system that blows air downward
towards the rangetop. This type of ventilation system may cause ignition and combustion problems with the gas
cooking appliance resulting in personal injury or unintended operation.
Air curtain or other overhead rangetop hood, which operates by blowing a downward airow onto a rangetop, shall
not be used in conjunction with this appliance.
Note: " minimum with island trim and combustible rear wall. 0" with island trim and non-combustible rear wall.
6"
30"
30" min.
to
36" max.
72" max.
to
66" min.

RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
11

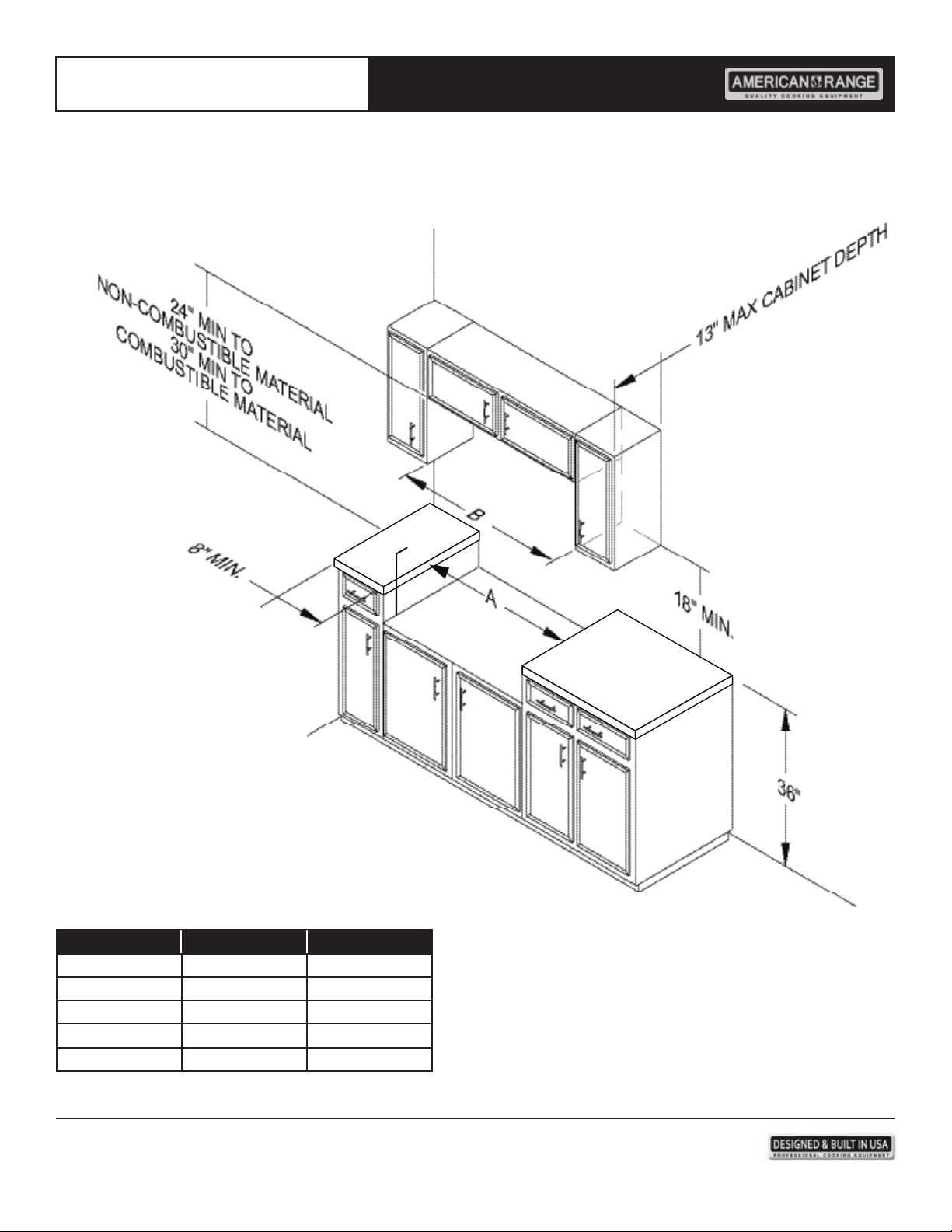

CLEARANCE DIMENSIONS
Cook Top Width "A" Dimension "B" Dimension
24" 24" 30"
30" 30" 36"
36" 36" 42"
48" 48" 54"
60" 60" 66"
The gas and electrical supplies should be
located in cabinet below the cook top.
8"

RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
12
Electric and Gas supplies should be located inside the cabinet under the countertop.
12" by 3-1/2" platform cut out at right far corner shall be provided for connections.
ELECTRICAL AND GAS LOCATIONS

RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
13
ELECTRICAL AND GAS REQUIREMENTS
Electric Shock Hazard
To avoid the risk of electrical shock, personal injury or death, verify electrical
power is turned off at the breaker box & gas supply is turned off until the
cook top is installed.
WARNING
!
ELECTRICAL REQUIREMENTS
There is no connection necessary beyond plugging the unit into a polarized, grounded, 120 VOLT, 60Hz, 15 Amp circuit. The
minimum of 102 VAC is required for proper operation of gas ignitions. This circuit must be grounded and properly polarized.
The unit is equipped with a 16-STP2 Power Cord.
GAS CONNECTION
The gas supply (service) line must be the same size or greater then the inlet line of the appliance. This cook top uses a 1/2" ID NPT
inlet. Sealant on all pipe joints must be resistive to LP gas.
The cook top is designed specically for natural gas or liquid propane (LP) gas. Before beginning installation, verify that the model is
compatible with the intended gas supply.
Manual Shut-off Valve:
This installer-supplied valve must be installed in the gas service line before the appliance in the gas stream and in a location where it
can be reached quickly in the event of an emergency. Any opening behind the cook top should be sealed.
Important: Any conversion required must be performed by your dealer or a qualied licensed plumber or gas service company.
Please provide the service person with this manual before work begins.

RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
14
GAS REQUIREMENTS
PRESSURE REGULATOR
All heavy duty commercial type cooking equipment must have a pressure regulator on the incoming service line for safe and efcient
operation, since service pressure may uctuate with local demand. External regulators are not required on this cook top since a
regulator is built into each unit at the factory. Under no condition bypass the built-in regulator.
Flexible Connections:
If the unit is to be installed with exible couplings and/or quick-disconnect ttings, the installer just uses a heavy duty AGA
designed-certied exible connector at least 1/2" ID NPT in compliance with ANSI Z21.41 and Z21.69.
In Canada:
CAN 1-6, 10-88 metal connectors for gas appliances and CAN 1-6.9 M79 Quick Disconnect devices for use with gas fuel.
In Massachusetts:
This appliance must be installed with a 36" (3 foot) long exible gas connector.

RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
15
GENERAL INSTRUCTIONS
INSTALLATION INSTRUCTIONS
• Installation of this appliance should be performed by qualied, licensed persons.
• Products are anchored to the pallet using metal straps that are screwed to the bottom of the product and the pallet.
• To remove the packaging, rst remove the staples located at the bottom perimeter of the corrugated cover.
• Remove the corrugated cover by lifting it off the product and remove the inner packing.
• Detach the product from the metal anchor strip by removing the attachment screw.
• Conrm available access to adequate power and gas. See Specications and Electrical Requirements table.
• Fill out page 1 of this manual with requested data. Model number and serial number can be found on the plate located
underneath the control panel on the front of the appliance.
• Do not remove protective packaging until you are ready to perform the installation.
• Do not remove the protective wrapping from the product control panel until the product is installed.
• Use proper equipment to move products.
• Any openings in the wall and in the oor behind or under the appliance must be sealed.
CAUTION
!
Do not use an extension cord with this appliance. Such use may result in re,
electrical shock or other personal injury.
The appliance is heavy. Use extreme care when handling.
WARNING
!

RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
16
INSTALLATION STEPS
STEP 1
Slide cook top into the cabinet opening. Run power
cord from the cook top through the access cut out
hole.

F
A
B
CBD
E
F
RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
17
INSTALLATION STEPS
STEP 2
Connect gas and electrical. Before placing appliance
in operation, always check for gas leaks. This must be
performed by your dealer, a qualied licensed
plumber, or gas service company.
A. Gas pressure regulator
B. Adapter (must have 1/2" male pipe thread
C . Flexible connector
D. Manual gas shutoff valve.
E. 3/4" or 1/2" gas supply
F. Use pipe-joint compound.
To avoid risk of personal injury or death, leak test of the appliance must be
conducted according to the manufacturer’s instructions, before placing appliance
in operation. Always check for gas leaks with soapy water solution.
DANGER
!
Important:
This appliance is equipped with a three-prong grounding plug for the protection against
possible electric shock hazard. Plug it only into a dedicated, grounded three-prong
electrical outlet. It is the responsibility of the customer to make sure the proper type
of outlet is installed. Do not, under any circumstances, ground to a gas pipe.

RANGETOPInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel [phone] toll free www.americanrange.com
18
INSTALLATION STEPS
STEP 3
Check that unit is level side to side and front to back.
Side trim of the high corner must be 3/8" above the
countertop.
