American Spas AM-730B-M User manual

LTR50001143, Rev. M
1/1/17

Copyright 2017 LMS, Inc. All rights reserved. Duplication without written consent is
strictly prohibited.
Due to continuous improvement programs, all models, operation, and/or specications
are subject to change without prior notice.
LTR50001143, Rev. M
1/1/17
100-1422
CONTACT INFORMATION
For customer service, please contact your
authorized dealer immediately. If you need
additional information and/or assistance,
contact:
LMS Customer Service Department
1462 East Ninth Street
Pomona, CA 91766.
Toll Free: 1-800-225-7727
Fax: [phone]
Important Safety Instructions .......1
Preparing for Your New Portable Spa . 3
Pre-Delivery Checklist..................3
Planning the Best Location ..............3
Preparing a Good Foundation ............4
240 Volt Electrical Installation ...........5
120 Volt Electrical Installation ...........5
Testing the GFCI Breaker ...............5
GFCI Wiring Diagram ..................6

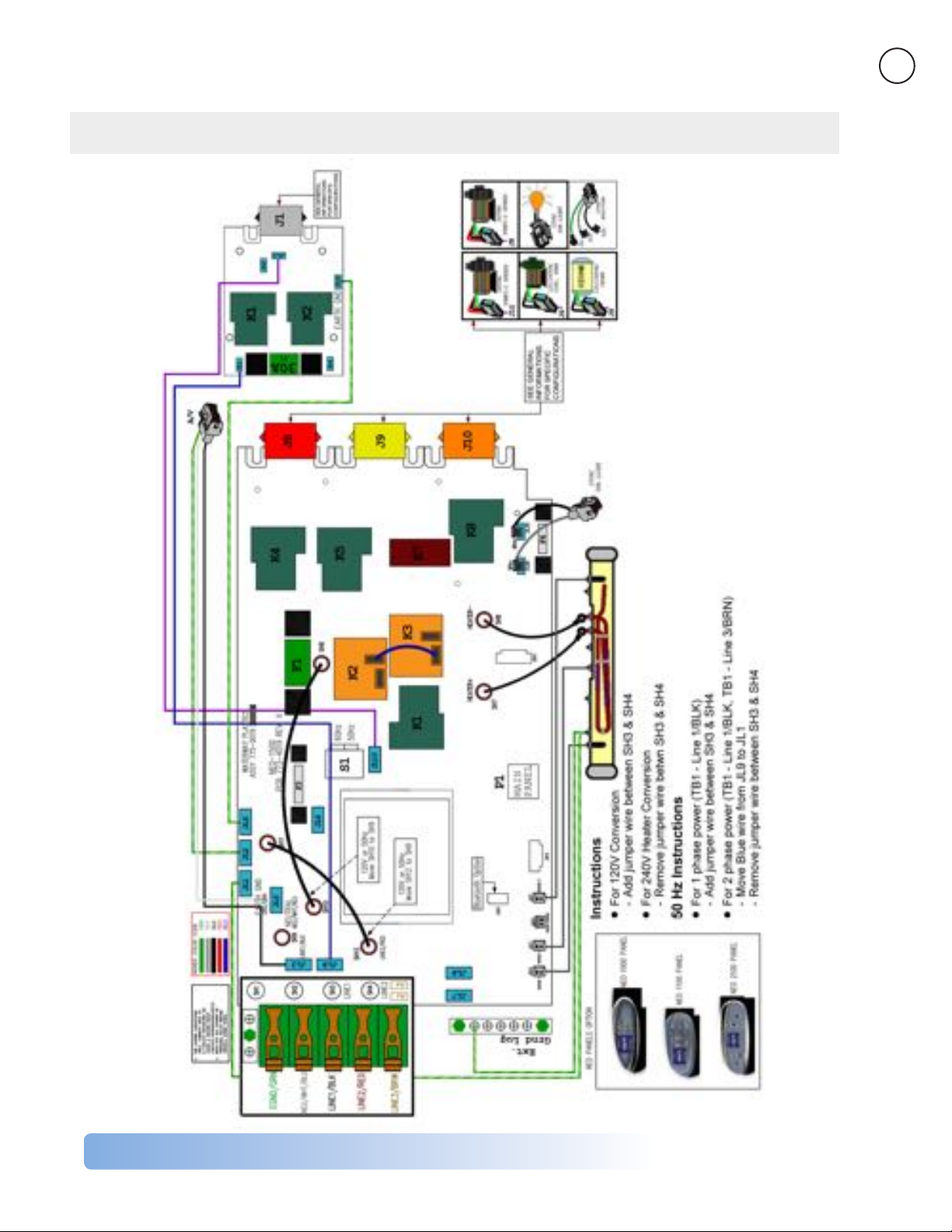

NEO Wiring Diagram ...................7
Filling and Powering Up Your Portable Spa 8

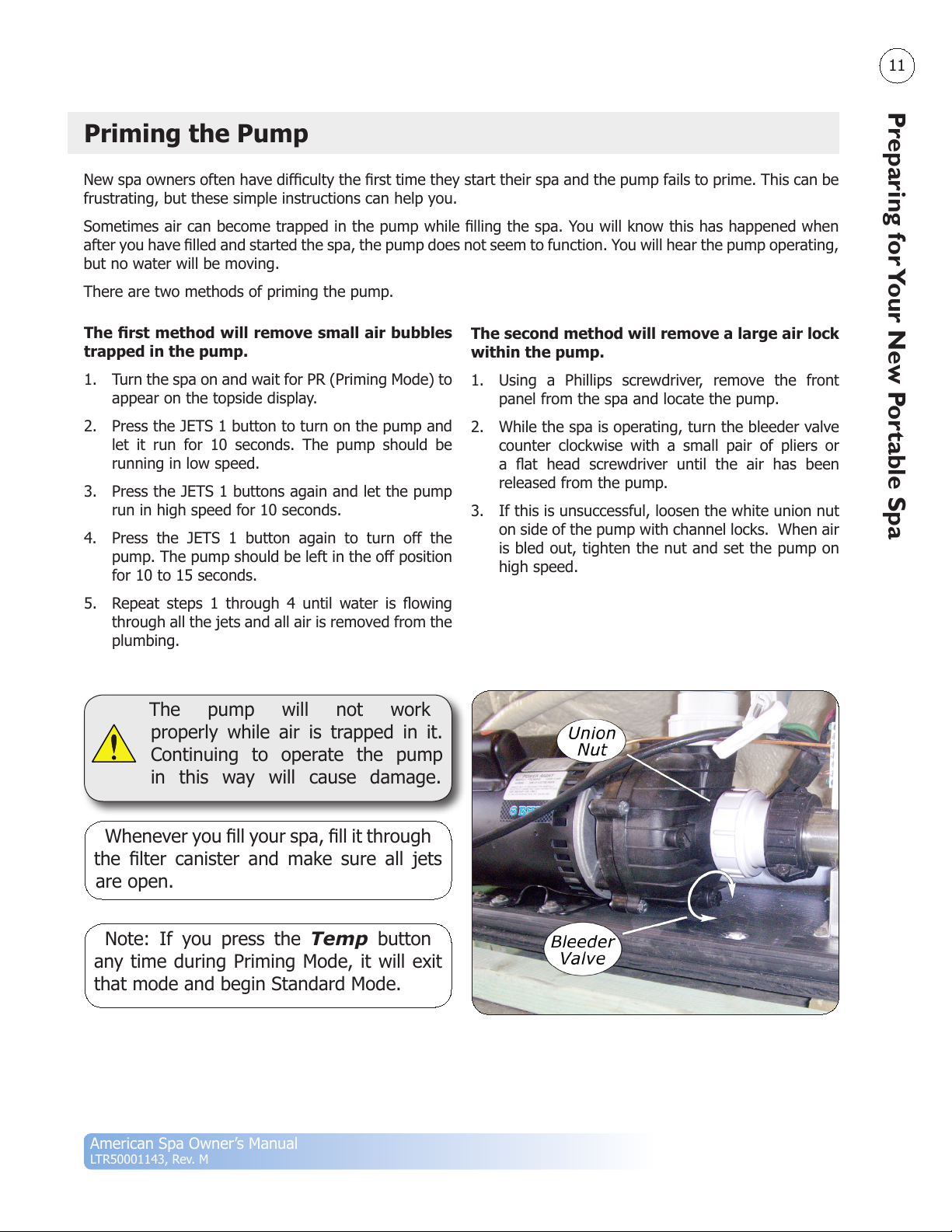

Priming the Pump ....................11
Operating Your Spa ...............12

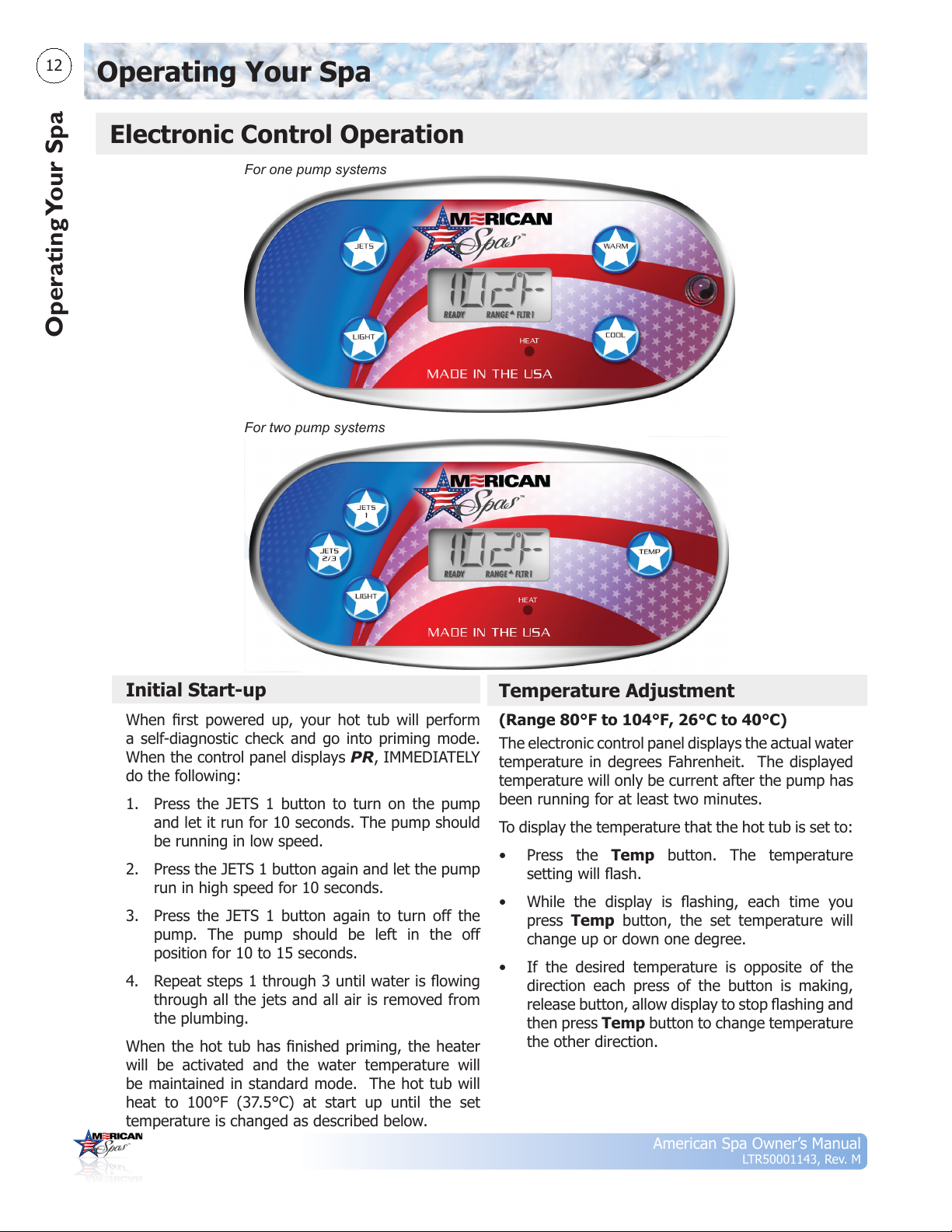

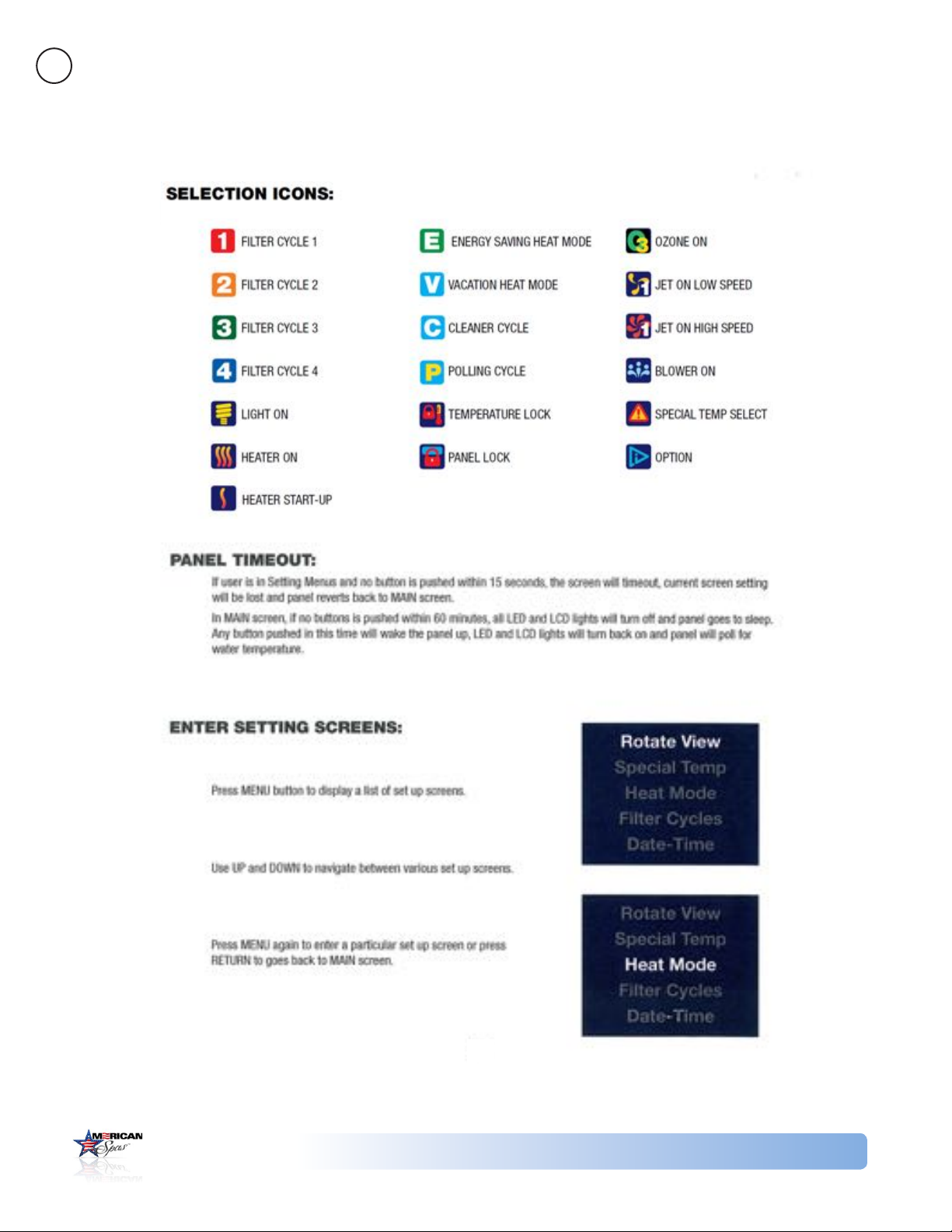

Electronic Control Operation ...........12
Electrical Power Efciency .............14
Diagnostic Messages ..................14
Spa Operation .......................16
Jets................................21
Water Diverters ......................21
Air Control ..........................21
Cover Latches .......................22
Waterfall ...........................22
Hydro Streamer Waterfall..............22
Clear Water Plan .................23
The Key to Clear Water ................23
Testing and Adjusting Spa Water ........24
Sanitation...........................25
Bather Load . . . . . . . . . . . . . . . . . . . . . . . . . 26
Filter Cleaning .......................26
Ozonator ...........................26
Maintenance Schedule ................27
Troubleshooting Water Clarity Problems ..28
Cleaning and Maintenance .........29
Removing and Reseating the Pillows .....29
Spa Cover...........................29
Draining Your Portable Spa ............30
Winterizing (Cold Climate Draining) .....30
Vacation Care........................31
Jet Removal and Replacement ..........31
Cleaning and Replacing the Filter........31
Cleaning Your Spa ....................32
Sound System and Perimeter Lighting 33
Using the Freedom Sound System .......33
LED Perimeter Lighting ................34
Appendix .......................35
Replacement Parts ...................35
Limited Warranty.....................43
Locating the Product Serial Number .....50
Removing the Support Block ...........50
Table of Contents

American Spa Owner’s Manual
LTR50001143, Rev. M
Read This First!
1
Important Safety Instructions
READ AND FOLLOW ALL INSTRUCTIONS.
WARNING:
To reduce the risk of injury, do not permit children to
use this product unless they are closely supervised
at all times.
DANGER -- Risk of accidental drowning:
Do not allow children to be in or around a spa unless
a responsible adult supervises them. Keep the spa
cover on and locked when not in use. See instructions
enclosed with your cover for locking procedures.
DANGER -- Risk of injury:
The suction ttings in this spa are sized to match
the specic water ow created by the pump. Should
the need arise to replace the suction ttings, or the
pump, be sure the ow rates are compatible.
Never operate the spa if the suction tting or lter
baskets are broken or missing. Never replace a
suction tting with one that is rated less than the ow
rate marked on the original suction tting.
DANGER -- Risk of electric shock:
Install the spa at least 5 feet (1.5 meters) from all
metal surfaces. As an alternative, a spa may be
installed within 5 feet of metal surfaces if each metal
surface is permanently bonded by a minimum #8
AWG solid copper conductor to the outside of the
spa’s control box.
DANGER -- Risk of electric shock:
Do not permit any external electrical appliances,
such as lights, telephones, radios, televisions, and
etc., within ve feet (1.5 meters) of the spa. Never
attempt to operate any electrical device from inside
the spa.
HYPERTHERMIA DANGER:
Prolonged exposure to hot air or water can induce
hyperthermia. Hyperthermia occurs when the internal
temperature of the body reaches a level 3˚F to 6˚F
above the normal body temperature of 98.6˚F (or
2˚C to 4˚C above 37˚C). While hyperthermia has
many health benets, it is important not to allow
your body’s core temperature to rise above 103˚F
(39.5˚C).
Symptoms of excessive hyperthermia include
dizziness, lethargy, drowsiness and fainting. The
effects of excessive hyperthermia may include:
• Failure to perceive heat
• Failure to recognize the need to exit spa or hot
tub
• Unawareness of impending hazard
• Fetal damage in pregnant women
• Physical inability to exit the spa
• Unconsciousness
WARNING: The use of alcohol, drugs, or medication
can greatly increase the risk of fatal hyperthermia.
WARNING -- To reduce the risk of injury:
The spa water should never exceed 104˚F (40˚C).
Water temperatures between 100˚F (38˚C) and
104˚F (40˚C) are considered safe for a healthy
adult. Lower water temperatures are recommended
for young children and when spa use exceeds 10
minutes.
High water temperatures have a high potential for
causing fetal damage during pregnancy. Women who
are pregnant, or who think they are pregnant, should
always check with their physician prior to spa usage.
The use of alcohol, drugs or medication before or
during spa use may lead to unconsciousness, with
the possibility of drowning.
Persons suffering from obesity, a medical history of
heart disease, low or high blood pressure, circulatory
system problems or diabetes should consult a
physician before using the spa.
Persons using medications should consult a physician
before using the spa since some medications may
induce drowsiness while others may affect heart rate,
blood pressure and circulation.

American Spa Owner’s Manual
LTR50001143, Rev. M
Read This First!
2
DANGER -- Risk of electric shock:
• Replace a damaged power cord immediately.
• Do not bury the power cord.
• Connect to a grounded, grounding-type receptacle only.
SAVE THESE INSTRUCTIONS.
WARNING: People with infectious diseases should not use a spa or hot tub.
WARNING: To avoid injury, exercise care when entering or exiting the spa or hot tub.
WARNING: Do not use drugs or alcohol before or during the use of a spa or hot tub to avoid unconsciousness
and possible drowning.
WARNING: Do not use a spa or hot tub immediately following strenuous exercise.
WARNING: Prolonged immersion in a spa or hot tub may be injurious to your health.
CAUTION: Maintain water chemistry in accordance with manufacturer’s instructions.

American Spa Owner’s Manual
LTR50001143, Rev. M

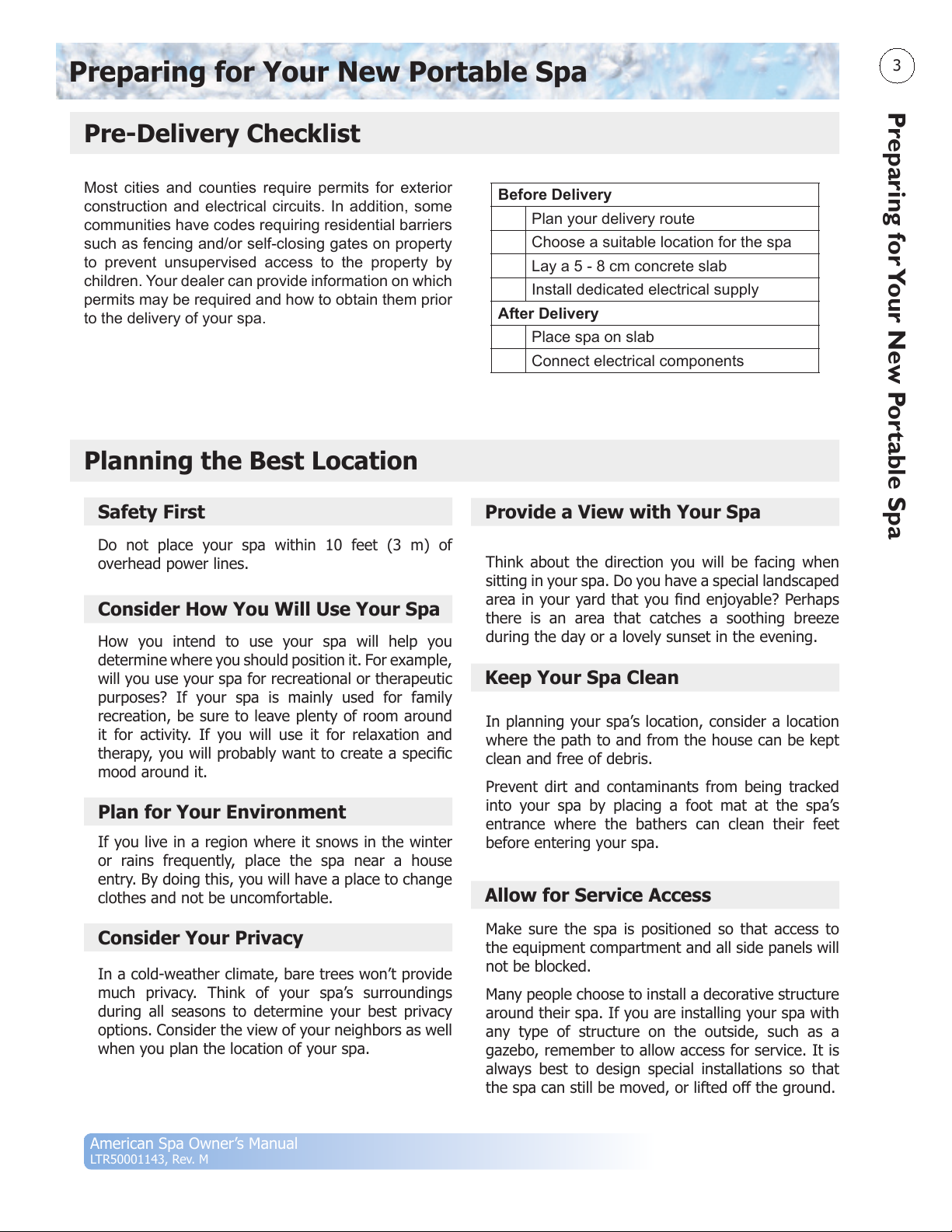

Preparing for Your New Portable Spa
3
Most cities and counties require permits for exterior
construction and electrical circuits. In addition, some
communities have codes requiring residential barriers
such as fencing and/or self-closing gates on property
to prevent unsupervised access to the property by
children. Your dealer can provide information on which
permits may be required and how to obtain them prior
to the delivery of your spa.
Before Delivery
Plan your delivery route
Choose a suitable location for the spa
Lay a 5 - 8 cm concrete slab
Install dedicated electrical supply
After Delivery
Place spa on slab
Connect electrical components
Preparing for Your New Portable Spa
Pre-Delivery Checklist
Planning the Best Location
Safety First
Consider How You Will Use Your Spa
Plan for Your Environment
Consider Your Privacy
Provide a View with Your Spa
Keep Your Spa Clean
Allow for Service Access
Do not place your spa within 10 feet (3 m) of
overhead power lines.
How you intend to use your spa will help you
determine where you should position it. For example,
will you use your spa for recreational or therapeutic
purposes? If your spa is mainly used for family
recreation, be sure to leave plenty of room around
it for activity. If you will use it for relaxation and
therapy, you will probably want to create a specic
mood around it.
If you live in a region where it snows in the winter
or rains frequently, place the spa near a house
entry. By doing this, you will have a place to change
clothes and not be uncomfortable.
In a cold-weather climate, bare trees won’t provide
much privacy. Think of your spa’s surroundings
during all seasons to determine your best privacy
options. Consider the view of your neighbors as well
when you plan the location of your spa.
Think about the direction you will be facing when
sitting in your spa. Do you have a special landscaped
area in your yard that you nd enjoyable? Perhaps
there is an area that catches a soothing breeze
during the day or a lovely sunset in the evening.
In planning your spa’s location, consider a location
where the path to and from the house can be kept
clean and free of debris.
Prevent dirt and contaminants from being tracked
into your spa by placing a foot mat at the spa’s
entrance where the bathers can clean their feet
before entering your spa.
Make sure the spa is positioned so that access to
the equipment compartment and all side panels will
not be blocked.
Many people choose to install a decorative structure
around their spa. If you are installing your spa with
any type of structure on the outside, such as a
gazebo, remember to allow access for service. It is
always best to design special installations so that
the spa can still be moved, or lifted off the ground.

American Spa Owner’s Manual
LTR50001143, Rev. M
Preparing for Your New Portable Spa
4
Your spa needs a solid and level foundation. The
area that it sits on must be able to support the weight
of the spa, with water and the occupants who use it.
If the foundation is inadequate, it may shift or settle
after the spa is in place, causing stress that could
DAMAGE YOUR SPA SHELL AND FINISH.
Damage caused by inadequate or improper
foundation support is not covered by the
warranty. It is the responsibility of the spa
owner to provide a proper foundation for
the spa.
Place the spa on an elevated 3 to 4” / 30 cm concrete
slab. Pavers, gravel, brick, sand, timbers or dirt
foundations are not adequate to support the spa.
We strongly recommend that a qualied, licensed
contractor prepare the foundation for your spa.
If you are installing the spa indoors, pay close
attention to the ooring beneath it. Choose ooring
that will not be damaged or stained.
If you are installing your spa on an elevated wood
deck or other structure, it is highly recommended
that you consult a structural engineer or contractor
to ensure the structure will support the weight of 150
pounds per square foot (732 kg / m2).
To properly identify the weight of your new spa when
full, remember water weighs 8.33 lbs. per gallon, or
1 kg per liter. For example, an average 8’ spa holds
approximately 500 gallons, or 1892 liters, of water.
Using this formula, you will nd that the weight of the
water alone is 4,165 lbs, or 1892 kg. Combined with
the dry weight of the spa you will note that this spa
will weigh approximately 5,000 lbs, or 2267 kg, when
full of water.
Preparing a Good Foundation

American Spa Owner’s Manual
LTR50001143, Rev. M
Preparing for Your New Portable Spa
5
240 Volt Electrical Installation
120 Volt Electrical Installation
Testing the GFCI Breaker
All 240V spas must be permanently connected (hard
wired) to the power supply. See the wiring diagram
on page 6.
These instructions describe the only acceptable
electrical wiring procedure. Spas wired in any
other way will void your warranty and may
result in serious injury.
When installed in the United States, the electrical
wiring of this spa must meet the requirements of NEC
70 and any applicable local, state, and federal codes.
The electrical circuit must be installed by an
electrical contractor and approved by a local
building or electrical inspector.
Failure to comply with state and local codes
may result in re or personal injury and will be
the sole responsibility of the spa owner.
The power supplied to the spa must be on a dedicated
GFCI protected circuit as required by NEC 70 with no
other appliances or lights sharing the power.
Use copper wire with THHN insulation. Do not use
aluminum wire.
Use the table below and on the next page to determine
your GFCI and wiring requirements.
Wires that run over 100 feet must increase wire gauge
to the next lower number. For example: A normal 50
amp GFCI with four #6 AWG copper wires that run
over 100 feet would require you to go to four #4 AWG
copper wires.
One Pump Control System uses a VS300 control box
and requires one 40 amp GFCI and four #8 AWG
copper wires. Two Pump Control System uses a 5100
GFCI and Wiring Requirements
Always follow applicable local, state and federal codes
and guidelines.
Use only a dedicated electrical line with a 15 amp
breaker.
Cord-and-plug connections may not use a cord longer
than 15 feet (4.6 m) and must be plugged into a
dedicated 15 amp GFCI connection (NEC 680.42(A)
(2)). Do not use extension cords!
Always use a weatherproof-covered receptacle.
Receptacle shall be located not less than 5 feet (1.5
m) from and not exceeding 10 feet (3.0 m) from the
inside wall of the spa. (NEC 680.43(A))
Do not bury the power cord. If your cord becomes
damaged, replace it before next usage.
All 120V spas must have a GFCI. This can be either a
15 amp GFCI receptacle or a 15 amp GFCI cord and
plug kit as shown (CKIT110 - P/N ELE09700087).
Testing the GFCI
Test the GFCI plug prior to rst use and periodically
when the spa is powered.
1. Plug in the GFCI into the power outlet. The
indicator should turn on.
2. Press the TEST button. The GFCI will trip, the
indicator will turn off, and the spa will stop operating.
3. Press the RESET button. The GFCI will reset, the
indicator will turn on again, and the spa will turn
back on.
The spa is now safe to use.
If the GFCI trips while the spa is in use, press the
RESET button. If the GFCI does not reset, unplug the
spa and call your local Cal Spas dealer for service. DO
NOT USE THE SPA!
Test the GFCI breaker prior to rst use and periodically
when the spa is powered. To test the GFCI breaker
follow these instructions (spa should be operating):
1. Press the TEST button on the GFCI. The GFCI will
trip and the spa will shut off.
2. Reset the GFCI breaker by switching the breaker
to the full OFF position, wait a moment, then turn
the breaker back on. The spa should have power
again.
control box and requires one 50 amp GFCI and four #8
AWG copper wires.

American Spa Owner’s Manual
LTR50001143, Rev. M
Preparing for Your New Portable Spa
6
GFCI Wiring Diagram

American Spa Owner’s Manual
LTR50001143, Rev. M
Preparing for Your New Portable Spa
7
NEO Wiring Diagram

American Spa Owner’s Manual
LTR50001143, Rev. M
Preparing for Your New Portable Spa
8
1. Inspect the spa equipment.
3. Fill the spa.
2. Remove the cartridge from lter canister.
Place a garden hose in the lter canister and ll your spa
with regular tap water about six inches from the top.
If the water level is too low or too high, your spa will not
operate properly.
Always ll the spa through the lter canister! Failure
to do so may cause air to be trapped in the ltration
system and prevent the pumps from operating
properly.
Unscrew the cartridge and remove it.
After you remove the lter, remove the plastic
wrapper and soak it in water for 30 minutes before
you replace it. A dry lter can allow air into the
ltration system which can cause the pump to fail to
prime.
After the spa has been placed on an approved surface and
has been correctly wired by a licensed electrician, inspect
all plumbing connections in the equipment area of your spa.
Ensure that these connections are secure and that they did
not loosen during shipment.
If your spa has gate valves, make sure they are all in the
UP or OPEN position.
Never run the spa with the gate valves closed or without
water circulating for long periods of time. Be careful not to
over-tighten the plumbing ttings.
Never ll your spa with soft water.
Soft water makes it impossible to maintain
the proper water chemistry and may cause
the water to foam, which will ultimately harm
the nish of the spa and void your warranty.
Filling and Powering Up Your Portable Spa

American Spa Owner’s Manual
LTR50001143, Rev. M
Preparing for Your New Portable Spa
9
5. Prime the pump.
4. Turn on power to the spa.
Your spa will perform a self-diagnostic check and go into
Priming Mode. The control panel will display either RUN
PUMPS PURG AIR --- or Priming Mode, depending on
which control panel you have.
Do the following:
1. Press the JETS or JETS 1 button once to start the pump
in low speed.
2. Press it again to switch the pump to high speed.
3. If you have other pumps, press JETS 2 or JETS 3 to
turn them on also.
Running the pumps helps the pumps prime.
When the spa is lled to the correct level, turn on the
power at the GFCI breaker. (Ensure that the 120V spas are
connected to the proper electrical outlet.)
After two minutes, the pump should prime. If it does not, follow the priming instructions on the next page. If it
does, continue with the next step.
Starting Up: Priming Mode for Neo-Pack Systems
The system will enter the priming mode. Priming Mode will display
on the control panel. In Priming Mode, all devices such as jets and
lights are operable. Jets can be turned on and off to help prime the
pump. The system will exit Priming Mode and go to the Main display
when the RETURN button is pressed, or after four minutes of activity.
Exiting Priming Mode for Neo-Pack Systems
You can manually exit Priming Mode by pressing the RETURN button.
Note that if you do not manually exit the priming mode, the priming
mode will be automatically terminated after 4 to 5 minutes. Be sure
that the pumps have been primed by this time.

American Spa Owner’s Manual
LTR50001143, Rev. M
Preparing for Your New Portable Spa
10
6. Install the lter into the lter canister.
Make sure the lter has soaked at least 30 minutes
before you install it.
7. Adjust water chemistry.
Test and adjust the water chemistry. See the section on page 23 for instructions on water clarity.
8. Let the spa heat up.
When the spa has nished priming, the heater will activate. Put the cover on and let the spa heat to the
set temperature.

American Spa Owner’s Manual
LTR50001143, Rev. M
Preparing for Your New Portable Spa
11
New spa owners often have difculty the rst time they start their spa and the pump fails to prime. This can be
frustrating, but these simple instructions can help you.
Sometimes air can become trapped in the pump while lling the spa. You will know this has happened when
after you have lled and started the spa, the pump does not seem to function. You will hear the pump operating,
but no water will be moving.
There are two methods of priming the pump.
The pump will not work
properly while air is trapped in it.
Continuing to operate the pump
in this way will cause damage.
Whenever you ll your spa, ll it through
the lter canister and make sure all jets
are open.
Note: If you press the Temp button
any time during Priming Mode, it will exit
that mode and begin Standard Mode.
The second method will remove a large air lock
within the pump.
1. Using a Phillips screwdriver, remove the front
panel from the spa and locate the pump.
2. While the spa is operating, turn the bleeder valve
counter clockwise with a small pair of pliers or
a at head screwdriver until the air has been
released from the pump.
3. If this is unsuccessful, loosen the white union nut
on side of the pump with channel locks. When air
is bled out, tighten the nut and set the pump on
high speed.
The rst method will remove small air bubbles
trapped in the pump.
1. Turn the spa on and wait for PR (Priming Mode) to
appear on the topside display.
2. Press the JETS 1 button to turn on the pump and
let it run for 10 seconds. The pump should be
running in low speed.
3. Press the JETS 1 buttons again and let the pump
run in high speed for 10 seconds.
4. Press the JETS 1 button again to turn off the
pump. The pump should be left in the off position
for 10 to 15 seconds.
5. Repeat steps 1 through 4 until water is owing
through all the jets and all air is removed from the
plumbing.
Priming the Pump

American Spa Owner’s Manual
LTR50001143, Rev. M
Operating Your Spa
12
When rst powered up, your hot tub will perform
a self-diagnostic check and go into priming mode.
When the control panel displays PR, IMMEDIATELY
do the following:
1. Press the JETS 1 button to turn on the pump
and let it run for 10 seconds. The pump should
be running in low speed.
2. Press the JETS 1 button again and let the pump
run in high speed for 10 seconds.
3. Press the JETS 1 button again to turn off the
pump. The pump should be left in the off
position for 10 to 15 seconds.
4. Repeat steps 1 through 3 until water is owing
through all the jets and all air is removed from
the plumbing.
When the hot tub has nished priming, the heater
will be activated and the water temperature will
be maintained in standard mode. The hot tub will
heat to 100°F (37.5°C) at start up until the set
temperature is changed as described below.
Operating Your Spa
Electronic Control Operation
Initial Start-up Temperature Adjustment
(Range 80°F to 104°F, 26°C to 40°C)
The electronic control panel displays the actual water
temperature in degrees Fahrenheit. The displayed
temperature will only be current after the pump has
been running for at least two minutes.
To display the temperature that the hot tub is set to:
• Press the Temp button. The temperature
setting will ash.
• While the display is ashing, each time you
press Temp button, the set temperature will
change up or down one degree.
• If the desired temperature is opposite of the
direction each press of the button is making,
release button, allow display to stop ashing and
then press Temp button to change temperature
the other direction.
For one pump systems
For two pump systems

American Spa Owner’s Manual
LTR50001143, Rev. M
Operating Your Spa
13
Standard, Economy and Sleep Heating
Modes
Your new hot tub is equipped with a heating feature
that gives you complete control of the heating system.
When the hot tub is powered up, it will automatically
start in standard heating mode.
• St will light briey on the main display. In this
mode, the heating system will automatically
maintain the set temperature. In the economy-
heating mode, the heating system will only
activate during ltration times.
• Ec will display solid if temperature is not current
and will alternate with water temperature if
measured temperature is current.
• Economy mode will heat the water to the set
temperature while Sleep mode, indicated by a
SL on the main display, will also only activate
the heater during the ltering cycles but will
only heat the water to within 20°F (10°C) of the
set temperature. Like Economy mode, SL will
display solid when temperature is not current and
will alternate with actual temperature when it is
current.
NOTE: Displayed temperature will only be current after
the pump has been running for at least two minutes.
Switching Modes
• Press the Temp button followed by the Light
button.
• Press the same sequence to switch to the next
mode.
Activating the Jets
Press the Jets 1 button:
• Once to activate low speed pump.
• Twice to activate high speed.
• Three times to return to turn pump off.
Jets 2
Press the Jets 2 button to turn pump 2 on. Press it
once again to turn the pump 2 off.
Light
Press the Light button to turn on the light. Press it
once again to turn the light off.
Automatic Time-outs
These features will automatically turn themselves off
during periods of continuous use:
• Low speed pump After 4 hours
• High speed pumps After 15 minutes
• Hot tub light After 15 minutes
Setting Filtration Cycles
Your hot tub is programmed to lter twice a day. The
rst cycle will begin six minutes after the hot tub is
turned on and the second cycle 12 hours later.
The factory has programmed the cycle to last for
one hour for single pump systems and two hours for
two pump systems, but this can be changed to your
preference.
To change the ltration cycle, press the Temp button
then the Jets button. Press Temp button again to
change the ltering cycle duration. See the table
below for ltration settings and duration.
When desired duration is selected press the Jets
button to exit.
Single pump systems Two pump systems
Setting Duration Setting Duration
F1 1 hour F2 2 hours
F2 2 hours F4 4 hours
F3 3 hours F6 6 hours
F4 4 hours F8 8 hours
F5 5 hours FC Continuous
F6 6 hours
F7 7 hours
F8 8 hours
Note: Single pump systems do not have continuous
ltration.
To set the time of day you want ltration to begin,
turn off the power to the hot tub at the time of day
you would like one of the ltration cycles to begin,
then turn it back on after 30 seconds. When power
has been restored, set the ltration cycle as described
above.
During ltration, the water temperature will appear on
the main display.

American Spa Owner’s Manual
LTR50001143, Rev. M
Operating Your Spa
14
Message Meaning Action Required
No message
on display
1) Spa temperature is unknown. 1) After pump has been running for 2 minutes
temperature will be displayed.
2) Spa is in Economy or Sleep
mode.
2) In Economy or Sleep mode, the pump may be off
for hours outside a lter cycle. If you wish to see the
current spa temperature, either switch to Standard
mode or turn Jets1 on for at least two minutes.
3) Power has been cut off to the
spa.
3) The control panel will be disabled until power
returns. Spa settings and time of day will be
preserved for 30 days with a battery back-up.
BUF Internal problem detected. Repair required. Contact your dealer or service
organization.
dr Insufcient water detected in
heater. Spa will be shut down for
15 minutes.
Check water level in spa. Rell if necessary. Make
sure pumps are been primed and lter cartridges are
clean. Press any button to reset or wait 15 minutes
and spa will automatically reset. If message spa does
not reset, call your dealer or service organization.
dry
dY
Insufcient water detected in
heater. Spa is shut down.
(Displays on third occurrence of dr
message.)
Follow directions for dr message and press any button
to reset spa. Spa will not automatically reset when dry
or dY is displayed.
Ec Indicates heater is in Economy
Mode.
None.
--F or --C Temperature unknown After the pump has been running for two minutes, the
temperature will be displayed.
HL
HFL
A difference in readings between
temperature sensors has been
detected indicating a possible water
ow problem.
Make sure spa is lled to proper level and that
pumps are primed and lter cartridges are clean. If
message does not reset, call your dealer or service
organization.
IC
ICE
Potential freeze condition detected. No action required. The pumps and the blower will
automatically activate regardless of spa status.
Your new spa comes equipped with an electric heater.
Following the directions listed below will ensure the
most efcient operation:
NOTE: This method is only for spa usage under two
hours a week.
• Keep the spa’s operating temperature 5˚F below
the desired usage temperature when not in use.
One or two hours before use, set the temperature
to the desired temperature.
• If the spa usage exceeds two hours a week, the
set temperature should remain at the desired
usage temperature.
• The air venturis should be used sparingly. When
open, water temperature drops quite rapidly and
can also dissipate chemicals.
Allowing the water temperature to lower more than
10˚F below the desired usage temperature and
reheating it prior to usage will cause the heater to
operate longer than it normally would maintaining
the desired temperature. Doing this will increase your
operating cost and makes your heater work more than
necessary.
Electrical Power Efciency
Diagnostic Messages

American Spa Owner’s Manual
LTR50001143, Rev. M
Operating Your Spa
15
Message Meaning Action Required
LF Persistent low ow problems.
Heater is shut down, but other spa
functions continue to run normally.
Displays on the fth occurrence of
the HL or HFL message within 24
hours.
Follow action required for HL or HFL message.
Heating capacity of the spa will not reset
automatically. Press any button to reset.
OH
OHS
Overheat protection. The spa has
shut down. One of the sensors
has detected that the spa water is
110°F.
DO NOT ENTER THE WATER. Remove the spa cover
and allow water to cool. At 107°F, the spa should
automatically reset. If spa does not reset, shut off
the power to the spa and call your dealer or service
organization.
HH
OHH
Overheat protection (spa is
shutdown). One sensor has
detected 118˚F (48˚C) at the
heater.
DO NOT ENTER THE WATER!
Remove the spa cover and allow spa to cool below
107˚F (42˚C). Press any button on the topside
display to reset spa. If spa will not reset after spa has
cooled, turn off power for approximately 30 seconds
and then turn power back on. If display message is
repeated then shut the power off to the spa and call
your dealer or service organization.
Pr When your spa is rst actuated, it
will go into priming mode.
The priming mode will last for up to four minutes and
then the spa will begin to heat and maintain the water
temperature in the Standard mode.
SF Safety Suction. Spa is shut down. The display will show SF when a vacuum switch
closes. All functions will turn off and the system will
be disabled until a panel button is pressed.
SL Indicates heater is in Sleep Mode. None.
SA
Sb
SNA
Snb
Spa is shut down. The sensor that
is plugged into the sensor “A” or
“B” jack is not working.
If the problem persists, contact your dealer or service
organization. (May appear temporarily in an overheat
situation and disappear when the heater cools.)
Sns
Sn
Sensors are out of balance.
• If this is alternating with the
temperature, it may just be a
temporary condition.
• If the display shows only this
message (periodically blinking),
the spa is shut down.
Contact your dealer or service organization.
ST Indicates heater is in Standard
Mode.
None.
Stby Pressing a button combination
on the user panel has activated
Standby Mode.
Press any button to leave Standby Mode and return to
normal operation.

American Spa Owner’s Manual
LTR50001143, Rev. M
Operating Your Spa
16
Spa Operation
NEO one-pump system
NEO two-pump system

American Spa Owner’s Manual
LTR50001143, Rev. M
Operating Your Spa
17

American Spa Owner’s Manual
LTR50001143, Rev. M
Operating Your Spa
18
F
F
F
F
A
