Ameriwood HOME 5997222WCOM User manual

5997222WCOM
Nightstand
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
B345997222WCOM1
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
WARNING
Follow Ameriwood Home
Tube
You
Date of Purchase ___ / ___ / ___
Lot Number:
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
Assembly Difficulty Meter
Easy Tough
0 29986 59975 90 29986 59975 9

Contact Us!
Helpful Hints
2
ameriwoodhome.com
Do NOT return this product!
Contact our friendly customer service team first for help.
Call us!
1-800-489-3351
Monday-Friday
9am - 5pm CST
Visit ameriwoodhome.com
Assembly Tips
- Open your item in the area you plan to keep it to avoid excessive heavy lifting.
- Identify, sort and count the parts before attempting assembly.
- Compression dowels are lightly tapped in with a hammer.
- Slides are labeled with a R (right) and L (left) for proper placement.
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge.
- Use all the nails provided for the back panel and spread them out equally.
- Back panel must be used to make sure your unit is sturdy.
- Do NOT use harsh chemicals or abrasive cleaners on this item.
- Never push, pull, or drag your furniture.
Tube
You
Tube
You
PEOPLE NEEDED FOR ASSEMBLY: 1-2
ESTIMATED ASSEMBLY TIME: 1 HOUR

3
ameriwoodhome.com
Before You Start
P
Quick
Tip
Assembly
P
P
P

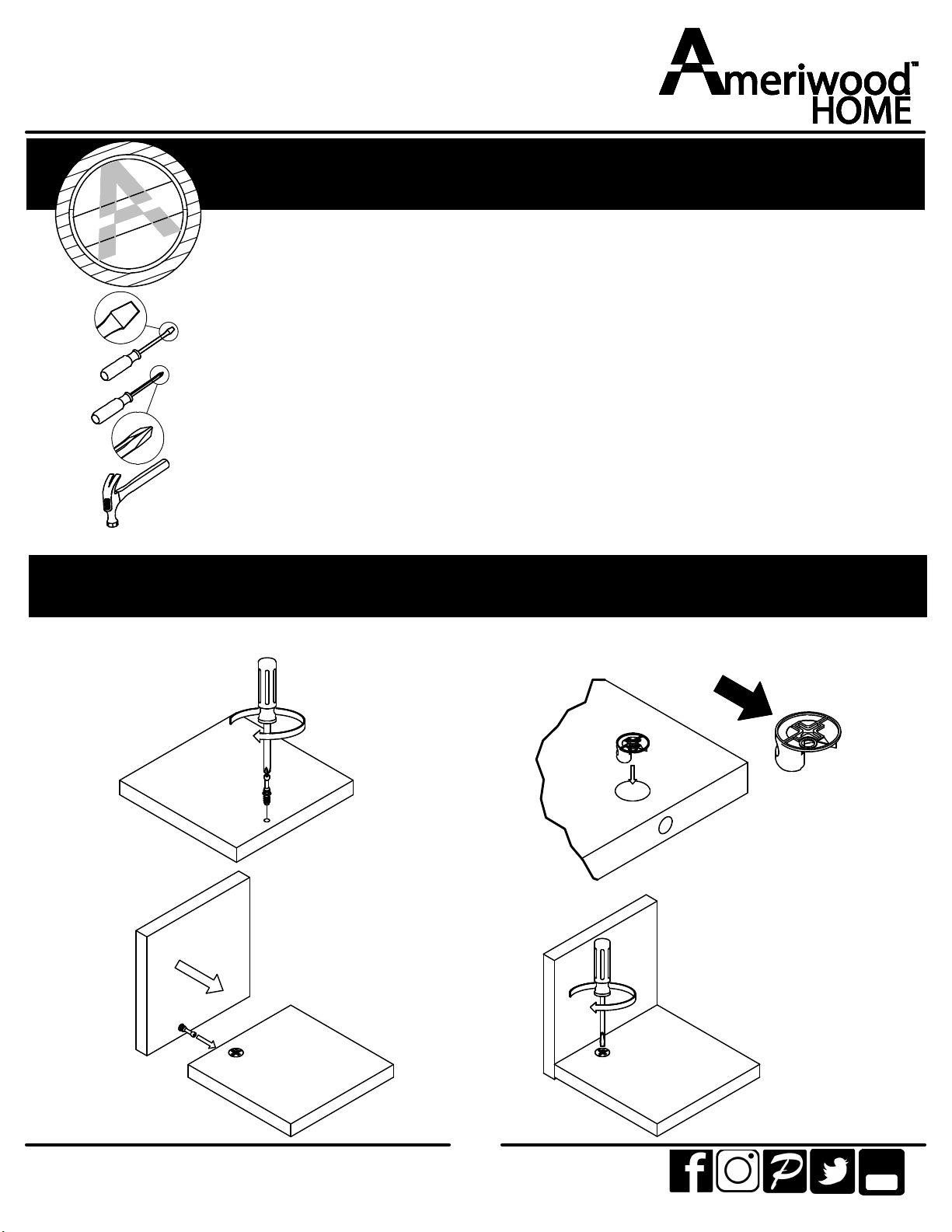

Cam Lock Fastening System
This Cam Lock Fastening System will be used throughout the assembly process.
1
3
2
4
Tube
You
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Caution: If using a power drill or power screwdriver for screwing,
please be aware to slow down and stop when screw is tight.
Failure to do so may result in stripping the screw.
P

4
ameriwoodhome.com

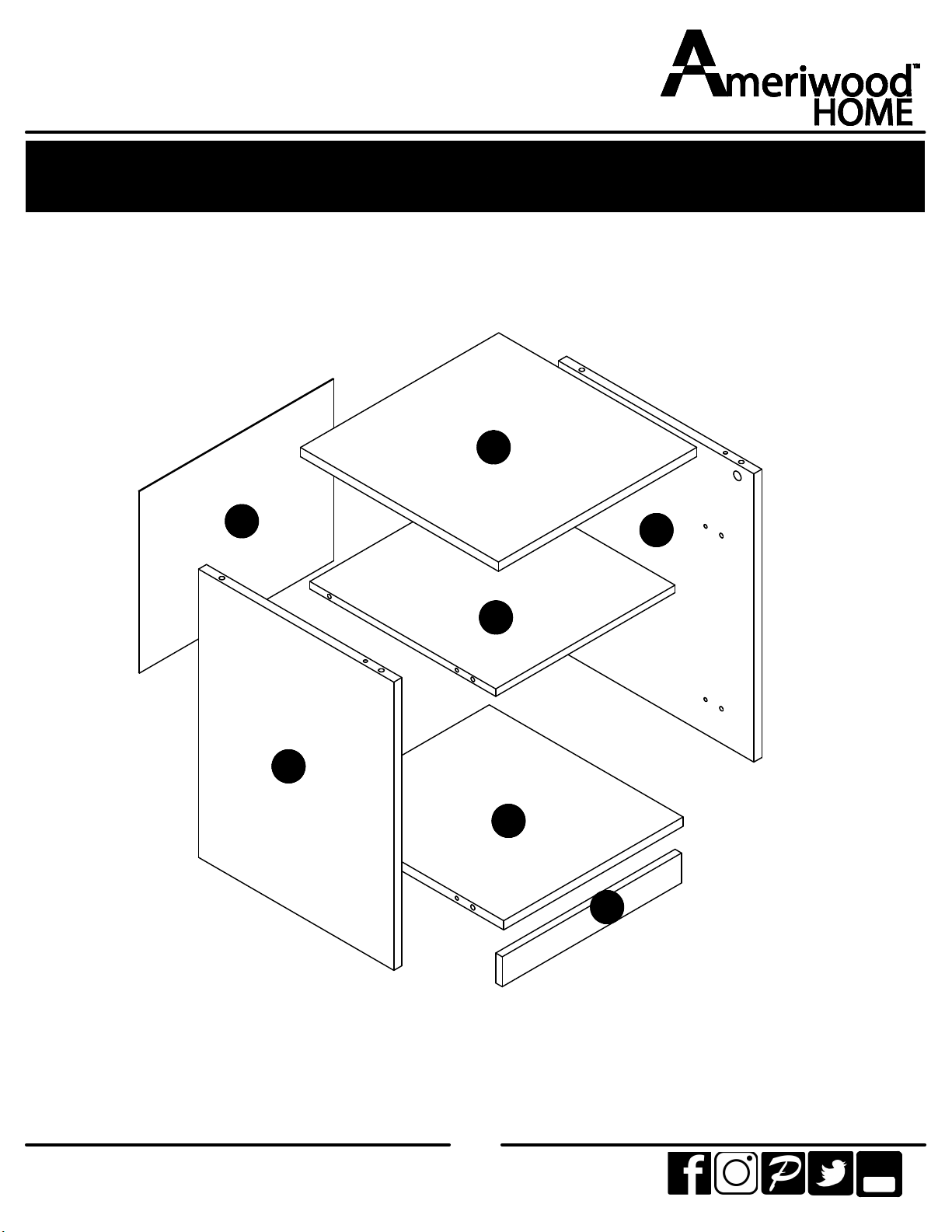

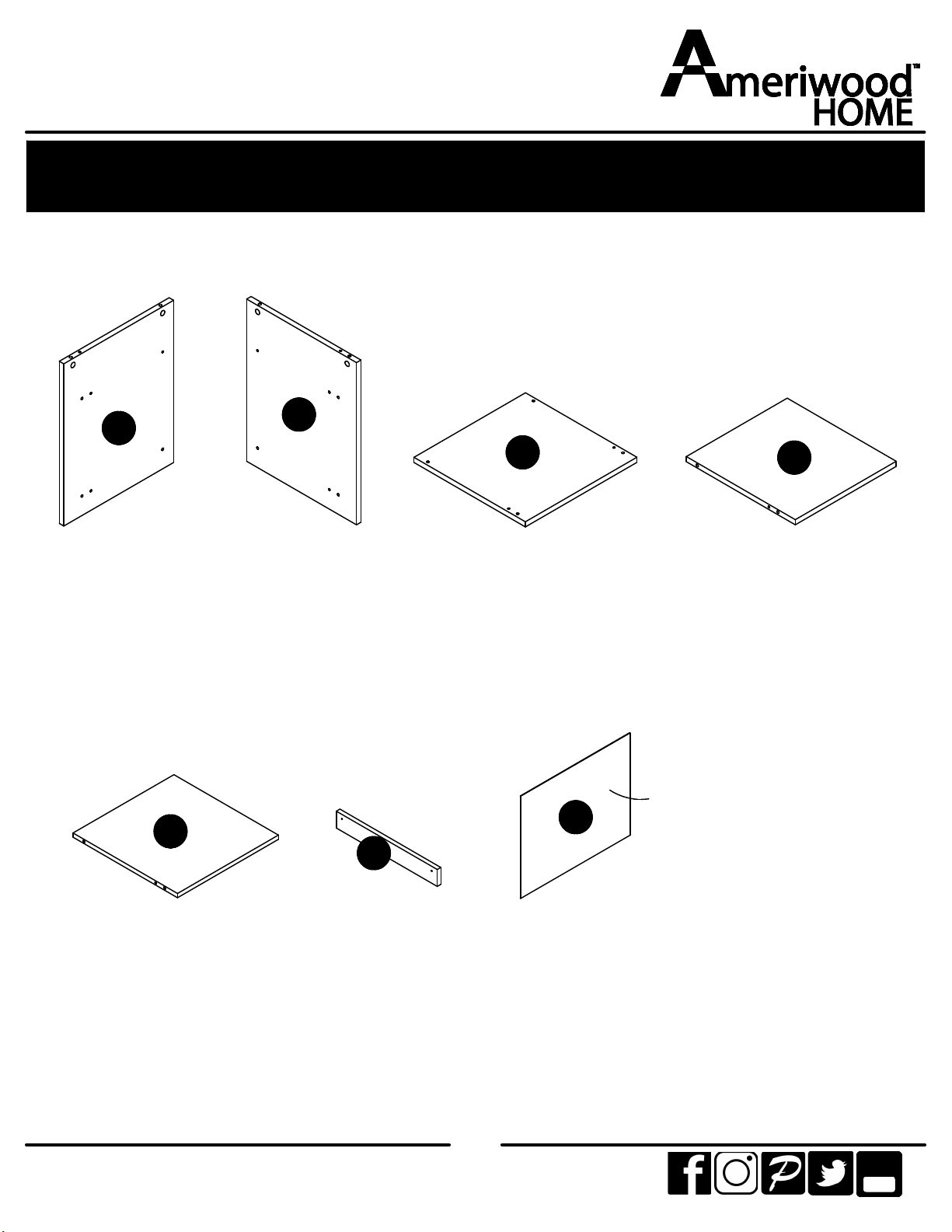

Board Identification
Not actual size
Tube
You
Left Panel
35997222010
A
Right Panel
35997222020
B
Top
35997222030
Bottom
35997222040
Shelf
35997222050
Kick Panel
35997222060
Back Panel
K599722200
This piece is of paperboard
construction. It is not made
from wood, but is required
for the assembly of your
unit.
CD
EF
G

5
ameriwoodhome.com
Board Identification
Not actual size
Tube
You
G
F
E
D
C
B
A

6
ameriwoodhome.com

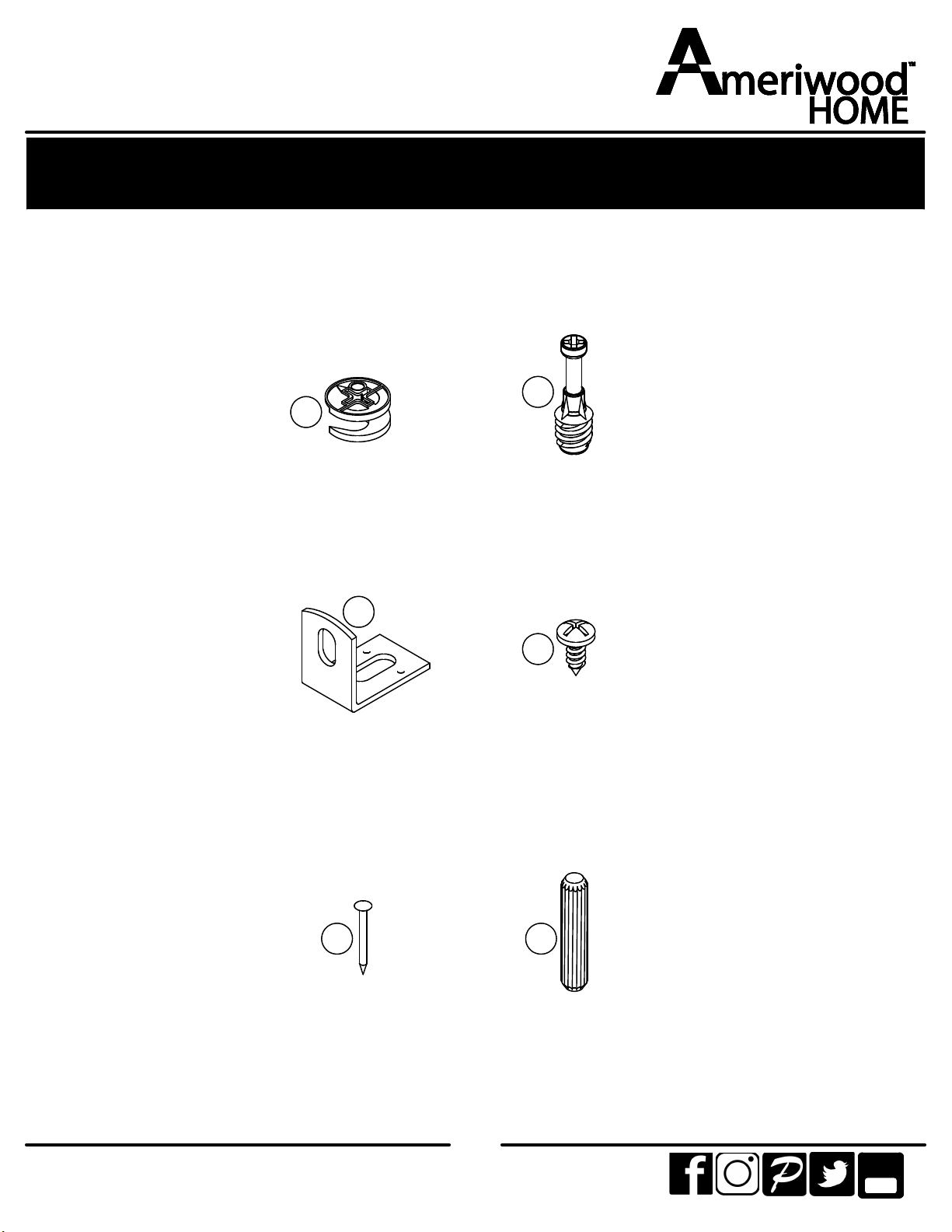

Part List
Actual Size
Tube
You
1
2
4
3
5
6
(x20)
#A21110
nail
(x6)
#A21660
wood dowel
(x4)
#A12105
7/16" pan screw
(x2)
#A53600
angle bracket
(x12)
#A22620
cam lock
(x12)
#A22610
cam bolt

7
ameriwoodhome.com
STEP1
Tube
You
(x2)
#A22620
* raw edges are shaded
(x4)
#A22610
(x1)
#A21660

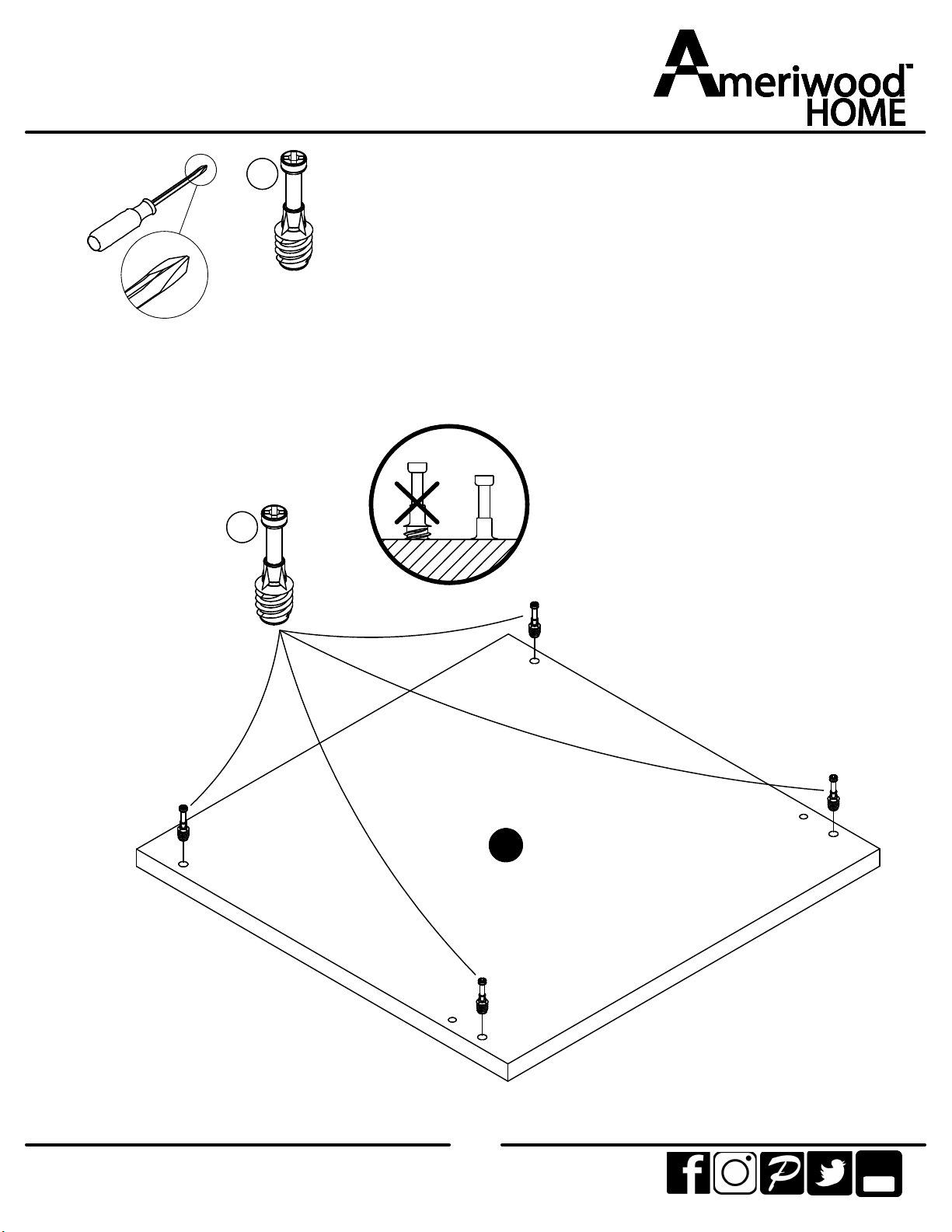

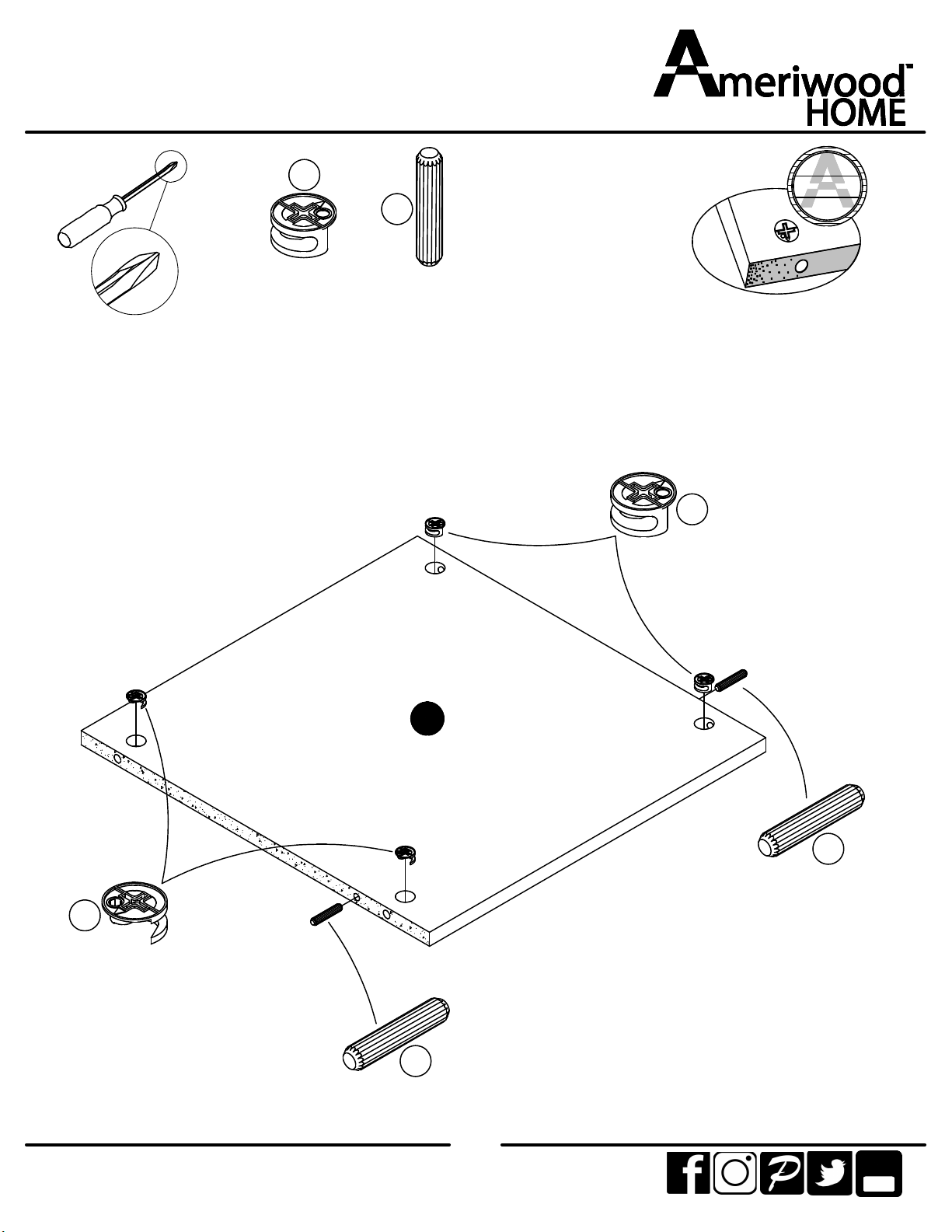

Screw four cam bolts into the left panel (A).
Insert two cam locks and a wood dowel into the left panel (A).
A
Proper orientation of CAM LOCK
Tip
Assembly
Quick
1
2
5
2
1
5

8
ameriwoodhome.com

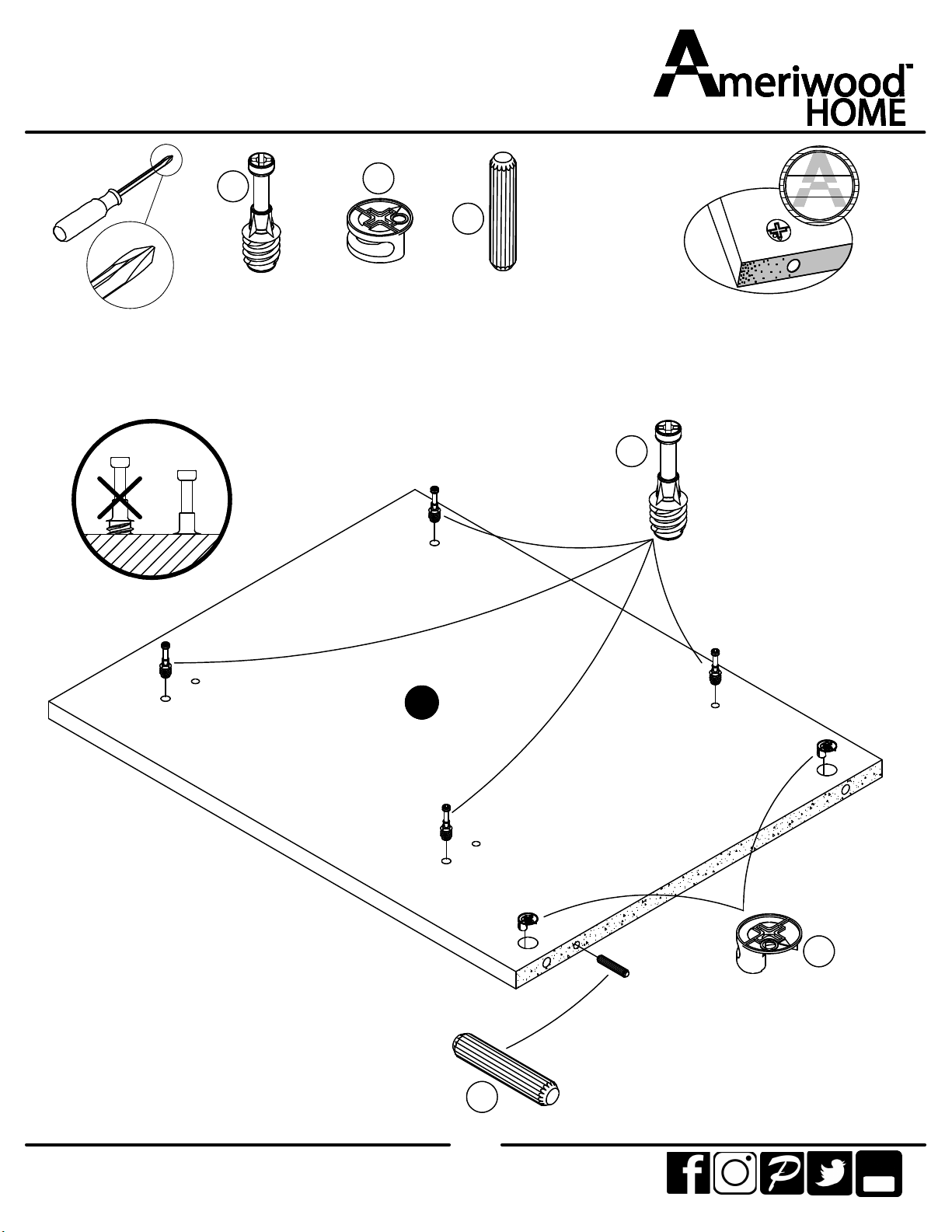

STEP2
Tube
You
* raw edges are shaded
(x1)
#A21660
(x2)
#A22620
(x4)
#A22610
Screw four cam bolts into the right panel (B).
Insert two cam locks and a wood dowel into the right panel (B).
B
1
Proper orientation of CAM LOCK
Tip
Assembly
Quick
1
2
5
2
5

9
ameriwoodhome.com
STEP3
Tube
You
(x4)
#A22610
C
Screw four cam bolts into the top (C).
1
1

10
ameriwoodhome.com

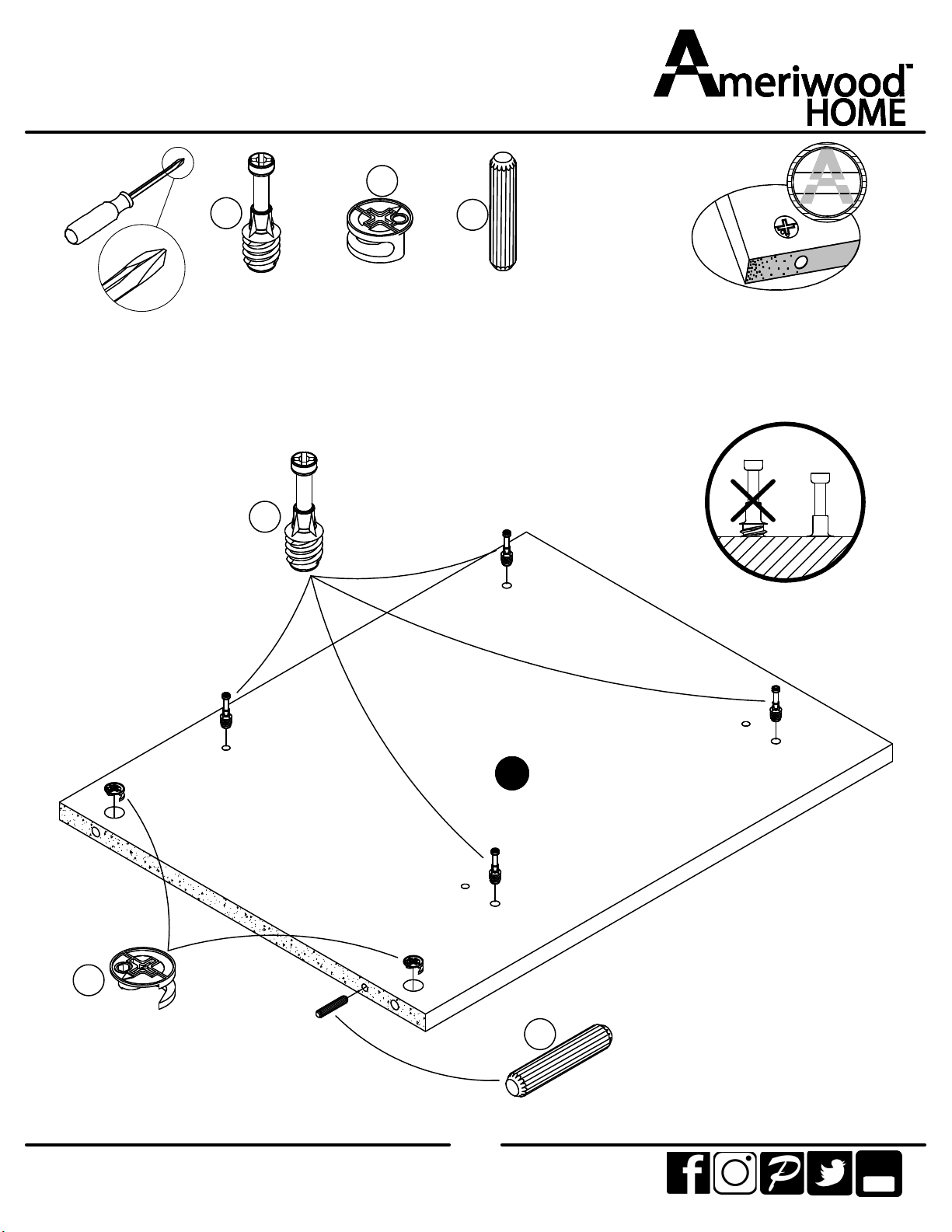

STEP4
Tube
You
(x4)
#A22620
(x2)
#A21660
Insert four cam locks and two wood dowels into the shelf (E).
E
* raw edges are shaded
Proper orientation of CAM LOCK
Tip
Assembly
Quick
2
5
2
5
2
5
