Ametek LAND 4500 MkIII User manual

© Land Instruments International, 2010-2017
Installation Guide
Model 4500 MkIII
Main PCB (Part Nº 804320)
Publication Nº 809352
Language: English
Issue 2
28 July 2017

Health and Safety Information
Read all of the instructions in this booklet - including all the WARNINGS and CAUTIONS
- before using this product. If there is any instruction which you do not understand, DO
NOT USE THE PRODUCT.
Safety Signs
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or
personal injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, could result in minor or
moderate injury to the user or users, or result in damage to the product or to property.
NOTE
Indicates a potentially hazardous situation which, if not avoided, could result in damage or the loss of
data.
Signs and Symbols used on equipment and Documentation
Caution, risk of electric shock.
Caution, attention to possibility of risk of damage to the product, process or surroundings. Refer
to instruction manual.
Caution, hot surface.
Protective Conductor Terminal.
Observe precautions for handling electrostatic discharge sensitive devices.
Equipment Operation
Use of this instrument in a manner not specied by Land Instruments International may be hazardous.
Read and understand the user documentation supplied before installing and operating the equipment.
The safety of any system incorporating this equipment is the responsibility of the assembler.
Protective Clothing, Face and Eye Protection
It is possible that this equipment is to be installed on, or near to, machinery or equipment operating at
high temperatures and high pressures. Suitable protective clothing, along with face and eye protection
must be worn. Refer to the health and safety guidelines for the machinery/equipment before installing
this product. If in doubt, contact Land Instruments International.
Electrical Power Supply
Before working on the electrical connections, all of the electrical power lines to the equipment must
be isolated. All the electrical cables and signal cables must be connected exactly as indicated in these
operating instructions. If in doubt, contact Land Instruments International.
Storage
The instrument should be stored in its packaging, in a dry sheltered area.
Unpacking
Check all packages for external signs of damage. Check the contents against the packing note.
Lifting Instructions
Where items are too heavy to be lifted manually, use suitably rated lifting equipment. Refer to the
Technical Specication for weights. All lifting should be done as stated in local regulations.
IMPORTANT INFORMATION - PLEASE READ

Health and Safety Information
Read all of the instructions in this booklet - including all the WARNINGS and CAUTIONS
- before using this product. If there is any instruction which you do not understand, DO
NOT USE THE PRODUCT.
Safety Signs
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or
personal injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, could result in minor or
moderate injury to the user or users, or result in damage to the product or to property.
NOTE
Indicates a potentially hazardous situation which, if not avoided, could result in damage or the loss of
data.
Signs and Symbols used on equipment and Documentation
Caution, risk of electric shock.
Caution, attention to possibility of risk of damage to the product, process or surroundings. Refer
to instruction manual.
Caution, hot surface.
Protective Conductor Terminal.
Observe precautions for handling electrostatic discharge sensitive devices.
Equipment Operation
Use of this instrument in a manner not specied by Land Instruments International may be hazardous.
Read and understand the user documentation supplied before installing and operating the equipment.
The safety of any system incorporating this equipment is the responsibility of the assembler.
Protective Clothing, Face and Eye Protection
It is possible that this equipment is to be installed on, or near to, machinery or equipment operating at
high temperatures and high pressures. Suitable protective clothing, along with face and eye protection
must be worn. Refer to the health and safety guidelines for the machinery/equipment before installing
this product. If in doubt, contact Land Instruments International.
Electrical Power Supply
Before working on the electrical connections, all of the electrical power lines to the equipment must
be isolated. All the electrical cables and signal cables must be connected exactly as indicated in these
operating instructions. If in doubt, contact Land Instruments International.
Storage
The instrument should be stored in its packaging, in a dry sheltered area.
Unpacking
Check all packages for external signs of damage. Check the contents against the packing note.
Lifting Instructions
Where items are too heavy to be lifted manually, use suitably rated lifting equipment. Refer to the
Technical Specication for weights. All lifting should be done as stated in local regulations.
IMPORTANT INFORMATION - PLEASE READ
Contact Us
UK - Droneld
Land Instruments International
Tel: [phone]
Email: [email protected]
Web: www.landinst.com
USA - Pittsburgh
AMETEK Land, Inc.
Tel: [phone]
Email: [email protected]
Web: www.ametek-land.com
China
AMETEK Land China Service
Tel: [phone] ext 122
Email: [email protected]
Web: www.landinst.com
India
AMETEK Land India Service
Tel: +91 - 80 67823240
Email: [email protected]
Web: www.landinst.com
For further details on all AMETEK Land oces, distributors and representatives, please visit
our websites.
Return of Damaged Goods
IMPORTANT If any item has been damaged in transit, this should be reported to the carrier and to the
supplier immediately. Damage caused in transit is the responsibility of the carrier not the supplier.
DO NOT RETURN a damaged instrument to the sender as the carrier will not then consider a claim. Save
the packing with the damaged article for inspection by the carrier.
Return of Goods for Repair
If you need to return goods for repair please contact our Customer Service Department. They will be able
to advise you on the correct returns procedure.
Any item returned to Land Instruments International should be adequately packaged to prevent damage
during transit.
You must include a written report of the problem together with your own name and contact information,
address, telephone number, email address etc.
Design and Manufacturing Standards
The Quality Management System of Land Instruments International is approved to BS EN ISO 9001 for
the design, manufacture and on-site servicing of combustion, environmental monitoring and non-contact
temperature measuring instrumentation.
Approvals apply in the USA
Operation of radio transmitters, telephones or other electrical/electronic devices in close proximity
to the equipment while the enclosure doors of the instrument or its peripherals are open, may cause
interference and possible failure where the radiated emissions exceed the EMC directive.
The protection provided by this product may be invalidated if alterations or additions are made to the
structural, electrical, mechanical or pneumatic parts of this system. Such changes may also invalidate the
standard terms of warranty.
Copyright
This manual is provided as an aid to owners of Land Instruments International’s products and contains
information proprietary to Land Instruments International. This manual may not, in whole or part, be
copied, or reproduced without the expressed written consent of Land Instruments International Ltd.
Copyright © 2016 Land Instruments International.
MARCOM0311, Issue 7, 01 November 2016
Approvals apply in India

Model 4500 MkIII
Main PCB
Installation Guide

Installation Guide Model 4500 MkIII
Main PCB
Contents
1 Introduction 1
2 Removing the transceiver cover 1
3 Replace the circuit board 2
4 Adjust the LED intensity 3
4.1 Adjusting the LED with a Modbus Connection 3
4.2 Adjusting the LED without a Modbus Connection 4
5 Replace the instrument cover 5
6 Recongure and Recalibrate the Instrument 5

Model 4500 MkIII
Main PCB
Installation Guide

Page 1
Installation Guide Model 4500 MkIII
Main PCB
1 Introduction
This Installation Guide provides information on how to remove and replace the
Main PCB (Part Nº 804320) in a Land Instruments International Model 4500 MkIII
Continuous Opacity Monitoring System (COMS).
CAUTION
This procedure is intended for skilled instrument technicians and
should be carried out in a clean workshop.
Take appropriate precautions to prevent damage from electrostatic
discharge.
2 Removing the transceiver cover
1) Using a 3mm Allen key, remove
the 8 screws that secure the
instrument cover.
2) Slowly pull back the red cover
until the keyboard connector
can be seen. Disconnect the
keyboard ribbon, and then
remove the cover.

Page 2
Model 4500 MkIII
Main PCB
Installation Guide
3 Replace the circuit board
1) Make sure you can identify each
of the connectors before you
disconnect them. If in doubt,
label each connector.
2) Using a 3 mm Allen key,
remove the 6 mounting screws
and remove the old circuit
board
3) Fit the new circuit board using
the existing mounting screws.
4) Reconnect the connectors.

Page 3
Installation Guide Model 4500 MkIII
Main PCB
4 Adjust the LED intensity
There are two methods available for adjusting the intensity of the LED:
• Adjusting the LED with a Modbus connection (preferred)
• Adjusting the LED without a Modbus connection (for use if a Modbus
connection is not possible)
4.1 Adjusting the LED with a Modbus Connection
1) Connect a cable terminal to the
4500 MkIII Connector C.
2) Connect a Modbus master to the
RS485 port (green, yellow and
black wires).
3) Apply 24 V dc power to the red
and blue wires of Connector A.
4) Observe Modbus registers 121,
122 and 124. These indicate the
intensity of the LED signals on
the reference detector.
5) Adjust potentiometer PR1 until
Register 124 has a maximum
value not exceeding 56000.
6) Adjust potentiometer PR2 until
Registers 121 and 122 have a
maximum value, with neither
value exceeding 56000.
7) Disconnect 24 V dc power.
8) Disconnect the Modbus cable.
9) Go to Section 5 below.

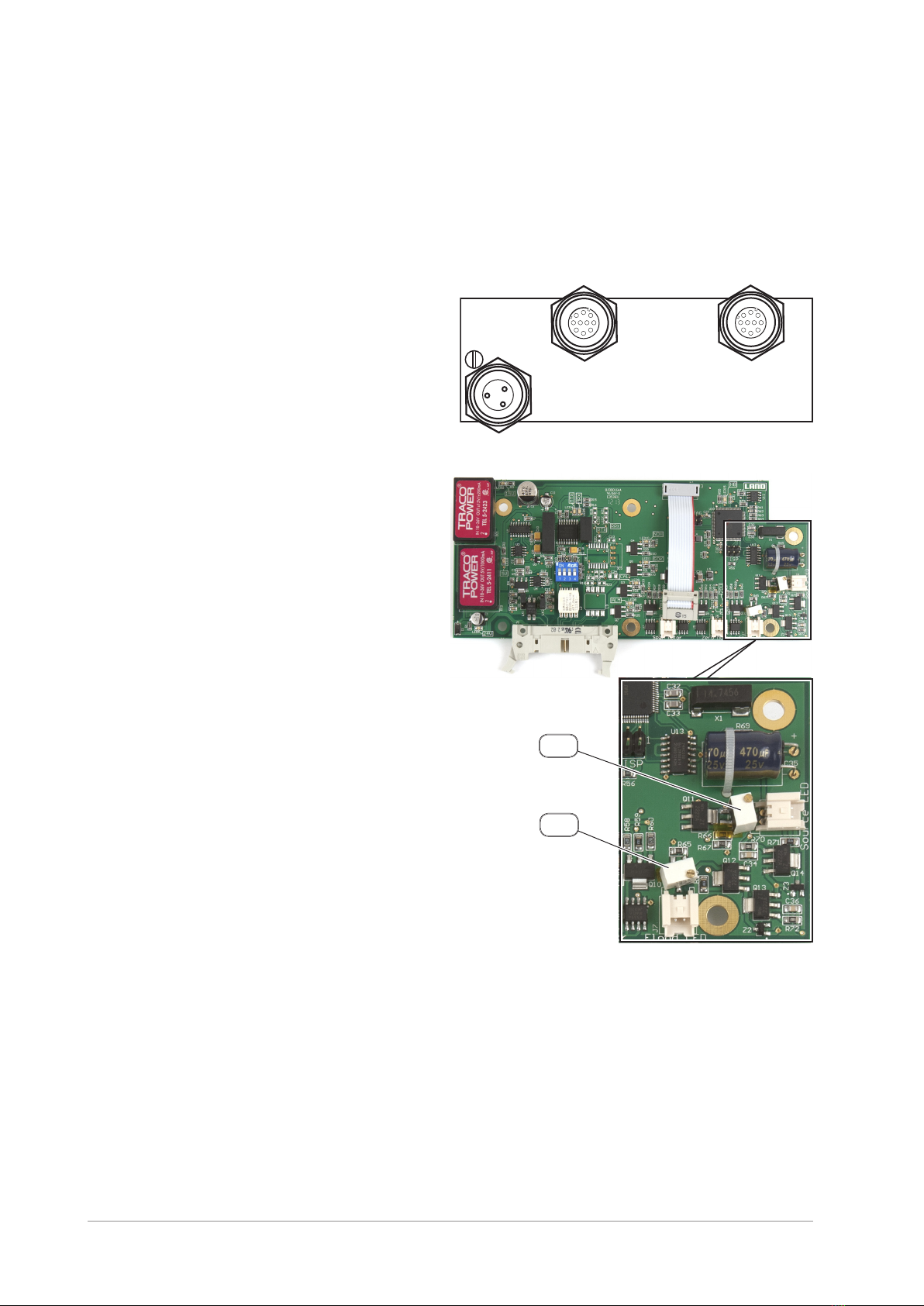

Connector A
Connector B Connector C
PR1
PR2

Page 4
Model 4500 MkIII
Main PCB
Installation Guide
4.2 Adjusting the LED without a Modbus Connection
1) Carefully replace the cover, ensuring that it doesn’t jam on any components
2) When the cover is close enough, ret the keyboard connector ribbon,
ensuring it is not offset by one pin.
DO NOT FASTEN THE COVER SCREWS AT THIS POINT.
3) Apply 24 V dc power to the red
and blue wires of Connector A.
4) Using the keyboard, use the
menu to display parameter 124.
5) VERY CAREFULLY remove the
red instrument cover, taking
care not to short-circuit any
components inside the Model
4500 MkIII.
6) Adjust potentiometer PR1 until
Register 124 has a maximum
value not exceeding 56000.
7) Remove 24 V dc power and
replace the instrument cover &
connector as before.
8) Apply 24 V dc power to the red
and blue wires of Connector A.
9) Using the keyboard, use the
menu to display parameter 122.
10) VERY CAREFULLY remove the
red instrument cover, taking
care not to short-circuit any
components inside the Model
4500 MkIII
11) Adjust potentiometer PR2 until
Registers 121 and 122 have a
maximum value, with neither
value exceeding 56000.
12) Remove 24 V dc power.
Connector A
Connector B Connector C
PR1
PR2

Page 5
Installation Guide Model 4500 MkIII
Main PCB
5 Replace the instrument cover
1) Carefully replace the cover,
ensuring that it doesn’t jam
on any components. When the
cover is close enough, ret the
keyboard connector ribbon.
2) Ensure the white cord seal is
correctly seated before pushing
the cover home.
3) Secure the cover with the eight
screws.
4) Apply 24 V dc power and
check display and keyboard
functionality.
6 Reconfigure and Recalibrate the Instrument
All setup and calibration parameters are stored on the main board.
Replacing this board erases the instrument’s calibration and conguration, so it
will be necessary to reinstall these parameters and recalibrate the instrument.

Issue 7 January 2014
Gas Monitoring Products
Standard Terms of Warranty
Land Instruments International warrant all products of our own manufacture to be within specied limits of calibration,
if any, when despatched from our works. Also that they are free from defects in material and workmanship for normal
use and service when used for their intended purpose within the limits of our specication. The period of warranty,
with respect to defects in material and workmanship, will be one year from date of despatch, or readiness for despatch
should delivery be delayed by the customer who has been notied of the readiness at or after the acknowledged
estimated date of despatch.
Land Instruments International guarantees to repair any defective workmanship or replace at its own option any
defective parts in any product of its manufacture, provided that the defective instrument is returned to our works
free of charge and securely packed. Also, provided that the said goods are found to be solely defective due to faulty
design, materials or workmanship and not by improper use or accident.
Items which under their normal course of use or storage, age or deteriorate e.g. measuring cells, batteries, vacuum
tubes, thermocouples, are not covered by this warranty, and will be charged for if replaced together with labour
charges for any work found not to be covered by the warranty and any transport or import charges incurred by Land
Instruments International at the customers expense.
Equipment or components purchased by Land Instruments International from other manufacturers and used with or
within Land Instruments International equipment bear only the warranty of the original manufacturer.
Warranty work will only be carried out on site on receipt of an ofcial order from the customer who will be charged for
all travelling time plus travelling and living expenses involved to carry out the work. Should the said faulty operation
not be the cause of the instrument’s faulty design, materials or workmanship, but due to application conditions,
Land Instruments International reserve the right to charge additionally for all labour on establishing this at the
customer’s works.
Warranty cover is subject to the correct planned maintenance being done in accordance with the published service
schedule. Failure to follow the planned maintenance will void the warranty terms. Any warranty claim in this event will
be at the discretion of Land Instruments International. Whilst every care is taken in the manufacture of our products,
we can accept no responsibility for any consequential loss, however caused, through the failure of any of our products
to operate accurately or correctly.
All products except 4500 MkIII
The standard warranty on new instruments is a 1-year return-to-base warranty. If repairs are performed at site, then
travelling time and expenses will be charged at standard rates. Purchased Spare Parts are warranted for 1 year from
date of shipment, carriage included. If a Spare Part is supplied under warranty, then this part is only warranted for
the residue of the applicable warranty period. Calibration lters are not warranted against any damage or change in
characteristic that may occur due to mishandling.
Model 4500 MkIII
The standard warranty on new instruments is a 3-year return-to-base warranty. If repairs are performed at site, then
travelling time and expenses will be charged at standard rates. Purchased Spare Parts are warranted for 1 year from
date of shipment, carriage included. If a Spare Part is supplied under warranty, then this part is only warranted for
the residue of the applicable warranty period. Calibration lters are not warranted against any damage or change in
characteristic that may occur due to mishandling. The 4500 MkIII light source has a lifetime warranty.
Exclusions
1. Warranty subject to the analysers being used in the manner for which they were designed.
2. Warranty subject to all recommended maintenance being performed as dened in the operating or service
manual or in the quotation.
3. The following consumable items are specically excluded: All lters, Electrochemical cells, Chemical Drying
Agents, Batteries.
MARCOM0300
