Operation Manual
for T-620, T-620H, and T-620H-CPF Pressure Pumps
T-600 Series

Contents
Overview ............................................................... 1
Introduction ............................................................. 1
Features ................................................................. 2
Safety Instructions .................................................. 3
Safety Instructions ....................................................... 3
Generating Pressure ................................................ 4
Connection Diagrams .............................................. 6
T-600 Series to Jofra Reference Indicators .................................. 6
T-620H-CPF to Crystal Reference Indicators ................................ 7
Specifications ......................................................... 8
Support ................................................................ 10
Troubleshooting ........................................................ 10
Maintenance ........................................................... 10
Fitting Kits and Spare Parts .............................................. 11
Contact Us .............................................................. 12
Returning product to AMETEK ........................................... 12
Warranty ............................................................... 12

Overview 1
T-600 Series Pump Operation Manual
Overview

INTRODUCTION
The T-600 Series hydraulic hand pump you have chosen, is an extremely eective pressure pump, and we are condent that it will live up to your expectations.
Over the course of many years, we have acquired extensive knowledge of industrial precision pressure calibration. This expertise is reected in our products,
all of which are designed for daily use in an industrial environment. If you have any ideas or suggestions for ways we might improve our products, we would
be very interested in hearing from you.
The T-600 Series hydraulic hand pumps, designed by Manseld & Green, are specially designed for high pressure applications. The pumps are compatible with
petroleum-based oils or hydraulic uids.
The T-620 pump generates up to 200 bar (3000 psi). The T-620H and T-620H-CPF pumps generate up to 350 bar (5000 psi). The CPF version includes
Crystal Pressure Fittings (CPF), which allow users to produce leak-free seals without tools or thread tape. CPF ttings also include a self-venting weep hole to
help assure a safe disconnection from a pressurized system
XT-600 Series Pumps
Pressure Range
T-620 200 bar / 3000 psi
T-620H 350 bar / 5000 psi
T-620H-CPF 350 bar / 5000 psi

Overview 2
T-600 Series Pump Operation Manual

FEATURES
The T-600 series hand pumps feature a 0.5 pint/20 cl built-in oil reservoir, vent valve and ne adjust knob. The pump has two pressure ports – one for the
device under test and one for the reference indicator.
Parts Included with Pump (T-620 and T-620H)
XReference Pressure Port (1/4"NPT Female, swivel)
No additional ttings are included for the Reference Pressure Port.
XDevice Under Test Pressure Port
Part Number Description
T-649 0.61 meter hose with 1/4” NPT Female connector
T-786 1/4" NPT Male x 1/4" BSP Female adapter
Parts Included with Pump (T-620H-CPF)
XReference Pressure Port (1/4"NPT Female, swivel)
No additional ttings are included for the Reference Pressure Port.
XDevice Under Test Pressure Port
Part Number Description
MPF-1/4FPT 1/4" NPT Female to CPF Female
MPM-PLUG CPF Plug
MPH-1 1.0 meter CPF Hose
Fill Plug
Reference
Pressure
Port
Check Valve
Pressure Vent Valve
Fine Adjustment Knob
Moveable Handle
Device Under Test Pressure Port
T-620H-CPF

Safety Instructions 3
T-600 Series Pump Operation Manual
Safety Instructions

SAFETY INSTRUCTIONS
Please follow the instructions and procedures described in this manual. They are designed to help you get the most out of your pressure system and to avoid
any personal injuries and/or damage to the system.
Please notice the pump comes in 2 dierent pressure ranges. Therefore it is very important to check the version of the pump to avoid over-pressurizing the
indicator.
Note: The product liability only applies if the pressure system is subject to a manufacturing defect. This liability becomes void if the user fails to follow the
maintenance instructions set out in this manual or uses unauthorized spare parts.
When using this pump:
• Avoid knocking, bumping, or dropping the pump. This can cause permanent damage.
• The pump must not be used for any purposes other than those described in this manual, or for any application other than precision pressure calibration tasks.
• The pump should only be used by TRAINED PERSONNEL.
• None of our calibration systems are cleaned or prepared for OXYGEN MEDIUMS. DO NOT USE our systems for this purpose.
• Do not disconnect any parts from the system when pressurized.
! Warning: Do not connect any external pressure source to this system. This system is designed to test pressure measuring devices connected to the
manifold only. Pressure from an external source can result in explosion of the liquid reservoir and possible personal injuries.

Generating Pressure 4
T-600 Series Pump Operation Manual
Generating Pressure
Follow these steps in order to operate the pump correctly. See the diagram on page 2 for reference..
Connecting to the Pump
1 Remove the ll plug and ll the reservoir approximately 2/3 full of test uid.
! Caution: Do not use solvents , alcohol, or synthetic uids that will adversely aect the operation of the pump.
Please refer to the Recommended Test Fluids section on page 8 for more information.
2 Connect and tighten the ll plug.
3 Turn the pressure vent valve and ne adjust knob counter-clockwise until fully open.
4 Prime the system by pumping the movable handle until air bubbles in the reservoir stop.
5 Turn the pressure vent valve clockwise until fully closed. (Close by hand only.)
6 Connect the reference indicator to the reference pressure port per the connection diagrams on pages 6 and 7.
7 Operate the handle until the test uid is visible at the end of the pressure hose. Pre-lling the hose will help speed the operating of the pump.
8 Connect the device-under-test to the test pressure port.
Note: If CPF Fittings are used in your pressure system remaining air can be purged by applying 10 psi or less and loosening the CPF tting closest to the pres-
sure device. When uid and air escape from the CPF weep hole, that portion of the system is purged. Repeat this process for each pressure device in the
pressure system which is connected to a CPF tting.

Generating Pressure 5
T-600 Series Pump Operation Manual

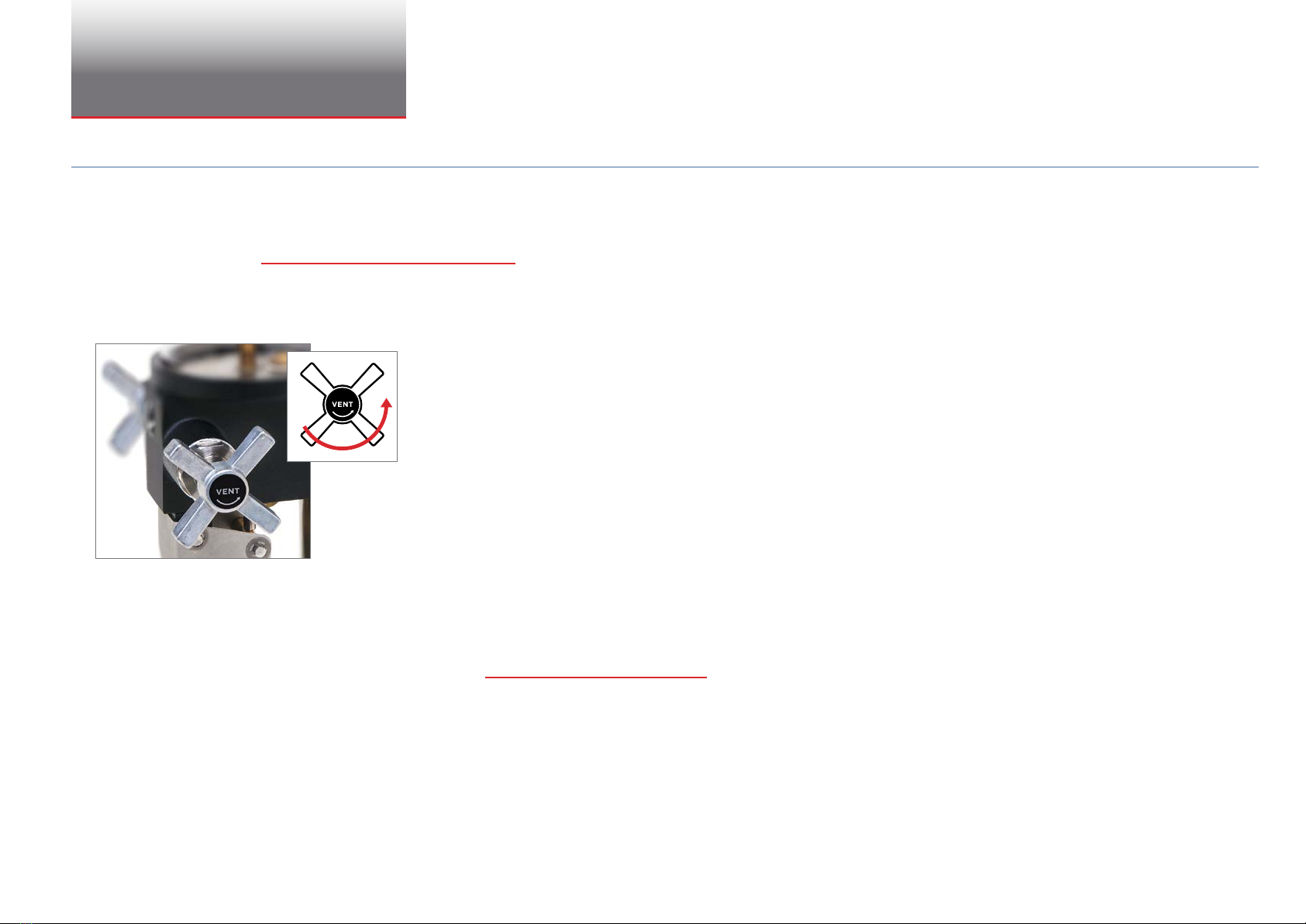

Applying Pressure
! Caution: Ensure all ttings and devices are connected correctly and without leaks.
1 Ensure the device-under-test and reference indicator are powered on and are indicating pressure readings.
2 Turn the pressure vent valve and ne adjust knob counter-clockwise until fully open.
3 Zero the reference indicator.
4 Turn the pressure vent valve clockwise until fully closed. (Close by hand only.)
5 Operate the handle to apply pressure until the target pressure is nearly reached.
6 Turn the ne adjust knob to reach the target pressure, as indicated on the reference indicator.
Allow time for adiabatic eect to stabilize. Turn the ne adjust knob as needed to achieve stable pressure.
Note: When you operate with high pressure the system is extremely sensitive with regard to temperature and movements.
Disconnecting from the Pump
1 Release pressure by turning the vent valve counter-clockwise.
2 Remove the device under test.

Connection Diagrams 6
T-600 Series Pump Operation Manual
Connection Diagrams

T600 SERIES TO JOFRA REFERENCE INDICATOR
1/4"FNPT *
T-649 *
1/8"MNPT/1/4"FNPT
1/8"FNPT *
T-786 *
1/4"MNPT/1/4"FBSP
1/4" FNPT *
127400
1/4" MNPT/1/8" MBSP
127400
1/4" MNPT/1/8" MBSP
CALIBRATION INSTRUMENTS
JOFRA™
JOFRA
™
Handheld Pressure Calibrator
HPC500
F1 F2 F3
zero
DPC-501
1 3
54 6
87 9
2
0
CLEAR BACK
SETUP
SELECT
126029
1/4" MNPT/1/2" FBSP (to DPCJ Sensor)
CALIBRATION INSTRUMENTS
Industrial Pressure Indicator MKII
IPI MKII
ZERO MAX
MIN CONFIG ENTER
JOFRA
Denotes areas where thread-sealing tape is required.
* These parts are included with the pump.
All other parts are supplied as part of a pump system, or may be ordered separately.
All BSP connections require bonded seals.

Connection Diagrams 7
T-600 Series Pump Operation Manual

T620HCPF TO CRYSTAL REFERENCE INDICATOR
MPF-1/4FPT *
MPH-1 *
MPF-1/8MPT *
MPF-1/8MPT
MPF-1/8QTM 1/8" Quick Test NPT Male
MPF-1/8MPT 1/8" NPT Male
MPF-1/4QTM 1/4" Quick Test NPT Male
MPF-1/4MPT 1/4" NPT Male
MPF-1/8QTF 1/8" Quick Test NPT Female
MPF-1/4QTF 1/4" Quick Test NPT Female
MPF-1/4FPT *1/4" NPT Female
MPF-1/2QTF 1/2" Quick Test NPT Female
MPF-1/8BSPF G 1/8" Female
MPF-1/4BSPF G 1/4" Female
MPF-3/8BSPF G 3/8" Female
MPF-1/2BSPF G 1/2" Female
MPF-MPF Female to Female
MPF-MPFTU T-Union (Female)
MPF-MPFBULK Bulkhead (Female to Female)
MPF-CAP Cap
MPF-M20QTF M20 x 1.5 Quick Test Female
MPF-M20X1.5F M20 x 1.5 Female
MPF-QCN Quick-Connect Nut
MPF-AN4MAN4 Male
MPF-1/4TBM 1/4" Tube Male
MPF-3/8TBM 3/8" Tube Male
MPF-1/2TBM 1/2" Tube Male
MPF-5/16TRMfor Foxboro, Rosemount, & Yokogawa
MPF-1/4TRMfor Honeywell
NPT MALE
NPT FEMALE
BSP
CPF
ADDITIONAL
TUBE
TRANSMITTER
Additional NPT sizes available in non-CPF MP adapters
Additional NPT sizes available in non-CPF MP adapters
MPM-1/4MPTMPM-1/4MPT MPM-1/4MPT
Denotes areas where thread-sealing tape is required.
* These parts are included with the pump.
All other parts are supplied as part of a pump system,
or may be ordered separately.
MPM-PLUG *
1/4" FNPT *
3000 PSI
XP2i Digital Test Gauge
Hi
Lo
peak
clear
zero
units
Intrinsically Safe
nVision Reference Recorder

Specications 8
T-600 Series Pump Operation Manual
Specifications
Pressure Ranges
T-620 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to 200 bar / 0 to 3000 psi
T-620H . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to 350 bar / 0 to 5000 psi
T-620H-CPF. . . . . . . . . . . . . . . . . . . . . . 0 to 350 bar / 0 to 5000 psi
Capacity
Reservoir . . . . . . . . . . . . . . . . . . . . . . . . 0.5 pint/20 cl
Materials
T-620 and T-620H . . . . . . . . . . . . . . . . Aluminum, brass, stainless steel, Teon, Lexan, Buna N, and Nylon.
T-620H-CPF. . . . . . . . . . . . . . . . . . . . . . Aluminum, brass, stainless steel, Teon, Lexan, Buna N, Viton, and Polyamide.
Recommended Test Fluids
The following uids are recommended for use with this pump:
• Petroleum based oils
• Hydraulic uids

Specications 9
T-600 Series Pump Operation Manual
Pressure Connections
XReference Port
T-620, T-620H . . . . . . . . . . . . . . 1/4" NPT Female.
T-620H-CPF. . . . . . . . . . . . . . . . 1/4" NPT Female.
XDevice Under Test Port
T-620, T-620H . . . . . . . . . . . . . . 0.61 m / 24” hose with 1/4" NPT Female connector
(adapter for 1/4" BSP Female)
T-620H-CPF. . . . . . . . . . . . . . . . 1.0 m / 40" inch MPH-1 CPF hose with 1/4" NPT Female connector
Dimensions
Pump . . . . . . . . . . . . . . . . . . . . . 280 (L) x 150 (W) x 115 (D) mm.
Weight . . . . . . . . . . . . . . . . . . . . 3 lbs / 1.4 kg
Drop Rate
Maximum . . . . . . . . . . . . . . . . . 5% over 5 minutes.

Support 10
T-600 Series Pump Operation Manual
Support

TROUBLESHOOTING
Unstable Pressure
XProblem: Pressure cannot be generated correctly, or set pressure does not remain stable.
XSolutions:
• Check that all adapters and pressure ttings have been tightened suciently to eliminate leaks.
• Conrm test uid does not contain air (air in the uid can increase adiabatic eects). Replace test uid if necessary.
• Replace hose (hose expansion can cause unstable pressure).
Pressure does not Increase
XProblem: The system fails to indicate a pressure increase after considerable pumping action of the handle.
XSolutions:
• Close the pressure vent valve.
• Remove the ll plug, and push the middle of the Check Valve In. If the vent valve cannot be reached because it’s not aligned with the ll plug,
loosen the reservoir lid and rotate until aligned.
• Check that all adapters and pressure ttings have been tightened suciently.
• Pump requires service (please contact your local sales oce for advice).

MAINTENANCE
Users should/must carry out the following cleaning procedures as and when required:
Exterior cleaning . . . . . . . . . . . . . . . . Clean using a soft, damp cloth.
Visual Inspection . . . . . . . . . . . . . . . . Make sure that the bottom of the reservoir and the uid does not contain contaminants or solids.

Support 11
T-600 Series Pump Operation Manual

FITTING KITS AND SPARE PARTS
Service Kits
XT-620, T-620H Series
P/N: T-656 .........T-620, T-620H
XT-620H-CPF
P/N: T-656 .........T-620H-CPF
Hoses
XT-620 and T-620H
P/N: T-649 .........Hose. 0.61 m, 1/4” NPT Female connection.
XT-620H-CPF
P/N: MPH-1........Hose. 1.0 m, CPF MP Male connection.
P/N: MPH-1.5......Hose. 1.5 m, CPF MP Male connection.
P/N: MPH-3........Hose. 3.0 m, CPF MP Male connection.
P/N: MPH-5........Hose. 5.0 m, CPF MP Male connection.
P/N: MPH-10 ......Hose. 10.0 m, CPF MP Male connection.
Adapters
XT-620 and T-620H
P/N: T-786 .........Adapter. 1/4" BSP Female for hose connection.
P/N: 101549.......Bonded Seal. For 1/2” BSP.
P/N: 60R120.......Bonded Seal. For 1/4” BSP.
P/N: 127402.......Bonded Seal. For 1/8” BSP.
XT-620H-CPF
Refer to the connection diagram on page 7 for a complete list of adapters.
Test Fluid
XT-620, T-620H, and T-620H-CPF
P/N: MGAAA/QT...Hydraulic Oil. Quart.
P/N: MGAAA/GL...Hydraulic Oil. Gallon.

Support 12
T-600 Series Pump Operation Manual

CONTACT US
UnitedKingdom
Tel [phone]
[email protected].uk
France
Tel [phone]
general.lloyd-instruments@
ametek.fr
Germany
Tel [phone]
info[email protected]
Denmark
Tel [phone]
[email protected]
USA
Florida - Manseld & Green
Tel [phone]
[e-mail]
California - Crystal Engineering
Tel [phone]
[email protected]
India
Tel [phone]
[email protected]
Singapore
Tel [phone]
[email protected]
China
Shanghai
Tel [phone]
Beijing
Tel [phone]
Guangzhou
Tel [phone]
[email protected]

RETURNING PRODUCT TO AMETEK
Please contact your sales representative to complete a Return Material Authorization (RMA) form and/or receive an RMA number.
Return/shipping instructions will be provided with the RMA number.

WARRANTY
This instrument is warranted against defects in workmanship, material and design for one (1) year from date of delivery to the extent that AMETEK will, at its sole
option, repair or replace the instrument or any part thereof which is defective, provided, however, that this warranty shall not apply to instruments subjected
to tampering or, abuse, or exposed to highly corrosive conditions.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED AND AMETEK HEREBY DISCLAIMS ALL OTHER WARRANTIES, INCLUDING,
WITHOUT LIMITATION, ANY WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY. AMETEK SHALL NOT BE LIABLE FOR ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO, ANY ANTICIPATED OR LOST PROFITS.
This warranty is voidable if the purchaser fails to follow any and all instructions, warnings or cautions in the instrument’s Instruction Manual.
If a manufacturing defect is found, AMETEK will replace or repair the instrument or replace any defective part thereof without charge; however, AMETEK’s
obligation hereunder does not include the cost of transportation, which must be borne by the customer. AMETEK assumes no responsibility for damage in
transit, and any claims for such damage should be presented to the carrier by the purchaser.

Form № 84-10 rev 9
© 2013 AMETEK Incorporated
8600 Somerset Drive, Largo, Florida 33773
