AMG4647AER
Instruction
Sheet
D18089
-
01.doc
AMG4647AER
Instruction Manual
4 Channel Video Transmit Unit with up to 8 Bi
-
directional
Data and Audio Channels plus Ethernet
The
AMG4647AER
is a rackmount four channel video transmit unit designed to transmit 4 video
signals and transmit and r
eceive up to 8 data or audio signals plus full duplex 100BaseT Ethernet
connectivity over two Multimode fibres. The 8 data/audio channel interfaces, whether RS232, RS422,
RS485, 20mA, TTL, Contact Closure, Lonworks or Audio, are defined at manufacture by t
he addition
of daughter boards fitted onto the Data Expansion Board A.
The
AMG4647AER
is designed to plug into an AMG2005 or AMG2009 subrack, which in turn fits into
a 19" rack system.
The
AMG4647AER
is designed to operate with
AMG4648AE
or rackmount eq
uivalent
AMG4648AER
four channel video receive unit in a point to point configuration.

AMG Systems Ltd. reserves the right to make changes to this
document wi
thout notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
2
of
12
AMG4647AER
Instruction
Sheet
D18089
-
01.doc
Contents
Introduction
3
Unit Functional Schematic
................................
................................
................................
..................
3
Optical Connection
................................
................................
................................
.............................
3
Ethernet Operation
4
Connections
5
Video Input Connections
................................
................................
................................
....................
5
Optical Connections
................................
................................
................................
...........................
5
Power Connection
................................
................................
................................
..............................
5
Ethernet Connection
................................
................................
................................
...........................
5
Data Channel Connections
................................
................................
................................
.................
5
Data and Audio Channel Configuration
6
Data Interface Daughter Board Options
................................
................................
.............................
6
Data and Audio Channel Configuration
................................
................................
..............................
6
Daughter Board Layout
................................
................................
................................
......................
6
Data and Audio Daughter Board Fitting Instruction
................................
................................
............
6
Data and Audio Connections
................................
................................
................................
..............
7
Front Panel Indicators
8
Power LED
................................
................................
................................
................................
..........
8
Video Input LED’s
................................
................................
................................
...............................
8
Fibre Optic LED’s
................................
................................
................................
...............................
8
Ethernet Data LED’s
................................
................................
................................
...........................
8
Low Speed Data LEDs
................................
................................
................................
.......................
8
Physical Information
10
Dimensions
................................
................................
................................
................................
.......
10
Mounting Details
................................
................................
................................
...............................
10
Removal / replacement from / to the Case
................................
................................
.......................
10
Safety
10
Maintenance and Repair
10

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
3
of
12
AMG4647AER
Instruction
Sheet
D18089
-
01.doc
Introduction
Unit Functional Schematic
The
AMG4647AER
transmits up to 4 video
and 8 data and audio signals to the
AMG4648AER
.
It also
receives up to 8 data and audio
channels transmitted from the
AMG4648AER
.
Ethernet connectivity is also provided
between the two units.
Optical Connection
The
AMG4647AER

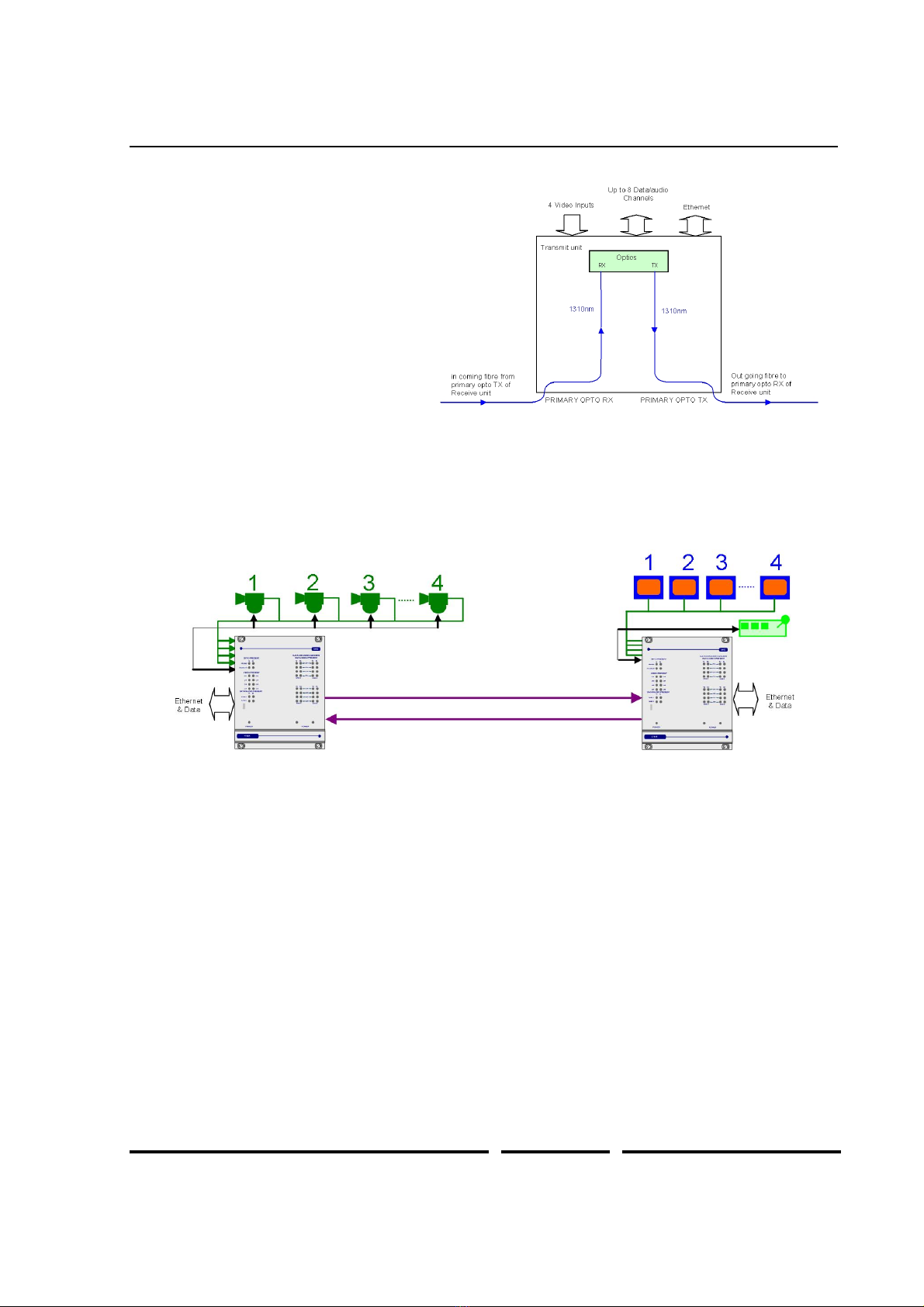

is connected as illustrated below when used with an
AMG4648AER
4
-
channel
receive
unit acting as a point to point system.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assume
d by AMG for its use.
Page
4
of
12
AMG4647AER
Instruction
Sheet
D18089
-
01.doc
Ethernet Operation
In order for the AMG system to transmit Ethernet signals, an onboard RJ45 Ethernet interface or
X16003 Ethernet interface adaptor should be fitted to both the Transmit unit and the Receive u
nit.
The Ethernet interface can operate at either 10Mbits/s half duplex, or 100Mbit/s full duplex, and data is
transmitted from one port the other port with the minimum of delay or buffering. The maximum
bandwidth (at 100Mbit/s full duplex) available for
transmission across the fibre link is nominally
50MBit/s.
The 100BaseT port does not implement MDI/MDIX; it should be connected with a straight though
cable to an external switch port and with a cross over cable when connected directly to a PC or DTE.

AMG Systems Ltd. reserves the right to make changes to this
document without noti
ce. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
5
of
12
AMG4647AER
Instruction
Sheet
D1
8089
-
01.doc
Connections
Video Input Connections
No. of channels
................................
....
4
Connector
................................
............
75 ohm BNC Socket.
Input Impedance
................................
..
75 ohm terminated.
Input Level
................................
...........
1 volt p
-
p nominal
Frequency Response
..........................
10Hz to 7MHz.
Optical Connections
PRIMARY OPTO OUT
Connector
................................
............
LC/PC
Primary Optical Lau
nch Power
............
-
5dBm
Wavelength
................................
..........
1310nm
Optical Fibre
................................
........
Multimode 50/125 or 62.5/125**
PRIMARY OPTO IN
Connector
................................
............
LC/PC
Primary Optical Sensitivity
...................
-
22dBm
Wavelength
................................
..........
1310nm
Optical Fibre
................................
........
Multimode 50/125 or 62.5/125**
**Note: the transmission distance is limited
by the bandwidth of the Multimode optical fibre. The optical
data rate is 1.25Gbits/s. The maximum bandwidth specification at this data rate for Multimode fibre is
2km. although in most cases the units will operate successfully over longer fibre lengths.
It is
advisable however for distances greater than 2km, to have the optical fibre tested.
Power Connection
Power supply
................................
.......
from plug in connection on the AMG2009 / AMG2015 subrack
Power consumption
.............................
10 Watts max.
Ethernet Connection
Ethernet Data Connector
....................
RJ45
Interface
................................
...............
Auto
-
negotiation up to 100BASE
-
TX full duplex
Ethernet Data Rate
..............................
Maximum 50Mbits/s total Ethernet traffic on fibre
Data Channel Connections
Total No. of Data Channels
.................
8 channels
Data/Audio Channels
–
BANK A
.........
8 channels
Data/Audio Channel
s
–
BANK B
.........
Not Used
Connector
................................
............
37
-
way D
-
Type female connector
-
shielded.
Connections
................................
.........
See below for connection and configuration
For the data or audio channels to be present, the appropriate data daughter boards have to be fitted
into the data expansion bo
ard slots.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
6
of
12
AMG4647AER
Instruction
Sheet
D18089
-
01.doc
Data and Audio Channel Configuration
The
AMG4648AE
and rackmount equivalent
AMG4648AER
sends and receives data in one bank
-
Bank A. Bank B is not used. The physical interface is determined by the fitting of AMG data or audio
daughter boards
onto the appropriate data expansion board slots.
Data Interface Daughter Board Options
The data interface daughter board options are as follows:
Option Code
'x'
Part No.
Description
0
X12542
4 Wire Audio Interface Daughter Board
1
X04057
RS422/485 Dat
a Interface Daughter Board
2
X04049
RS232 Data Interface Daughter Board
3
X04058
20mA Current Loop Data Interface Daughter Board
4
X12579
TTL Data Interface Daughter Board
5
X12578
Contact Closure Data Interface Daughter Board
6
X13038
FTT10A Echelon
Lonworks Data Interface Daughter Board
Data and Audio Channel Configuration
The data expansion board slots are accessed by removing the AMG unit from its case. A data channel
is active when a daughter board is installed in the required data channel slot
. Each data interface
board enables one bi
-
directional channel.
Daughter Board Layout
The channel slots are as follows:
Data and Audio Daughter Board Fitting Instruction
The data and audio daughter boards pushed on to the pin headers mounted on the
data expansion
boards. Ensure that the connectors are lined up correctly and not offset before pushing firmly in place.
Note that the data and audio channel numbers are associated with each slot. This allocates the pin
numbers on the rear panel connector
together with the front panel LED indicators.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG f
or its use.
Page
7
of
12
AMG4647AER
Instruction
Sheet
D18089
-
01.doc
Data and Audio Connections
The BANK A data/audio channels pin connections on the rear panel connectors are as follows:
Pin
No.
Description
Bank
Pin
No.
Description
Bank
1
Audio/Data CH1 IN + (A)
A
20
Audio/Data CH1 OUT + (A)
A
2
Audio/Data CH1 IN
-
(B)
A
21
Audio/Data CH1 OUT
-
(B)
A
3
Audio/Data CH2 IN + (A)
A
22
Audio/Data CH2 OUT + (A)
A
4
Audio/Data CH2 IN
-
(B)
A
23
Audio/Data CH2 OUT
-
(B)
A
5
Audio/Data CH3 IN + (A)
A
24
A
udio/Data CH3 OUT + (A)
A
6
Audio/Data CH3 IN
-
(B)
A
25
Audio/Data CH3 OUT
-
(B)
A
7
Audio/Data CH4 IN + (A)
A
26
Audio/Data CH4 OUT + (A)
A
8
Audio/Data CH4 IN
-
(B)
A
27
Audio/Data CH4 OUT
-
(B)
A
9
GND
A
28
GND
A
10
GND
A
29
GND
A
11
GND
A
30
Audio/Data CH5 OUT + (A)
A
12
Audio/Data CH5 IN + (A)
A
31
Audio/Data CH5 OUT
-
(B)
A
13
Audio/Data CH5 IN
-
(B)
A
32
Audio/Data CH6 OUT + (A)
A
14
Audio/Data CH6 IN + (A)
A
33
Audio/Data CH6 OUT
-
(B)
A
15
Audio/Data CH6 IN
-
(B)
A
34
Audio/Data CH7 OUT + (A)
A
16
Audio/Data CH7 IN + (A)
A
35
Audio/Data CH7 OUT
-
(B)
A
17
Audio/Data CH7 IN
-
(B)
A
36
Audio/Data CH8 OUT + (A)
A
18
Audio/Data CH8 IN + (A)
A
37
Audio/Data CH8 OUT
-
(B)
A
19
Audio/Data CH8 IN
-
(B)
A
Note: (A) or (B) in brackets in above table refers to RS485/RS422 data specification not Bank A, B.
See Data or Audio Daughter Board Instruction Sheet for meaning of Audio/Data IN+, Audio/Data IN
-
Audio/Data OUT+, and Audio/Data OUT
-
for
each data type.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The in
formation herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
8
of
12
AMG4647AER
Instruction
Sheet
D18089
-
01.doc
Front Panel Indicators
Power LED
Power
................................
...................
Green
-
unit powered
Off
-
no power applied to unit
Video Input LED’s
Video Present CH1
-
4
...........................
Green
-
video signal present on input BNC
R/G
-
channel present but no video on I/P BNC
Fibre Optic
LED’s
Primary Opto Sync TX
.........................
Green
-
optical channel transmitting
Off
-
optical channel not transmitting
Primary Opto Sync RX
.........................
Green
-
optical channel receiving
Org
-
optical channel receiving but not sync.
Off
-
optical channel not transmitting
Eth
ernet Data LED’s
BANK A
Data Present TX (Ethernet)
.................
Green
-
data present on the Ethernet input
Off
-
no data present on the Ethernet input
This represents the Ethernet signals being transmitted onto the optical fibre
Data Present RX (Ethernet)
.................
Gre
en
-
data present on the Ethernet input
Off
-
no data present on the Ethernet input
This represents the Ethernet signals being received from the optical fibre
BANK B
Data Present TX
................................
.
Green
-
RJ45 Ethernet port operating at 100Mbit/s
Red
-
RJ45
Ethernet port operating at 10Mbit/s
Data Present RX
................................
..
Green
-
RJ45 Ethernet port operating full duplex
Off
-
RJ45 Ethernet port operating half duplex
Note: the RJ45 Ethernet auto
-
negotiates up to 50Mbit/s full duplex.
Low Speed Data LEDs
BANK A
(W
hen RS232 data daughter board fitted)
Data Present CH1
-
8 TX
.......................
Green
-
logic zero (+V) present on IN+
Red
-
logic transitions present on IN+
Off
-
logic one (
-
V) present on IN+
This represents the data signals being transmitted on the optical fibre
Data P
resent CH1
-
8 RX
......................
Green
-
logic zero (+V) present on OUT+
Red
-
logic transitions present on OUT+
Off
-
logic one (
-
V) present on OUT+
This represents the data signals being received on the optical fibre

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The in
formation herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
9
of
12
AMG4647AER
Instruction
Sheet
D18089
-
01.doc
BANK A
(When RS485 / RS422 data daughter board fi
tted)
Data Present CH1
-
8 TX
......................
Green
-
logic zero (+V,
-
V) present on IN+, IN
-
Red
-
logic transitions present on IN+, IN
-
Off
-
logic one (
-
V, +V) present on IN+, IN
-
This represents the data signals being transmitted on the optical fibre
Data Present CH
1
-
8 RX
......................
Green
-
logic zero (+V,
-
V) present on OUT+, OUT
-
Red
-
logic transitions present on OUT+, OUT
-
Off
-
logic one (
-
V , +V) present on OUT+, OUT
-
This represents the data signals being received on the optical fibre
BANK A
(When audio daughter boa
rd fitted)
Audio Present TX
................................
Green
-
audio present >
-
40dBm
Red
-
audio present > 0dBm (overload at +6dBm)
Off
-
audio not present or <
-
40dBm
This represents the audio signals being transmitted on the optical fibre
Audio Present RX
................................
Green
-
audio presen
t >
-
40dBm
Red
-
audio present > 0dBm (overload at +6dBm)
Off
-
audio not present or <
-
40dBm
This represents the audio signals being received from the optical fibre.

AMG Syste
ms Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
10
of
12
AMG4647AER
Instruction
Sheet
D18089
-
01.doc
Physical Information
Dimensions
Height
................................
...................
3U Plug
-
in
Width
................................
....................
21HP
Depth
................................
...................
170mm excluding c
onnectors
Weight
................................
..................
1200grams
Mounting Details
The unit is designed to be mounted within an AMG2009 or AMG2015 Subrack on standard card
guides.
Removal / replacement from / to the Case
Note:
-
The AMG unit PCB's are static sensitive. Handle with proper c
are and use normal electrostatic
discharge (ESD) procedures. Use properly grounded protection (for example, wrist straps) when
handling the PCB.
To remove units from the case to access the data expansion boards and the daughter boards, remove
the 2 or 4
fixing screws on the rear panel and slide the PCB's out of the case.
Ensure that the fibres do not snag or get trapped.
To replace the PCB's into the case, slide the PCB's gently into the case aligning the boards with the
appropriate slots. Ensure that
the fibre do not snag or get trapped.
Safety
AMG Optical Fibre Products use Class 1 laser systems in accordance with EN 60825
-
2:2000.
It is always advisable to follow good practice when working with optical fibre systems. This includes:

Do not stare w
ith unprotected eyes or with any unapproved collimating device at fibre
ends or connector faces, or point them at other people.

Use only approved filtered or attenuating viewing aids
For other safety issues and advice on good practice associated with opti
cal fibre systems, please see
EN 60825
-
2:2000 or your local safety officer.
Maintenance and Repair
There are no user serviceable parts within AMG products. See unit data sheet for full specification.
In case of problem or failure, please call your loca
l support centre or contact:
AMG Systems Ltd.
at
3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
Phone
[phone]
Technical Support
[phone]
Email
[e-mail]

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its us
e.
Page
11
of
12
AMG4647AER
Instruction
Sheet
D18089
-
01.doc
Th
is page is intentionally blank.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The informatio
n herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
12
of
12
AMG4647AER
Instru
ction
Sheet
D18089
-
01.doc
This page is intentionally blank.
