AMIRIDIS-SAVVIDIS UNITED VC1162 User manual

By AMIRIDIS – SAVVIDIS S.A.
INSTRUCTION MANUAL
VACUUM CLEANER VC1162
1

2
Safety Instructions
For household use only!
When using your vacuum, basic safety precautions should always be observed, including the
following
1. Do not leave vacuum cleaner unattended when it is plugged in. Unplug from outlet when not
in use and before pulling filters out.
2. To reduce the risk of electric shock-do not use outdoors or on wet surfaces.
3. Do not allow children to use as a toy. Close attention is necessary when used near children.
4. Use only as described in this manual. Use only manufacturer’s recommended attachments.
5. Do not use with damaged cord or plug. Do not use vacuum cleaner if it has been dropped 、
damaged、left outdoor、or dropped into water. Return appliance to the appliance customer
service for examination repair or adjustment.
6. Do not pull or carry by cord. Do not use cord as a handle. Close a door on cord, or pull cord
around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated
surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or vacuum cleaner with wet hands. Dot not use outdoors or on wet
surfaces.
9. Do not put any objects into openings. Do not use with any openings blocked and do not
restrict airflow. Keep all opening free of dust, lint, hair, and anything that may reduce airflow.
10. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving
parts.
11. Do not pick up hard or sharp objects such as glass nails, screws, coins, etc.
12. Do not pick up hot coals, cigarette, matches or any hot, smoking, or burning objects.
13. Do not use without filters in place.
14. Turn off all controls before plugging or unplugging vacuum cleaner.
15. Use extra care when vacuuming on stairs.
16. Do not pick up flammable or combustible materials (lighter fluid, gasoline, etc.) or use in the
presence of explosive liquids or vapor.
17. Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.)
18. Do not in an enclosed space filled with vapors given off by oil based paints, paint thinner,
moth proofing, flammable dust, or other explosive or toxic vapors.
19. Always unplug this appliance before connecting or disconnecting vacuum hose. Do not allow
plug to whip when rewinding.
20. Use only on dry, indoor surfaces.
21. Do not use for any purpose other than described in this user’s guide.
22. Store your appliance indoor in a cool, dry area.
23. Keep your work area well dry.
24. Do not immerse the hand vacuum into water or other liquids.
25. Keep end of hose, wands and other openings away from your face and body.
26. Do not use the cleaner to clean your pets or any animal.
27. Keep the head (eyes, ear, mouth, etc.) away from the openings, when the cleaner is working or
plugging.

3
WARNING:
Important:
If the suction opening of the unit, the hose or the tube is blocked, switch off the vacuum clearer
and remove the blocking substance before you start the unit again.
1. Do not operate the vacuum cleaner too close to hearter or radiators.
2. Before inserting the power plug into the wall outlet, make sure that your hands are dry.
3. Before you start the unit, make sure to remove large or sharp objects that might damage the
dust tank and hose.
4. When pulling out the power plug from the wall outlet, pull the plug not the power cord.
5. Do not use without all filters in place.
6. When using, if you learn of squeak from the cleaner, it must be suction appears to be reduced,
so you must stop (make sure the cleaner is not plugging), then clean the all air filter.
Note:
If the supply cord is damaged, it must be replaced by manufacture, service agent or similarly
qualified person in order to avoid a hazard.
WARNING:
Hold the plug when rewinding the cord. Do not allow the cord to whip when rewinding.
Use and function
Assembling vacuum cleaner
Note:
Always remove the power plug from the wall outlet before assembling or removing accessories.
1. Attaching the Flexible Hose into the vacuum connect the flexible hose into the air intake duct,
push in until you hear a “click”, indicating it is in its locked position.
2. Fitting the tube to the curved wand/hose extension. Push the tube into the curved wand/hose
extension.
3. Fitting the Floor Brush to the tube. Push the tube into the floor brush. Adjust the tube to the
desired length.

4
Variable suction control
Note:
Once all attachments are in place, unwind a sufficient length of cable and insert the plug into the
wall outlet. A yellow mark on the power cord shows the ideal cable lenghth. Do not pull the power
cord beyond the red mark.
1. Insert the power plug into the wall outlet.
2. Press the power on/off button located the unit to turn the vacuum cleaner “on”.
3. To rewind the power cord, press the cord rewind button with one hand and guide the power
cord with the other hand to ensure that it dose not whip causing damage or injury.
4. To adjust the suction, slide the speed control button on the suction hand to control the suction
power of the vacuum cleaner.
Motor thermostat (Optional)
Important:
This motor is equipped with a motor protective thermostat. If for some reason the vacuum
cleaner should overheat, the thermostat will automatically turn the unit off. Should this occur
unplug the vacuum cleaner from the wall outlet and turn off switch, change dust bag and clean
filters. Allow the unit to cool for approximately 1 hour. To restart, replug into wall outlet and turn
switch back on.
Change dust bag.
1. Open the front cover.
2. Change dust bag.
1 2
Rewind button
On/off button
Speed control

5
Carry and move away the cleaner:
Note:
This cleaner have a special feature for handle. There is a handle on the top. In addition, another
carry-handle is in front. You can use it to conveniently carry the cleaner when the cleaner is in
vertical
Removing & cleaning pre-motor filter and air outlet filter
Warning:
Always unplug the unit from electrical outlet before getting out the dust barrel.
a. Pre-motor filter
1. Open the front cover.
2. Clean or change filter.
1 2

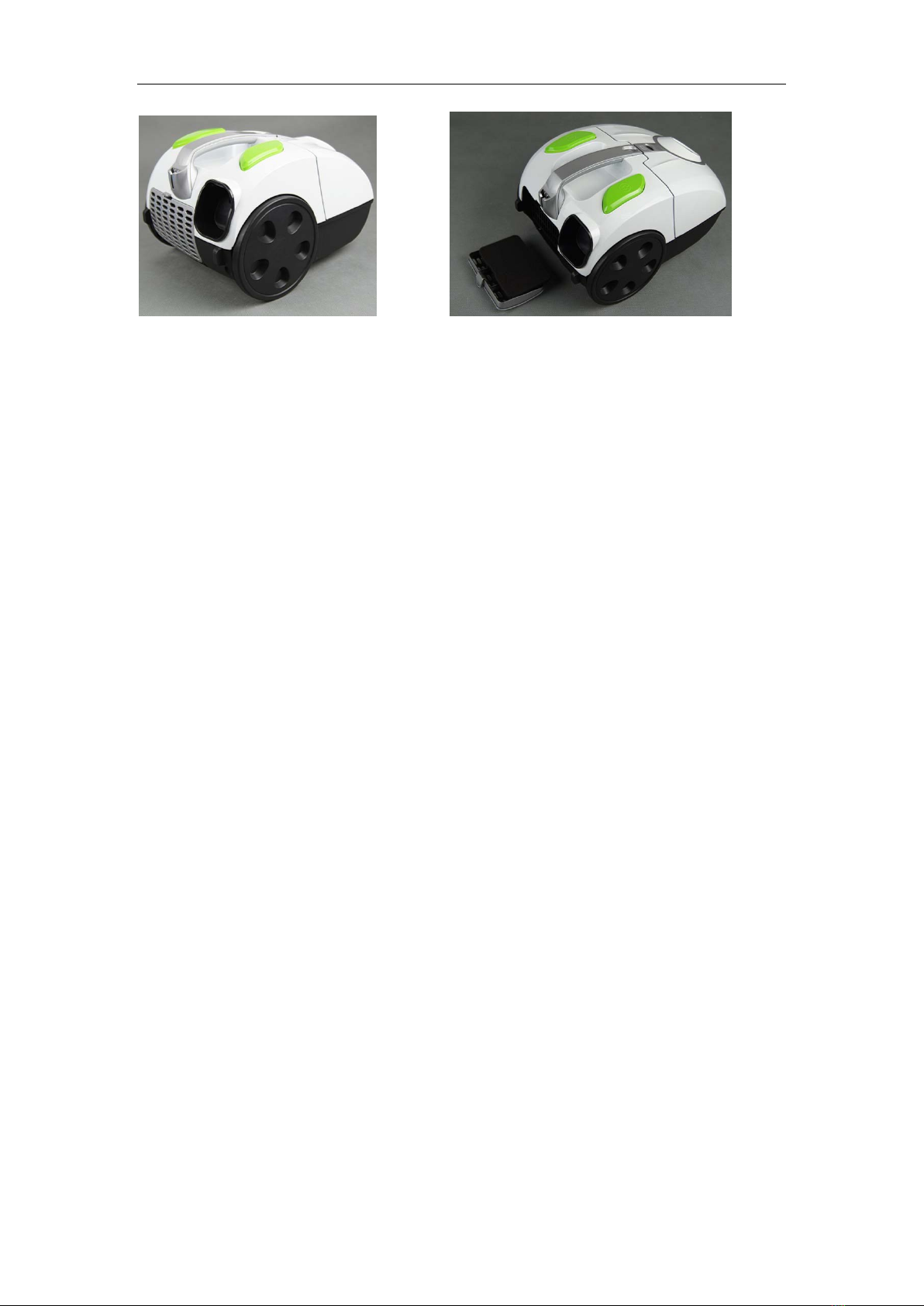

b. Air outlet filter
1. Press the air outlet grid knob to open
2. Take out the air outlet filter for clean and change.
Pre-motor
filter

6
1 2
Please note:
The sponge filter material in the cleaner will became dusty over time. This is normal and will not
affect the performance of the filter. If the sponge filter is so dusty that suction does not return to
100%, then we suggest that the filter be removed then rinsed under the faucet and allowed to dry
for 24 hours by airing not near the fire or some high temperature objects before refitting into the
vacuum. This should be done once six months or when suction appears to be reduced obviously.
Important:
Please note that there is a safety switch inside the vacuum to prevent the unit from being run with
high vacuum rate. If the vacuum is too high ,the safety switch will be turned on. In this case, it can
minish the vacuum rate and protect the motor from being broken.
Note:
The suction hole must be open, free of any obstructions at all times. Otherwise, the motor will
overheat and could become damaged.
Important:
All filters should be checked regularly for signs of damage, preferably after each cleaning task.
The filters must be replaced immediately if they become damaged. Always disconnect the vacuum
from the electrical outlet when checking the filters.

7
Notice about recycling
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their
end-of-life, should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste
collection/recycling centre. In the European Union there are separate collection systems
for used electrical and electronic products. Please help us to conserve the environment
we live in!
DECLARATION OF CONFORMITY
This product complies with the requirements of the directives
EMC-Directive: 2004 / 108 / EEC
Low Voltage Directive: 2006/95/EC
EcoDesign EuP Directive: 2009/278/EC
declaring that model VC1162
is in compliance with the following norms:
EN 55014-1/A1 :2009
EN 55014-2 /A2 :2008
EN 61000-3-2/A2 :2009
EN 61000-3-3 :2008
EN 60335-1/A14 :2010
EN 60335-2-2 :2010
EN 62233 :2008
EN 62301:2005
