Amprobe IRC-120 User manual
1

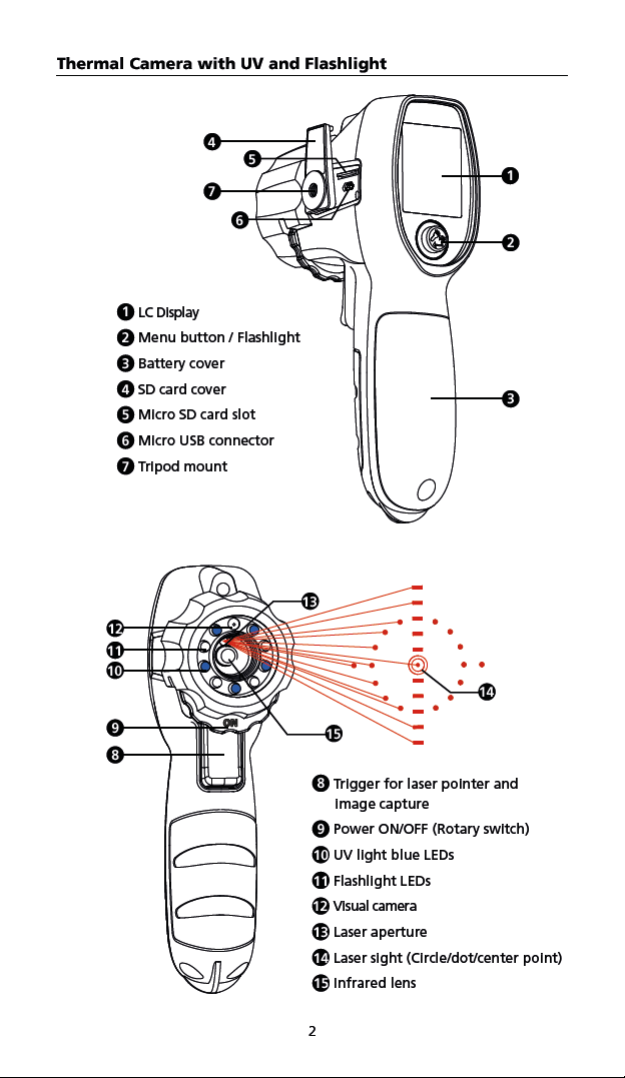

Thermal Camera with UV and Flashlight
CONTENTS
SYMBOLS............................................................................................3
SAFETY INFORMATION ......................................................................3
UNPACKING AND INSPECTION ..........................................................5
FEATURES AND APPLICATIONS..........................................................5

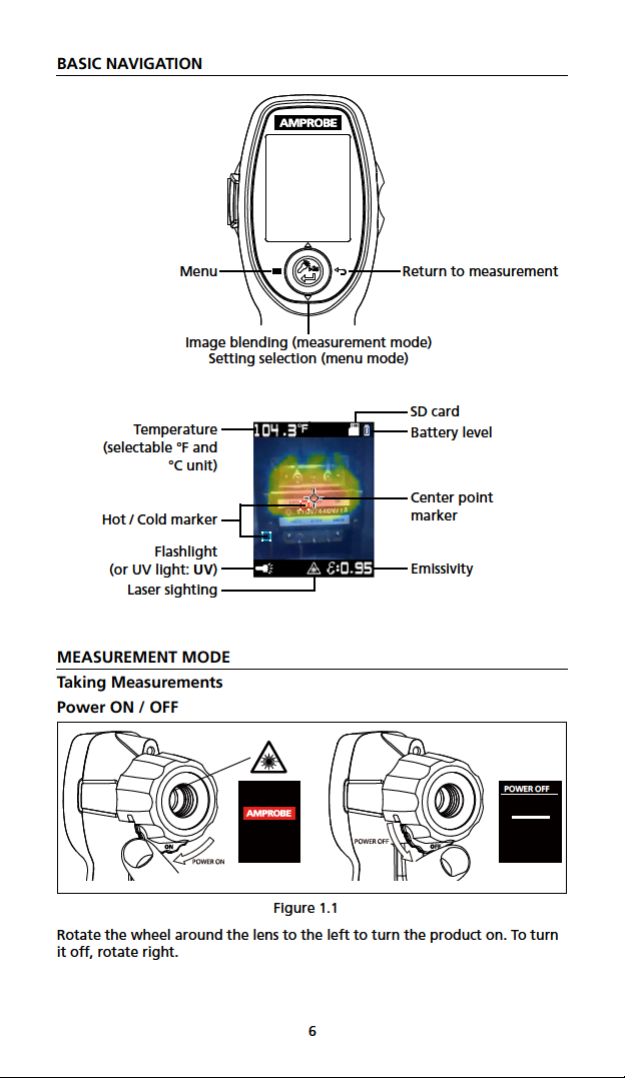

BASIC NAVIGATION............................................................................6
MEASUREMENT MODE......................................................................6
MENU MODE ......................................................................................8
Emissivity.........................................................................................8
UV/Flashlight...................................................................................9
Laser Sighting .................................................................................9
Memory/SD Card.............................................................................10
Hot and Cold Markers ....................................................................10
Center Point Marker.......................................................................11
Color Palette ...................................................................................11
°F / °C ...............................................................................................11
Auto Power OFF..............................................................................12
Date & Time ....................................................................................12
SPECIFICATIONS..................................................................................13
MAINTENANCE AND BATTERY REPLACEMENT ................................14
Test Equipment Depot - 800.517.8431 -
99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
5
UNPACKING AND INSPECTION
Your package should include:
1 IRC-120 or IRC-120-CN Thermal Camera
3 1.5 V AA batteries
1 2 G micro SD card (installed)
1 Standard SD card adapter
1 User manual
1 Wrist strap
If any of the items are damaged or missing, return the complete package to
the place of purchase for an exchange.
Note: Batteries do not come pre-installed. Please refer to the Maintenance
and Battery Replacement section for further instruction.
The product will arrive with a thin plastic screen protector over the display.
Please remove before using the product.
FEATURES AND APPLICATIONS
Features
• Five-in-one: UV light, flashlight, infrared temperature, thermal image and
laser pointer
• Five UV LEDs detect leak detection dyes*
• Laser pointer to indicate the center of UV field
• Bright flashlight to illuminate dark areas
• Memory capability to save thermal images
• Infrared heat map image blending at 0%, 25%, 50%, 75%, and 100%
• Three selectable color palettes (grayscale, hot iron and rainbow)
• Center-point temperature measurement
• Focus free
• IR measurement 20:1 Distance to Spot ratio
• Circle/dot/center point laser sighting
• Adjustable emissivity from 0.10 to 1.00
• Auto off function
• Selectable °F and °C
• Intuitive joystick navigation to on-screen menu and settings
• Hot and cold markers instantly identify hottest and coldest spots
• Tripod mount
* Standard leak detection dyes are not sold by Amprobe.
Applications
• Highlights leak detection dyes with UV light
• Laser sighting helps locate the target area of measurement
• Illuminate dark areas with the flashlight
• Find areas of heat loss and drift
• Locate electrical problems at appliances, machines and installations
• Quickly verify HVAC/R functionality and performance
• Identify temperature related issue for electrical connections and motors

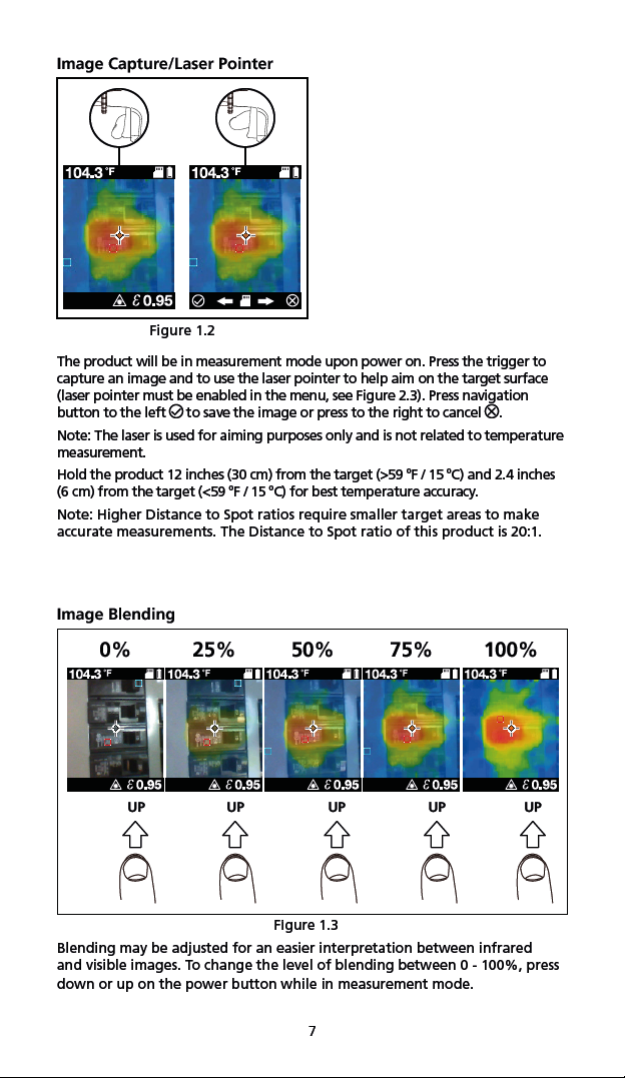

8
MENU MODE
Changing Settings in the Menu
Once the product is powered on, reach the menu by clicking left on the
power button. Settings that can be manipulated include emissivity, flashlight,
UV light, laser sight, hot and cold markers, center point marker, color palette,
°F/°C, timed auto power off, and date & time.
Enabled options will appear as blue squares while disabled options will
appear as black squares.
Emissivity
Figure 2.1
DOWN UP
ENTER
MENU BACK TO
MEASUREMENT
The emissivity of the surface of a material describes its effectiveness in
emitting energy as thermal radiation. Quantitatively, emissivity is the ratio
of the thermal radiation from a surface to the radiation from an ideal black
surface at the same temperature as given by the Stefan–Boltzmann law. Refer
to Table 1 for the emissivity adjustment.
In measurement mode, emissivity level is shown on the bottom right of the
screen. Emissivity can be changed to values between 0.10-1.00 in menu.
Note: Surfaces with an emissivity <0.60 make reliable and consistent
determination of actual temperatures problematic. The lower the emissivity,
the more potential error is associated with the temperature measurement
calculations of the product, even when emissivity and reflected background
adjustments are attempted and performed properly.
Table 1. Nominal surface emissivity for an accurate non-contact infrared
temperature measurement.
Mater a Va ue Mater a Va ue
Default**** 0.95 Glass (plate) 0.85
Aluminum* 0.30 Iron* 0.70
Asbestos 0.95 Lead* 0.50
Asphalt 0.95 Oil 0.94
Brass* 0.50 Paint 0.93
Ceramic 0.95 Plastic** 0.95
Concrete 0.95 Rubber 0.95
Copper* 0.60 Sand 0.90
Food-frozen 0.90 Steel* 0.80
Food-hot 0.93 Water 0.93
Wood*** 0.94
*Oxidized
**Opaque, over 20 mils
***Natural
****Factory Setting
A A
I�¢
·-
& & 0 &
A A
.S5
D
�¢
9
Test Equipment Depot - 800.517.8431 -
99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
13

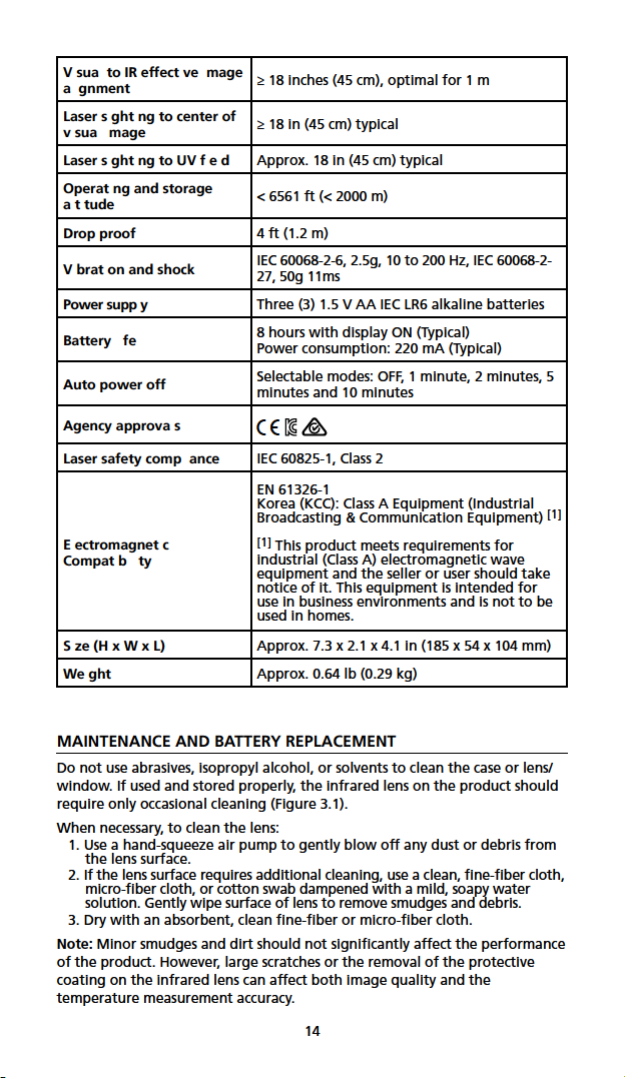

SPECIFICATIONS
UV ght 5 blue LEDs
F ash ght 4 LEDs
Laser s ght ng Circle/dot/center point laser
Output <1 mW, wavelength 650 nm
Temperature measurement Yes, center point
Temperature range 14 °F to 932 °F (-10 °C to 500 °C)
IR accuracy (ca brat on
geometry w th amb ent
temperature 23°C ± 2°C)
≥ 32 °F (≥ 0 °C): ± 4 °F (± 2 °C) or ± 2 % of the
reading, whichever is greater
< 32 °F (< 0 °C): ± 6 °F (± 3 °C)
D sp ay reso ut on 0.2 °F / 0.1 °C
IR Repeatab ty ± 0.8 % of the reading or ± 2 °F (± 1 °C),
whichever is greater
Temperature Coeff c ent 0.1 °C/°C or ± 0.1 %/°C of the reading,
whichever is greater
D stance to spot 20:1
M n mum spot s ze 8 mm
Response t me (95 %) < 125 ms
Spectra response 8 μm to 14 μm
Em ss v ty Digitally adjustable from 0.10 to 1.00 by 0.01
V sua mage w th nfrared
heat map over ay
Five blending modes
(0%, 25%, 50%, 75% and 100%)
V sua mage reso ut on 16,384 pixels (128 x 128 pixels)
(Interpolation pixels)
IR detector reso ut on 32 x 32 pixels
F e d of v ew 33 ° x 33 °
Therma sens t v ty 150 mK
Focus system Focus free
Image pa ettes Grayscale (white hot), Hot Iron and Rainbow
Hot and co d marker Yes
Center po nt marker Yes
D sp ay 1.77 in color TFT with 128 x 160 pixels
Data storage
Stored image size: 124 x 160 pixels
Image file size: typical 40 KB
Maximum stored images: 9999
Operat ng temperature
and hum d ty
32 °F to 122 °F (0 °C to 50 °C)
10 % to 90 % RH non-condensing at 86 °F (30 °C)
Storage temperature -4 °F to 140 °F (-20 °C to 60 °C) without
batteries
