AS5000 PROGRAMMER
AMS AG
Buy Now

austriamicrosystems AG
is now
ams AG
The technical content of this austriamicrosystems document is still valid.
Contact information:
Headquarters:
ams AG
Tobelbaderstrasse 30
8141 Unterpremstaetten, Austria
Tel: [phone]
e-Mail: [e-mail]
Please visit our website at www.ams.com

Revision 1.10, 04-Mar-2010 Page 1 of 24
www.austriamicrosystems.com
1General Overview
This operational manual escribes the function of the AS5000 Programmer in combination with the programming
boar s. This tool can program the austriamicrosystems AS5000 series magnetic rotary enco ers. The graphical user
interface (GUI) runs on PC running Win ows XP or later an controls the programmer via the USB interface.
All major access mo es to the OTP memories can be establishe . Be aware that austriamicrosystems provi es the
AS5000 Programmer as a reference for programming an rea ing of mentione evices (refer to Appen ix A) un er
laboratory con itions (no warranty for mass pro uction).
Note: Since firmware version v2.10 the AS5000-Programmer contains a boot loa er, which provi es an up ate function
for new software release. Please refer to the correspon ing application note AN5000-60 (available on our
webpage).
2Hardware Components
2.1 Description of the Hardware Components
Figure 1: hree component s o f the Programmer solution
Figure 1 shows the three components which are nee e to program the austriamicrosystems magnetic rotary enco er.
Take care that the connector between programming box an programming box is plugge in the right way.
Warning:
In case of wrong connection, the components in the AS5000 programmer or the encoder can be destroyed!
AS5000 Programmer
Programming ool
OPERA ION MANUAL
USB cable
AS5000 programmer
Programming board
(AS5xxx-PB)
LCD display
(programmer v1.3 or older only)
ams AG
Technical content still valid

AS5000 Pr ogr ammer OPERATIONAL MANUAL
Revision 1.10, 04-March-2010 Page 2 of 24
www.austriamicrosystems.com
Figure 2: AS5000 Programmer M RE co nn ector (right side view)
Pin # Signal Comment
1 Vzap Programming voltage
2 Vzap Programming voltage
3 D10 Enco er signal
4 ADC2 Device auto etection voltage
5 D9 Enco er signal
6 ADC1 Vzap fee back
7 D8 Enco er signal
8 D11 Enco er signal
9 D7 Enco er signal
10 D6 Enco er signal
11 VDD Enco er power supply
12 VDD Enco er power supply
13 GND Groun
14 GND Groun
15 D5 Enco er signal
16 D0 Enco er & LCD isplay signal
17 D4 Enco er signal
18 D1 LCD signal – Do not use
19 D3 Enco er & LCD isplay signal
20 D2 Enco er & LCD isplay signal
ams AG
Technical content still valid

AS5000 Pr ogr ammer OPERATIONAL MANUAL
Revision 1.10, 04-March-2010 Page 3 of 24
www.austriamicrosystems.com
2.2 Description of the programming board
Figure 3: Example for an AS5043-PB Programming board
The programming boar (AS5xxx-PB) is specific for a group of evices. By jumper setting on this boar the buil in
firmware in the programming box automatically etects the selecte evice. It is not recommen e to change the
jumper setting to a ifferent enco er type than installe in the socket.
To place or remove a evice form the socket, push the black frame of the socket own. This socket has more
connectors as the AS50xx/ AS51xx part an therefore it is important to align the evice to the left si e of the socket.
The pin 1 of the evice must be on the bottom left si e. Figure 2 shows the etaile place evice in the socket.
The jumper J9 is specific for the AS5043/AS5143. This Jumper is use to close the fee back loop use for the analog
output operation mo e. With this jumper the gain can set to 1.
The jumper J6 is by efault close because the AS5000 Programmer provi es 3.3V operation. In case of 5 V operation
the jumper must be remove an the configuration can be change over the GUI.
ZIF socket
Jumper J9:
Gain = 1
(AS5043 only)
Device Selection
jumper
Jumper J6:
Supply voltage selection
Open: 5V – Close: 3.3V (default)
Connector to the
AS5000 programmer
Location of pin 1 of
the encoder
ams AG
Technical content still valid

Revision 1.10, 04-Mar-2010 Page 4 of 24
www.austriamicrosystems.com
3Installation
3.1 Hardware setup
First connect the AS5xxx-PB to the 20-pin connector of the AS5000 Programmer, as shown on Figure 1.
The AS5000 Programmer is irectly powere by the PC via USB. An external power supply is not nee e .
3.2 Installing the GUI on the PC
The preliminary software is evelope for a Microsoft Win ows XP operating system with Service Pack 2. In a ition
the otnet (.NET) framework version 2.0 or more must be installe on the PC. This package can be ownloa e free of
charge from the Microsoft webpage:
http://www.microsoft.com/ ownloa s/ etails.aspx?FamilyID=0856eacb-4362-4b0 -8e -aab15c5e04f5& isplaylang=en
Following Proce ure is recommen e before starting the GUI:
1. check on your PC if Service Pack 2 is installe
2. install the mentione .net package to your computer
3. execute AS5000GUI_setup.exe
4. Finally start the GUI using the shortcut in the start menu or esktop.
ams AG
Technical content still valid

Revision 1.10, 04-Mar-2010 Page 5 of 24
www.austriamicrosystems.com
4Graphical User Interface (GUI)

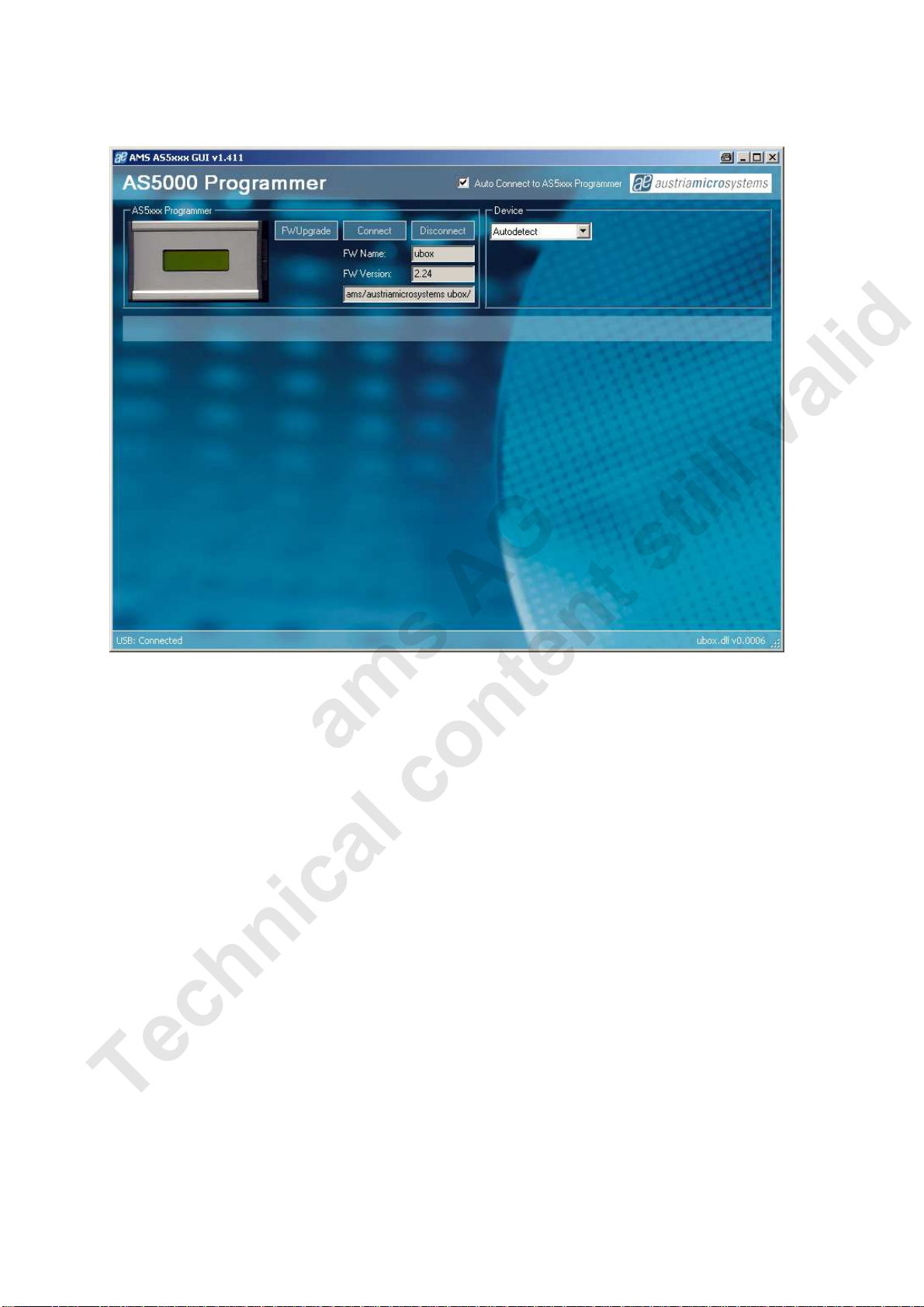

Figure 4: Main window of the GUI, no PB board inserted
Figure 4 shows the main win ow of the GUI.
In the top left corner, informations about the connecte har ware are isplaye :
-firmware (FW) type of the connecte har ware: ubox (AS5000 Programmer) or br (Demoboard)
-firmware (FW) version
By efault the GUI is in the auto etection mo e. Any austriamicrosystems evice connecte on the USB port (one
evice at the same time) will be automatically etecte an isplaye in the right top corner.
Note: The auto etect mo e can be isable an force to any other evice type by selecting the evice manually.
Once a PB boar inserte , tabs will be isplaye allowing go into two main sections: SSI (or TWI) an OTP.
ams AG
Technical content still valid

Revision 1.10, 04-Mar-2010 Page 6 of 24
www.austriamicrosystems.com
4.1 Programming the AS5040/AS5045/AS5140/AS5145
Programming AS5040/AS5140 enco ers requires the
AS5040-PB ZIF socket boar . This a apter is compatible
with AS5040, AS5140, AS5045 an AS5145.
Jumper J6 must be close for normal operation an
programming operation.
Figure 5: AS5040-PB Programming bo ard
By selecting the SSI tab, information of the angular position an the status bits appear:
Figure 6: SS I tab with AS 5040 encoder in serted in AS5040-P B
-Die selection: This option is for ual ie AS52xx evices only. For AS50xx an AS51xx evices Die 0 ( efault)
must be selecte .
-Value fiel is the raw angle extracte from the SSI stream. The angle range is 0 (0°) to 1023 (359.6°)
-Status fiel isplays the status bits extracte from the SSI stream. Green light means that the airgap between
the magnet an enco er is correct. Orange light means the magnet is too close of too far.
-CCW checkbox is the angle irection. To invert the rotating irection, check CCW.
-Zero Position fiel : Set button writes the actual angle value into the Zero Position register of the enco er. This
programming is not permanent. The actual value will be 0 after zero position programming. To reset the zero
position register, or to set a new zero position, click on Reset first.
-Rea interval is the SSI stream rea out an refresh rate the GUI.
AS5040
-
PB ZIF socket
board
Device selection for auto etect:
-Jumper position 2: AS5040
-Jumper position 3: AS5045
-Jumper position 4: AS5140
-Jumper position 5: AS5145
Position of the magnet
Status bits and field alarm
Set the actual angle as
Zero Position
Counter Clockwise mode
Selected die
(dual die AS52xx devices only)
Pin 1
ams AG
Technical content still valid

Revision 1.10, 04-Mar-2010 Page 7 of 24
www.austriamicrosystems.com

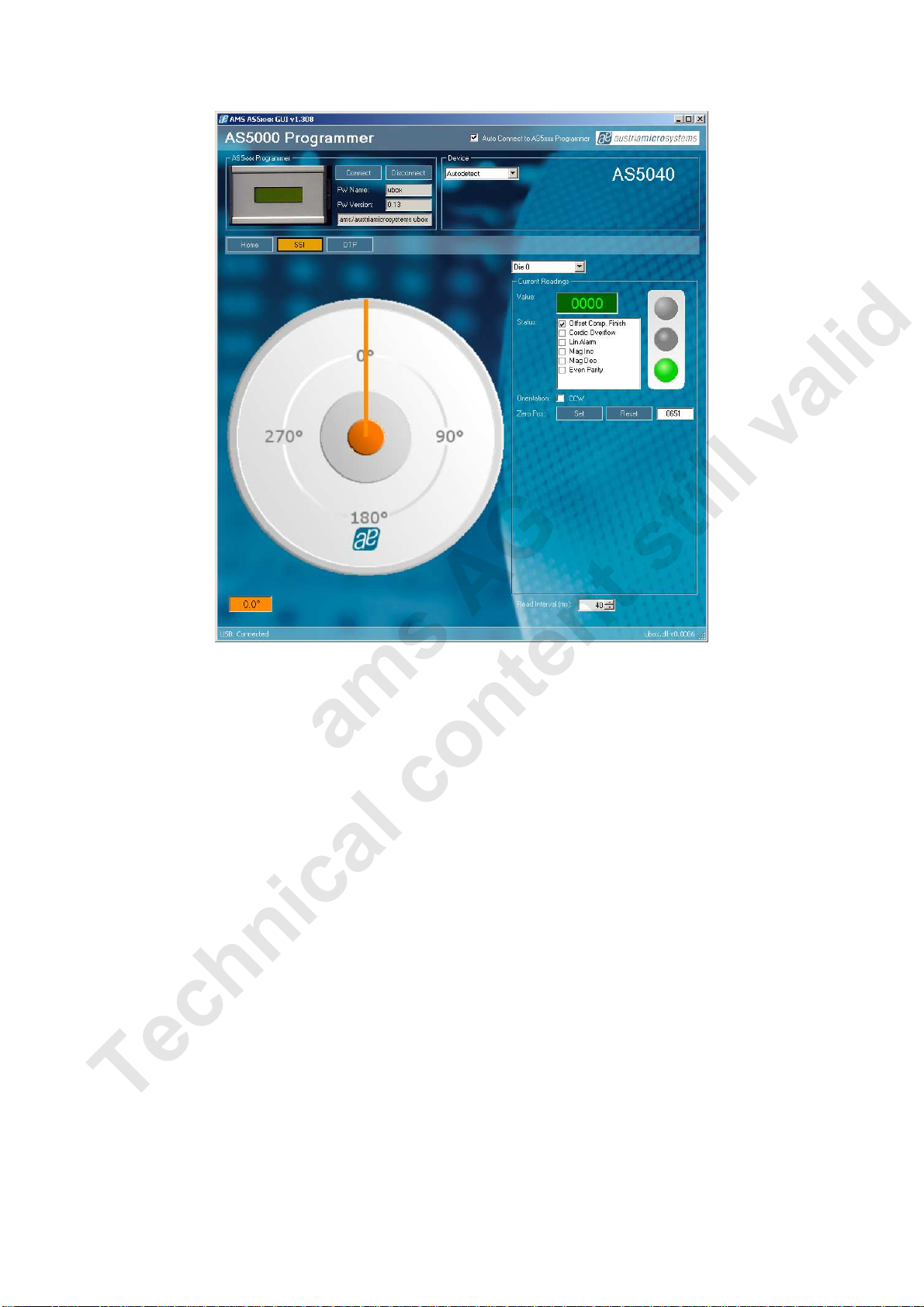

Figure 7: AS5040 SSI tab after Zero P osition progr amming
This example is the effect when the function Zero Position SET has been performe .
Before programming, the enco er shows the position 651 (Figure 6). One click on Zero Position Set makes the software
writing the value 651 into the OTP Zero Position register (not permanent programming).
Selecting Zero Position Reset will write the value 0 to the OTP Zero Position register.
Note: The Zero Position function is the same for all the AS50xx, AS51xx, AS52xx rotary enco ers offering this feature.
Selecting the OTP tab will rea the OTP configuration from the IC.
ams AG
Technical content still valid

Revision 1.10, 04-Mar-2010 Page 8 of 24
www.austriamicrosystems.com
Figure 8: O P tab of an un progr ammed AS5040
AS5040/AS5045:
Read rea s the OTP configuration from the permanent fuse register.
Write writes the bits checke by the user into the volatile OTP register. Selecting the SSI after the configuration is possible
to check the effect of the new configuration.
Zap! writes permanently the checke OTP bits to the enco er’s fuses.
AS5140/AS5145:
Load rea s the OTP configuration from the permanent fuse register.
Read rea s the OTP configuration from the volatile register.
Write writes the bits checke by the user into the volatile OTP register. Selecting the SSI after the configuration is possible
to check the effect.
Zap! writes permanently the checke OTP bits to the enco er’s fuses.
ams AG
Technical content still valid

Revision 1.10, 04-Mar-2010 Page 9 of 24
www.austriamicrosystems.com
4.2 Programming the AS5043
Programming AS5043 enco ers requires the AS5043-PB
ZIF socket boar .
Jumper J6 must be close for normal operation an
programming operation.
Figure 9: AS5043-PB Programming bo ard
By selecting the SSI tab, information of the angular position an the status bits appear:
Figure 10: SSI tab with AS5043 insert ed in AS5043-PB
-Die selection: This option is for ual ie AS52xx evices only. For AS50xx an AS51xx evices Die 0 ( efault)
must be selecte .
-Value fiel is the raw angle extracte from the SSI stream. The angle range is 0 (0°) to 1023 (359.6°)
-Status fiel isplays the status bits extracte from the SSI stream. Green light means that the airgap between the
magnet an enco er is correct. Orange light means the magnet is too close of too far.
-CCW checkbox is the angle irection. To invert the rotating irection, check CCW.
-Zero Position fiel : Set button writes the actual angle value into the Zero Position register of the enco er. This
programming is not permanent. The actual value will be 0 after zero position programming. To reset the zero
position register, or to set a new zero position, click on Reset first.
-Rea interval is the SSI stream rea out an refresh rate the GUI.
Position of the magnet
Status bits and field alarm
Set the actual angle as
Zero Position
Counter C
lockwise mode
Selected die
(dual die AS52xx devices only)
AS504
3
-
PB ZIF socket board
Device selection for auto etect:
-Jumper position 1: AS5043
Pin 1
ams AG
Technical content still valid

Revision 1.10, 04-Mar-2010 Page 10 of 24
www.austriamicrosystems.com
Figure 11: O P tab of AS5043, with FBintEN option checked b y user
•AS5043:
Read rea s the OTP configuration from the permanent fuse register.
Write writes the bits checke by the user into the volatile OTP register. Selecting the SSI after the configuration is
possible to check the effect of the new configuration.
Zap! Writes permanently the checke OTP bits to the enco er’s fuses.
ams AG
Technical content still valid

Revision 1.10, 04-Mar-2010 Page 11 of 24
www.austriamicrosystems.com
4.3 Programming the AS5245
Figure 12: AS5245-PB Pro gramming board
Programming AS5245 enco ers requires the AS5245-PB
socket boar .
Jumper J6 (J6+J8 for AS5245) must be close for normal
operation an programming operation.
By selecting the SSI tab, information of the angular position an the status bits appear:
Figure 13: SSI tab with AS5045 insert ed in AS5040-PB
-Die selection: This option is for ual ie AS52xx evices only. For AS50xx an AS51xx evices Die 0 ( efault)
must be selecte .
-Value fiel is the raw angle extracte from the SSI stream. The angle range is 0 (0°) to 1023 (359.6°)
-Status fiel isplays the status bits extracte from the SSI stream. Green light means that the airgap between
the magnet an enco er is correct. Orange light means the magnet is too close of too far.
-CCW checkbox is the angle irection. To invert the rotating irection, check CCW.
Position of the magnet
Status bits and field alarm
Set the actual angle as
Zero Position
Counter Clockwise mode
Selected die
(dual die AS52xx devices only)
Pin 1
AS5245
-
PB ZIF socket
board
Device selection for auto etect:
-Jumper position 2: AS5245
ams AG
Technical content still valid

AS5000 Pr ogr ammer OPERATIONAL MANUAL
Revision 1.10, 04-March-2010 Page 12 of 24
www.austriamicrosystems.com
-Zero Position fiel : Set button writes the actual angle value into the Zero Position register of the enco er. This
programming is not permanent. The actual value will be 0 after zero position programming. To reset the zero
position register, or to set a new zero position, click on Reset first.
-Rea interval is the SSI stream rea out an refresh rate the GUI.
Figure 14: O P tab of AS5045
•AS5245:
Load rea s the OTP configuration from the permanent fuse register.
Read rea s the OTP configuration from the volatile register.
Write writes the bits checke by the user into the volatile OTP register. Selecting the SSI after the configuration is
possible to check the effect.
Zap! writes permanently the checke OTP bits to the enco er’s fuses.
Selected die
(dual die AS52xx devices only)
ams AG
Technical content still valid

AS5000 Pr ogr ammer OPERATIONAL MANUAL
Revision 1.10, 04-March-2010 Page 13 of 24
www.austriamicrosystems.com
4.4 Programming the AS5134
Figure 15: AS5134-PB Pro gramming Board
Programming AS5134 enco ers requires the AS5134-PB
socket boar .
Figure 16: G UI for the AS5134
-Value fiel is the raw angle extracte from the interface. The angle range is 0° to 359°
-Status fiel (AGC) isplays the status bits epen ing on the set AGC values. Green light means that the
airgap between the magnet an enco er is correct. Re light means the magnet is too far away.
-Zero Position fiel : Set button writes the actual angle value into the Zero Position register of the enco er. This
programming is not permanent. The actual value will be 0 after zero position programming. To reset the zero
position register, or to set a new zero position, click on Reset first.
-Rea interval is the rea out an refresh rate the GUI.
-Digital interface opens an a itional win ow (see Figure 17), which provi es all communications comman s
like WRTIE_CONFIG or EN_PROG (for entering the exenten e mo e).
Multi urn Counter
Additional window for the BLDC output signals
AGC value
AS5
134
-
PB ZIF socket board
Device selection:
-Jumper position 1: AS5134
ams AG
Technical content still valid

AS5000 Pr ogr ammer OPERATIONAL MANUAL
Revision 1.10, 04-March-2010 Page 14 of 24
www.austriamicrosystems.com
Figure 17: Communication command window
Figure 18: O P tab of AS5134
•AS5134:
Read rea s the OTP configuration from the permanent fuse register.
Write writes the bits checke by the user into the volatile OTP register. Selecting the SSI after the configuration is
possible to check the effect of the new configuration.
Zap! writes permanently the checke OTP bits to the enco er’s fuses.
Analog Readback is not implemente yet. It will be available soon.
ams AG
Technical content still valid

AS5000 Pr ogr ammer OPERATIONAL MANUAL
Revision 1.10, 04-March-2010 Page 15 of 24
www.austriamicrosystems.com
4.5 Programming the AS5163/AS5263
Figure 19: AS5x63-CB Connection Board (left) and AS5163-PB Programmin g Board (righ t)
Programming AS5163/AS5263 enco ers requires the AS5163-PB/AS5263-PB socket boar an the AS5x63-CB
connection boar .
The connection boar provi es the loa , nee e for programming an operating the AS5163/AS5263.
Further etails concerning all programming options are provi e in application note AN5163-10 (available on our
webpage).
4.6 Programming the AS5115/AS5215
Figure 20: AS115-PB Programming Board ( left) and AS5215-PB Progr amming Bo ard (r ight)
ams AG
Technical content still valid

AS5000 Pr ogr ammer OPERATIONAL MANUAL
Revision 1.10, 04-March-2010 Page 16 of 24
www.austriamicrosystems.com
Figure 21: WI t ab of AS5115
The AS5115-PB an AS5215-PB oes not support an angle rea back of the analogue outputs.
Figure 22: O P tab of AS5115
•AS5115/AS5215:
Read rea s the OTP configuration from the permanent fuse register.
Write writes the bits checke by the user into the volatile OTP register. Selecting the SSI after the configuration is
possible to check the effect of the new configuration.
Zap! writes permanently the checke OTP bits to the enco er’s fuses.
Selected die
(dual die AS52xx devices only)
ams AG
Technical content still valid

AS5000 Pr ogr ammer OPERATIONAL MANUAL
Revision 1.10, 04-March-2010 Page 17 of 24
www.austriamicrosystems.com

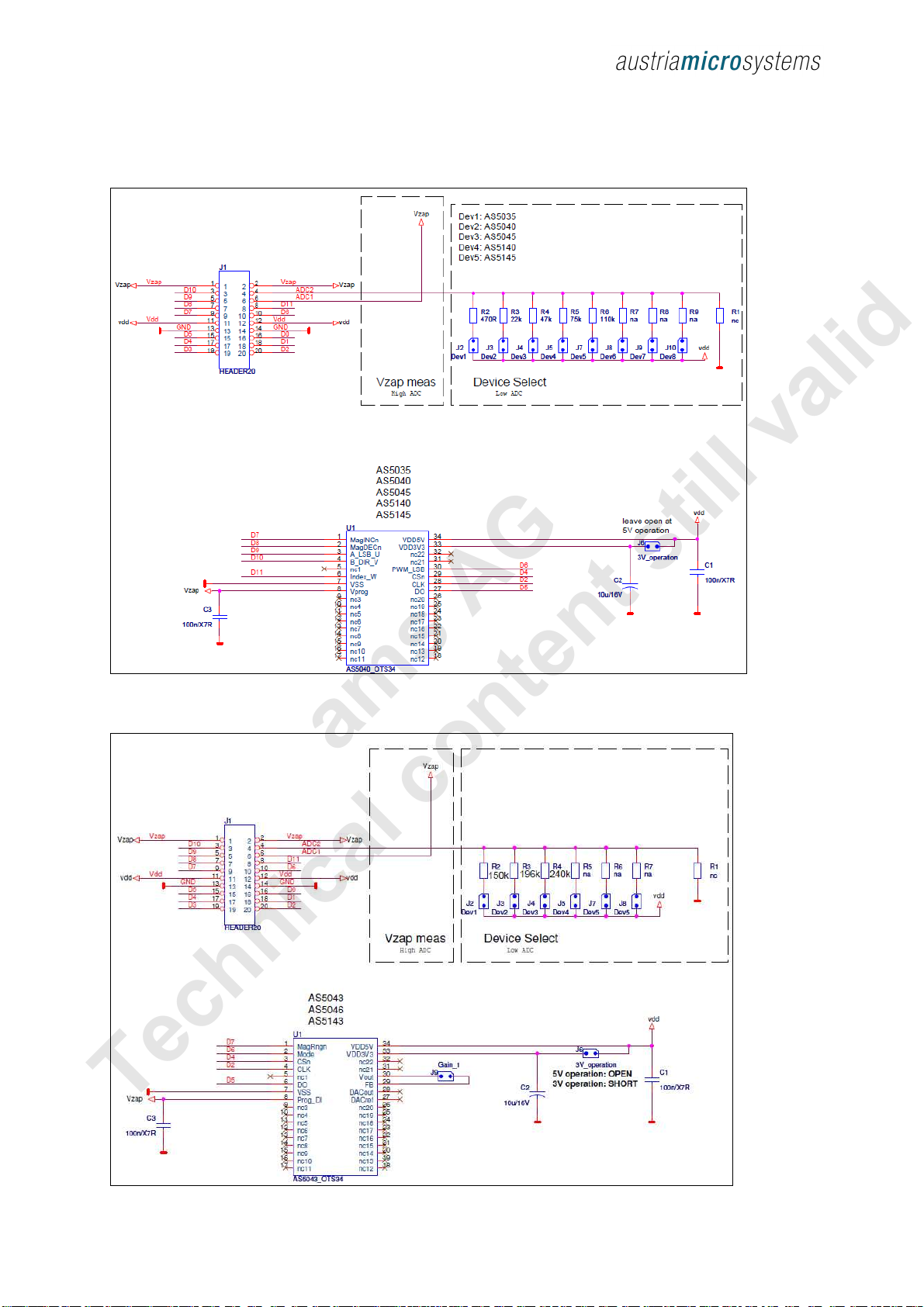

5Programming boards (PB) Schematics
5.1 AS5040-PB-1.1
5.2 AS5043-PB-1.1
ams AG
Technical content still valid

AS5000 Pr ogr ammer OPERATIONAL MANUAL
Revision 1.10, 04-March-2010 Page 18 of 24
www.austriamicrosystems.com

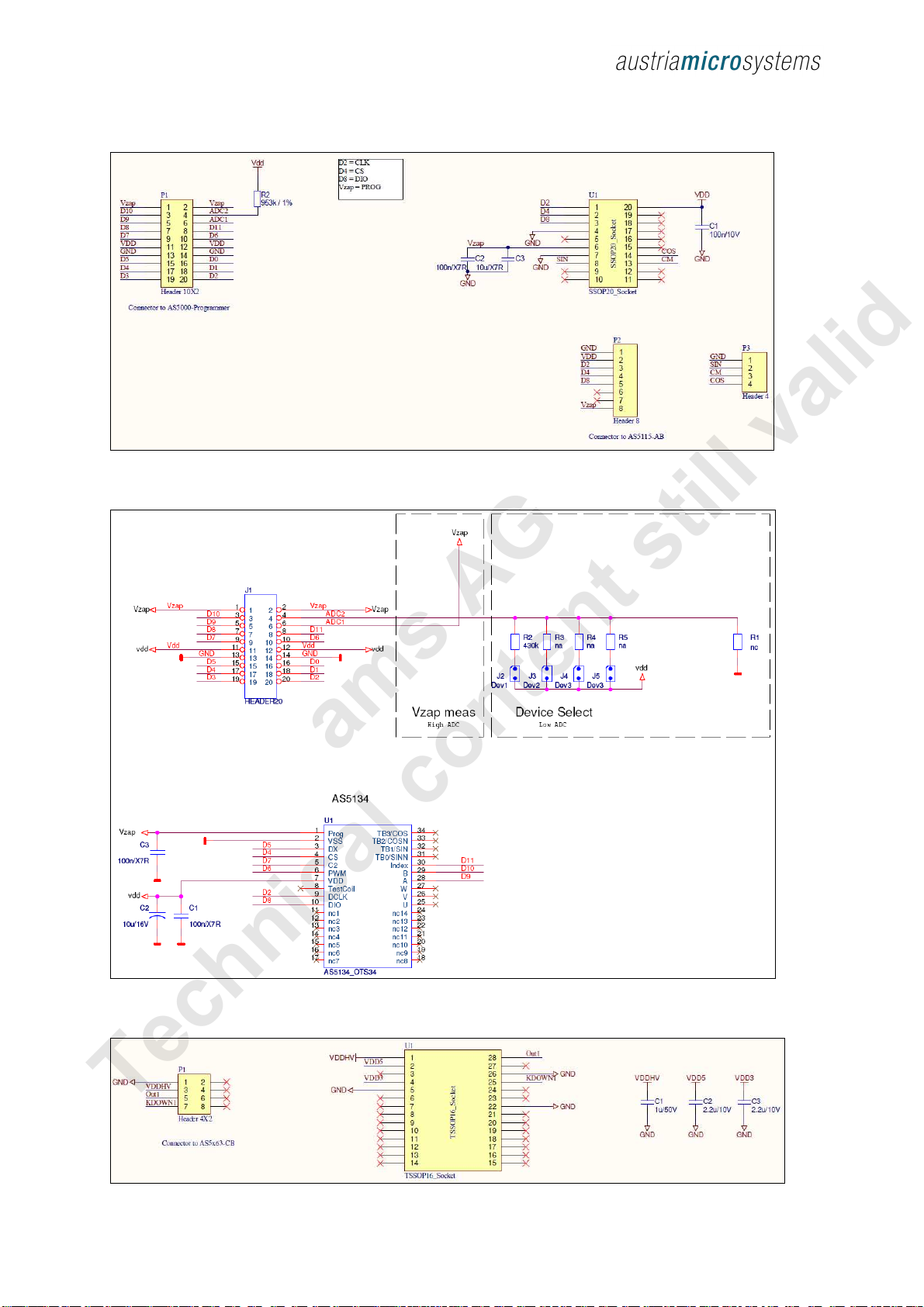

5.3 AS5115-PB1.1
5.4 AS5134-PB-1.1
5.5 AS5163-PB-1.0
ams AG
Technical content still valid
