AMT PANGAEA ULTIMA U2 Use and care manual

AMT PANGAEA ULTIMA U2 Pre/Post FX firmware
When you use this firmware the U2 is divided into two parts —the Pre section and the Post section.
Both sections have their Inputs, Output, and Effects.
The Pre section:
The Post section:
Input —IN L
Output —OUT R
Effects: Noise Gate (global setting)
Compressor
Phaser
Resonance Filter (wah-wah etc.)
Input —IN R
Output —OUT L
Effects: IR cabsim (1 IR for both L/R channels per preset)
Parametric Pre/Post EQ
Hi/Low pass filters + Presence
Delay or Reverb effect per preset
Pic. 1 —The common U2 Pre/Post chain with one preamp.
In this chain you can use any preamp, it could be a one-channel as well as a multi-channel preamp.
Meaning the AMT products, you can choose from:
One-channel preamps:
AMT LA-1 series;
AMT Bricks series (these preamps have Bypass modes and they can be
chained in series);
Two-channels preamps:
AMT LA-2 series;
Three-channels preamps:
AMT SS series.
PreIn
IN_R
OUT_L
OUT_R
PostOut
PostIn
IN_L
ULTIMA U2
Guitar
OUTPUT
Preamp
Pre/Post FX
PreOut
INPUT
OUTPUT

The U2 Pre/Post FX firmware has a special mode that lets to use two AMT Bricks preamps in the chain.
In this mode, you just select a preamp by pressing on its footswitch, the other preamp goes into the
bypass mode, and simultaneously a preset in the U2 is being changed. The U2 footswitch can be used to
turn on/off the U2 controllers.

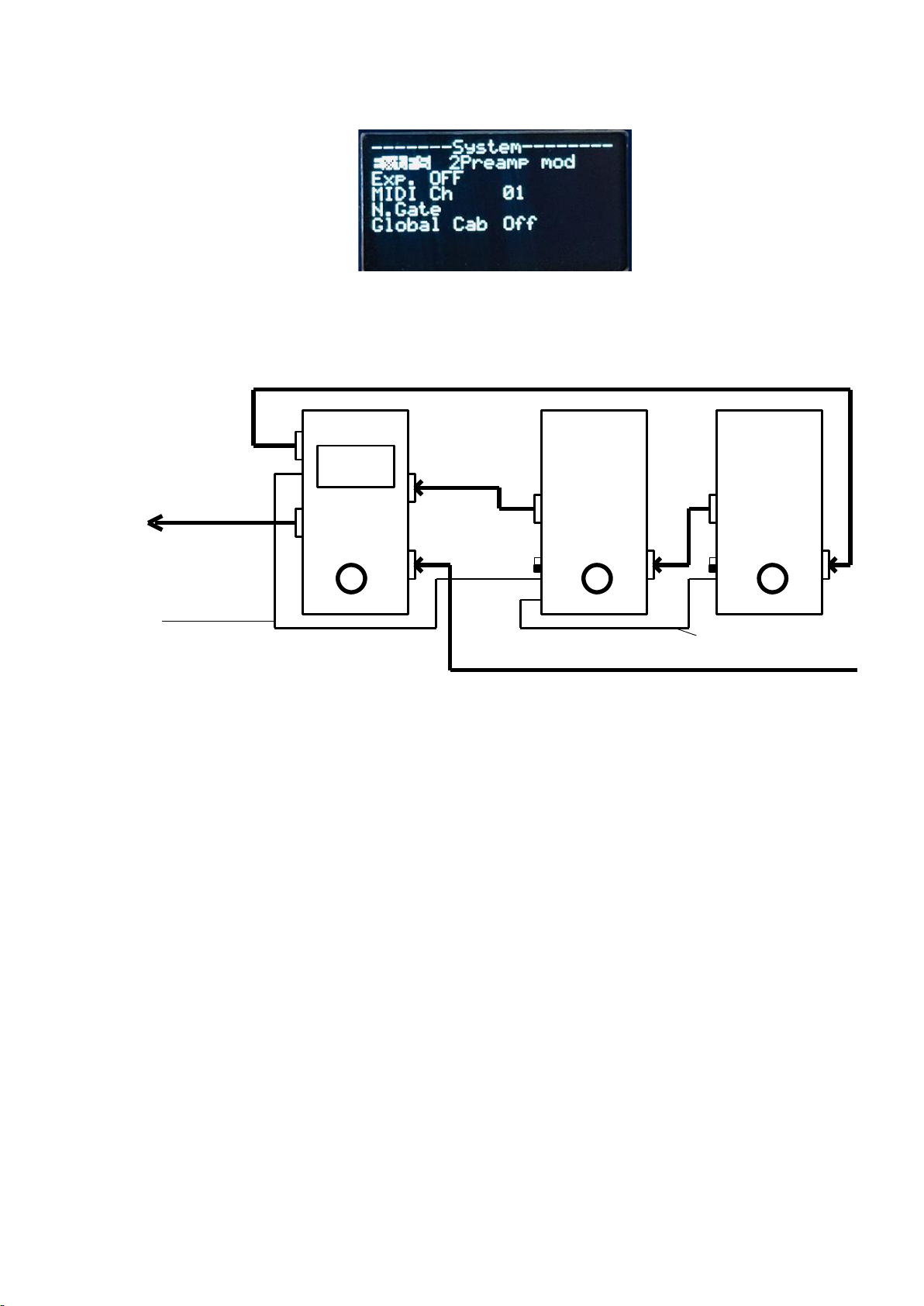

Pic. 2 —The U2 Pre/Post two-preamp mode chain (Two AMT Bricks preamps).
The U2 Pre/Post output is OUT L. This is a balanced output.
The output level can be adjusted from + 4dBV to zero and, accordingly, this output can be used with
both line and microphone inputs. When using a cable with a TS connector, the output can be used as
unbalanced.
If the IR cabsim is ON, the signal can be sent to a Line (mixer, sound card, etc), or to an Amp's Return —
if the IR cabsim is OFF.
PreIn
OUT_R
PreOut
PostIn
IN_L
IN_R
OUT_L
ULTIMA U2
A
B
A
B
Guitar
F.SW.A
TRS 3.5mm-TRS3.5 mm
Cable
OUTPUT
AMT Bricks
Preamp 1
AMT Bricks
Preamp 2
Mode Preamp
Mode
TRS 3.5mm-TRS3.5 mm
Cable
Pre/Post FX
Preamp
PostOut
