Anadol ECO 4K UHD E2 Linux User manual

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 1

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 2
Contents
1. INTRODUCTION ................................................................................................................................... 4
1.1 Safety Instructions ..................................................................................................................... 4
1.2 Packaging Contents ................................................................................................................... 5
1.3 Product Descriptions .................................................................................................................. 6
1.4 Conditional Access .................................................................................................................... 7
1.5 Main Features ............................................................................................................................ 7
1.6 Remote Control .......................................................................................................................... 8
1.7 Technical Data ........................................................................................................................... 9
1.7.1 Basic Features ................................................................................................................ 9
1.7.2 Basic Functions ............................................................................................................... 9
2. INSTALLATION OF ANADOL ECO ....................................................................................................... 11
2.1 Connecting the TV .................................................................................................................... 11
2.1.1 Connecting TV via HDMI cable ...................................................................................... 11
3. FIRST TIME INSTALLATION (USING WIZARD) ........................................................................................ 12

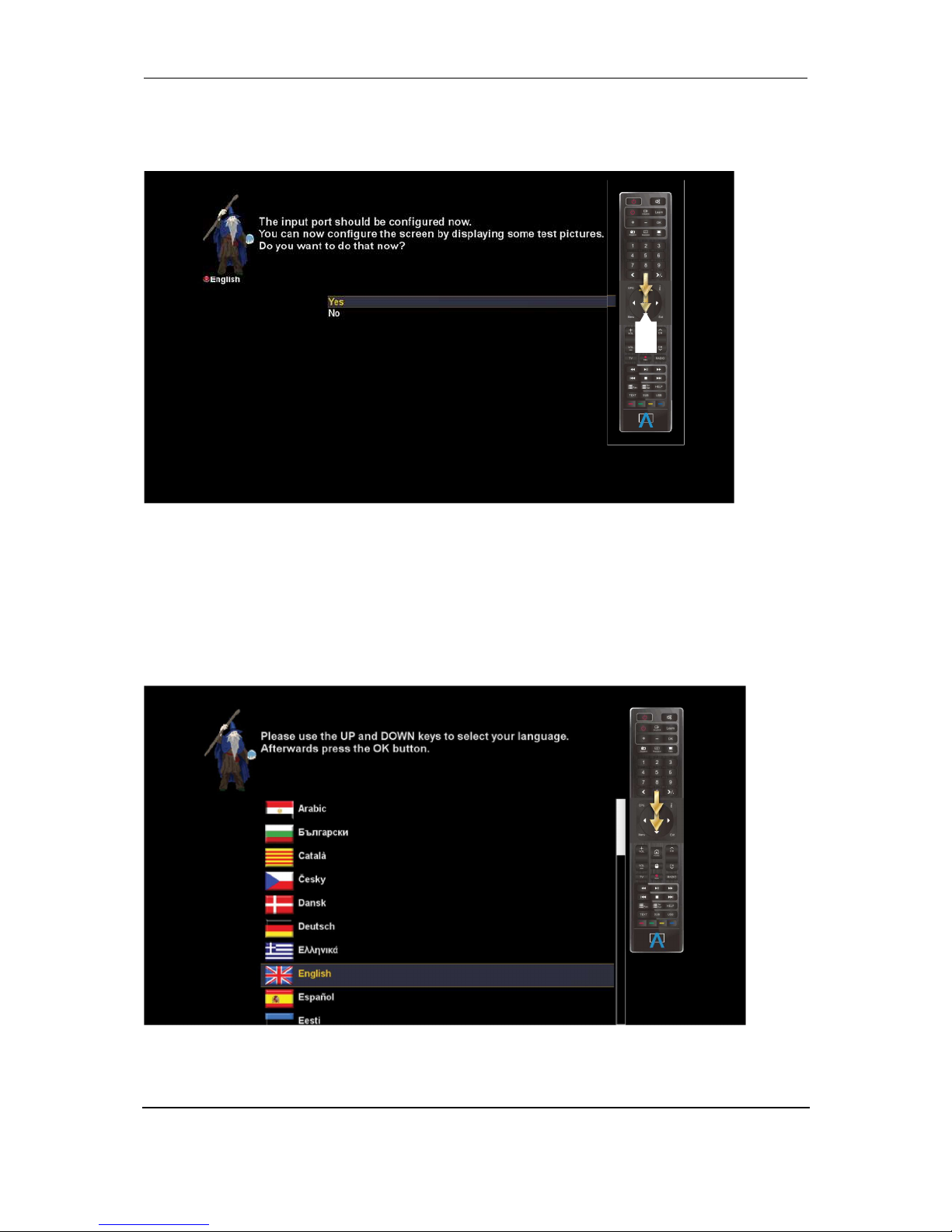

3.1 Video Input Selection ............................................................................................................... 12
3.2 Video Mode (Resolution) Selection ......................................................................................... 12
3.3 Screen Configuration ............................................................................................................... 13
3.4 Language Selection ................................................................................................................. 13
4. BASIC OPERATIONS .......................................................................................................................... 14

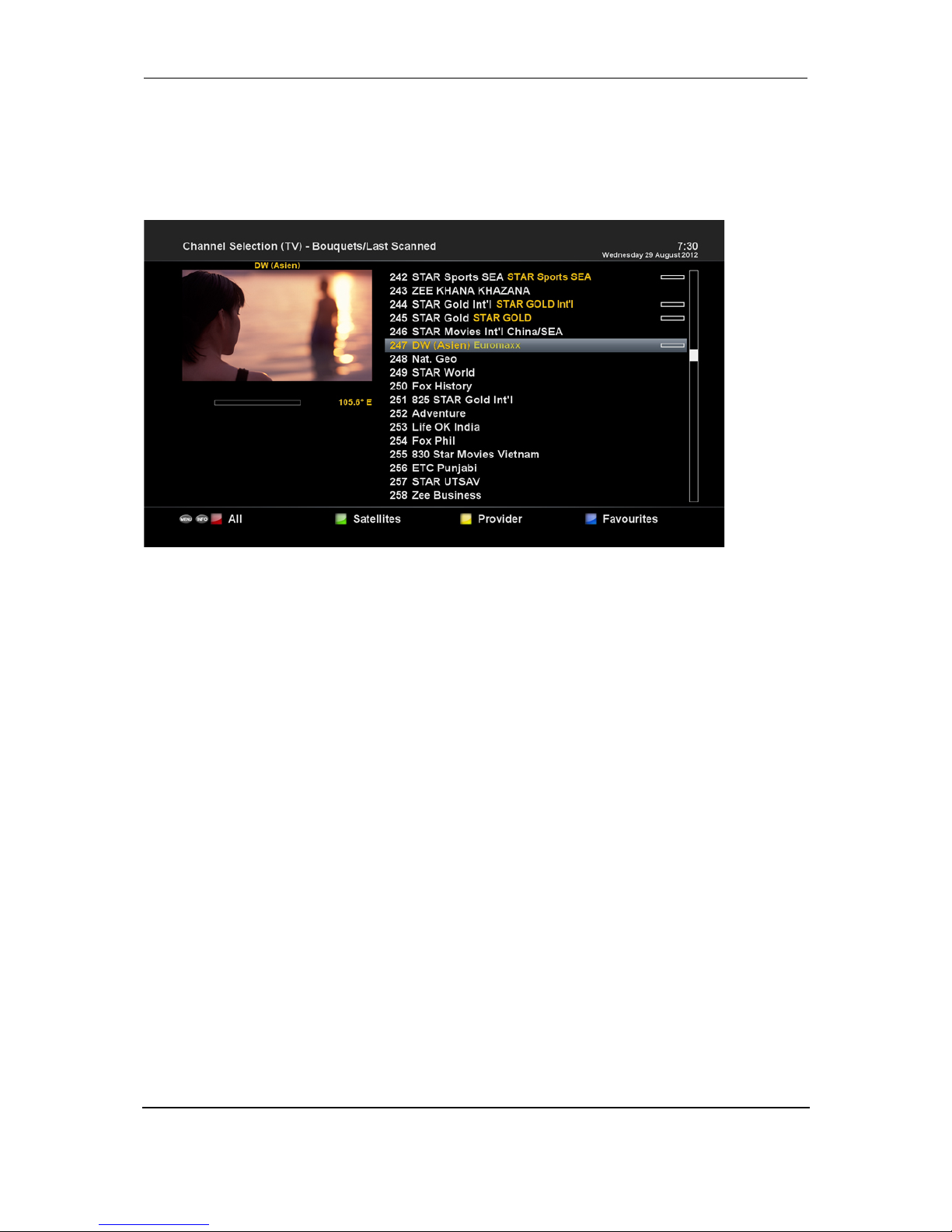

4.1 Switching Channels ................................................................................................................. 14
4.2 Volume Control ........................................................................................................................ 15
4.3 Selecting Audio Track .............................................................................................................. 16
4.4 Subtitle ..................................................................................................................................... 16
4.5 Teletext ..................................................................................................................................... 17
4.6 Program Information ................................................................................................................ 18
4.7 Info Bar .................................................................................................................................... 18
4.8 Electronic Program Guide (Event View) .................................................................................. 19
4.9 Time Shift ................................................................................................................................. 22
4.10 Recording (only optional) ....................................................................................................... 23
4.11 Recording Play ....................................................................................................................... 25
4.12 Managing Recording Files ..................................................................................................... 26
4.13 Media Player .......................................................................................................................... 26
4.14 Plug-ins .................................................................................................................................. 27
4.15 Sleep Timer ............................................................................................................................ 28
5. MENU .............................................................................................................................................. 28

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 3
5.1 Main Menu ............................................................................................................................... 28
5.2 Setup ........................................................................................................................................ 30
5.2.1 System Setting .............................................................................................................. 31
5.2.2 Service Searching ......................................................................................................... 36
5.2.3 Parental Control ............................................................................................................ 40
5.2.4 Factory Reset ................................................................................................................ 42
5.3 Information ............................................................................................................................... 42
5.3.1 Service Information ....................................................................................................... 42
5.3.2 Checking H/W & S/W Information ................................................................................. 43
6. COPYRIGHT – GNU GPL .................................................................................................................. 44
7. TROUBLESHOOTING.......................................................................................................................... 48
8. GLOSSARY ....................................................................................................................................... 50

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 4
1. INTRODUCTION
1.1 Safety Instructions
The Anadol ECO has been designed and manufactured in compliance with EU consumer safety requirements (CE).
Please read the following safety precautions carefully
1. Connecting Power
• This product operates only in the range of AC 100V~250V and 50Hz/60Hz. Please check first your power
supply to see if it fits this range.
• Please be noted that you need to disconnect from the mains before you start any maintenance or
installation procedures.
• Make sure that the power cord is placed in a position where it is easy to unplug it from the mains in an
emergency.
2. Overloading
• Do not overload a wall outlet, extension cord or adapter as this may cause electrical fire or shock.
3. Liquid
• This product is not water-proof and should not be exposed to dripping, splashing, or any type of liquid.
• No objects filled with liquid such as base shall be placed on the product.
• Please do not clean the product with wet cloth, which may cause a short circuit.
• No wet objects should be placed near the product.
4. Ventilation
• Allow a sufficient space between the product and other objects to make sure air ventilation of the product.
• Do not block the top or rear of the product with an object, which will close the ventilation holes and lead to a
high temperature of the system. This may cause a failure of the product.
• Do not stack other electronic devices on top of the product.
• Do not insert any kind of pointed objects like screw, gimlet, etc. into the ventilation holes of the product.
This will damage the product.
5. Connecting the Coax Cable.
• Disconnect the power of the product before you connect the coax cable to the product.
Otherwise, it may cause damage to the receiver.
6. Grounding
• The coax cable and by use of a LNB it must be earthed to the system.
7. Location
• Place the product indoor.
• Do not expose the product to rain, sun or lightening.
• Do not place the product near any heat appliances as a radiator or fireplace.
• Ensure that there is more than 10 cm distance from any electrical devices & wall.
8. Lightening, Storm or Not In Use.
• Unplug the product and disconnect the antenna cable during a thunderstorm or lightening, especially
when left unattended and unused for a long period of time. This will prevent possible damages from
power surges or lightening.
9. Replacement of Parts
• Unauthorized part replacements, especially by one who is not a qualified technician may result in
damage to the product.
• Ensure that when part replacements are necessary qualified technicians perform the task using the
components specified by the manufacturer.
10. Hard Disk Drive

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 5
• Do not move the product or turn the power off suddenly while the Hard Disk Drive (HDD) is still running.
This may result in damage to the HDD and thus the system.
• The company shall not be liable for any corruption of data on the HDD caused by careless use or
misuse of users.
11. Battery
• There is danger of explosion if batteries are incorrectly replaced.
• Replace batteries only with the same or equivalent type.
Disposal "WEEE" Symbol instructions
This product should not be disposed with other house hold wastes at the end of its working life.
Please separate this from other types of wastes and recycle it responsibly to promote the sustainable
reuse of material resources. This will help prevent harm to the environment or human health from
uncontrolled waste disposal.

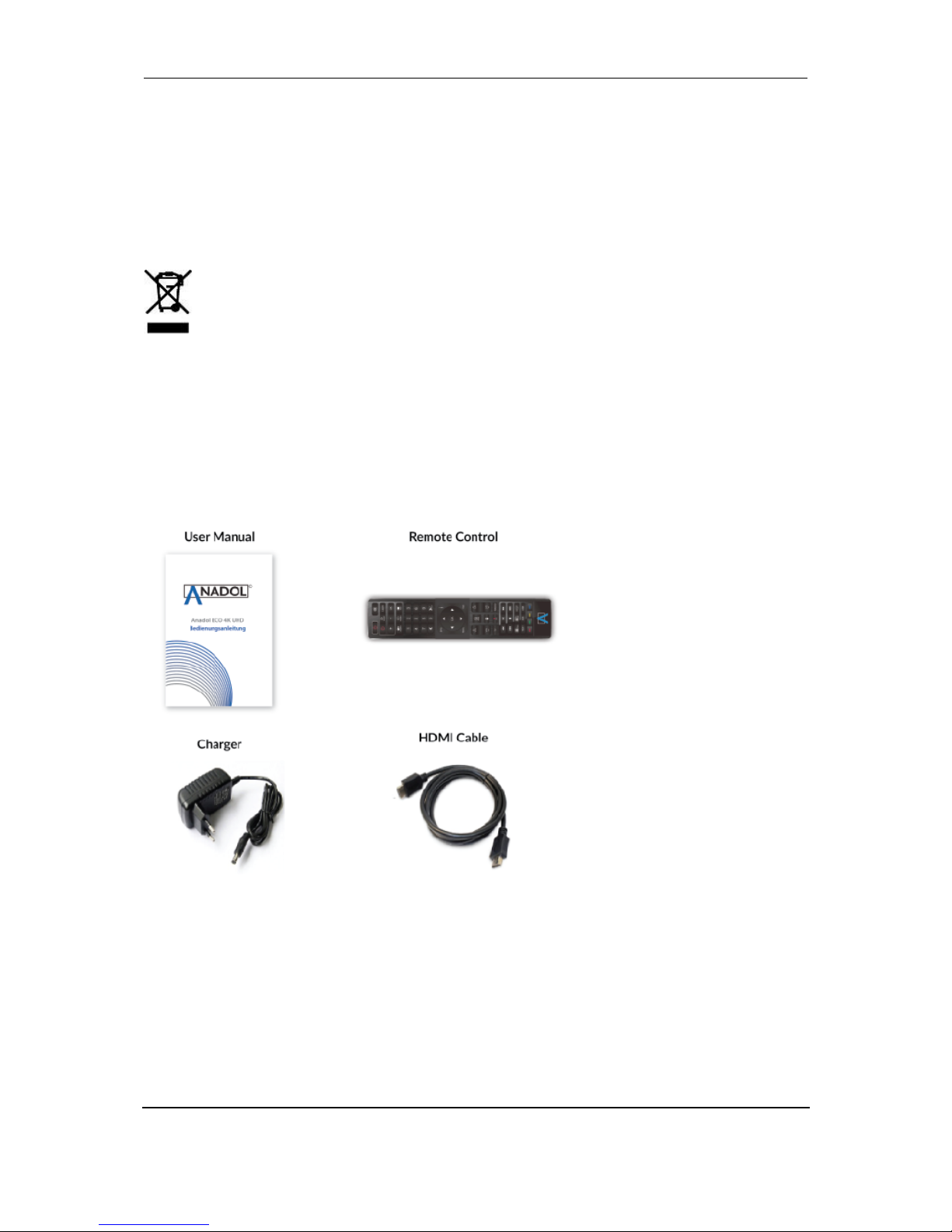

1.2 Packaging Contents
Please check all package contents before
using your product.
• Anadol Eco 4K UHD E2 Linux Sat Receiver
• Remote control
• Batteries
• HDMI cable
• Power adapter
• User manual
• 2x USB Wifi Sticks with Antenna for Receiver
* The accessories may vary according to area.

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 6
1.3 Product Descriptions
Front Panel
Rear Panel
Tuner DVB-S2
AV
Connect to to a composite (Yellow) Video and or digital Stereo audio (red/white) system.
Optical
Connect to a digital audio system using S/PDIF cable.
HDMI
Connect to TV using a HDMI cable for both audio and video signals.
USB 2.0
Connect ion for USB2.0 devices like Wifi N stick, smargo cardreader and USB memory stick..
USB 3.0
Connect ion for USB3.0 devices like external USB HDD and WIFI AC sticks.
ETHERNET
1 Gbit Ethernet, connect with a rj45 cable (cat5/6) to the router or direct to the internet.
DC IN 12V 2A
Connect the provided AC/DC adapter (2A@12V)

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 7
1.4 Conditional Access and Common Interface
Amongst the channels that are scanned via Anadol ECO, some channels can be properly tuned in only with
the corresponding Smartcard. The Anadol ECO provides one Smartcard Reader. Users need to purchase
the Smartcard required for viewing subscription based services.
Insertion of Smartcard
The smartcard is placed with the chip facing below.
Make sure that the Smartcard remain inserted while viewing.
1.5 Main Features
• ARM quad-core
• Linux Operating System
• Media Player
• Downloadable Plug-ins supported
• Smartcard Reader
• Support 4K- 2160p
• MPEG2 / H.264 and H.265 Hardware Decoding
• HD HEVC / H.265 2160p60 Main-10 multi-format decoder
• Dolby HDR supported
• 8GB Emmc NAND Flash / 1024MB DDR Memory
• 100M Ethernet Interface
• USB 3.0 and USB 2.0
• HDMI 2.0
• Composite video with digital audio
• SPDIF for digital bit stream out (optical)
• EPG supported
• Automatic & Manual Service Scan supported
• Multiple LNB control (DiSEqC) supported
• Skin change supported
• Stable power adaptor (external)

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 8
1.6 Remote Control
Programmable Remote part
See here video: https://youtu.be/ssImeWReRgM
How to program for TV RCU button (Example : Power button) :
1. Press “Learn” button over 8 seconds then Power LED will be dark red.
2. Face to face for both RCU and press TV RCU’s power button to
program to STB RCU then Power button will blink.
3. Press Power button to learn
4. Main Power LED will blink 2 times
5. Press “Lean” button to memory.
6. Now ready to control TV as Power button.
STB part
1. POWER : To control STB power.
2. Mute : Mute of Audio
3. Snapshot : Capture TV screen
3. Resolution : Change resolution of 720p,1080i,1080p,2160p.
4. Ratio : Change Ratio of 4:3, 16:9
5. Menu : To get Sub menus.
6. Exit : Exit or Back.
7. EPG : Electrical program Guide
8. INFO(i) : Information for TV channel
9. Vol +, - : To increase/decrease volume
10. CH +, - : To change channel
11. Home : Go Android Home
12. Mouse : Change Mouse mode.
13. TV : Go TV mode/Radio mode
14. Rewind : Rewind Media
15. Play/Pause : Pause/Play Media
16. Fast Forward : Fast Forward
17. Fav : Active favorite menu
18. Ter/Sat : Change Group mode for Terrestrial/Satellite Channels
19. F1/F2 : function button to load SW key functions.
20. Sleep : Call timer to sleep device.
21. Timer : Call timer to record.
22.Color key: Operate different function in TEXT Screen

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 9
1.7 Technical Data
1.7.1 Basic Features
ITEM SUB-ITEM Remark
Receiver Size LxWxH 300x210x45 mm
Reliability Operating Temp. 0~45°C
Relative Humidity 10% ~ 80% (non-condensing)
RF Reception
Terrestrial DVB-S 950Mhz~2150Mhz
DiSeqC 1.2
Terrestrial DVB-S2
Number of RF Input/output terminal
(75 Ohms F-Type)
SAT-IN 1
IO Features
Power Indication (Red=Deep-Sleep) (Clock=Standby)
Network activity Indication Yes (Rear)
Ethernet Yes (1Gbit)
HDMI output 576p, 720p, 1080i, 1080p, 2160p
USB 3.0 Yes (Rear, 1 port)
USB 2.0 Yes (Rear 1 port and Side 1 port)
Smart Card Slot 1 slot (Side)
Optical Output PCM / Dolby Digital
Power Supply AC-DC Adaptor (12V/2.0A)
RCU Yes
Accessories
HDMI Cable Yes
SCART cable No
LAN cable No
AC Adaptor (+12V/2A) Yes
Battery (AAAx2) Yes
User Manual Guide Yes
Gift box Paper box, colored design
Packaging
1.7.2 Basic Functions
Functions PVR Ready STB
Solution
CPU ARM Quad-core
RAM 1024MB
ROM eMMC NAND 8GB
OS Linux version >4.0
Audio Decoder
Dolby Digital (AC3) Yes
MPEG-1 L1/L2/L3 Yes
MPEG-2 AAC Yes
MPEG-4 HE-AAC Yes
WMA Yes
Digital multi-lingual Yes
DTS Yes
Video Decoder MPEG-1 Yes
MPEG-2 MP@HL

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 10
Functions PVR Ready STB
VC-1 AP@L3
H.264 HP@L4 (1080p 30fps)
H.265 2160p 60fps
WMV9 MP@HL
XVID XVID Highdef (HD)
Video Display
16:9, 4:3 Monitor Selection Yes
Aspect ratio control Yes
576i/576p/720p/1080i/1080p/2160p Yes
Control I/F Front keypad 1Key – Power
RCU Yes
AV Input/
Output
Composite video (CVBS) output Yes
SCART output No
S-video output No
Component video (YPbPr) output No
HDMI output x1
Stereo L/R audio output Yes
Stereo headphone output No
SPDIF optical output Yes
Ethernet RJ45 x1
Network
1 Gbit Yes
Wi-fi (802.11 n/ac) By USB (optional)
DHCP, Static IP Yes
PPPoE Optional
Other Functions Volume & Mute Control Yes

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 11
2. INSTALLATION OF ANADOL ECO
This chapter will guide you through the installation process of the Anadol ECO. Please
read each section carefully to make sure that the system runs properly.
2.1 Connecting the TV
The Anadol ECO provides a variety of audio/video connection methods.
For the best quality we recommend to use HDMI.
You should configure audio and video settings after connecting up the digital receiver.
2.1.1 Connecting TV via HDMI cable
For the sake of the best picture quality, especially for digital TV, HDMI connection is
recommended.
Most HDTVs have HDMI connectors to ensure the highest picture quality. At the rear
panel of Anadol ECO there is one HDMI connector available. Connect your TV to the
Anadol ECO using a HDMI cable as shown on the picture.

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 12
3. FIRST TIME INSTALLATION (USING WIZARD)
When you turn on Anadol ECO for the first time after purchase, an installation wizard starts this you can follow step by
step.
NOTE : OK key is used for confirmation and turns to the next step. Press EXIT key to
return to the previous page.
3.1 Video Input Selection
3.2 Video Mode (Resolution) Selection

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 13
3.3 Screen Configuration
In this step, you can adjust brightness and contrast of Anadol ECO video output.
3.4 Language Selection
Anadol ECO provides various languages and here you can choose the main language for your Anadol ECO.
Use UP/DOWN key to scroll up and down to find the language you want.

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 14
4. BASIC OPERATIONS
4.1 Switching Channels
[i: Press▲/▼, CHANNEL +/- key / Press ◀/▶to move to the next channels]
Anadol ECO offers various channel zapping methods. You can switch the current channel by pressing
• UP/DOWN key
If you press UP or DOWN key, Channel Selection menu appears.
You can move up and down to select the channel that you want to tune into
• LEFT/RIGHT key
If you press LEFT or RIGHT key, the previous or subsequent channel of the current channel is tuned in.
• CHANNEL +/- key
If you press CHANNEL + or - key, this will call up the Channel Selection menu.
• Channel Number
Enter a channel number, and it will instantly tune into the channel.
NOTE : If channel change is not done, it is probably because the selected channel is encrypted and you do not have a
proper smartcard.
In order for you to add certain channels to this Favourites list,
1 Call up the Channel Selection list by Pressing UP or DOWN key.
2 Go to the list of All channels by pressing RED.
3 Select the channel that you want to add to the Favourites list.
4 Press MENU key on the selected channel and channel list menu appears.
5 Choose “add service to bouquet” and press OK.
6 Select “Favorites” and press OK.

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 15
7 Go to the Favourites list by pressing BLUE to confirm that the selected channel is correctly included
in the list.
4.2 Volume Control
[i: Press VOLUME +/- key.]
You can adjust the audio volume by pressing VOLUME +/- key. You can also mute or unmute the audio temporarily by
pressing MUTE key ( )
Mute icon is on when the audio is muted.

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 16
4.3 Selecting Audio Track
[i: Press AUDIO key]
You can check what audio tracks are available to choose by pressing AUDIO key.
By using UP/DOWN key and Color key, you can select a different audio language or Stereo sound.
NOTE : Available options on this menu will differ depending on the service.
4.4 Subtitle

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 17
[i: Press Audio key after it yellow key]
You can view the subtitle of the current program if the program provides the subtitle. Press SUBT key, Subtitle selection
menu appears as below.
Available subtitles, if any, will display. By using UP/DOWN navigate the list to select a subtitle that you want to play and
press OK to activate it.
4.5 Teletext
[i: Press TEXT key]
You can call up Teletext information by pressing TEXT key. It will take some time to load all the information.
You can navigate through the Teletext page by using UP/DOWN key to select a text page. Also, just simply enter the
page number that you want to read.
• MUTE key
Once you activated Teletext, you can toggle between the live mode and the Teletext page by pressing MUTE ( ) key
instantly. In this case, loading of the Teletext page takes place instantly.
• VOLUME +
If you want to enlarge the page, press VOLUME + key.
• VOLUME -

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 18
If you want to reduce the page size, press VOLUME - key.
4.6 Program Information
[i: Press INFO key]
Whenever you change the channel, infobar is always displayed for 5 seconds (default setting). Infobar is designed to
provide you comprehensive information of the channel that you are currently watching.
4.7 Info Bar
• Press OK to call up infobar.

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 19
4.8 Electronic Program Guide (Event View)
[i: Press EPG key]
The Electronic Program Guide (EPG) displays the program information of each channel, if provided, in time and date
order. You can view the detailed program information by pressing EPG key and the following
menu, Eventview appears.
Detailed information of the current channel will be displayed on EPG. On this menu, three options are provided.
• RED (Similar)
This option helps you find similar programs. If there are one or more programs that are similar to the current program,
EPG Selection window displays them as below.
• GREEN (Add Timer)
If you press GREEN key, Timer entry menu appears as below. This option is used to set up a new timer for recording or
zapping.

Anadol Eco 4K UHD E2 Linux Sat Receiver User Manual
Anadol ECO 4K UHD E2 Linux Sat Receiver 20
- Name
Displays the name of the selected program.
- Description
Displays a short description of the selected program.
- Timer Type
• Select Zap for channel tuning reservation.
• Select Record for recording reservation.
- Repeat Type
• Select Once for one time of zapping or recording reservation.
• Select Repeated for repeated zapping or recording reservation.
• Repeats - This option is given only when you selected "Repeated" in the Repeat Type.
You can reserve zapping or recording per Daily / Weekly / Mon-Fri / User-defined.
- Date
Displays the current date. This entry is on when you selected Once, in the Repeat Type. - Start Time
You can set the time to begin recording or zapping.
- End Time
You can set the time to end recording or zapping
- Channel
This entry allows you to change the channel. Press LEFT/RIGHT key to call up Channel Selection menu. You can select
a different channel from this list using this option. To return to Timer entry menu,
press EXIT.
• YELLOW (Single EPG)
