Ancona Pro Pyramid Manual

®
Range Hood
Pro Pyramid
User Manual
&
Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the important information regarding
installation safety and maintenance.
Keep these instructions for future reference.

— 2 —
INSTALLERS - Start Here
Safety Instructions are on pages 4 and 5 and
Installation Instructions are on pages 6 to 16.
Please perform these steps:
1. Read the safety instructions.
2. Read all instructions in the Installation section of
this manual BEFORE installing the range hood.
3. Remove all packing materials.
4. When nished, make sure to leave these instructions with the consumer.
5. Installation is only to be done by a qualied technician, but ultimately
proper installation is the responsibility of the installer.
6. Product failure due to improper installation is not covered under the Warranty.
CONSUMERS - Start Here
Safety Instructions are on pages 4 and 5 and
Operating Instructions are on pages 17 and 18.
Please perform these steps:
1. Read the safety instructions.
2. Read all instructions in the manual BEFORE
operating the range hood.
3. Remove all packing materials.
4. Installation is only to be done by a qualied technician, but ultimately
proper installation is the responsibility of the installer.
5. Product failure due to improper installation is not covered under the Warranty.
Before You Begin
Screw Note: For safety reasons, screws and anchors for mounting will not be included
due to the variation of cabinetry constructions and wall material. Please consult your
installation specialist regarding the optimal type of mounting screws and wall anchors to
suit your home’s construction.

— 3 —
Before You Begin............................................................................................................................... 2
Table of Contents .............................................................................................................................. 3
Important Safety Information ............................................................................................................ 4
Installation......................................................................................................................................... 6
Included Parts ................................................................................................................................... 6
Range Dimensions ............................................................................................................................ 7
Specications.................................................................................................................................... 7
Step 1 - Read the Safety Instructions............................................................................................... 8
Step 2 - Unpack the Range Hood and Prepare Tools....................................................................... 8
Step 3 - Plan Desired Location ......................................................................................................... 8
Step 4 - Test Unit’s Functions........................................................................................................... 8
Step 5 - Figure Proper Venting.......................................................................................................... 9
Step 6 - Put motor housing upside down on a at surface ............................................................ 10
Step 7a - Align main housing over motor body .............................................................................. 10
Step 7b - Insert motor body inside main housing........................................................................... 11
Step 8 - Screw two sections........................................................................................................... 12
Step 9 - Connect the connectors.................................................................................................... 12
Step 10 - Mark Placement of Mounting Screws............................................................................. 12
Step 11 - Place Hood on Mounting Screws ................................................................................... 13
Step 12 - Install Damper ................................................................................................................. 13
Step 13 - Install Ductwork .............................................................................................................. 13
Step 14 - Install Lower Chimney..................................................................................................... 13
Step 15 - Install Bracket and Upper Chimney ................................................................................ 14
Step 16 - Connect to AC................................................................................................................. 15
Step 17 - Install Grease Trays ......................................................................................................... 16
Step 18 - Install Bafe Filters.......................................................................................................... 16
Operation ........................................................................................................................................ 17
Using the Fan.................................................................................................................................. 17
Turning the Light On or Off.............................................................................................................. 17
Replacing the Puck Light ................................................................................................................ 18
Cleaning the Range Hood............................................................................................................... 18
Replacement Parts.......................................................................................................................... 19
Table of Contents

— 4 —
Important Safety Information
• Theinstallationinthismanualisintended
for qualied installers, service technicians or
persons with similar qualied background.
Installation must be done by qualied
professionals and in accordance with all
applicable codes and standards, including re-
rated construction.
• The range hood may have very sharp
edges; please wear protective gloves if it is
necessary to remove any parts for installing,
cleaning or servicing.
• Activating any switch ON before completing
installation may cause damage or electric shock.
• Duetothesizeofthisrangehood,twoperson
installation is recommended.
To reduce the risk of re, electric shock, or
injury to persons:
• Forgeneralventilatinguseonly.DO NOT use
toexhausthazardousorexplosivematerials
and vapors.
• WARNING: To Reduce The Risk Of Fire Or
Electric Shock, Do Not Use This Fan With Any
Solid-State Speed Control Device.
• Thecombustionairowneededforsafe
operation of fuel-burning equipment may be
affected by this unit’s operation. Follow the
heating equipment manufacturer’s guideline
and safety standards such as those published
by the National Fire Protection Association
(NFPA), and the American Society of Heating,
Refrigeration and Air Conditioning Engineers
(ASHRAE), and other local code authorities.
• Beforeservicingorcleaningtheunit,switch
power off at service panel and lock the service
disconnecting means to prevent power from
being switched on accidentally. When the
service disconnecting means cannot be
locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
• Cleangrease-ladensurfacesfrequently.To
optimizeperformanceandtodisperseair
properly, make sure to vent air outside. DO
NOT vent exhaust into spaces between walls,
crawl spaces, ceilings, attics or garages.
• Ducted fans MUST always be vented to
the outdoors.
• ThisunitMUSTbegroundedanduseonly
metal ductwork.
• Sufcientairisneededforpropercombustion
and exhausting of gases through the duct to
prevent back drafting.
• Whencuttingordrillingintowallorceiling,be
careful not to damage electrical wiring or other
hidden utilities.
• Allelectricalwiringmustbeproperlyinstalled,
insulated and grounded.
• Old duct work should be cleaned or
replaced, if necessary to avoid the possibility
of a grease re.
• Check all joints on duct work to ensure
proper connection and all joints should be
properly taped.
• Usethisunitonlyinthemannerintended
by the manufacturer. If you have questions,
contact the vendor.
READ AND SAVE THESE
INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Read and follow all instructions before using the range hood to prevent the risk of re, electric shock,
personal injury, or damage when using the range hood or appliances with the range hood. This guide
does not cover all possible conditions that may occur. Always contact your service technician or
manufacturer about problems that you do not understand.

— 5 —
Important Safety Information
WARNING: TO REDUCE RISK OF A RANGE
TOP GREASE FIRE:
a) Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
b) Always turn range hood ON when cooking at
high heat or when ambeing food (i.e. Crepes
Suzette,CherriesJubilee,etc.).
c) Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fan or lter.
Before servicing or cleaning unit, unplug and
disconnect the hood from the power supply.
d)Useproperpansize.Alwaysusecookware
appropriateforthesizeofthesurfaceelement.
WARNING: TO REDUCE RISK OF INJURY TO
PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING *
a) S MOTHER FLAMES with a close-tting
lid, cookie sheet, or metal tray, then turn
off the burner. BE CAREFUL TO PREVENT
BURNS. If the ames do not go out
immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may
be burned.
c) DO NOT USE WATER, including wet dishcloths
or towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class A, B, C
extinguisher, and you already know how to
operate it.
2) The re is small and contained in the area
where it is started.
3) The re department is being called.
4) You can ght the re with your back to an exit.
*Based on “Kitchen Fire Safety Tips”
published by NFPA
To reduce the risk of injury to persons in the
event of a gas leaks:
• Extinguishanyopename.
• DO NOT turn on the lights or any type of appliance.
• Openalldoorsandwindowstodispersethe
gas. If you still smell gas, call the gas company
and re department.
Your safety and the safety of others is very
important. We have provided many important
safety messages in this manual and on your
appliance. Always read and obey all safety
messages. All safety messages will tell you what
thepotentialhazardis,tellyouhowtoreducethe
chance of injury, and tell you what can happen if
the instructions are not followed.
READ AND SAVE THESE
INSTRUCTIONS

— 6 —
Installation
Included Parts
Main housing Damper
Bafe Filter x 2
Bafe Filter for 36” x3
Upper Chimney
Motor Body
Lower Chimney
Grease Tray x 2
Grease Tray for 36” x3
Upper Chimney Bracket
Damper Gasket
Hardware Screw Kit*
Screw Note: For safety reasons, screws and anchors for mounting will not be included due to the variation
of cabinetry constructions and wall material. Please consult your installation specialist regarding the optimal
type of mounting screws and wall anchors to suit your home’s construction.

— 7 —
Installation
Range Dimensions
29 7/8” / 35 3/8”
(760mm / 900mm)
20 1/4”
(515mm)
9 5/8”
(245mm)
19” to 37 3/4”
(483 to 958mm)
3 1/2”
(90mm)
15 5/8”
(397mm)
13 9/16”
(345mm)
Specications
Body Design Stainless Steel
Power Rating 120V/60Hz(cETLusCertied)
Total Input Power 438 W
Motor Input Power 432 W
Amperage 3.72 A
Fan 775 CFM
Speed Control Levels 5 Levels + Booster
Interference Protection Radio Frequency Interference Protected
Noise Level Low Speed : 44 dB
Motors Single Motor
Control Electronic Slide Touch Panel
Filtration Stainless Steel Bafe Filters
Illumination 2 x 3 W LED
VentingSize Outer 7.3” (185mm), Inner 6.7” (170mm)

— 8 —
Installation
STEP 1
Read the Safety Instructions
It is very important to read the safety instructions on pages 4 and 5.
IMPORTANT: It is the installer’s responsibility to comply with installation clearances.
STEP 2
Unpack the Range Hood and Prepare Tools
Unpack the range hood and parts carefully and make sure all parts are included as shown on page 6. DO NOT remove the
protective lm covering the appliance until the installation is fully completed. Check with a qualied and trained installer or
local codes for makeup air requirement, if any.
STEP 3
Plan Desired Location
Plan a desirable location that ts all requirements in the Safety and Installation sections of this manual. Also plan
where and how the ductwork will be installed. A straight or short duct run will allow the unit to perform most efciently.
Long duct runs, elbows and transitions will reduce the performance of the unit. Each elbow is the equivalent to 5 to 10
feetofstraightrun.Propersizeductworkshouldbe6inches.To reach a 9 foot ceiling make sure hood is installed
at 30 inches from cooking surface.
If ductwork is already installed, unit should be connected to a 6” duct (1” reducers may be used but more than 1” will
overwork the motor and the unit will not function properly) and ensure ductwork is free from debris.
STEP 4
Test Unit’s Functions
Plug the unit in and test all of the functions before installing.
WARNINGS:
• PleasemakesuretoreadALLsafetyinstuctionsonpages4and5.
• Usetwoormorepeopletomoveandinstallrangehood.
• Failuretofollowtheseinstructionscanresultinseriousinjury.

— 9 —
Installation
IMPORTANT:
• Vent system must terminate to the outside (roof or side wall).
• DONOT terminate the vent system in an attic or other
enclosed area.
• DONOTuse4”(10.2cm)laundry-typewallcaps.
• Usemetal/aluminumventonly.Arigidmetal/aluminum
vent is recommended.
• DONOTuseaplasticvent.
• Alwayskeeptheductcleantoensureproperairflow.
• Calculatethefollowingfiguresbeforeinstallation:
1. Distance from the floor to the ceiling
2. Distance between the floor and the countertop/stove
3. A distance of 24” to 30” is recommended between
stove top and the bottom of range hood. 30” minimum
is required for gas stove tops.
4. Height of hood and duct cover.
For the most efficient & quiet operation:
• Itisrecommendedthattherangehoodbevented
vertically through the roof through 10” (15.3 cm) or
bigger round metal/aluminum vent work.
• Thesizeoftheventshouldbeuniform.
• Usenomorethanthree90°elbows.
• Make sure there is a minimum of 24” (61 cm) of
straight vent between the elbows if more than one
elbow is used.
• DONOTinstalltwoelbowstogether.
• The length of vent system and number of elbows should be
kept to a minimum to provide efficient performance.
• Theventsystemmusthaveadamper.Ifrooforwall
cap has a damper, you may remove damper flaps from
damper to increase air flow.
• Use silver tape or duct tape to seal all joints in the
vent system.
• Use caulking to seal exterior wall or roof opening
around the cap.
STEP 5
Figure Proper Venting
Height and Clearance
24” (610 mm) Min / 30” (914 mm) Max
Pour atteindre un plafond de 2,74 m (9 pi),
s’assurer que la hotte est installée à au moins
76,2 cm (30 po) de la surface de cuisson

— 10 —
Installation
STEP 7a
Align main housing over motor body
Place range hood over the motor body as shown. Ensuring black controls are on the same side as motor door.
Aerial View
STEP 6
Put motor housing upside down on a at surface
Place cube shaped foam from the packaging underneath the motor body for stability. Then place motor body on a at
surface as shown below, ideally on the oor.
Before installing, please visit anconahome.com or scan
the QR code to watch the installation video
Aerial View
A
B
Motor door
Foam Floor

— 11 —
Installation
STEP 7b
Insert motor body inside main housing
Themainhousingandmotorbodyaresimilarinsize.Werecommendthefollowingstepstoensurecorrecttting.
Figure 1
Figure 2
Insert the motor body (A) into the corner of the main
housing (B) highlighted in gure 1.
A
B
A
B
Rotate the main housing (B)counter-clockwiseata45°
angle and then tilt main housing (B) downwards until
motor body (A) is completely inside. (See gure 2)
When the motor body (A) is inside the main housing
(B), rotate the main housing (B) back into place. (See
gure 3)
Figure 3
A
B

— 12 —
Installation
STEP 10
Mark Placement of Mounting Screws
Mark placement of mounting screws. Insert two wood screws (not included), making sure to screw them directly into studs.
Leave screws approximately 1/4 inch sticking out in order to hang the unit.
2-3/8”
(60 mm)
1” (25 mm) 1” (25 mm) 2-3/8”
(60 mm)
15” (381 mm)
Aerial View
STEP 8
Screw two sections
Align the screw holes and screw the two pieces together using the screws provided. (See gure 6 )
STEP 9
Connect the connectors
Connect the quick connectors at the back of the unit.

— 13 —

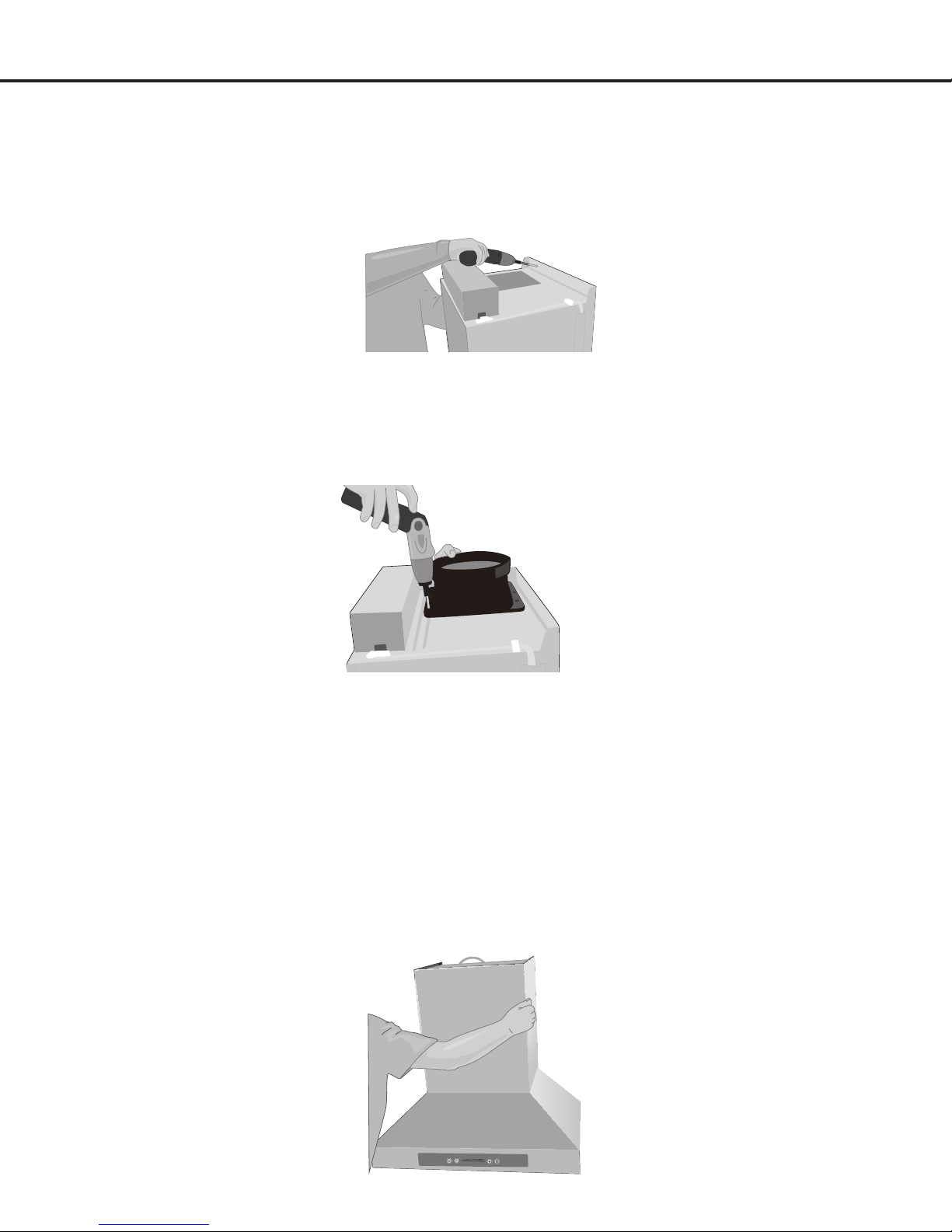

STEP 11
Place Hood on Mounting Screws
Place the range hood’s key holes securely on the mounting screws and then tighten screws.
STEP 12
Install Damper
Place damper and damper gasket on top of ventilation hole, then connect using the four screws (included).
STEP 13
Install Ductwork
Attach ductwork to damper then duct tape the ductwork to make joints secure and air-tight. Do not install duct tape too
tight as this will stop the damper aps from opening, which will overwork the motor and the unit will not function properly.
STEP 14
Install Lower Chimney
Place lower chimney on top of the Range hood.

— 14 —
Installation

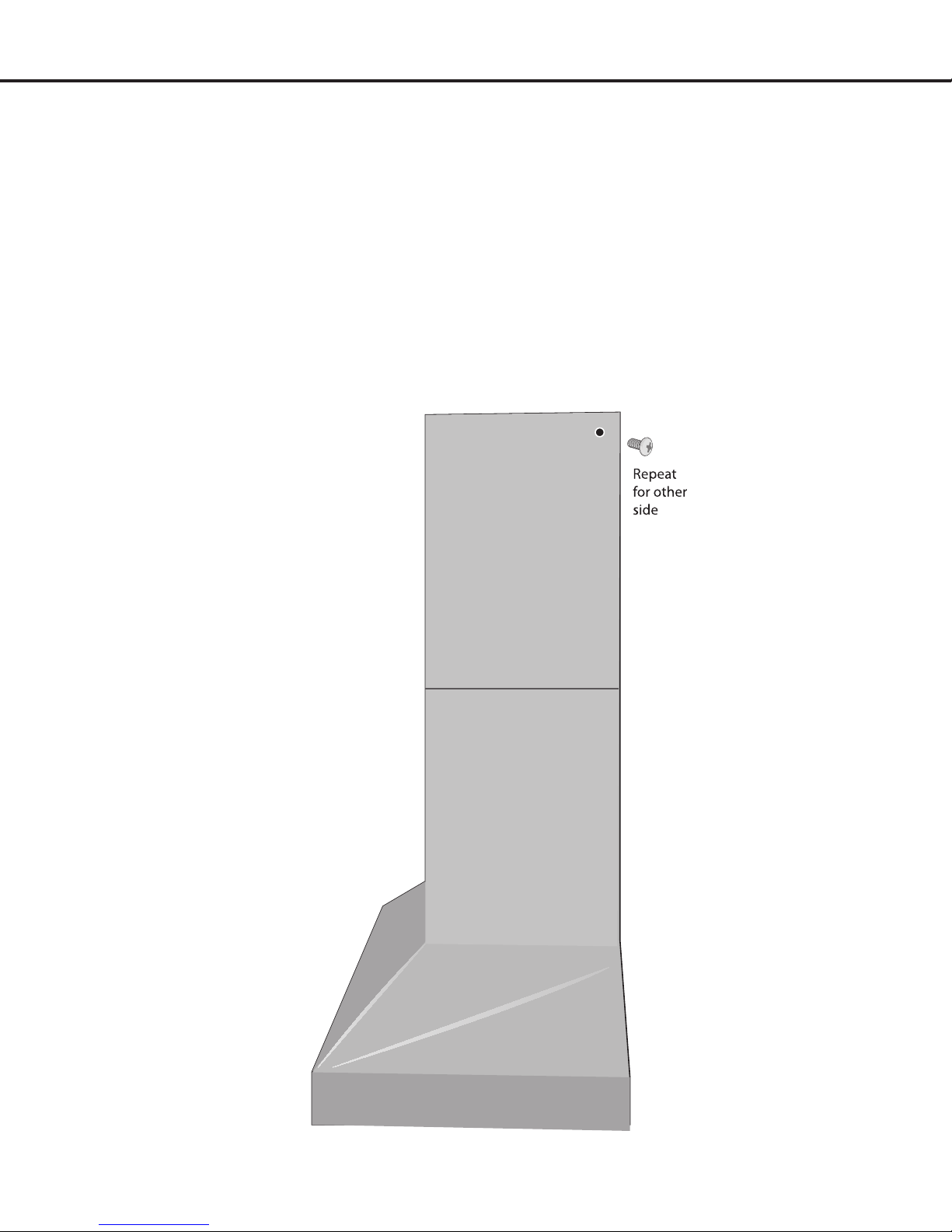

STEP 15 (Optional, depending on ceiling height)
Install Upper Chimney Bracket and Upper Chimney
Screw upper chimney bracket on the wall above the range hood directly below the ceiling, using three wood screws, making
sure to screw them directly into studs. If studs are not available, you can use wall anchors.
Place the upper chimney inside lower chimney. The upper chimney is telescopic, so extend it until you reach the ceiling,
then screw the chimney to the bracket using the provided screws. Peel off protective lm.

— 15 —
Installation
IMPORTANT:
• Observeallgoverningcodesandordinances.
• It is the customer’s responsibility to contact a qualified electrical installer.
• Ifcodespermitandaseparategroundwireisused,itisrecommendedthataqualifiedelectriciandeterminethat
thegroundpathisadequate.A120-Volt,60Hz,AC-only,fusedelectricalsupplyisrequiredonaseparate15-amp
circuit, fused on both sides of the line.
• DONOTgroundtoagaspipe.
• Checkwithaqualifiedelectricianifyouarenotsurethattherangehoodisproperlygrounded.
• DONOThaveafuseintheneutralorgroundcircuit.
IMPORTANT: Save this Installation Guide for electrical inspector’s use.
GROUNDING INSTRUCTIONS:
• Thisappliancemustbegrounded.Intheeventofanelectricalshort-circuit,groundingreducestheriskofelectric
shock by providing an escape wire for the electric current.
• Thisapplianceisequippedwithacordhavingagroundingwirewithagroundingplug.Theplugmustbeplugged
into an outlet that is properly installed and grounded.
WARNING: Improper grounding can result in a risk of electric shock.
• Consultaqualifiedelectricianifthegroundinginstructionsarenotcompletelyunderstood,orifdoubtexistsasto
whether the appliance is properly grounded. DO NOT use an extension cord. If the power supply cord is too short,
have a qualified electrician install an outlet near the appliance.
STEP 16
Connect to AC
Connect AC plug into a grounded AC outlet having 120V,
60Hz.Placetheoutletatamaximumdistanceof33-1/2”
from where the cord exits on the hood. SEE IMPORTANT
INSTRUCTIONS BELOW.
3-Pronged Plug
Ground Plug
3-Prong Receptacle

— 16 —
Installation
STEP 18
Install Bafe Filters
Install Bafes as shown in illustration.
To replace the bafe lters: Hold the bafe by the
two knobs. Place the up end of the bafe against
the inside front of the hood. Slide it up and push
the bottom end back until it rmly seats into place.
The metal bafe lters channel grease released
by foods on the cook top into the drip trays. The
bafes also help prevent aming foods on the
cook top from damaging the inside of the hood.
For this reason, the bafes must ALWAYS be in
place when the hood is used. The bafe lters and
Grease Trays should be cleaned once a month, or
as needed. See page 18 to clean.
STEP 17
Install Grease Trays
Slide the grease trays as shown, installed side by
side. The bafe lters and grease trays should be
cleaned once a month, or as needed. See page 18
to clean.
To replace the grease trays: Place and seat the drip
tray into the hood rack. Slide them left and right until
all trays are side-by-side in place in the track.

— 17 —
Using the Fan
uPress the button to turn the unit on.
vPress the button to turn on the fan.
Touch the sensor to select
the desired fan speed.
w
To set a timer, press
button and then touch
the sensor to select
the desired timer time.
The leftmost indicator
is 5 minutes and each
will increase the time
5 minutes, up to a
maximum of 50 minutes.
the button will icker
when mode is activated
xPress the button to turn the fan off.
Turning the Light
On or Off
uPress the button to turn the unit on.
vPress the button to turn the light on.
w
Press the button
again to turn the
light off.
Operation

— 18 —
uUnplug the unit from the AC outlet.
vRemove ve screws from the light panel, then remove the puck light by popping it out.
wDisconnect the light clip.
xReverse the removal procedures to install the new pump light and plug the unit back in.
Be sure electrical power is off and all surfaces are cool
before cleaning or servicing any part of the hood.
Main Hood
Do not use a steel wool pad; it will scratch the surface.
To clean the stainless steel surface, use warm sudsy water
or a stainless steel cleaner or polish. Always wipe the
surface in the direction of the grain. Follow the cleaner
instructions for cleaning the stainless steel surface.
Bafe Filters and Grease Trays
Bafe Filters and Grease Trays can be cleaned in a Standard
dishwasher or by using a mild cleaner. DO NOT use
ammonia, ammonia products, abrasives or oven cleaners.
To remove, rst drain and wipe all excess grease with a dry
paper towel. Grasp the bafe lter knobs and pull them up,
forward and out. Grasp the grease trays and carefully lift
them up and out of the hood track.
Operation
Replacing the Puck Light Cleaning the Range Hood

— 19 —
Replacement Parts
8
7
1
54 6
32
9
10 16
PACAP-15
PABRD-14
PACPL-15
PATRA-13
PALIT-14
PADAM-14
PAMOT-14
PAMCG-12
PAPWR-12
1 - Capacitor
2 - Circuit Board
3 - Control Panel
4 - Transformer
6 - Puck Light
5 - Damper
7 - Motor
8 - Squirrel Cage
9 - Power Cord
Part CodeDescription
please advise10 - Grease Tray
*: Not Shown
PALPL-20
PALPL-21
PASCR-16
please advise
please advise
please advise
please advise
11 - Light Panel 30”*
12 - Light Panel 36”*
13 - Hardware Bag*
15 - Baffle Filter - 36”*
17 - Chimney Set*
16 - Upper Chimney Bracket
14 - Baffle Filter - 30”*
Part CodeDescription

— 20 —
Please register your product warranty by visiting the Ancona Home website.
Canada & USA
Phone: [phone]
Fax: [phone]
Email: [email protected]
Website: www.anconahome.com
Ancona is in association with Mr Appliance for all after sales service calls.
Please contact their service provider or visit their website:
Phone: [phone]
Website: www.mrappliance.com
© 2015 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modied or distributed.
MAAN-1137-02
