Ancona WPB630 Manual

®
Range Hood
WPB630 and WPB636
User Manual
&
Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the important information
regarding installation, safety and maintenance.
Keep these instructions for future reference.
MAAN1524-01
2018-10-15

— 2 —
INSTALLERS - Start Here
Safety Instructions are on pages 4 and 5 and
Installation Instructions are on pages 9 to 15.
Please perform these steps:
1. Read the safety instructions.
2. Read all instructions in the Installation section of
this manual BEFORE installing the range hood.
3. Remove all packing materials.
4. When nished, make sure to leave these instructions with the consumer.
5. Installation is to be done by a qualied technician only. However, the
ultimate responsibility for proper installation falls to the owner.
6. Product failure due to improper installation is not covered under the Warranty.
CONSUMERS - Start Here
Safety Instructions are on pages 4 and 5 and Operating Instructions are
on pages 15, 16, 17 and 19.
Please perform these steps:
1. Read the safety instructions.
2. Read all instructions in the manual BEFORE operating the range hood.
3. Remove all packing materials.
4. Installation is to be done by a qualied technician only. However, the
ultimate responsibility for proper installation falls to the owner.
5. Product failure due to improper installation is not covered under the Warranty.
Before You Begin
Hardware Note: For safety reasons, range hood mounting screws and anchors will not be
included due to the variation of cabinetry constructions and wall material. Please consult your
installation specialist regarding the optimal type of mounting screws and wall anchors to suit your
home’s construction.

— 3 —
Before You Begin............................................................................................................................... 2
Table of Contents .............................................................................................................................. 3
Important Safety Information ............................................................................................................ 4
Included Parts ................................................................................................................................... 6
Range Hood Dimensions .................................................................................................................. 7
Specications.................................................................................................................................... 7
Mounting Brackets............................................................................................................................ 8
Installation......................................................................................................................................... 9
Step 1 - Read the Safety Instructions............................................................................................ 9
Step 2 - Unpack Range Hood and Prepare Tools.......................................................................... 9
Step 3 - Plan Desired Location ...................................................................................................... 9
Step 4 - Test Unit Functions .......................................................................................................... 9
Step 5 - Venting Installation Guidelines ....................................................................................... 10
Step 6 - Preparations................................................................................................................... 12
Step 7 - Installing the Hood Mounting Bracket ........................................................................... 12
Step 8 - Installing the Upper Chimney Bracket ........................................................................... 12
Step 9 - Venting ........................................................................................................................... 13
Step 10 - Mount Range Hood onto Wall...................................................................................... 13
Step 11 - Connect Ductwork ....................................................................................................... 13
Step 12 - Install Chimney............................................................................................................. 13
Step 13 - Connect to AC.............................................................................................................. 14
Step 14 - Install Filters ................................................................................................................. 15
Maintenance.................................................................................................................................... 15
Cleaning lters ............................................................................................................................. 15
Operation ........................................................................................................................................ 16
Power Settings............................................................................................................................. 16
Timer Function ............................................................................................................................. 16
Lights ........................................................................................................................................... 16
Troubleshooting............................................................................................................................... 16
Range Hood Assembly ................................................................................................................... 17
Assembly......................................................................................................................................... 18
Circuit Diagram ............................................................................................................................ 18
Electrical Assembly...................................................................................................................... 18
Use and Care Information............................................................................................................... 19
Table of Contents

— 4 —
Important Safety Information
• Theinstallationinthismanualisintended
for qualied installers, service technicians or
persons with a similar qualied background.
Installation must be done by qualied
professionals and in accordance with all
applicable codes and standards, including
re-rated construction.
• The range hood may have very sharp
edges; please wear protective gloves if it is
necessary to remove any parts for installing,
cleaning or servicing.
• Activating any switch to ON position before
completing installation may cause damage or
electric shock.
• Duetothesizeofthisrangehood,atwo
person installation is recommended.
To reduce the risk of re, electric shock, or
injury to persons:
• Forgeneralventilatinguseonly.DO NOT use
toexhausthazardousorexplosivematerials
and vapors.
• WARNING: To Reduce The Risk Of Fire Or
Electric Shock, Do Not Use This Fan With Any
Solid-State Speed Control Device.
• Thecombustionairowneededforsafe
operation of fuel-burning equipment may be
affected by this unit’s operation. Follow the
heating equipment manufacturer’s guideline
and safety standards such as those published
by the National Fire Protection Association
(NFPA), and the American Society of Heating,
Refrigeration and Air Conditioning Engineers
(ASHRAE), and other local code authorities.
• Beforeservicingorcleaningtheunit,switch
power off at service panel and lock the service
disconnecting means to prevent power from
being switched on accidentally. When the
service disconnecting means cannot be
locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
• Cleangrease-ladensurfacesfrequently.To
optimizeperformanceandtodisperseair
properly, make sure to vent air outside. DO
NOT vent exhaust into spaces between walls,
crawl spaces, ceilings, attics or garages.
• Ducted fans MUST always be vented to
the outdoors.
• ThisunitMUSTbegroundedandusedwith
metal ductwork only.
• Sufcientairisneededforpropercombustion
and exhausting of gases through the duct to
prevent back drafting.
• Whencuttingordrillingintowallorceiling,be
careful not to damage electrical wiring or other
hidden utilities.
• Allelectricalwiringmustbeproperlyinstalled,
insulated and grounded.
• Old ductwork should be cleaned or replaced
if necessary to avoid the possibility of a
grease re.
• Check all joints on ductwork to ensure
proper connection; all joints should be
properly taped using a certied aluminum
or foil tape.
• Usethisunitonlyinthemannerintended
by the manufacturer. If you have questions,
contact the vendor.
READ AND SAVE THESE
INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Read and follow all instructions before using the range hood to prevent the risk of re, electric shock,
personal injury, or damage when using the range hood or appliances with the range hood. This guide
does not cover all possible conditions that may occur. Always contact your service technician or
manufacturer about problems that you do not understand.

— 5 —
Important Safety Information
WARNING: TO REDUCE RISK OF A RANGE
TOP GREASE FIRE:
a) Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
b) Always turn range hood ON when cooking at
highheatorwhenambéingfood(i.e.Crepes
Suzette,CherriesJubilee,etc.).
c) Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fan or lter.
Before servicing or cleaning unit, unplug and
disconnect the hood from the power supply.
d)Useproperpansize.Alwaysusecookware
appropriateforthesizeofthesurfaceelement.
WARNING: TO REDUCE RISK OF INJURY TO
PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING *
a) S MOTHER FLAMES with a close-tting
lid, cookie sheet, or metal tray, then turn
off the burner. BE CAREFUL TO PREVENT
BURNS.Iftheamesdonotgoout
immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may
be burned.
c) DO NOT USE WATER, including wet dishcloths
or towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class A, B, C
extinguisher, and you already know how to
operate it.
2) The re is small and contained in the area
where it is started.
3) The re department is being called.
4) You can ght the re with your back to an exit.
*Based on “Kitchen Fire Safety Tips”
published by NFPA
To reduce the risk of injury to persons in the
event of a gas leaks:
• Extinguishanyopename.
• DO NOT turn on the lights or any type of appliance.
• Openalldoorsandwindowstodispersethe
gas. If you still smell gas, call the gas company
and re department.
Your safety and the safety of others is very
important. We have provided many important
safety messages in this manual and on your
appliance. Always read and obey all safety
messages. All safety messages outline any
potentialhazards,howtoreducethechanceof
injury, and possible risks if the instructions are not
followed.
READ AND SAVE THESE
INSTRUCTIONS

— 6 —
Included Parts
Main Housing
2 Filters (30 in.)
3 Filters (36 in.)
Upper Chimney
Lower Chimney
Upper Chimney Bracket
Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to
the variation of cabinetry constructions and wall material. Please consult your installation specialist regarding
the optimal type of mounting screws and wall anchors to suit your home’s construction.
4 + 1 Screws (C)
4 + 1 Screws (D)
Hood Mounting Bracket
Lower Chimney Bracket
Vent/Damper

— 7 —
Range Hood Dimensions
Specications
Body Design Stainless Steel
Power Rating 120V/60Hz(cETLusCertied)
Total Input Power 371 W (365 W + 2 x 2.55 W)
Motor Input Power 365 W
Amperage 3.16 A
Speed Control Levels 3 Speeds
Interference Protection Radio Frequency Interference Protected
Motors Single Motor
Control Touch control panel with LCD screen
Filtration Bafelter
Illumination 2 x 2.55 W LED
Fan Type Single chamber quiet
VentingSize Top, 6 inches (15.3 cm) round
40 - 78 cm
(15.75 - 30.7 in.)
50 cm (19.6 in.) 75 cm (29.5 in.) /
90 cm (35.4 in.)
5 cm
(1.9 in.)
27 cm
(10.6 in.)
22.1 cm (8.7 in.) 17.1 cm (6.7 in.)

— 8 —
5 1/8” (13 cm)
1 3/8”
(3.5 cm)
8 21/32 (22 cm)
8 5/8” (21.9 cm)
5 1/8” (13 cm)
7 7/8” (20 cm)
1 3/8”
(3.5 cm)
7 7/8” (20 cm)
3 15/16” (10 cm) 3 15/16” (10 cm)
8 21/32” (22 cm)
1 9/16”
(4 cm)

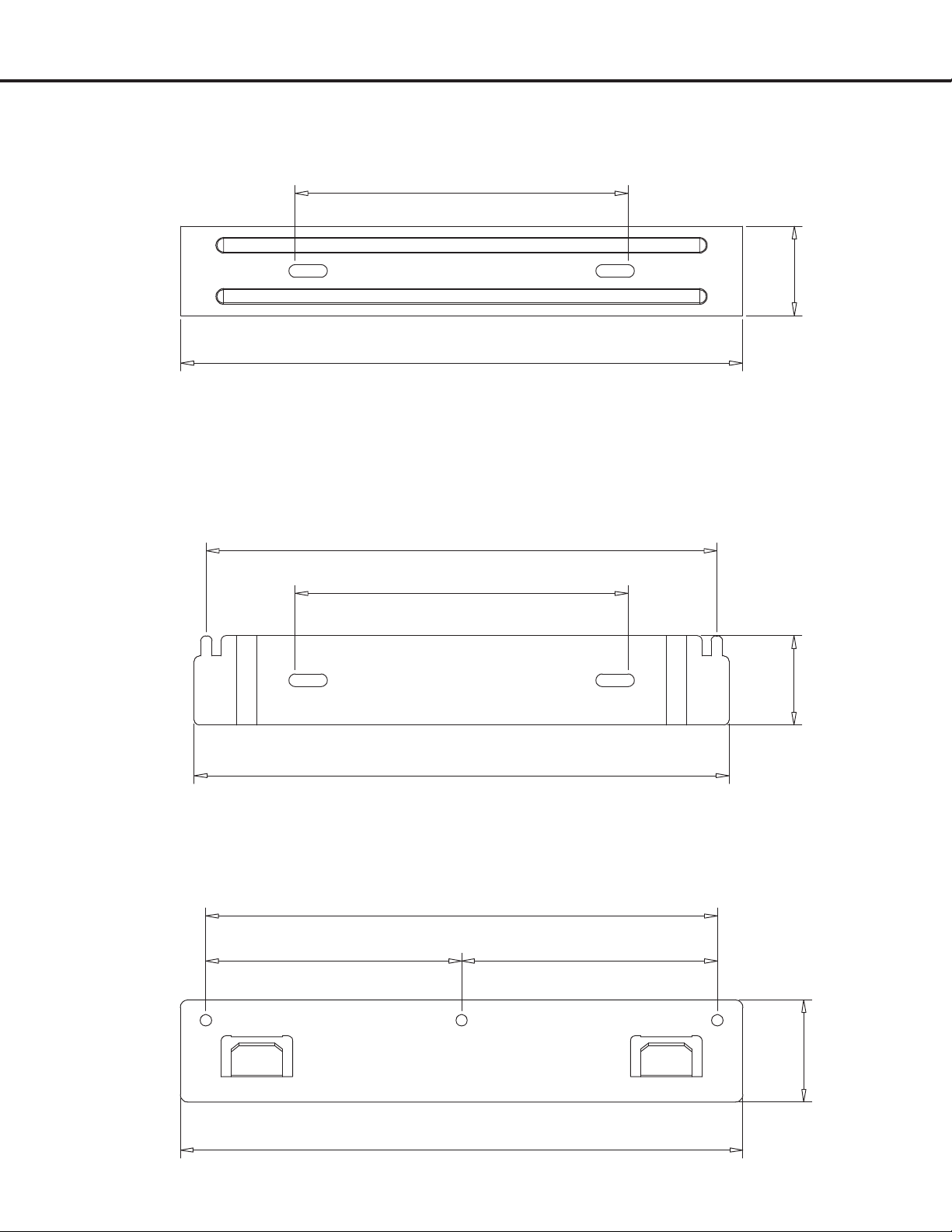

Mounting Brackets
Upper Chimney Bracket
Lower Chimney Bracket
Mounting Bracket Hook

— 9 —
STEP 1
Read the Safety Instructions
• It is very important to read the safety instructions on pages 4 and 5.
IMPORTANT: It is the installer’s responsibility to comply with installation clearances.
STEP 2
Unpack Range Hood and Prepare Tools
• Carefully unpack the range hood and parts. Make sure all parts are included as shown on page 6.
• DO NOT remove the protective lm covering the appliance until the installation is fully completed.
• Consult a qualied and trained installer or check local codes for makeup air requirement, if any.
STEP 3
Plan Desired Location

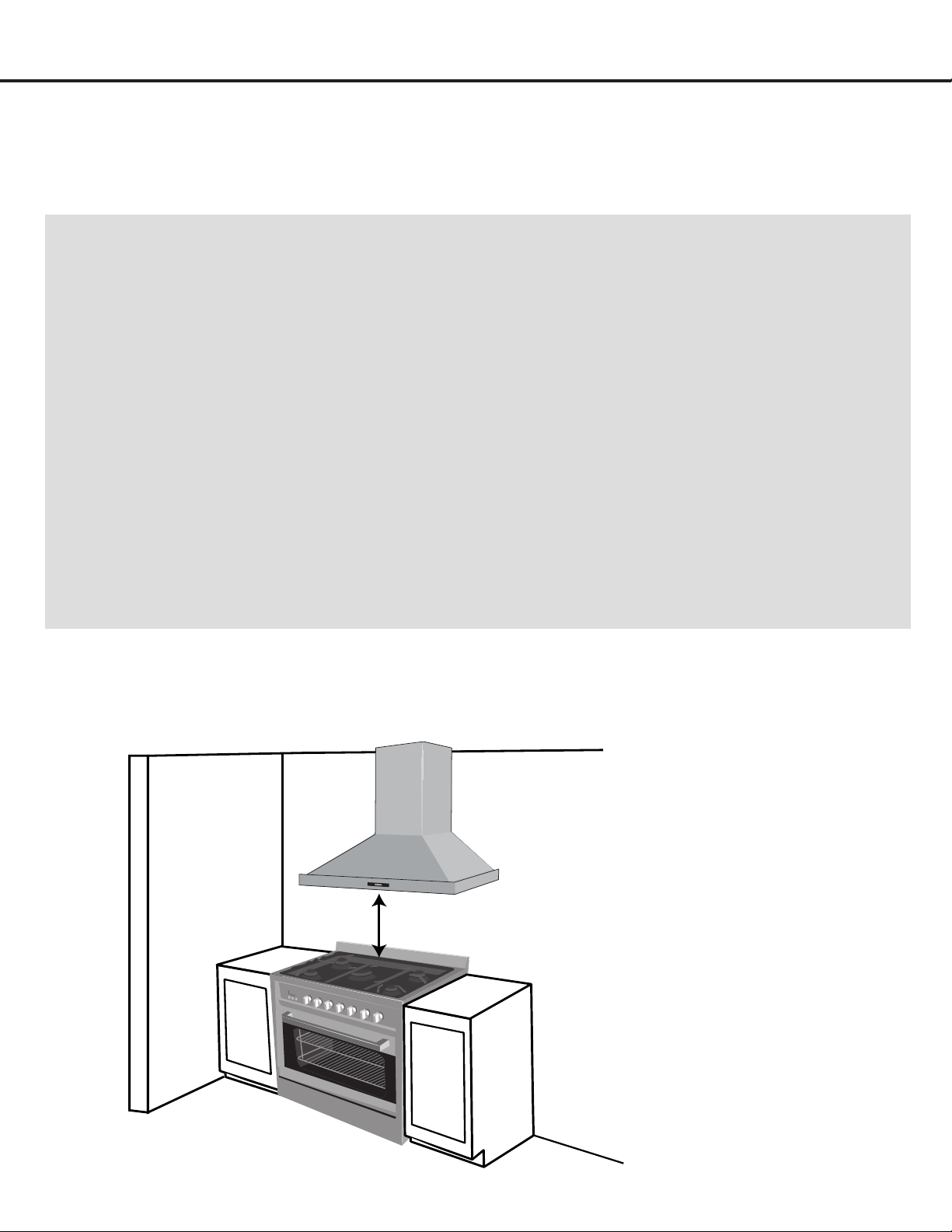

• Plan a desirable location that ts all requirements in the Safety and Installation sections of this manual. Plan where
and how the ductwork will be installed.
• A straight or short duct run will allow the unit to perform most efciently. Long duct runs, elbows and transitions
will reduce the performance of the unit.
• To reach a 9 foot (2.74 m) ceiling make sure hood is installed 30 inches ( 76.2 cm) from cooking surface. If
you have a ceiling greater than 9 ft (2.74 m), please visit anconahome.com to order a chimney extension.
• If ductwork is already installed: ensure ductwork is free from debris and measures 6 in. (15.3 cm), (1 in. (2.5 cm)
reducers may be used but more than 1 in. (2.5 cm) will overwork the motor and the unit will not function properly).
STEP 4
Test Unit Functions
• Plug the unit in and test all of the functions before installing.
• Placetherangehoodonaat,stablesurface.Connecttherangehoodtoadesignatedstandardoutlet(120-Volt,60Hz,
AC only) and turn on the range hood. Verify all operations of the range hood by referring to Range Hood Operations.
• Turn power On in control panel.
• Check all lights and fan operations.
WARNINGS:
• PleasemakesuretoreadALLsafetyinstructionsonpages4and5.
• Usetwoormorepeopletomoveandinstallrangehood.
• Failuretofollowtheseinstructionscanresultinseriousinjury.
Installation

— 10 —
Installation
STEP 5
Venting Installation Guidelines
• The following steps are for exterior ventilation.
Height and Clearance
24” (610 mm) Min / 30” (762 mm) Max
To reach 9 ft (2.74 m) ceiling, make sure
range hood is installed at least
30” (762 mm) from cooking surface.
IMPORTANT:
• Vent system must terminate to the outside (roof or side wall).
• DONOT terminate the vent system in an attic or other
enclosed area.
• DONOTuse4in.(10.2cm)laundry-typewallcaps.
• Usemetal/aluminumventonly.Arigidmetal/aluminum
vent is recommended.
• DONOTuseaplasticvent.
• Alwayskeeptheductcleantoensureproperairflow.
• Calculatethefollowingfiguresbeforeinstallation:
1. Distance from the floor to the ceiling
2. Distance between the floor and the countertop/stove
3. A distance of 24 in. to 30 in. (61 - 76.2 cm) is
recommended between stove top and the bottom of
range hood. 30 in. (76.2 cm) minimum is required for
gas stove tops.
4. Height of hood and duct cover.
For the most efficient and quiet operation:
• Itisrecommendedthattherangehoodbevented
vertically through the roof through 6 in. (15.3 cm) or
bigger round metal/aluminum vent work.
• Thesizeoftheventshouldbeuniform.
• Usenomorethanthree90°elbows.
• Make sure there is a minimum of 24 in. (61 cm) of
straight vent between the elbows if more than one
elbow is used.
• DONOTinstalltwoelbowstogether.
• The length of vent system and number of elbows should be
kept to a minimum to provide efficient performance.
• Theventsystemmusthaveadamper.Ifrooforwall
cap has a damper, you may remove damper flaps from
damper to increase air flow.
• Onlyoneflangeisneededintheairductsystem,either
on top of the motor or outside.
• Use silver tape or duct tape to seal all joints in the
vent system.
• Use caulking to seal exterior wall or roof opening
around the cap.

— 11 —
Installation
• This range hood is factory set for venting through the roof or wall.
• Ventworkcanterminateeitherthroughtherooforwall.Toventthroughawall,a90°elbowisneeded.
IMPORTANT:
• NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or
garages. All exhaust must be ducted to the outside.
• Use metal/aluminum duct work only.
• Fasten all connections with sheet metal screws and tape all joints with certied Silver Tape or Duct Tape.
• Use caulking to seal exterior wall or roof opening around the cap.
TOP VENTING
ROOF EXHAUST
TOP VENTING
WALL EXHAUST
IMPORTANT:
• A minimum of 6 in. (15.3 cm) round or 3-1/4 x 10 in. (25.4 cm
x 8.3 cm) rectangular duct (purchased separately) must be
used to maintain maximum airflow efficiency.
• Alwaysuserigidtypemetal/aluminumductsifavailableto
maximizeairflowwhenconnectingtoprovidedduct.
• PleaseuseDuctRunCalculationbelowtocompute
total available duct run when using elbows, transitions
and caps.
• ALWAYS,whenpossible,reducethenumberor
transitions and turns. If long duct run is required,
increaseductsizefrom6in.(15.3cm)to7in.(17.7
cm) or 8 in. (20.3 cm). If a reducer is used, install a
long reducer instead of a pancake reducer. Reducing
ductsizewillrestrictairflowanddecreaseairflow,thus
reduceductsizeasfarawayfromopeningaspossible.
• Ifturnsortransitionsarerequired,installasfaraway
from opening and as far apart, between two (2), as
possible.
• Minimummountheightbetweenstovetoptohood
bottom should be no less than 24-inch (61 cm) for
electric cook tops and minimum of 30-inch (76.2 cm)
for gas stove tops and no higher than 30-inch (76.2 cm)
for electric cook tops.
• Itisimportanttoinstallthehoodatthepropermounting
height. Hoods mounted too low could result in heat
damageandfirehazard;whilehoodsmountedtoohigh
may be hard to reach and will lose its performance and
efficiency.
• Ifavailable,alsorefertostovetopmanufacturer’s
height clearance requirements and recommended
hood mounting height above range.

— 12 —
Installation
STEP 6
Preparations
NOTE: To avoid damage to your hood, prevent debris from entering the vent opening.
• Determine and mark the center line on the ceiling or wall where the range hood will be installed.
• Make sure there is proper clearance within the ceiling or wall for exhaust vent.
• Duetotheweightandsizeofthisunit,pleasemakesurethatthesupportsystemorframeworkbeingusedisstableand
secure in the ceiling or wall.
• Put a thick, protective covering over counter top, cook top or range to protect from damage or dirt.
• Removeanyhazardousobjectsaroundtheareawheninstalling.
CAUTION
If moving the cooking range is necessary to install the hood, turn OFF the power on an electric range at the main
electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE.

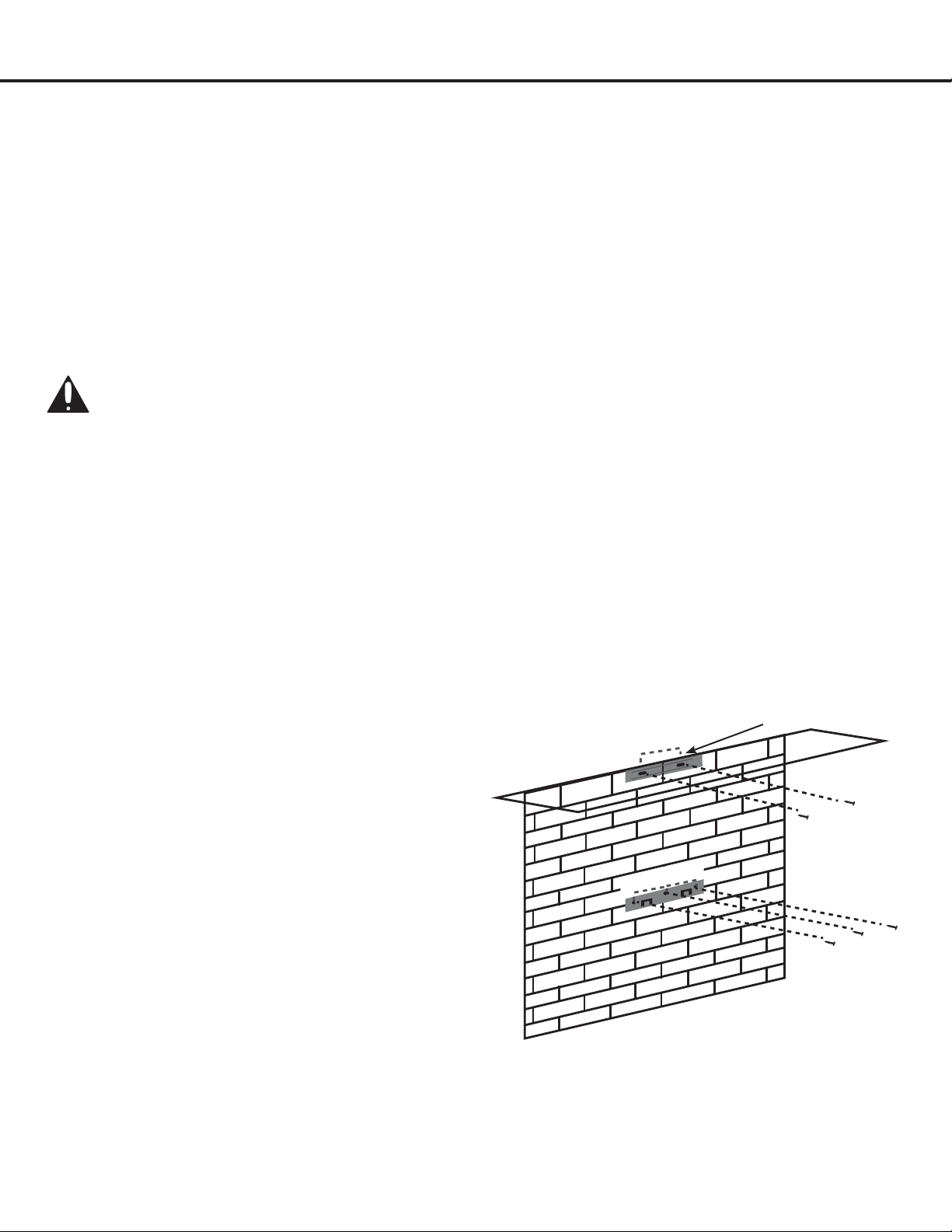

STEP 7
Installing the Hood Mounting Bracket
• Use a pencil to mark on the wall the desired placement of the range hood mounting screws.
• The range hood will be installed on top of this bracket (See Figure #1).
• Using references in Height & Clearance on Page 10 and Measurements and Diagrams on Page 7, drill 3 holes that will
be used to x the hood mounting bracket.
STEP 8
Installing the Upper Chimney Brackets
• Drill2holesaccordingtothesizeoftheuppermounting
bracket. The upper mounting bracket should be positioned
ushwiththetopofthelowerchimney(SeeFigure#1).
• Screw upper and hood mounting brackets in tightly.
120
100 100
Fig #1
Flush to the ceiling

— 13 —
Installation

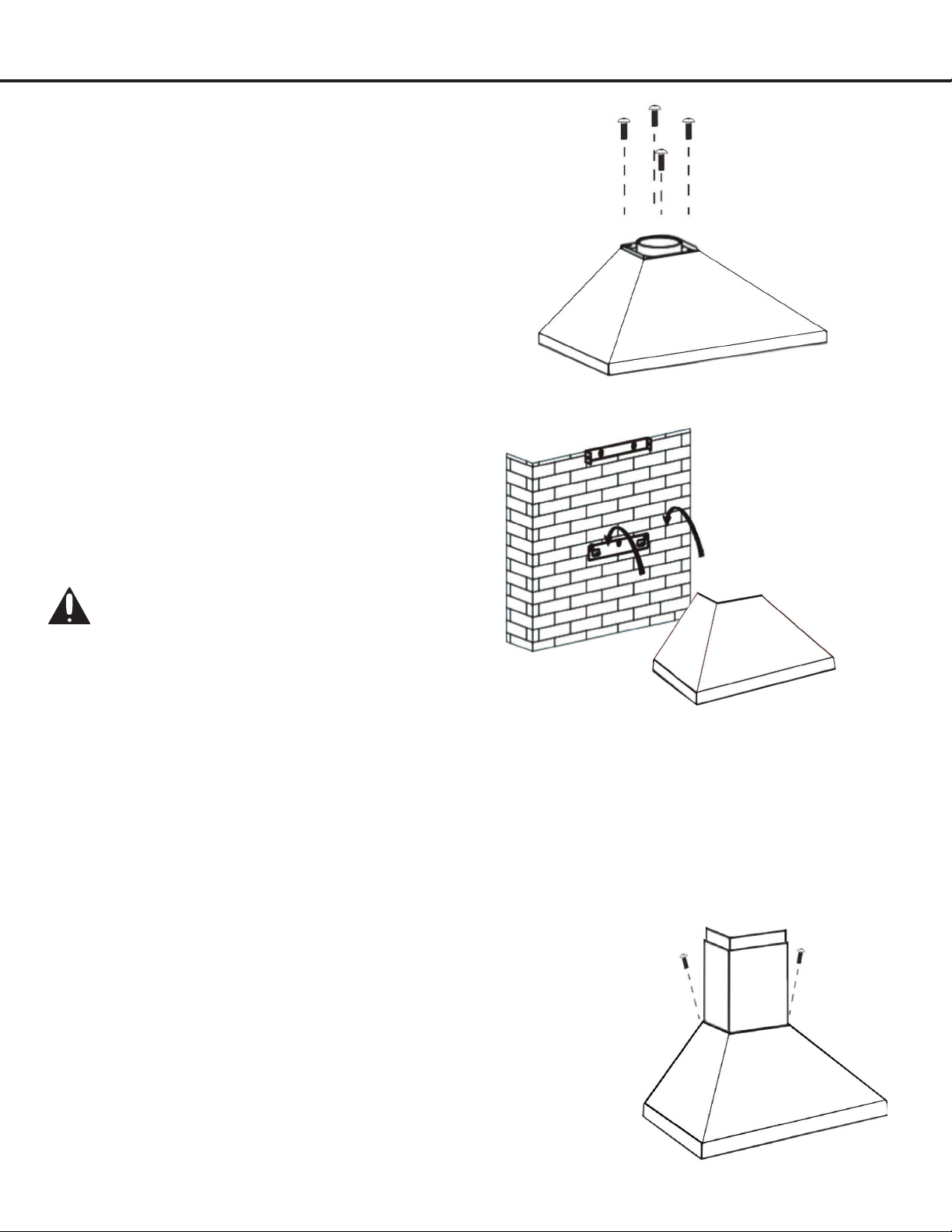

STEP 10
Mount Range Hood onto Wall
• Hang the range hood on the hooks of the hood
mounting bracket. (See Figure #3)
• Screw the range hood to the wall.
CAUTION - Make certain the range hood is
secure before releasing!
STEP 9
Venting
• Fix the damper on the top vent of hood with 4 screws (C).
(See Figure #2)
• If ventilation system is equipped with an external air
duct with a different diameter, apply a reduction tting.
However, for maximum performance and safety, a 6 in.
round ducting is recommended.
Fig #2
Fig #3
STEP 11
Connect Ductwork
• Attach ductwork to damper. Secure the ductwork with duct tape to make sure joints are secure and air-tight.
• Donotinstalltheducttapetootightlyasthismaypreventthedamperapsfromopeningwhichwilloverworkthemotor
and cause improper functioning of the unit.
• Fasten all connections with sheet metal screws and tape all joints with certied aluminum or foil tape. Use caulking to
seal exterior wall or roof opening around the cap.
STEP 12
Install Chimney
• Place chimney on top of the main housing.
• Remove the protective coating from the upper chimney. Carefully slide the
upper chimney down into the lower chimney. Make sure upper chimney is
moving freely.
• Use two (2) screws (D) to x lower chimney to range hood (Figure #4).
Fig #4

— 14 —
STEP 13
Connect to AC
• Connect AC plug into a grounded AC outlet having 120V,
60Hz.Placetheoutletatamaximumdistanceof33-1/2in.
(851 mm) from where the cord exits on the hood.
3-Pronged Plug
Ground Plug
3-Prong Receptacle
IMPORTANT:
• Observeallgoverningcodesandordinances.
• It is the customer’s responsibility to contact a qualified electrical installer.
• Ifcodespermitandaseparategroundwireisused,itisrecommendedthataqualifiedelectriciandeterminethat
thegroundpathisadequate.A120-Volt,60Hz,AC-only,fusedelectricalsupplyisrequiredonaseparate15-amp
circuit, fused on both sides of the line.
• DONOTgroundtoagaspipe.
• Checkwithaqualifiedelectricianifyouarenotsurethattherangehoodisproperlygrounded.
• DONOThaveafuseintheneutralorgroundcircuit.
IMPORTANT: Save this Installation Guide for electrical inspector’s use.
GROUNDING INSTRUCTIONS:
• Thisappliancemustbegrounded.Intheeventofanelectricalshort-circuit,groundingreducestheriskofelectric
shock by providing an escape wire for the electric current.
• Thisapplianceisequippedwithacordhavingagroundingwirewithagroundingplug.Theplugmustbeplugged
into an outlet that is properly installed and grounded.
WARNING: Improper grounding can result in a risk of electric shock.
• Consultaqualifiedelectricianifthegroundinginstructionsarenotcompletelyunderstood,orifdoubtexistsasto
whether the appliance is properly grounded. DO NOT use an extension cord. If the power supply cord is too short,
have a qualified electrician install an outlet near the appliance.
Installation
Fig #6
• Hook lower chimney bracket to lower
chimney. (See Figure #5)
• Screw lower mounting bracket onto
wall.
• Screw the upper chimney to the
upper mounting bracket (Screw D).
(See Figure #6)
Fig #5

— 15 —
Installation
STEP 14
Install Filters
To install lters follow the steps below (See Figure #7):
• Angle the lter into slots at the back of the hood.
• Push the button on handle of the lter.
• Release the handle once the lter ts into a resting position.
• Repeat to install all lters.
Cleaning Filters
IMPORTANT: Drain oil from bafes, spacers, lters, oil tunnels, oil containers before oil and residue overow!
• Removeallbafes,spacers,lters,greasetray,andoilcontainersanddiscardoilandresidue.
• Washwithwarmsoapywater.NOTE:Stainlesssteelbafes,spacersandoiltunnelaretoprackdishwashersafe.
• Dry thoroughly before replacing and follow directions for installation in reverse.
• Filters should be cleaned after every 30 hours of use.
• Should lters wear out due to age and prolonged use, replace with a new lter.
Fig #7
Maintenance

— 16 —
Operation
Troubleshooting
Problem Possible Cause
If the range hood or LED light
does not operate after installation:
Check if the range hood has been plugged in, make sure that all power
has been turned back ON, fused not blown and all electrical wiring are
properly connected.
The range hood vibrates when the
blower is on:
The range hood might not have been secured properly on to the ceiling or
wall.
The blower or fan seems weak: Checkthattheductsizedusedisatleast6in.(15.3cm)or31/4x10in.
(25.4 x 8.3 cm). Range hood WILL NOT function efciently with insufcient
ductsize.Forexample:7in.(17.7cm)ductover6in.(15.3cm)holeand
loosely secured.
Checkifductiscloggedorifdamperunit(half-circularange)isnot
installed correctly or opening properly. A tight mesh on a side wall cap unit
mightalsocauserestrictiontotheairow.
The lights work but the fan is not
spinning at all, is stuck or is rattling:
The fan might be jammed or scraping the bottom due to shipping damage.
Please contact us immediately.
The hood is not venting out
properly:
Make sure the distance between the stove top and the bottom of the hood
is within 24 in. and 30 in. (61 and 76.2 cm) in distance.
Reduce the number of elbows and length of duct work. Check if all joints
are properly connected, sealed, and taped.
Power settings
uPress the button once and the motor starts to operate at Low speed.
v
Press the button again and the motor will
reach Medium speed.
w
Press the button once more and the motor will
reach High speed
xPress the button to lower speeds in succession until the motor stops working (power off).
Timer Function
The control module provides the option to run the motor for
a predetermined time period in order to evacuate remaining
vapors from the kitchen.
uPress the button while the motor is running. The motor will shut off automatically after 15 minutes.
Lights
uPress the light button to turn LED lights on and off.
3 minute delay LightOff /
Slow down
On /
Speed Up
LCD

— 17 —
16
17
18
19
20
21
22
1
6
8
9
54
3
2
7
23
24
10
15
11
12
13
14
Range Hood Assembly
Number Part
1 Front panel
2Bafelter(2or3pcs)
3 Touch switch board
4 Touch switch box bracket
5 PCB of Touch switch
6 Touch switch box
7 LED puck light
8 Stainless steel frame
9 Blower assembly bracket
10 Blower assembly
11 Electrical box cover
12 PCB of Touch switch
13 Electrical box base
14 Bracket of electrical box
15 Rear board
16 Body assembly
17 Top tray
18 Plug
19 Lower chimney
20 Upper chimney
21 Lower chimney bracket
22 Upper chimney bracket
23 Lamp Guide wire
24 Switch Guide wire

— 18 —
Assembly
Circuit Diagram
Electrical Assembly
Number Part
1 Electrical Box Bracket
2 Electrical Box Base
3 PCB
4 Capacitor
5 Electrical Box Cover
100.00 mm
60.00 mm

— 19 —
Use and Care Information
Operations
• Read and understand all instructions and warnings in this manual before operating the appliance. Save these
instructions for future reference.
• Always leave safety grills and lters in place. Without these components, operating fans could catch on to hair, ngers
and loose clothing.
• NEVER dispose cigarette ashes, ignitable substances, or any foreign objects into fans.
• NEVER leave cooking unattended. When frying, oil in the pan can easily overheat and catch re. The risk of self
combustion is higher when the oil has been used several times.
• NEVERcookon“open”amesundertherangehood.Checkdeep-fryersduringuse;superheatedoilmaybe
ammable.
Cleaning
• Thesaturationofgreasyresidueinthefanandltersmaycauseincreasedinammability.Keepunitcleanandfreeof
grease and residue build-up at all times to prevent possible res.
• Filters must be cleaned periodically and free from accumulation of cooking residue (see Cleaning Instructions below).
Old and worn lters must be replaced immediately.
• DO NOT operate fans when lters are removed. Never disassemble parts to clean without proper instructions.
Disassembly is recommended to be performed by qualied personnel only. Read and understand all instructions and
warnings in this manual before proceeding.
SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating!
For optimal operation, clean range hood and all bafe/spacer/lter/grease tray/oil container regularly. Regular care
will help preserve the appearance of the range hood.
Cleaning Exterior Surfaces
• Clean periodically with hot soapy water and clean cotton cloth. DO NOT use corrosive or abrasive detergent (e.g. Comet
Power Scrub®, EZ-Off® oven cleaner), or steel wool/scoring pads, which will scratch and damage the stainless steel
surface. For heavier soil use liquid degrease such as “Formula 409®” or “Fantastic®” brand cleaner.
• If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of the hood. Avoid getting
cleaning solution onto or into the control panel. Follow directions of the stainless steel cleaner. CAUTION: DO NOT
leave on too long as this may cause damage to hood nish. Use soft towel to wipe off the cleaning solution, gently
rub off any stubborn spots. Use dry soft towel to dry the hood.
• After cleaning, you may use non abrasive stainless steel polish such as 3M® or ZEP®, to polish and buff out the
stainless luster and grain. Always scrub lightly, with clean cotton cloth, and with the grain.
• DO NOT allow deposits to accumulate or remain on the hood.
• DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface and cause rusting.
• DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel
for extended periods. Many of these compounds contain chemicals, which may be harmful.
• Rinse with water after exposure to these compounds and wipe dry with a clean cloth.

— 20 —
Please register your product warranty by visiting the Ancona Home website.
Canada & USA
Phone: [phone]
Fax: [phone]
Email: [email protected]
Website: www.anconahome.com
Ancona is in association with Mr Appliance for all after sales service calls.
Please contact their service provider or visit their website:
Phone: [phone]
Website: www.mrappliance.com
© 2018 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modied or distributed.
MAAN1524-01
