PRODUCT MANUAL
E1 Single Speed
Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
RON-WPM-710474-E1-28/34/40ST-Rev.5
FOR USE WITH
Serial No.: PS______________________
Winch Versions:
28 (V.3.2>)
34 (V.1.0>)
40 (V.3.4>)
•RA2028001300
•RA2028001400
•RA2028011300
•RA2028011400
•RA2028211300
•RA2028211400
•RA2034001300
•RA2034001400
•RA2034011300
•RA2034011400
•RA2034211300
•RA2034211400
•RA2040001300
•RA2040001400
•RA2040011300
•RA2040011400
•RA2040211300
•RA2040211400

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
p2
CONGRATULATIONS
You have purchased a high quality ANDERSEN Stainless Steel WinchTM .
It is a result of more than 60 years of experience and expertise in
producing winches for sailboats. This winch oers a high level of
performance and functionality, and will provide many years of safe
and easy sail handling.
CONTENTS
Motor unit included components_____________________________ 3
Required installation tools and supplies_______________________ 3
Assembly exploded view______________________________________ 4
Parts list _______________________________________________________ 5
Installation instructions ____________________________________ 6-10
Wire, circuit breaker & battery capacity requirements _______ 10
Electrical connection diagram ________________________________ 11
Troubleshooting __________________________________________ 12-13
Service & maintenance ______________________________________ 14
Installation dimensions – Sizes 28 & 34______________________ 15
Installation dimensions – Size 40 ____________________________ 16
Drilling template – Sizes 28 & 34 ____________________________ 17
Drilling template – Size 40 ___________________________________ 18
Safety notices ________________________________________________ 19
Worldwide distribution and service __________________________ 20
Warranty _____________________________________________________ 20

p3
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
FEATURES
INCLUDED REQUIRED
• Highestqualitywinchfeaturingastainless
steel drum for ultimate durability and style,
vertical Power Ribs™for maximum grip and
minimum rope wear, and superior engineering
for reliability, long service life and low
maintenance.
• Easytoinstallandservice.Themotorunithas
internal controller and contactors so electrical
connection is simple. The winch can be
serviced without removing it from the deck,
independent of the motor unit.
• Illuminated“intelligent”pushbuttonwith
integrated LED to indicate system power on,
and in conjunction with the controller will flash
status codes that assist with trouble shooting.
• High quality European engineered and
manufactured motor, with matched gearbox
for optimal speed and load capacity.
• Unrivalledlevelsofmonitoringandprotection
including: Integrated Overload Protection,
Thermal Overload Protection, Accidental
Start Protection, Low Voltage Detection,
Continuous Run Time Limiting.
• Themotorunitcanberotatedrelativetothe
winch to suit restricted under-deck space
(8 positions at 45° increments)
• 2speedmanualwinchoperationisalways
possible by simply inserting a standard
winch handle.
Included in your E1 Electric Motor Kit:
• Motor unit
• Deck plate [7]
• Gear wheel [3]
• Pushbuttonincl.500mm(195/8”)
control cable [A1]
• Push button Gasket [A2]
• 5 pcs. (4 for 28/34) M6 x 16mm
countersunk socket head screws [6]
• 3 pcs. #6 x 19 mm screws [A9]
• Eye-bolt M6 [A6]
• 4 mm Allen key [A4]
• 5 mm Allen key [A5]
• Pin spanner (5 mm pins) [A8]
• Product manual [A10]
• Drilling template [A3]
• Application sticker set [A7]
Numbers in [ ] above and in instructions refer
to the item number in the parts list, see page 4,5
Tools & fasteners required for installation:
• Phillips head screwdrivers - #1 & #2
• 4 mm Allen key (included)
• 5 mm Allen key (included)
• Pin spanner, 5 mm pins (included)
• Ø6.5 mm (1/4’’) drill
• Ø85 mm (3 3/8’’) hole-saw, or jigsaw
• 5 pcs. M6 (1/4’’) countersunk head bolt and
nut (length as required for deck thickness)
• 5pcs.largediameterM6(1/4”)IDwashers
or backing plate (to match drilling template)
• 10 mm AF spanner for M6 Nyloc nuts, or
7/16”AFspannerfor1/4”Nylocnuts
• Solvent (white spirits/mineral spirits) -
to clean deck etc prior to applying sealant
• Sealing compound
• Ø3 mm (1/8’’) drill
• Ø25 mm (1’’) drill or hole saw
• Wire crimping tool/pliers
• Marine grade electrical power wire with
Ø8 mm terminals (see table page 10)
• Circuit breaker/fuse; available separately
(see table page 10)
• Cable fastening clips
Please read this product manual & the relevant winch manual fully before installation or operation.

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
p4
EXPLODED VIEW
28/34/40 ST E1 SINGLE SPEED 12V/24V
A1
A3
A2
A4
A5
A6
A10
A9
A7
* When supplied as an E1 Electrical Motorised Winch, this gear wheel shown as item 3 in the diagram above will
already be fitted inside the winch. The gear wheel has a hexagonal section that protrudes from the winch base
to engage in the motor unit drive shaft. When supplied as an E1 Electric Conversion Kit only, this gear wheel is
supplied separately and must replace the existing gear wheel in the winch - see pages 6-10 for instructions.
A8
20
3
4
5
6
7
8
9
22
23
10
16
11
12
13
23
21
14
24
15
17
18
19
2
1

p5
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
PARTS LIST
ITEM NO. QTY DESCRIPTION PART. NO.
1 1 Motor E1 1000W 12V, incl Controller 777400
1 1 Motor E1 1000W 24V, incl Controller 777410
2 1 Gear box VF-EP 49, i=14 P71 B14 776200
3 1 Gear wheel 28ST E1 v.3.2 534160
3 1 Gear wheel 34ST E1 v.3.2 534200
3 1 Gear wheel 40ST E1 v.3.4 532860
4 1 Grub screw DIN916-A4-M5X8
5 1 Clamping ring 584502
6 4 Screw (28/34ST E1) DIN7991-A4-M6X16
6 5 Screw (40ST E1) DIN7991-A4-M6X16
7 1 Deck plate 28/34ST E1 990400
7 1 Deck plate 40ST E1 992500
8 1 O-Ring RD100074
9 1 Sealing ring RD100169
10 1 Plain bearing 823100
11 1 Stop ring 775890
12 1 Drive shaft 822901
13 2 Pawl 713200
14 2 Spring 713300
15 1 Plain bearing RD100439
16 1 Drive shaft housing 776100
17 1 Compression bearing 775890
18 1 Ratchet gear wheel 776110
19 1 Key DIN6885-A-8x7x20
20 4 Screw DIN912-A4-M6x55
21 4 Washer DIN125-A4-Ø6,4
22 2 Nut DIN439-A4-M6
23 4 Washer DIN125-A4-Ø6,4
24 2 Screw DIN933-A4-M6X20
25 1 Key DIN6885-A-5x5x15
A1 1 Push button, with plastic cover RA582000
A2 1 Push button gasket 735050
A3 1 Drilling template 28/34ST E1 RD100327
A3 1 Drilling template 40ST E1 RD100525
A4 1 Allen key 4mm 593200
A5 1 Allen key 5mm 592800
A6 1 Eye bolt M6 RD100896
A7 1 Push button labels RD100029
A8 1 Pin spanner, Ø5mm pins RD738000
A9 3 Screw #6 x 19mm RD100025
A10 1 Product Manual 710474
RELATED ITEMS - Sold separately
Push button, with St/St cover RA582010
Push button, with St/St cover with hole RA582020
Circuit breaker 70Amp
(suits 28/34/40 ST E1 24 Volt) RA590070
Circuit breaker 150Amp
(suits 28/34 ST E1 12 Volt) RA590150
Circuit breaker 120Amp
(suits 40 ST E1 12 Volt) RA590120
28/34/40 ST E1 SINGLE SPEED 12V/24V

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
p6
STEP 1 - Positioning the winch and motor unit
STEP 2 - Fitting the deck plate
INSTALLATION INSTRUCTIONS
• Position the winch drilling template [A3] in the required position on the deck, ensuring that there
is adequate flat space for the deck plate/ winch base.
• The 28 and 34 ST winches have only one self-tailing arm position, so it is important to rotate the
winch template to give the required self-tailing arm position (as required for operation, refer page
17). The 40ST winch has the option of eight dierent self-tailing arm positions as indicated on the
drilling template (refer page 18).
• Considering the product dimensions, shown on pages 15 & 16, check that there is adequate
space below deck for the motor unit. You may choose to drill a small pilot hole to indicate the
position of the center of the drive shaft, to assist with this.
*Note: The motor unit can be installed in eight positions around the center of the drive shaft
(i.e. at 45° increments), to facilitate fitting the motor unit into restricted under-deck cavities.
See pages 15 & 16 for the minimum motor oset dimensions at the various positions. Placing the
deck plate on the motor unit in the various positions prior to installation can assist with visualising
the motor position options.
*Note: To ensure the correct functioning of the winch, it should be positioned with the correct
line entry angle of 3-8° below horizontal. Refer to the winch product manual for details of
correct line entry angle and self-tailing arm positioning.
• After it has been confirmed that there is adequate space for the winch above deck, and for the
motor unit below deck;
• Drill Ø6.5mm holes for the M6 deck plate mounting bolts as per the drilling template [A3].
DrillØ9/32”holesif1/4”boltsarebeingused.
• Drill or cut a Ø85mm (3 3/8’’) hole for motor drive shaft housing as per the drilling template.
*Note: Clean the deck hole before attempting the install the motor so that
the motor flange does not catch splinters of fiberglass or wood when being inserted through
the deck. Clean the deck with a suitable solvent to ensure the sealant can adhere properly.
• Apply sealant to the deck where the deck plate will be fitted. For aluminium boats use a galvanic
isolating ring/gasket.
• FitthedeckplatetothedeckusingappropriatelengthM6(or1/4”)countersunkheadbolts,
large backing washers or plate, and Nyloc nuts.

p7
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
INSTALLATION INSTRUCTIONS
STEP 3
Motor unit
lifting eye bolt

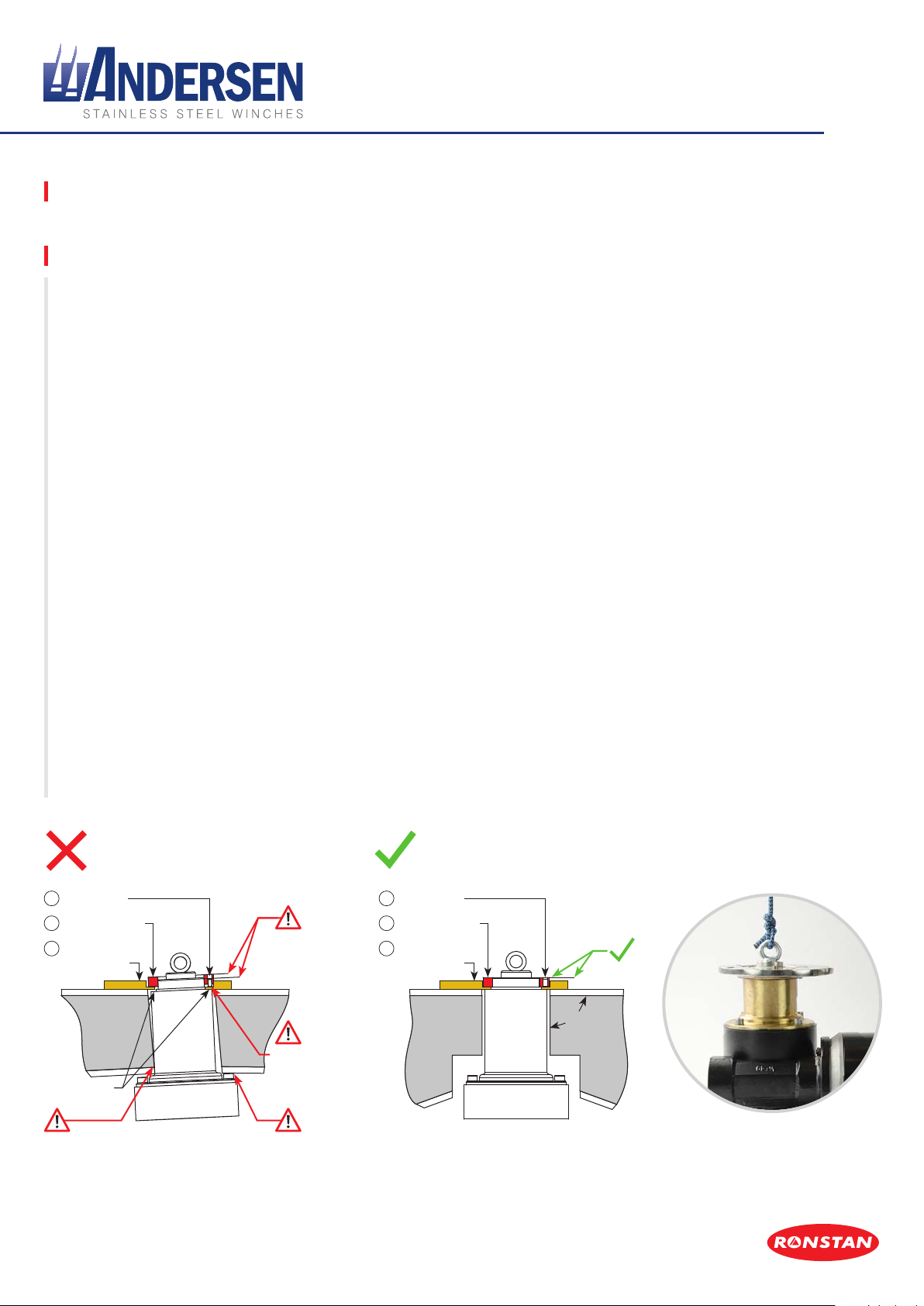

Correct mating of drive shaft
housing top flange with
underside of deck plate
Incorrect mating of drive
shaft housing top flange with
underside of deck plate
*Note: It is extremely important that the motor is aligned correctly with the winch.
Non-aligned motors will be noisy and gear wear will be accelerated.
*Note: It is important that two or more people are involved with Step 3.
• Remove clamping ring [5] from drive shaft housing [16] of motor unit.
• Fit the supplied M6 eye bolt [A6] to the top of the motor drive shaft [12] and attach a strong
rope to facilitate lifting the motor unit up into position through the hole in the deck, deck plate
and clamping ring as shown below.
• Using the rope, raise the motor unit so that the drive shaft protrudes through the large hole in
the deck and deck plate [7]. A lifting device is recommended when raising the motor unit.
• Rotate the motor unit into the required position to suit the under deck cavity, ensuring that the
motor is aligned properly – The protruding octagonal detail on the drive shaft housing [16] flange
must fit snugly into the octagonal recess in the deck plate to allow the motor top flange to fit
flush with the underside of the deck plate [7] (refer to diagrams below).
*Note: Ensure that the O-ring [8] on top of the drive shaft housing [16] is in place in its groove.
• Insure that the locking grub screw [4] in the clamping ring [5] is not protruding beyond the
upper surface of the clamping ring, when fitting the clamping ring.
• Fit and securely tighten the clamping ring [5] using the pin spanner [A8] provided.
• Tighten the locking grub screw [4] when the clamping ring [5] is securely in place.
*Note: Do not use a sealant between the flange and deck plate. An O-ring insures a waterproof
connection. Extra waterproofing can be achieved by applying sealant to the top of the deck plate
around the clamping ring after installation (make sure no sealant comes onto the sealing ring [8]).
90°
5Clamping Ring
4Grub Screw
5Clamping Ring
4Grub Screw
Motor flange
Non-aligned hole in
deck preventing correct
motor alignment
Inadequate underdeck
clearance preventing
correct motor alignment
7Deck Plate or
Winch Base
7Deck Plate or
Winch Base
Grub screw
protruding too far
Clamping ring
not parrallel to
deck plate

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
p8
INSTALLATION INSTRUCTIONS
STEP 4A
STEP 4B
• Remove winch self-tailing arm screws using 4mm Allen key [A4].
• Lift self-tailing arm and drum o the base/stem of the winch.
• Place winch base/stem on the deck plate with mounting holes aligned.
• If fitting the motor unit to an existing manual winch you will also have to replace the existing
standard lower central gear wheel in the winch with the new one [3] supplied with your motor
unit. To do this follow the instructions in STEP 4B below. If you are fitting a new E1 Electric Winch
(new winch supplied with the motor unit) the required gear wheel will already be fitted.
• Fit the winch base to the deck plate using the 4 screws [6] supplied.
• Assemble the winch in reverse order to the disassembly/removal.
*Note: It will be helpful to reference the winch Product Manual during this process
• After removing the self-tailing arm and drum.
• Remove the drive shaft from the winch by placing a locking winch handle into the socket
at the top of the drive shaft, rotating a little each direction and pulling up.
• Remove the upper gear wheel through the upper side window in the base/stem.
• Remove the lower side gear wheel shaft (retained by the flat st/st ring for 28/34ST,
and grubscrew shaft for 40ST).
• Remove the lower side gear wheel through the bottom window in the base/stem.
• Remove the lower central gear wheel.
• Remove the circlip (for 28/34ST) from the shut-o disc on the underside of the winch base
and remove the shut-o disc. On the 40ST just unscrew the shut-o disc.
• Insert the new lower central gear wheel in through the bottom of the winch in the base/stem,
so that the external hexagonal feature of the gear wheel protrudes slightly from the hole in the
winch base. Hold the winch upside down during this and the next stage to prevent the new lower
central gear falling out of the hole in the base, prior to being secured by the lower side gear.
• Refit the lower side gear and upper gear in the reverse of the disassembly process.

p9
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
INSTALLATION INSTRUCTIONS
STEP 5
*Note: The push button [A1] requires 25mm depth clearance the behind mounting surface.
The push button is supplied with 500 mm (19 5/8”) of cable and the motor unit with 1400 mm
(55 3/16’’) of control cable. If the push button to motor unit requires more than 1500 mm (59”)
of cable you will need to provide your own extension cabling.
• Select the desired position for the push button [A1].
• DrillaØ19mm(3/4”)holeatthecenterofthepushbuttonlocationanda5mm(3/16”)hole
immediatelybesideitforthebreathertube.OrdrillaØ25mm(1”)hole,ata2mmosettothe
centre of the push button location. Refer to the push button drilling diagram below.
• Using the supplied push button gasket [A2] as a template, drill 3 x Ø3 mm (1/8’’) mounting holes.
• Ensure the clear breather tube is inserted into the back of the push button.
• Fit gasket [A2] and push button [A1] in place (with hinged cover opening upwards, if mounted on
vertical surface).
• Apply a small amount of sealing compound to the mounting holes.
• Fasten push button with provided 3 pcs. #6 x 19 mm screws [A9].
HOLE
Ø5mm
(3/16’’)
for breather
tube
12mm
(1/2’’)
20mm
(3/4’’)
HOLE
Ø19mm (3/4’’)
ON CENTRE
50mm
(1 15/16’’)
Cover in open position
50mm
(1 15/16’’)
2mm
(1/16’’)
37mm
(1 7/16’’)
3 HOLES
Ø3mm (1/8’’) TYP
25mm
(1’’)
50mm
(1 15/16’’)
HOLE
Ø25mm (1’’)
OFFSET 2mm from
centre of switch
9mm
(3/8’’)
DRILLING TEMPLATE
PUSH BUTTON
NOT TO SCALE

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
p10
STEP 7
• Measure the total wire run distance from the battery to the motor unit and back to the battery.
• Refer to table below to determine the required motor unit to battery wire size (cross-section
area), circuit breaker/fuse size and total battery capacity (Ah).
• Connect the motor unit to the battery bank, with the appropriate circuit breaker or fuse in the positive
power wire line. The circuit breaker or fuse should be positioned as close to the battery as possible.
*Note: The fuse should be a “slow blow” or “long delay” type to allow for start-up current spike.
WARNING: Do not use smaller wire than recommended in the table. This can cause malfunction
of the winch and in worst case - FIRE. The wires should always be as short as possible.
------------------------------ 1 2 V . D C ------------------------------- ------------------------------ 2 4 V . D C -------------------------------
WINCH WIRE
LENGTH*
WIRE
SIZE
CIRCUIT
BREAKER
ADDITIONAL
BATTERY
CAPACITY
PER WINCH
MIN. TOTAL
BATTERY
BANK
CAPACITY
WIRE
SIZE
CIRCUIT
BREAKER
ADDITIONAL
BATTERY
CAPACITY
PER WINCH
MIN. TOTAL
BATTERY
BANK
CAPACITY
28 ST E1 0-3 m / 0-10 ft 35 mm² 150 A 114 Ah 300Ah 25mm² 70 A 60 Ah 150Ah
3-8 m / 10-27 ft 50 mm² 150 A 114 Ah 300Ah 35mm² 70 A 60 Ah 150Ah
34 ST E1 0-3 m / 0-10 ft 35 mm² 150 A 114 Ah 300Ah 25mm² 70 A 63 Ah 150Ah
3-8 m / 10-27 ft 50 mm² 150 A 114 Ah 300Ah 35mm² 70 A 63 Ah 150Ah
40 ST E1 0-3 m / 0-10 ft 35 mm² 120 A 114 Ah 300Ah 25mm² 70 A 60 Ah 150Ah
3-8 m / 10-27 ft 50 mm² 120 A 114 Ah 300Ah 35mm² 70 A 60 Ah 150Ah
* Wire length = Total cable length from battery to motor and back.
INSTALLATION INSTRUCTIONS
STEP 6
• Connect wires from push button to wires from motor unit as per electrical connection
diagram p11 Detail A.

p11
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
ELECTRICAL CONNECTION DIAGRAM
28/34/40 ST E1 SINGLE SPEED 12V/24V
Positive (+) motor terminal must be
connected to Positive (+) battery terminal.
Negative (-) motor terminal must be
connected to Negative (-) battery terminal.
If polarity is reversed the motor controller
internal fuse will blow and need to be
replaced. See page 12 for instructions.
WARNING
PUSH BUTTON
Push button cable
1. Blue = Switch
3. Blue Black = Ground
4. Red = LED
STANDARD CONNECTION
PUSH BUTTON CABLE MOTOR CABLE
1. Blue = 1. Brown
3. Blue Black = 3. Green
4. Red = 4. Yellow
Wires are marked with numbered sleeves
3
1
5
2
41
3
6
4
Motor cable
1. Brown = Switch 1
2. White = Switch 2 (used for 2 speed motors only)
3. Green = Ground
4. Yellow = LED
5. Grey = Ratiometric current output
6. Pink = Low current cutout
DETAIL A
DETAIL A
CIRCUIT BREAKER
BATTERY (12V or 24V)
WINCH MOTOR

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
p12
TROUBLESHOOTING
E1 INBUILT SYSTEM PROTECTION
The E1 Electric Motor Unit has a very high level of in-built system protection, via monitoring of
various operating parameters, its integrated controller and other protection/control componentry.
This functionality includes:
• Reversepolarityprotection
• Mechanicaloverloadprotection
• Systemlowvoltagedetection
• Thermaloverloadprotection
• Continuousruntimelimiting
• Accidentalstartprotection
REVERSE POLARITY PROTECTION
If the motor unit is inadvertently connected to the power system with reversed polarity the motor’s
internal fuse will blow. The fuse will have to be replaced before the motor will start again.
To replace the fuse:
• Removethecabletiesthatsecurethecontrolcabletotheoutsideofmotorcover.
• Removethetwoscrewsfromtheendoftheoutermotorcover(usinga#1Phillipshead
screw driver) - refer to picture below.
• Rotatetheoutermotoroutercoverslightlyandcarefullypullthemotorcoverawayfromthe
motorunit.Note:Aftertherst5mm(3/16”)theO-ringwillreleasethecover,therewillbeno
resistance the rest of the way, and very little force should be used so as not to damage the
internal wiring connections.
• Whentheoutercoverisclearoftheinternalcomponents,setittoonesidesothatthereis
no tension on the internal control cable wires.
• Replacethe5Aglassfuse,locatedonthePCBasshownbelow.
• Reassembleinreverseorder.Makesurethattheinternalcablesarenotwedgedbetweenthe
cover and internal components and again that no force should be required to replace the cover
until the O-ring is reached. Before pushing the cover on the final few millimetres over the O-ring,
make sure that the screw holes in the outer cover are aligned with the threaded rods inside.
Refer to picture below for threaded rod position.
Motor outer cover
attachment screws
5A Glass Fuse
PCB location
Threaded rods for
motor outer cover
attachment screws

p13
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
TROUBLESHOOTING
STATUS CODES
TheE1“Intelligent”IlluminatedPushButtonactswiththecontrollertoashstatuscodestoassist
in trouble shooting in the event of overload or where other system protection intervention occurs.
The push button will flash a number of times in quick succession, followed by a short break, and
then repeat again.
The number of flashes indicates the system status as follows:
• 1Flash Maximumworkingloadhasbeenreached.
The motor has cut out after reaching the pre-set maximum load for electrical operation of the
winch. Status will automatically reset to normal and the winch will be ready for use when the load
has decreased below the max limit, and the button is pressed again.
• 2Flashes Lowsystemvoltagedetected.
This will occur if the system voltage goes below 10.5 Volts (for 12V systems) and 21 Volts (for 24V
systems) in idle state, or below 7.0 Volts (for 12V systems) and 18 Volts (for 24V systems) while
running. Batteries should be recharged before the winch is used again. Status will automatically
reset to normal and the winch will be ready for use when the voltage comes back above 11.0 Volts
(for 12V systems) and 22 Volts (for 24V systems).
• 3Flashes Maxtemperatureofthemotorhasbeenreached.
The motor has overheated. Status will automatically reset to normal and the winch will be ready for
use when the motor has cooled down suciently (this may take some time). Ensuring adequate
ventilation around the motor will help to avoid overheating.
• 4Flashes Maxtemperatureofthecontrolboardhasbeenreached.
The temperature of the control board has exceeded 85°C. Status will automatically reset to normal
when the control board temperature drops below 75°C. Ensuring adequate ventilation around the
motor will help to avoid overheating.
• 5Flashes Pushbuttonerror.
Operation of the winch is prevented because a push button has been pressed when system power
up is initiated – i.e. when power is supplied to the winch by closing the CB or battery switch. To
reset status to normal, turn o the power at the circuit breaker or battery switch, ensure no push
buttons are pressed and turn on power again.
• 6Flashes Maximumcontinuousmotorruntimehasbeenreached.
The motor has been running continuously for approximately 10 minutes. To reset status to normal,
release the push button, then press it again to resume operation.
• 7Flashes Maxrelaycyclesreached.
The motor relay has been activated 20,000 times and will need to be replaced to ensure continued
safe operation. Contact Ronstan or your local Andersen Winches distributor for advice.

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
p14
SERVICE & MAINTENANCE
*Note: Always shut o power to the winch before commencing any service or
maintenance task!
• The winch on top of the electric motor unit should be serviced as per the instructions
in the relevant Winch Product Manual.
• The electric motor is a sealed unit and does not require regular servicing of internal parts.
• To avoid potential sea water ingress and to maximise the service life of your electric winch motor
unit, it is recommended to re-lubricate the motor unit drive shaft Sealing Ring [9] once a year.
Under intensive use, such as racing, charter or blue water sailing, we recommend lubrication
twice a year.

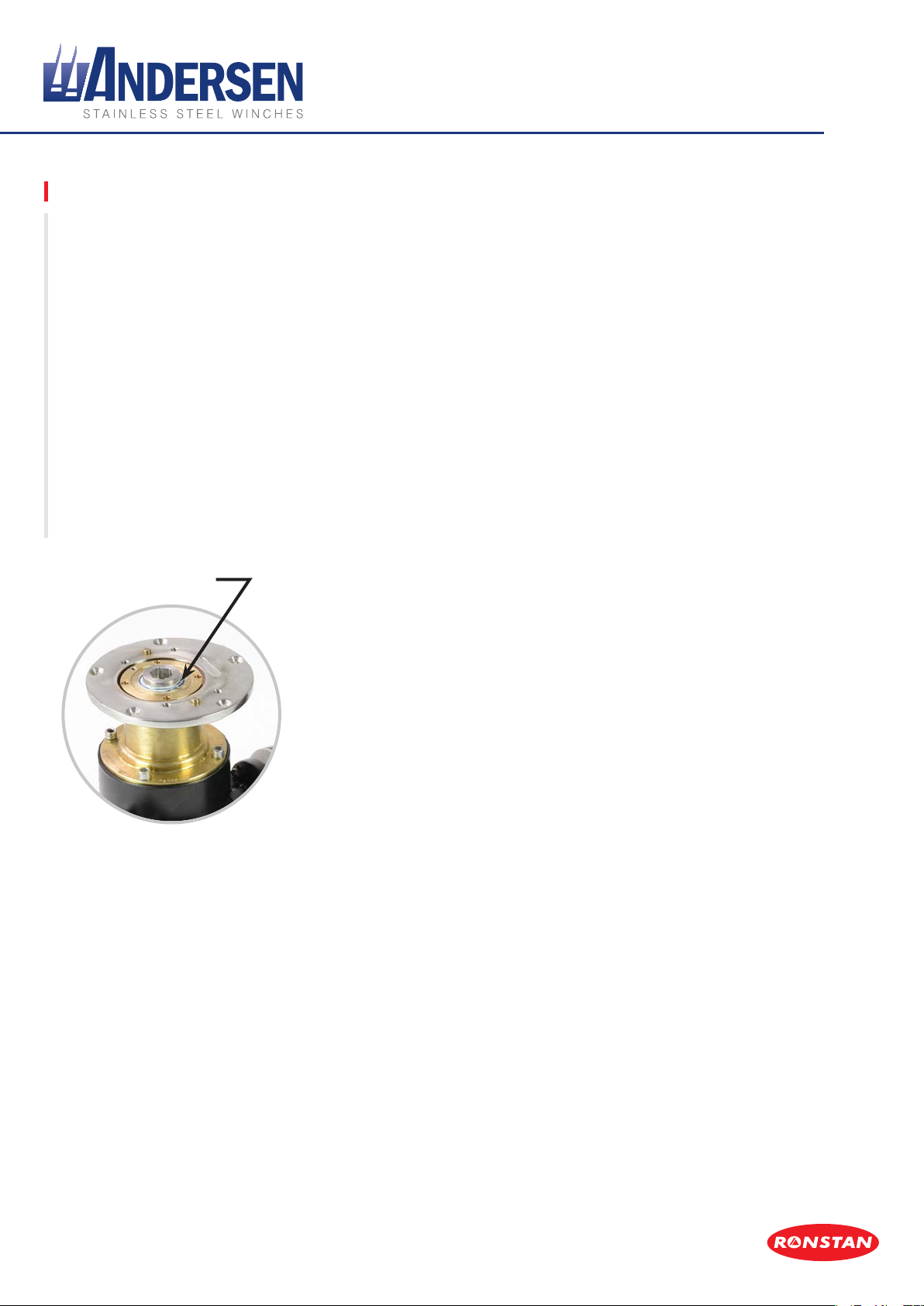

To access the Sealing Ring [9], it is necessary to remove the winch from the Deck Plate [7].
Refer to the Winch Product manual for instructions.
The Sealing Ring should be lubricated with a grease such as Klüber ISOFLEX TOPAS NB 52,
or Andersen Winch Grease.
Drive shaft
Sealing Ring

p15
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40

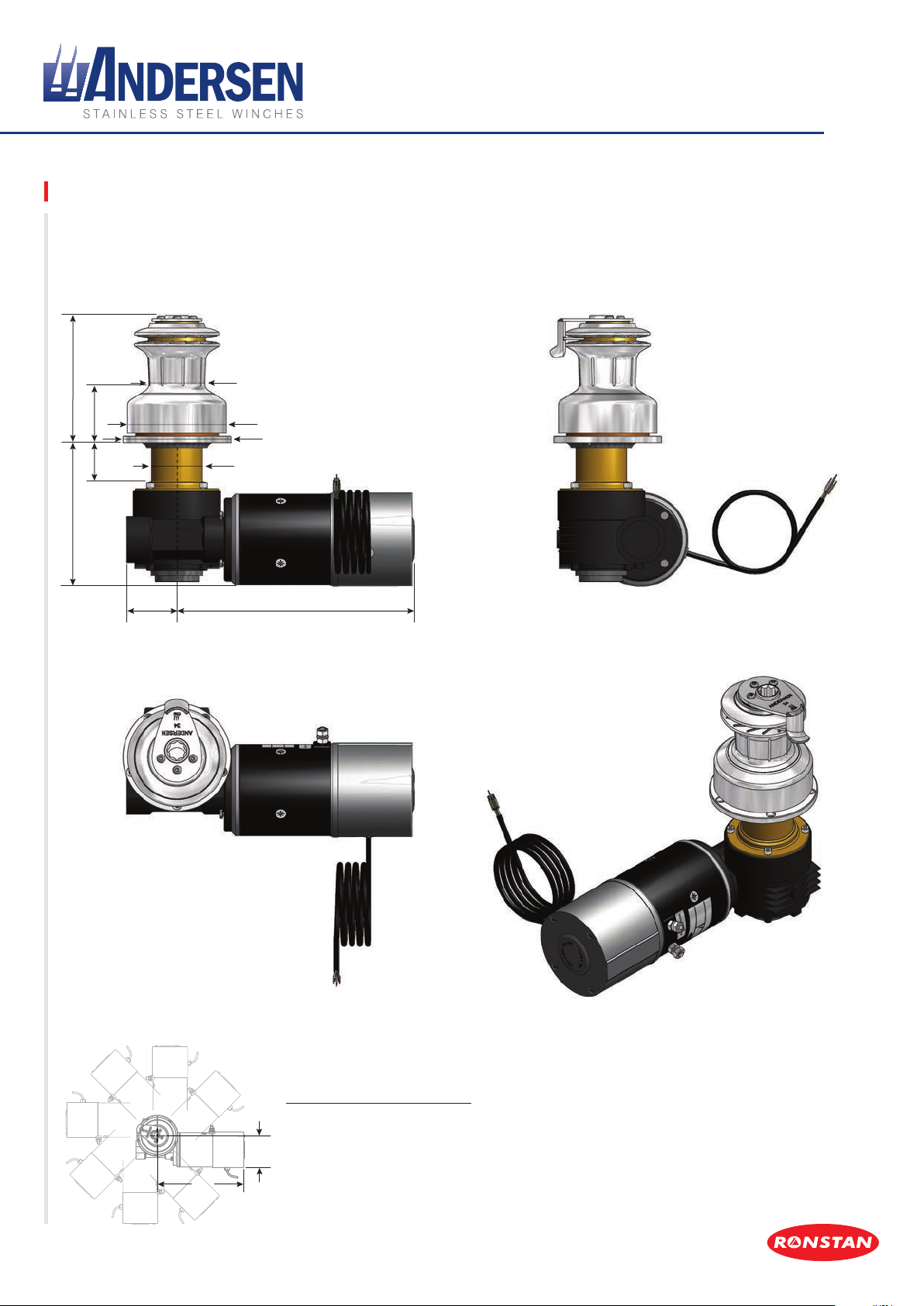

INSTALLATION DIMENSIONS
SIZE 28/34
NOT TO SCALE
Ø64mm (2 17/32”)
65mm
(2 9/16”)
300mm
(11 13/16”)
Ø136mm (5 3/8”)
Ø125mm (4 5/16”)
Ø70mm (2 3/4”)
75mm (2 15/16”)
161mm (6 5/16”)183mm (7 3/16”)
49mm
(1 15/16”)
Ø64mm (2 17/32”)
65mm
(2 9/16”)
300mm
(11 13/16”)
Ø136mm (5 3/8”)
Ø125mm (4 5/16”)
Ø70mm (2 3/4”)
75mm (2 15/16”)
161mm (6 5/16”)183mm (7 3/16”)
49mm
(1 15/16”)
Ø64mm (2 17/32”)
65mm
(2 9/16”)
300mm
(11 13/16”)
Ø136mm (5 3/8”)
Ø125mm (4 5/16”)
Ø70mm (2 3/4”)
75mm (2 15/16”)
161mm (6 5/16”)183mm (7 3/16”)
49mm
(1 15/16”)
Ø64mm (2 17/32”)
65mm
(2 9/16”)
300mm
(11 13/16”)
Ø136mm (5 3/8”)
Ø125mm (4 5/16”)
Ø70mm (2 3/4”)
75mm (2 15/16”)
161mm (6 5/16”)183mm (7 3/16”)
49mm
(1 15/16”)
MOTOR OFFSET
Minimum Ox.....290mm (11 7/16”)
Oy........149mm (5 7/8”)
Minimum Oy.......141mm (5 9/16”)
Ox......298mm (11 3/4”)
^ Values with motor in optimum position
to minimise Ox or Oy. Oy value includes
allowance for push button cable and
fitting on the motor housing. Motor can
be rotated at 45° intervals which will
change Ox and Oy values.
^
^
^
^
H
LB
D
K
J
SN
Ox
Oy
WEIGHTS
28ST 34ST
Winch only .........................3.9 kg (8.4 lb) ........ 4.1 kg (9.0 lb)
Winch & motor unit .....18.0 kg (39.7 lb) ....18.0 kg (39.7 lb)
*Extensions are available to suit thicker deck thicknesses.
See website SUPPORT section for details.

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
p16
INSTALLATION DIMENSIONS
SIZE 40
NOT TO SCALE
Ø64mm (2 17/32”)
65mm
(2 9/16”)
300mm
(11 13/16”)
Ø156mm (6 5/32”)
Ø152mm (6”)
Ø75mm (2 15/16”)
79mm (3 1/8”)
183mm (7 3/16”)183mm (7 3/16”)
49mm
(1 15/16”)
Ø64mm (2 17/32”)
65mm
(2 9/16”)
300mm
(11 13/16”)
Ø156mm (6 5/32”)
Ø152mm (6”)
Ø75mm (2 15/16”)
79mm (3 1/8”)
183mm (7 3/16”)183mm (7 3/16”)
49mm
(1 15/16”)
Ø64mm (2 17/32”)
65mm
(2 9/16”)
300mm
(11 13/16”)
Ø156mm (6 5/32”)
Ø152mm (6”)
Ø75mm (2 15/16”)
79mm (3 1/8”)
183mm (7 3/16”)183mm (7 3/16”)
49mm
(1 15/16”)
Ø64mm (2 17/32”)
65mm
(2 9/16”)
300mm
(11 13/16”)
Ø156mm (6 5/32”)
Ø152mm (6”)
Ø75mm (2 15/16”)
79mm (3 1/8”)
183mm (7 3/16”)183mm (7 3/16”)
49mm
(1 15/16”)
H
LB
D
K
J
SN
Ox
Oy
MOTOR OFFSET
Minimum Ox.....284mm (11 3/16”)
Oy.......132mm (5 3/16”)
Minimum Oy........ 124mm (4 7/8”)
Ox.......292mm (11 1/2”)
^ Values with motor in optimum position
to minimise Ox or Oy. Oy value includes
allowance for push button cable and
fitting on the motor housing. Motor can
be rotated at 45° intervals which will
change Ox and Oy values.
^
^
^
^
WEIGHTS
40ST
Winch only .......................4.9 kg (10.8 lb)
Winch & motor unit .....19.0 kg (41.9 lb)
*Extensions are available to suit thicker deck thicknesses.
See website SUPPORT section for details.

p17
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
DRILLING TEMPLATE
SIZE 28/34
NOT TO SCALE
PART.NO. RD100327
DRILLING TEMPLATE
ANDERSEN 28/34 ST E1
IMPORTANT:
On this model the self
tailing arm is fixed in
one position as shown.
72° TYP
HOLE Ø85mm (3 3/8”)
Ø120mm (4 23/32”) PCD
8mm
(5/16”)
BASE PLATE
Ø136mm (5 3/8”) PCD
HOLE Ø6.5mm (9/32”), 5-OFF

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
p18
DRILLING TEMPLATE
SIZE 40
NOT TO SCALE
PART.NO. RD100525
DRILLING TEMPLATE
ANDERSEN 40 ST E1
IMPORTANT:
On this model the self
tailing arm is fixed in
one position as shown.
72° TYP
HOLE Ø85mm (3 3/8”)
Ø130mm (5 1/8”) PCD
8mm
(5/16”)
BASE PLATE
Ø156mm (6 5/32”) PCD
HOLE Ø6.5mm (9/32”), 5-OFF
Self-tailing arm can be positioned in
8 different positions - at 45° increments

p19
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
ALL WINCHES
SAFETY NOTICES
DO NOT DISCARD
Failure to observe these precautions could result in serious injury or death.
Read All Safety Notices and Product Manuals
Do not install or operate this winch before reading and fully understanding the contents
of this Safety Notice Sheet and the Product Manual.
Stay Alert When Operating
Andersen winches are very powerful and have the potential to cause significant damage
and/or serious injury if used improperly or without due caution and vigilance.
Operators Must be Trained
Help prevent significant damage and/or serious injury by ensuring any person operating a
winch has a thorough understanding of its proper operation and is aware of the potential
hazards involved. As a minimum, all winch operators must read and understand this Safety
Notice Sheet and the Product Manual.
Particular attention is drawn to the following points:
• Children and others not qualified to operate an electric winch must be kept at a safe
distance from the winch and any rigging or fittings that are under load.
• Long hair and/or loose clothing must be tied back to avoid being caught in the winch.
• In the event of a rope override or other fault, stop the winch and turn o power before
attempting to resolve the problem.
Avoid Accidental Operation
Remove winch handles and turn o power to the winch when not in use to help avoid
unsupervised or unintentional operation. Failure to do so could result in significant
damage and/or serious injury.
Maintenance
Turn o power to the winch before performing any maintenance or service tasks. Failure
to do so could result in significant damage and/or serious injury.
Lifting Operations
The winch must not be operated with the rope in the self tailer when used in any kind of
lifting operation.
Any lifting operations should be conducted by two persons in order to maintain constant
visual contact with the object being lifted.
Furthermore the self tailer must not be used as a cleat for a rope used to lift or suspend
any object. The rope must be secured properly by tying o, or leading to a suitable fitting
such as a cleat or bollard.

Visit www.andersenwinches.com
Visit www.andersenwinches.com
WORLDWIDE DISTRIBUTION & SERVICE
WARRANTY
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 28,34,40
p20
PRODUCT MANUAL
