Andersen RA2052001300 User manual

PRODUCT MANUAL
E1 Single Speed
Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
RON-WPM-710477-E1-52ST-Rev.4
FOR USE WITH
Serial No.: PS______________________
Winch versions:
52 (V.3.0>)
•RA2052001300
•RA2052011300
•RA2052211300
•RA2052001400
•RA2052011400
•RA2052211400

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
p2
CONGRATULATIONS
You have purchased a high quality ANDERSEN Stainless Steel WinchTM .
It is a result of more than 60 years of experience and expertise in
producing winches for sailboats. This winch oers a high level of
performance and functionality, and will provide many years of safe
and easy sail handling.
CONTENTS
Motor unit included components_____________________________ 3
Required installation tools and supplies_______________________ 3
Assembly exploded view______________________________________ 4
Parts list _______________________________________________________ 5
Installation instructions _____________________________________ 6-9
Wire, circuit breaker & battery capacity requirements ________ 9
Electrical connection diagram _______________________________ 10
Troubleshooting __________________________________________ 11-12
Service & maintenance ______________________________________ 13

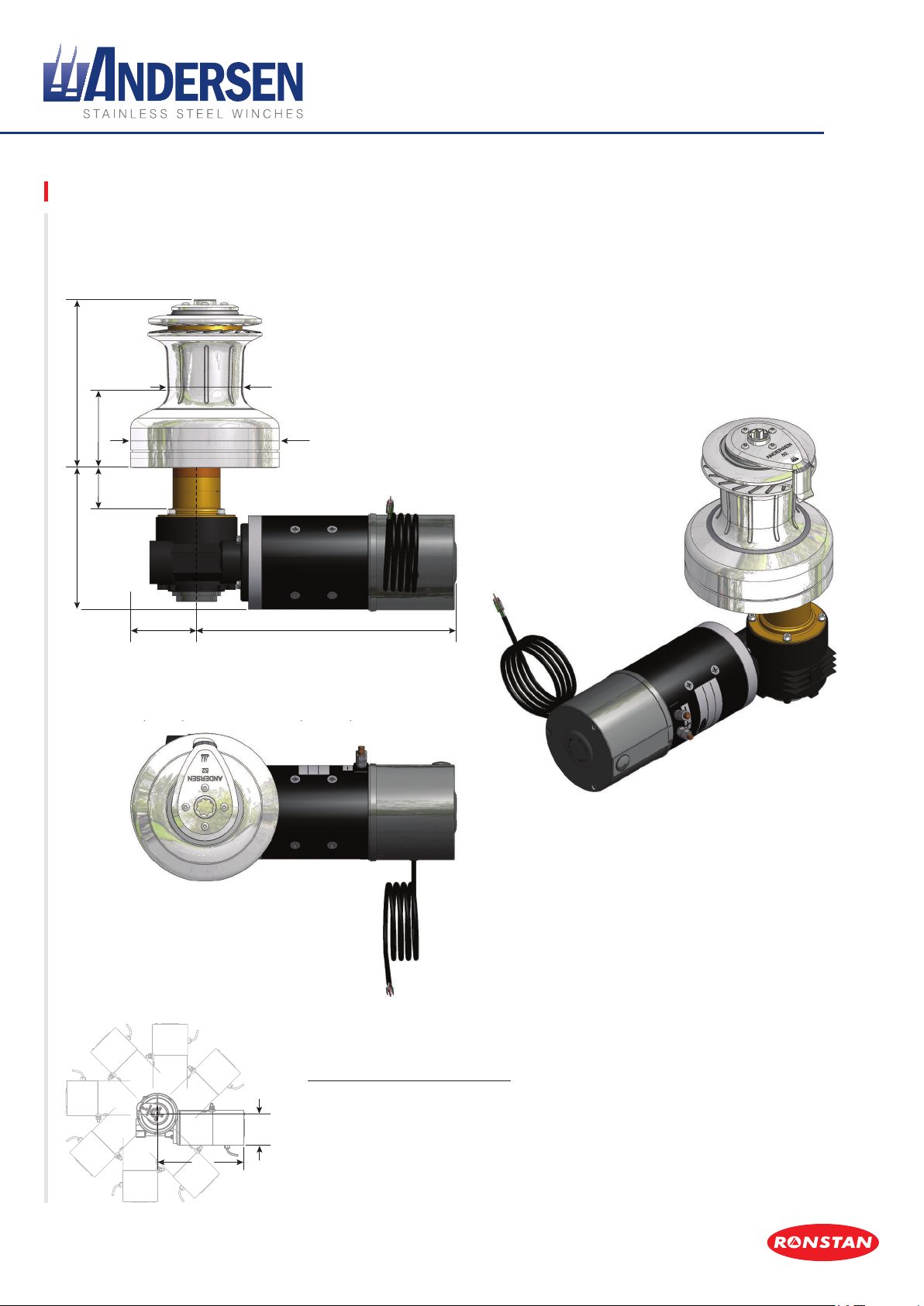

Installation dimensions – Size 52 ____________________________ 14

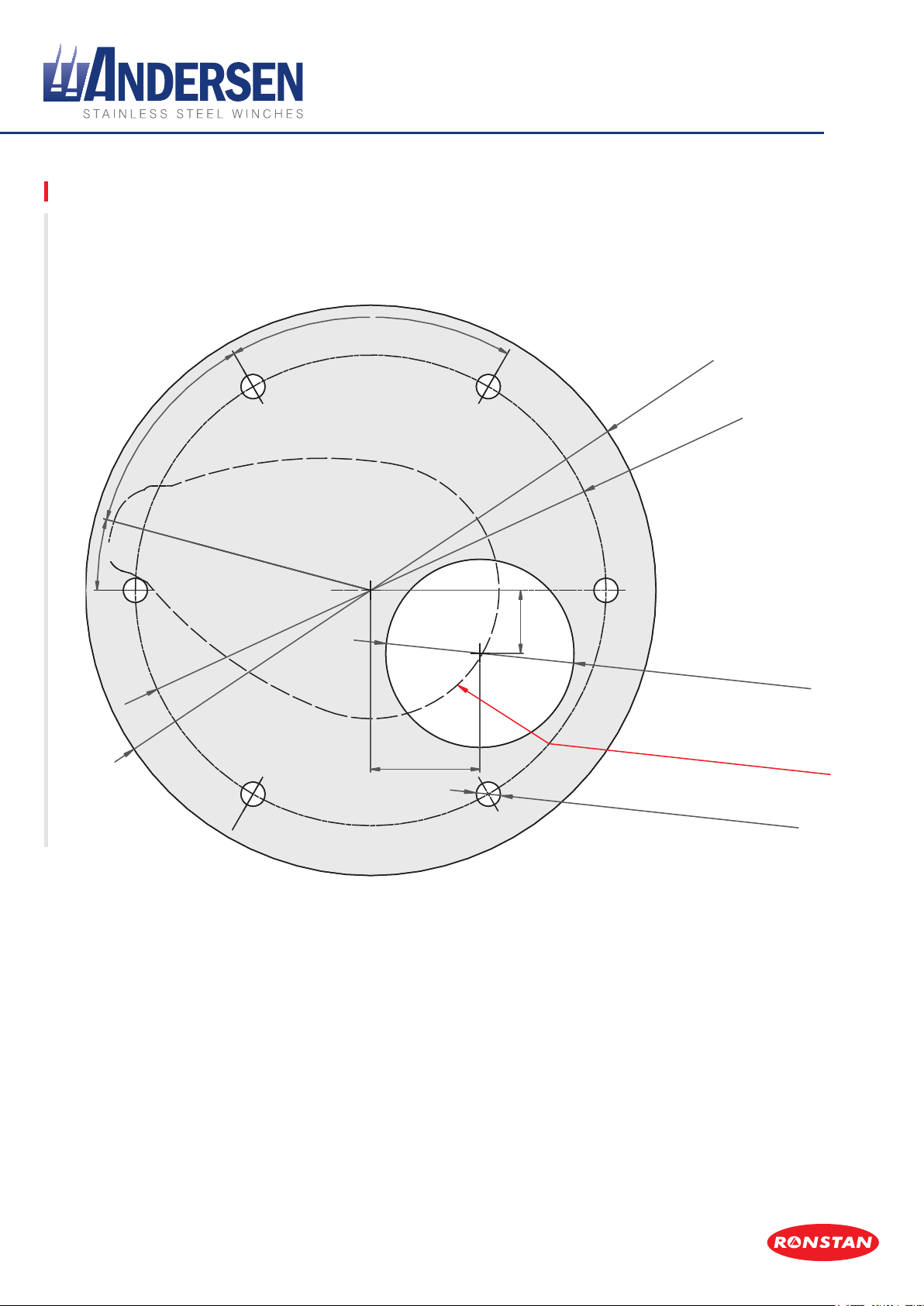

Drilling template – Size 52 ___________________________________ 15
Safety notices ________________________________________________ 16
Worldwide distribution and service __________________________ 18
Warranty _____________________________________________________ 18

p3
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
FEATURES
INCLUDED REQUIRED
• Highestqualitywinchfeaturingastainless
steel drum for ultimate durability and style,
vertical Power Ribs™for maximum grip and
minimum rope wear, and superior engineering
for reliability, long service life and low
maintenance.
• Easytoinstallandservice.Themotorunithas
internal controller and contactors so electrical
connection is simple. The winch can be
serviced without removing it from the deck,
independent of the motor unit.
• Illuminated“intelligent”pushbuttonwith
integrated LED to indicate system power on,
and in conjunction with the controller will flash
status codes that assist with trouble shooting.
• High quality European engineered and
manufactured motor, with matched gearbox
for optimal speed and load capacity.
• Unrivalledlevelsofmonitoringandprotection
including: Integrated Overload Protection,
Thermal Overload Protection, Accidental
Start Protection, Low Voltage Detection,
Continuous Run Time Limiting.
• Themotorunitcanberotatedrelativetothe
winch to suit restricted under-deck space
(8 positions at 45° increments)
• 2speedmanualwinchoperationisalways
possible by simply inserting a standard
winch handle.
Included in your E1 Electric Motor Kit:
• Motor unit
• Gear wheel [4]
• Pushbuttonincl.500mm(195/8”)
control cable [A1]
• Push button gasket [A2]
• 3 pcs. #6 x 19 mm screws [A9]
• Eye-bolt M6 [A6]
• 4 mm Allen key [A4]
• 5 mm Allen key [A5]
• Pin spanner (5 mm pins) [A8]
• Product manual [A10]
• Drilling template [A3]
• Application sticker set [A7]
Numbers in [ ] above and in instructions refer
to the item number in the parts list, see page 4,5
Tools & fasteners required for installation:
• Phillips head screwdrivers - #1 & #2
• 4 mm Allen key (included)
• 5 mm Allen key (included)
• Pin spanner, 5 mm pins (included)
• Ø8.5 mm (11/32’’) drill
• Ø66 mm (2 5/8’’) hole-saw, or jigsaw
• 6 pcs. M8 (5/16’’) bolt and nut
(length as required for deck thickness)
• 6 pcs. large diameter M8 (5/16’’) ID washers
or backing plate (to match drilling template)
• 13 mm AF spanner for M8 Nyloc nuts, or
1/2”AFspannerfor5/16”Nylocnuts
• Solvent (white spirits/mineral spirits) -
to clean deck etc prior to applying sealant
• Sealing compound
• Ø3 mm (1/8’’) drill
• Ø25 mm (1’’) drill or hole saw
• Wire crimping tool/pliers
• Marine grade electrical power wire with
Ø8 mm terminals (see table page 9)
• Circuit breaker/fuse; available separately
(see page 5 and table page 9)
• Cable fastening clips
Please read this product manual & the relevant winch manual fully before installation or operation.

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
p4
EXPLODED VIEW
52 ST E1 SINGLE SPEED 12V/24V
A1
A3
A2
A4
A5
A6
A10
A9
A7
* When supplied as an E1 Electrical Motorised Winch, this gear wheel will already be fitted inside the winch. The gear
wheel has a hexagonal section that protrudes from the winch base to engage in the motor unit drive shaft.
When supplied as an E1 Electric Conversion Kit only, this gear wheel is supplied separately and must
replace the existing gear wheel in the winch - see pages 6-9 for instructions.
A8
3
4
5
6
7
8
9
9
22
15
24
25
10
13
11
12
21
22
22
22
14
16
17
18
19
20
2
1
23
25

p5
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
PARTS LIST
ITEM NO. QTY DESCRIPTION PART. NO.
1 1 Motor E1 1500W 12V incl PLIM 777420
1 1 Motor E1 1500W 24V incl PLIM 777430
2 1 Gear box VF-EP 49 i=36 P71 B14 776220
3 1 Circlip RD829670
4 1 Gear wheel 580702
5 1 Screw DIN916-A4-M5x8
6 1 Clamping ring 584510
7 1 Sealing RD100169
8 1 Plain bearing 823100
9 2 O-Ring RD100074
10 1 Distance ring 584550
11 1 Driveshaft housing 775850
12 1 Washer 775890
13 1 Key DIN6885-A-8x7x20
14 1 Driveshaft 837000
15 2 Pawl 713200
16 2 Arm spring 713300
17 1 Bushing RD100439
18 1 Washer 835000
19 1 Rachet gear 775860
20 1 Key DIN6885-A-8x7x20
21 4 Screw DIN912-A4-M6x55
22 8 Washer DIN125-A4-Ø6.4
23 1 Key DIN 6885-A-5x5x20
24 2 Nut DIN439-A4-M6
25 2 Screw DIN933-A4-M6x20
A1 1 Push button with plastic cover RA582000
A2 1 Push button gasket 735050
A3 1 Drilling template 52 ST E1 RD100213
A4 1 Allen key 4mm 593200
A5 1 Allen key 5mm 592800
A6 1 Eye bolt M6 RD100896
A7 1 Switch labels RD100029
A8 1 Pin spanner, Ø5mm pins RD738000
A9 3 Screw #6 x 19mm RD100025
A10 1 Product manual 710477
RELATED ITEMS - Sold separately
A1 0 Electric push button/light FS (option) RA582010
A1 0 Electric push button/light FS hole (option) RA582020
0 Circuit breaker 070 Amp (option) RA590070
0 Circuit breaker 100 Amp (option) RA590100
0 Circuit breaker 120 Amp (option) RA590120
0 Circuit breaker 150 Amp (option) RA590150
0 Circuit breaker 200 Amp (option) RA590200
0 Brushes 12V (spare part) 500590
0 Brushes 24V (spare part) 500591
52 ST E1 SINGLE SPEED 12V/24V

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
p6
STEP 1 - Positioning the winch and motor unit
STEP 2B - Fitting the winch base
STEP 2A
INSTALLATION INSTRUCTIONS
• Position the winch drilling template [A3] in the required position on the deck, ensuring that there
is adequate flat space for the deck plate/ winch base.
• The 52 ST winches have the option of eight dierent self-tailing arm positions as indicated on the
drilling template (refer page 15).
• Considering the product dimensions, shown on page 14, check that there is adequate space
below deck for the motor unit. You may choose to drill a small pilot hole to indicate the position
of the center of the drive shaft, to assist with this.
*Note: The motor unit can be installed in eight positions around the center of the drive shaft
(i.e. at 45° increments), to facilitate fitting the motor unit into restricted under-deck cavities.
See page 14 for the minimum motor oset dimensions at the various positions. Placing the
winch base on the motor unit in the various positions prior to installation can assist with
visualising the motor position options.
*Note: To ensure the correct functioning of the winch, it should be positioned with the correct
line entry angle of 3-8° below horizontal. Refer to the winch product manual for details of
correct line entry angle and self-tailing arm positioning.
• After it has been confirmed that there is adequate space for the winch above deck, and for the
motor unit below deck;
• Drill Ø8.5mm holes for the M8 winch base mounting bolts as per the drilling template [A3].
DrillØ11/32”holesif5/16”boltsarebeingused.
• Drill or cut a Ø66mm (2 5/8’’) hole for motor drive shaft housing as per the drilling template.
*Note: Clean the deck hole before attempting the install the motor so that
the motor flange does not catch splinters of fiberglass or wood when being inserted through
the deck. Clean the deck with a suitable solvent to ensure the sealant can adhere properly.
• Apply sealant to the deck where the winch base will be fitted. For aluminium boats use a galvanic
isolating ring/gasket.
• FitthewinchbasetothedeckusingappropriatelengthM8(or5/16”)bolts,largebackingwashers
or plate, and Nyloc nuts.
• Assemble the winch in reverse order to the disassembly/removal.
• Remove winch self-tailing arm screws using 4mm Allen key [A4].
• Lift self-tailing arm and drum o the base/stem of the winch.
• Remove 6 x M6 screws from base of winch stem with 5mm Allen key [A5].
• Lift stem o base of winch and place aside.
• Remove rubber shut-o disc from base of winch.

p7
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
INSTALLATION INSTRUCTIONS
STEP 3
Motor unit
lifting eye bolt
Correct mating of drive shaft
housing top flange with
underside of winch base
Incorrect mating of drive
shaft housing top flange with
underside of winch base
*Note: It is extremely important that the motor is aligned correctly with the winch.
Non-aligned motors will be noisy and gear wear will be accelerated.
*Note: It is important that two or more people are involved with Step 3.
• Remove clamping ring [6] from drive shaft housing [11] of motor unit.
• Fit the supplied M6 eye bolt [A6] to the top of the motor drive shaft [14] and attach a strong
rope to facilitate lifting the motor unit up into position through the hole in the deck, winch base
and clamping ring as shown below.
• Using the rope, raise the motor unit so that the drive shaft protrudes through the large hole in
the deck and winch base. A lifting device is recommended when raising the motor unit.
• Rotate the motor unit into the required position to suit the under deck cavity, ensuring that the
motor is aligned properly – The protruding octagonal detail on the drive shaft housing [11] flange
must fit snugly into the octagonal recess in the winch base to allow the motor top flange to fit
flush with the underside of the winch base (refer to diagrams below).
*Note: Ensure that the O-ring [9] on top of the drive shaft housing [11] is in place in its groove.
• Insure that the locking grub screw [5] in the clamping ring [6] is not protruding beyond the
upper surface of the clamping ring, when fitting the clamping ring.
• Fit and securely tighten the clamping ring [6] using the pin spanner [A8] provided.
• Tighten the locking grub screw [5] when the clamping ring [6] is securely in place.
*Note: Do not use a sealant between the flange and winch base. An O-ring insures a waterproof
connection. Extra waterproofing can be achieved by applying sealant to the top of the winch base
around the clamping ring after installation (make sure no sealant comes onto the sealing ring [7]).
90°
6Clamping Ring
5Grub Screw
6Clamping Ring
5Grub Screw
Motor flange
Non-aligned hole in
deck preventing correct
motor alignment
Inadequate underdeck
clearance preventing
correct motor alignment
Deck Plate or
Winch Base Deck Plate or Winch Base
Grub screw
protruding too far
Clamping ring
not parrallel to
deck plate

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
p8
INSTALLATION INSTRUCTIONS
STEP 4
*Note: The push button [A1] requires 25mm depth clearance the behind mounting surface.
The push button is supplied with 500 mm (19 5/8”) of cable and the motor unit with 1400 mm
(55 3/16’’) of control cable. If the push button to motor unit requires more than 1500 mm (59”)
of cable you will need to provide your own extension cabling.
• Select the desired position for the push button [A1].
• DrillaØ19mm(3/4”)holeatthecenterofthepushbuttonlocationanda5mm(3/16”)hole
immediatelybesideitforthebreathertube.OrdrillaØ25mm(1”)hole,ata2mmosettothe
centre of the push button location. Refer to the push button drilling diagram below.
• Using the supplied push button gasket [A2] as a template, drill 3 x Ø3 mm (1/8’’) mounting holes.
• Ensure the clear breather tube is inserted into the back of the push button.
• Fit gasket [A2] and push button [A1] in place (with hinged cover opening upwards, if mounted on
vertical surface).
• Apply a small amount of sealing compound to the mounting holes.
• Fasten push button with provided 3 pcs. #6 x 19 mm screws [A9].
HOLE
Ø5mm
(3/16’’)
for breather
tube
12mm
(1/2’’)
20mm
(3/4’’)
HOLE
Ø19mm (3/4’’)
ON CENTRE
50mm
(1 15/16’’)
Cover in open position
50mm
(1 15/16’’)
2mm
(1/16’’)
37mm
(1 7/16’’)
3 HOLES
Ø3mm (1/8’’) TYP
25mm
(1’’)
50mm
(1 15/16’’)
HOLE
Ø25mm (1’’)
OFFSET 2mm from
centre of switch
9mm
(3/8’’)
DRILLING TEMPLATE
PUSH BUTTON
NOT TO SCALE

p9
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
STEP 6
• Measure the total wire run distance from the battery to the motor unit and back to the battery.
• Refer to table below to determine the required motor unit to battery wire size (cross-section
area), circuit breaker/fuse size and total battery capacity (Ah).
• Connect the motor unit to the battery bank, with the appropriate circuit breaker or fuse in the positive
power wire line. The circuit breaker or fuse should be positioned as close to the battery as possible,
in an accessible location so the switch can be turned o when not in use.
*Note: The fuse should be a “slow blow” or “long delay” type to allow for start-up current spike.
WARNING: Do not use smaller wire than recommended in the table. This can cause malfunction
of the winch and in worst case - FIRE. The wires should always be as short as possible.
------------------------------ 1 2 V . D C ------------------------------- ------------------------------ 2 4 V . D C -------------------------------
WINCH WIRE
LENGTH*
WIRE
SIZE
CIRCUIT
BREAKER
ADDITIONAL
BATTERY
CAPACITY
PER WINCH
MIN. TOTAL
BATTERY
BANK
CAPACITY
WIRE
SIZE
CIRCUIT
BREAKER
ADDITIONAL
BATTERY
CAPACITY
PER WINCH
MIN. TOTAL
BATTERY
BANK
CAPACITY
52 ST E1
0-3 m / 0-10 ft 70 mm² 200 A 150 Ah 400 Ah 35 mm² 120 A 75 Ah 200 Ah
3-8 m / 10-27 ft 95 mm² 200 A 150 Ah 400 Ah 50 mm² 120 A 75 Ah 200 Ah
* Wire length = Total cable length from battery to motor and back.
INSTALLATION INSTRUCTIONS
STEP 5
• Connect wires from push button to wires from motor unit as per electrical connection
diagram p10 Detail A.

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
p10
ELECTRICAL CONNECTION DIAGRAM
52 ST E1 SINGLE SPEED 12V/24V
Positive (+) motor terminal must be
connected to Positive (+) battery terminal.
Negative (-) motor terminal must be
connected to Negative (-) battery terminal.
If polarity is reversed the motor controller
internal fuse will blow and need to be
replaced. See page 11 for instructions.
WARNING
PUSH BUTTON
Push button cable
1. Blue = Switch
3. Blue Black = Ground
4. Red = LED
STANDARD CONNECTION
PUSH BUTTON CABLE MOTOR CABLE
1. Blue = 1. Brown
3. Blue Black = 3. Green
4. Red = 4. Yellow
Wires are marked with numbered sleeves
3
1
5
2
41
3
6
4
Motor cable
1. Brown = Switch 1
2. White = Switch 2 (used for 2 speed motors only)
3. Green = Ground
4. Yellow = LED
5. Grey = Ratiometric current output
6. Pink = Low current cutout
DETAIL A
DETAIL A
CIRCUIT BREAKER
BATTERY (12V or 24V)
WINCH MOTOR

p11
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
TROUBLESHOOTING
E1 INBUILT SYSTEM PROTECTION
The E1 Electric Motor Unit has a very high level of in-built system protection, via monitoring of
various operating parameters, its integrated controller and other protection/control componentry.
This functionality includes:
• Reversepolarityprotection
• Mechanicaloverloadprotection
• Systemlowvoltagedetection
• Thermaloverloadprotection
• Continuousruntimelimiting
• Accidentalstartprotection
REVERSE POLARITY PROTECTION
If the motor unit is inadvertently connected to the power system with reversed polarity the motor’s
internal fuse will blow. The fuse will have to be replaced before the motor will start again.
To replace the fuse:
• Removethecabletiesthatsecurethecontrolcabletotheoutsideofmotorcover.
• Removethetwoscrewsfromtheendoftheoutermotorcover(usinga#1Phillipshead
screw driver) - refer to picture below.
• Rotatetheoutermotoroutercoverslightlyandcarefullypullthemotorcoverawayfromthe
motorunit.Note:Aftertherst5mm(3/16”)theO-ringwillreleasethecover,therewillbeno
resistance the rest of the way, and very little force should be used so as not to damage the
internal wiring connections.
• Whentheoutercoverisclearoftheinternalcomponents,setittoonesidesothatthereis
no tension on the internal control cable wires.
• Replacethe5Aglassfuse,locatedonthePCBasshownbelow.
• Reassembleinreverseorder.Makesurethattheinternalcablesarenotwedgedbetweenthe
cover and internal components and again that no force should be required to replace the cover
until the O-ring is reached. Before pushing the cover on the final few millimetres over the O-ring,
make sure that the screw holes in the outer cover are aligned with the threaded rods inside.
Refer to picture below for threaded rod position.
Motor outer cover
attachment screws
Threaded rods for
motor outer cover
attachment screws
5A Glass Fuse
PCB location

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
p12
TROUBLESHOOTING
STATUS CODES
TheE1“Intelligent”IlluminatedPushButtonactswiththecontrollertoashstatuscodestoassist
in trouble shooting in the event of overload or where other system protection intervention occurs.
The push button will flash a number of times in quick succession, followed by a short break, and
then repeat again.
The number of flashes indicates the system status as follows:
• 1Flash Maximumworkingloadhasbeenreached.
The motor has cut out after reaching the pre-set maximum load for electrical operation of the
winch. Status will automatically reset to normal and the winch will be ready for use 5 seconds after
the button has been released, if the load has decreased below the max limit, and the button is
pressed again.
• 2Flashes Lowsystemvoltagedetected.
This will occur if the system voltage goes below 10.5 Volts (for 12V systems) and 21 Volts (for 24V
systems) in idle state, or below 7.0 Volts (for 12V systems) and 18 Volts (for 24V systems) while
running. Batteries should be recharged before the winch is used again. Status will automatically
reset to normal and the winch will be ready for use when the voltage comes back above 11.0 Volts
(for 12V systems) and 22 Volts (for 24V systems).
• 3Flashes Maxtemperatureofthemotorhasbeenreached.
The motor has overheated. Status will automatically reset to normal and the winch will be ready for
use when the motor has cooled down suciently (this may take some time). Ensuring adequate
ventilation around the motor will help to avoid overheating.
• 4Flashes Maxtemperatureofthecontrolboardhasbeenreached.
The temperature of the control board has exceeded 85°C. Status will automatically reset to normal
when the control board temperature drops below 75°C. Ensuring adequate ventilation around the
motor will help to avoid overheating.
• 5Flashes Pushbuttonerror.
Operation of the winch is prevented because a push button has been pressed when system power
up is initiated – i.e. when power is supplied to the winch by closing the CB or battery switch. To
reset status to normal, release the push button. If the error continues, check button wiring for fault.
• 6Flashes Maximumcontinuousmotorruntimehasbeenreached.
The motor has been running continuously for approximately 10 minutes. To reset status to normal,
release the push button, then press it again to resume operation.
• 7Flashes Maxrelaycyclesreached.
The motor relay has been activated 20,000 times and will need to be replaced to ensure continued
safe operation. Contact Ronstan or your local Andersen Winches distributor for advice.

p13
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
SERVICE & MAINTENANCE
*Note: Always shut o power to the winch before commencing any service or
maintenance task!
• The winch on top of the electric motor unit should be serviced as per the instructions
in the relevant Winch Product Manual.
• The electric motor is a sealed unit and does not require regular servicing of internal parts.
• To avoid potential sea water ingress and to maximise the service life of your electric winch motor
unit, it is recommended to re-lubricate the motor unit drive shaft Sealing Ring [7] once a year.
Under intensive use, such as racing, charter or blue water sailing, we recommend lubrication
twice a year.

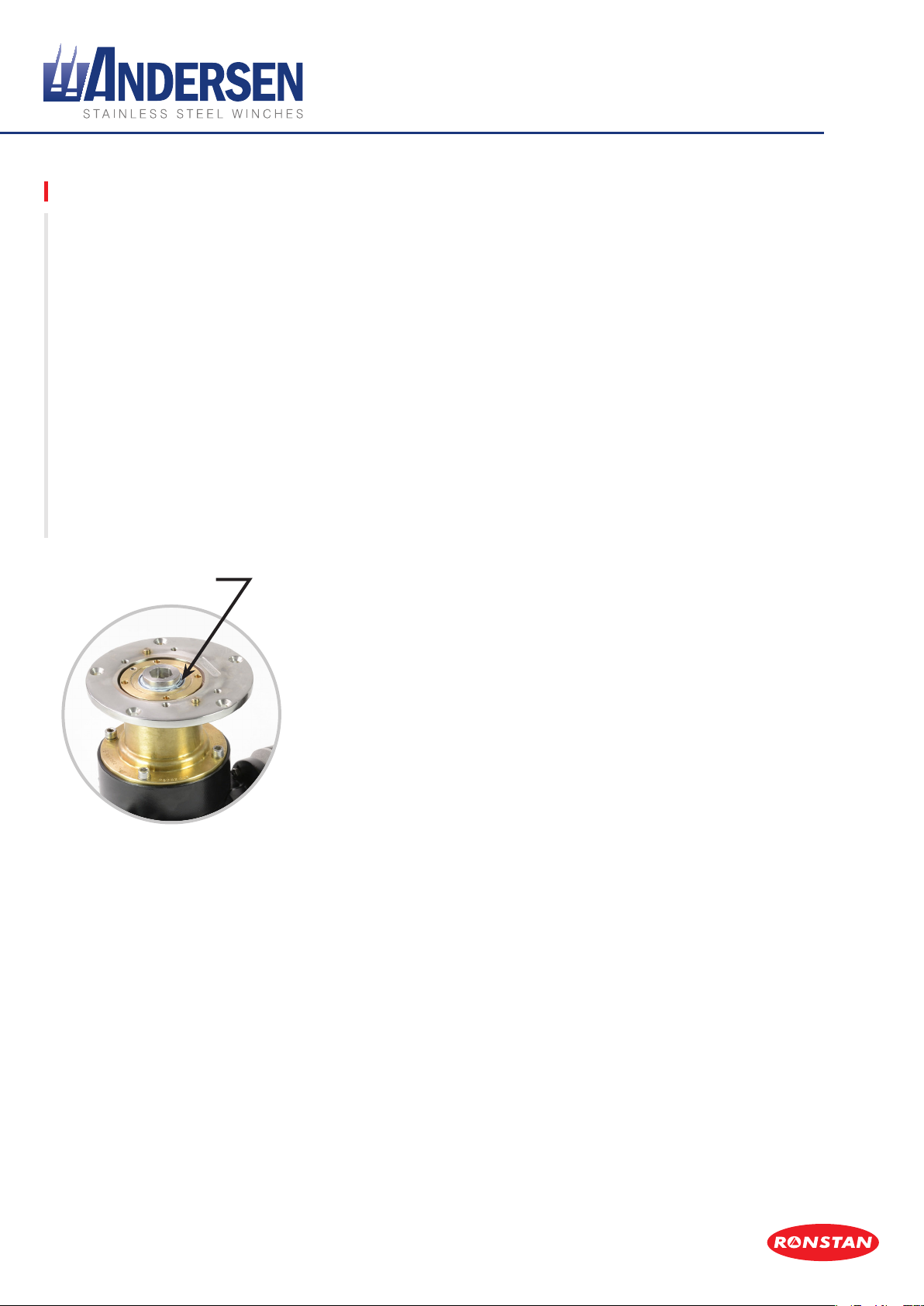

To access the Sealing Ring [7], it is necessary to remove the winch from the winch base.
Refer to the Winch Product manual for instructions.
The Sealing Ring should be lubricated with a grease such as Klüber ISOFLEX TOPAS NB 52,
or Andersen Winch Grease.
Drive shaft
Sealing Ring

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
p14
INSTALLATION DIMENSIONS
SIZE 52
NOT TO SCALE
65mm
(2 9/16”)
350mm
(13 13/16”)
Ø200mm (7 7/8”)
Ø100mm (3 15/16”)
106mm
(4 3/16”)
227mm (8 15/16”)196mm (7 1/2”)
57mm
(2 1/4”)
65mm
(2 9/16”)
350mm
(13 13/16”)
Ø200mm (7 7/8”)
Ø100mm (3 15/16”)
106mm
(4 3/16”)
227mm (8 15/16”)196mm (7 1/2”)
57mm
(2 1/4”)
MOTOR OFFSET
Minimum Ox.................305mm(12”)
Oy..............155mm (6 1/8”)
Minimum Oy....................101mm(4”)
Ox............337mm (13 1/4”)
^ Values with motor in optimum position
to minimise Ox or Oy. Oy value includes
allowance for push button cable and
fitting on the motor housing. Motor can
be rotated at 45° intervals which will
change Ox and Oy values.
^
^
^
^
H
LB
D
K
J
SN
Ox
Oy
WEIGHTS
Winch only ......................11.1 kg (24.3 lb)
Winch & motor unit .... 28.0 kg (61.7 lb)
*Extensions are available to suit thicker deck thicknesses.
See website SUPPORT section for details.
65mm
(2 9/16”)
350mm
(13 13/16”)
Ø200mm (7 7/8”)
Ø100mm (3 15/16”)
106mm
(4 3/16”)
227mm (8 15/16”)196mm (7 1/2”)
57mm
(2 1/4”)

p15
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
DRILLING TEMPLATE
SIZE 52
NOT TO SCALE
PART.NO. RD100213
DRILLING TEMPLATE
ANDERSEN 52 ST E1
60° TYP
HOLE Ø66mm (2 5/8”)
Ø165mm (6 1/2”)
BASE PLATE
Ø200mm (7 7/8”)
45°
15°
HOLE Ø8.5mm (11/32”), 6-OFF
Self-tailing arm can be
positioned in 8 different
positions - at 45° increments
22.1mm
(7/8”)
38.3mm
(1 1/2”)

E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
p16
ALL WINCHES
SAFETY NOTICES
DO NOT DISCARD
Failure to observe these precautions could result in serious injury or death.
Read All Safety Notices and Product Manuals
Do not install or operate this winch before reading and fully understanding the contents
of this Safety Notice Sheet and the Product Manual.
Stay Alert When Operating
Andersen winches are very powerful and have the potential to cause significant damage
and/or serious injury if used improperly or without due caution and vigilance.
Operators Must be Trained
Help prevent significant damage and/or serious injury by ensuring any person operating a
winch has a thorough understanding of its proper operation and is aware of the potential
hazards involved. As a minimum, all winch operators must read and understand this Safety
Notice Sheet and the Product Manual.
Particular attention is drawn to the following points:
• Children and others not qualified to operate an electric winch must be kept at a safe
distance from the winch and any rigging or fittings that are under load.
• Long hair and/or loose clothing must be tied back to avoid being caught in the winch.
• In the event of a rope override or other fault, stop the winch and turn o power before
attempting to resolve the problem.
Avoid Accidental Operation
Remove winch handles and turn o power to the winch when not in use to help avoid
unsupervised or unintentional operation. Failure to do so could result in significant
damage and/or serious injury.
Maintenance
Turn o power to the winch before performing any maintenance or service tasks. Failure
to do so could result in significant damage and/or serious injury.
Lifting Operations
The winch must not be operated with the rope in the self tailer when used in any kind of
lifting operation.
Any lifting operations should be conducted by two persons in order to maintain constant
visual contact with the object being lifted.
Furthermore the self tailer must not be used as a cleat for a rope used to lift or suspend
any object. The rope must be secured properly by tying o, or leading to a suitable fitting
such as a cleat or bollard.

p17
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52

Visit www.andersenwinches.com
Visit www.andersenwinches.com
WORLDWIDE DISTRIBUTION & SERVICE
WARRANTY
E1 Single Speed Electric Motor Unit, 12V & 24V
To Suit Self-Tailing Winch Sizes 52
p18
PRODUCT MANUAL
