Anest Iwata Eclipse Series Instruction Manual

Operating Instruction Manual
ECL101-IM-NHT

The unique multi-purpose, high ow Iwata Eclipse Series airbrushes are designed to easily atomize
heavier sprayable mediums from a controlled ne line to controlled wide spray. These capabilities
combine to make Eclipse Series airbrushes well-suited to almost every airbrush application imaginable.
Hugely popular, they are the ultimate in all-star versatility.

3
ANEST IWATA-MEDEA, INC.
Portland, Oregon U.S.A.
[phone] (M-F)
[email protected]
www.iwata-airbrush.com
ANEST IWATA AUSTRALIA PTY LTD.
Mt. Druitt, NSW
[phone]
www.anest-iwata.com.au
ANEST IWATA STRATEGIC CENTER
Cardano al Campo, Italy
[phone]
www.anest-iwataeu.com
ANEST IWATA SOUTH-EAST ASIA CO., LTD.
Bangkok, Thailand
[phone]
www.anest-iwatasoutheastasia.com
ANEST IWATA SHANGHAI
Shanghai, China
[phone] / 15 / 16
www.anest-iwata-sh.com
ANEST IWATA RUS LLC
Moscow, Russia
[phone]
www.anestiwata.ru
ANEST IWATA CORPORATION
Yokohama, Japan
[phone]
www.anest-iwata.co.jp
ANEST IWATA (U.K.) LTD.
Neots Cambs, England
[phone]
www.anest-iwata.co.uk
ANEST IWATA MOTHERSON LTD.
Uttar Pradesh, India
[phone] / 14 / 17
www.aircompressors.com
ANEST IWATA SOUTH AFRICA (PTY) LTD.
Johannesburg, Republic of South Africa
[phone]/2265/2223
www.anest-iwata.co.za
CENTURY TRADING CO., LTD.
Seoul, Korea
82-2-2163-0300
www.centrading.co.kr
If you have any issues or warranty service questions, contact your
local ANEST IWATA aliate before returning to your place of purchase.
NEED ASSISTANCE

Iwata Eclipse HP-BCS
Iwata Eclipse Takumi
· Siphon feed airbrush features an E5 head system
· Sets the industry standard for high-performing,
general-purpose, high-paint-ow airbrushes
· Versatile, reliable performance – this airbrush does it all
· Side feed airbrush features E3 head system and comes
standard with a 0.24 oz gravity assisted cup and adaptor -
0.10 oz cup available separately
· Ideal for users who; need a direct line of sight, need
multiple cup and bottle options, who need to spray at odd
angles, even upside down
IWATA ECLIPSE AIRBRUSH SERIES
This multi-purpose, high-paint-ow, high-detail Eclipse Airbrush Series covers a wide range of uses. Commonly used to spray premixed
or heavier paints, it is well suited for uses demanding precise control of spray when applying moderate-to-large amounts of paint to
a variety of surfaces and to various-sized areas. This Eclipse Airbrush Series has established a benchmark for excellence in an
all-purpose airbrush.
4

Iwata Eclipse HP-CS Iwata Eclipse HP-BS
· Gravity feed airbrush features E3 head system
· Generous 1/3 oz sized cup is designed with a new funnel
shape, which makes for easy clean up and more ecient
paint ow
· Sprays heavier mediums, while maintaining high-detail
spray characteristics
· Gravity feed airbrush features E3 head system with a
convenient 1/16 oz cup
· The improved funnel design of the cup makes for easy
clean up and more ecient paint ow
5

GETTING STARTED
Compressor
Choose an appropriate compressor for your Eclipse airbrush. The
Iwata Smart Jet Compressor is a good beginner choice and will
provide approximately 20-25 psi of air pressure to the Eclipse.
The low - high pressure output category of compressors can
provide up to 50 psi to the Eclipse. At 35 psi, the ideal air pres-
sure to utilize all of the airbrush’s unique potential, the Eclipse’s
versatility provides high-paint ow for background spray as well
as for controllable ne line detail performance. This unmatched
versatility is a unique feature of the Iwata Eclipse airbrush series.
ASSEMBLY (BCS)
1. Screw the air hose onto the compressor.
2. Screw the air hose onto the airbrush.
3. Adjust the air pressure to between 35 and 55 psi.
4. Check for any air leaks in the compressor and air hoses.
5. Fill the bottle with Medea Airbrush Cleaner, or the appropri-
ate
solvent for your paint.
6. Attach the bottle to the airbrush by pushing the bottle stem
into the bottle joint of the airbrush body.
7. Point the airbrush away from you.
8. Press down on the main lever (#12) to start the ow of air
through the airbrush.
9. Pull back on the main lever to open the nozzle of the airbrush.
10. Spray cleaning solution through the airbrush to rinse out any
residual pre-testing pigment.
ASSEMBLY (BS, CS, Takumi)
1. Screw the air hose onto the compressor.
2. Screw the air hose onto the airbrush.
3. Adjust the air pressure to between 25 and 35 psi.
4. Check for any air leaks in the compressor or air hoses.
5. Place a few drops of cleaner into the bowl.
6. Point the airbrush away from you.
7. Press down on the main lever (#12) to start the ow of air
through the airbrush.
8. Pull back on the main lever to open the nozzle of the airbrush.
9. Spray cleaning solution through the airbrush to rinse out any
residual pre-testing pigment.
6

GENERAL OPERATION
Fine-Line Spray
1. Depress the main lever (#12) to start airow.
2. Position the airbrush close to the surface, between 1/16
and 1/2 inch is common.
3. Pull the main lever back slightly to start the ow of paint.
Stippling
Iwata airbrushes are designed to produce a wide range of
stippling textures. Remove the needle cap and nozzle cap
(being very careful not to bump the needle) and depress the
main lever. Experiment with various air pressure to achieve
the right texture for your project. Higher pressures will
produce larger dot patterns.
Wide-Line and Background Spraying
1. Depress the main lever (#12).
2. Position the airbrush further away from the surface, from 1/2
to 6 inches is common.
3. Pull the main lever back much further, releasing more paint
to cover the bigger area.
Line thickness can be controlled by adjusting the distance
between the airbrush and the surface, by manipulating the main
lever and by raising or lowering the air pressure. An extremely
narrow line can be obtained by carefully removing the needle cap
(#1), positioning the airbrush closer to the surface and working at
a lower air pressure.
Increase the distance between the airbrush and painted surface
to control the line’s width. Increasing the air pressure will also
aect the spray width. The Eclipse’s maximum useable line width
is approximately 2½ inches.
7
CAUTION
WARNING
The needle and nozzle are very delicate. Even a slight bend
on the tip of the needle can adversely aect the spray
pattern. Replacing the needle cap on the Eclipse with an
optional crown cap will protect the needle, yet enable
an extremely narrow line to be sprayed.

Cutaway Handle
The cutaway handle (#19) is a special feature on the Eclipse. Its
purpose is to free up paint clogs that may have formed at the tip
of the airbrush without removing the handle and the needle.
1. Unscrew the needle cap (#1).
2. Unscrew the nozzle cap (#2).
3. Adjust the air pressure between 5 and 50 psi.
Lower air pressure will give you coarse stipple whereas higher
pressure will provide a ne stipple eect. Paint viscosity will also
eect the stippling texture.
Air Pressure
For the Eclipse, working pressures generally vary between 25 and
55 psi, depending on what type of work is being done and what
textures are desired. In general 35 psi or above is preferred to
take full advantage of the unique, versatile spray characteristics
of the Eclipse. The viscosity of the paint and your desired spray
characteristics will also aect your ideal pressure. As a general
rule, larger amounts of paint, or thicker paints, will be sprayed
with higher pressures.
8
PAINT PREPARATION
For non-specic airbrush paints, proper preparation, including
ltering the paint through a nylon mesh, is critical for best
performance. Thin paint with its proper solvent, and make
repeated passes across the work to build up the color. This
improves your work’s quality and decreases your airbrush’s
cleaning time.
• Always spray in well ventilated areas.
• Do not spray solvent based (ammable) paints around
open ames.
• Use the appropriate respirator to safely lter out paint
vapors particular to your specic paint type.
• Wear eye protection to prevent paint contact with eyes.
• Never exceed the airbrush’s pressure limit (98 psi).
CAUTION
WARNING

MAINTENANCE
Cleaning the Airbrush between Colors (BCS)
1. Remove the paint bottle.
2. Attach a bottle containing the appropriate cleaning solution.
3. Spray until the solution sprays clear.
4. Remove the bottle of cleaning solution.
5. Spray air until the airbrush sprays dry.
6. Attach a bottle containing the next color.
7. Repeat cleaning procedure when nished.
Cleaning the Airbrush between Colors (BS, CS, TAKUMI)
1. Dump out the color cup’s excess paint.
2. Rinse the cup with the appropriate cleaning solution.
3. Use a paper towel to wipe out any leftover paint.
4. Fill the bottom of the cup with cleaner.
5. Spray cleaner until the spray is clear.
6. (TAKUMI ONLY) Separate cup from adaptor and wipe adaptor
and cup threads clean using a paper towel.
7. Add the next color to the color cup.
8. Repeat cleaning procedure when nished.
Before Each Session
Spray water, or the appropriate paint solvent, through the
airbrush to make sure the airbrush is working properly.
After Each Session
Or any time the airbrush becomes clogged:
1. Increase the air pressure.
2. Spray cleaning solution for a short time.
3. Clean the needle if necessary.
Cleaning the airbrush this way helps clean the paint passage,
the nozzle and the needle thoroughly.
9
NEVER soak your entire airbrush in any
liquid. NEVER store your airbrush with spray
medium or cleaning agents in the uid cup.

Cleaning the Needle
1. Unscrew the handle (#19) from the airbrush body.
2. Loosen the needle chucking nut (#18).
3. Gently pull the needle (#17) straight out.
4. Fold a soft cloth damp with cleaner over the needle.
5. Rotate the needle to gently wipe the residual paint o.
6. Carefully insert the needle into the airbrush until it seats
fully against the nozzle (#4).
The most probable time to damage the needle is when the
needle passes through the main lever (#12) and through the
needle packing screw (#14b).
If the needle stops abruptly, retract and examine the trigger
mechanism for proper assembly and re-insert the needle.
7. Tighten the needle chucking nut nger tight. Pull the main
lever back and forth to visually conrm the needle’s ability
to move.
8. Screw the handle back onto the airbrush body.
Periodically
To ensure smooth main lever action, lubricate the needle
(#17) and the main lever mechanism (#12) regularly.
1. Unscrew the handle (#19).
2. Loosen the needle chucking nut (#18).
3. Remove the needle.
4. Coat the needle lightly with a high-quality lubricant,
like Iwata Lube.
5. Wipe the needle with a soft, clean cloth, leaving a light coat
of lube behind.
6. Re-insert the needle gently into the airbrush.
7. Tighten the needle chucking nut.
8. Screw the handle onto the airbrush body.
Drip one drop of lube into the slot directly behind the main
lever and as close to the main lever as possible.
10
CAUTION
WARNING
DO NOT over-lube the needle; transferring excess lube into the
nozzle may cause severe paint ow problems.
DO NOT use light machine oil or WD-40 for lubrication. These lubes
cause the needle to stick when it moves through the needle
packing and can also get into the air system.
If it becomes absolutely necessary to dismantle the airbrush
remember that most situations, unless otherwise directed, do
not require tools.
CAUTION
WARNING

TROUBLESHOOTING PROCEDURES
Symptom
•Bubbles in color cup or bottle
•Double Line
•Not Spraying
Problem
•Loose head cap
•Loose nozzle cap
•Improper nozzle to body connection
•Cracked or damaged nozzle
•Dried paint on needle tip (Tip-Dry)
•Dirty airbrush
•Debris on nozzle tip
•Bent needle
•Cracked or damaged nozzle
•Loose needle chucking nut
•Loose head cap
•Improper air pressure
•Paint too thick
•Bottle vent hole is plugged
•Clogged nozzle
•Cracked or damaged nozzle
Solution
•Tighten (#3) with provided wrench
•Tighten (#2) finger tight
•See nozzle (#4) to reseat the nozzle
•See nozzle (#4) to replace the nozzle
•See cleaning the needle
•See cleaning the airbrush between colors
•See cleaning the needle
•See nozzle (#4) and clean nozzle with toothpick
•See needle (#17) to replace needle
•See nozzle (#4) to replace the nozzle
•Finger tighten (#18)
•Tighten (#3) with provided wrench
•See specific compressor instructions
to raise or lower the air pressure
•See paint preperation
•Use pushpin to unclog vent hole
•See nozzle (#4) and clean nozzle with toothpick
•See nozzle (#4) to replace the nozzle
11
Nozzle contains Nickel.

Symptom
•Skipping
•Spattering
Problem
•Dried paint on needle tip (Tip-Dry)
•Pigment too thick
•Air pressure too high
•Improper nozzle to body connection
•Dirty airbrush
•Cracked or damaged nozzle
•Dried paint on needle tip (Tip-Dry)
•Pigment build-up in needle cap
•Air pressure too low
•Pigment too thick
•Dirty airbrush
•Dirty airbrush
•Dried out air valve packing o-ring
Solution
•Clean with cotton swab dipped in cleaner
•See paint preparation
•See specific compressor instructions
to lower the air pressure
•See nozzle (#4) to reseat the nozzle
•See cleaning the airbrush between colors
•See cleaning the needle
•See nozzle (#4) to replace the nozzle
•Clean with cotton swab dipped in cleaner
•Unscrew #1 and clean with cotton swab
•See specific compressor instructions
to raise the air pressure
•See paint preparation
•See cleaning the airbrush between colors
•See cleaning the needle
•See cleaning the airbrush between colors
•See cleaning the needle
•Lube trigger housing
TROUBLESHOOTING PROCEDURES
12
Nozzle contains Nickel.

REPLACEMENT PARTS AND ACCESSORIES
Nozzle (#4)
In time, the nozzle may wear or be damaged and may need to
be replaced.
1. Unscrew the handle (#19).
2. Loosen the needle chucking nut (#18).
3. Gently pull the needle (#17) part way back. It doesn’t need
to be fully pulled out.
4. Unscrew the head cap (#3).
5. The nozzle should fall out. If it doesn’t, push it gently to the
side with your thumb.
6. Fit the new nozzle onto the airbrush body.
7. Screw the head cap onto the airbrush body.
• Hand tighten cap or “lightly” tighten it with the
provided wrench.
• DO NOT OVERTIGHTEN!
8. Push the needle all the way forward until it seats with the
new nozzle.
9. Tighten the needle chucking nut.
10. Screw the handle onto the airbrush body.
TIP: Keep a spare nozzle on hand for unforeseen accidents.
Crown Cap (Optional Accessory, Standard on Takumi)
A crown cap replaces the needle cap (#1). It physically protects
the needle while spraying very ne lines. It also prevents pigment
build-up and spattering when spraying large backgrounds.
Preset Handle (Optional Accessory, Standard on Takumi)
The preset handle replaces the handle (#19). A threaded adjusting
screw mounted behind the handle limits the distance the main
lever can be pulled back. This provides accurate control of paint
volume and is especially useful when doing repetitive,
precision work.
13
Nozzle contains Nickel.
Needle (#17)
Iwata needles are made of precision ground and hardened
stainless-steel that will withstand prolonged usage. They are,
however, subject to easy physical damage because of the long
tapered, extremely ne tip. If the needle point becomes severely
bent, it must be straightened before pulling it back through the
nozzle. If not, the bent needle might damage the nozzle as it’s
pulled through.
TIP: Keep a spare needle on hand for unforeseen accidents.
Quick Disconnect (Optional Accessory)
A quick disconnect joint is screwed onto the air hose and a quick
disconnect adapter is screwed onto each airbrush. When using
multiple airbrushes, the quick disconnect joint facilitates
changing airbrushes on the same air hose quickly.

14

15

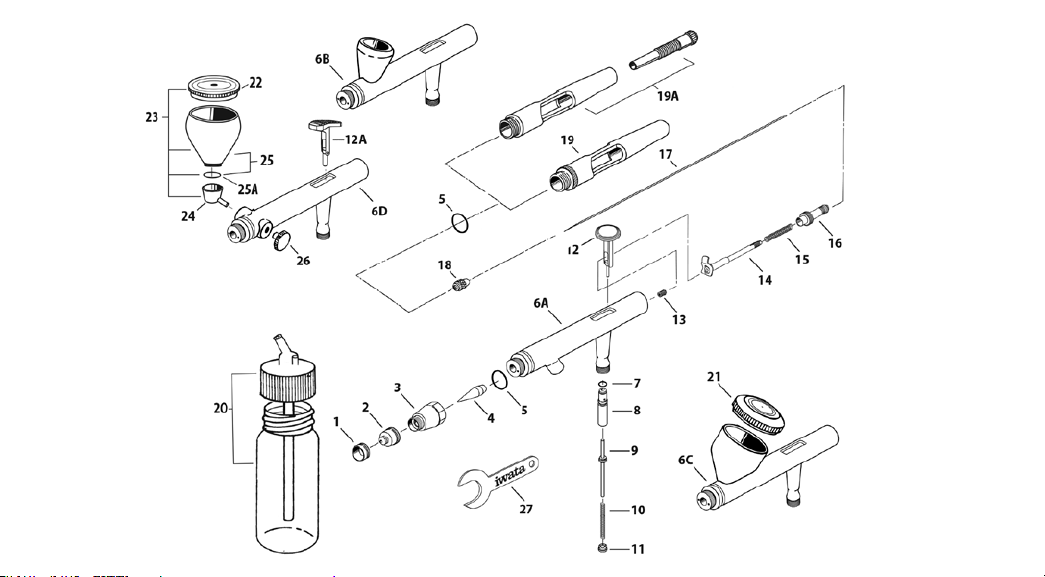

— IWATA ECLIPSE SERIES AIRBRUSHES • MASTER PARTS LIST —
# ITEM DESCRIPTION
PRICE
CODE ITEM # HP-BCS HP-BS HP-CS TAKUMI
1Needle Cap AI6011 nnnOPT
1A Needle Cap (Crown) D I1050 OPT OPT OPT n
2 Nozzle Cap E5 B I6021 nx x x
E3 C I6022 xn n n
3 Cap C I6031 n n n n
4 Nozzle E5 C I6041 nx x x
E3 E I6042 xn n n
5 O-ring A I6051 n n n n
6A HP-BSC Body * - - nx x x
6B HP-BS Body * - - xnx x
6C HP-CS Body * - - x x nx
6D Takumi Body * --x x x n
7 Valve Piston Packing B I5801 n n n n
8 Air Valve Guide Body B I6081 n n n n
9 Air Valve A I6091 nnnn
10 Air Valve Spring A I5104 n n n n
11 Air Valve Guide Screw A I6111 n n n n
12 Main Lever C I6121 n n n n
12A Main Lever (Control) D I6124 OPT OPT OPT n
13 Needle Packing Screw Set (PTFE) A I7251 n n n n
14 Needle Chucking Guide C I7151 n n n n
15 Needle Spring A I1352 nx x x
A I1351 xn n n
# ITEM DESCRIPTION
PRICE
CODE ITEM # HP-BCS HP-BS HP-CS TAKUMI
16 Spring Guide C I1702 nnnn
17 Needle
E5 B I6171 nx x x
E3 B I6172 xnnn
E3 B I6176 xxxn
18 Needle Chucking Nut A I1202 nnnn
19 Single Cut Handle D I6191 nnnn
Preset Handle G I1552 OPT OPT OPT OPT
19A Handle (Preset/Single Cut) G I1556 OPT OPT OPT n
20 Bottle 2 oz / 60 ml - A4702 nx x x
21 Lid C I6181 x x nx
22 Cup Lid (Siphon Cut) 0.24 oz / 7 ml C I6187 xxxn
23 Cup Assembly 0.24 oz / 7 ml H I0710 xxxn
24 Cup Adapter (Side-Gravity) D I0700 xxxn
25 Cup (Gravity) 0.24 oz / 7 ml D N0702 xxxn
25A Cup (Gravity) O-ring 0.24 oz / 7 ml A N0713 xxxn
26 Blanking Cover A I0452 xxxn
QuickFit Quick Disconnect Set H I1603 OPT OPT OPT OPT
QuickFit Quick Disconnect Airbrush Adaptor C I1604 OPT OPT OPT OPT
Airbrush Adapter for Paasche Air Hose - J001 OPT OPT OPT OPT
Airbrush Adapter forT&C/Badger Air Hoses - J002 OPT OPT OPT OPT
27 Spanner Head CapWrench A I6301 n n n n
*Replacement parts not available.
n= yes x= no OPT = optional

©2018 Anest Iwata-Medea, Inc. All rights reserved.
All Iwata airbrushes are warranted against all manufacturing defects of material and manufacture or workmanship for a
period of FIVE years from date of purchase. This warranty does not cover needles, nozzles, o-rings and internal packings
since these parts need to be replaced occasionally due to normal wear. Any other parts or materials that are or become
defective so as not to be usable within this period will be repaired or replaced. This warranty does not cover damage
caused by negligence or airbrushes which have been altered or abused in any way.
