Angelo LEON MID-CENTURY DESK 82007 User manual

Email: [e-mail]
Within 30 days from delivery date
Made In China
1/13
ASSEMBLY INSTRUCTIONS
LEON MID-CENTURY DESK ITEM# 82007
DATE: 09-02-2016
ASSEMBLY
REQUIREMENTS
2 HOURS
Assembly Time
(Approximate)
2 -Person Assembly Tools Required (Not Provided):
Phillips Screwdriver
Flat Head Screwdriver
Thank you for purchasing our product!
Please refer and use this assembly instruction to assemble the product.
Contact our customer service department in case there are any missing or damage parts or hardware.
Replacement parts are normally shipped within 2 or 3 days.
We appreciate your business!
ASSEMBLY PREPARATION
1. Remove all packaging materials, staples and packing straps from the carton.
2. Refer to Parts List and Hardware List and ensure they are complete before you start assembly.
3. Place all wooden parts on a clean, flat and soft surface (e.g. carpet or rug) to prevent parts from getting scratched.
SAFETY PRECAUTION:
1. KEEP ALL HARDWARE PARTS OUT OF REACH OF CHILDREN.
2. DISPOSE PLASTIC PACKAGING MATERIAL IMMEDIATELY TO AVOID ANY RISK OF SUFFOCATION TO
CHILDREN AND ANIMALS.
TIPS FOR ASSEMBLY:
1. Allow ample room for assembly and in close proximity to where product will be placed.
2. Assemble the product on a surface that does not scratch or damage the exterior gloss and finish of the furniture.
3. Please check all of the parts and quantities are included before assembly. Contact customer service for missing parts.
4. Identify all of the parts, hardware and quantities required for each step.
5. During assembly, do not over-tighten any fittings as this may cause damage.
6. DO NOT USE POWER TOOLS TO ASSEMBLE THIS PRODUCT.
7. Always place the product on a flat surface.
8. Do not sit or stand on the partially assembled product; only use the product for which it is intended.
CARE AND MAINTENANCE
- Use a slightly damp cloth to clean the product. Do not use bleach or abrasive cleaning material.
- Check all the fittings periodically and re-tighten as necessary. Do not use the product if any of the parts is
damaged or broken.
- Never allow any kind of liquid to remain on your furniture. Absorption can cause wood to warp or delaminate.
- Do not place hot items (e.g. hot drinks) directly onto the wood surface.
- Do not drag and/or pull the furniture.
This product is for indoor and household use only - not for commercial use.

Hardware List
ITEM PART QTY ITEM PART QTY
A22 pcs
22 pcs
4 pcs
4 pcs
2/13
10 pcs
DESCRIPTION DESCRIPTION
Cam-bolt
6*35mm
15*12mm
Cam-lock
B
C
FDrawer Glide
Wood Dowel
8*30mm
Handle Bolt
G
ASSEMBLY INSTRUCTIONS
LEON MID-CENTURY DESK ITEM# 82010
2 pcsHandle
H
I14 pcs
Screw
2.5*10mm
8 pcs
DScrew
4*30mm
E24 pcs
Screw
3*12mm
4*16mm

ITEM PART QTY ITEM PART
1
2
3
4
5
6
9
10
1 pc
1 pc
1 pc
1 pc
2 pcs
11
12
13
3/13
1 pc
DESCRIPTION DESCRIPTION
Top Panel
Bottom Panel
Left Side
Panel
Right Side
Panel
Bottom Front
Connect Bar
Top Front
Connect Bar
Short Leg
Long Leg
Drawer Front
Panel
QTY
2 pcs
Drawer Right
Panel
1 pc
Drawer Left
Panel

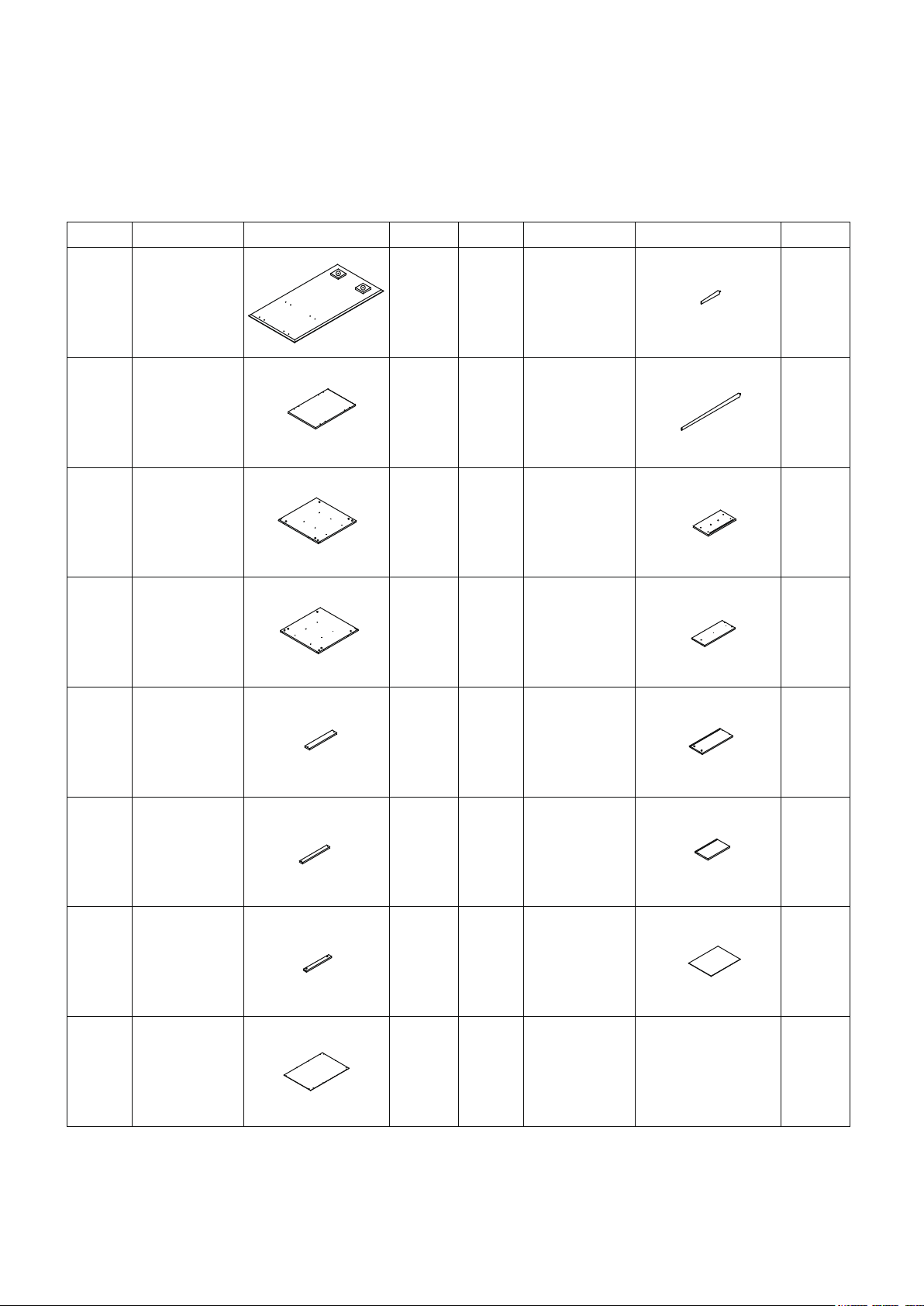

Parts List
7
81 pc
15
Back
Connect Bar
Back Panel
Drawer Bottom
Panel 2 pcs
14 Drawer Back
Panel
ASSEMBLY INSTRUCTIONS
LEON MID-CENTURY DESK ITEM# 82010
1 pc
2 pcs
2 pcs
2 pcs
2 pcs

4/13

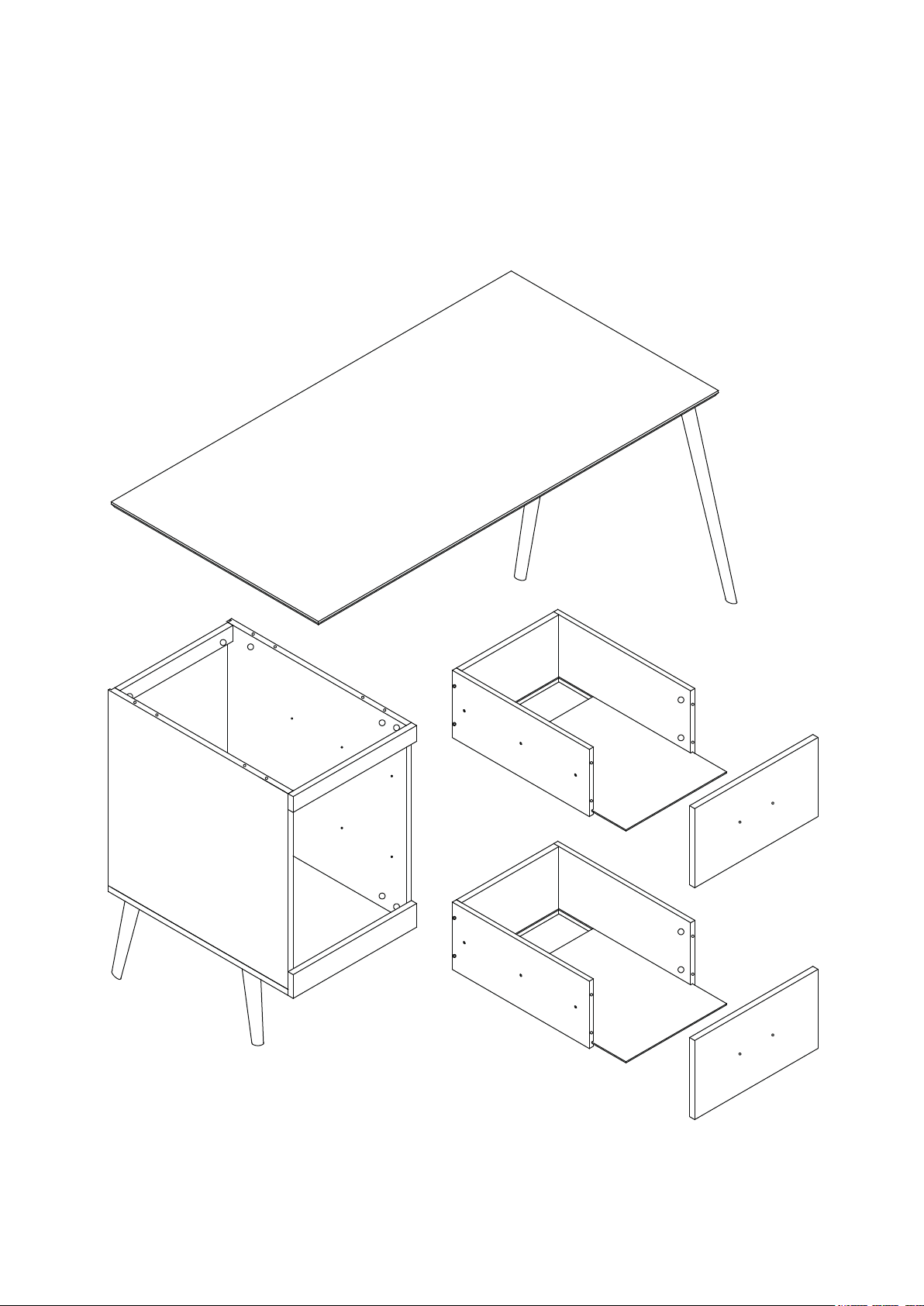

Parts Assembly Overview
1
ASSEMBLY INSTRUCTIONS
LEON MID-CENTURY DESK ITEM# 82010
2
4
3
5
6
7
8
9
9
10
10
11
12
13
14
15
11
12
13
14
15

SHOULDER
CAM-BOLT
Place Cam-bolt onto the designated pre-drilled hole on the panel. Use a Phillips Screwdriver to
turn Cam-bolt vertically until shoulder is snug and flushed with panel. Do not over-tighten or
under-tighten Cam-bolt. See illustrations below.
Cam-bolt head needs to be in centre
Correct Wrong
Shoulder is flushed
(on the same level)
with the panel.
Use a Flat-head Screwdriver to turn the
Cam-lock clockwise to lock onto the head
of the Cam-lock. Turn until it is snug.
Over-tightening could damage Cam-lock
or/and Cam-bolt.
CAM-BOLT CAM-LOCK
PANEL
PANEL
Shoulder is
above the panel.
5/13
Instructions For Fastening
CAM-BOLT AND CAM-LOCK
CAM-BOLT
Align the arrow on the Cam-lock to the
Cam-bolt head and insert the Cam-lock.
Panel

Lever
F
F2
F1
F1
F2
X 4
STEP 1
STEP 2
Drawer Glide (F) consists of 2 parts - Slide (F1) and (F2).
To detach F1 from F2, use one hand to hold (F2), and the other hand to press down the lever on
(F1) and slide out (F1) at the same time.
a) Place/orientate Left and Right Side Panel (3 & 4) as shown.
b) Place Drawer Track (F2) on Left and Right Side Panel (3 & 4) and align the designated screw
holes on (F2) to pilot holes on panels as shown. Use Phillips Screwdriver to drive Screw (E)
to fasten (F2) on the panels.
c) Screw-in Cam-bolt (A) to the specific pre-drilled holes on Left and Right Side Panel (3 & 4) as
shown. Refer to page 5 on how to screw-in Cam-bolt.
4 pcs
F
2 pcsA
6/13
DO NOT USE POWER TOOLS
F2
E
F2
E
34
A
A
A
12 pcsE
4 pcsF2

STEP 3
7/13
20 pcsA
DO NOT USE POWER TOOLS

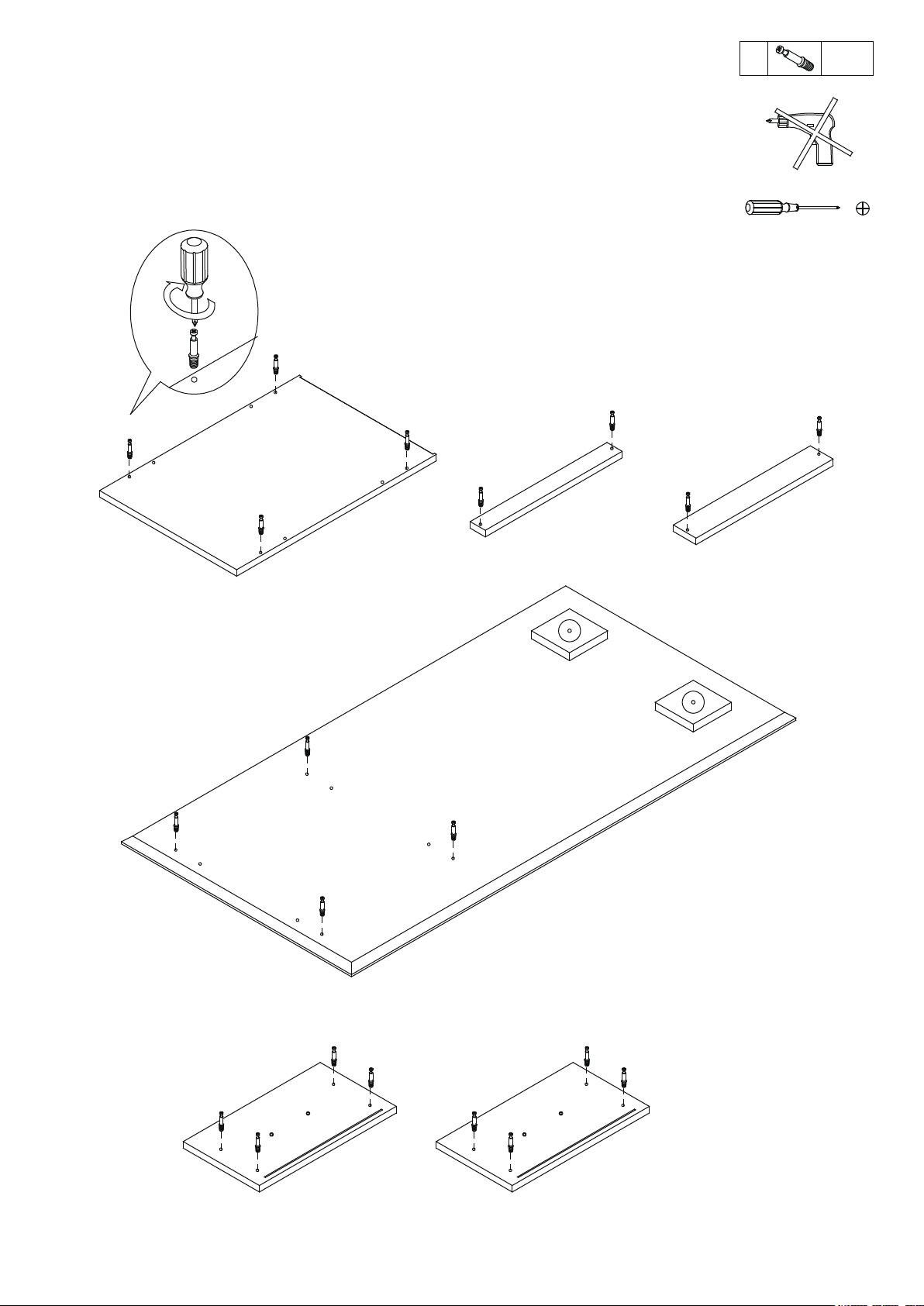

Attach Cam-bolt (A) to the designated pre-drilled holes on Bottom Panel (2),
Bottom and Top Front Connect Bar (5 & 6), Top Panel (1) and Drawer Front
Panels (11) as shown.
Refer to page 5 on how to screw-in Cam-bolt.
2
A
AA5
6
A
A1
11 11

12
13
14
STEP 4
STEP 5
8/13
X 2
8 pcs
DO NOT USE POWER TOOLS
B
a) Insert Drawer Bottom Panel (15) through the grooves on Drawer Left, Right and Back Panels
(12, 13 & 14) as shown.
b) Align Cam-bolts on Drawer Front Panel (11) to the holes on Drawer Side Panels as shown
and attach Drawer Front Panel (11) firmly.
c) Insert Cam-lock (B) then turn clockwise to lock Cam-bolt to fasten Drawer Front Panel (11).
Refer page 5 on how to insert Cam-lock.
d) Attach Handle (G) to Drawer Front Panel (8) by using Handle Bolt (H).
12
13
14
D
X 2
8 pcs
DO NOT USE POWER TOOLS
D
Fasten Drawer Left and Right Panel (12 & 13) to Drawer Back Panel (14) by using Screw (D).
Do not tighten Screw (D) completely until both screws are in place on each panel.
11
15
G
H
B
B
2 pcs
G
4 pcs
H

12 13
STEP 6
STEP 7
9/13
X 2
12 pcs
E

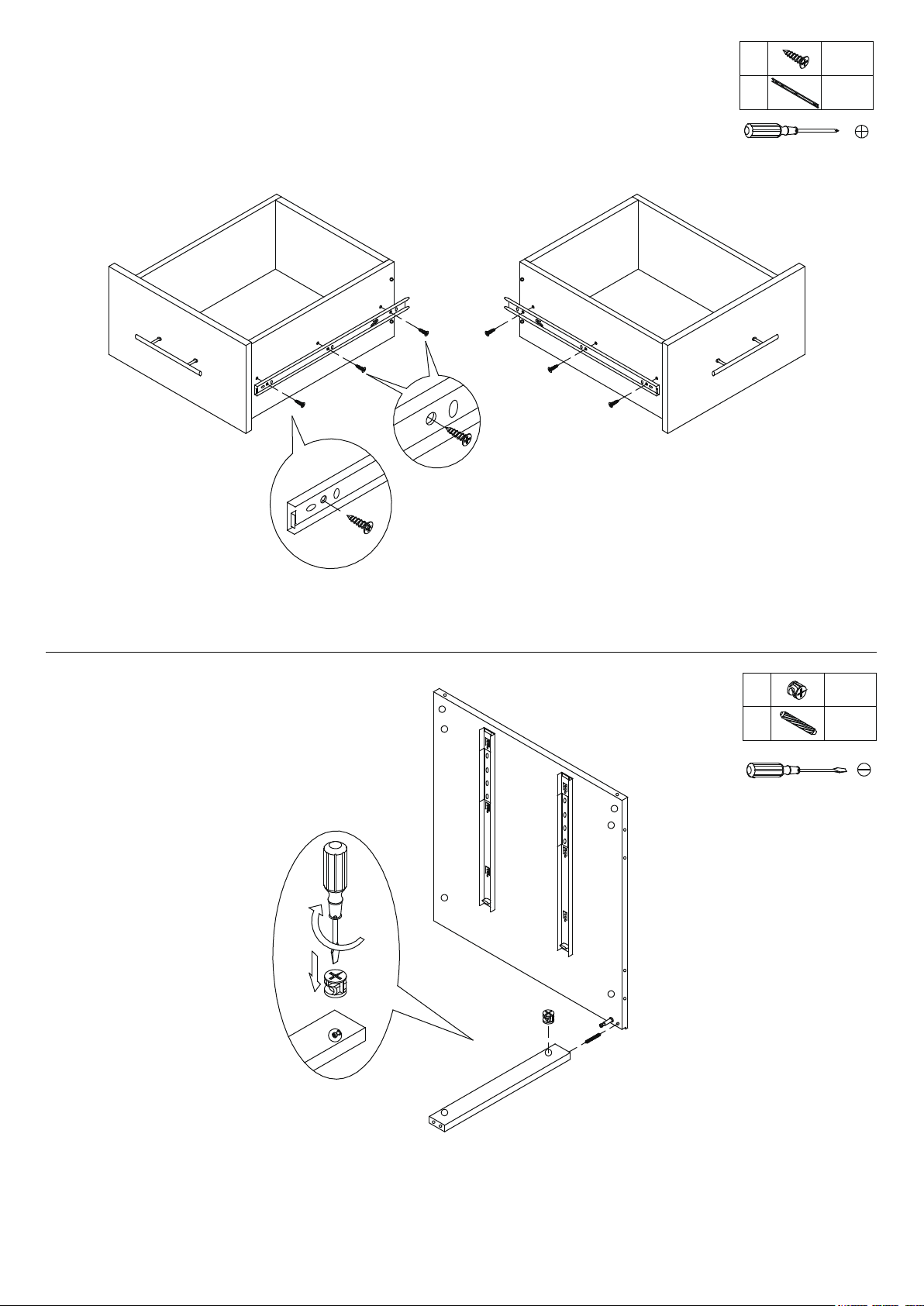

Install Drawer Slide (F1) to Drawer Left and Right Panels (12 & 13) of each drawer.
Align designated holes on (F1) as shown to pilot holes on each panel, and fasten with Screw (E).
F1 F1
EE1213
E
E
4 pcs
F1
1 pc
1 pc
a) Attach Back Connect Bar (7) to Left Side Panel (3) with Wood Dowel (C) and Cam-bolt (A).
b) Insert Cam-lock (B) into designated hole on (7), then turn clockwise to lock Cam-bolt to fasten
(7) to Left Side Panel (3).
B
C
3
7
B
C
B

3
7
4
3
7
a) Attach Right Side Panel (4) to Back Connect Bar (7) with Wood Dowel (C) and Cam-bolt (A).
b) Insert Cam-lock (B) into designated hole on (7), then turn clockwise to lock Cam-bolt to fasten
Right Side Panel (4).
B
C
1 pc
1 pc
B
4
B
C
a) Attach Bottom Panel to Left and Right Side Panels
(3 & 4) with Wood Dowel (C) and Cam-bolt (A).
b) Insert Cam-lock (B) into designated holes on (3 & 4)
then turn clockwise to fasten Bottom Panel (2).
4 pcs
4 pcs
B
C
2
C
B
B
STEP 8
STEP 9
10/13

3
4
2
7
2
3
4
7

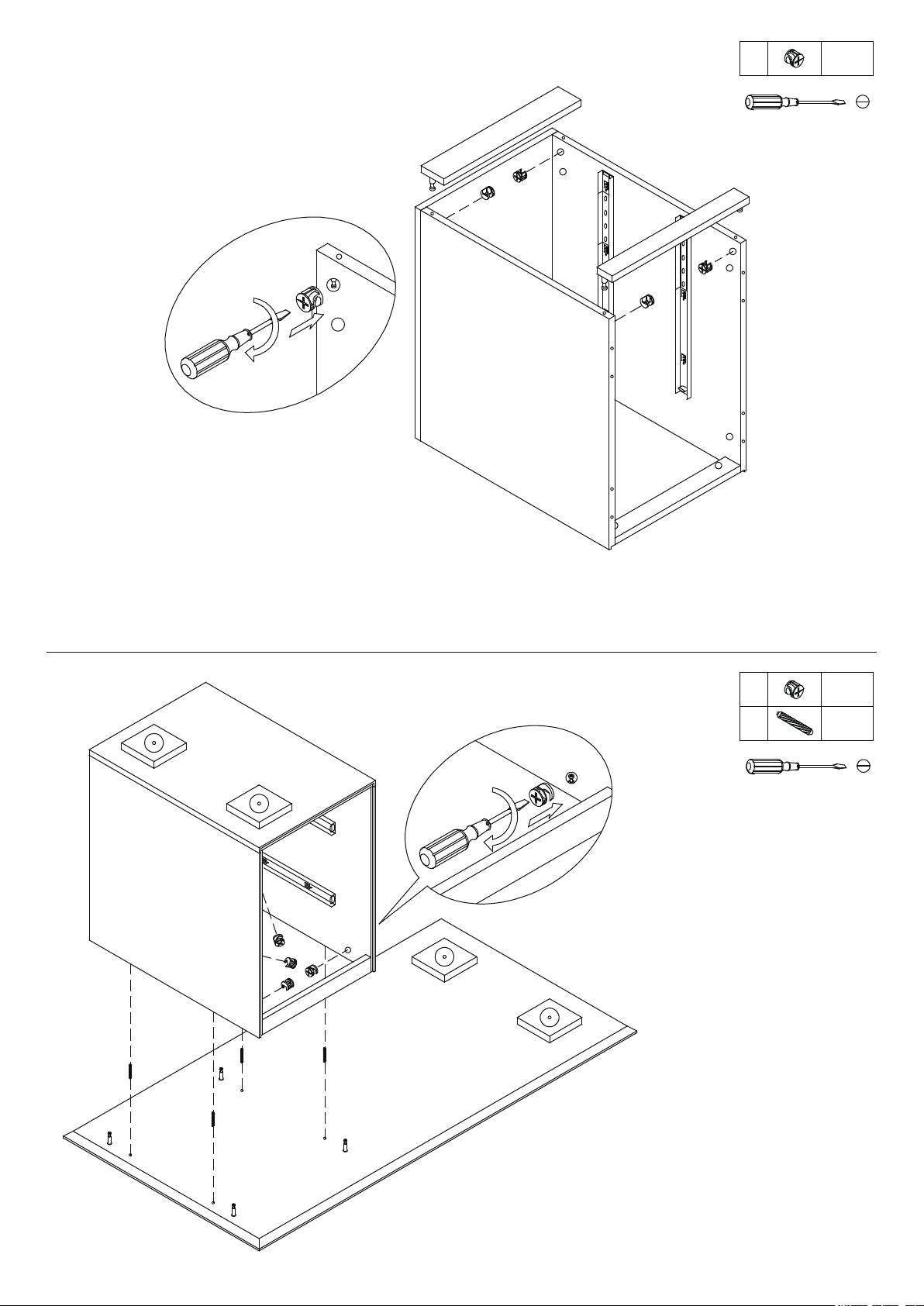

a) Place Top Panel (1) bottom-side
up as shown on a material that
does not scratch or damage its
top surface. Next, insert Wood
Dowel (C) into designated holes
on Top Panel (1).
b) Position the assembly unit from Step 10
as shown and attach to Top Panel (1) via
Wood Dowel (C) and Cam-bolts (A).
c) Insert Cam-lock (B) into designated holes
on (3 & 4) then turn clockwise to lock
Cam-bolt to fasten Side Panels.
4 pcs
4 pcs
B
C
1
B
C
B
STEP 10
STEP 11
11/13
a) Attach Bottom and Top Front Connect Bar (5 & 6) to Left and Right Side Panels (3 & 4) with
Cam-bolts (A). Next, Insert Cam-lock (B) into designated holes on (3 & 4) then turn clockwise
to lock Cam-bolt to fasten Connect Bar (5 & 6).
4 pcs
B
5
6
B
B

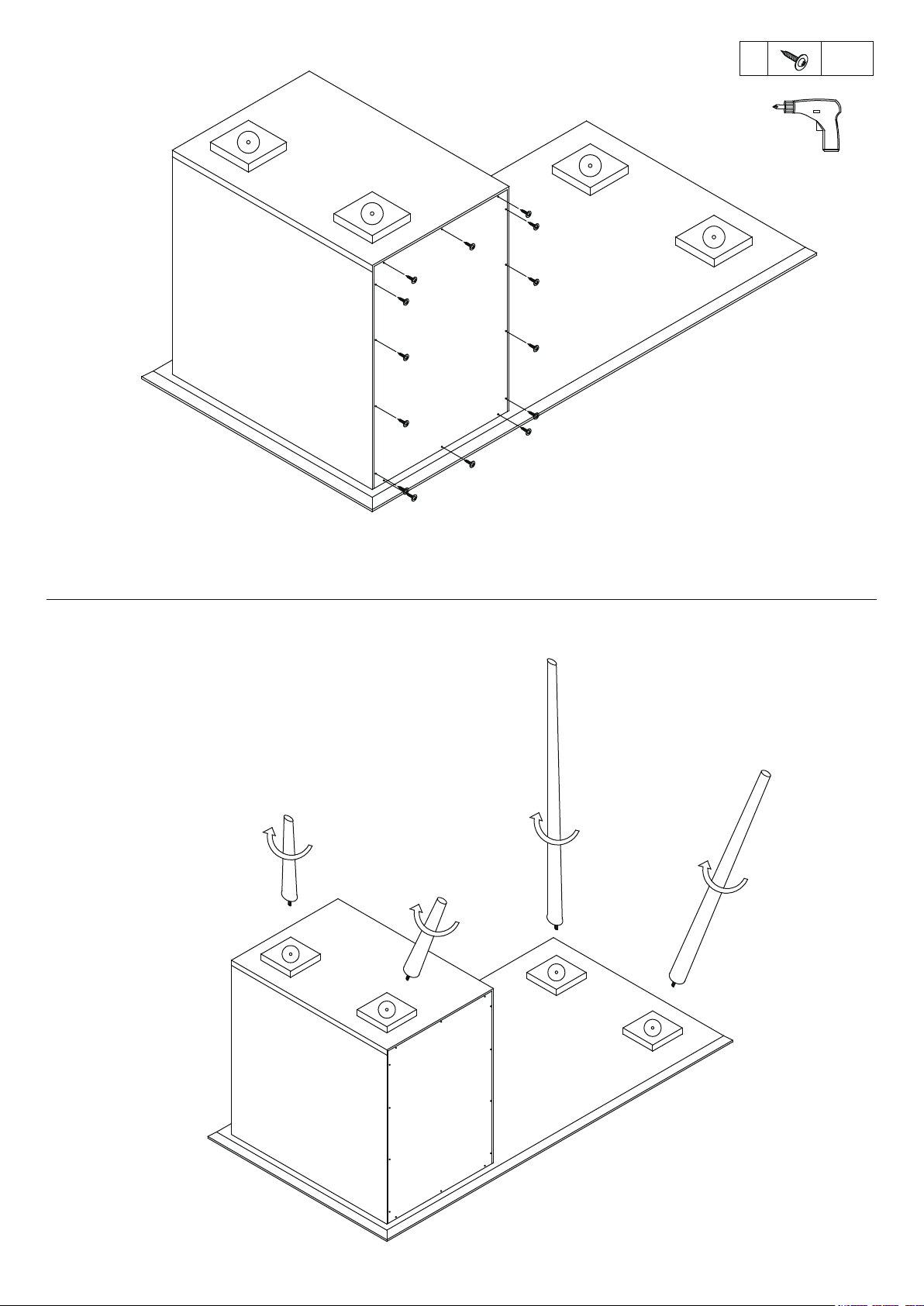

Place Back Panel (8) as shown and identify the pilot holes. Use Screw (I) to fasten Back Panel
(8).
14 pcs
I
8
I
STEP 12
STEP 13
12/13
Screw in Leg (9 & 10) in a clockwise direction untill
snug as shown to attach legs to the desk.
9
9
10
10
2
1

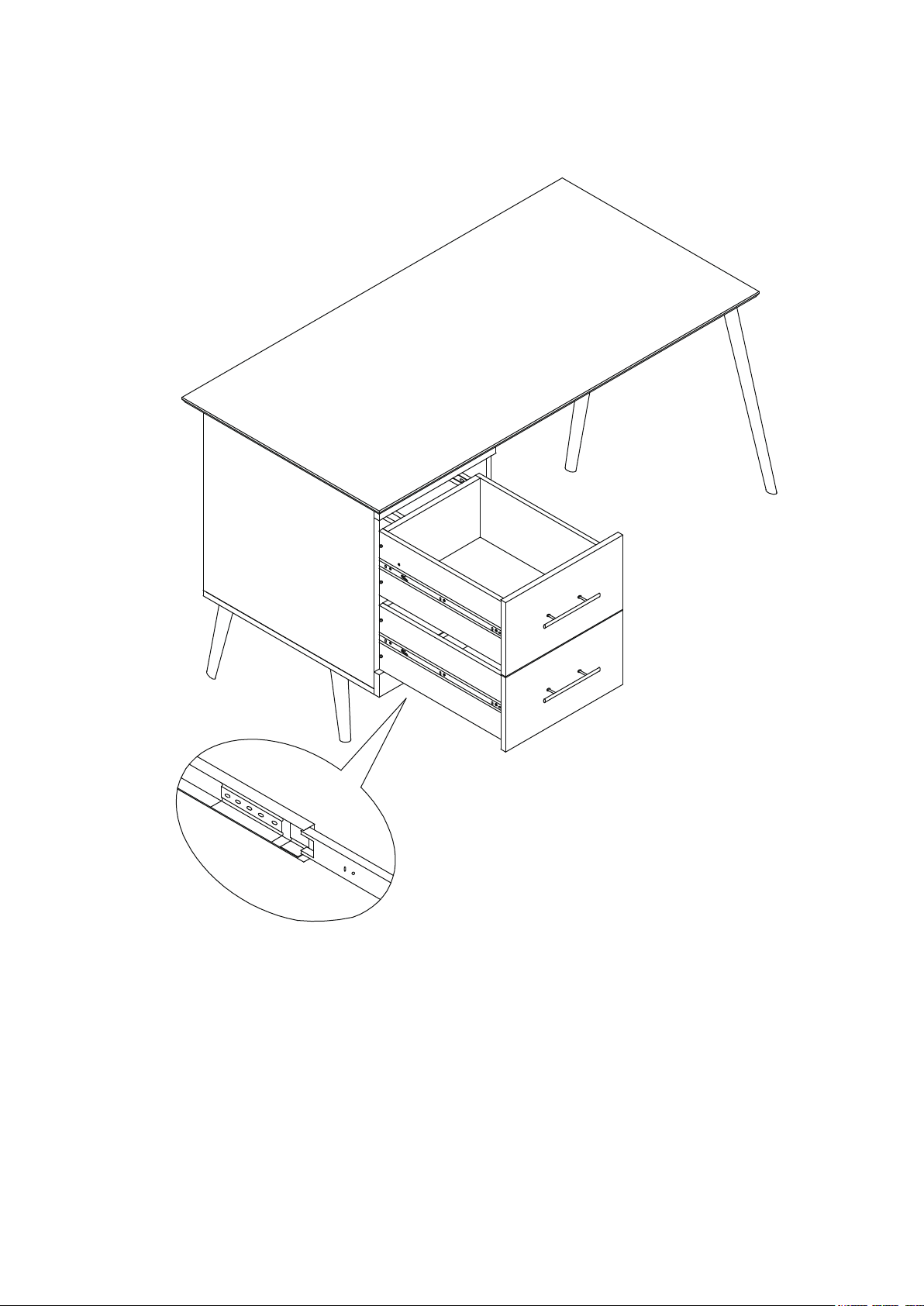

Insert the Drawers.
F1
F2
STEP 14
13/13
To insert the drawers:
a) Hold the drawer level in front of the cabinet.
b) Align Drawer Slide (F1) on drawer sides to Drawer Tracks (F2) on Side Panels.
c) Place the ends of (F1) into opening of (F2).
d) Push drawer in squarely and gently into place, allowing (F1) to slide into (F2). When the
drawer is pushed in half way, the lever/stopper on (F1) will be engaged into (F2) which will
create a little resistance (it is normal). Pull out the drawer a little bit and gently push in the
drawer again to engage the sliding mechanism. The drawer should now slide back out and
in smoothly.
