ANJ CL0516B001 User manual

1
A B C D
Chair seat Backrest Left armrest
Power Cord
F G
Massage Remote Power Source 2*Supporting Feet
EH
Right armrest
:Find a small bag in the accessories box.Take out Supporting Feet(H)
Assemble the two Supporting Feet as shown on the bottom of mechanism to avoid toppling and falling.
from the small bag.
A ss e m b ly In s t r u c ti o ns
CL0516B001
Your recliner comes packaged in TWO boxes. Carefully remove all
of components from the packaging and set aside for assembly.
Package Contents
CAUTION:
DO NOT use any sharp objects to
open plastic wrapped
components as damage to
product or components may
result.

2
A
D
Step2：Insert two armrests to the
chair base, make sure the slots on
the armrests fully assembled to the bottom part.
Step3：Insert chair back to the chair base,
make sure the slots on the back fully
assembled to the bottom part.
C
B
.
POWER HEAT
INTENSITY
MODE
LOWHIGH
PULSE
PRESS
WAVE
AUTO
NORMAL
BACK
LUMBAR
THIGHS
LEGS
15Min
30Min
60Min
TIMER
No.1 and No.2 wire connect with the backrest and chair seat.
No.3 wire connects with backrest and power cord(G).
No.4 wire connects with backrest and massage remote(E).
No.5 wire connect the motor and the wire from rightside armrest,
which use to connect the control panel.
No.6 wire connect the motor and power source (F).
NOTE
1: Two same color wires connect.
2: Plug Power Cord (G) and Power Source (F) into outlet, then
you can use all function.
MUST BE ASSEMBLED
Backrest Cushion
Remote control（E）
Power cord（G）
①
②
③
④
Control panel
From motor
From rightside arm
Power source（F）
⑥
⑤
From power source
Massage remote

3
IN
POWER: Turn on/off remote control
HEAT: Turn on/off heat function for lumbar part only
INTENSITY: Control massage funcion from low to high
MODE: Choose one massage mode you like(pulse, press, wave, auto, normal)
You can choose 1-4 massage parts(back, lumbar, thighs, legs)to enjoy.
TIMER：15 mins/30 mins/60 mins
POWER HEAT
INTENSITY
MODE
LOWHIGH
PULSE
PRESS
WAVE
AUTO
NORMAL
BACK
LUMBAR
THIGHS
LEGS
15Min
30Min
60Min
TIMER
Remote Operation Instruction

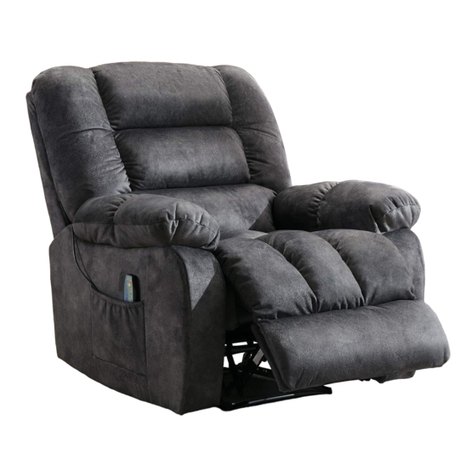

Power Lift Recliners
Press the button on the right armrest to change the positions of lift recliners
makes it convenient to charge your digital devices.
(Go up/down).
USB design

4
Warnings
1. Please check if the components of the chair are all included and can be used normally as the 2nd tip.
2. If the lift recliner doesn’t work, you can try the following measures for self-checking firstly:
a) ķCheck if all the cablesare correctly connected;
b) ĸCheck if the light of transformer is on.
c) ĹWhether the remote works well after being plugged in.
d) If the chair still doesn’t work, please feed the information back to the customer service in
time. We will help solve the problem for you as soon as possible.
3. Assemble all components according to the instruction correctly before you connect the chair with
the power.
4. Please DO NOT sit on the armrests and footrest to eliminate the risk of tipping over.
5. Please use carefully to avoid sliding from the chair when lifting.
6. If the sofa is damaged or doesn’t match the website product, please send clear pictures of the
product and label of the carton to our service team, and we’ll help you to solve the problem.
7. If you have any questions with the product, please contact us by:
Email: [e-mail](we will reply to you within 24 hours˅
www.anj-home.com
