anko CM8501CB-GS User manual

ESPRESSO COFFEE MAKER QUICK INSTALLATION
GUIDE
CM8501CB-GS

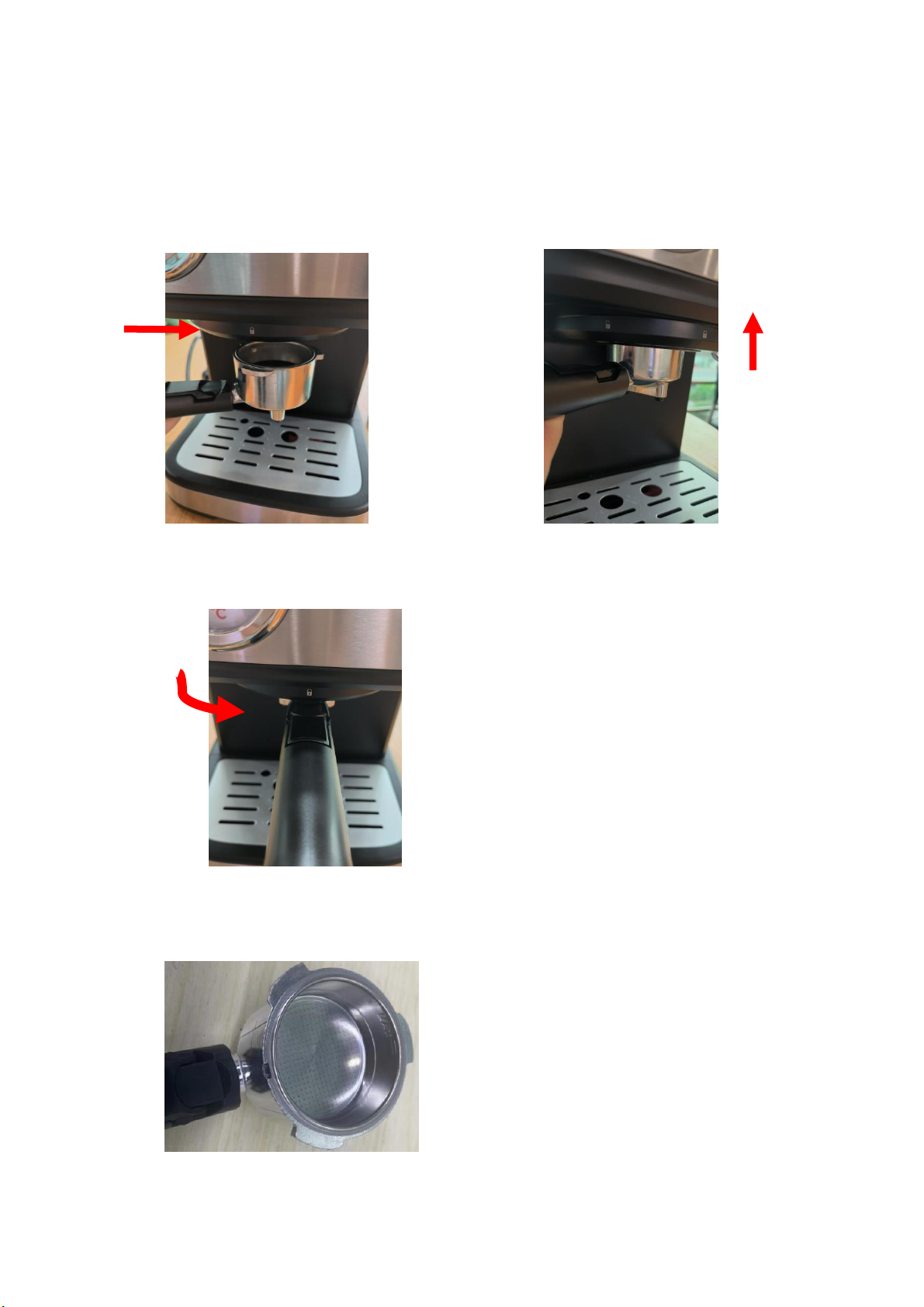

1. Align the handle (lever) on the filter 2. Insert the filter holder slightly
holder to the left of UnLock symbol. into the Expresso Coffee Maker.
3. Turn handle towards the Lock symbol until it is tight and secured.
4. To remove filter - Align the gap in the filter and holder and then take the
filter out.

Espresso Coffee Maker
CM8501CB-GS
User Manual
PLEASE READ AND SAVE THESE
INSTRUCTIONS FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS
Before using the electrical appliance, the following basic precautions should always be followed
including the following:
1. Read all instructions.
2. Before using check that the voltage of wall outlet corresponds to rated voltage marked on
the rating plate.
3. This appliance has been incorporated with a grounded plug. Please ensure the wall outlet
in your house is well earthed.
4. To protect against fire, electric shock and injury to persons do not immerse cord, plug, in
water or other liquid.
5. Remove plug from wall outlet before cleaning and when not in use. Allow appliance cool
down completely before taking off, attaching components or before cleaning.
6. Do not operate any appliance with a damaged cord or plug or after the appliance
malfunctions or is dropped or damaged in any manner. Return appliance to the nearest
authorized service facility for examination, repair or electrical or mechanical adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may
result in fire, electric shock or injury to persons.
8. Place appliance on flat surface or table, do not hang power cord over the edge of table or
counter.
9. Ensure the power cord does not touch hot surface of appliance.
10. Do not place the coffee maker on hot surface or beside fire in order to avoid being
damaged.
11. To disconnect, remove plug from wall outlet. Always hold the plug. But never pull the cord.
12. Do not use appliance for other than intended use and place it in a dry environment.
13. Close supervision is necessary when your appliance is being used near children.
14. Be careful not to get burned by the steam.
15. Do not touch the hot surface of appliance (such as steam wand, and the steel mesh just
boiling). Use handle or knobs.
16. Do not let the coffee maker operate without water.
17. Do not remove the metal funnel when appliance in brewing coffee or making steam.
18. Connect plug to wall outlet before using and turn any switch off before plug is removed
from wall outlet.
19. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliances by a person responsible
for their safety.
20. Children should be supervised to ensure that they do not play with the appliance.
21. This appliance is intended to be used in household and similar applications such as:
– staff kitchen areas in shops, offices and other working environments;
– farm houses;
– by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments.

22. Do not use outdoors.
23. Save these instructions.
24. If you do not use the product for a long time, you need to turn on the power and then
release steam for 3 minutes before leaving this product.
25. If you cut off power during steam release, residual heat will make product continue to
release steam for a length of time, the product will stop releasing steam immediately once
you turn off steam knob.
26. The coffee maker shall not be placed in a cabinet when in use.
27. Cleaning and user maintenance shall not be made by children without supervision.
28. The coffee maker must not be immersed.
29. Potential injury from misuse.
30. The heating element surface is subject to residual heat after use.
31. For cleaning, please refer to CLEANING AND MAINTENANCE section.
CAUTION: To prevent damage to the appliance do not use alkaline cleaning agents when
cleaning, use a soft cloth and a mild detergent.
KNOW YOUR COFFEE MAKER
A. Power switch
D. Steam switch
G. Metal funnel handle
J. Water tank cover
M. Steam wand
B. Thermometer
E.1 Cup steel mesh
H. Removable shelf
K. Water tank
N. Steam pipe
C. Coffee switch
F. 2 Cup steel mesh
I. Drip tray
L. Steam control knob
O. Froth device
P. Coffee spoon

BEFORE THE FIRST USE
Remove all the plastic bags, packaging material on the Espresso Machine.
Remove the stopper at bottom of water tank.
Prior to initial use and after a longer period without use of the Espresso Machine, allow the
contents of approx. 2-3 cups of water to run through the machine without adding any coffee
powder in the filter. This will clean the water circuit and all parts will be heated up for proper
operation.
DANGER OF INJURY, BURNING AND SCALDING!
PLEASE READ ALL SAFETY INSTRUCITONS AND FAMILIARISE YOURSELF WITH PARTS
BEFORE USING THE MACHINE!
SETTING UP THE MACHINE
Filling the Water tank
1. Open the tank cover and extract the tank by pulling it upwards.
2. Fill the tank with fresh clean water. DO NOT fill exceed 1.5L MAX level.
3. Put the tank back in the espresso machine. Press lightly to ensure the water tank is properly
attached to the machine.
IMPORTANT! Never operate the espresso machine without water in the tank or without fitting
the water tank!

Filling the Brewing Filter
This machine includes 2 brewing filters: single shot and double shot filter.
Use the provided measuring spoon to add ground coffee.
1. Insert the preferred brewing filter into the filter holder.
2. Add ground coffee to fill the filter.
3. Tap the filter holder several times to allow coffee to be evenly distributed in the filter.
4. Using the tamper, press firmly on the coffee to make it flat. This is to ensure a proper seal is
achieved in between the coffee spout and ground coffee.
Tips
Clean excess ground coffee from the rim to
ensure proper fit under the brew head and
avoid any leaks.
The compressing of the espresso powder
is an important process for preparation. If
the powder is compressed tightly, the
espresso will run through slowly and there
will be more cream.
Pre-heat the machine and cup
To make a cup of good hot Espresso coffee, we recommend preheating the appliance before
making coffee, including the funnel, filter and cup, so that the coffee flavour cannot be
influenced by the cold parts.
1. Remove the detachable tank and open the tank cover to fill it with desired water. The water
level should not exceed the “MAX” mark in the tank. Then place the tank into the appliance
properly.
2. Select the steam mesh, set steel mesh into metal funnel, make sure the tube on the funnel
aligns with groove in the appliance, then insert the funnel into the appliance from the
“Unlock” position, and you can fix them into the coffee maker firmly by turn it anti-clockwise
until it is at the “Lock” position.
3. Place an espresso cup on the removable shelf.
4. Then connect the appliance to power supply. Make sure the steam control knob is at the
OFF position.
5. Press the ON/OFF button once, and the power indicator turns on and the coffee indicator
blinks. After finish preheating, the coffee indicator lights solidly. Press the coffee switch
when there is water flowing out and close the pump immediately. The purpose of this step is
to pump the water of the tank into the housing.
6. When the lamp in coffee switch is illuminated, you should press the coffee switch again,
there will be hot water flowing out. Close the pump. The pre-heating is finished.
It is also recommended to warm the coffee cups before making espresso, either by rinsing
them with little hot water or place them on warming plate on the coffee machine.

WARNING: Do not leave the machine unattended during use!
BREWING ESPRESSO
Attach the filter holder onto the machine.
Insert small or large brewing filter into
the filter holder. Fill the brewing filter with
ground coffee. (see “Filling the Brewing
Filter”)
Insert the holder into the appliance at the
position of “Unlock” mark. Make sure
the tube on the funnel aligns with groove
in the appliance. (Fig.1)
Fig.1
Turn anti-clockwise until the handle is
aligned with the “Lock” mark. (Fig.2)
IMPORTANT! You may need to turn the
handle a little harder to make the holder
stop at the right locking position. This is
important to prevent the holder from
ejecting during use due to steam pressure.
Fig. 2
Insert drip tray. Put a coffee cup
underneath the coffee spout of the filter
holder.
Note: The appliance is not equipped with a
cup. Please use your own coffee cup
Turn the steam controller to “0” position
marked in Fig.3 to close the steam nozzle.
Fig. 3
Warning plate

socket. Press the ON/OFF button to power
on the unit.
The Power indicator turns on and the
coffee indicator blinks.
After preheating has finished, the coffee
indicator light will stop blinking and be solid.
Press the coffee button. Hot espresso will
flow into the cup(s)
The appliance will stop when you press the
coffee button again.
Risk of burning! Parts of the espresso machine become very hot during and
immediately after operation. Do not touch hot surfaces, especially the metal parts.
Always touch handles or wait until parts have cooled down.
Risk of scalding! Rising steam can cause burns. Be aware hot water/hot steam that
may escape from the espresso machine during use.
Emptying the brewing filter
1. Remove the filter holder from the machine.
2. Turn the filter holder to “Unlock” mark position, then
pull it down gently.
3. Fold the filter blocker up and over the edge to hold the
brewing filter. Refer to figure shown.
4. Hold the handle placing your thumb/finger on the filter
blocker, this will prevent the filter from falling out, turn it
upside down and knock out remove the espresso
powder.
MAKE ESPRESSO
1. Remove the funnel by turning it in clockwise. Add ground coffee into the steel mesh with
measuring spoon. A spoon of ground coffee power can make about a cup of top-grade
coffee. Press the ground coffee powder tightly with the tamper.
2. Set steel mesh into metal funnel, make sure the tube on the funnel aligns with groove in
the appliance, then insert the funnel into the appliance from the “Unlock” position, and
you can fix them into coffee maker firmly by turning it anti-clockwise until it is at the
“Lock” position.
3. Pour hot water into the cup. After the cup is warmed up, empty the water in the cup and
dry the cup, and then place the hot cup on removable shelf.
4. At this time, the lamp of the coffee switch should be illuminated. If it is extinguished, wait
for a moment. Once the lamp in it is illuminated, you should press the coffee switch, and
there will be coffee flowing out. Press the coffee switch again when the desired amount is
achieved and the water pump will stop working.

Insert the plug into a mains power outlet

5. WARNING: Do not leave the coffee maker unattended while in.use. After finishing
making the coffee, you can take the metal funnel out by turning it clockwise, then pour the
coffee residue out with the steel mesh pressed by press bar.
6. Let it cool down completely, then rinse under running water.
NOTE: The maximum working time for brewing coffee is 60 seconds and then water pump
will stop working.
MAKE HOT WATER
When the preheating is finished, the coffee indicator light will stop blinking and be solid.
Press the coffee switch, and the water pump will start to pump water. Turn the knob to “Hot
water”, and then hot water will flow out of the steam pipe. To stop making hot water, press the
coffee switch again. Hot water is used for warming cup, making tea or cooling down the
appliance.
NOTE: The maximum working time for brewing coffee is 60 seconds and then water pump
will stop working.
.
MAKE CAPPUCCINO/FROTHED MILK
You get a cup of cappuccino when you top up a cup of espresso with frothed milk.
Method:
1. Prepare espresso first with container big enough according to the part “MAKE ESPRESSO
COFFEE.” Make sure that the steam control knob is at the “0” position.
2. Press the steam switch selector. The lamp in the coffee switch will extinguish. Wait until the
indicator in the steam switch selector is illuminated.
3. Let off steam for 10 seconds before foaming the milk. Drain excess water. Turn off steam
knob to “0” position.
Note: During operation, the indicator in the steam selector will cycle on and off to maintain to
desired temperature.
4. Fill a jug with about 100 ml of milk for each cappuccino to be prepared. You are
recommended to use whole milk at refrigerator temperature (not hot!).
Note: In choosing the size of jug, it is recommended the diameter is not less than 70±5mm,
and bear in mind that the milk increases in volume by 2 times. Make sure the height of jug is
enough.
5. Turn the steam control knob slowly anti-clockwise, steam will come out from the frothing
device.
Note: Never turn the steam control button rapidly, as the steam will accumulate rapidly in
short time which may increase the potential of the risk of explosion.

6. Insert the frothing device about two centimetres into the milk. Froth milk by turning the
vessel at an angle and moving it up and down.
7. When the required purpose is reached, you can turn the steam control knob to “0” position.
Note: Clean steam outlet with wet sponge immediately after steam stops generating. Be
careful not to hurt yourself.
8. Pour the frothed milk into the prepared espresso, and now the cappuccino is ready.
Sweeten to taste and if desired, sprinkle the froth with a little cocoa powder.
9. Press the Power switch to cut the power source off. All indicators will be extinguished.
WARNING: After finishing the “Steam” function, press the coffee switch. If the coffee indicator
and steam indicator are blinking fast, it means that the temperature of the appliance is too
high and the appliance needs to be turned off and have a rest for more than 5 minutes, or you
can activate the “Hot water” function to cool down the appliance. When the indicator light
stops flashing quickly, press the coffee button again. The pump will stop working and the
coffee can be brewed normally.
Cleaning milk frother
After milk frothing, the steam nozzle must be cleaned. Not doing so may result in steam
blockage.
1. Place an empty large cup underneath the milk frother
nozzle.
2. Turn on the steam controller and wait for approx. 15
seconds, then close the steam controller.
3. Wipe the nozzle with a clean damp cloth.
4. Detach the nozzle and wipe the milk frother with a clean
damp cloth.
IMPORTANT! Ensure the detachable nozzle is fitted
firmly back in place after cleaning. If not fitted firmly
back in position, the nozzle may detach during frothing
due to steam pressure.
Tips
 Any milk can be frothed (also soya and rice milk). However, some varieties of milk, e.g.
whole dairy milk, will give better results than others. Skimmed milk does not froth as
easily as whole milk due to low fat content. Therefore, we recommend using milk with
a fat content 1.5% to 3.5% for finer froth.
 Well-chilled milk foams better than less-chilled milk. Recommended temperature:
approx. 7°C.
 Do not froth milk a second time (due to risk of scalding).
 Allow the frothed milk to stand for approx. 30 seconds before putting the froth on the
espresso. During this time, larger bubbles will burst and milk, which is still liquid, sinks
to the bottom. The froth becomes even finer this way.
AFTER USE
 Press the ON/OFF button to turn off the machine.
 Pull the power plug off from the mains power outlet socket.
 Allow the machine cool down for a few minutes.

Quick clean
Wipe all parts with a damp soft cloth, such that coffee grounds and milk residues do not dry on
the machine.
Empty the drip tray
The drip tray needs emptying as soon as the red overfill indicator pops up.
Carefully lift the drip tray off the espresso machine, remove the draining rack and pour the
water into the sink.
AUTOMATIC POWER OFF FUNCTION
If there are no operations within 25 minutes, the unit will power off automatically.
CLEANING AND MAINTENANCE
DANGER OF BURNING!
The espresso machine becomes hot during operation. Metal parts particularly
remain hot for longer time.
Prior to cleaning, wait until the espresso machine has cooled down completely.
SHORT-CIRCUIT HAZARD!
Water, which has penetrated the housing, may cause a short-circuit. Never
immerse the espresso machine in water or other liquids. Ensure that no water or
other liquids enter into the housing.
Always switch off the machine and pull off the plug mains power before
cleaning!
RISK OF DAMAGE!
Improper handling of the espresso machine may result in damage. Do not use any
aggressive detergents, sharp or metallic cleaning implements, such as knives, hard
spatulas and similar. These may damage the surfaces.
1. Clean the filter holder, brewing filter and the drip tray with a little detergent under warm
running water and rinse through with clear water.
2. Pull the metal nozzle off the milk frother and clean it with a little detergent under warm
running water. Rinse it thoroughly with clear water.
3. Wipe the handle and the milk frother with a slightly damp cloth.
4. Let all parts dry before reassembling.
5. Regularly wipe down the housing of the machine with a slightly damp cloth.

Descaling
Descale the coffee maker regularly. To do this, use a commercially available descaling product
(kettle descaling solution) and follow instructions provided with product.
Storage
1. Prior to longer storage, clean the espresso machine thoroughly.
2. Empty the water tank and the drip tray.
3. Allow all parts to dry completely.
4. Store the espresso machine in a dry, frost and dust free location.
TROUBLESHOOTING
Symptom
Cause
Corrections
Water leaks from the
bottom of coffee
maker.
There is too much water in
the drip tray.
Please clean the drip tray.
The coffee maker has
malfunction.
Please contact the authorized service
facility for repair.
Water leaks out of
outer side of filter.
There is some coffee
powder on the edge of filter.
Get rid of them.
Acid (vinegar) taste
exists in Espresso
coffee.
Not clean correctly after
cleaning mineral deposits.
Clean coffee maker per the content in
“before the first use” for several times.
The coffee powder is stored
in a hot, wet place for a long
time. The coffee powder has
turned bad.
Please use fresh coffee powder, or store
unused coffee powder in a cool, dry
place. After opening a package of coffee
powder, reseal it tightly and store it in a
refrigerator to maintain its freshness.
The coffee maker
cannot work
anymore.
The power outlet is not
plugged well.
Plug the power cord into a wall outlet
correctly, if the appliance still does not
work, please contact with the authorized
service facility for repairing.
Steam cannot froth. The steam ready indicator is
not illuminated.
Only after the steam ready indicator is
illuminated, the steam can be used to
froth.
The container is too big or
the shape does not fit.
Use high and narrow cup.
You have used skimmed
milk
Use whole milk or half-skimmed milk
Do not take disassemble the appliance.

TECHNICAL SPECIFICATION
Voltage: 220-240Va.c. 50-60Hz
Wattage: 1100W

12 Month Warranty
Thank you for your purchase from Kmart.
Kmart Australia Ltd warrants your new product to be free from defects in materials and
workmanship for the period stated above, from the date of purchase, provided that the
product is used in accordance with accompanying recommendations or instructions where
provided. This warranty is in addition to your rights under the Australian Consumer Law.
Kmart will provide you with your choice of a refund, repair or exchange (where possible) for this
product if it becomes defective within the warranty period. Kmart will bear the reasonable
expense of claiming the warranty. This warranty will no longer apply where the defect is a result
of alteration, accident, misuse, abuse or neglect.
Please retain your receipt as proof of purchase and contact our Customer Service Centre on
1800 124 125 (Australia) or 0800 945 995 (New Zealand) or alternatively, via Customer Help
at Kmart.com.au for any difficulties with your product. Warranty claims and claims for
expense incurred in returning this product can be addressed to our Customer Service
Centre at 690 Springvale Rd, Mulgrave Vic 3170.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
For New Zealand customers, this warranty is in addition to statutory rights observed under New
Zealand legislation.
