anko 43082353 User manual

Instruction Manual
Multi-Media Keyboard
Keycode: 43082353
Package Contents
①2.4GHz wireless keyboard
②USB receiver (inside the battery compartment)
③User manual
Safety Instructions:
Please read the instruction manual before using this device and follow all the safety
instructions to avoid damage caused by improper usage.
Keep the instruction manual for future reference. Should this device be given to a third
party, then this instruction manual must also be handed over.
Use this device solely for its intended purpose.
Only use this appliance indoors.
Keep the appliance away from all hot surfaces and naked flames.
Always put the appliance on a level, stable, clean and dry surface. Protect the appliance
from extreme heat and cold, dust, direct sunlight, humidity and drops or jets of water.
Do not immerse the appliance in water or in other liquids.
Do not open the housing under any circumstances.
Do not introduce any objects into the interior of the housing.
Should the device malfunction due to electrostatic discharge or a short power surge,
disconnect it from your computer and then reconnect it again.
Specification
Connected by
2.4G Wireless (with dongle)
Operating distance
8 meters
Battery type
2*AAA ( not included)
Power consumption
3.0V/10mA
Material
Galvanized(front) + ABS(back)
Dimensions
374.98*129.38*17.60mm

Supports:
Windows 7, Windows 8, Windows 10 and later, Android 5.0 or later, and Chrome OS

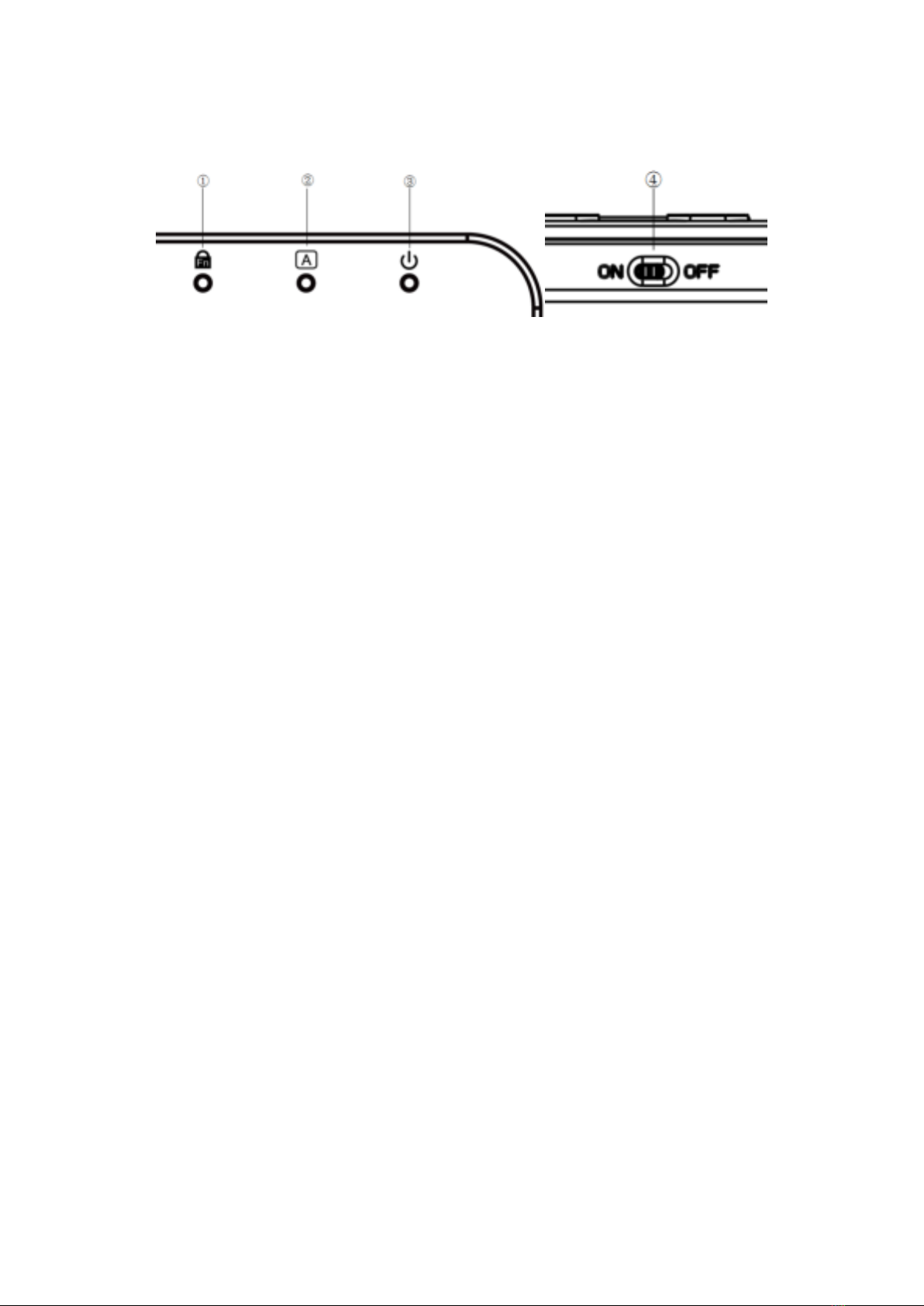

Indicator Light Description
① Fn lock indicator (Blue)
② Caps lock indicator (Green)
③ Power indicator (Green)/Low battery indicator (Green)
Note: This indicator light will be on around 5 seconds, then go off, and will light up once the
battery is low power.
④ Power Switch (ON/OFF)
Operation Instructions
Connection Steps
1. Assemble with 2pcs AAA batteries.
Caution! Danger of explosion if the batteries are incorrectly replaced.
2. Slide power switch to “ON” side, power indicator turns on for 5 seconds, then turns off.
3. Plug 2.4G receiver into PC USB port, connected successfully.
4. Replace the battery compartment cover again.
If fail to use, please press Fn + Esc, keyboard re-enters pairing mode, then plug receiver into PC
USB port.
Notes on Batteries
> It is recommended to only use Alkaline or Rechargeable batteries.
> If the device is not to be used for an extended period of time, then the batteries should be
removed.
> Batteries do not belong in household waste! Expired batteries must be disposed of in an
environmentally friendly way and according to the applicable legal regulations.
> Please keep the batteries and the device components away from children at all times. If a
battery is swallowed, seek medical attention immediately.
> Batteries must not be recharged or activated with other means, dismantled, thrown into
fire or short-circuited.
> Remove the batteries prior to disposing of the device.
Language switching guide
1. Samsung Android: Shift + Space
2. Google Android: Ctrl + Space
3. Microsoft Windows: Win + Space

Key function
Multimedia Key
Function in Windows
system
Multimedia Key
Function in Windows
system
Fn+
Fn Lock
Favorite
Mute
Active windows lists
Volume down
No short Key function
Volume up
Activate website
Last track
Fn+
Touchpad On/Off
Play/Pause
Fn+
Line head
(in Word document)
Next track
Fn+
Line end (in Word
document)
Brightness -
Fn+
Page up
Brightness +
Fn+
Page down
Menu
Return function for Website
Home page for Website
Note:
Fn Lock Key.
1. Press “Fn”+” ”, the indication light is on, the function of “Fn” key is locked, separately
press F1~F12 to achieve the original function;
2. Press “Fn”+” ”, the indication light is off, separately press F1~F12 to achieve
above shortcut key function.
3. Fn lock is not workable to , , , , 5 functions.

Touchpad Function
Using in Windows system
Gesture illustration & description
Function
one finger click
Mouse left button
one finger slide
Move the cursor
one finger hold click quickly and slide
Select and move
two fingers click
Mouse right button
two fingers move vertically
Roll vertically
two fingers move horizontally
Roll horizontally
two fingers move out from center
Zoom out
two fingers move in from two sides
Zoom in
three fingers slide downward simultaneously
Show desktop
Remarks：
The touchpad function may not work because of the different devices system or application
compatibility.

Using in Android system
Power saving mode
If the keyboard is not used for 30 minutes, it switches to power saving mode. Just press any
key and wait for 3-5 seconds to reactivate it.
12 Month Warranty
Thank you for your purchase from Kmart.
Kmart Australia Ltd warrants your new product to be free from defects in materials and
workmanship for the period stated above, from the date of purchase, provided that the
product is used in accordance with accompanying recommendations or instructions where
provided. This warranty is in addition to your rights under the Australian Consumer Law.
Kmart will provide you with your choice of a refund, repair or exchange (where possible) for
this product if it becomes defective within the warranty period. Kmart will bear the
reasonable expense of claiming the warranty. This warranty will no longer apply where the
defect is a result of alteration, accident, misuse, abuse or neglect.
Please retain your receipt as proof of purchase and contact our Customer Service Centre on
1800 124 125 (Australia) or 0800 945 995 (New Zealand) or alternatively, via Customer Help
at Kmart.com.au for any difficulties with your product. Warranty claims and claims for
expense incurred in returning this product can be addressed to our Customer Service Centre
at 690 Springvale Rd, Mulgrave Vic 3170.
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
For New Zealand customers, this warranty is in addition to statutory rights observed under
New Zealand legislation.
