ANKOVO TD-4267 User manual

TD-4267
Blood Glucose Monitoring System
Owner’s Manual

Dear ANKOVO System Owner:
Thank you for purchasing the ANKOVO Blood Glucose Monitoring
System. This manual provides important information to help you to
use the system properly. Before using this product, please read the
following contents thoroughly and carefully.
Regular monitoring of your blood glucose levels can help you and
your doctor gain better control of your diabetes. Due to its compact
size and easy operation, you can use the ANKOVO Blood Glucose
Monitoring System to easily monitor your blood glucose levels by
yourself anywhere, any time.
If you have other questions regarding this product, please contact
the local customer service or place of purchase.
Intended Use
This system is intended for use outside the body (in vitro diagnostic
use) by people with diabetes at home and by health care
professionals in clinical settings as an aid to monitoring the
effectiveness of diabetes control. It is intended to be used for the
quantitative measurement of glucose (sugar) in fresh capillary whole
blood samples from the finger, palm, forearm and upper arm.
It should not be used for the diagnosis or screening of diabetes.

Test Principle
Your system measures the amount of glucose in whole blood. The
glucose testing is based on the measurement of electrical current
generated by the reaction of glucose with the reagent of the strip.
The meter measures the current, calculates the glucose level, and
displays the result. The strength of the current produced by the
reaction depends on the amount of glucose in the blood sample.

IMPORTANT SAFETY PRECAUTIONS
READ BEFORE USE
1. Use this device ONLY for the intended use described in this manual.
2. Do NOT use accessories which are not specified by the
manufacturer.
3. Do NOT use the device if it is not working properly or if it is
damaged.
4. Do NOT use the equipment in places where aerosol sprays are
being used or where oxygen is being administered.
5. This device does NOT serve as a cure for any symptoms or
diseases. The data measured is for reference only. Always consult
your doctor to have the results interpreted.
6. Before using this device to test blood glucose, read all instructions
thoroughly and practice the test. Carry out all the quality control
checks as directed.
7. Keep the device and testing equipment away from young children.
Small items such as the battery cover, batteries, test strips, lancets
and vial caps are choking hazards.
8. Use of this instrument in a dry environment, especially if synthetic
materials are present (synthetic clothing, carpets etc.) may cause
damaging static discharges that may cause erroneous results.
9. Do NOT use this instrument in close proximity to sources of strong
electromagnetic radiation, as these may interfere with the accurate
operation.
10. Proper maintenance and periodically control solution test are
essential to the longevity of your device. If you are concerned about
your accuracy of measurement, please contact the local customer
service or place of purchase for help.
KEEP THESE INSTRUCTIONS IN A SAFE PLACE

TABLE OF CONTENTS
BEFORE YOU BEGIN..............................................................................................1
Important Information. ...................................................................1
Meter Overview .............................................................................2
Display Screen ..............................................................................3
Test Strip .......................................................................................4
SETTING THE METER.............................................................................................4
THE FOUR MEASURING MODES ..........................................................................6
QUALITY CONTROL TESTING...............................................................................7
When Should the Control Solution Test be Performed?................7
Performing a Control Solution Test ...............................................7
TESTING WITH BLOOD SAMPLE ..........................................................................9
Preparing the Lancing Device for Blood Testing ...........................9
Preparing the Puncture Site ..........................................................9
Performing a Blood Glucose Test................................................10

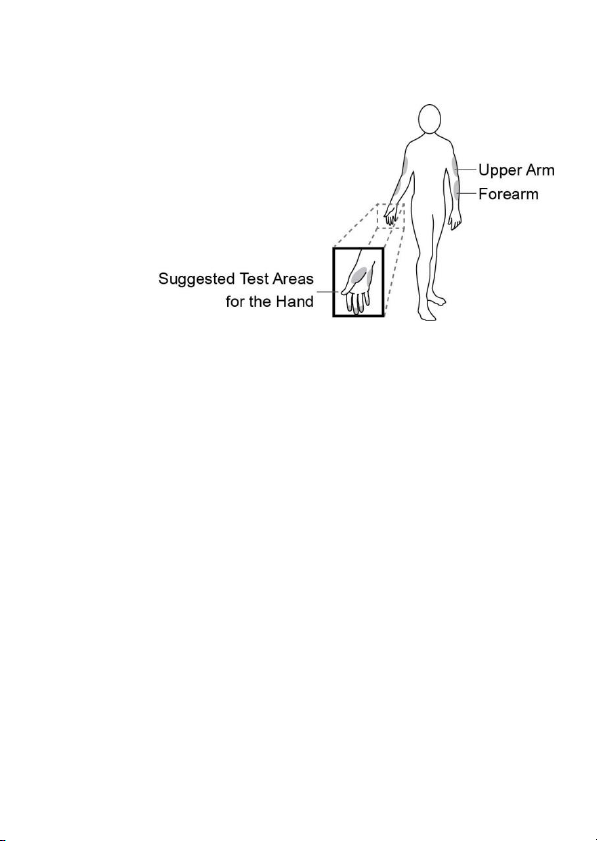

Alternative Site Testing ...............................................................12
METER MEMORY ..................................................................................................13
Reviewing Test Results ...............................................................13
Reviewing Blood Glucose Day Average Results..............................13
DOWNLOADING RESULTS ONTO A COMPUTER..............................................14
MAINTENANCE .....................................................................................................15
Battery .........................................................................................15
Replacing the Battery ..................................................................15
Caring for Your Meter. .................................................................16
Caring for Your Test Strips ..........................................................16
Important Control Solution Information........................................17
MEASUREMENT RESULT READING...................................................................18
Result Readings ..........................................................................18
Reference Values........................................................................18
SYSTEM TROUBLESHOOTING ...........................................................................19
Error Messages ...........................................................................19
Troubleshooting...........................................................................20
SYMBOL INFORMATION ......................................................................................21
SPECIFICATIONS..................................................................................................22

1
BEFORE YOU BEGIN
Important Information
Severe dehydration and excessive water loss may cause readings
which are lower than actual values. If you believe you are suffering
from severe dehydration, consult a healthcare professional
immediately.
If your blood glucose results are lower or higher than usual, and
you do not have any symptoms of illness, first repeat the test. If
you have symptoms or continue to get results which are higher or
lower than usual, follow the treatment advice of your healthcare
professional.
Use only fresh whole blood samples to test your blood glucose.
Using other substances will lead to incorrect results.
If you are experiencing symptoms that are inconsistent with your
blood glucose test results and you have followed all the
instructions given in this owner’s manual, contact your healthcare
professional
We do not recommend using this product on severely hypotensive
individuals or patients in shock. Please consult the healthcare
professional before use.
The measurement unit used for indicating the concentration of
blood or plasma glucose can either have a weight dimension (mg/
dL) or a molarity (mmol/L). The approximate calculation rule for
conversion of mg/dL in mmol/L is:
mg/dL
Divided by 18
= mmol/L
mmoL/L
Times 18
= mg/dL
For example:
1) 120 mg/dL ÷ 18 = 6.6 mmol/L
2) 7.2 mmol/L x 18 = 129 mg/dL approximately.

2
Meter Overview
Test Strip Ejector
Eject the used strip by pushing up this button.
Test Strip Slot
Insert test strip here to turn the meter on for testing.
Display Screen
Main Button (M)
Enter the meter memory and silence a reminder alarm.
No
Up Button (UP)
Down Button (DOWN)
SET Button (S)
Enter and confirm the meter settings.
Battery Compartment
1
2
3
4
5
6
7
8
9

3
4
12
13
14
15
Display Screen
Test Result Measurement Unit
Error Warning Low Battery Symbol
Face/Low/High Symbol Test Strip Symbol
Measuring Mode
AC – before meal
PC – after meal
Gen – any time of day
Alarm Symbol
Date
Time
Day Average
Memory Symbol
Control Solution Mode
QC – control solution test
Ketone Warning
Blood Drop Symbol
1
2
3
4
5
6
7
8
9
10
11

4
NOTE:
The ANKOVO TD-4267 monitor should only be used with ANKOVO TD-4267
Test Strips. Using other test strips with this meter can produce
inaccurate results.
Test Strip
ATTENTION:
Absorbent Hole
Confirmation Window
Test Strip Handle
Contact Bars
The front side of test strip should face up when inserting test strip.
Test results might be wrong if the contact bar is not fully inserted into the
test slot.
SETTING THE METER
Before using your meter for the first time or if you change the meter
battery, you should check and update these settings.
Entering the Setting Mode (a)
Start with the meter off (no test strip inserted). Press S.
1. Setting the date
The sequence of the date setting is: YEAR MONTH DAY.
With the YEAR / MONTH / DAY flashing in sequence, press UP
or DOWN until the correct year/month/day appears. Press S.
1
2
3
4
