Anritsu MZ1834A User manual

Document No.: M-W3687AE-5.0
ANRITSU CORPORATION
MZ1834A/MZ1834B
4PAM Converter
MZ1838A
8PAM Converter
MZ1854A
Data Signal Combiner
Operation Manual
•
For safety and warning information, please read
this
manual before attempting to use the equipment.
•
Additional safety and warning information is
provided within the MP1800A Signal Quality Analyzer
Installation Guide, the MT1810A 4 Slot Chassis
Installation Guide and MU183020A 28G/32G bit/s PPG
MU183021A 28G/32G bit/s 4ch PPG Operation Manual
and MP1861A Operation Manual. Please also refer to
them before using the equipment.
•
Keep this manual with the equipment.
Fifth Edition

ii
Safety Symbols
To prevent the risk of personal injury or loss related to equipment malfunction, Anritsu Corporation uses the
following safety symbols to indicate safety-related information. Ensure that you clearly understand the meanings of
the symbols BEFORE using the equipment. Some or all of the following symbols may be used on all Anritsu
equipment. In addition, there may be other labels attached to products that are not shown in the diagrams in this
manual.
Symbols used in manual
This indicates a very dangerous procedure that could result in serious injury or
death if not performed properly.
This indicates a hazardous procedure that could result in serious injury or death if
not performed properly.
This indicates a hazardous procedure or danger that could result in light-to-severe
injury, or loss related to equipment malfunction, if proper precautions are not taken.
Safety Symbols Used on Equipment and in Manual
The following safety symbols are used inside or on the equipment near operation locations to provide information
about safety items and operation precautions. Ensure that you clearly understand the meanings of the symbols and
take the necessary precautions BEFORE using the equipment.
This indicates a prohibited operation. The prohibited operation is indicated
symbolically in or near the barred circle.
This indicates an obligatory safety precaution. The obligatory operation is
indicated symbolically in or near the circle.
This indicates a warning or caution. The contents are indicated symbolically in or
near the triangle.
This indicates a note. The contents are described in the box.
These indicate that the marked part should be recycled.
MZ1834A/MZ1834B 4PAM Converter
MZ1838A 8PAM Converter
MZ1854A Data Signal Combiner
Operation Manual
18 October 2013 (First Edition)
28 August 2020 (Fifth Edition)
Copyright © 2013-2020, ANRITSU CORPORATION.
All rights reserved. No part of this manual may be reproduced without the prior written permission of the
publisher.
The operational instructions of this manual may be changed without prior notice.
Printed in Japan
DANGER
WARNING
CAUTION

For Safety
iii
WARNING
●ALWAYS refer to the operation manual when working near locations
at which the alert mark shown on the left is attached. If the advice in
the operation manual is not followed there is a risk of personal injury
or reduced equipment performance. The alert mark shown on the left
may also be used with other marks and descriptions to indicate other
dangers.
CAUTION
This instrument is designed for an industrial environment.
In a residential environment this instrument may cause radio
interference in which case the user may be required to take adequate
measures.
Exposure to corrosive gases such as hydrogen sulfide, sulfurous acid,
and hydrogen chloride will cause faults and failures.
Note that some organic solvents release corrosive gases.
Use in a residential
environment
Use in
Corrosive
Atmospheres

iv
Equipment Certificate
Anritsu Corporation certifies that this equipment was tested before shipment
using calibrated measuring instruments with direct traceability to public
testing organizations recognized by national research laboratories, including
the National Institute of Advanced Industrial Science and Technology, and
the National Institute of Information and Communications Technology, and
was found to meet the published specifications.
Anritsu Warranty
Anritsu Corporation provides the following warranty against stoppages
arising due to manufacturing error, and against problems with operation
occurring even though the procedures outlines in the operation manual were
followed.
Hardware:
Problems occurring within a period of one year from the date of delivery will
be corrected by Anritsu Corporation at no cost to the user.
Software:
Software reported as faulty within a period of 6 months from the date of
delivery will be corrected or replaced by Anritsu Corporation at no cost to the
user.
Following correction or replacement the software will remain under warranty
for either the remainder of 6 months from the date of initial delivery, or for a
period of 30 days, whichever is shorter.
The hardware and software warranties are not valid under any of the
following conditions:
•The fault is outside the scope of the warranty conditions separately
described in the operation manual.
•The fault is due to mishandling, misuse, or unauthorized modification or
repair of the equipment by the customer.
•The fault is due to severe usage clearly exceeding normal usage.
•The fault is due to improper or insufficient maintenance by the customer.
•The fault is due to natural disaster, including fire, wind or flood,
earthquake, lightning strike, or volcanic ash, etc.
•The fault is due to damage caused by acts of destruction, including civil
disturbance, riot, or war, etc.
•The fault is due to explosion, accident, or breakdown of any other
machinery, facility, or plant, etc.
•The fault is due to use of non-specified peripheral or applied equipment
or parts, or consumables, etc.

v
•The fault is due to use of a non-specified power supply or in a
non-specified installation location.
•The fault is due to use in unusual environments(Note).
•The fault is due to activities or ingress of living organisms, such as
insects, spiders, fungus, pollen, or seeds.
In addition, this warranty is valid only for the original equipment purchaser. It
is not transferable if the equipment is resold.
Anritsu Corporation shall assume no liability for damage or financial loss of the
customer due to the use of or a failure to use this equipment, unless the
damage or loss is caused due to Anritsu Corporation’s intentional or gross
negligence.
Note:
For the purpose of this Warranty, "unusual environment" means use:
•In places of direct sunlight
•In dusty places
•Outdoors
•In liquids, such as water, oil, or organic solvents, and medical fluids, or
places where these liquids may adhere
•In salty air or in place chemically active gases (sulfur dioxide, hydrogen
sulfide, chlorine, ammonia, nitrogen dioxide, or hydrogen chloride etc.)
are present
•In places where high-intensity static electric charges or electromagnetic
fields are present
•In places where abnormal power voltages (high or low) or instantaneous
power failures occur
•In places where condensation occurs
•In the presence of lubricating oil mists
•In places at an altitude of more than 2,000 m
•In the presence of frequent vibration or mechanical shock, such as in
cars, ships, or airplanes
Anritsu Corporation Contact
In the event that this equipment malfunctions, please contact an Anritsu
Service and Sales office. Contact information can be found on the last page
of the printed version of this manual, and is available in a separate file on the
PDF version.

vi
Notes On Export Management
This product and its
manuals may require an Export License/Approval by
the Government of the product's country of origin for re
-export from your
country.
Before re
-exporting the product or manuals, please contact us to confirm
whether they are export
-controlled items or not.
W
hen you dispose of export-controlled items, the products/manuals need
to be broken/shredded so as not to be unlawfully used for military purpose.

vii
CE Conformity Marking
Anritsu affixes the CE conformity marking on the following product(s) in
accordance with the Decision 768/2008/EC to indicate that they conform to
the RoHS directive of the European Union (EU).
CE marking
1. Product Model
Model: MZ1834A 4PAM Converter
MZ1834B 4PAM Converter
MZ1838A 8PAM Converter
MZ1854A Data Signal Combiner
2. Applied Directive
RoHS: Directive 2011/65/EU
3. Applied Standards
•RoHS: EN 50581: 2012 (Category 9)
Serial number example
If the third digit of the serial number is "7", the product
complies with Directive 2011/65/EU as amended by (EU)
2015/863.
(Pb,Cd,Cr6+,Hg,PBB,PBDE,DEHP,BBP,DBP,DIBP)
If the third digit of the serial number is "6", the product
complies with Directive 2011/65/EU.
(Pb,Cd,Cr6+,Hg,PBB,PBDE)
Third digit

viii
4. Contact
Name: Anritsu GmbH
Address, city: Nemetschek Haus, Konrad-Zuse-Platz 1
81829 München,
Country: Germany
Name: ANRITSU EMEA Ltd.
Address, city: 200 Capability Green, Luton
Bedfordshire, LU1 3LU
Country: United Kingdom

I
About This Manual
The operation manual for the MZ1834A 4PAM Converter (hereafter,
MZ1834A), MZ1834B 4PAM Converter (hereafter, MZ1834B), MZ1838A
8PAM Converter (hereafter, MZ1838A) and MZ1854A Data Signal
Combiner (hereafter, MZ1854A) covers the usage precautions, product
outline and installation method.
1 Outline
This section explains the purpose of this product usage.
2 Before Use
This section explains the standard configuration, applicable parts and
connector assignment.
3 How to Use
This section explains how to use this product.
4 Storage Precautions
This section explains the procedures and precautions when storing this
product.
5 Transportation and Disposal
This section explains the precautions when transporting and disposing
this product.
This operation manual assumes the reader has the following basic
knowledge and experiences of:
•Handling optical transmission, data transmission, and
high-frequency signal

II.
Table of Contents
For safety ..................................................... iii
About This Manual ...................................... I
1 Outline ............................................. 1
2 Before Use ...................................... 3
2.1 Standard configuration................................................ 3
2.2 Applicable parts .......................................................... 4
2.3 External Appearance .................................................. 4
2.4 Connector Assignment................................................ 8
3 How to Use...................................... 11
3.1 Connection with 32G PPG .......................................... 11
3.2 Setting Amplitude of PAM signal ................................. 18
3.3 Control Software ......................................................... 35
4 Storage Precautions ...................... 36
5 Transporting and Disposal............ 37
Appendix A Specifications ........................ A-1

1 Outline
1
1 Outline
The MZ1834A, MZ1834B, MZ1838A or MZ1854A is used by connecting to
the data output connectors of the MU183020A 28G/32G bit/s PPG or
MU183021A 28G/32G bit/s 4ch PPG (hereafter collectively, 32G PPG) or
MP1861A 54G/64G bit/s MUX (hereafter, 64G MUX).
The MZ1834A and MZ1834B can synthesize the data signals from the
32G PPG output connector and output 4PAM (Pulse Amplitude
Modulation) waveform.
The MZ1838A can synthesize the data signals from the 32G PPG output
connector and output 4PAM (Pulse Amplitude Modulation) or 8PAM
waveform.
The MZ1854A can synthesize the data signals from the 64G MUX output
connector and output 4PAM (Pulse Amplitude Modulation) or Emphasis
waveform.

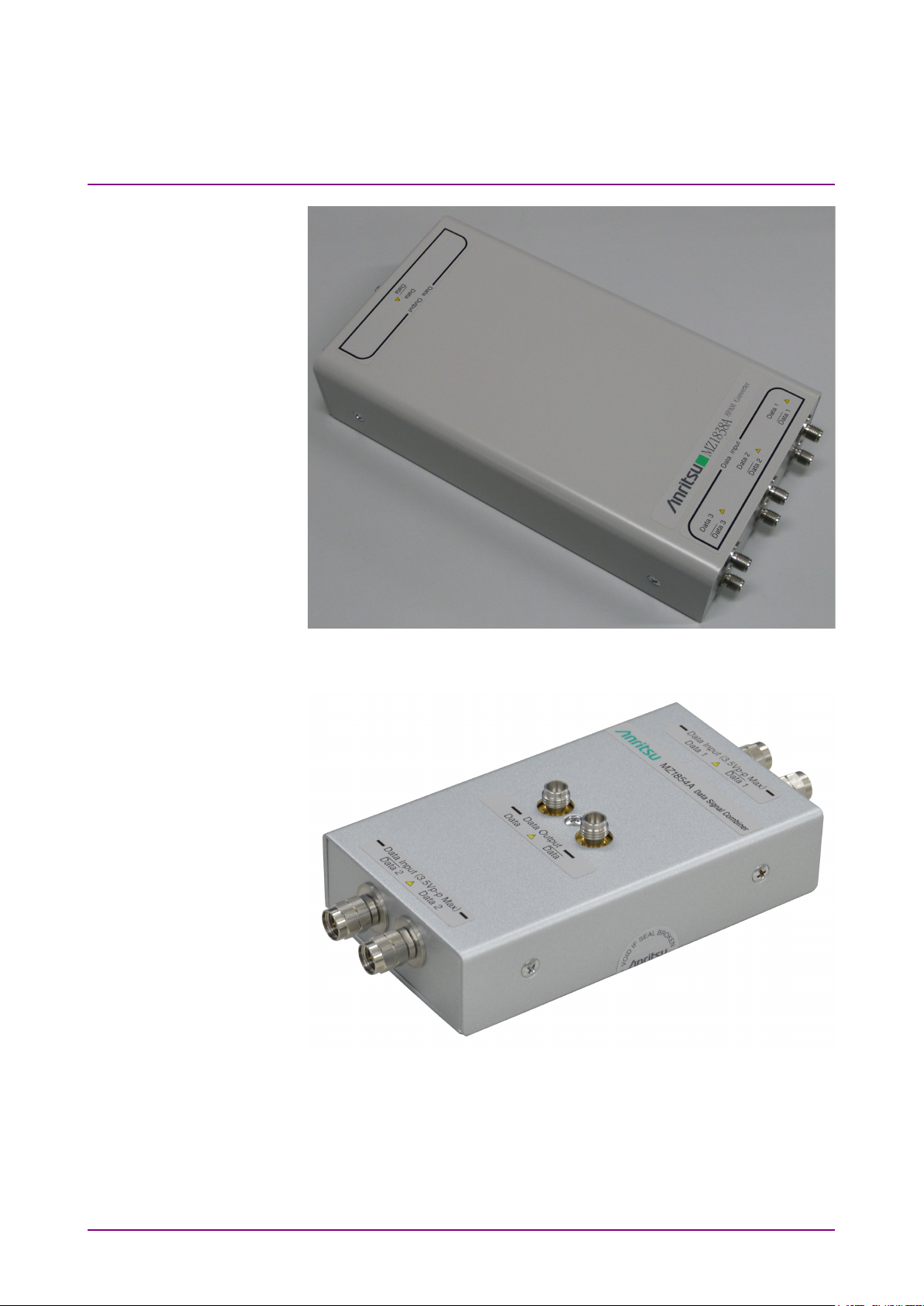

Figure 1-1 MZ1834A 4PAM Converter External View

1 Outline
2
Figure 1-2 MZ1838A 8PAM Converter External View
Figure 1-3 MZ1854A Data Signal Combiner External View

2 Before Use
3
2 Before Use
2.1 Standard configuration
Table 2.1-1 through Table 2.1-4 list the standard configuration of the
MZ1834A, MZ1834B, MZ1838A and MZ1854A. At unpacking, check that
all items are included. Contact your Anritsu Service and Sales Office or
agent if any parts are missing or damaged.
Table 2.1-1 Standard configuration for MZ1834A
Item Product name Q'ty Remarks
Mainframe
MZ1834A
4PAM Converter
1
Accessory
Z0897A
MP1800A Manual CD
1
J1359A
Coaxial Adaptor (K-P.K-J,SMA)
2
Data Output
× 2
Table 2.1-2 Standard configuration for MZ1834B
Item Product name Q'ty Remarks
Mainframe
MZ1834B
4PAM Converter
1
Accessory
Z0897A
MP1800A Manual CD
1
J1359A
Coaxial Adaptor (K-P.K-J,SMA)
2
Data Output
× 2
Table 2.1-3 Standard configuration for MZ1838A
Item Product name Q'ty Remarks
Mainframe
MZ1838A
8PAM Converter
1
Accessory
Z0897A
MP1800A Manual CD
1
J1359A
Coaxial Adaptor (K-P.K-J,SMA)
2
Data Output
× 2
Table 2.1-4 Standard configuration for MZ1854A
Item Product name Q'ty Remarks
Mainframe
MZ1854A
Data Signal Combiner
1
Accessory
Z0897A
MP1800A Manual CD
1

2 Before Use
4
2.2 Applicable parts
Table 2.2-1 Applicable parts
Model name Product name Remarks
J1343A
Coaxial cable 1m
SMA connector
J1342A
Coaxial cable 0.8m
APC3.5 connector
J1439A
Coaxial cable (0.8m, K connector)
K connector
J1359A
Coaxial Adaptor (K-P.K-J,SMA)
K, SMA connector
J1708A
Coaxial Adaptor
V connector
W3687AE
MZ1834A/MZ1834B 4PAM Converter
MZ1838A 8PAM Converter
MZ1854A Data Signal Combiner
Operation Manual
Printed version
2.3 External Appearance
Figure 2.3-1 through 2.3-4 show the external appearance of the MZ1834A,
MZ1834B, MZ1838A, and MZ1854A. Units are mm.
Figure 2.3-1 External Appearance of MZ1834A

2 Before Use
5
Figure 2.3-2 External Appearance of MZ1834B

2 Before Use
6
Figure 2.3-3 External Appearance of MZ1838A

2 Before Use
7
Figure 2.3-4 External Appearance of MZ1854A

2 Before Use
8
2.4 Connector Layout
Figure 2.4-1 and Table 2.4-1 show the connector layout of the MZ1834A
and MZ1834B. Figure 2.4-2 and Table 2.4-2 show the Connector layout of
MZ1838A. Figure 2.4-3 and Table 2.4-3 show the Connector layout of
MZ1854A.
Figure 2.4-1 MZ1834A and MZ1834B Connector Layout
Table 2.4-1 Connector Name and Function of MZ1834A and MZ1834B
No. Name Function
[1]
Data,
Data
Output
Outputs differential signals of Data,
Data
(hereafter XData).
Outputs 4PAM signals.
[2]
Data,
Data
Input*
Inputs Data, XData signals from 32G PPG.
Inputs differential signals to Data 1 and 2.
*: To prevent damage to these connectors, it is recommended that
J1359A coaxial adaptors be connected.
[1]
[2]

2 Before Use
9
Figure 2.4-2 MZ1838A Connector Layout
Table 2.4-2 Connector Name and Function of MZ1838A
No. Name Function
[1]
Data,
Data
Output
Outputs differential signals of Data, XData.
Outputs 4PAM or 8PAM signals.
[2]
Data,
Data
Input*
Inputs Data, XData signals from 32G PPG.
Inputs differential signals to Data 1 to 3.
*: To prevent damage to these connectors, it is recommended that
J1359A coaxial adaptors be connected.
[2]
[1]

2 Before Use
10
Figure 2.4-3 MZ1854A Connector Layout
Table 2.4-3 Connector Name and Function of MZ1854A
No. Name Function
[1] Data,
Data Output Outputs differential signals of Data, XData.
Outputs 4PAM or Emphasis signals.
[2] Data,
Data Input* Inputs Data, XData signals from 64G MUX.
Inputs differential signals to Data 1 and 2.
*: To prevent damage to these connectors, it is recommended that
J1708A coaxial adaptors be connected.
[2]
[2]
[1]
