Antik MX5308 User manual

Professional 8-in-1 TS Processor
MX5308
USER MANUAL
2015/06

2
www.antiktech.com
MX5308
8-in-1 TS Processor
License Declaration
Without the prior written permission of ANTIK Technology, no part of
this manual shall be added or removed in any form, adaptation, excerpt,
translate, reproduce or imitation.
The entire contents of this manual may be changed by ANTIK
Technology at any time without prior notice.
Specic features are subject to the actual software features.
©2015 Copyright by ANTIK Technology. ALL RIGTHT RESERVED
is a registered trademark of ANTIK Technology.
This manual covers all other product trademarks with the appropriate companies.

3
www.antiktech.com
Your digital visual world!
Contents
4 1 OVERVIEW
4 2 FEATURES
5 3 TECHNICAL SPECIFICATIONS
8 4 FRONT PANEL AND REAR PANEL INSTRUCTIONS
8 4.1 Front Panel
8 4.2 Rear Panel
9 4.3 RS-232 Serial Port
9 4.4 Management Ethernet Port
10 4.5 TS over IP Ethernet Port
11 5 OPERATION
11 5.1 Local Control
11 5.1.1 Getting Started
11 5.1.2 Main Menu
12 5.1.3 Conguration Menu
13 5.1.4 System Menu
14 5.2 Remote Control (Web)
14 5.2.1 Status
15 5.2.2 Conguration
16 5.2.2.1 Conguration-Tuner
17 5.2.2.2 Conguration-Cl
17 5.2.2.3 Conguration-Biss
18 5.2.2.4 Conguration-ASI Output
19 5.2.3 Remux
20 5.2.4 TS/IP
20 5.2.4.1 Gigabit Local
21 5.2.4.2 Gigabit Out
22 5.2.4.3 Gigabit In
22 5.2.5 System
26 6 FIRMWARE UPDATE
26 6.1 Firmware Update from USB Key
26 6.2 Firmware Update by FTP
29 6.3 Firmware Update from WEB
30 7 INSTALLATION
30 8 ACCESSORIES

4
www.antiktech.com
MX5308
8-in-1 TS Processor
4
www.antiktech.com
1OVERVIEW
MX5308 is a high-density, modular and CI decryption professional TS processor equipped with
8 independent tuners, which can be either of DVB-T/T2, DVB-S2/S, DVB-C, DTMB, ISDB-T and
ATSC types. It supports a wide range of application by combining 8 tuners processing capability
with industry standard outputs including ASI and TS/IP. MX5308 has 8 DVB common interface
slots capable of working with most of well-known CAS in the market to de-crypt multiple pay TV
services. MX5308 provides operators an ideal solution for multi receiving, re-multiplexing, de-
scrambling and TS over IP operations, the compact 8 tuners and the powerful 8 CI decryption
design make MX5308 one of the most competitive product in the head-end market.
2FEATURES
l8 x Tuners Input, Supports variety of input options DVB-T2/T/S2/S/C/DTMB/ATSC/ISDB-T
lSupports DVB-S2 Input Stream Identier (ISI, optional) and DVB-T2 Multi PLP and SFN MIP
pass through
lBuilt-in TS re-multiplexer receives from CI Slot1 to CI Slot8 and TS/IP inputs
l8×DVB-CI Slots, multi-program decryption, BISS-1 and BISS-E decryption
l8xASI output the transport stream from CI Slot1 to CI Slot8 or BISS decryption
l1x channel full duplex TS over IP ,9xchannels MPTS IP out without IP input or 128xchannels
SPTS IP out without IP inputSupport ASI output MPTS or 8 SPTS
lRemote Control and Supervision by SNMP v2, HTTP WEB and Proprietary HDMS software
lOn Site software update through IP or USB
lRSSI, received signal strength, Eb/N0, C/N and BER monitoring
lRedundency power supply

5
www.antiktech.com
Your digital visual world!
5
www.antiktech.com
Your digital visual world!
3TECHNICAL SPECIFICATIONS
Tuner Input
DVB-S/S2 Tuner Input (ISI Factory Optional)
Connector Type 8×F type female 75Ω for Input
Input Frequency Range 950 ~ 2150MHz
Input Level -25 ~ -65dBm
Symbol Rate 2 ~ 45MBaud
Roll-off Factor DVB-S QPSK: 0.35
DVB-S2 8PSK: 0.35, 0.25, 0.2
FEC Code Rate
DVB-S QPSK: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10
DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
LNB Polarity Selection Voltage 0, 13V, 18V selectable
LNB Band Selection Tone 0/22KHz selectable
Satellite Selection Command DiSEqC 1.0
ISI ID 1 ~ 255 user congurable
DVB-C Tuner Input
Connector Type 8×F type female 75Ω for Input
Input Frequency Range 51 ~ 862MHz
Input Level 51 ~ 75dBμV
Symbol Rate 1 ~ 7MBaud (ITU J.83 Annex A)
Constellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Bandwidth 6MHz, 7MHz, 8MHz
Input Return Loss 7dB (typ.)
DVB-T/T2 Tuner Input
Connector Type 8×F type female 75Ω for Input
Input Frequency 104 ~ 862MHz (VHF/UHF)
Input Level -20 ~ -70dBm
Constellation DVB-T: QPSK, 16QAM, 64QAM
DVB-T2: QPSK, 16QAM, 64QAM, 256QAM
Bandwidth 6MHz, 7MHz, 8MHz
FFT Mode DVB-T: 2K, 8K
DVB-T2: 1K, 2K, 4K, 8K, 16K, 32K
Guarding Interval DVB-T: 1/4, 1/8, 1/16, 1/32
DVB-T2: 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128
FEC Code Rate DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Input Return Loss 7dB (typ.)
DTMB Tuner Input
Connector Type 8×F type female 75Ω for Input
Input Frequency Range 46.5~866MHz
Input Level -87~-29dBm
Symbol Rate 7.56MBaud
Bandwidth 6MHz/7MHz/8MHz

6
www.antiktech.com
MX5308
8-in-1 TS Processor
Constellation 4QAM-NR,4QAM,16QAM,32QAM,64QAM
Guard Interval PN420, PN595, PN945
Roll-off Factor 0.05
Interleaving Depth 240,720
FEC Code Rate 0.4, 0.6, 0.8
ATSC Tuner Input(compatible with ITU J.83 Annex B)
Connector Type 8×F type female 75Ω for Input
Input Frequency Range 54~864MHz
Input Level -75~-7dBm(ATSC 8VSB)
Symbol Rate 10.762MBaud
Constellation 8VSB
Roll-off Factor 0.115
Bandwidth 6MHz
TS Processing
TS Input Management Demux and Remux among IP Input and CI1 to CI8 Input
TS Output Management
ASI1 to ASI8 output directly pass through the TS from CI1
to CI8,
Demux and Remux for ASI9, ASI10 output and IP output
Service and PID Management Service and PID level for Remux
PSI/SI PSI/SI table regeneration, NIT and SDT edition, LCN Edition
and Re-generation
Descrambler DVB Common Scrambling Algorithm (CSA)
BISS Mode BISS-1, BISS-E
Common Interface 8 x PCMCIA slots, compatible with major CA CAMs in the
market
ASI Output
Connector Type Daughter Board: 8xBNC female, independence output, 75Ω,
Main Board: 1 pair of BNC female, mirror output, 75Ω,
Standard DVB-ASI, EN50083-9
Output Bit Rate ≤ 200Mb/s
TS Processing
Daughter Board: ASI1 to ASI8 out pass through the TS from
CI 1 to CI8,
Main Board: ASI9 and ASI10 out from Remux
TS over IP
Connector Type 1×RJ-45, 100/1000 Base-T
Effective Bit Rate
Support 3 different mode(need to reboot unit if change the
TS/IP mode):
1. Max.430Mb/s for 9xchannels(8xchannels directly pass
through the TS from CI1 to CI8, 1xchannel output the TS
from Remux) MPTS IP out without IP in,
2. Max.430Mb/s for 128xchannels SPTS IP out the TS from
one source, without IP in,
3. Max.80Mb/s for full duplex 1xchannel MPTS
Protocol UDP/RTP, Multicast/Unicast, IGMPv3, ARP
Alarm
Connector Type 1×D-sub 9 male
Switching Condition User Dened

7
www.antiktech.com
Your digital visual world!
Control & Monitoring
Connector Type 1×RJ-45, 10/100 Base-T, for equipment IP Control
Remote Control SNMP, HTTP (Web Interface), Proprietary HDMS (Headend
Device Management System)
Local Control LCD display and 6-key keypad
Serial Port 1×RS-232 D-sub female, for debug use only
Equipment Upgrade USB,WEB http and FTP
Physical
Dimension 505mm x 445mm x 45mm
Weight 7.9kg
Power Supply AC 90V ~ 250V, 50/60Hz
Power Consumption 30W (exclusive of LNB power)
Operating temperature 0 ~ 45℃
Storage temperature -10 ~ 60℃
Operating Humidity 10 ~ 90%, non-condensed
Certication
EMC: EN 55024:1998+A1:2001+A2:2003, EN 55022:2006+A1:2007, EN 61000-3-2:2006, EN
61000-3-3:2008
FCC: Part 15 Class B
LVD: EN 60950-1:2006 + A11:2009
* For more information about digital audio pass through, please contact our sales representative.

8
www.antiktech.com
MX5308
8-in-1 TS Processor
4 OVERVIEW
4.1 FRONT PANEL
Name Function
LED Power When turned on, the Green LED indicates that power is available. When
turned off, the power is not available or failed
LED Warning LED ON:
LED OFF:
LED Alarm
LED ON: Alarm or alarms happen to the equipment, For alarm description,
please refer to details in the table 10.
LED OFF: The equipment works properly
LED Tuner Lock LED ON: Tuner input is locked,
LED OFF: Tuner is un- locked.
LCD Display Display menus, submenus and its parameters
Cursor Keys UP, DOWN, LEFT, RIGHT. Used to navigate through the menu system
ENTER key Conrm a selection then return to previous menu
EXIT Key Exit and return to previous menu
Control RJ-45 Ethernet port for equipment control and supervision
Control USB port for rmware upgrade
TS/IP RJ-45 TS over IP port
4.2 REAR PANEL
Name Description
Alarm
RS-232 Serial port for equipment debug use

9
www.antiktech.com
Your digital visual world!
Tuner In-1/4 Tuner signal input port 1~4
ASI Out-1/4 ASI Output ports in mirror 1~4
Common Interface To insert CI CAM modules, maximum two CI modules 1~4
Tuner In-5/8 Tuner signal input port 5~8
ASI Out-5/8 ASI Output ports in mirror 5~8
Common Interface To insert CI CAM modules, maximum two CI modules 5~8
ASI Out-9/10 ASI Output ports in Remux 1~2
Power Supply Double Power Supply,AC 90~250V 50-60Hz input
4.3 RS-232 SERIAL PORT
The RS-232 port is used for equipment software debug use, its pin denition is shown in the table.
The parameter settings are:
● No Parity bit
● 38400 Bauds
● 8 data bits
● 1 Stop bit
Pin Pin Function
1N.C.
2TXD
3RXD
4N.C.
5GND
6N.C.
7N.C.
8N.C.
9N.C.
4.4 MANAGEMENT ETHERNET PORT
The Management port is used to remote control and supervise the equipment through IP, it’s also
for the software update. Its factory setting is as following:
l IP address: 10.10.70.48
l Sub Mask: 255.255.255.0
l Gateway: 10.10.70.1
Both web based control software and proprietary HDMS software are using this port.
Notice: When apply default setting to MX5308, the above settings for IP will not be affected, this is
for maintaining the connectivity of the unit to the IP Network.

10
www.antiktech.com
MX5308
8-in-1 TS Processor
4.5 TS OVER IP ETHERNET PORT
The TS over IP port is an option by adding the daughter board inside the rack. The default setting
is as following:
l IP address:10.10.10.10
l 2nd IP address: 10.10.10.20
l Sub Mask:255.255.255.0
l Gateway:10.10.10.1
Depending on the option selected by the customer, this TS over IP port is either 10/100 Base-T or
100/1000 Base-T compliant to the IEEE 802.3 specications.

11
www.antiktech.com
Your digital visual world!
5 OVERVIEW
5.1 LOCAL CONTROL
5.1.1 Getting Started
After successful installation and connection of the Professional IRD Processor MX5308, switch on
the power supply. The equipment will check the hardware and software versions, then the product
name and its IP address will be shown in the LCD screen.
The IP address of the equipment can be changed in the System menu. Go into the Network
Setting submenu, user can set IP address, network mask and IP gateway, press ENTER to select
the option, and use LEFT or RIGHT to move the cursor between digits and use UP or DOWN to
change the value until the right value, then press ENTER to make the selection.
Customers can use UP, DOWN, LEFT,RIGHT, ENTER, EXIT keys from front panel to navigate in
the menus, select and conrm the parameters in LCD screen.
5.1.2 Main menu
User can press ENTER into the main menu. In the main menu, there are 3 sub-menu, Press UP/
DOWN to switch between the sub-menus.
Network Mask
255.255.255.0
Gateway
10.10.70.1


Professional IRD
IP: 10.10.70.48




IP Address
10.10.70.48


Network Mask
255.255.255.0


Gateway
10.10.70.1


12
www.antiktech.com
MX5308
8-in-1 TS Processor
● Status
● Cong
● System
After go into every sub-menu, you can press LEFT or RIGHT to move the cursor, then use UP or
DOWN to change the value, and then you can press ENTER to make the selection.
Submenu Name Description
Status Monitor the parameters of Tuner RSSI, Input Bitrate, Output Bitrate, TS over IP
input (only when the TS/IP streaming board is installed) information.
Cong Congure the parameters of Tuner setting, CI settings, BISS setting, Remux
setting, ASI output and so on.
System Check and set system settings and read the equipment information, and make
the default factory setting and so on.
5.1.3 Conguration Menu
In the Conguration menu, user can congure and monitor the parameters of input and output,
including Tuner, CI settings, AV decoder, ASI output, BISS, SDI, TS over IP input (only when the TS/
IP streaming board is installed) and so on. Choose Conguration and press UP or DOWN to scroll
the sub-menus, press ENTER to go into the sub-menus. There are ten sub-menus to congure:
● Slave Board Setup (Tuner1~8 setting)
● CI
● BISS
● Remux
● TS/IP
● ASI Out
Submenu Name Description
Slave Board Setup
Tuner
Tuner-1
Tuner-2
Tuner-3
Tuner-4
Tuner-5
Tuner-6
Tuner-7
Tuner-8
LNB LO
Frequency
To congure the local oscillator frequency
according to the right satellite, its range is from
5150 to 11,300MHz.
Satellite
Frequency
To congure the satellite down link frequency
according to the right satellite, its range is from
1000 to 26,500MHz.
Symbol Rate To congure the symbol rate of QPSK signal, its
range is from 1000 to 45,000KBaud.
LNB Voltage
To select the correct LNB voltage output from the
F-connector, user can choose between Off, 13V
and 18V.
LNB 22KHz To activate the LNB 22KHz control signal to the
LNB, user can select between On and Off.
DiSEqC
To congure the DiSEqC control, user can select
Port A, Port B, Port C, Port D or DiSEqC OFF.

13
www.antiktech.com
Your digital visual world!
CI
CI-1(~8)
CI CAM Name To check what kind of CAMs have been inserted.
CI Setup To set which programs should be descrambled by
CI slot1 or CI slot2.
BISS
BISS-1(~8)
BISS Mode To select the BISS mode, user can choose between
Off, BISS-1 and BISS-E.
ID and Key Input Key value in BISS-1 mode and input ID and
Key in BISS-E mode.
Program To select which services will be decrypted by BISS.
Remux
Program select To setting Remux.
Bit Rate To set the Max bit rate of the Remux output.
Packet Size To choose 188Byte or 204Byte for the Packet Size.
TS ID To set the TS ID.
Remove CA To choose Off or On for the Remove CA
Insert EIT To choose Off or On for the Insert EIT
ON ID To congure the Original Network ID.
Output Program To select which services will be output by Remux.
TS/IP Bypass
ASI Out Bypass
5.1.4 System menu
In this menu, you can check and set system settings and read the equipment information, and
make the default factory setting and so on. There are nine submenus, including Version Info, IP
Control, Product Name, Model, Factory Settings, Machine Type, LCD Language, Safety Level, and
Upgrade. Use UP or DOWN key to scroll the submenu, and press ENTER to go into each submenu.
● Network Setting
● Product Name
● Version
● Factory Settings
● Machine Type
● Web Login
● Gigabit Mode
Submenu Name Description
Network Setting
IP Address To congure the IP Address of the device.
Network Mask To congure the IP Net Mask of the device.
Gateway To congure the IP Gateway of the device.
MAC Address To display the MAC address of the device
Product Name To congure the product name of the device.
Version Info To display some properties of the device, such as software version.
Factory Settings The switch to make factory default setting.
Machine Type
Password Bypass
MAC Address To congure the MAC address of the device.
S/N To congure the serial number of the device.
External Board MAC To congure the MAC address of the device.
Web Login HTTP Login To congure the user name and password of web
access.
Gigabit Mode To choose Gigabit mode (IPTV, Full Duplex, Multiple Output)

14
www.antiktech.com
MX5308
8-in-1 TS Processor
5.2 REMOTE CONTROL (WEB)
MX5308 can be controlled by WEB. User can type IP address of MX5308 in browser. It will show
login pop-up. The default user name is root and password is 12345. If you forget this username and
password, you can use front panel button to change it. You can set it in SystemàHTTP login menu.
5.2.1 Status
User can monitor the status of input, output, Tuner and TS/IP. All information of every input source
can be shown in this page. The output status and information can also be checked.

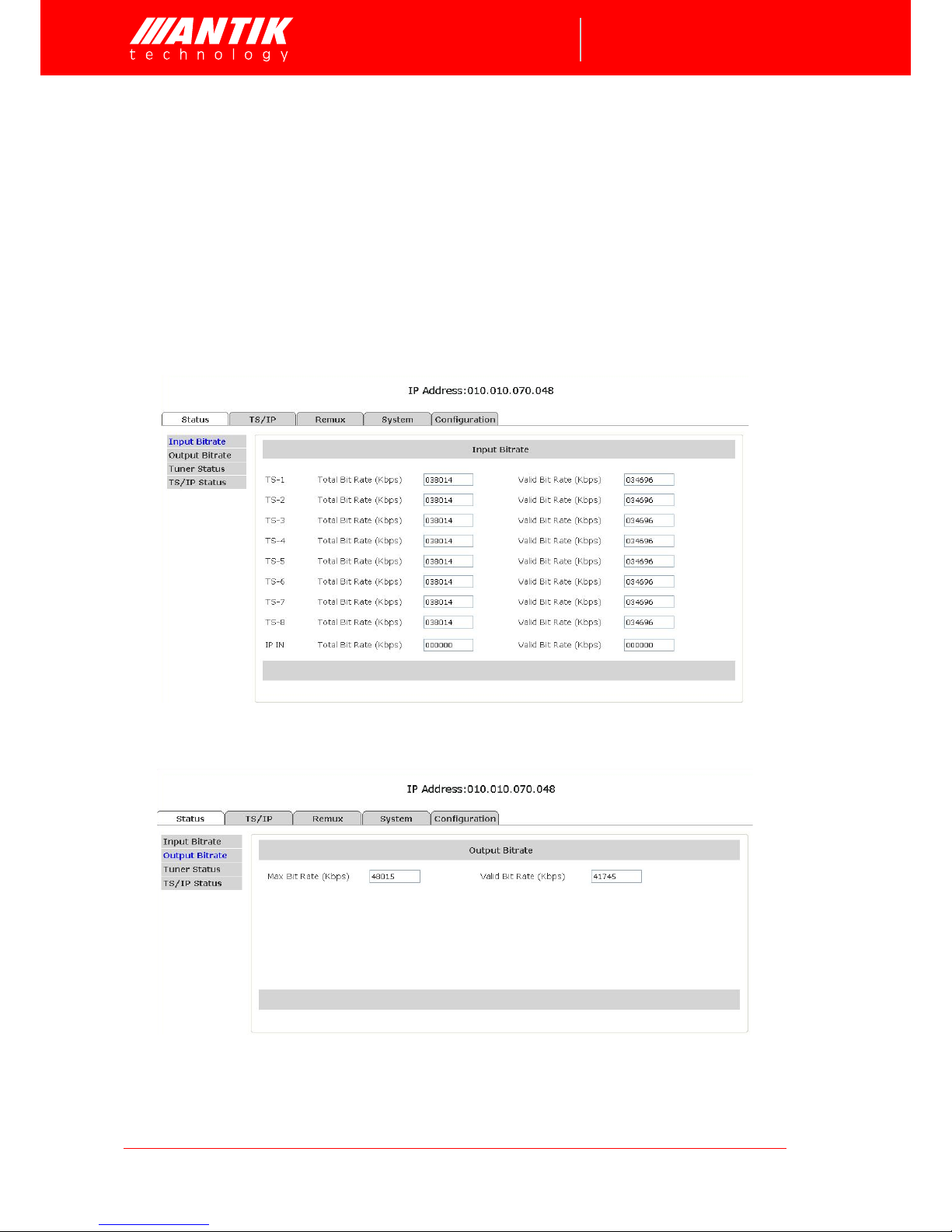

Input Bitrate—User can monitor TS status of TS(1~8)and IP IN here.
Output Bitrate—User can monitor video and audio decoding status here.

15
www.antiktech.com
Your digital visual world!
Tuner Status—User can Tuner signal status here.
TS/IP Status—User can TS over IP status here.
5.2.2 Conguration
Set parameters of tuner input, CI, Biss and ASI Output.

16
www.antiktech.com
MX5308
8-in-1 TS Processor
5.2.2.1 Conguration-Tuner
Tuner(1~8)
It is used to lock the right satellite. The description of parameters is shown in below. Click
“Apply” button to submit, or click “Cancel” button to cancel.
Menu Name Description
LNB LO Frequency To congure the local oscillator frequency according to the right satellite, its
range is from 5150 to 11,300MHz.
Satellite Frequency To congure the satellite down link frequency according to the right satellite,
its range is from 1000 to 26,500MHz.
Symbol Rate To congure the symbol rate of QPSK signal, its range is from 1000 to
45,000KBaud.
PLS Gold Code To congure the PLS gold code, its range is from 0 to 262,141.
Frequency Offset High To ensure the tuner locks the specic signal, its range is from 1000K to
5,000KHz.
Frequency Offset Low
To ensure the tuner locks the specic signal, its range is from -5,000K to
-1,000KHz. The condition is “Freq Offset Low < Real IF - Setting IF < Freq
Offset High”.
LNB Voltage To select the correct LNB voltage output from the F-connector, user can
choose between Off, 13V and 18V.
LNB 22KHz To activate the LNB 22KHz control signal to the LNB, user can select
between On and Off.
DiSEqC To congure the DiSEqC control, user can select Port A, Port B, Port C,
Port D or DiSEqC OFF.

17
www.antiktech.com
Your digital visual world!
5.2.2.2 Conguration-CI
CI (1~8)
Set parameters for CI descrambling. Before you want to active this function, you have to insert
the right CI cards into the CI slots. When select the right Input Source, the programs will be listed in
the table, you can descramble the right programs. Click “Apply” button to submit, or click “Cancel”
button to cancel.
5.2.2.3 Conguration-Biss
Biss (1~8)
Set parameters of BISS Descryption. MX5308 supports BISS-1 and BISS-E mode. Click
“Apply” button to submit, or click “Cancel” button to cancel.

18
www.antiktech.com
MX5308
8-in-1 TS Processor
Menu Name Description
BISS Mode To select the correct BISS mode, user can choose between BISS-
0, BISS-1 and BISS-E.
ID and Key Input Key value in BISS-1 mode and input ID and Key in BISS-E
mode.
BISS Program To congure the programs should be decrypted.
5.2.2.4 Conguration-ASI Output
Set parameters of ASI output. There are two ASI output ports, you can select the input source
in this page. Click “Apply” button to submit, “Refresh” button to refresh latest status of settings, or
click “Cancel” button to cancel.

19
www.antiktech.com
Your digital visual world!
5.2.3 Remux
Set parameters of programs remuxing. The Remux function is a optional function, you can
active or close this option in the System page. In this page, all programs can be shown in the Input
TS window, you can select the programs that need to be remuxed, and then type button to add
the programs into the Output TS window. If you want to delete the programs from remixed TS, you
can type button to delete the selected programs. Please don’t forget click “Apply” button to
save the setting, or click “Cancel” button to cancel.
Menu Name Description
Packet Size To choose 188Byte or 204Byte for the Packet Size.
Bit Rate(kbps) To congure the output total bit rate.
TS ID To congure the TS ID.
Valid Bit Rate(kbps) To display the valid bit rate of the TS output.
Insert EIT To choose Off or On for the Insert EIT
Remove CA To choose Off or On for the Remove CA
Original Network ID To congure the Original Network ID.
Input TS The interface to select the input TS.
Output TS To display the output TS of the Remux.

20
www.antiktech.com
MX5308
8-in-1 TS Processor
5.2.4 TS/IP
TS over IP function is also an optional function, you can select the IP board type in this page.
TS/IP page will show Gigabit Out, Gigabit In and Gigabit Local (Gigabit Mode-Multiple Output only).
5.2.4.1 Gigabit Local
Gigabit Local is selected, the following page will be shown. Click “Apply” button to submit, or
click “Cancel” button to cancel.
