Anton/Bauer QR-XLH User manual

Anton/Bauer Inc., 14 Progress Drive, Shelton, Connecticut 06484 USA • (203) 929-1100 • Fax (203) 925-4988 • support@antonbauer.com
Europe, B.V. Eurode Business Center, Eurode-Park 1-2, 6461 KB Kerkrade, The Netherlands • (+31) 45 5639220 • Fax (+31) 45 5639222 • euros[email protected]
Singapore Office - Anton/Bauer, 6 New Industrial Road, # 02-02 Hoe Huat Ind. Bld., Singapore 536199 • (+65) 62975784 • Fax (+65) 62825235
www.antonbauer.com 7595-0320 Rev B
QR-XLH
Installation Instructions
Approvals
Artwk Design
Supplier
C. O’NEILL 2/7/13
Anton / Bauer Inc.
Drafted By
T. DESROSIERS
2/5/13
Checked By
N/A
A7595-0320
Rev
B
DA-E751 Sht 1 of 1
Note: For use on the XL H1, Canon’s “Adapter Holder” must first be installed. Remove “Support Bars” from the
“Adapter Holder”. See XL-H1 instruction manual for further details.
For use on the XL 1 or XL 2, Canon’s MA-100 or MA-200 (microphone kits) must first be installed.
Adaptor Holder
Canon XL H1
Camcorder
Snap “dummy” battery
into battery compartment.
3mm screws for
XL H1 only
Use supplied 4mm x
6mm screws
This special Anton/Bauer Gold Mount bracket allows
you to use your existing Logic Series® batteries to
power a smaller lower voltage 6 / 7.2 volt camera.
An internal DC to DC converter brings down the
voltage of a 14.4 volt battery to 7.2 volts in order to
power the camera. This is automatic. At the same
time, the 14.4 volts is still applied to the PowerTap®
connector of the Gold Mount allowing you to power
an Ultralight®, Ultralight 2, or any other piece of
equipment which is powered from a 12 volt DC
source (10 amp maximum draw).

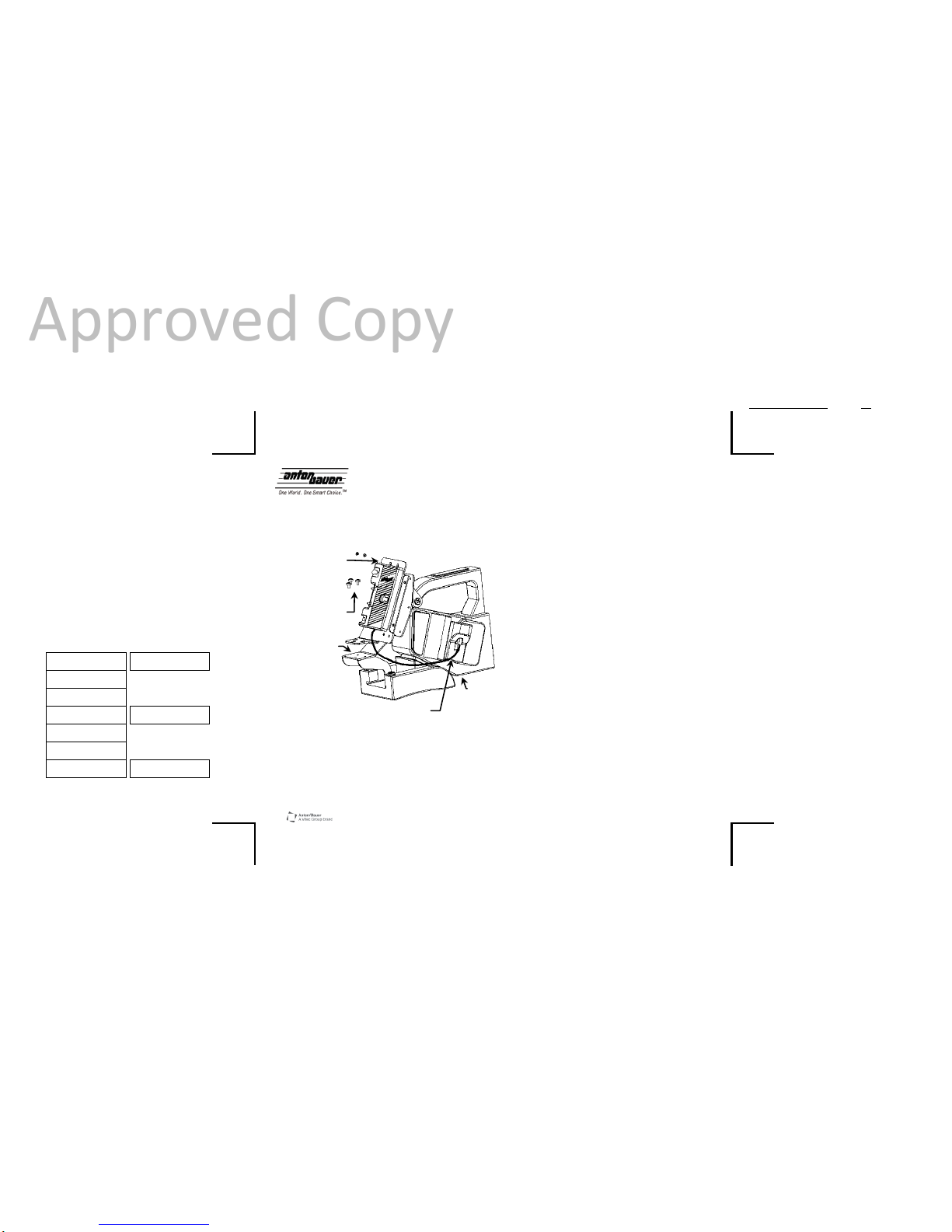

Attach the QR-XLH to the camcorder as shown in
the drawing. Use the three (3) screws provided to
attach at the base; and for use on XL-H1 there are two
(2) additional screws provided for securing the QR-
XLH to the Canon “Adapter Holder” at the top. Snap
the “dummy” batteryinto the battery compartment.
Use of unauthorized equipment in conjunction with Anton/Bauer products constitutes misuse under our warranties
and may limit or void those warranties. Anton/Bauer does not authorize, condone, recommend, or otherwise assume
any liability or responsibility resulting from the use of any battery, charger or accessory made by Anton/Bauer
manufacture with any battery, charger or accessory
not manufactured, produced or sold by Anton/Bauer.
Anton/Bauer only authorizes the use of original Anton/Bauer product with this product. Use only original
Anton/Bauer equipment with this product.
ApprovedCopy
