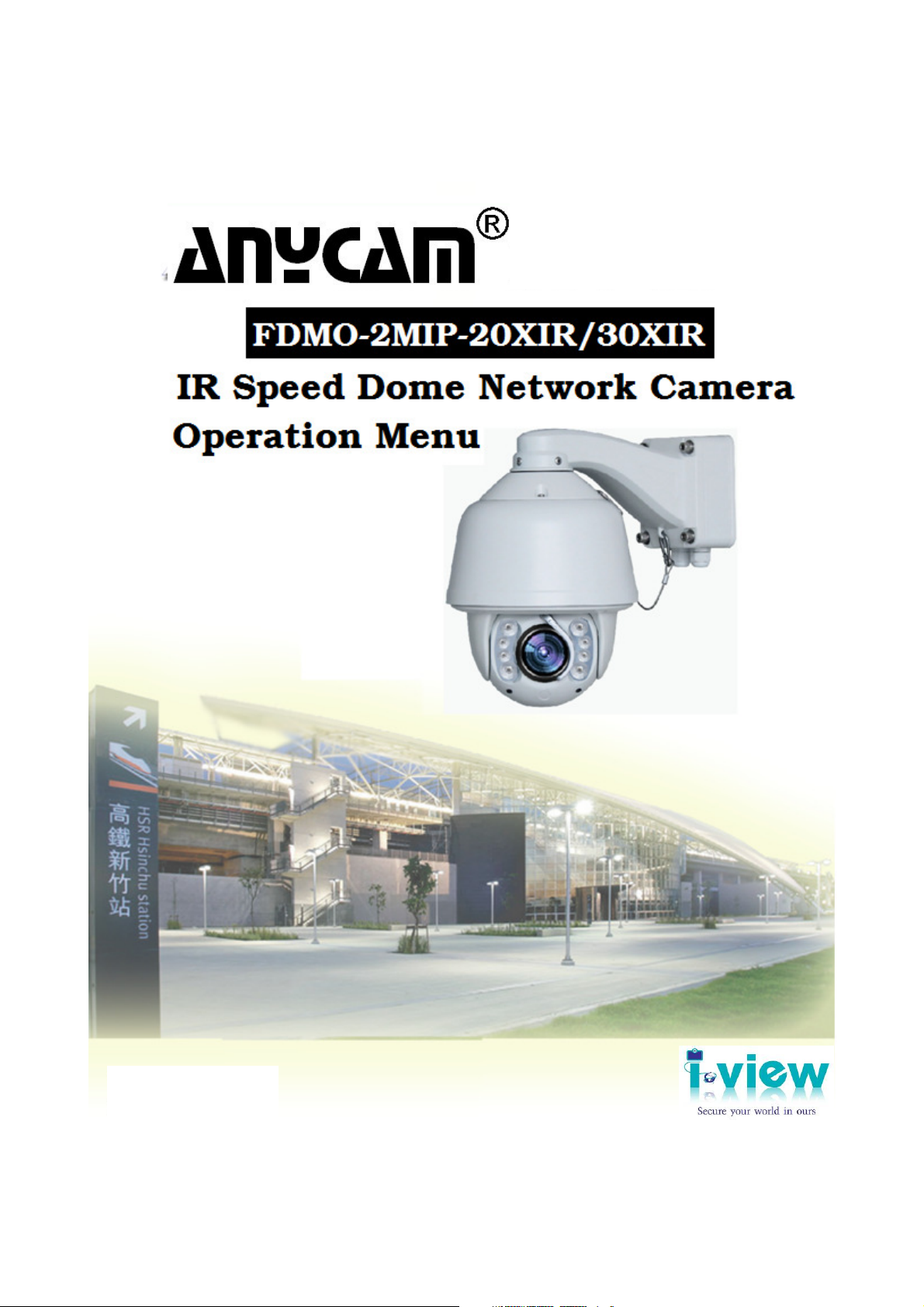

ANYCAM FDMO-2MIP-20XIR User manual

Version: V1.2.
Doc. No: 2015050701

1
Table of Contents
0. Safety Information …………………………………………………....2
1. Features ……………………………………………………………….7
1.1 Main Features …………………………………………………7
1.2 Integrated Super Speed PTZ Rotator ……………………… 8
1.3 Built-in High Definition Day/Night Camera………………… 8
1.4 All-weather Outdoor Design ………………………………… 8
1.5 Function Instructions …………………………………………8
2. Technical Specification……………………………………………..9
2-1. Specification…………………………………………………… 15
2-2. Packaging Contents…………………………………………… 15

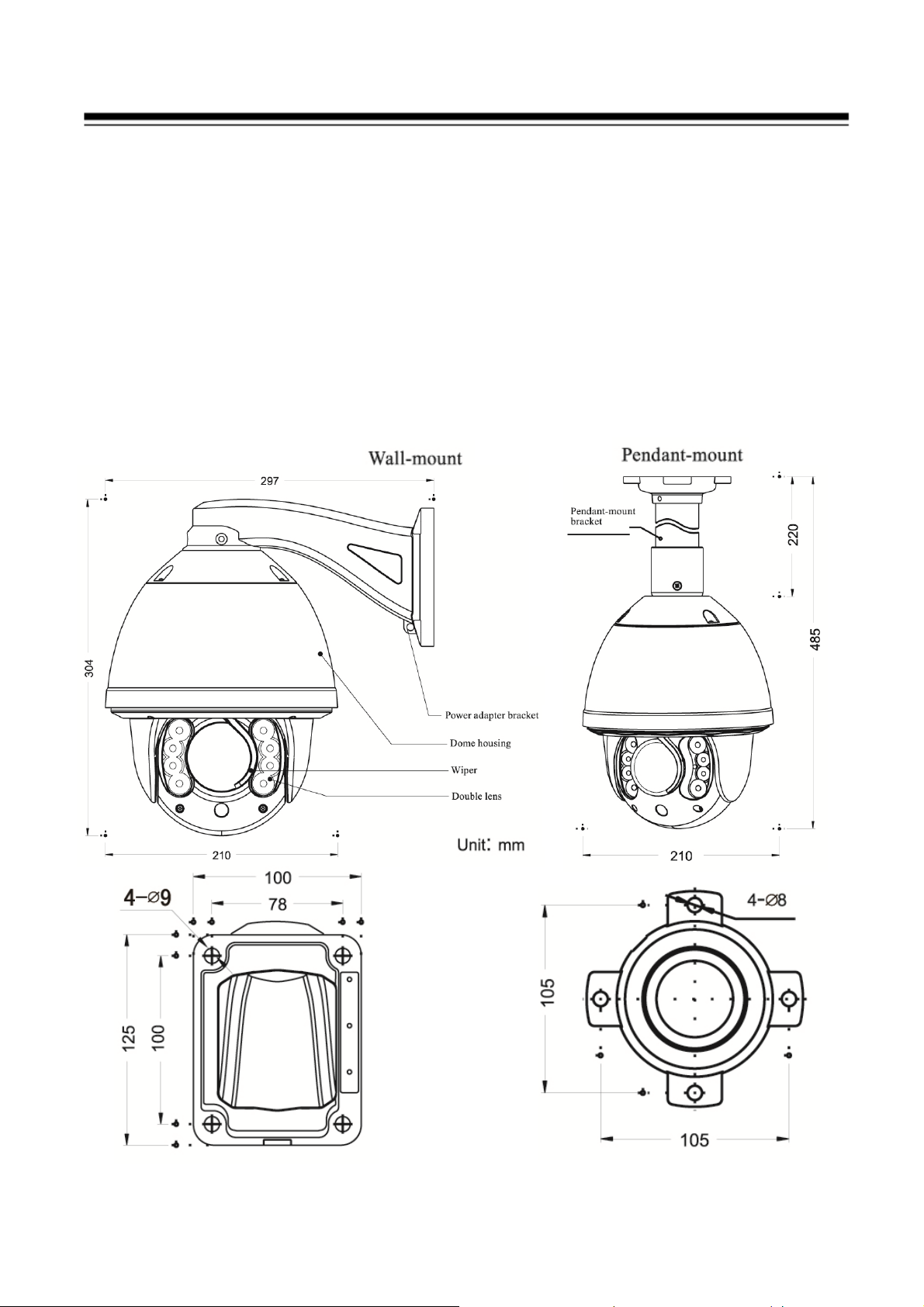

2-3. Product Dimension…………………………………………… 15

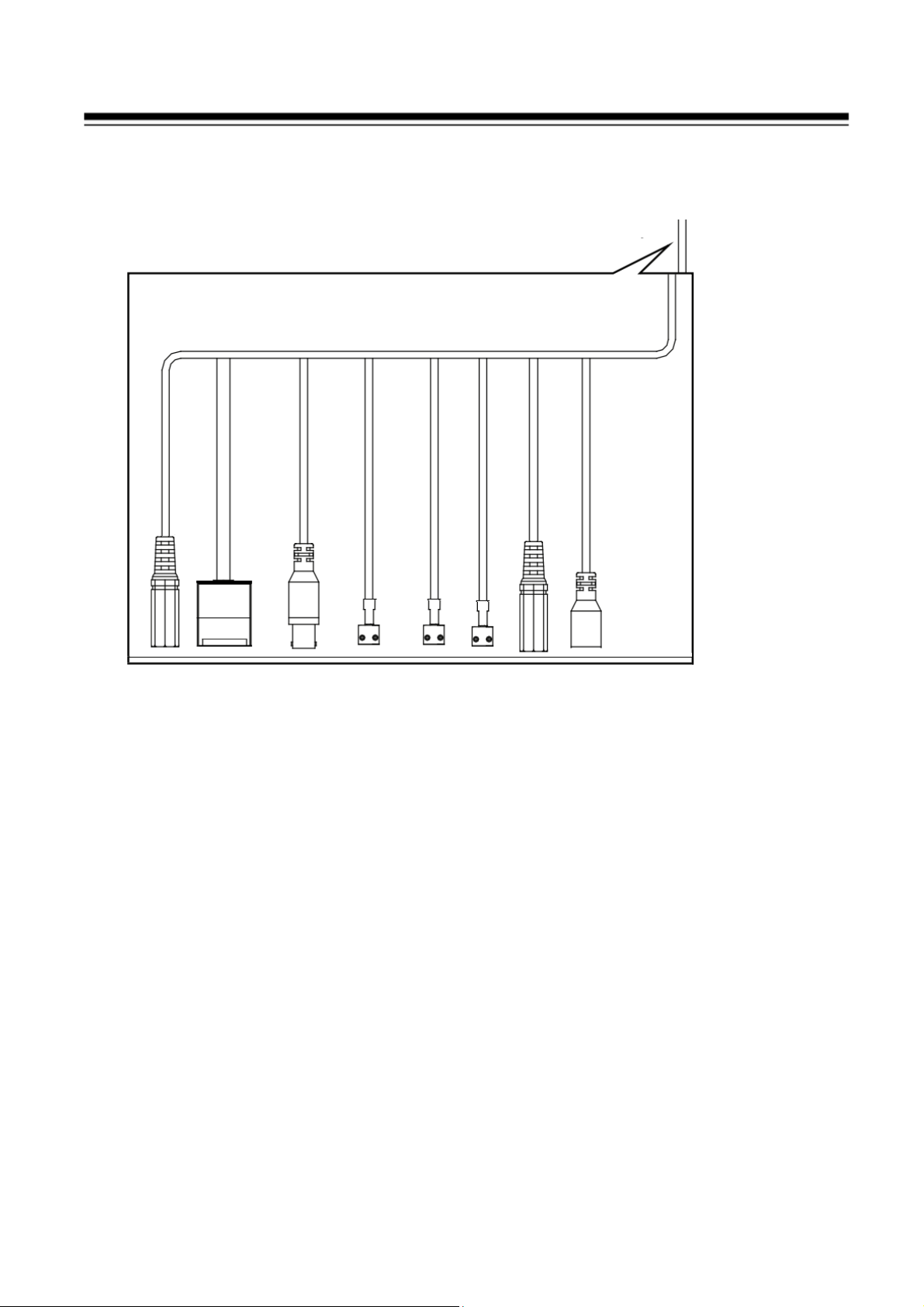

2-4. Cable Description………………………………… ………… 16
3. Installation Guide……………………………………………………12

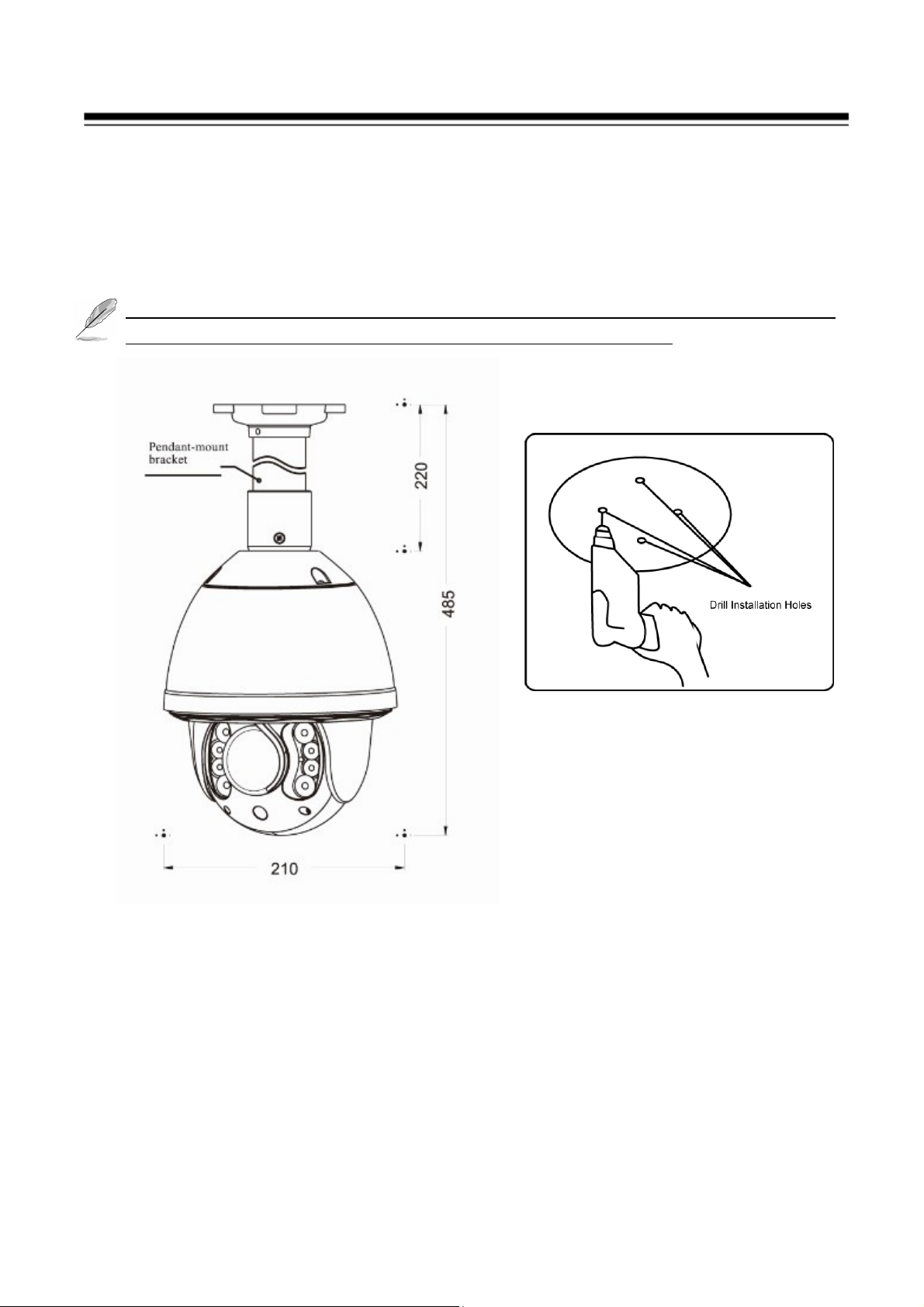

3-1.Installation Method…………………………………………… 17
3-2.Installation Procedures…………………………………………18
3-3.Network Deployment……………………………………………20
4. Running IP Camera by Witness Pro NVR software…………..…21
4-1. Install Witness Pro NVR software……………………………21
4-2. Setting IP camera for Witness Pro NVR software……………22
5. Running IP Camera by I.E. Browser……………………………....28
5-1. Install ActiveX Plug-in on I.E. Browser…………………… 29
5-1. The Function Description of Live Window…………………32
6. OSD Menu Function Features……………………………………….60
7. Troubleshooting ……………………………………………………..93

2

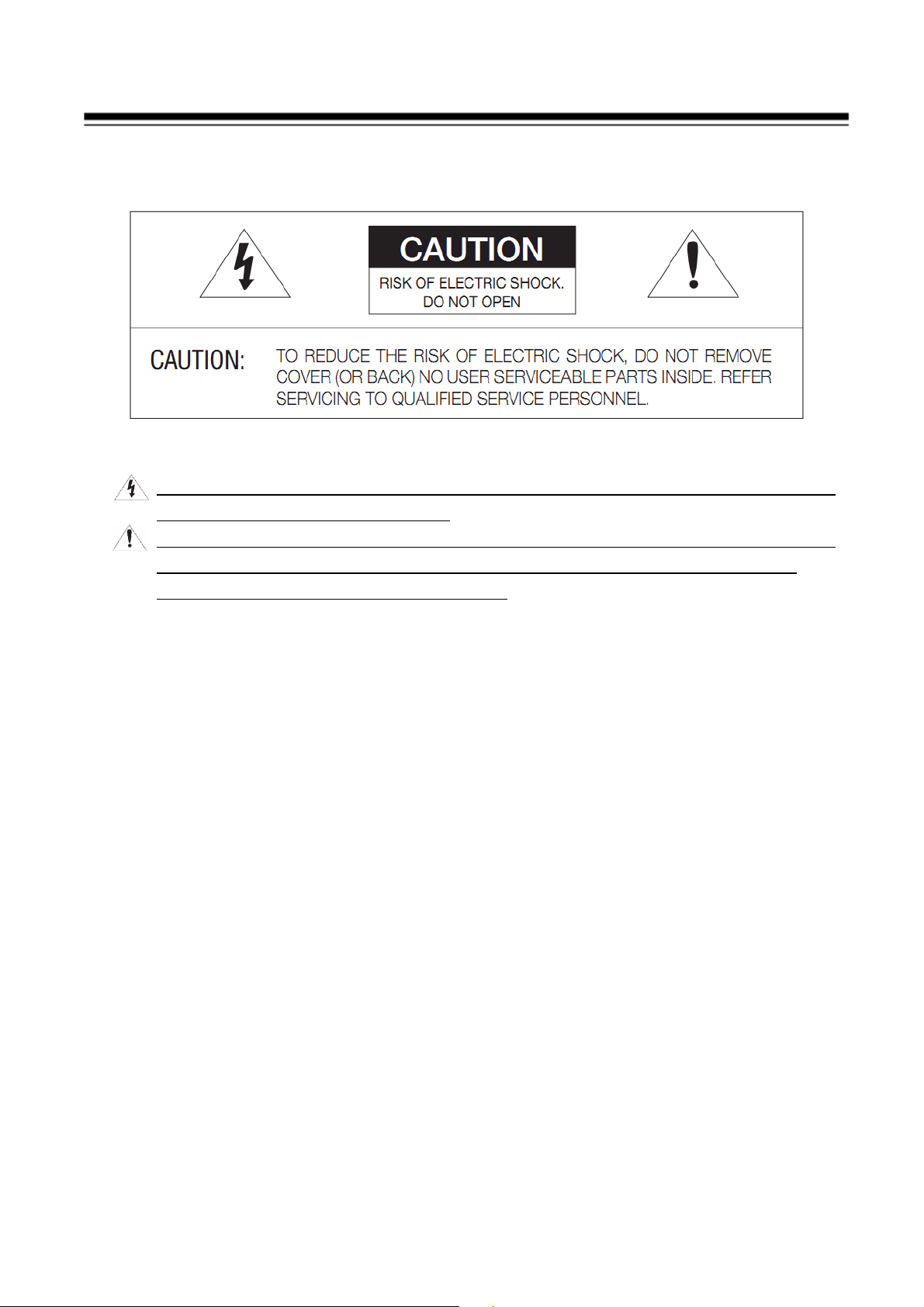

Safety information
This symbol indicates that dangerous voltage consisting a risk of electric
shock is present within this unit.
This exclamation point symbol is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING
To prevent damage that may result in fire or electric shock hazard, do not
expose this appliance to rain or moisture.
To prevent injury, this apparatus must be securely attached to the floor /
wall in accordance with the installation instructions.
WARNING
1. Be sure to use only the standard adapter that is specified in the
specification sheet using any other adapter could cause fire, electric shock,
or damage to the product.
2. Incorrectly connecting the power supply or replacing battery may cause
explosion, fire, electric shock, or damage to the product.
3. Do not connect multiple cameras to a single adapter. Exceeding the
capacity may cause the abnormal heat generation or fire.
4. Securely plug the power cord into the power receptacle, insecure
connection may cause fire.
5. When installing the camera, fasten it securely and firmly. The fall of
camera may cause personal injury.
6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.)

3
or containers filled with water on top of the camera. Doing so may cause
personal injury due to fire, electric shock, or falling objects.
7. If any unusual smells or smoke come from the unit, stop using the product.
In such case, immediately disconnect the power source and contact the
service center. Continued use in such a condition may cause fire or
electric shock.
8. If this product fails to operate normally, contact the nearest service center
and never disassemble or modify this product in any way. (I-View is not
liable for problems caused by unauthorized modifications or attempted
repair.)
9. When cleaning, do not spray water directly onto parts of the product.
Doing so may cause fire or electric shock.
CAUTION
1. Do not drop objects on the product or apply strong shock to it. Keep away
from a location subject to excessive vibration or magnetic interference.
2. Do not install in a location subject to high temperature (over 50°C), low
temperature (below -10°C), or high humidity. Doing so may cause fire or
electric shock.
3. If you want to relocate the already installed product, be sure to turn off the
power and then move or reinstall it.
4. Remove the power plug from the outlet when then there is a lightning.
Neglecting to do so may cause fire or damage to the product.
5. Keep out of direct sunlight and heat radiation sources. It may cause fire.
6. Install it in a place with good ventilation.
7. Avoid aiming the camera directly towards extremely bright objects such as
sun, as this may damage the CCD image sensor.
8. Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus.
9. The Mains plug is used as a disconnect device and shall stay readily
operable at any time.
10.Do not expose the camera to radioactivity. Radioactivity exposure may
damage the CCD.

4
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, or
other apparatus (Including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus.
Unplug this apparatus when a card is used. Use caution when moving the
cart/ apparatus combination to avoid injury from tip-over.
Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
Apparatus shall not be exposed to dripping or splashing and no objects filled
with liquids, such as vases, shall be placed on the apparatus.

5
SAFETY INFORMATION
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to
the following conditions:
This device may not cause harmful interference, and
This device must accept any interference received including interference that
may cause undesired operation.
CAUTION
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
This marking on the product, accessories or literature indicates that the
product and its electronic accessories should not be disposed of with other
household waste at the end of their working life. To prevent possible harm
to the environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they can
take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of
the purchase contract. This product and its electronic accessories should not be
mixed with other commercial wastes for disposal.
This eq
uipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide
reasonable
protection against harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a resid
ential area
is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.

6
About This Guide
Conventions used in this guide
To make sure that you perform certain tasks properly, take note of the following
symbols to use throughout this manual.
WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when trying
to complete a task.
IMPORTANT: Information that you must follow to complete a task.
NOTE: Tips and additional information to aid in completing a task.
Trademark
I-View, FastCam III, @-Witness Pro, FreeView Pro, AnyCam, AnyNet and
MobileView are registered trademarks of I-View Communication Inc.
Microsoft, Windows Windows2000, XP, Vista, 7 and 8 are registered trademarks
of Microsoft Corporation. All other trademarks are the property of their
respective holders.
Customer Support
If technical problems arise with the use of our products in which you and your
vendor cannot resolve, please try the following: If you have an Internet
connection, visit the I-View website http://www.i-view.com.tw (Taiwan) for any
software or product updates, or email to [e-mail] (Taiwan) or Tel:
886-3-510-3001 Fax: [phone] (Taiwan). We are dedicated to
providing the highest quality support. E-mailing our tech support will give you
the chance to document each of the above items in a very clear and concise
manner and will give our support team a chance to document any problems and
respond with thoroughly researched answers.

7
1. Features
1.1 Main Features
1080p HD SONY Exmor CMOS Sensor.
30 fps @ 1080p Full HD.
20x Optical Zoom Lens and 12x Digital zoom; total 240x zoom.
WDR for unparalleled visibility in high contrast environments.
Built-in Micro SD Card Slot for On-board Storage.
Support H.264 main/Low/Base line profile, and MJPEG Compression.
ROI (Region of Interest) encoding enhances the quality of specified image.
Ultra Low Compress Rate(ULCR) technology: LESS storage space, SAME
video quality.
Step less speed changes, auto zoom/speed matching.
Pan 0.01~360
o
/S, Tilt 0.01
o
~120
o
/S, Preset: 400
o
/S.
Pan 0.5
o
~20
o
, Tilt 0.5
o
~20
o
, Preset: 20
o
/s.
Timing actions for 7 days of programmable schedule.
Built-in Semi-conductor heater & digital temperature sensor.
PWM cooling fan vari-speed temperature control.
Reserved network interface and space for network module.
Pan Tilt accuracy +/- 0.1
o
, 220preset positions.
8 cruising tracks, each cruising track has 32 presets.
4 pattern tours, 10 Minutes memory, 500 programmable instructions.
8 auto scan with use-defined left and right boundaries and settable scan speed.
8 Privacy Zones with defined English camera title.
Auto Compatible PELCO_P, PELCO_D compatible.
The alarm can trigger preset, auto scan, cruising and pattern tours functions.
Set up the dome address via firmware without change the Dip switch.
Support wiper for clean the rain and dust. (Option).
Support Intelligent Auto Tracking (Option).
Built-in 802.3at Compliant PoE Plus (Option).

8
1.2 Integrated Super Speed PTZ Rotator
Delicate stepping motor, stable, sensitive and accurate
360° Pan and 90° Tilt range (auto-flip) without blind area
Step less speed change, auto zoom/speed matching
Near / far IR Light auto matches camera zoom in/out
1.3 Built-in High Definition Day/Night Camera
Auto iris, auto back light compensation
Auto/manual white balance
Auto/manual brightness control
Auto/manual focus
Multiple compatible camera brands including Sony, Samsung, LG, CNB…etc.
1.4 All-weather Outdoor Design
6 Inch High die-cast alloy aluminum construction
High Precision Mould with high heat conductivity
Fully enclosed isolation design for heat sink
Nanometer Dustproof, waterproof and fog-proof lens\
IP66 Waterproof
3000V lightning and surge current protection
1.5 Function Instructions
Focus / PTZ Speed Auto Match
The pan/tilt rotation speed could be automatically adjusted according to the focus
in/out, which makes it much more practical for manual target tracking. (Only for
the auto tracking IR speed dome)
Auto Flip
In manual tracking mode, when a target object goes directly beneath the dome,
the video will automatically flips 180 degrees in horizontal direction to maintain
continuity of tracking. This function can also be realized by auto mirror image
depending on different camera models.
Preset Position Set up and Call Up
In the Preset function the dome stores the current pan/tilt angle, zoom and other
position parameters in its memory. When necessary the dome recalls these
parameters and adjusts the camera to a particular position. The user can store,
recall and clear the presets easily and promptly by using the keyboard controller.

9
The dome can store up to 220 presets.
Auto Scan
Users can set up the left and right boundaries by control keyboard. Then speed
dome can scan between these boundaries. It supports up to 8 groups of scanning
paths.
Cruising Track
The preset position can be programmed to be recalled in a set of sequences. This
sequence can be set to let the camera scan from one position to the next in a cycle
at a set speed. This feature is called the “auto cruise”. The cruise sequence and
dwell time of each preset can be set. It supports up to 8 cruising tracks, each
cruising track with 32 presets.
Pattern Tour
Dome can memorize 600s running path or 500 programmable instructions. When
start pattern tour, speed dome will move automatically according recorded action
path. It supports 4 groups of pattern tours.
Guard Location
The dome will automatically return to preset position if there is no operation in a
period of vacant time.
Default Action
When you start up the dome camera or do not send commands over a long time,
the dome camera will return to its default functions which include the home place,
auto pan, auto cruise and pattern.
Dome Address Setup
The dome supports up to 256 addresses and the dome will only response to the
instructions given to its own address. Please check the dip switch on the bottom of
the dome for address setup.
Manual Object Tracking
The use can move the joystick up, down, left or right to track the appearing object
in the screen and use the joystick to zoom in and out with auto focus.
Privacy Mask Protection
Set black mask areas to protect the privacy zones. The black privacy locations can
be set, and support up to 8 mask zones. This function allows you to block or mask
certain area of a scene, for preventing the personal privacy from recording or live
viewing. A masked area will move with pan and tilt functions and automatically
adjust in size as the lens zooms telephoto and wide.
Timing Running Function
Users can set speed dome operation task at total 8 timing areas during 7 days.

10
Coordinates and Directions Display
User can define the dome’s direction of due north, which will help to show
up the exact moving directions on screen. And zone title is supported to
display when the dome moves to the specified zone.
Auto Tracking
The dome will automatically fix and track the moving object according to the
user’s setup via OSD.
Motion Detection
The dome will detect the changes in the defined video zone and trigger alarm.
It supports to 8 video Locations, each with 4 detection zones.
Limit Stops
The dome can be programmed to move within the limit stops (left/right,
up/down).
Label Display
The on-screen label of the preset title, azimuth/elevation, zoom, time and dome
name can be displayed on the monitor. The displays of time and speed dome
name can be programmed.
3D Positioning
In the client software, use the left key of mouse to click on the desired position in
the video image and drag a rectangle area in the lower right direction, then the
dome system will move the position to the center and allow the rectangle area to
zoom in. Use the left key of mouse to drag a rectangle area in the upper left
direction to move the position to the center and allow the rectangle area to zoom
out.
Proportional Pan/Tilt
Proportional pan/tilt automatically reduces or increases the pan and tilt speeds
according to the amount of zoom. At telephoto zoom settings, the pan and tilt
speeds will be slower than at wide zoom settings. This keeps the image from
moving too fast on the live view image when there is a large amount of zoom.
Auto Focus
The auto focus enables the camera to focus automatically to maintain clear video
images.
Wide Dynamic Range (WDR)
The wide dynamic range (WDR) function helps the camera provide clear images
even under back light circumstances. When there are both very bright and very
dark areas simultaneously in the field of view, WDR balances the brightness level
of the whole image and provide clear images with details.

11
Note: This feature varies depending on speed dome models.
Power On Memory
The dome supports the power on memory capability with the predefined resume
time. It allows the dome to resume its previous position after power is restored.
Scheduled Task
A time task is a preconfigured action that can be performed automatically at a
specific date and time. The programmable actions include: auto scan, patrol
1-8 ,pattern 1-4, preset 1-8,frame scan etc.
Park Action
This feature allows the dome to start a predefined action automatically after a
period of inactivity.
3D Digital Noise Reduction
Comparing with the general 2D digital noise reduction, the 3D digital noise
reduction function processes the noise between two frames besides processing the
noise in one frame. The noise will be much less and the video will be clearer.
PTZ and Lens Control
1) Zoom Control
Users can control zoom by keyboard to get near or far images.
2) Focus Control
The default setting is auto focus. The camera will auto focus based on the center
of the video display to get the clear image. In some special occasions, the user
could do the manual focus to get the desired image effect.
3) Auto Iris Control
Auto Iris is aiming to detect the environmental lights condition and adjust the iris
to get the stabilized brightness of the image.
4) Auto Back Light Compensation
In the highly bright background, auto back light compensation is aiming to
compensate the brightness of the dark object and adjust the background brightness
to get a clear image.
5) Auto/Manual White Balance
Auto/Manual WB adjust depending on the environment light changes.
6) OSD Setup
Call upon preset No.95 to enter into OSD menu setup interface. Press “Focus” to
choose menu items and press “Iris” to set menu contents.

12
2. Technical Specifications
2.1 Specification
Camera
Image Sensor: 1/2.8’’ SONY Exmor™ CMOS sensor
Effective Pixels: 1920(H)x1080(V)
Signal System: PAL/NTSC
Minimum
Illumination:
Less than 1.7 lx (F1.6, 50 IRE), 0.5 lx in
High Sensitivity Mode, 0 lux with IR ON
White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight
lamp/Sodium lamp
Gain Control: Auto/Manual/Max. (-3 to 28 dB, 2 dB steps)
S/N Ratio: ≥50dB
White Balance Auto, ATW, Indoor, Outdoor Auto, Sodium
Vapor Lamp (fix/auto), One-push, Manual
Exposure Control:
AE Control: Auto, Manual, Priority (shutter
priority and iris priority), Bright, EV
Compensation, Slow AE
WDR: Auto/Manual
Shutter Time: 1/2 to 1/10,000 s, 21 steps
Day& Night: ICR
Digital Zoom: 12X
Privacy Masking: Spherical
Focus Control:
Auto (Sensitivity: normal, low), One-push
AF, Manual, Infinity, Interval AF, Zoom
trigger AF
Lens
Focal Length: 20x Optical Zoom, f=4.7 mm ~ 94.0 mm
Angle of View: 54.1° (wide end) to 2.9° (tele end)
Minimum Working
Distance: 10-1500mm(Wide-Tele)
Aperture Range: F1.6 to F3.5
Pan/Tilt
Pan / Tilt Angle: 360
o
continuous pan rotation/ 90
o
(Auto Flip)
Pan/Tilt Speed: Pan 0.01
o
~180
o
, Tilt 0.01
o
~100
o
(High
speed) /Pan:0.5
o
~35
o
/S, Tilt:0.5
o
~35
o
/S

13
(Vair-speed)
Preset Speed 360
o
/S (high speed) / 35
o
/S (Vari-speed)
Presets
Number/Accuracy 220 / +/-0.1
o
Guard Location The dome will rotate back to preset position
after a period of vacant time.
Number of Preset: 256
Auto Scan 8 auto scan tracks, user-defined left and right
boundaries and scan speed
Auto Cruising 8 cruising tracks, each cruising tracks has 32
preset positions, User-defined dwell time
Pattern Tour 4 groups, each one with 10 Minutes memory,
500 programmable instructions
Park Action: Preset / Tour / Pattern / Scan
PTZ Position
Display: ON/OFF
Freeze Frame: Yes
Smart-tracking: Yes
Infrared
IR irradiation
distance: 150m
IR irradiation angle: Adjustable by zoom
Alarm
Alarm Input: 1 Inputs
Alarm Output: 1 channel relay output, with configurable
alarm actions
Alarm Actions: Preset, patrol, pattern, SD/SDHC card
recording, relay output, notification on client
Input
&
Output
Composite Output: 1.0Vp-p / 75Ω, composite, BNC
Audio Input: Line input: 4Vp-p; output impedance: 600Ω
Audio Output: Line level, impedance: 600Ω
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Image Resolution: 1920×1080
Frame Rate: 50Hz: 25 fps (1920×1080); 30fps (320x288)

14
60Hz: 30 fps (1920×1080), 30 fps (320x240)
Image Compression: H.264 Baseline/Main/High profile; MJPEG
ROI encoding: Support 5% areas of image
Audio Compression: G.711ulaw/G.711alaw
Protocols:
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos,
FTP, SMTP, UPnP, SNMP, DNS, DDNS,
NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP,
DHCP, PPPoE
Simultaneous Users: Up to 8 users
Micro SD Card: SD/SDHC Slot, up to 64GB Edge recording
User/Host Level: Up to 32 users,3 Levels: Administrator,
Operator and Media User
Security Measures:
User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client
GUI
Camera Control:
Pan/Tilt, Zoom, Focus, Click centering,
Zoom by mouse dragging, Iris, preset calling
and programming, auto mode
Web Browser: IE 7+, Chrome (request Plug ),Safari,
support multi-language
General
Menu Language: English / Chinese
Protocols Auto Compatible PELCO_P, PELCO_D
Power Supply: 12/5A VDC: 36W Max.
Operation: Temperature: -35
o
~ +60
o
C; Humidity:
0~90%
Protection Level:
IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge
protection and voltage transient protection
Mounting: Wall Mount/Ceiling mount optional
Dimensions: Φ220×304mm
Weight (approx.): 5Kg
Mount Option: Long-arm wall mount, Corner mount, Pole
Mount, Power box mount

15
2.2 Packaging Contents
Please check the contents of your new Network IP Speed dome Camera when
you unpack the package. The package includes the following items:
Network IP Speed Dome Camera x 1ea
Bundle NVR & CMS software CD x 1ea
User manual x 1ea
Switching Power Adapter. x 1ea
Wall Mount or Celling Mount. x 1ea
Safety Wire x 1pc
2.3 Product Dimension

16
2.4 Cable Description
1)Network port: Plug the RJ-45 LAN cable. The Green LED on for power OK;
Green LED flash for communication; Yellow LED on for power OK.
2)Power cable: Connect the DC12V Switching power adapter.
3)BNC cable: Provide composite video signal for lens focus adjustment.
4)Audio in (Yellow): Plug in Microphone for audio input.
5)Audio output (Red): Plug Speaker (Request audio amplify) for audio output.
6)Alarm in#1: Connect to the sensor input (Dry contact).
7)Alarm in#2: Connect to the sensor input (Revised).
8)Alarm out: Connect to the trigger device such as light.
9)Rest cable: Turn on the power and push button , the parameters of IP camera
become to default setting.

17
3.Installation Guide
3.1 Specification Installation Method
The IR speed dome could be installed in wall-mount and pedant-mount
Wall Mount
Pendant Mount

18
3.2 Installation Procedures
Wall-mount Installation Procedures:
1) Take out the bracket from the package (as shown), mark the installation hole
positions on the wall referencing to the bottom of bracket.
2) Drill the hole and install 4 pieces of M8 expansion bolt into the hole.
The wall and ceiling must be thick enough to install the expansion
bolts and can bear 4 times the weight of the dome camera itself.
3) Take out the IR speed dome and put the cables through the bracket.
Use M5 screws to fix the bracket and dome body.
4) Use 4 pieces of M8 screw nuts with washer to fix the bracket on the wall.
Pendant-mount Installation Procedures:
1) Take out the bracket from the package (as shown), mark the installation hole
positions on the ceiling referencing to the bottom of bracket.

19
2) Drill the hole and install 4 pieces of M8 expansion bolt into the hole.
3) Take out the IR speed dome and put the cables through the sockets on the
bottom of the pendant bracket. Use M5 screws to fix the bracket and dome
body.
4) Use screw nuts with washer to fix the bracket on the wall.
Pendant-bracket is not designed for outdoor installation. If specially required,
please do make sure the waterproof installation of the dome.
