Anymode TV SOLODIO User manual

User Guide
Wireless TV Audio Transceiver
Thank you for purchasing this wireless TV Midnight Sound.
Please read this User Manual carefully before using the machine.
TV Solodio

18
Table of Contents
SAFETY TIPS .................................. 19
COMPONENTS................................ 21
PORTS AND BUTTONS .................. 22
Transmitter (Tx) .......................................22
Receiver (Rx)...........................................22
OPERATION ................................... 23
Connecting ..............................................23
Charging .................................................26
USING .............................................. 27
Volume control .........................................27
Setting 3D-sound effect ...........................27
Mute.........................................................28
Restarting ................................................28
TROUBLESHOOTING..................... 29
SPECIFICATIONS ........................... 31
WARRANTY .................................... 32

19
Safety Tips
Be sure to comply with the following advice to
prevent danger or property damage by using your
TV Midnight sound as advised.
Warning
No compliance with the following advice may cause
the risk of death or serious injuries.
Be careful not to allow water, beverages or
chemicals to flow into the device.
•It may cause electric shocks, fire or device
damage.
Install the device in a place with no heat, for
example, heaters.
•Overheating may cause fire or electric shocks.
Do not leave the power adapter or the cable in
passageways.
•It may cause device damages and injuries.
Use a charger of which the safety is approved
•Non-approved chargers may cause electric
shocks, fire or device damage.
Keep the packaging materials (desiccant,
plastic materials) out of reach of children.
•The packaging materials may cause injuries or
suffocation.
Do not listen to high-volume sound for a long
period of time.
•It may cause hearing disorders.

20
Safety Notice
Non-compliance with the advice may cause minor
injuries or device damage.
Do not leave the device next to an object with
strong electromagnetic waves or magnetic
properties.
•It may cause malfunction or failures, and reduce
the service life of the device.
Wipe the outside of the device with a dry soft
cloth and do not use benzene or alcohol for
cleaning.
•It may cause device deformation.
Do not drop the device or do not give shocks to
the device.
•It may cause failures of the device.
Do not dissemble, repair or alter the device.
•It may cause damage or failures of the device.
Do not place heavy objects on top of the
device.
•It may cause damage or failures of the device.
Disconnect the power adapter in lightning
strikes or if the device is not used for a long
period of time.
•It may cause damage or failures of the device.

21
Components
Audio
Transmitter
Audio
Receiver
User Guide
AUX Cable Micro USB
Charging Cable
(2EA)
Cable tie
Earphone Eartips
(S, L)
Optical cable
(Rectangle /
Circle Type)
(optional)
Notice
•Device information may change without
prior notice.
•The optical cable is optional, and you
can buy it if required.
•To use the optical cable, set the optical
output of your TV as PCM mode for
normal sound output. Be sure to check
PCM mode compatibility of the TV before
using the cable. (Do not support DOLBY
and DTS from.)

22
Ports and Buttons
Transmitter (Tx)
Status LED
Pairing button
Mini(3.5Φ) stereo
optical input port
Micro USB port
Receiver (Rx)
Earphone output port
Clip
Sound effect setting /
mute button
Status LED
Volume button /
pairing button
Power
Micro USB port
Reset hole

23
Operation
Connecting
1Use the USB cable to connect the USB port
of your TV with the micro USB port of the
transmitter.
2Use an analog or digital connection cable to
connect the input port of the transmitter with
the TV output port.
3Press the power button on the receiver to
supply power.

24
4Connect the earphone cable with the earphone
output port.
•Enjoy TV sound.
Notice
•While power is ON, press the power
button for at least 2 seconds to turn it off.
5Press both the pairing button of the
transmitter and the paring button of the
receiver (-/+) for at least 2 seconds at the
same time to carry out pairing, if no sound is
heard from the earphone although the USB
cable power is connected to the transmitter.
ReceiverTransmitter

25
•Replay automatically starts when pairing
finishes.
•Automatic connection is conducted when
first pairing is completed after device
connection.
•Check LED colors to identify pairing.
State Device for
indication LED
Pairing
between
receiver and
transmitter
Transmitter Red LED
blinking
Receiver
Fast LED
blinking
alternately
between red
and blue
LEDs
Pairing
completed
between
receiver and
transmitter
Transmitter Red
Receiver
blue LED
blinking every
1 second
Caution
•Set the optical output of your TV as PCM
for normal sound while using the optical
cable.
•Receiver power is automatically off when
pairing is unsuccessful for 3 minutes
after power is on or pairing is released.
•The device already paired cannot be
connected with other devices. Carry out
pairing for connection with other devices.

26
Charging
Connect the USB port of your PC or general
adapter with the micro USB port on the receiver
through the enclosed USB cable for charging.
•You can charge the device by connecting the
micro USB port of any charging adapter for
Android smartphones with the micro USB port
on the receiver.
•Check receiver charging with LED color.
State LED
Receiver charging Red
Receiver charging
completed Blue
Low receiver battery
level
Red LED blinking every
1 seconds

27
Using
Volume control
Press the + / - button to control volume.
Setting 3D-sound effect
1Press the sound effect setting button. The 3D
sound effect is then set.
•It returns to the original state after the red
LED blinks twice.
2Press the sound effect setting button again.
The 3D sound effect is released.
•It returns to the original state after the red
LED blinks three times.

28
Mute
1Press the mute button for at least 2 seconds to
mute all sounds.
•The purple LED blinks every 1 second in the
Mute mode.
2Press the mute button again for at least 2
seconds to deactivate mute.

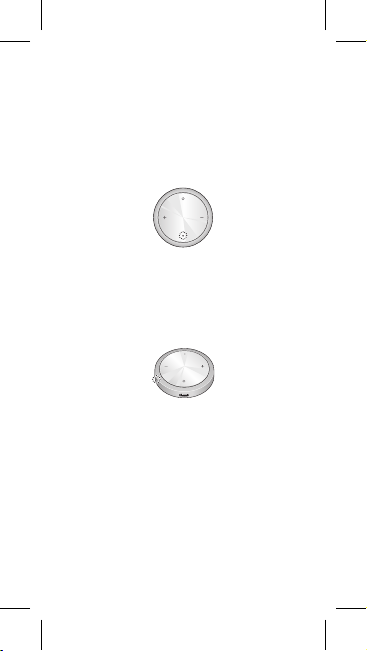

Restarting
You can restart your TV Midnight Sound if the
receiver does not normally operate.
Press the reset hole by using a clip or ballpoint pen
to restart the machine.

29
Troubleshooting
See the following troubleshooting tips before
requesting AS if you think your device has any
of the following problems. Contact the Customer
Service if you need additional help.
Difficulty Suggestions
Receiver power
is not ON.
•Check if the receiver
battery is flat. Charge the
receiver if it is flat.
The battery is not
charged.
•Check correct connection
of the micro USB cable.
•Disconnect and then re-
connect the micro USB
cable.
•Check if the room
temperature is within the
chargeable range. This
device can be charged at 5°
C ~40°C.

30
Difficulty Suggestions
The battery
rapidly goes flat.
•Check if the room
temperature is too low.
Too low room temperature
may reduce battery life.
•Check if the battery is
dead. The battery is dead
if the battery charging time
is prolonged or replay
time is significantly short.
The battery embedded
in this device can be
recharged about 300
times, and the number
of suggested chargings
depends on where you
keep the device.
The device does
not operate or
function properly.
•Use a clip or ballpoint pen
to press the reset hole for
initialization.
No sound is
output.
•Check correct connection of
the sound source cable.
•Check and then release
mute if it is set.
•Control the volume level.
•Carry out pairing.
If sound is
concurrently
output from the
TV speaker and
the receiver
•Reduce TV volume with
your TV remote control
to listen to the sound just
from the receiver.
※Sound may not be output
from the TV speaker if
the TV has an Aux cable
plugged in.

31
Specifications
Transmitter (TX) Receiver (RX)
Audio
process 24bit 48KHz 24bit 48KHz
Analog
input/
output
Aux (3.5Φ) x 1
(analog/digital
combo)
Earphone
output x 2
Digital
input/
output
Optical (Circle
Type) x1
(analog/digital
combo)
-
USB Micro USB
(for power supply)
Micro USB
(for charging)
Communic
ation
RF 2.4Ghz
(max 10 m)
RF 2.4Ghz
(max 10 m)
Power
supply
(replay
time)
USB Cable
(for connecting
TV with the
transmitter USB
port)
USB Cable
(for connecting
the USB
adapter)
Embedded
battery 350mAh
(6 hours)
Input 5V 100 mA 5V 300 mA
Battery
charging - 2 hours
Operating
time 6 hours
Dimension
(W x H x D)
55.7 x 55.7
x 15.5 mm
61 x 61
x 14.7 mm

32
Warranty
•One-year warranty
•The warranty shall not apply to any defect,
failure or damage caused by End-User's
improper use or inadequate or improper
maintenance and care.
FCC Notice
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation.
This equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and the receiver.
Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.

33
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(a) This device may not cause harmful
interference, and
(b) This device must accept any interference
received, including interference that may
cause undesired operation.
(FCC Part 15.21) Caution: changes or modifications
not expressly approved by the
party responsible for compliance could void the
user’s authority to operate the equipment.
