Anywhere cart Ac-locker series User manual

USER GUIDE

AC-LOCKER SERIES

SECURE RFID CHARGING LOCKERS

5/8/20

AC-LOCKER-12-RFID AC-LOCKER-24-RFID

Charging

Each bay oers:

Two AC outlets, up to 100 W power adapter on 12 Bay and up to 60 W adapter on 24 Bay.

Two USB charging ports, up to 2.4 A each.

Electrical and Operating Requirements

The AC-Locker has been engineered to charge all connected devices from a single

15 A AC circuit.

Maintenance-free locks powered by the internal power supply.

For warranty claims, please have the

following information ready, then visit

www.anywherecart.com/support

to create a help ticket.

Serial Number:

________________________________

Software Version:

________________________________

Date Of Purchase:

________________________________

Reseller Name:

________________________________

PO Number:

________________________________

1. Before initial setup, IDENTIFY the wattage of your

device’s power adapter. Multiply this number by the

number of devices being charged.

2. Determine which EXTERNAL devices, if any, will

be used and IDENTIFY the wattage.

3. Add device power adapter wattage total and the

external device total. If the combined total wattage is

under 1875 Watts, any mode can be selected.

If over 1875 Watts, DO NOT USE YOUR TIMER IN

“C” - ALL ON MODE. Divide device wattage by 2,

then add EXTERNAL devices. If under 1875 Watts,

use “A” Mode or “B” Mode. If the total device wattage

divided by 2, plus the external devices is over 1875

Watts, remove devices as needed.

NOTE: If wattage exceeds 1875W at one time, charging

system will not operate correctly. Remove devices until the

total wattage is under 1875W.

IMPORTANT

THE ELECTRICAL SYSTEM IS DESIGNED

TO HANDLE A MAXIMUM OF 1875 WATTS.

THE ELECTRICAL SYSTEM IS DESIGNED TO HANDLE A

MAXIMUM OF 1500 WATTS. If wattage exceeds 1500W at

one time, charging system may not operate correctly. Remove

devices until the total wattage is under 1500W.

• THIS IS NOT A TOY. CHILDREN SHOULD NEVER

MOVE OR CLIMB THE CART!

• ONLY ADULTS should move the cart.

• NEVER climb, sit on or tilt the cart.

• ALWAYS move the cart slowly and be aware

of your surroundings.

• ALWAYS latch doors before moving the cart.

• DO NOT use the power cord to pull the cart.

• DO NOT roll the cart over the power cord.

• DO NOT touch any part of the electrical system

while plugged in.

• DO NOT place liquids on or near the cart.

• DO NOT use an extension cord with this unit.

• DO NOT plug in the cart if the switch, receptacles,

or power cord are broken, cracked, torn or

inadequately repaired.

• Repairs should always be performed by a qualified

electrician.

• Set the power switch to the OFF position before you

unplug the unit from the wall, plug the unit into the

wall, or plug in devices.

• If external devices are set on top of the cart,

remove them before rolling cart around.

WARNING

ALWAYS FOLLOW SAFETY PRECAUTIONS.

DO NOT REMOVE THIS DECAL.

Factory Default Admin Password: contact support@anywherecart.com

for your Factory Default Password.

Your New Admin Password: _____________________________

• THIS IS NOT A TOY. CHILDREN

SHOULD NEVER MOVE OR CLIMB

THE LOCKER!

• NEVER climb, sit on or tilt Locker.

• DO NOT touch any part of the

electrical system while plugged in.

• DO NOT place liquids on or near

the Locker.

• DO NOT use an extension cord

with this unit.

• DO NOT plug in the cart if the

receptacles or power cords are

broken, cracked, torn or

inadequately repaired.

• Repairs should always be performed

by a qualiﬁed electrician.

TABLE OF CONTENTS

Product Overview..................................................................................................................5

Unboxing................................................................................................................................6-7

Assembly

(12 Bay)

...........................................................................................................8-15

Assembly

(24 Bay)

.......................................................................................................16-23

Setting Up Cables.........................................................................................................24-28

Mounting to Wall.................................................................................................................29

Operation with ID Card....................................................................................................30

Operation with Password..................................................................................................31

Changing Admin Password.............................................................................................32

Reviewing Access Data....................................................................................................33

Adjusting Single Bay Settings......................................................................................34

Admin Options......................................................................................................................35

Troubleshooting...................................................................................................................36

USER GUIDE

PRODUCT OVERVIEW

Front (closed)

Upper Locker Cabinet

Upper Access Door

Lower Locker Cabinet

Lower Access Door

Front (open)

Individual Locker Bay

Power Module

(2 USB + 2 Standard Outlets)

Control Panel

Touch Screen Display

Upper Access Door Lock

Card Reader

(RFID or Swipe)















Back

Handles

Power Cord



Side

Upper Mounting Bracket

Middle Mounting Brackets

Correct Orientation shown

IMPORTANT (24 Bay only)

The Upper Mounting Bracket is

installed in reverse for shipping

purposes and MUST be ﬂipped

before ﬁnal use. (See page 18)

USER GUIDE

REMOVING FROM BOX

➊➊Remove the strapping with scissors or plier cutters. Do not use a box cutter.

➋➋Lift and Remove the top wood sheet, top cardboard lid and foam.

Then remove corrugated cardboard from inner sides.

USER GUIDE

Upper Cabinet Lower Cabinet

➌➌With the help of an assistant, gently lift the main box up and out of the way.

➍➍Remove all other packaging and inspect for damage to the Upper or Lower Cabinets.

REMOVING FROM BOX

USER GUIDE

➊➊ On the Lower Cabinet, ﬁnd and remove the keys attached to the power cord.

ASSEMBLY (12 BAY)

➋➋ On the Upper Cabinet, insert key into Access Door Lock and open door.

USER GUIDE

ASSEMBLY (12 BAY)

➌➌ Press down on the uppermost top release lever for Bay #1.

A Hex wrench and screen protecting ﬁlm are located inside.

➍➍ Locate the plastic bag containing the (1) Upper Mounting Bracket and

(2) Middle Mounting Brackets

Upper Mounting Bracket

Middle Mounting Brackets

USER GUIDE ASSEMBLY (12 BAY)

➎➎ Using the Hex wrench, remove the (3) Hex bolts from the top, back edge of the

Upper Cabinet.

➏➏ With the Upper Mounting Bracket in hand, align the 3 round holes with the

Upper Cabinet holes, making sure the slotted edge protrudes outward.

Then, using the Hex wrench, install and tighten the (3) Hex bolts.

Upper Mounting Bracket

Correct Orientation shown

➑➑ Using the Hex wrench, remove the Hex bolt from the front edge of the Lower Cabinet

and set aside. IMPORTANT Do Not Discard the bolt.

USER GUIDE

ASSEMBLY (12 BAY)

➐➐ On the Lower Cabinet, locate the Hex bolt from the front edge.

USER GUIDE

➒➒ Using the side handles, carefully lift the Upper Cabinet on top of the Lower Cabinet.

For your safety, always move these pieces with the help of 1 or 2 assistants.

ASSEMBLY (12 BAY)

USER GUIDE

ASSEMBLY (12 BAY)

➓➓ On the Upper Cabinet, insert key into Access Door Lock and open door.

⓫⓫ Using the Hex bolt from step 8, secure both Cabinets together by inserting it into the

Lower Cabinet threaded hole at the bottom, then tightening it using the Hex wrench.

USER GUIDE ASSEMBLY (12 BAY)

⓬⓬ Working in the back, use the Hex wrench to remove the (4) Hex bolts from the

middle left and middle right edges.

USER GUIDE

ASSEMBLY (12 BAY)

⓭⓭ With (1) Middle Mounting Bracket in hand, align the 2 narrow holes

with the holes in the cabinets, making sure the slotted edge protrudes

outward. Then, using the Hex wrench, install and tighten the (2) Hex bolts.

Middle Mounting Bracket

⓮⓮ Working on the opposite side, align the other (1) Middle Mounting Bracket,

then install and tighten the (2) Hex bolts.

USER GUIDE

➊➊ On the Lower Cabinet, ﬁnd and remove the keys attached to the power cord.

ASSEMBLY (24 BAY)

➋➋ On the Upper Cabinet, insert key into Access Door Lock and open door.

USER GUIDE

ASSEMBLY (24 BAY)

➌➌ Press down on the uppermost top release lever for Bay #1.

A Hex wrench and screen protecting ﬁlm are located inside.

➎➎ Using the Hex wrench, remove the (3) Hex bolts from the Upper Mounting Bracket

located on the top, back edge of the Upper Cabinet.

USER GUIDE ASSEMBLY (24 BAY)

Correct Orientation shown

➏➏ Remove the Upper Mounting Bracket and ﬂip it around, making sure the slotted

edge protrudes outward. Then, using the Hex wrench, re-install and tighten

the (3) Hex bolts.

Shipping (Reversed) Orientation shown

USER GUIDE

ASSEMBLY (24 BAY)

➑➑ Using the Hex wrench, remove the Hex bolt from the front edge of the Lower Cabinet

and set aside. IMPORTANT Do Not Discard the bolt.

➐➐ On the Lower Cabinet, locate the Hex bolt from the front edge.

USER GUIDE

➒➒ Using the side handles, carefully lift the Upper Cabinet on top of the Lower Cabinet.

For your safety, always move these pieces with the help of 1 or 2 assistants.

ASSEMBLY (24 BAY)

This manual suits for next models

Table of contents

Popular Indoor Furnishing manuals by other brands

Mercado Medic

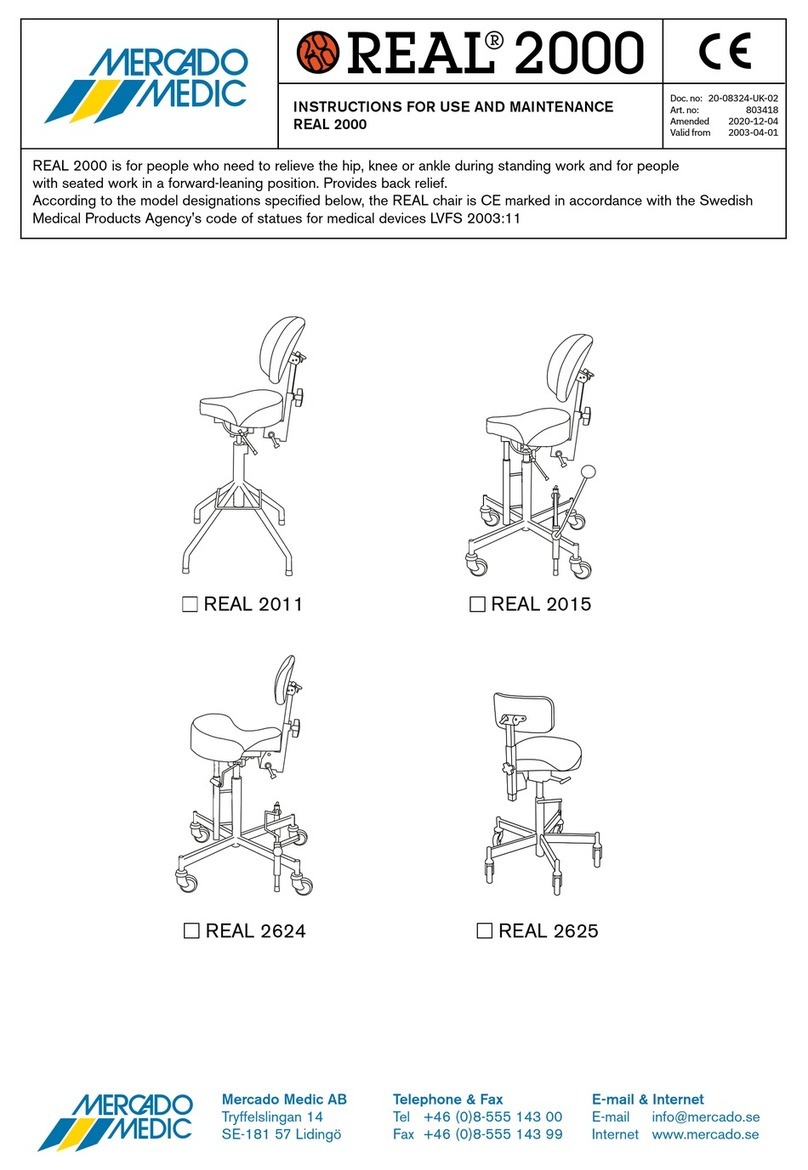

Mercado Medic REAL 2000 Series Instructions for use and maintenance

ETC

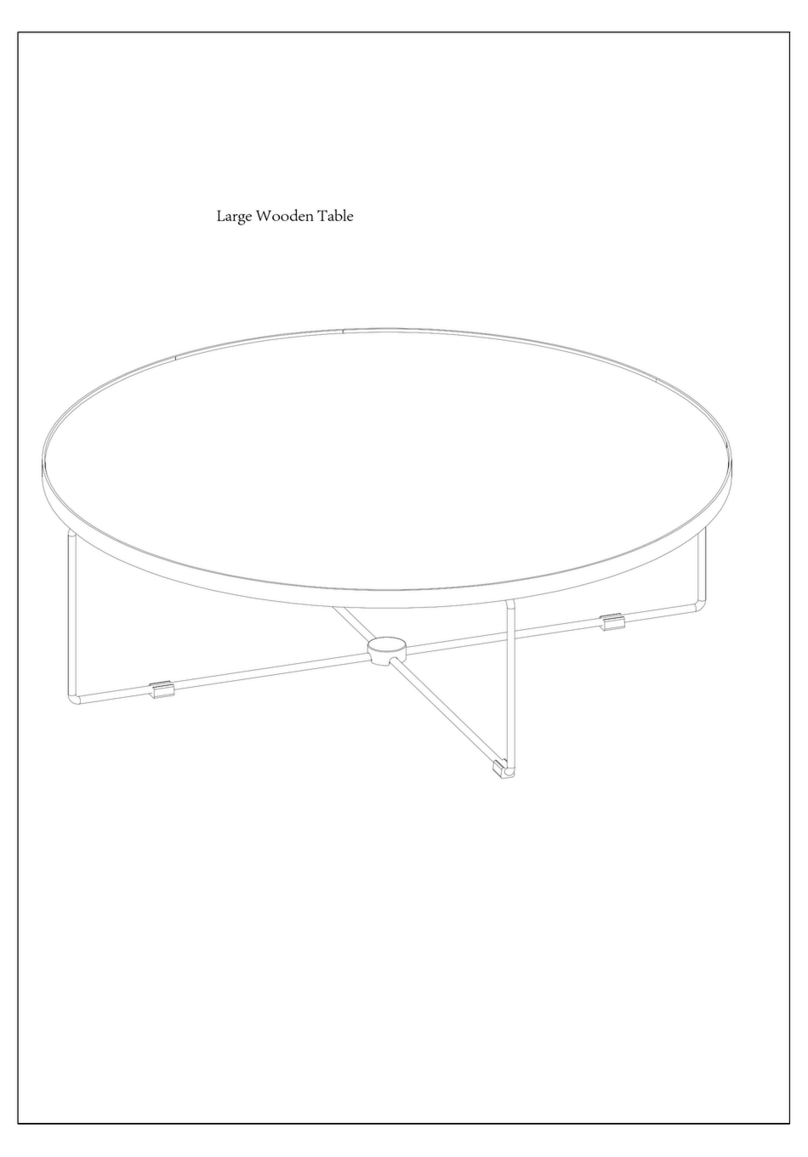

ETC Taron Assembly instructions

LDI Spaces

LDI Spaces SAFCO 9331 Assembly instructions

Classic Brands

Classic Brands 133-074-015 Owner's manual & assembly instructions

L&S

L&S FREEDOM PLUS instructions

Castleton Home

Castleton Home CX1125 Assembly instructions

Fresca

Fresca FVN8042 MEZZO installation guide

Kvik

Kvik MH937 manual

Walker Edison

Walker Edison W44SBD manual

VCBC

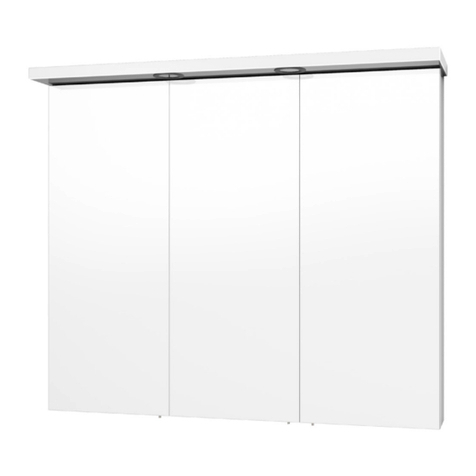

VCBC Mirror Cabinet I Series installation instructions
