Aobosi CLS35 User manual

Model:CLS35/45/55

CONTENTS
1.SAFETY INSTRUCTIONS
2.PRODUCT FEATURES
3.PRODUCT STRUCTURE
5.FUNCTION AND OPERATION
6.CARE AND MAINTENANCE
9.WARRANTY
7.TROUBLESHOOTING
8.TECHNICAL INFORMATION
Page1
Page2
Page2
Page4
Page5
Page8
Page6
Page7
4.REVERSE DOOR OPENING DIRECTION Page3
页码跟目录最终排版后更新

1.SAFETY INSTRUCTIONS
• Do not operate the appliance if it is visibly damaged.
• Do not block the gaps of the fridge with things like pin, wire, etc.
• Do not expose the appliance to rain or soak it in water.
• Do not place the appliance near naked flames or other heat sources (heaters, direct sunlight,
gas ovens etc.)
• Do not store any explosive substances like spray cans with a flammable propellant.
• Ensure the supply cord is dry and not trapped or damaged. Do not locate multiple portable
socket-outlets or portable power supplies at the rear of the appliance.
• Check the voltage specification on the type plate corresponds to that of the energy supply.
The appliance is only to be used with the power supply unit provided with the appliance.
• Do not use electrical appliances inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacturer.
• Once unpacked and before turning on, the appliance must be placed on a level surface for
more than 6 hours.
• Make sure that the appliance stays horizontally when it is running. The tilt angle must be less
than 5° for long time running and be less than 45° for short time running.
• Keep the ventilation openings in the unit casing or in the built-in structure free of obstacles.
• Keep the appliance stable on the ground or in the car; Do not drain upside down.
• Repairs may only be carried out by qualified personnel. Incorrect repair may cause danger.
The lamp and supply cord must be replaced by the manufacturer or qualified persons.
• The installation of DC power in the boat must be handled by qualified electricians.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made
by children without supervision.
CAUTION!
WARNING!
• The appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they've been given supervision or instruction concerning use of the device in a safe way and
understand the hazards.
NOTICE!
• Disconnect the power supply before each cleaning and maintenance and after every use.
• Do not use sharp tools to defrost; Do not damage the refrigerant circuit.
• Risk of child entrapment. Before you throw away your old refrigerator or freezer: take off the
doors: leave the shelves in place so that children may not easily climb inside.
• Check if the cooling capacity of the appliance is suitable for storing the food or medicine.
Food may only be stored in its original packaging or in suitable containers.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the
door open to prevent mould developing within the appliance.
• The appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;
- Camping, Farm houses and by clients in hotels, motels and other residential environments;
- Bed and breakfast type environments;
- Catering and similar non-retail applications.
• Information, illustrations and specifications in this manual reflect the most current available
at the time of publication,are subject to change without prior notice.
Please according to local regulations regarding disposal of the appliance for its flammable
refrigerant and blowing gas.
• High-efficiency DC compressor and conversion module.
• CFC free and great heat insulation.
• DC12/24V or AC100~240V power supply（using dedicated adapter).
• Fast cooling to -20℃/-4℉(based on 25℃/77℉ room temperature).
• Intelligent battery protection system.
• LED display for temperature setting. Dual compartments with dual temperature control.
• Specific parts: door latch， cup holder design, reversible door, recessed handle.
2.PRODUCT FEATURES
3.PRODUCT STRUCTURE
Machine compartment
Left compartment
Sealing strip
Door latch
Recessed handle
Charging port
Right compartment

4.REVERSE DOOR OPENING DIRECTION
The door opening direction can be changed according to actual needs, please follow the
instructions below:
Door Disassembly:
Door Installation:
Open the door
at a 90° angle
Align the door shaft with the
hole on one side and insert it
Fix the door on
the other side,
installation finished
Take off the door
from one side
Take off the door
from the other side
Reverse the door
opening direction

5

6.FUNCTION AND OPERATION
• Display Screen Initialization： connect to the power supply, the buzzer will make a long
beep, and the display will be on for 1 second then enter the normal operating mode.
• Power ON/OFF： press to switch ON/OFF.
• Power Supply： connect to 12V/24V DC or 100~240V AC power(using dedicated adapter).
L R
TEMPERATURE CONTROL
LEFT COMPARTMENT RIGHT COMPARTMENT
SET ON/OFF
• Cooling Mode： under the running state, press to switch HH(fast cooling mode) or Eco
(energy saving mode).(*Factory setting is HH.)
• Battery Protection Mode： under the running state, long press for 3 seconds until the left
screen flashes, then press again to switch High, Medium and Low (*Factory setting is High).
From left to right: Low/Medium/High.
22.7V
23.7V
CUT IN
DC 24V
CUT IN
10.9V
11.4V
12.4V
INPUT
MODE
25.7V
21.3V
22.3V
24.3V
CUT OUT CUT OUT
8.5V
10.1V
11.1V
L
M
H
DC 12V
* the voltage is theoretical value, there may be a deviation in different sceneries.
Due to the different output voltages between vehicles, H should be set when the product
is connected to car power, and M or L should be set when it is connected to a portable
battery or other back-up battery.
Voltage Reference:
• Temperature Unit Setting：switch off the fridge, long press for three seconds until E1
displays, then switch to E5 by pressing again. Under E5 mode, press or to select
Celsius or Fahrenheit.(*Factory set
• Temperature Setting: press or , the left screen will flash, then press to switch left
/right compartment temperature setting. Press or to adjust the temperature.
The setting will be saved after stop operating for four seconds, the temperature displayed
is the current temperature of the compartments, it’ll take a while to reach the set
temperature. Temperature setting range: -20~20°C（-4~68°F）
• Left/Right Compartment Setting：under the running state, long press and at the same
time for 3 seconds to switch ON/OFF the left compartment, long press and at the same
time for 3 seconds to switch ON/OFF the right compartment, two compartments cannot
be switched off at the same time.

• Unplug the device first to avoid electric shock.
• Use wet cloth to clean the device and dry it.
• Remove the cover and drain from the hole at the bottom of the device.
• Do not soak the device in water and do not wash it directly.
• Do not use abrasive cleaning agents as these can damage the device.
If the device will not be in use for a long time, please follow the steps:
• Turn off the power and remove the plug.
• Remove all the items stored in the device.
• Remove the cover and drain from the hole, wipe off excess water with a soft rag.
• Leave the lid slightly open to prevent odors from forming.
• Put the device in a cool and dry place.
■Cleaning:
■Storage:
Humidity can form frost in the interior of the cooling device or on the evaporator, which
will affect the cooling performance. Defrost the device regularly to avoid this.
• Switch off the device.
• Take out the contents of the device.
• Keep the lid open.
• Remove the cover and drain from the hole.
• Wipe off the defrosted water.
■Defrosting:
Never use hard or sharp tools to remove ice or to loosen objects which have
frozen in place.
7.CARE AND MAINTENANCE
Drinks
5°C/41°F
Fruits Vegetable Delicatessen Wine Ice cream Meat
3~10°C/37~50°F 4°C/39°F 10°C/50°F -10°C/14°F -18°C/0°F
5~8°C/41~46°F
■Recommended temperature for common food:
• Reset： switch off the fridge, long press for three seconds until E1 displays, under E1
mode, long press at the same time for three seconds to reset it.

Issues Cause/Suggestions
Refrigerator does
not work
• Check if the switch is on.
• Check if the plug and socket are connected well.
• Check if the fuse has been burnt.
• Check if the power supply is malfunctioned.
• Switch on/off the fridge frequently may cause start delay of the compressor.
Refrigerator
compartments
are too warm
• The door is opened frequently.
• A large amount of warm or hot food was stored recently.
• The refrigerator has been disconnected for a long time.
Food is frozen
There is "water flow"
noise from inside the
refrigerator
• The temperature was set too low.
• It's a normal phenomenon, caused by the flow of refrigerant.
There are waterdrops
around the refrigerator
casing or door gap
• It's a normal phenomenon, the moisture will condense to
water when it touches a cold surface of the refrigerator.
The compressor is
slightly noisy when
starting
• It's a normal phenomenon, the noise will be reduced
after the compressor works stably.
Code F1 displayed • Possible cause: low voltage to fridge.
Adjust the battery protection from High to Medium or from Medium to Low.
Code F2 displayed
• Possible cause: condenser fan is overloaded.
Disconnect power to fridge for 5 minutes & re-start.
If the code shows again, contact manufacturer for service.
Code F3 displayed
• Possible cause: the compressor starts too frequently.
Disconnect power to fridge for 5 minutes & re-start.
If the code shows again, contact manufacturer for service.
Code F4 displayed
• Possible cause: compressor not kicking in.
Disconnect power to fridge for 5 minutes & re-start.
If the code shows again, contact manufacturer for service.
Code F5 displayed
• Possible cause: overheating of the compressor & electronics.
Disconnect power to fridge for 5 minutes & re-start.
If the code shows again, contact manufacturer for service.
• Possible cause: temperature sensor is faulty.
Contact manufacturer for service.
Code F6 displayed
Code F7 or F8 displayed
• Possible cause: no parameter can be detected by the controller.
Disconnect power to fridge for 5 minutes & re-start.
If the code shows again, contact manufacturer for service.
8.TOUBLESHOOTING

9.TECHNICAL INFORMATION
*Due to product improvement, the technical information might be different from actual
information, please refer to the rating label on the product.
MODEL
RATED VOLTAGE
RATED POWER
CAPACITY
NOISE
TEMPERATURE
SETTING RANGE
CLIMATE
CATEGORY
DIMENSIONS
(L*W*H)
NET WEIGHT
DC12/24V OR AC100~240V（USING DEDICATED ADAPTER）
≤45dB
60W
T/ST/N/SN
CLS 45
33 3L/1.18 cu.ft
-20~20°C（-4~68℉）
608*365*442mm
23 15/16* 14 3/8*
17 3/8 inch
11.8kg/26.01lb
CLS 55
41L/1.45 cu.ft
608*365*512mm
23 15/16* 14 3/8*
20 3/16inch
12.9kg/28.43lb
The connection is not correct.

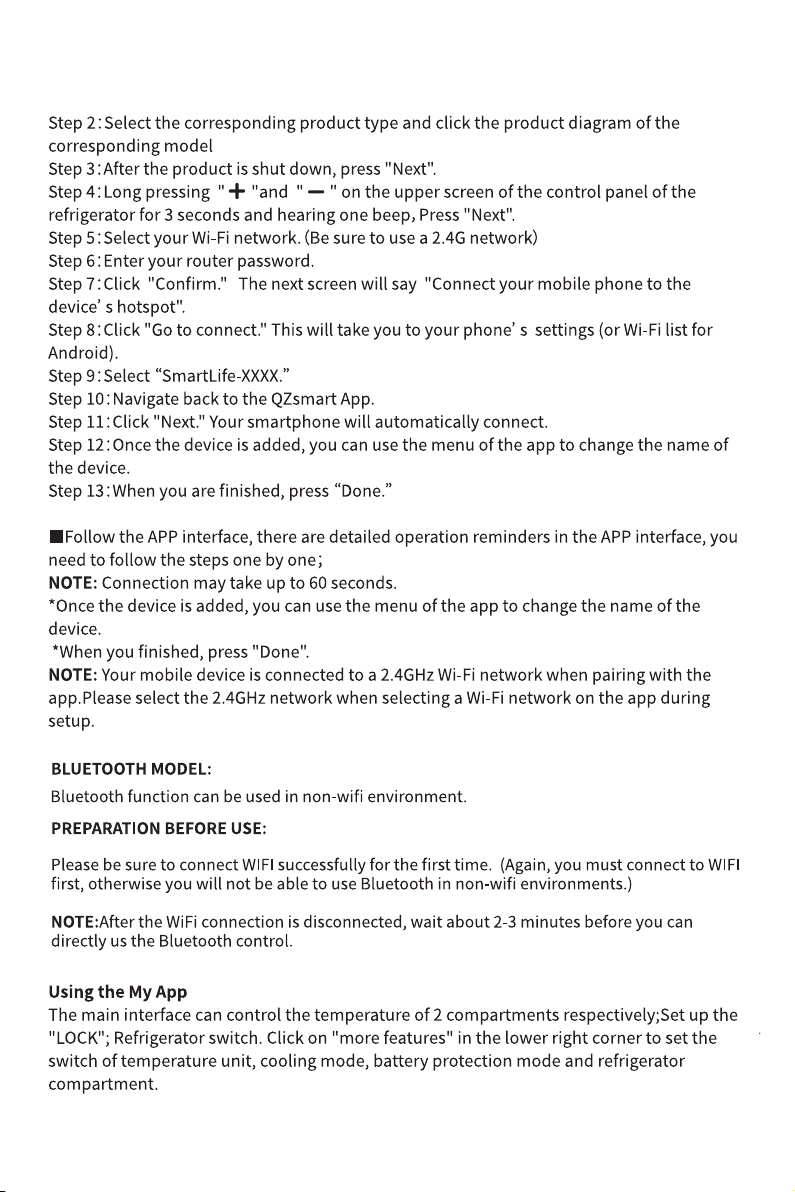

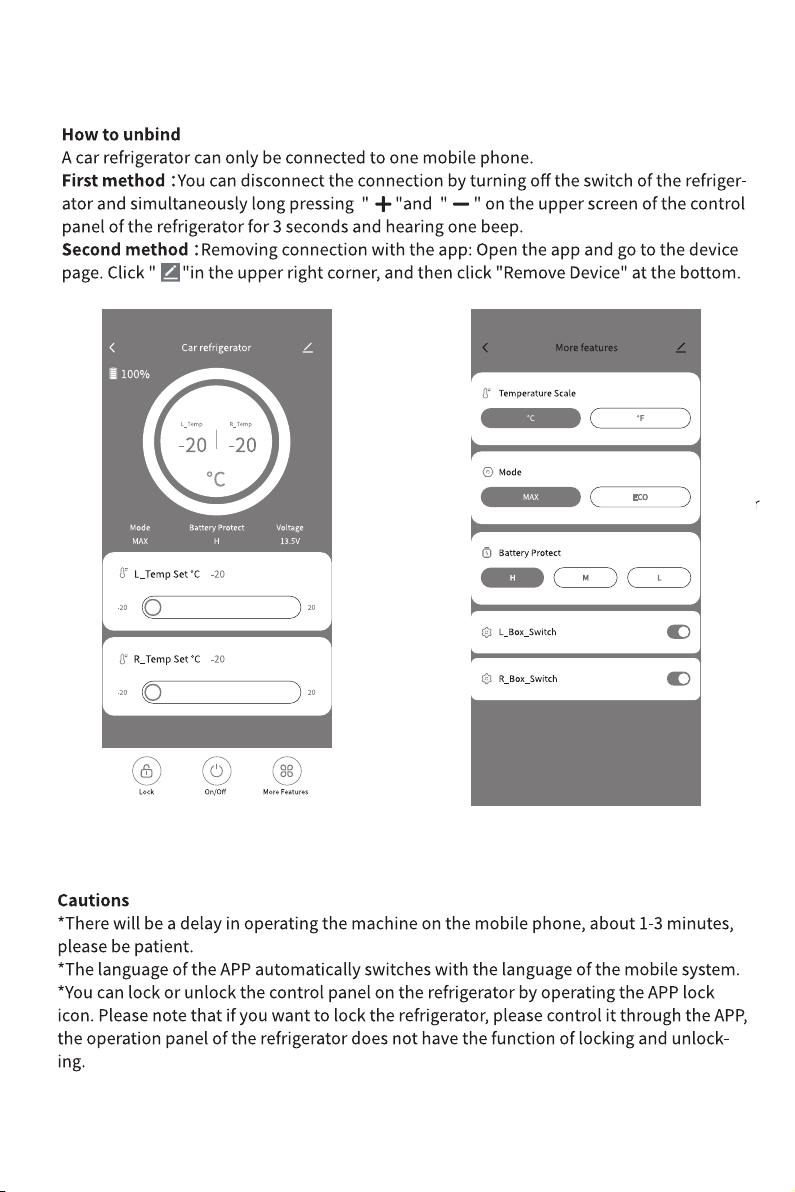

1.When using Bluetooth mode for the first time, it can only be
used after the2.4G WiFi network is connected successfully.
2.After the WiFi connection is disconnected, wait about 2-3
minutes before you can directly use the Bluetooth control.
It is a normal phenomenonx.
In order to keep the temperature at the set temperature, the
compressor will operate at low power.

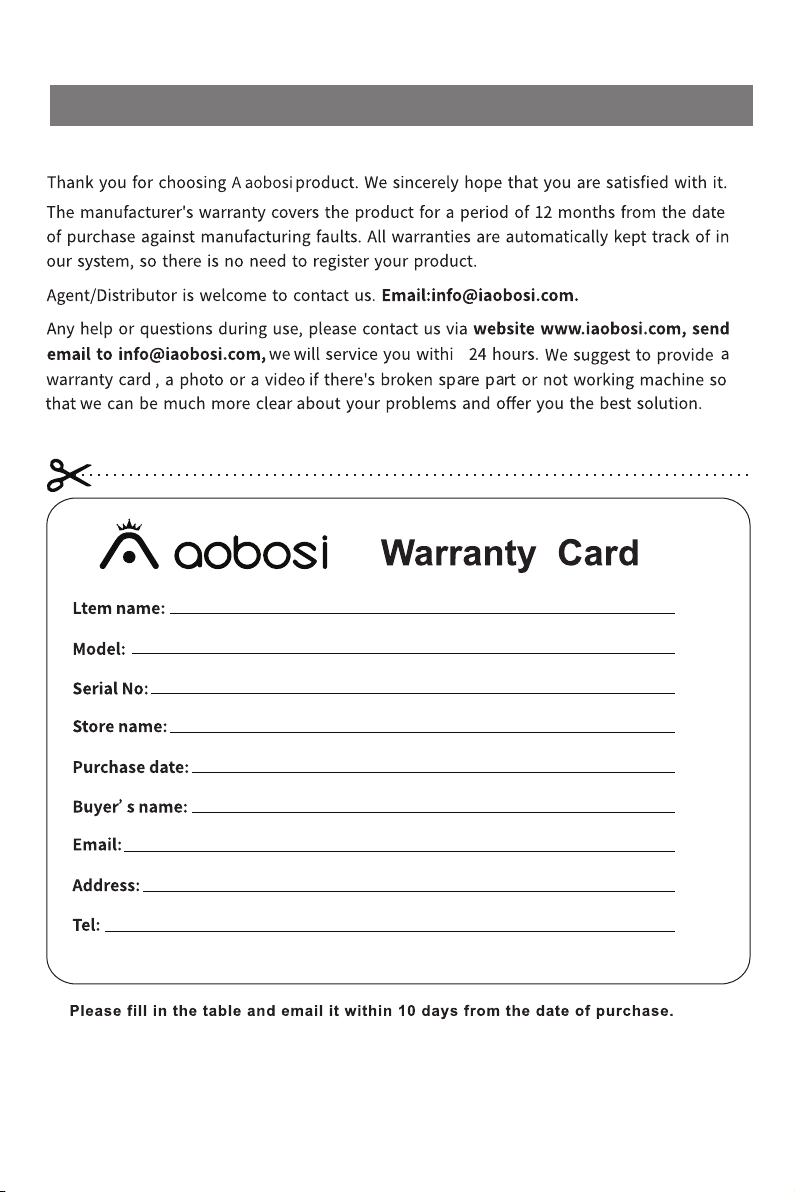

10.WARRANTY
