aone F815C Series User manual

F815C
Series
(Full-Size Single Board Computer)
INSTALLATION GUIDE
Installation Guide Revision A.2
6007002815CA2

i
COPYRIGHT©
All rights reserved. The information contained in this guide has been
validated and reviewed for accuracy. No patent liability is assumed with
respect to the use of the information contained herein. While every
precaution has been taken in the preparation of this guide, the Manufacturer
assumes no responsibility for errors or omissions.
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without the prior written permission of
Manufacturer.
TRADEMARK™
Intel®, Pentium®and MMX®are registered trademarks of Intel®Corporation.
Microsoft®and Windows®are registered trademarks of Microsoft
Corporation.
All products and company names are trademarks or registered trademarks
of their respective holders.
These specifications are subject to change without notice.
Installation Guide Revision A.2
February 2003

ii
CONTENTS
SECTION 1 INTRODUCTION 1
1.1 Unpacking F815C Series 1
1.2 Description 3
1.3 Features 3
1.3.1 Hardware Monitoring 4
1.3.2 I/O Shield Connector 4
1.3.3 F815C Series Overview 4
1.3.4 System Block Diagram 5
1.4 Specifications 6
SECTION 2 INSTALLATIONS 8
2.1 System Installation 8
2.1.1 CPU Installation 8
2.1.2 Memory Module Installation 9
2.1.3 Setting Jumper and DIP Switches 11
2.2 Board Layout 12
2.3 Jumper Setting 13
2.4 Connector’s Description 16

iii
CONTENTS
SECTION 3 AWARD BIOS SETUP 29
3.1 BIOS Instructions 29
3.2 Main Menu 30
3.3 Standard CMOS Features 32
3.4 IDE Adapters 34
3.5 Advanced BIOS Features 36
3.6 Advanced Chipset Features 40
3.7 Integrated Peripherals 43
3.8 Power Management Setup 45
3.9 PnP/PCI Configurations 49
3.10 PC Health Status 51
3.11 Frequency/Voltage Control 53
3.12 Load Fail-Safe Default 55
3.13 Load Optimized Defaults 56
3.14 Supervisor/User Password Setting 57
3.15 Exit Selecting 58
APPENDIX A 59
A.1 Intel®Processor Support List 59

iv

1
INTRODUCTION
1.1 Unpacking F815C Series
1. Take out the F815C series unit from the carton box, check if the unit is
properly secure in the plastic bag.
2. Check the contents of the carton box:
¡Single Board Computer ¡Installation Guide
¡Floppy ribbon cable ¡ATA-66/100 HDD ribbon cable
¡COM2 ribbon cable
SECTION 1

Introduction
2
¡Print & COM1 ribbon cable ¡Printer ribbon cable
(F815C/LN Series) (F815C/LE Series)
¡K/B & M/S Y type cable ¡Driver CD
¡K/B-M/S extend to BP cable ¡ATX power control cable
(6-pins to 6-pins) (4-pins to 4-pins)
3. Optional Cable
¡USB1.1 cable ¡K/B-M/S extend to BP cable
(6-pins to 5-pins)

Introduction
3
1.2 Description
The F815C Series all-in-one single board computer is optimized for socket
370 FC-PGA processor, supporting 100MHz and 133 MHz Front Side Bus,
the memory can accommodate is up to 512 MB SDRAM. This board is
based on the Intel®815EP chipset and is fully designed for harsh industrial
environment. The F815C/LE series is with on board LCD/VGA controller and
single 10/100 Mbps Ethernet. The F815C/LN series is with on board
LCD/VGA controller and dual 10/100 Mbps Ethernet. They are for CTI and
high-end applications.
The other I/O function include two serial ports, one parallel port, two IDE
interface, one FDC interface, four USB ports, Watch Dog Timer, DOC and
PS/2 Keyboard & Mouse.
In the meantime, the key components inside are chosen on the long-term
availability criterion, such as Intel®chipset and C&T®VGA chip. We
guarantee this product will be available. Even longer life is still possible
which is dependent on the marketing situation. We also accept to extend the
product life cycle based on OEM contract.
1.3 Features
¡Intel®Celeron™ / Pentium®!!! ( Coppermine™ / Tualatin™ ) CPU
Processors
¡Intel®815EP AGPset
¡Support 512MB SDRAM (Max.) Memory
¡Front Side Bus Frequency: 66/100/133 MHz
¡C&T®69000 chip with 2MB embedded Video RAM
¡Single/Dual 10/100 Mbps Ethernet interface using Intel®82562 & 82559
Chip
¡Software programmable watchdog timer
¡Hardware Monitoring

Introduction
4
1.3.1 Hardware Monitoring
Hardware monitoring allows you to monitor various aspects of your systems
operations and status. The features include CPU temperature, voltage and
RPM of fan.
1.3.2 I/O Shield Connector
The SBC is equipped with an I/O bracket. Please use the appropriate I/O
shield (figure 1).
F815C/LE Series
F815C/LN Series
Figure 1: I/O bracket layout
1.3.3 F815C Series Overview
Function / Model F815C/LE F815C/LN
¡Chipset 815EP 815EP
¡SCSI Function / /
¡LCD Function 
¡VGA Function 
¡Ethernet Function (Single) (Dual)
¡Two EIDE Interface 
¡One Floppy Interface 
¡Two Serial, One Parallel 
¡USB port 
¡Solid State Disk 
VGA LAN1 COM1
KB
MS
LAN2 / LAN1
LAN1 LAN2
KB
MS

Introduction
5
1.3.4 System Block Diagram
66/100/133MHz
Socket 370
Processor
MCH
544 BGA
3 DIMM Modules
66/100/133MHz
C&T
Graphic
PICMG Bus
ISA Bus
DOC
WDT
Intel
Ethernet
PCI Bus
ICH2
241 BGA
CD ROM
HDD
USB Ports
Super I/O
LPC
Serial Ports
LPT Port
PS/2 KB
PS/2 MS
FDD
HUB
BIOS
PCI-ISA
Bridge
Figure 2: System Block Diagram

Introduction
6
1.4 Specifications
F815C Series:
¡Processor:
- Socket 370 Processor, for Intel®CeleronTM / Pentium®!!!
( Coppermine™ / Tualatin™ ) Processor
¡Chipset:
- Intel®815EP AGPset
¡Front Side Bus:
- 66/100/133 MHz
¡DRAM Module:
- 168-pins DIMM x 3 for PC133 Memory
- Support DRAM up to 512MB
¡LCD/VGA Function:
- C&T®69000 Video Accelerators controller
- VRAM 2MB (standard)
¡Dual LAN Function: (F815C/LN Series)
- Intel®82562 (LAN1) & 82559 (LAN2) controllers
- For 10/100Base-TX Ethernet
¡Single LAN Function: (F815C/LE Series)
- Intel®82559 (LAN) controllers
- For 10/100Base-TX Ethernet
¡Onboard I/O:
- On-Chip I/O integrated with K/B, Mouse, FDD, Parallel and Serial
¡Onboard PCI / IDE:
- Intel®ICH2 Controller
- PCI rev2.2 Compliant
- ACPI Compliant Power Management
- PCI Bus IDE Port with PIO /ATA-100 x 2 (Up to 4 Devices)

Introduction
7
¡I/O Connector:
- 9-pins D-Sub COM1 connector (F815C/LE Series)
- RJ-45 connector
(F815C/LE Series use two RJ-45 Connector)
- 15-pins D-Sub VGA connector
- PS/2 Mouse and PS/2 style Keyboard
¡USB Ports:
- 4 x USB ports (pin-header)
¡BIOS:
- Award Plug & Play BIOS
¡Extended Function:
- Hardware Monitoring function by Winbond®ASIC
- IrDA by pin-header
¡Form Factor:
- 13.3” x 4.8” (338 x 122mm)
¡Weight:
- 0.84lb (380g) --- F815C/LE

8
INSTALLATIONS
2.1 System Installation
2.1.1 CPU Installation
Carefully follow the steps below in order to install the CPU:
1. Check and confirm that the jumpers are correctly set for the CPU you
are going to install (figure 3).
2. Lift the releasing lever of the Socket 370.
3. Align the pin of the CPU against the pinholes of the Socket 370. Be sure
to pay attention to the orientation of the CPU.

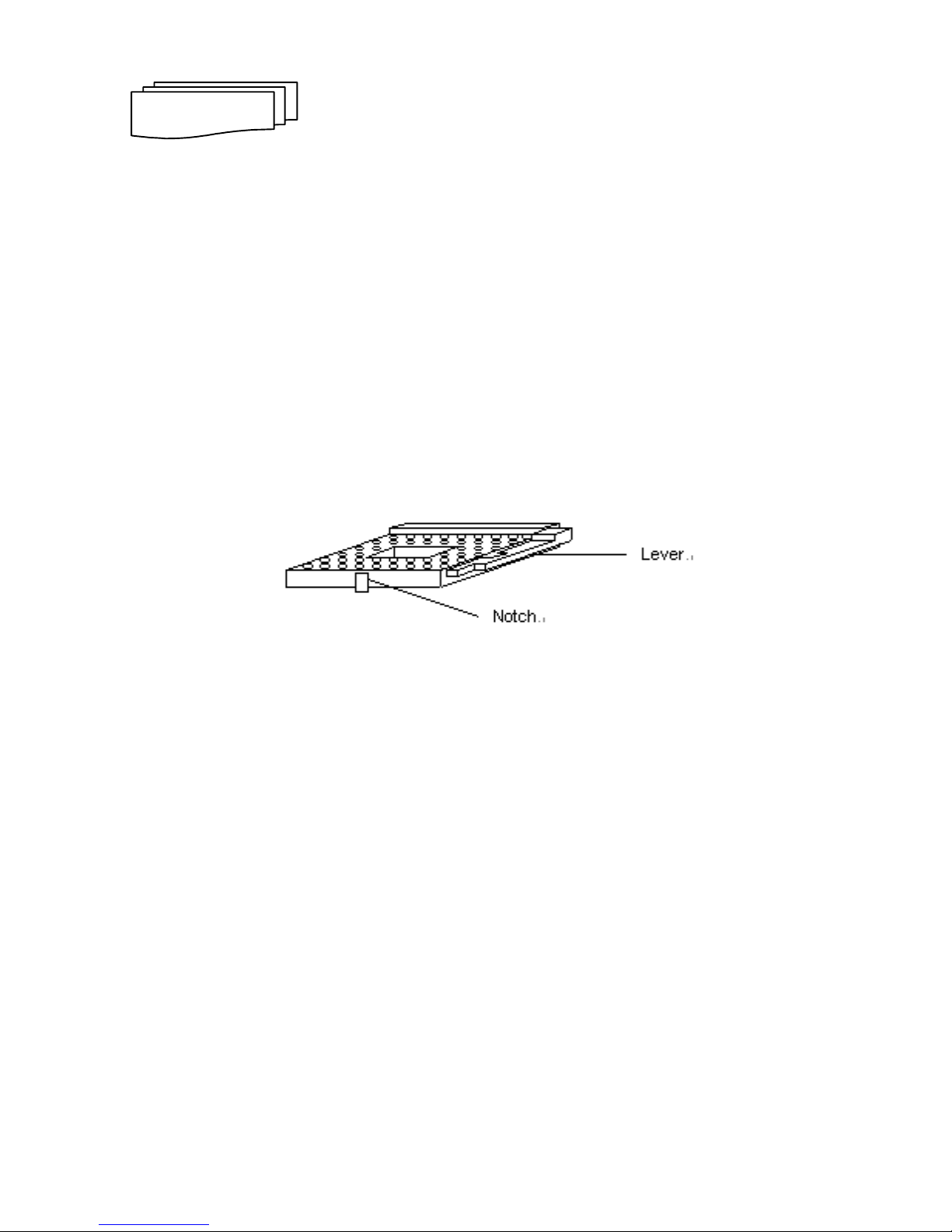

Figure 3: CPU Socket
4. Push down the CPU into the Socket 370.
5. Push down the release lever and lock it against the key hook.
6. Hook the hole in ZIF clip for the CPU cooling fan onto the notch on the
socket 370.
7. Place the CPU cooling fan atop the CPU surface.
8. Push down the opposite side of the ZIF clip and hook it.
9. Slide the head of the clip to left and lock it.
10. Connect the cooling fan cable to the socket as shown below. Be careful
not to place the cable on the CPU cooling fan.
SECTION 2

Installations
9
Removing a CPU:
1. Before removing the CPU, turn off the F815C Series power; then wait for
about 20 minutes until the heat radiation plate of the cooling fan and the
CPU cool down.
2. To remove the CPU, lift the releasing lever of the Socket 370.
Note: The CPU and the heat radiation plate are hot. They may cause
burns.
To remove the CPU, reverse the installation steps.
2.1.2 Memory Module Installation
Figure 4 display the notch marks and what they should look like on your
DIMM memory module.
DIMMs have168-pins and two notches, that will match with the onboard
DIMM socket. DIMM modules are installed by placing the chip firmly into the
socket at a 90-degree angle and pressing straight down (figure 5) until it fits
tightly into the DIMM socket.
Figure 4: DIMM Memory and 168-pins Socket
Figure 5: Memory Installation

Installations
10
Carefully follow the steps below in order to install the DIMMs:
1. To avoid generating static electricity and damaging the DIMM, ground
yourself by touching a grounded metal surface or using a ground scrap
before you touch the DIMM.
2. Do not touch the connector of the DIMM. Dirt residue may cause a
malfunction.
3. Hold the DIMM with its notch to the front side of the F815C Series and
insert it completely into the socket. A DIMM should be inserted into the
inner socket first. Guiding the hole at each end of the DIMM over the
retaining post at each end of the DIMM socket.
4. If you install two DIMMs, install the second DIMM using the same
procedure as above.
5. If DIMM does not go in smoothly, do not force it. Pull it all the way out
and try again.
6. Make sure the DIMM is properly installed and locked by the tabs on both
sides of the socket.
Removing a DIMM:
To remove the DIMM, use your fingers or a small screwdriver to carefully
push away the plastic tabs that secure the DIMM at each end. Lift it out of
the socket.
Make sure you store the DIMM in an anti-static bag and must be
populated the same size and manufactory of memory modules. .

Installations
11
2.1.3 Setting Jumpers and DIP Switches
There are jumpers and DIP-switches on the system board of the F815C
Series. You can set the jumpers to make the necessary operations.
Figure 6: Jumper Connector
For any three-pins jumpers (figure 6), the jumper setting is 1-2 when the
jumper connects pin 1 and 2. The setting is 2-3 when pin 2 and 3 are
connected and so on. You see a number “ 1 “ and a “ 3 “ printed on the
circuit board to identify these pins. And also, there is a second way of
indication – one of the lines surrounding jumpers is thick, which indicates pin
NO.1.
To move a jumper from one position to another, use needle-nose pliers or
tweezers to pull the pin cap off the pins and move it to the desired position.

Installations
12
2.2 Board Layout
Jumper & Connector Location
CN2
IDE1
CN6
IDE2
CN11
CN12
CN7
LPT
CN3
FDC
Power Fan
CN4
COM2
CN21
JP2
CN20
CN23
CN22
JP1
CN8
CN19
Ext. KB/MS
JP4CN17
BAT1
JP3
BZ1
CN14
CN1 CN5 CN9
DIM1 DIM2 DIM3
CN16
ATX C tr l . Front Panel
F815C REV1.0
CN13 CN15
Chassis Fan
CPU Fan
CN18

Installations
13
2.3 Jumper Setting
Table for Jumper Location Description:
Use the information in the following table to change the jumpers and the DIP
switches.
Jumpers Functions
JP1 Clear CMOS Setting Select
JP2 COM Port Setting Select
JP3 Panel Type Select
JP4 Watchdog Timer Setting Select

Installations
14
In order to set up the correct configuration, here is the description
about how to set the jumpers to enable/disable or change functions. All
jumpers’ location please refer to jumper location diagram.
Clear CMOS Setting Select: JP1
Function JP1
Normal (Default) 1-2
Clear CMOS 2-3
yLocation:
COM Port Setting Select: JP2
JP2
Function 1-2 3-4 5-6 7-8 9-10 11-12
RS-232 Off Off Off Off Off On
RS-422 On (Term.) On (Term.) Off On On Off
RS-485 On (Term.) On (Term.) On Off On Off
yLocation:
