AOpen MX46 U2 Setup guide

1
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
Overview
Hardware
Installation
Drivers &
Utilities
AWARD
BIOS Setup
Glossary
Troubleshooting &
Technical Support
MX46 U2
DOC. NO.: MX46U2-OL-E0208A

2
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
W
Wh ha at t’ ’s s i in n t th hi is s m ma an nu ua al l
MX46 U2 .....................................................................................................................................................1
What’s in this manual................................................................................................................................................................ 2
You Must Notice........................................................................................................................................................................ 9
Before You Start...................................................................................................................................................................... 10
Overview..................................................................................................................................................................................11
Feature Highlight .................................................................................................................................................................... 12
Quick Installation Procedure ................................................................................................................................................... 16

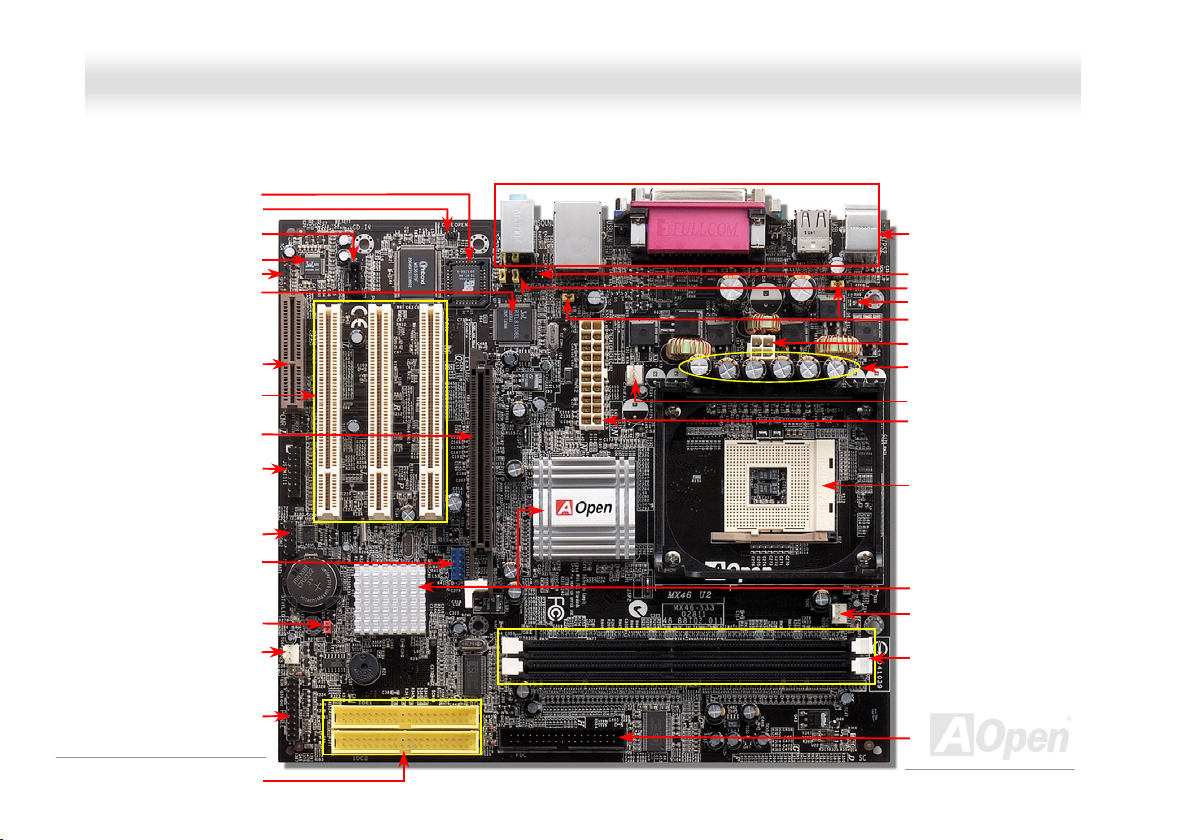

Motherboard Map ................................................................................................................................................................... 17
Block Diagram ........................................................................................................................................................................ 18
Hardware Installation ............................................................................................................................19
About “User Upgrade Optional” and “Manufacture Upgrade Optional”… ................................................................................. 20
JP14 Clear CMOS Data.......................................................................................................................................................... 21
CPU Installation ...................................................................................................................................................................... 22
CPU Jumper-less Design........................................................................................................................................................ 25
AOpen “Watch Dog Timer”...................................................................................................................................................... 26
Full-range Adjustable CPU Core Voltage................................................................................................................................. 27
CPU and System Fan Connector (with H/W Monitoring) ......................................................................................................... 29
JP27 / JP28 Keyboard/Mouse Wake-up Jumper ..................................................................................................................... 30

3
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
DIMM Sockets ........................................................................................................................................................................ 31
DDR 266(PC2100) Supported................................................................................................................................................. 33
Front Panel Connector............................................................................................................................................................ 34
ATX Power Connector............................................................................................................................................................. 35
AC Power Auto Recovery........................................................................................................................................................ 35
STBY LED .............................................................................................................................................................................. 36
IDE and Floppy Connector...................................................................................................................................................... 37
ATA/133 Supported................................................................................................................................................................. 39
IrDA Connector ....................................................................................................................................................................... 40
AGP (Accelerated Graphic Port) Expansion Slot ..................................................................................................................... 41
Support 10/100 Mbps LAN onboard ........................................................................................................................................ 42
CNR (Communication and Network Riser) Expansion Slot...................................................................................................... 43
PC99 Color Coded Back Panel............................................................................................................................................... 44
Support 2nd USB 2.0 Ports ...................................................................................................................................................... 45
Case Open Connector ............................................................................................................................................................ 46
CD Audio Connector ............................................................................................................................................................... 47
Game Port Bracket Supported ................................................................................................................................................ 48
COM2 Connector.................................................................................................................................................................... 49
Front Audio Connector............................................................................................................................................................ 50

4
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
S/PDIF (Sony/Philips Digital Interface) Connector................................................................................................................... 51
Super 5.1 Channel Audio Effect .............................................................................................................................................. 52
Battery-less and Long Life Design .......................................................................................................................................... 53
Over-current Protection........................................................................................................................................................... 54
Hardware Monitoring............................................................................................................................................................... 55
Resettable Fuse...................................................................................................................................................................... 56
Low ESR Capacitor................................................................................................................................................................. 57
Layout (Frequency Isolation Wall)........................................................................................................................................... 59
Enlarged Aluminum Heatsink .................................................................................................................................................. 60
Vivid BIOS technology ............................................................................................................................................................ 61
Driver and Utility....................................................................................................................................62
Auto-run Menu from Bonus CD............................................................................................................................................... 63
Installing IDE Driver ................................................................................................................................................................ 64
Installing AGP Driver............................................................................................................................................................... 65
Installing VGA Driver............................................................................................................................................................... 66
Installing USB2.0 Driver.......................................................................................................................................................... 67
Installing Audio Driver ............................................................................................................................................................. 68
Installing LAN Driver ............................................................................................................................................................... 69
AOConfig Utility ...................................................................................................................................................................... 72

5
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
Installing Hardware Monitoring Utility ...................................................................................................................................... 74
ACPI Suspend to Hard Drive .................................................................................................................................................. 75
ACPI Suspend to RAM (STR) ................................................................................................................................................. 79
AWARD BIOS ..........................................................................................................................................81
About BIOS Function Description… ........................................................................................................................................ 82
How To Use Award™ BIOS Setup Program ............................................................................................................................ 83
How To Enter BIOS Setup....................................................................................................................................................... 85
BIOS Upgrade under Windows environment........................................................................................................................... 86
Overclocking ..........................................................................................................................................88
VGA Card & Hard Disk............................................................................................................................................................ 89
Glossary .................................................................................................................................................90
AC97 ...................................................................................................................................................................................... 90
ACPI (Advanced Configuration & Power Interface) ................................................................................................................. 90
AGP (Accelerated Graphic Port) ............................................................................................................................................. 90
AMR (Audio/Modem Riser) ..................................................................................................................................................... 91
AOpen Bonus Pack CD .......................................................................................................................................................... 91
APM (Advanced Power Management) .................................................................................................................................... 91
ATA (AT Attachment)............................................................................................................................................................... 91
ATA/66.................................................................................................................................................................................... 91

6
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
ATA/100 .................................................................................................................................................................................. 92
ATA/133 .................................................................................................................................................................................. 92
BIOS (Basic Input/Output System).......................................................................................................................................... 92
Bus Master IDE (DMA mode).................................................................................................................................................. 92
CNR (Communication and Networking Riser) ......................................................................................................................... 93
CODEC (Coding and Decoding) ............................................................................................................................................. 93
DDR (Double Data Rated) SDRAM......................................................................................................................................... 93
DIMM (Dual In Line Memory Module)...................................................................................................................................... 93
DMA (Direct Memory Access) ................................................................................................................................................. 94
ECC (Error Checking and Correction) ..................................................................................................................................... 94
EDO (Extended Data Output) Memory .................................................................................................................................... 94
EEPROM (Electronic Erasable Programmable ROM) ............................................................................................................. 94
EPROM (Erasable Programmable ROM)................................................................................................................................ 94
EV6 Bus.................................................................................................................................................................................. 95
FCC DoC (Declaration of Conformity) ..................................................................................................................................... 95
FC-PGA (Flip Chip-Pin Grid Array).......................................................................................................................................... 95
Flash ROM ............................................................................................................................................................................. 95
FSB (Front Side Bus) Clock .................................................................................................................................................... 96
I2C Bus ................................................................................................................................................................................... 96

7
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
IEEE 1394 .............................................................................................................................................................................. 96
Parity Bit ................................................................................................................................................................................. 97
PBSRAM (Pipelined Burst SRAM) .......................................................................................................................................... 97
PC-100 DIMM......................................................................................................................................................................... 97
PC-133 DIMM......................................................................................................................................................................... 97
PC-1600, PC-2100 or PC-2700 DDR DRAM........................................................................................................................... 98
PCI (Peripheral Component Interface) Bus ............................................................................................................................. 98
PDF Format ............................................................................................................................................................................ 98
PnP (Plug and Play)................................................................................................................................................................ 98
POST (Power-On Self Test) .................................................................................................................................................... 99
RDRAM (Rambus DRAM)....................................................................................................................................................... 99
RIMM (Rambus Inline Memory Module).................................................................................................................................. 99
SDRAM (Synchronous DRAM) ............................................................................................................................................... 99
Shadow E2PROM ................................................................................................................................................................... 99
SIMM (Single In Line Memory Module) ................................................................................................................................. 100
SMBus (System Management Bus) ...................................................................................................................................... 100
SPD (Serial Presence Detect)............................................................................................................................................... 100
Ultra DMA ............................................................................................................................................................................. 101
USB (Universal Serial Bus) ................................................................................................................................................... 101

8
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
USB2.0 (Universal Serial Bus) .............................................................................................................................................. 101
VCM (Virtual Channel Memory) ............................................................................................................................................ 102
ZIP file .................................................................................................................................................................................. 102
Troubleshooting ...................................................................................................................................103
Technical Support................................................................................................................................107
Product Registration............................................................................................................................110
How to Contact Us...............................................................................................................................111

9
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
Y
Yo ou u M Mu us st t N No ot ti ic ce e
Adobe, the Adobe logo, Acrobat is trademarks of Adobe Systems Incorporated.
AMD, the AMD logo, Athlon and Duron are trademarks of Advanced Micro Devices, Inc.
Intel, the Intel logo, Intel Celeron, Pentium II, Pentium III and Pentium 4 are trademarks of Intel Corporation.
Microsoft, Windows, and Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or
other countries.
All product and brand names used on this manual are used for identification purposes only and may be the registered trademarks of their
respective owners.
All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right to revise
this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that may appear in this
manual, including the products and software described in it.
This documentation is protected by copyright law. All rights are reserved.
No part of this document may be used or reproduced in any form or by any means, or stored in a database or retrieval system
without prior written permission from AOpen Corporation.
Copyright©1996-2002, AOpen Inc. All Rights Reserved.

10
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
B
Be ef fo or re e Y Yo ou u S St ta ar rt t
This Online Manual will introduce to the user how this product is installed. All useful information will be described in later chapters. Please
keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved in PDF format, we
recommend using Adobe Acrobat Reader 4.0 for online viewing, it is included in Bonus CD or you can get free download from Adobe web
site.
Although this Online Manual is optimized for screen viewing, it is still capable for hardcopy printing, you can print it by A4 paper size and set
2 pages per A4 sheet on your printer. To do so, choose File > Page Setup and follow the instruction of your printer driver.
Thanks for the help of saving our earth.

11
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
O
Ov ve er rv vi ie ew w
Thank you for choosing AOpen MX46 U2 motherboard. MX46 U2 is Intel®Socket 478 motherboard (M/B) based on the micro-ATX form
factor featuring the SIS 650GX chipset. As high performance chipset built in the M/B, MX46 U2 motherboard support Intel®Socket 478
Pentium®4 (Willamette / Northwood) and 400MHz Front Side Bus (FSB) clock. In the AGP performance, it has one AGP slot and supports
AGP 4X mode and pipelined spilt-transaction long burst transfer up to 1056MB/sec. According to different customer’s requirements, this
motherboard supports DDR200 SDRAM DDR 266 SDRAM up to 2GB maximum. The onboard IDE controller supports Ultra DMA
33/66/100/133 mode. More than that, on the strength of Realtek 8100BL LAN controller on board, which is a highly-integrated Platform LAN
Connect device, it provides 10/100M bps Ethernet for office and home use. Besides, MX46 U2 has an AC97 CODEC chipset onboard
providing high performance and magic surround stereo sound to let people enjoy working with it. Now, let’s enjoy all features from AOpen
MX46 U2 motherboard.

12
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
F
Fe ea at tu ur re e H Hi ig gh hl li ig gh ht t
CPU
Supports Intel® Socket 478 Pentium®4 (Willamette / Northwood) 1.4GHz~2.4GHz+ with 400MHz Front Side Bus (FSB) designed for Socket
478 technology.
Chipset
This motherboard is equipped with SIS 650GX chipset. SIS 650 IGUI Host Memory Controller integrates a high performance host interface
for Intel Pentium 4 processor, a high performance 2D/3D Graphic Engine, a high performance memory controller and an AGP 4X interface.
The SIS 962L MuTIOL Media I/O integrates one Universal Serial Bus 2.0 Host Controllers, the Audio Controller with AC97 Interface, three
Universal Serial Bus 1.1 Host Controllers and the IDE Master/Slave controllers. The PCI to LPC bridge, I/O Advanced Programmable
Interrupt Controller, legacy system I/O and legacy power management functionalities are integrated as well.
Expansion Slots
Including three 32-bit/33MHz PCI, one AGP 1X/2X/4X slots. The PCI local bus throughput can be up to 132MB/s. The Accelerated Graphics
Port (AGP) specification provides a new level of video display sophistication and speed. The AGP video cards support data transfer rate up
to 1056MB/s. MX46 U2 motherboard includes one AGP expansion slot for a bus mastering AGP graphic card. For AD and SBA signaling,
MX46 U2 motherboard can support 4X mode. Of three PCI slots provided, all of them are master PCI slots with arbitration and decoding for
all integrated functions and LPC bus.

13
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
Memory
Provides two 184-pin DDR SDRAM DIMM sockets that support up to 2GB of PC1600 (DDR200) and PC2100 (DDR266) compliant SDRAM
(Synchronous Dynamic Random Access Memory).
Watch Dog Timer
Includes AOpen “Watch Dog Timer” function that can auto-reset system in 4.8 seconds when you fail to system overclocking.
1MHz Stepping Frequency Adjustment
Provides “1MHz Stepping Frequency Adjustment” function in the BIOS. This magic function allows you to adjust CPU FSB frequency from
100~248MHz by 1MHz stepping adjustment, and helps your system get maximum performance.
LAN Port
On the strength of Realtek 8100BL LAN controller on board, which is a highly-integrated Platform LAN Connect device, it provides 10/100
Mbps Ethernet for office and home use.
Ultra DMA 33/66/100/133 Bus Mater IDE
Comes with an on-board PCI Bus Master IDE controller with two connectors that support four IDE devices in two channels, supports Ultra
DMA 33/66/100/133, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 5, and supports Enhanced IDE devices.

14
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
On-board AC’97 Sound
MX46 U2 uses RealTek AC97 sound chip. This on-board audio includes a complete audio recording and playback system.
Six USB2.0 Connectors
Provides four ports on the back panel, one connector on the board for USB2.0 interface devices, such as mouse, keyboard, modem,
scanner, etc.
S/PDIF Connectors
S/PDIF (Sony/Philips Digital Interface) is the newest audio transfer file format, which provides impressive quality through optical fiber and
allows you to enjoy digital audio instead of analog audio.
Power Management/Plug and Play
Supports the power management function that confirms to the power-saving standards of the U.S. Environmental Protection Agency (EPA)
Energy Star program. It also offers Plug-and-Play, which helps save users from configuration problems, thus making the system much
user-friendlier.
Hardware Monitoring Management
Supports CPU or system fans status, temperature and voltage monitoring and alert, through the on-board hardware monitor module.

15
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
Enhanced ACPI
Fully implement the ACPI standard for Windows®98/ME/2000 series compatibility, and supports Soft-Off, STR (Suspend to RAM, S3), STD
(Suspend to Disk, S4) features.
Super Multi-I/O
Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART can also be directed
from COM1 to the Infrared Module for the wireless connections.

16
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
Q
Qu ui ic ck k I In ns st ta al ll la at ti io on n P Pr ro oc ce ed du ur re e
This page gives you a quick procedure on how to install your system. Follow each step accordingly.
1. Installing CPU and Fan
2. Installing System Memory (DIMM)
3. Connecting Front Panel Cable
4. Connecting IDE and Floppy Cable
5. Connecting ATX Power Cable
6. Connecting Back Panel Cable
7. Power-on and Load BIOS Setup Default
8. Setting CPU Frequency
9. Reboot
10. Installing Operating System (such as Windows 98)
11. Installing Driver and Utility

17
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
JST-MIDI Connecto
r
Case Open Connecto
r
Motherboard Map
PC99 Colored Back Panel
Resettable Fuse
JP14 CMOS Clear Jumpe
r
Realtek 8100BL LAN Chip
COM2 Connecto
r
Front Audio Connector
Front Panel Connecto
r
CPUFAN1 Connecto
r
ATA100/133 IDE Connector x2
FDD Connector
184-pin DIMMx2 supports
DDR200/266 SDRAM maximum up
to 2GB
A
TX Power Connecto
r
SIS 650GX/962L Chipset
478-pin CPU socket (Willamette/
Northwood) with Voltage and
Frequency Auto-detection that
supports Intel®Pentium®4
1.4~2.4GHz+ CPU
AGP 4x Ex
p
ansion Slot
32-bit PCI Expansion Slot x3
4-pin 12V. ATX Power Connector
Low ESR Capacitors
2nd USB2.0 Connecto
r
CD-IN Connecto
r
SYSFAN3 Connecto
r
2Mb Flash ROM BIOS
SYSFAN2 connecto
r
S/PDIF Connecto
r
AC’97 CODEC
JP27/28 KB/Mouse Wakeup Jumper
CNR Connecto
r
IrDA Connector

18
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
SIS 650GX
Socket 478
Intel Pentium 4
CPU(Willamette
/Northwood)
400MHz System
Bus
DIMM Socket x2
AGP 4X Slot
SIS 962L
Serial Port x2
USB Port
USB Port x6
32-bit PCI Slot x3
Parallel Port
IDE Drive x4
ATA
66/100/133
DDR 200/266 SDRAM
Up to 2GB
Primary
Channel
Secondary
Channel
2Mbit Flash EEPROM
PCI Bus
Winbond
W83697
HF
Floppy Disk Drive x2
RealTek
AC97
CODEC
Realtek
RTL8100BL
LAN connect Component
USB Port
USB Port
B
Bl lo oc ck k D Di ia ag gr ra am m

19
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
H
Ha ar rd dw wa ar re e I In ns st ta al ll la at ti io on n
This chapter describes jumpers, connectors and hardware devices of this motherboard.
Note: Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and other
components. Always observe the following precautions before you install a system component.
1. Do not remove a component from its protective packaging until you are ready to install it.
2. Wear a wrist ground strap and attach it to a metal part of the system unit before handling a component. If
a wrist strap is not available, maintain contact with the system unit throughout any procedure requiring
ESD protection.

20
M
MX X4 46 6 U U2 2 O On nl li in ne e M Ma an nu ua a
l
l
A
Ab bo ou ut t “ “U Us se er r U Up pg gr ra ad de e O Op pt ti io on na al l” ” a an nd d “ “M Ma an nu uf fa ac ct tu ur re e U Up pg gr ra ad de e O Op pt ti io on na al l” ”… …
When you read this online manual and start to assemble your computer system, you may notice that some of the functions are marked as
“User Upgrade Optional” or “Manufacture Upgrade Optional”. Although all of AOpen’s motherboards have included many amazing and
powerful features, sometimes not every user is familiar with these powerful features. As a result of this we define features that can be
upgraded by users as “User Upgrade Optional”. You can upgrade these functions by purchasing additional devices. As for functions that
cannot be upgraded by users, we define them as “Manufacture Upgrade Optional”. If need be, you can contact our local distributors or
resellers to purchase “Manufacture Upgrade Optional” components, and again you are also welcome to visit our official website at
english.aopen.com.tw for detail information.
