1. Pull up the CPU socket lever and up to
90-degree angle.
2. Locate Pin 1 in the socket and look for a
(golden) cut edge on the CPU upper interface.
Match Pin 1 and cut edge. Then insert the
CPU into the socket.
3. Press down the CPU socket lever and finish
CPU installation.

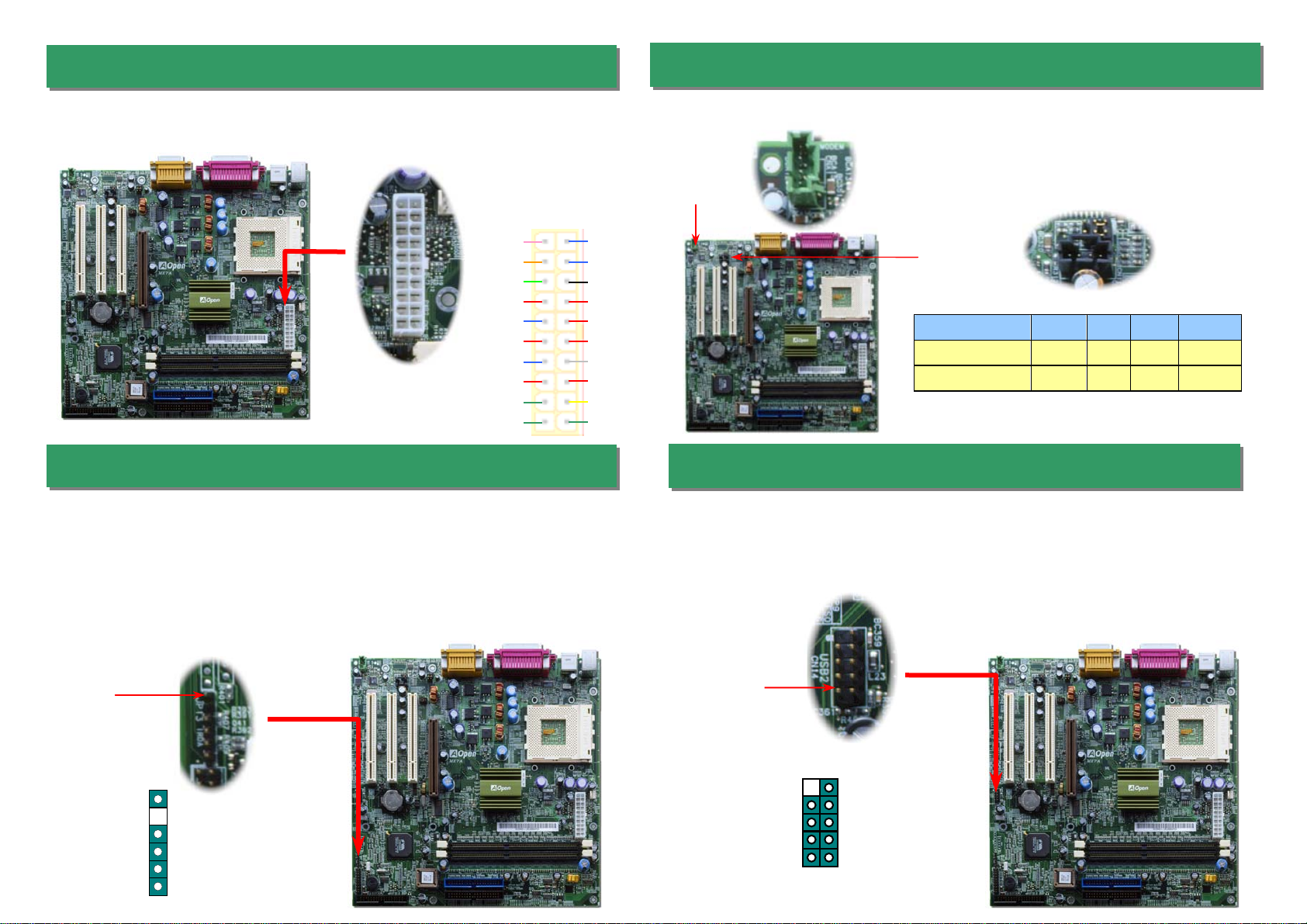

Plug in the CPU fan cable to the 3-pin FN2 connector. If you have chassis fan, you can
also plug it on FN1 connector.
CPU CPU Core
Frequency EV6 Bus
Clock Ratio
Athlon 750 750 MHz 200 MHz 7.5x
Athlon 800 800 MHz 200 MHz 8x
Athlon 850 850 MHz 200 MHz 8.5x
Athlon 900 900 MHz 200 MHz 9x
Athlon 950 950 MHz 200 MHz 9.5x
Athlon 1G 1 GHz 200 MHz 10x
Athlon 1.1G 1.1 GHz 200 MHz 11x
Athlon 1.2G 1.2 GHz 200 MHz 12x
Athlon 1.3G 1.3 GHz 200 MHz 13x
Athlon 1.4G 1.4 GHz 200 MHz 14x
Athlon 1G 1 GHz 266 MHz 7.5x
Athlon 1.13G 1.13 GHz 266 MHz 8.5x
Athlon 1.2G 1.2 GHz 266 MHz 9x
Duron 650 650 MHz 200 MHz 6.5x
Duron 700 700 MHz 200 MHz 7x
Duron 750 750 MHz 200 MHz 7.5x
Duron 800 800 MHz 200 MHz 8x
Duron 850 850 MHz 200 MHz 8.5x
Duron 900 950 MHz 200 MHz 9x
Duron 950 950 MHz 200 MHz 9.5x
5. Setting CPU Voltage & Frequency
4. Installing CPU & Housing Fan
3. Installing CPU
Note: If you do not match the CPU
socket Pin 1 and CPU cut edge well, it
ma
dama
e the CPU.
CPU socket lever
CPU Pin 1 and cut edge
Note: Some CPU fans do not have
sensor pin, so that cannot support
fan monitoring.
Full-range Auto-Detect CPU Core Voltage
This motherboard supports CPU VID function. The CPU core voltage will be automaticall
detected and the range is from 1.1V to 1.85V.
Supported CPU Frequency
Core Frequency = CPU Bus Clock * CPU Ratio
EV6 Bus Speed = CPU Bus Clock x 2
PCI Clock = CPU Bus Clock / Clock Ratio
GP Clock = PCI Clock x 2

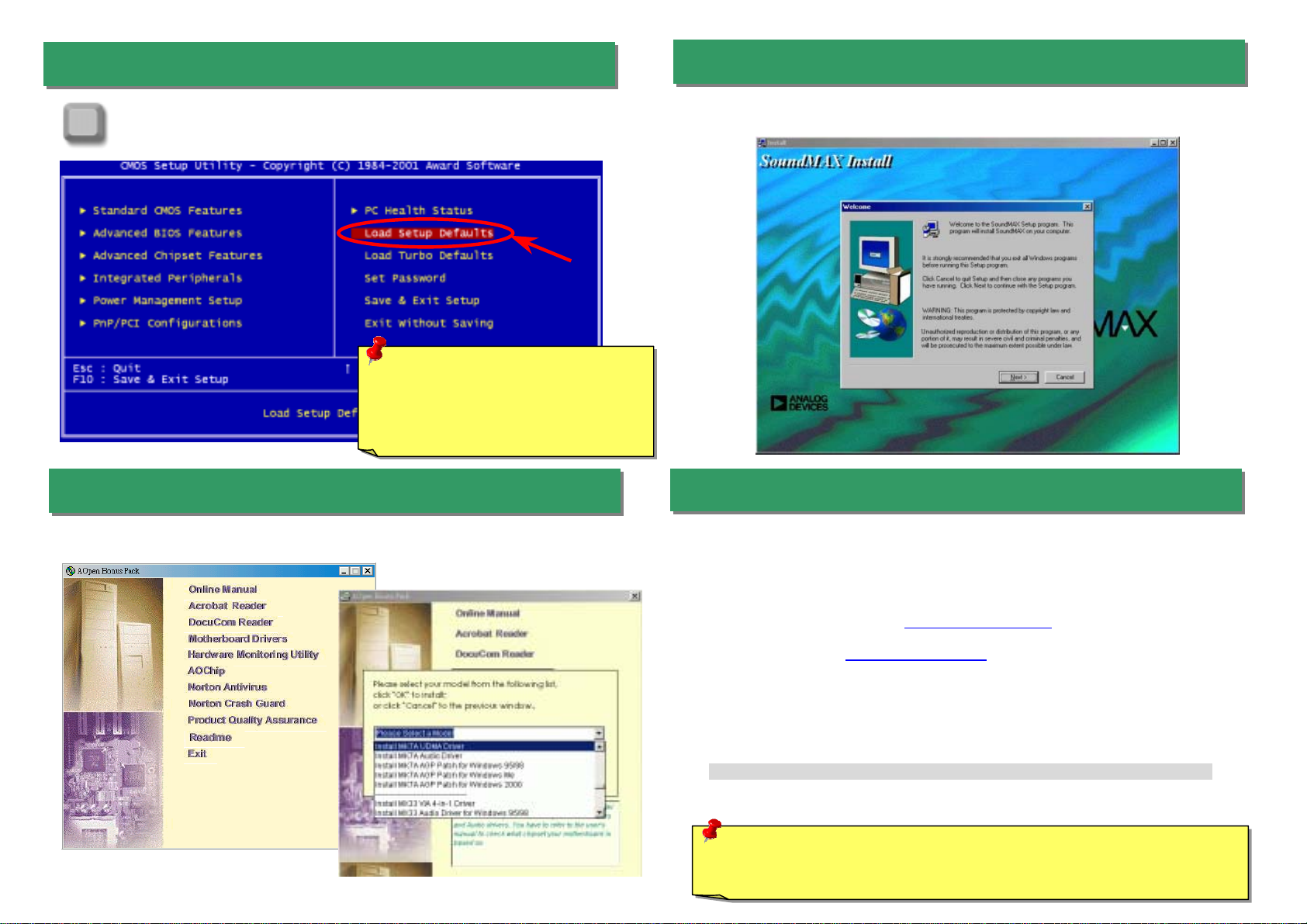

Tip: If your system hangs or fails to boot because of
overclocking, simply use <Home> key to restore the default
setting (433MHz) or you can wait the AOpen “Watch Dog Timer”
reset the system in five seconds and system will auto-detect
hardware again.
Warning: AMD-761TM chipset supports maximum 133MHz FSB
and 66MHz AGP clock, higher clock setting may cause serious

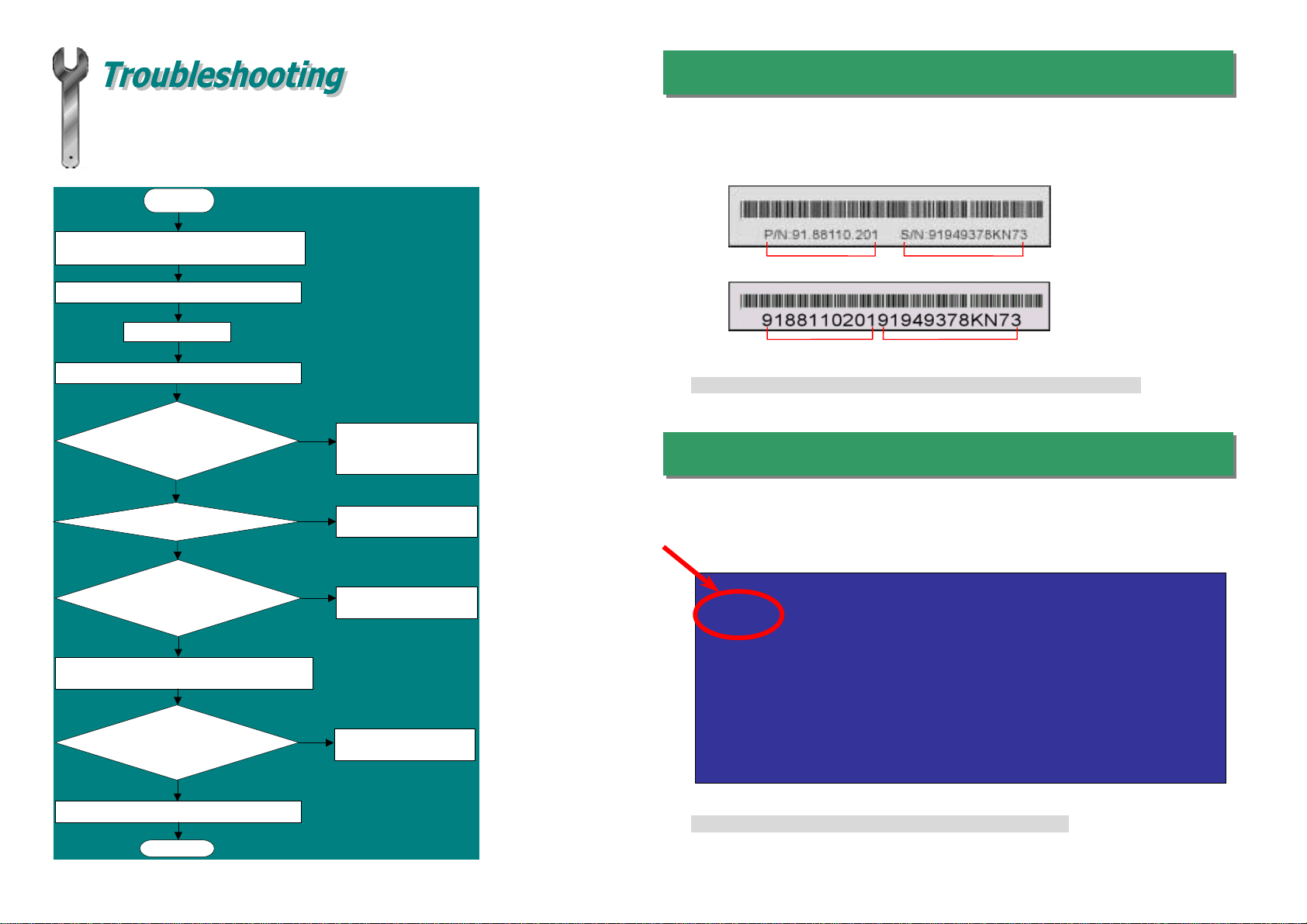

system damage.
