FCC Statement and Copyright
This equipment has been tested and found to comply with the limits of a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. There is no guarantee that interference will not occur in a
particular installation.
The vendor makes no representations or warranties with respect to the
contents here of and specially disclaims any implied warranties of
merchantability or fitness for any purpose. Further the vendor reserves the
right to revise this publication and to make changes to the contents here of
without obligation to notify any party beforehand.
Duplication of this publication, in part or in whole is not allowed without
first obtaining the vendor’s approval in writing.
The content of this user’s is subject to be changed without notice and we
will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.

C
C
Co
o
on
n
nt
t
te
e
en
n
nt
t
ts
s
s
ii
ENGLISH..................................................................................................... 1
M7VIT Features..................................................................................................................1
Package contents..............................................................................................................2
Layout of M7VIT.................................................................................................................3
CPU Installation.................................................................................................................4
DDR DIMM Modules: DIMM1-2-3 ......................................................................................5
Jumpers, Headers, Connectors & Slots..........................................................................7
ESPAÑOL ................................................................................................. 12
Características del M7VIT...............................................................................................12
Contenido del Paquete.................................................................................................... 13
Disposición del M7VIT ....................................................................................................14
Instalación de la CPU......................................................................................................15
Módulos DDR DIMM: DIMM1-2-3 ....................................................................................16
Puentes, Cabezales, Conectores y Ranuras.................................................................18
WARPSPEEDER ...................................................................................... 23
Introduction......................................................................................................................23
System Requirement....................................................................................................... 24
Installation........................................................................................................................24
Usage................................................................................................................................26
TROUBLE SHOOTING............................................................................. 34
SOLUCIÓN DE PROBLEMAS ................................................................. 35

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
1
English
M7VIT Features
 Use VIA VT8377 (KT400)/ VT8235 Chipset, Winbond W83697HF.
 Contains on board I/O facilities, which include two serial ports, a parallel
port, a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB ports, a
game port.
 Supports Single Socket-A for an AMD Athlon/ Duron Family processor,
running at 200/266/333 MHz Front Side Bus frequency.
 The AMD Athlon/ Duron system bus supports the 200/266/333 MHz
high-speed, split-transaction AMD Athlon/ Duron system bus interface.
 Supports Ultra DMA 33/66/100/133 Bus Master Modes, PIO Mode 4,
Master Mode, and high performance hard disk drives.
 Supports USB2.0 6 ports High Speed Device, 2 ports in Rear Panel and 4
ports in Front Panel.
 The VT8377 (KT400) system controller is designed to support
200/266/333/400 MHz DDR SDRAM DIMMs.
 Support a maximun memory size up to 3GB.
 Supports one CNR Slot (Type B only), one AGP 4X/ 8X Slot, and five 32-bit
PCI Bus slots.
 Complies with PC ATX form factor specifications.
 Supports popular operating systems such as Windows NT, Windows 98SE,
Windows 2000, Windows ME, Windows XP and LINUX.
 CPU over temperature protection.
 Intel® AC’97 2.2 compatible. High S/N ratio meets PC 99 requirements.
 Line-in phonejack and Mic-in jack share with rear Audio out for 6 channels
Audio.
 6-Channel Hardware Audio or Codec. (Change Line-In to Back-Audio Out
and Mic-In to Bass/ Center Out by Audio Utility.) (Optional)

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
2
 Support Front Audio pin head functions.
 CMI 8738 Hardware Audio Features (Optional):
＊ 6CH DAC for AC3® 5.1CH purpose.
＊ HRTF-based 3D positional audio, supporting DirectSound™ 3D and
A3D™ interface.
＊ Supports 4.1/5.1 speakers, C3DX positional audio in 4/ 6 CH speaker
mode.
＊ MPU-401 port.
＊ Built-in ZV port.
Package contents
 HDD Cable X 1, FDD Cable X 1, Fully Setup Driver CD X 1
 Flash Memory Writer for BIOS update X 1
 USB Cable X 2 (Optional)
 Rear I/O Panel for ATX Case X 1 (Optional)

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
3
Layout of M7VIT
CPU
Socket A
VT8377
(KT400)
VT8235
JATXPWR1
JKBV1
1
JUSBV1
1
AGP SLOT
PCI1
PCI2
PCI SLOT
PCI SLOT
PCI3
PCI4
PCI5
PCI SLOT
PCI SLOT
PCI SLOT
CNR1
JWOL1
CNR SLOT
1
JAUDIO1
1
Codec
1
JPANEL1
JSFAN1
1
1
223 24
JUSB2
1
2
9
10
BAT1
JCMOS1
1
JUSBV2
1
JGAME1
GAME Port
SP-OUTMIC-IN LINE-IN
1
JUSB3
1
2
9
10
IDE1IDE2
FDD1
1
BIOS
Hardware
Audio
Winbond
I/O
1
3
664

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
4

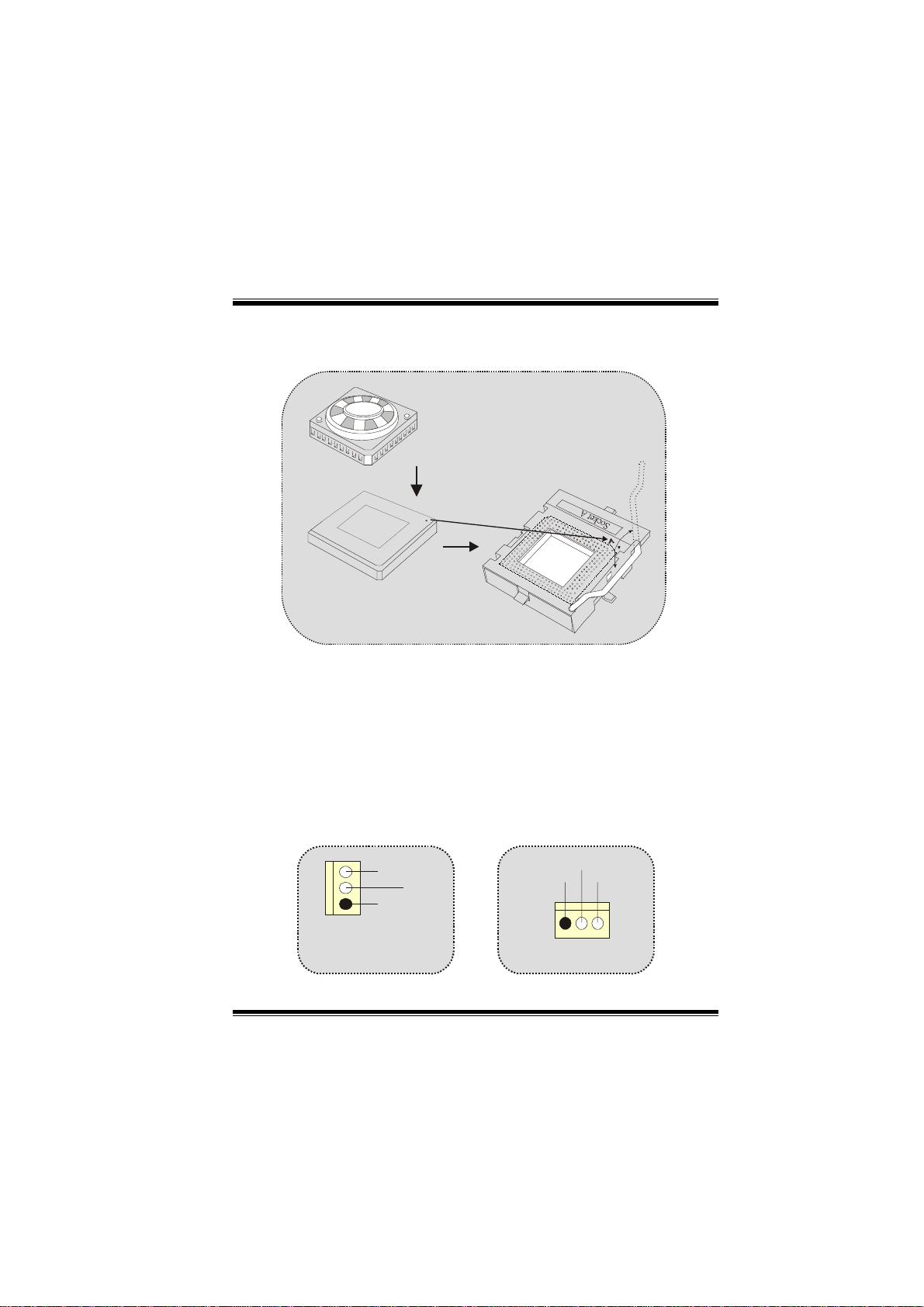

CPU Installation
1. Pull the lever sideways away from the socket then raise the lever up
to 90-degree angle.
2. Locate Pin A in the socket and lock for the white dot or cut edge in
the CPU. Match Pin A with the white dot/cut edge then insert the
CPU.
3. Press the lever down. Then Put the fan on the CPU and buckle it
and put the fan’s power port into the JCFAN1, then to complete the
installation.
CPU/ System Fan Headers: JCFAN1/ JSFAN1
JCFAN1
1Ground
12V
Sense
JSFAN1
Ground12V
Sense
1
CPU

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
5
DDR DIMM Modules: DIMM1-2-3
DRAM Access Time: 2.5V Unbuffered/ Registered DDR 1600/ 2100/
2700/ 3200 Type required.
DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184
pin)
Only support 4 bank for DDR PC3200 (2pcs Double-Side or 3
pcs Single-Side).
DIMM Socket
Location DDR Module Total Memory Size (MB)
DIMM 1 64MB
/
128MB/256MB/512MB/1GB
*1
DIMM 2 64MB/128MB/256MB/512MB/1GB
*1
DIMM3 64MB/128MB/256MB/512MB/1GB
*1
Max is
3GB
* The list shown above for DRAM configuration is only for reference.
 If use FSB333MHz CPU, the Memory support only
DDR333 (PC2700).
List of the status of DDR 400 already passed
Clock Vender Serial No. (Chip) Module
Size MEMTEST
1 DDR400 KINGMAX KDL684T4AA-50 256M Pass
2 DDR400 SAMSUNG K4H560838D-TCC4 256M Pass
3 DDR400 TwinMOS TMD7608F8E50B 256M Pass
4 DDR400 Winbond W942508BH-5 256M Pass
5 DDR400 Winbond W942508BH-5 512M Pass

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
6

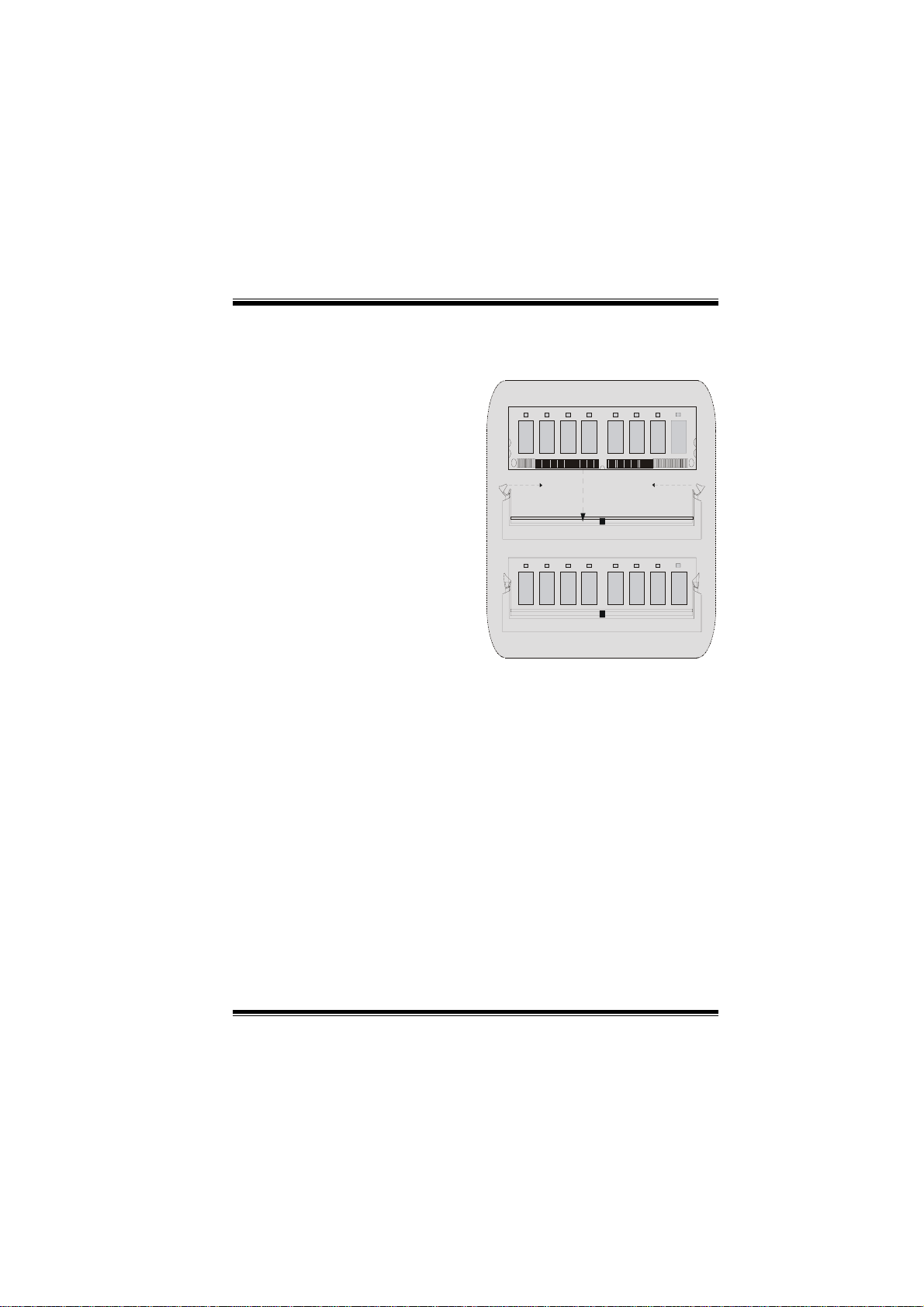

How to install a DIMM Module
1. The DIMM socket has a
“ Plastic Safety Tab”, and the
DIMM memory module has an
“Asymmetrical notch”, so the
DIMM memory module can only
fit into the slot in one direction.
2. Push the tabs out. Insert the
DIMM memory modules into the
socket at a 90-degree angle, then
push down vertically so that it will
fit into the place.
3. The Mounting Holes and plastic
tabs should fit over the edge and
hold the DIMM memory modules
in place.

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
7
Jumpers, Headers, Connectors & Slots
Hard Disk Connectors: IDE1/ IDE2
The motherboard has a 32-bit Enhanced PCI IDE Controller that
provides PIO Mode 0~4, Bus Master, and Ultra DMA 33/ 66/ 100/ 133
functionality. It has two HDD connectors IDE1 (primary), IDE2
(secondary) and IDE3.
The IDE connectors can connect a master and a slave drive, so you can
connect up to four hard disk drives. The first hard drive should always be
connected to IDE1.
Floppy Disk Connector: FDD1
The motherboard provides a standard floppy disk connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This
connector supports the provided floppy drive ribbon cables.
Accelerated Graphics Port Slot: AGP1 (only support AGP
power 1.5V)
Your monitor will attach directly to that video card. This motherboard
supports video cards for PCI slots, but it is also equipped with an
Accelerated Graphics Port (AGP). An AGP card will take advantage of
AGP technology for improved video efficiency and performance,
especially with 3D graphics.
Communication Network Riser Slot: CNR1
The CNR specification is an open Industry Standard Architecture, and it
defines a hardware scalable riser card interface, which supports audio,
network and modem only.
Peripheral Component Interconnect Slots: PCI1-5
This motherboard is equipped with 5 standard PCI slots. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for
expansion cards, which has, supplanted the older ISA bus standard in
most ports. This PCI slot is designated as 32 bits.

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
8
Power Connectors: JATXPWR1
Wake On LAN Header: JWOL1
Front USB Header: JUSB2/3
5V/ 5VSB Selection for USB/KB: JUSBV1/2/ JKBV1
JATXPWR1
(ATX Main Power Conn.)
JATXPWR1
(ATX Power Conn.)
JUSB2/3
2
1
Pin1,2 ==> +5V
Pin3,4 ==> Data(-)
Pin5,6 ==> Data(+)
Pin7,8 ==> Ground
Pin9 ==> KEY
Pin10 ==> NA
JWOL1
1
5V_SB Wake up
Ground
1
JKBV1
Pin 1-2 on ==> 5V
Pin 2-3 on ==> 5V_SB
1
JUSBV1/2

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
9
Front Panel Connector: JPANEL1
CPU Clock Selection: JCLK1
Case Open Connector: JCI1
SPK
PWR_LED
HLED
SLP
RST
224
IR
123
IRON/OFF
SPK ==> Speaker Conn.
HLED ==> Hard Driver LED
RST ==> Reset Button
IR ==> Infrared Conn.
SLP ==> Sleep Button
PWR_LED ==> Power LED
ON/ OFF ==> Power-on Button
(+) (-)
(+) (-)(+)
JCLK1
Pin 1-2, 5-6 ==> 100 Mhz
Pin 2-3, 5-6 ==> 133 Mhz
(default)
Pin 2-3, 4-5 ==> 166Mhz
13
64
JCI1
Ground
1
CaseOpen Signal

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
10
Audio Subsystem: JAUDIO1/ JCDIN1
Clear CMOS Jumper: JCMOS1
1
JCMOS1
Pin 1-2 on ==> Normal Operation
(default)
Pin 2-3 on ==> Clear CMOS Data
12
Front Panel Audio Connector/ Jumper Block
910
Audio line out signalsare routed
to the back panel audioline outconnector.
Pin 5 and 6
==>
Pin 9 and 10
12
910
Audio line out and mic in signals are
available for front panel audio connectors.
1
2
JAUDIO1
(Front Audio Header)
1
JCDIN1
(CD-ROM Audio-In Header)
12
JAUDIO1
(Front Audio Header)
1
JCDIN1
(CD-ROM Audio-In Header)
109
12
Pin1 ==> Mic In Pin2 ==> Ground
Pin3 ==> Mic Power Pin4 ==> Audio Power
Pin5 ==> RT Line Out Pin6 ==> RT Line Out
Pin7 ==> Reserved Pin8 ==> KEY
Pin9 ==> LFT Line Out Pin10 ==> LFT Line Out
JAUDIO1

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
11
Back Panel Connectors
PS/2
Keyboard
PS/2
Mouse
COM1
Parallel Game Port
JPRNT1 JGAME1
JKBMS1
USB
COM1 Speaker
Out Line In Mic
In
JUSB1
COM1
JCOM1
COM1 COM2
JCOM2

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
12
Español
Características del M7VIT
 Usa Chipsets VIA VT8377 (KT400) / VT8235, Winbond W83697HF.
 Contiene facilidades I/O integrados en la placa madre en el que incluye
dos puertos en serie, un puerto paralelo, un puertos de ratón PS/2, un
puerto de teclado PS/2, puertos de audio, puertos USB y un puerto de
juego.
 Soporta Single Socket-A para procesadores de la familia AMD Athlon/
Duron, corriendo a 200/266/333 MHz frecuencia Front Side Bus.
 El sistema bus AMD Athlon/ Duron soporta una alta velocidad de
200/266/333 MHz, split-transaction AMD Athlon/ Duron sistemas de
interface bus.
 Soporta Ultra DMA 33/66/100/133 Bus Modos Master, PIO Modo 4, Modo
Master, y alta performancia del disco duro.
 Soporta USB2.0 6 puertos Dispositivo High Speed, 2 puertos en el panel
trasero y 4 puertos en el panel frontal.
 El sistema controlador VT8377 (KT400) está diseñado para soportar
200/266/333/400 MHz DDR SDRAM DIMMs.
 Soporta tamaño de memoria máxima de hasta 3GB.
 Soporta una ranura CNR (solamente de Tipo B), una ranura AGP 4X/ 8X, y
cinco ranuras 32-bit PCI Bus.
 Conforma con las especificaciones del factor de forma de tamaño PC ATX.
 Soporta sistemas operativos populares tales como Windows NT, Windows
98SE, Windows 2000, Windows ME, Windows XP y LINUX.
 Protección contra el exceso de temperatura de la CPU.
 Intel® AC’97 2.2 compatible. High S/N ratio reune los requisitos del PC 99.
 Entrada de Línea phonejack y Entrada del Mic jack compartido con el rear
Audio para 6 canales de Audio.
 6 Canales de Audio Hardware o Codec. (Cambiando la Entrada de Línea
por la Salida del Audio Trasero y la Entrada del MIC por la salida Bass/

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
13
Center a través de la utilidad del audio.) (Opcional).
 Soporta funciones del cabezal del Audio Frontal.
 CMI 8738 Características del Hardware Audio (Opcional):
＊ 6CH DAC para AC3® 5.1CH purpose.
＊ HRTF-based 3D audio posicional, soportando DirectSound™ 3D y
A3D™ de interface.
＊ Soporta altavoces de 4.1/5.1, C3DX audio posicional en 4/ 6 CH
modo de altavoz.
＊ Puerto MPU-401.
＊ Integrado con puerto ZV.
Contenido del Paquete
 Cable HDD X 1, Cable FDD X 1, Configuración completa del Driver CD X 1
 Flash Memory Writer para actualización del BIOS X 1
 Cable USB X 2 (Opcional)
 Panel Trasero I/O para Caja ATX X 1 (Opcional)

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
14

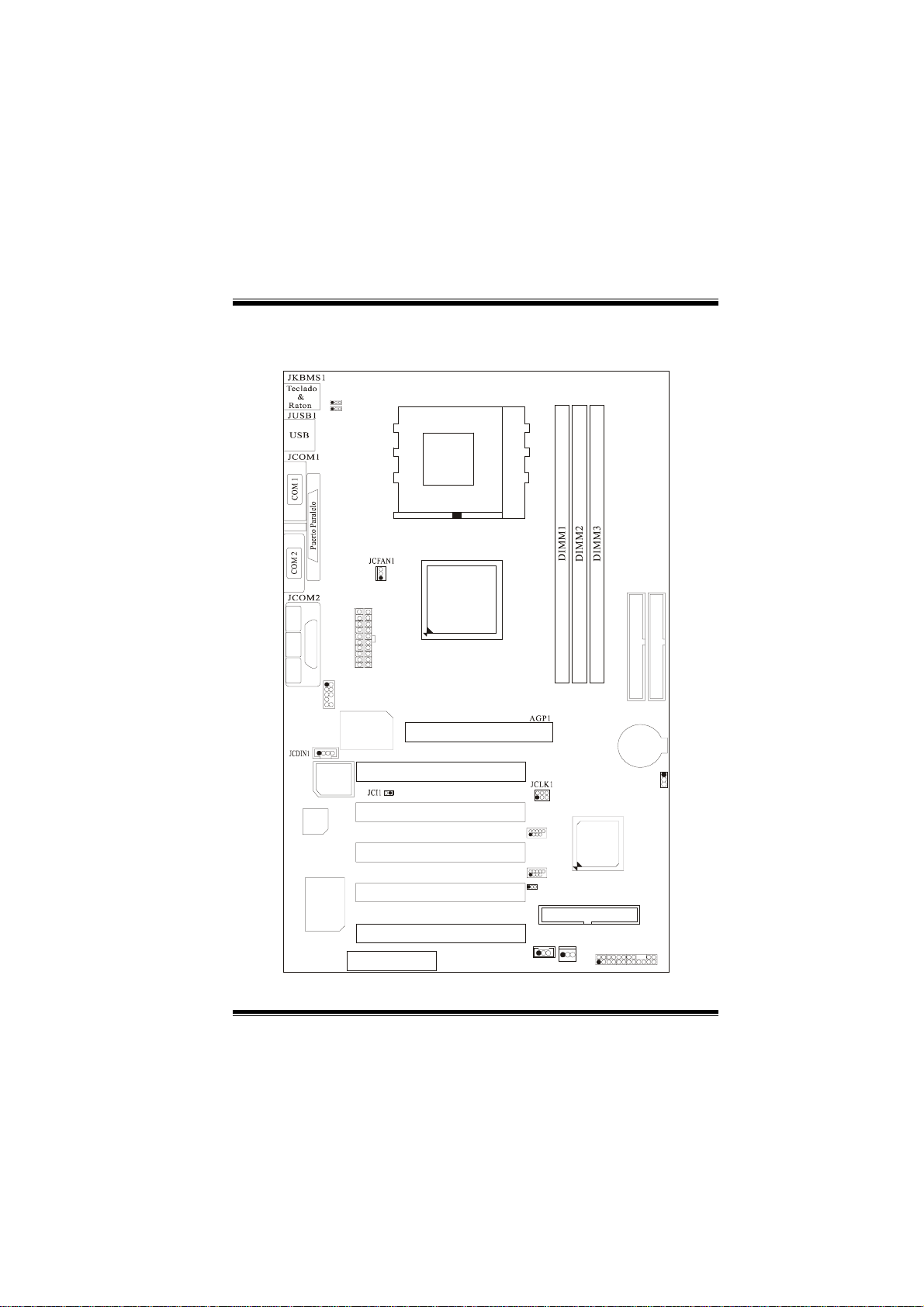

Disposición del M7VIT
CPU
Socket A
VT8377
(KT400)
VT8235
JATXPWR1
JKBV1
1
JUSBV1
1
Ranua AGP
PCI1
PCI2
Ranua PCI
Ranura PCI
PCI3
PCI4
PCI5
Ranura PCI
Ranura PCI
Ranura PCI
CNR1
JWOL1
Ranura CNR
1
JAUDIO1
1
Codec
1
JPANEL1
JSFAN1
1
1
223 24
JUSB2
1
2
9
10
BAT1
JCMOS1
1
JUSBV2
1
JGAME1
GAME Port
Salida del Altavoz
Entrada del MIC Entrada
de Linea
1
JUSB3
1
2
9
10
IDE1IDE2
FDD1
1
BIOS
Hardware
Audio
Winbond
I/O
1
3
664

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
15
Instalación de la CPU
1. Tire de la palanca del lado del zócalo, luego levante la palanca
hasta un ángulo de 90 grados.
2. Sitúe el contacto A del zócalo y busque el punto blanco o corte el
borde en la CPU. Empareje el contacto A con el punto blanco/
corte del borde, luego inserte la CPU.
3. Presione la palanca para abajo. Ponga el ventilador en la CPU y
abróchelo. Luego ponga el puerto de corriente del ventilador en el
JCFAN1. Y ya habrá completado su instalación.
CPU/ Cabezales del Sistema de Ventilación: JCFAN1/
JSFAN1
JCFAN1
1Tierra
12V
Sense
JSFAN1
Tierra 12V
Sense
1
CPU

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
16
Módulos DDR DIMM: DIMM1-2-3
DRAM Tiempo de Acceso: 2.5V Unbuffered/ Registered DDR 1600/
2100/ 2700/ 3200 Tipo requerido.
DRAM Tipo: 64MB/ 128MB/ 256MB/ 512MB/ 1GB Módulo DIMM (184
contactos)
Solamente soporta 4 bancos para DDR PC3200 (2pcs de
DDR de Doble Cara o 3pcs DDR de una cara.)
Localización
del Módulo
DIMM
Módulo DDR Total del
Tamaño de
Memoria (MB)
DIMM 1 64MB/128MB/256MB/512MB/1GB
*1
DIMM 2 64MB/128MB/256MB/512MB/1GB
*1
DIMM3 64MB/128MB/256MB/512MB/1GB
*1
Máximo de
3GB
* La lista de arriba para la configuración DRAM es solamente para
referencia.
 Si utiliza FSB333MHz CPU, la memoria soporta
solamente DDR333 (PC2700).
Listado del estado del DDR400
Reloj Vendedor Número de Serie
(Chip) Tamaño del
Módulo
MEMTEST
1 DDR400 KINGMAX KDL684T4AA-50 256M Pass
2 DDR400 SAMSUNG K4H560838D-TCC4 256M Pass
3 DDR400 TwinMOS TMD7608F8E50B 256M Pass
4 DDR400 Winbond W942508BH-5 256M Pass
5 DDR400 Winbond W942508BH-5 512M Pass

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
17
Cómo instalar un Módulo DIMM
1. El zócalo DIMM tiene una
lengüeta plástica de seguridad y
el módulo de memoria DIMM
tiene una muesca asimétrica, así
el módulo de memoria DIMM
puede caber solamente en la
ranura de una sóla dirección.
2. Tire la lengüeta hacia afuera.
Inserte los módulos de memoria
DIMM en el zócalo a los 90
grados, luego empuje hacia abajo
verticalmente de modo que
encaje en el lugar.
3. Los agujeros de montaje y las
lengüetas plásticas deben caber
por sobre el borde y sostenga los
módulos de memoria DIMM en el
lugar.

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
18
Puentes, Cabezales, Conectores y Ranuras
Conectores del Disco Duro: IDE1/ IDE2
La placa madre tiene un controlador de 32-bit PCI IDE que proporciona
Modo PIO 0~4, Bus Master, y funcionalidad Ultra DMA / 33/ 66/ 100.
Tiene dos conectores HDD IDE1 (primario) y IDE2 (secundario).
El conector IDE puede conectar a un master y un drive esclavo, así
puede conectar hasta cuatro discos rígidos. El primer disco duro debe
estar siempre conectado al IDE1.
Conector para Disquete: FDD1
La placa madre proporciona un conector estándar del disquete (FDC)
que soporta 360K, 720K, 1.2M, 1.44M y 2.88M tipos de disquete. Éste
conector utiliza los cables de cinta proporcionados por el disquete.
Ranura del Puerto Acelerado para Gráficos: AGP1
(solamente soporta corriente AGP de 1.5V)
Su monitor se fijará directamente a la tarjeta de video. Ésta placa madre
soporta tarjetas de video para ranuras PCI, y también está equipado con
un Puerto Acelerado para Gráficos. Ésta tarjeta AGP tomará ventaja de
la tecnología del AGP para el mejoramiento de la eficiencia y
funcionamiento del video, especialmente con gráficos 3D.
Ranura de la Banda de Suspensión de Comunicación y
Red: CNR1
La especificación CNR es una abierta Industria de Arquitectura Estándar,
que define una tarjeta de interface escalable del hardware en el que
soporta audio y modem.
Ranura de Interconexión del Componente Periférico:
PCI1-5
Ésta placa madre está equipada con 5 ranuras estándar PCI. PCI es la
sigla para Interconexión del Componente Periférico, y es un bus
estándar para tarjetas de expansión en el que suplanta a la antigua bus
estándar ISA, en su mayoría de las partes. Ésta ranura PCI está
diseñado con 32 bits.
