APEXi REV SPEED METER 405-A912 Quick start guide

1
●This wiring diagram booklet is designed for use with the
REV SPEED METER 405-A912/405-A916.
Please be sure to read the instruction manual for the
REV SPEED METER before performing installation.
●The REV SPEED METER requires both the Instruction
Manual and the Wiring Diagram for proper
●Even though a vehicle is listed in this manual, there is a
possibility that the unit will not operate properly due to
modifications on the vehicle, special model differences,
model changes, or other factors.
This manual is accurate up until Mar. 2008.
Please contact an Apex dealer for newer applications.
REV/SPEEDMETER
Vehicle
Specific
Wiring
Diagram

2
■Table of Contents
■To begin 4
■Installation Precautions 5
■ECU Location Diagram 6
■How to View the ECU Diagrams 7
■Installation Diagram Selection Tak 8
■Connection Diagram (1)(2) 10
■Connection Diagram (3)(4) 11
■Connection Diagram (5)(6) 12
■TOYOTA
●Application Chart 13
●ECU Diagram 20
■NISSAN
●Application Chart 24
●ECU Diagram 28
■HONDA
●Application Chart 30
●ECU Diagram 33
■MITSUBISHI
●Application Chart 35
●ECU Diagram 37
■MAZDA
●Application Chart 38
●ECU Diagram 40
■SUBARU
●Application Chart 42
●ECU Diagram 44
■SUZUKI
●Application Chart 46
●ECU Diagram 47
■ISUZU
●Application Chart 48
●ECU Diagram 49
■Manual Information
Contact Information

3
■To Begin
Please read the safety precautions in the Instruction Manual before proceeding with
installation.
Glossary of Safety Terms are outlined in the Instruction Manual
In this manual, the Electronic Control Unit is called the ECU.
●Installation of this unit should ONLY be performed
by a trained professional.
Please hand this Wiring Manual and Instruction Manual to the Installer.
●Never pull hard on any vehicle or product harnesses.
Failure to do so may lead to electrical shorts and faulty connections.
●Be sure that all connectors have been securely
locked into place.
Also, be sure to loosen any bolts that secure the
connector when removing.
Failure to do so may cause damage to the connector.
●Keep the vehicle and product harnesses away from
high temperatures and moving parts. Also, keep the
harness away from water.
Failure to do so may result in electrical shorts and faulty operation.
●Keep all harnesses away from sharp objects. Do
not put excessive strain on the harness.
Failure to do so may lead to electrical shorts.
Caution
!

4
■Installation Precautions
●Do not use electro taps in the installation of this product.
Electro taps can become loose over time causing the unit to malfunction. This can also
lead to vehicle and product damage.
Be sure to use wire crimpers and the included splices for a secure connection.
●Be sure that the harness is not exposed to metal.
Always wrap all connections with electrical tape.
●How to use the Fittings
Strip 5mm from wire Insert sleeve over wire Bend back exposed wire Place male fitting over
exposed wire
* Use diagram below to ensure proper connection
Tighten the fitting as shown
●How to use the Splices
* be sure to cover the connection with electrical tape
Clampthewire
cover here
Clamp the wire here
Remove 5mm of the
wire coverfrom
the connecting wire
Strip 10mm from
the other
connection wire
Wrap the two
wires togetherSecurely
fasten together
other connection wire

5
■ECUArrangementDiagram
●Performinstallationbyreferringtothesymbolsinthecorresponding
columnsofthetablesofapplicablemodelsonandafterpage10
A
B
C
D
E
F
G
H
I
J K
P L
M N
O
A:Lower part of the passenger seat dash side
B:Right side of the glove box
C:Foot position of the passenger seat
D:Inner part of the glove box
E:Inner part of the center console
F:Under the driver’s seat
G:Under the passenger seat
H:Near the steering column
I:Left side of the meter panel
J:Lower part of the driver’s seat dash side
K:Left side of the center console
L:Engine room
M:Before the rear trunk
N:Behind after the driver’s seat
O:Behind the passenger seat
P:Upper inner part of the center console

6
■HowtoRefertotheECUTerminal
ArrangementDiagram
ThisECUterminalarrangementdiagramisviewedfromthedirectionof
thearrow.
ThedirectionoftheECUvariesdependinguponthevehicle.Perform
the installation work after confirming the connector shape and the
numberofpins.
●Ifanyabnormalnoiseorabnormalsmellissensedduringtheinstallationwork
ofthisproduct,stoptheworkimmediatelyandcontactthedistributororyour
nearestAʼPEXbusinessoffice
Continuingtheinstallationundersuchconditionsmaycauseanelectricshockorfirecausing
damagetoelectricdevices.
Warning
!

7
■Installation Diagram Selection Table
●Vehicles not listed below will use Connection Diagram (1) or (2).
HONDA
Speed Limiter
NameType EngineYear Note
s CUTRETAIN
S2000 AP1 F20C
‘
99
.
4〜
‘
05
.
10
31
Torneo
CF4 F20B
‘
97
.
9〜
‘
00
.
5
A/T 4 1
CF3 F18B
Accord CF4 F20B
‘
97
.
9〜
‘
00
.
5
A/T 4 1
CF3 F18B
Accord Wagon CF7
CF6 F23A
‘
97
.
10〜
‘
02
.
10
41
Odyssey
RA7
RA6 F23A
‘
99
.
12〜
‘
03
.
9
4 1
RA4
RA3
‘
97
.
10〜
‘
99
.
11
Fit
GD4
GD3 L15A
‘
02
.
9〜
‘
07
.
9
4 1
GD2 L13A
‘
01
.
7〜
‘
07
.
9
GD1
‘
01
.
6〜
‘
07
.
9
Fit Aria
GD9
GD8 L15A
‘
02
.
12〜※
4
GD7
GD6 L13A
1
02
.
12〜
‘
05
.
9
When connecting the IG Power, Engine RPM, Ground, Vehicle Speed signal wires to the ECU,
be sure to check the Connection Diagram (1)-(4) for proper connection. Also check P16 for
vehicle specific information.

8
■Connection Diagram (1) When NOT Cutting
Speed Limiter
■Connection Diagram (2) When Cutting
Speed Limiter
ECU
ECU
Red: IG Power
Yellow: RPM
Black: Ground
Purple: Speed 1 Input
Red: IG Power
Yellow: RPM
Black: Ground
Purple: Speed 1 Input
Pink: Speed 1 Output
IG Power
RPM
Ground
Speed
IG Power
RPM
Ground
Speed

9
■Connection Diagram (3)
■Connection Diagram (4)
ECU
ECU
RPM
Ground
Speed
IG Power
Red: IG Power
Yellow: RPM
Black: Ground
Brown: Speed 2 Output
Purple: Speed 1 Input
RPM
Ground
Speed
IG Power
Meter Signal
Red: IG Power
Yellow: RPM
Black: Ground
Brown: Speed 2 Output
Purple: Speed 1 Input
Open
Pink: Speed 1 Output

10
■Application Chart (TOYOTA)
NameTypeEngineYearECUNotesDiagram
Soarer
JZZ30 1JZ−GTE ‘96.8〜‘01.3 C M/T T8−c
‘91.5〜‘96.7 M/T T8−a
MZ20 7M−GTE ‘89.1〜‘91.4
D
T5−a
‘86.1〜‘88.12 T2−a
GZ201G−GTE
1G−GE‘89.1〜‘91.4 T5−a
‘86.1〜‘88.12 T2−a
Mark II/
Chaser/
Cresta
JZX100
(※5) 1JZ−GTE ‘96.9〜‘01.7
E
M/T T8−c
JZX90
1JZ−GTE ‘94.9〜‘96.8 M/T T8−b
1JZ−GTE ‘92.10〜‘94.8 M/T
1JZ−GE ‘92.10〜‘96.8 M/T T6−a
JZX81 1JZ−GTE
1JZ−GE ‘90.8〜‘92.9
D
M/T T6−a
GX81 1G−GTE
1G−GE ‘88.8〜‘92.9 M/T T5−a
※5:JZX 100 : For MarkⅡ,incompatibleuptomodelyearʻ00.9

11
NameTypeEngine Year ECU Notes Diagram
Supra
JZA80 2JZ−GTE ‘97.8〜‘02.8
C
M/T T10−a
‘93.5〜‘97.7 M/T T7−a
2JZ−GE ‘93.5〜‘97.7 M/T
JZA70 1JZ−GTE ‘90.8〜‘93.4
D
T6−a
MA70 7M−GTE
‘88.9〜‘90.7 T5−a
‘86.2〜‘88.8 T2−a
‘88.8 Turbo A T5−a
GA70 1G−GTE
1G−GE
‘88.9〜‘93.4
‘86.2〜‘88.8 T2−a
AltezzaSXE10 3S−GE ‘98.10〜‘05.7 L M/T T9−b
MR-SZZW30 1ZZ−FE ‘99.10〜07.1 O Includes Sequential T9−a
MR2
SW20
3S−GTE ‘93.10〜‘99.10
M
T5−a
3S−GE ‘97.12〜‘99.10 M/T T9−a
‘93.10〜‘97.11 T6−a
3S−GTE ‘89.10〜‘93.9 T5−a
3S−GE
AW11 4A−GZE ‘86.8〜‘89.9 T2−a
4A−GE ‘84.6〜‘89.9 T1−a
Celica
ZZT230 1ZZ−FE ‘99.9〜‘06.4T9−a
ST205 3S−GTE ‘94.2〜‘99.8 T5−a
ST203
ST202
3S−GE ‘97.12〜‘99.8 T9−a
‘93.10〜‘97.11 T6−a
3S−FE
‘96.6〜‘99.8 M/T T4−b
A/T T5−d
‘95.8〜‘96.5 M/T T4−a
A/T
T5−a
‘93.10〜‘95.7
ST185 3S−GTE ‘89.10〜‘93.9
ST182 3S−GE
ST165 3S−GTE ‘85.8〜‘89.9 T2−a
ST162 3S−GE
E

12
NameTypeEngine Year ECU Notes Diagram
CurrenST207
ST206
3S−GE ‘94.1〜‘98.7
E
T6−a
3S−FE
‘96.6〜‘98.7 M/T T4−b
A/T T5−c
‘95.10〜‘96.5
M/T T4−a
A/T・w/ TRCT6−a
A/T・w/o TRCT5−a
‘94.1〜‘95.9 w/TRC T6−a
w/o TRC T5−a
Carina ED
Corona EXIVST203
ST202
3S−GE ‘93.10〜‘98.12
E
T6−a
3S−FE
‘96.6〜‘98.12 M/T T4−b
A/T T5−c
‘95.8〜‘96.5
M/T T4−a
A/T・w/ TRC T6−a
A/T・w/o TRC T5−a
‘93.10〜‘95.7 w/ TRC T6−a
w/o TRC T5−a
Caldina
ST215W 3S−GTE
‘97.8〜‘02.8
D
ST215G 3S−GE
ST21#G 3S−FE T5−b
ST195G 3S−GE ‘95.2〜‘97.7 T6−a
ST195G
ST191G 3S−FE
‘96.1〜‘97.7
M/T T4−b
2WD・A/T T5−d
4WD・A/T T5−c
‘94.2〜‘95.12
2WD・w/ TRCT6−a
2WD・w/o TRCT5−a
4WD・M/T T4−a
4WD・A/T T5−a
‘92.11〜‘94.1
2WD・A/T T6−a
4WD・M/T T4−a
4WD・A/T T5−a
ST190G 4S−FE ‘92.11〜‘95.12 M/T T4−a
A/T T5−a
T9−a

13
NameTypeEngine Year ECU Notes Diagram
Corolla FX
AE101 4A−GE
4A−FE ‘92.5〜‘95.4
E
M/T T4−a
A/T T5−a
AE92 4A−GE ‘89.5〜‘92.4 T4−a
‘87.5〜‘89.4 T1−a
Corolla
Sprinter
AE1114A−GE ‘97.4〜‘00.9
E
T5−a
4A−FE ‘95.5〜‘97.3
T4−a
AE1105A−FE ‘95.5〜‘00.9
AE101 4A−GE
4A−FE ‘91.6〜‘95.4 M/T
A/T T5−a
AE92 4A−GE ‘89.5〜‘91.5 T4−a
‘87.5〜‘89.4 T1−a
Corolla Levin
Sprinter
Trueno
AE1114A−GE
E
T5−a
4A−FE T4−a
AE1105A−FE T4−a
AE101
4A−GZE
‘91.6〜‘95.4
T5−a
4A−GE
4A−FE
M/T T4−a
A/T T5−a
AE92
4A−GZE ‘89.5〜‘91.5
‘87.5〜‘89.4 T2−a
4A−GE ‘89.5〜‘91.5 T4−a
‘87.5〜‘89.4 T1−a
AE86 4A−GEU ‘83.5〜‘87.4 A
Corolla Celes
Sprinter MarinoAE101 4A−GE
4A−FE ‘92.5〜‘95.4 E M/T T4−a
A/T T5−a
Starlet
EP91 4E−FTE ‘96.1〜‘99.7 D T4−a
4E−FE ‘96.1〜‘97.12 T3−a
EP82 4E−FTE ‘89.12〜‘95.12
E
M/T
‘92.1〜‘95.12 A/T T4−a
4E−FE ‘89.12〜‘95.12 T3−a
EP71 2E−TE
2E−E ‘86.1〜‘89.11 T1−a
‘95.5〜‘00.9

14
NameTypeEngine Year ECU Notes Diagram
RAV4
ACA2#W 1AZ−FSE
‘00.5〜‘05.10 D
T10−b
ZCA26W
ZCA25W 1ZZ−FE T9−a
SXA1#G 3S−FE ‘97.9〜‘00.4
E
M/T T4−b
A/T T5−c
SXA11W 3S−GE T5−a
SXA10W ‘96.8〜‘00.4
SXA11G
3S−FE
‘95.4〜‘97.8 M/T T4−a
A/T T5−a
SXA10G ‘94.5〜‘97.8 M/T T4−a
A/T T5−a
Vitz
NCP13 1NZ−FE
‘02.12〜
‘
05
.
2
D
T11−a
NCP15
NCP10 2NZ−FE
SCP10 1SZ−FE
NCP13 1NZ−FE
T6−b
NCP15
NCP10 2NZ−FE
SCP10 1SZ−FE ‘99.1〜‘02.11
Fun Cargo
NCP25
NCP21 1NZ−FE ‘99.8〜‘05.9 P Not Including
models installed
with Steermatic T6−b
NCP20 2NZ−FE
bB
NCP30 2NZ−FE
‘02.8〜‘05.11
D
T11−a
NCP35
NCP31 1NZ−FE
NCP34 ‘02.8〜‘03.3
NCP30 2NZ−FE
‘00.2〜‘02.7
T6−b
NCP35
NCP31 1NZ−FE
NCP34 ‘01.6〜‘02.7
OPA ZCT1# 1ZZ−FE ‘00.8〜‘02.5 D T9−a
EstimaMCR#0W 1MZ−FE ‘00.1〜
‘
03
.
4
D T10−c
Mark II QualisMCV20W 1MZ−FE ‘97.5〜‘99.7 E T8−d
‘99.8〜‘02.11

15
NameTypeEngine Year ECU Notes Diagram
Platz
NCP16 2NZ−FE
‘02.8〜‘05.10
E
T11−a
NCP12 1NZ−FE
SCP11 1SZ−FE
NCP16 2NZ−FE
‘99.8〜‘02.7
T6−bNCP12 1NZ−FE
SCP11 1SZ−FE
Corolla
ZZE12# 1ZZ−FE
‘02.9〜‘06.10
D
T11−a
NZE124
NZE121 1NZ−FE
ZZE12# 1ZZ−FE
‘00.8〜‘02.8
T9−a
NZE124
NZE121 1NZ−FE T6−b
Corolla
Fielder
ZZE123G 2ZZ−GE
‘02.9〜‘06.10
T10−d
ZZE122G 1ZZ−FE M/T T9−a
A/T
T11−a
NZE124G
NZE121G 1NZ−FE
ZZE123G 2ZZ−GE
‘00.8〜‘02.8
T10−d
ZZE122G 1ZZ−FE T9−a
NZE124G
NZE121G 1NZ−FE T6−b
ist NCP61 1NZ−FE ‘02.5〜‘07.6 D T11−a
NCP60 2NZ−FE
D

16
■ECU Diagram (TOYOTA)
10p 18p 14p
T1-a T2-a
T3-a
10p 18p 24p
26p 16p T4-a 26p 16p 12p
T4-b 26p 16p 12p T5-a 26p 16p 22p
T5-b 26p 16p 22p T5-c 26p 16p 22p
T5-d 26p 16p 22p T6-a
26p 16p 12p 22p
RPM
GroundSpeedIGPower
RPMSpeed
GroundIGPower
IGPower
Speed
Ground
RPMRPM
GroundSpeedIGPower
IGPower
Speed
GroundRPM
RPM
Ground
Speed
IGPower
IGPower
Speed
Ground
RPMIGPower
Speed
RPM
Ground
Ground
RPMSpeed
IGPowerIGPower
Speed
RPM
Ground

17
T6-b
26p 16p 12p 22p
T7-a
T8-a
34p 22p 16p 28p
T8-b
34p 22p 16p 28p
T8-c
34p 22p 16p 28p
T8-d
34p 22p 16p 28p
31p 24p 28p 22p
T9-a
31p 24p 28p 22p
T9-b
GroundRPM
Speed
IGPower
RPM
Ground
Speed
IGPower
RPM
Ground
Speed
IGPower
IGPower
Ground
RPMSpeed
IGPower
Speed
RPM
Ground
IGPower
Speed
RPM
Ground
RPM
GroundSpeedIGPower
IGPower
Speed
RPM
Ground

18
T10-c
T10-d
T10-a
31p 24p 17p 28p 22p
31p 24p 17p 28p 22p
T10-b
31p 24p 17p 28p 22p
31p 24p 17p 28p 22p
34p 35p 31p35p
T11-a
IGPowerSpeed
Ground
RPM
RPM
GroundSpeed
IGPower
IGPower
Speed
Ground
RPM
GroundIGPower
RPMSpeed
GroundIGPower
RPM
Speed

19
■Application Chart (NISSAN)
NameTypeEngine Year ECU Notes Diagram
PresidentG50 VH45DE ‘90.10〜‘02.12 A N4−a
Infiniti Q45G50 VH45DE ‘89.11〜‘97.9 A N4−a
Cima ⅢFGY33 VH41DE ‘96.6〜‘98.9 A N6−a
FHY33 VQ30DET N5−a
Cima ⅡFGY32 VH41DE ‘91.8〜‘96.5 A N4−a
FPY32 VG30DET ‘93.9〜‘96.5
Cima ⅠFPY31 VG30DET
VG30DE
‘89.8〜‘91.7 A N4−a
‘88.1〜‘89.7 N2−a
Fairlady Z
Z32 VG30DETT
VG30DE ‘89.7〜‘00.8 C N4−a
Z31 VG30DET
VG30DE
RB20DET ‘86.10〜‘89.6 A N1−a
Leopard
Y33 VQ30DET
VQ30DE ‘96.3〜‘99.6
A
N5−a
UF31 VG30DET
VG30DE ‘88.8〜‘92.5 N4−a
GF31 VG20DET N2−a
Leopard J FeriJGBY32 VH41DE ‘92.6〜‘96.2 A N4−a
JPY32 VG30DE
Cedric/Gloria
Y34
VQ30DET ‘99.6〜‘04.10
D
N8−d
VQ30DD
VQ25DD N9−a
Y33 VQ30DET
VQ30DE ‘95.6〜‘99.5
A
N5−a
Y32 VG30DET
VG30DE ‘91.6〜‘95.5
N4−a
Y31 VG20DET
VG20E ‘89.6〜‘91.5 Excluding
5AT cars
Cefiro WagonW#A32
VQ30DE ‘97.1〜‘99.7
E
N6−a
VQ25DE
VQ20DE ‘97.1〜‘00.8
TerranoYD21 VG30E ‘89.10〜‘95.8 F N3−a

20
NameTypeEngine Year ECU Notes Diagram
Cefiro
A33 VQ25DD ‘98.12〜‘00.12
E
N9−a
VQ20DE N8−a
A32
VQ30DE
VQ25DE ‘97.1〜‘98.11
N6−a
VQ20DE M/T N4−a
A/T N6−a
VQ30DE
VQ25DE
VQ20DE ‘94.8〜‘96.12
N4−a
A31 RB20DET
RB20DE
RB25DE ‘88.9〜‘94.7 A Excluding
5AT cars
Laurel
C35 RB25DET
RB25DE
RB20DE ‘97.6〜‘02.12
A
N6−a
C34
RB25DET ‘94.1〜‘97.5
N4−a
RB25DE
RB20DE ‘93.1〜‘97.5
C33 RB20DET
RB20DE ‘89.1〜‘92.12
Skyline
R34 RB26DETT ‘99.1〜‘02.8
A
N4−a
RB25DET ‘98.5〜‘01.5 N6−a
R33
RB26DETT ‘95.1〜‘98.12
N4−a
RB25DET
RB25DE ‘93.8〜‘98.4 Excluding
5AT cars
R32
RB26DETT ‘89.8〜‘94.12
RB25DE ‘91.8〜‘93.7 Excluding
5AT cars
RB20DET
RB20DE ‘89.5〜‘93.7
R31 RB20ET
RB20E ‘87.8〜‘89.4 N1−a
StageaW#C34 RB25DET
RB25DE ‘96.8〜‘01.9 A N6−a
Stagea Autech
Ver.260RSWGNC34 RB26DETT ‘97.10〜‘01.9 A N4−a
Excluding
5AT cars
This manual suits for next models
3
Table of contents
Popular Automobile Part manuals by other brands

Tecnosystemi
Tecnosystemi PICO HP2 55 user manual

Edelbrock

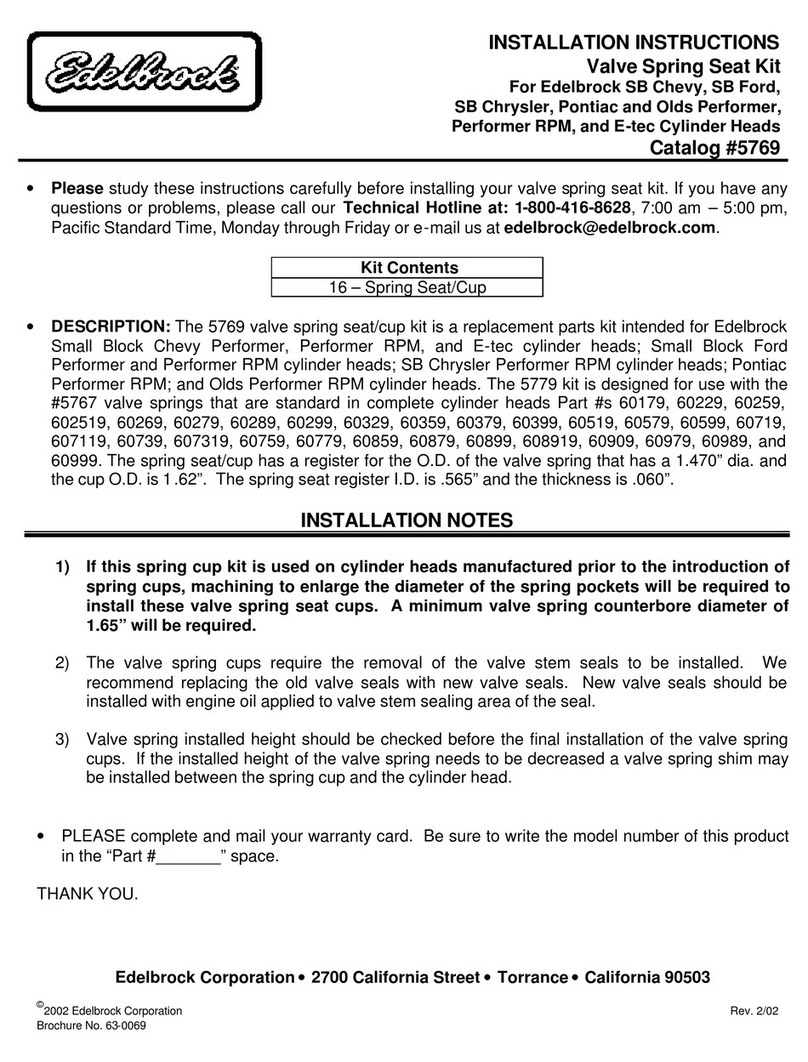

Edelbrock 5769 installation instructions

Volvo
Volvo i-shift transmission Operator's manual

Edelbrock
Edelbrock Nitrous System 70410 installation manual

Edelbrock
Edelbrock Performer RPM 7167 installation instructions

Sumitomo
Sumitomo FINE CYCLO FC-A 15 G operating manual

Atlantic British
Atlantic British 8844 instructions

M7 SPEED
M7 SPEED MAXX-FLO 56-312101 quick start guide

Airaid
Airaid 300-165 installation instructions

Edelbrock
Edelbrock Cat-Back Exhaust System 5714 installation instructions

Skyjacker
Skyjacker S20K installation instructions

Edelbrock
Edelbrock 24502574 LT4 installation instructions
