Appollo TS-1701Q Guide

SIZE:1700×750×550mm
Maintenance
1. To clean the product surface, acidic or strong alkaline detergent
especially organic solvent (thinner, acetone, ammonia, etc.)
should never be used. Strong household cleanser is prohibited.
2. Use polishing agent to polish, you may maintain the product
surface bright and glossy as new one.
3. Scale or slight fray on the surface of the bathtub may be removed
by rubbing with a piece of soft fabric applied with a little
toothpaste
Instructions of Installation and Use
Thank you for buying Appollo's product. Read these
Instructions of Installation and Use carefully then
keep them properly.
Because of product improvement, what described in
this instruction manual may be somewhat different
from the case of actual product you bought, and for
This we beg your pardon.
Bathtub TS-1701Q
※
P/N. 3130101-1877 01

75m m
65mm
3
1
2
45

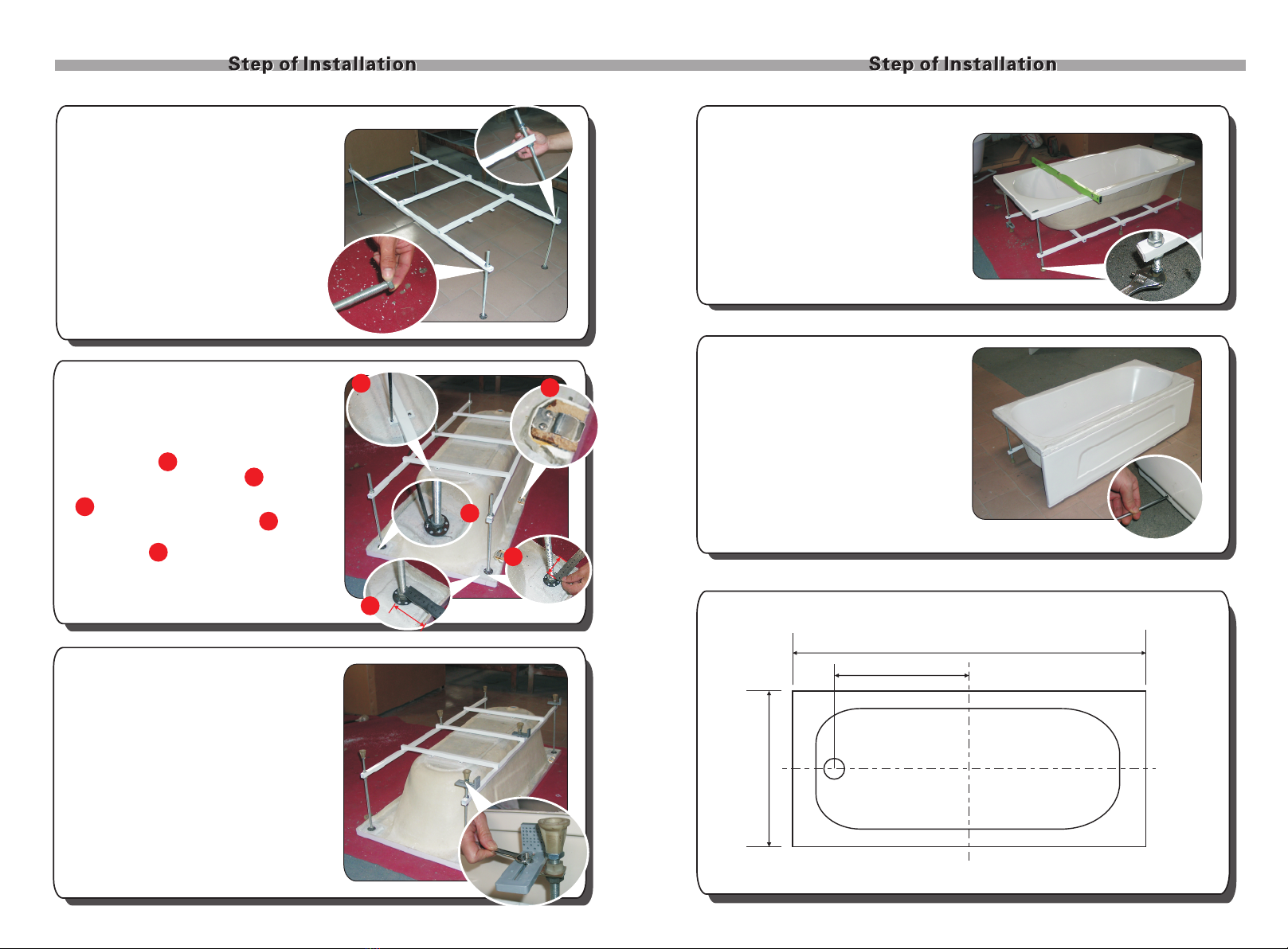

1. Steel stand.
Install 4 M14 screw rods together
with 12 M14 nuts and 8 φ14 flat
washers in the corresponding 4
φ15 holes in the 4 corners of the
steel stand.
2. Joint the bathtub to the steel stand:
Place the bathtub upside down on a clean
and flat floor area. Place the steel stand
on the bottom of the bathtub and position
it well so that the center of corresponding
screw rods is (1): about 65mm from the
long side of the bathtub and (2): about 75
mm from the short side of the bathtub.
(3) Use 12 ST4χ20 screws to fix the 4
long screw rods to the bathtub. (4) Use 12
ST4χ20 screws to fix the steel stand to
the bathtub. (5) Use 6 ST4χ16 screws to
fix the 3 elastic stainless steel plates for
apron to the corresponding side of the
bathtub.
3.
Install 2 M14 short screw rods together
with 6 M14 nuts and 4 φ14 flat washers in
the corresponding 2 φ15 holes in the
middle of the steel stand.
Use 6 M14 plastic nuts to fix the 3 fixing-
block connecting pins to the 3 long and
short screw rods in the front of the steel
stand (on the side where the apron is to be
installed).
Use 3 M16χ25 bolts, M6 nuts andφ6 big
washers to fix the 3 apron fixing plates to
the fixing-block connecting pins. Screw
the 6 adjusting foot to the top of the
long and short screw rods.
Install apron fixing plate and adjusting foot
bolts:
bolts
4. Adjust for levelness of the
bathtub:
Turn the bathtub back to
upside-up position and place
it in desired location. Adjust
the adjusting foot bolts so that
the bathtub is level. Tighten
the nuts on the adjusting foot
bolts.
5. Install apron:
Insert the apron between the
bathtub brim and the elastic
stainless steel clamp for the
apron. Tighten the screws on
the lower border of the apron.
Place the small caps on the
screws.
6. Position of the drain port of the bathtub
1
2
3
4
5
7 5 0 m m
1 7 0 0 m m
6 5 0 m m
