APPTRICITY CORPORATION I-Connect User manual

APPTRICITY CORPORATION®
LONG-RANGE BLUETOOTH TAG
Manufactured By: Apptricity Corporation®
Model Number: 550-130-100

APPTRICITY CORPORATION Apptricity I-Connect Long Range Bluetooth Tag
_____________________________________________________________________________
Copyright© 2004-2021 Apptricity Corporation®
1
Table of Contents
1. PRODUCT DESCRIPTION .............................................................................................................................................. 2
2. KEY FEATURES ............................................................................................................................................................. 2
3. BATTERY REPLACEMENT.............................................................................................................................................. 3
4. REGULATORY............................................................................................................................................................... 7
5. CONTACT INFO ............................................................................................................................................................ 7

APPTRICITY CORPORATION Apptricity I-Connect Long Range Bluetooth Tag
_____________________________________________________________________________
Copyright© 2004-2021 Apptricity Corporation®
2
1. PRODUCT DESCRIPTION
The Apptricity Long-Range tag is intended for Asset tracking. The range of the transmitted Bluetooth signal is
up to 9 miles (14.4 km) line of sight. The transmission rate can be set from a ping once per second to a ping of
once per 145 hours. The Long-Range Bluetooth Tag requires one 3 Volt CR2477 Lithium battery. Batteries are
customer replaceable. The lifetime of the battery is determined by the ping rate. The ping rate is set when the
tag is manufactured.
2. KEY FEATURES
22 dBm Bluetooth Beacon
2.48 GHz Frequency Band
Gain of Antenna is 3 dBi
IP57: Water and Dust Resistant
Weight: 1.4 oz
Dimensions: 1.61” X 1.61” X 0.79”
Part Numbers: 550-130-100

APPTRICITY CORPORATION Apptricity I-Connect Long Range Bluetooth Tag
_____________________________________________________________________________
Copyright© 2004-2021 Apptricity Corporation®
3
3. BATTERY REPLACEMENT
The Long-Range Bluetooth tag battery replacement is demonstrated below.
Step #1: Remove the 4 screws from the top of the case.

APPTRICITY CORPORATION Apptricity I-Connect Long Range Bluetooth Tag
_____________________________________________________________________________
Copyright© 2004-2021 Apptricity Corporation®
4

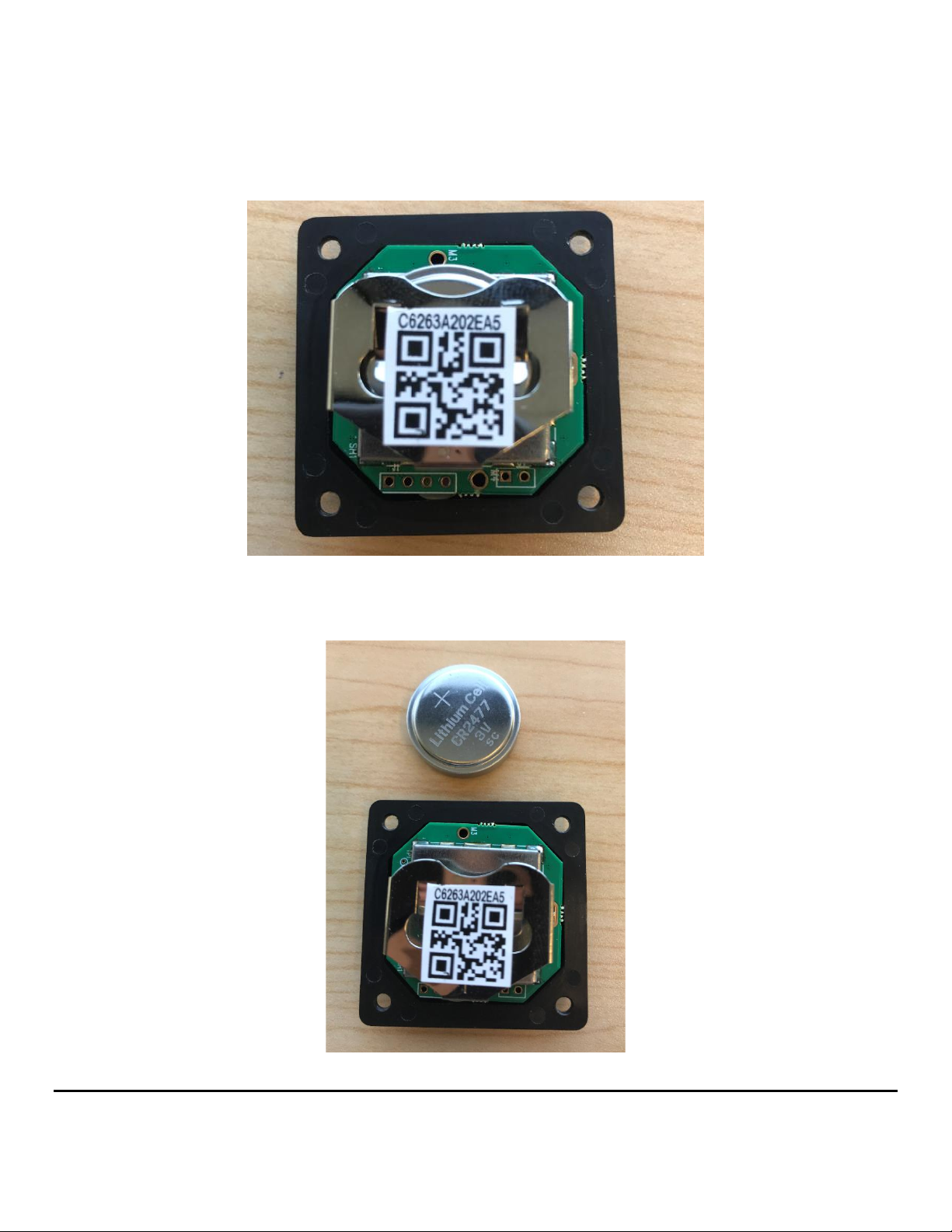

Step #2: Remove the lid with attached pcb from the case.
Step #3: Remove the battery.

APPTRICITY CORPORATION Apptricity I-Connect Long Range Bluetooth Tag
_____________________________________________________________________________
Copyright© 2004-2021 Apptricity Corporation®
5

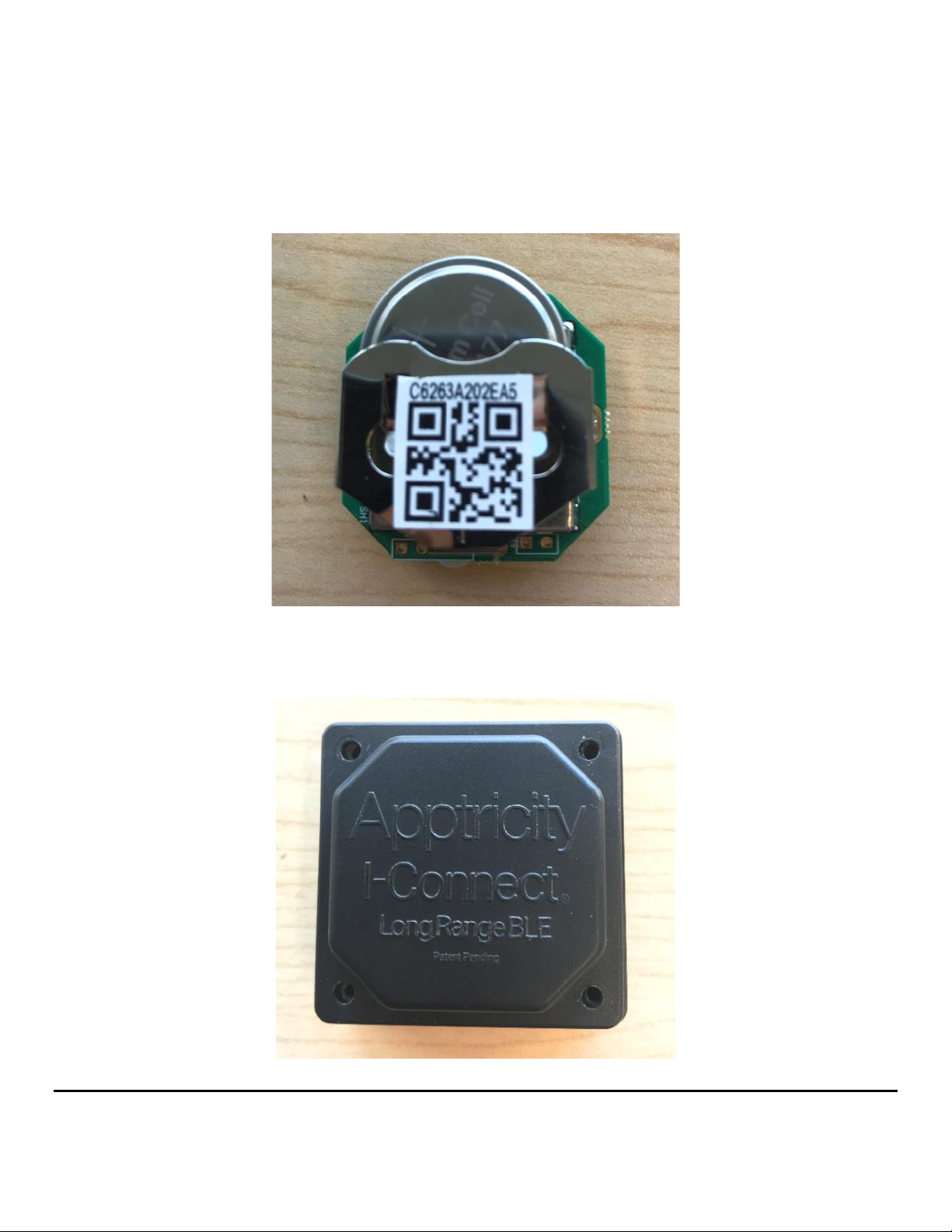

Step #4: Insert new battery with positive side up (very important) and negative side against
the shield.
Step #5: Put the top back onto the case bottom.

APPTRICITY CORPORATION Apptricity I-Connect Long Range Bluetooth Tag
_____________________________________________________________________________
Copyright© 2004-2021 Apptricity Corporation®
6
Step #6: Replace the four screws to attach the top to the bottom of the case.

APPTRICITY CORPORATION Apptricity I-Connect Long Range Bluetooth Tag
_____________________________________________________________________________
Copyright© 2004-2021 Apptricity Corporation®
7
4. REGULATORY
This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received,
including any interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Changes or modifications not expressly approved by Apptricity could void the user's authority to operate the
equipment.
5. CONTACT INFO
Apptricity Corporation
220 E Las Colinas Blvd, Suite 400
Irving, TX 76039
USA
Main Phone: [phone]
Toll Free: 800-693-2193
[e-mail]
https://www.apptricity.com/
