use and maintenance Scarabeo 50 - Scarabeo 100 4T

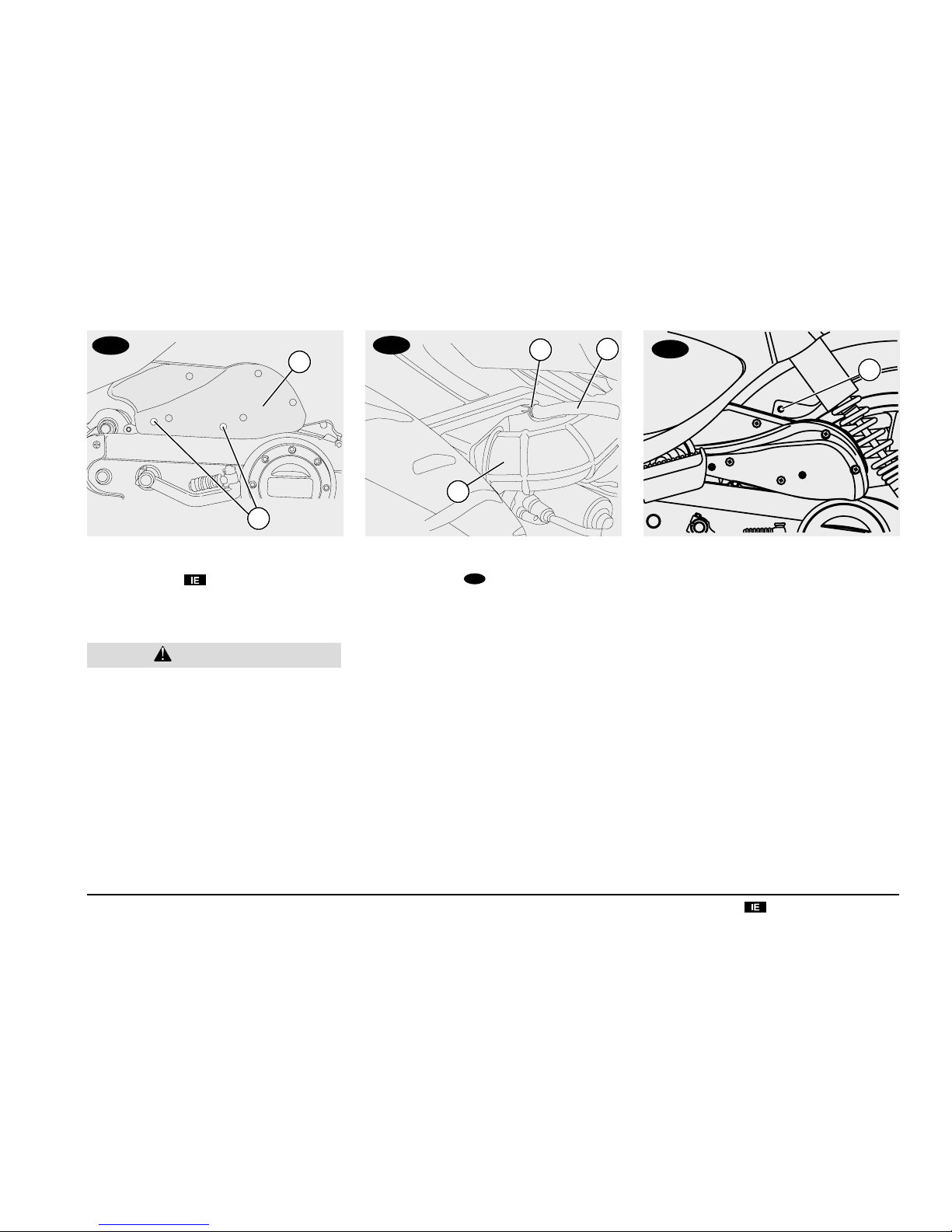

REMOVING AIR CLEANER BOX
ASSEMBLY
100
Carefully read page 47 (MAINTENANCE).
♦ Position the vehicle on the centre stand,
on a solid and level surface, see page 46
(POSITIONING THE VEHICLE ON THE
CENTRE STAND).
♦ Unscrew and remove the two screws (1)
keeping the relative stop nuts.
♦ Unloosethesplashguardfixingscrewwith
filter box (6).
♦ Withdraw clamp (2) from the air tube (3)
using a suitable tool (3).
♦ Unloose the fixing clamp and remove the
air cleaner-carburettor tube (4) from the
air cleaner (5).
♦ Removethe air cleaner boxassembly (5).
REMOVING AIR CLEANER BOX
ASSEMBLY
Carefully read page 47 (MAINTENANCE).
The disassembly and reassembly opera-
tions of the air cleaner box assembly are
difficult and complicated. Contact an
aprilia Official Dealer.
CAUTION
100
5
1
3
2
4
100
6
100

58
use and maintenance Scarabeo 50 - Scarabeo 100 4T
♦Position the vehicle on the centre stand,
on a solid and level surface.
NOTE Arrange for a support with a base
of 200x200mm and suitable height.
♦Place the support under the vehicle and a
spongy cloth between them, so that the
front wheel can move freely and the vehi-
cle cannot fall down.
Make sure that the vehicle is stable.

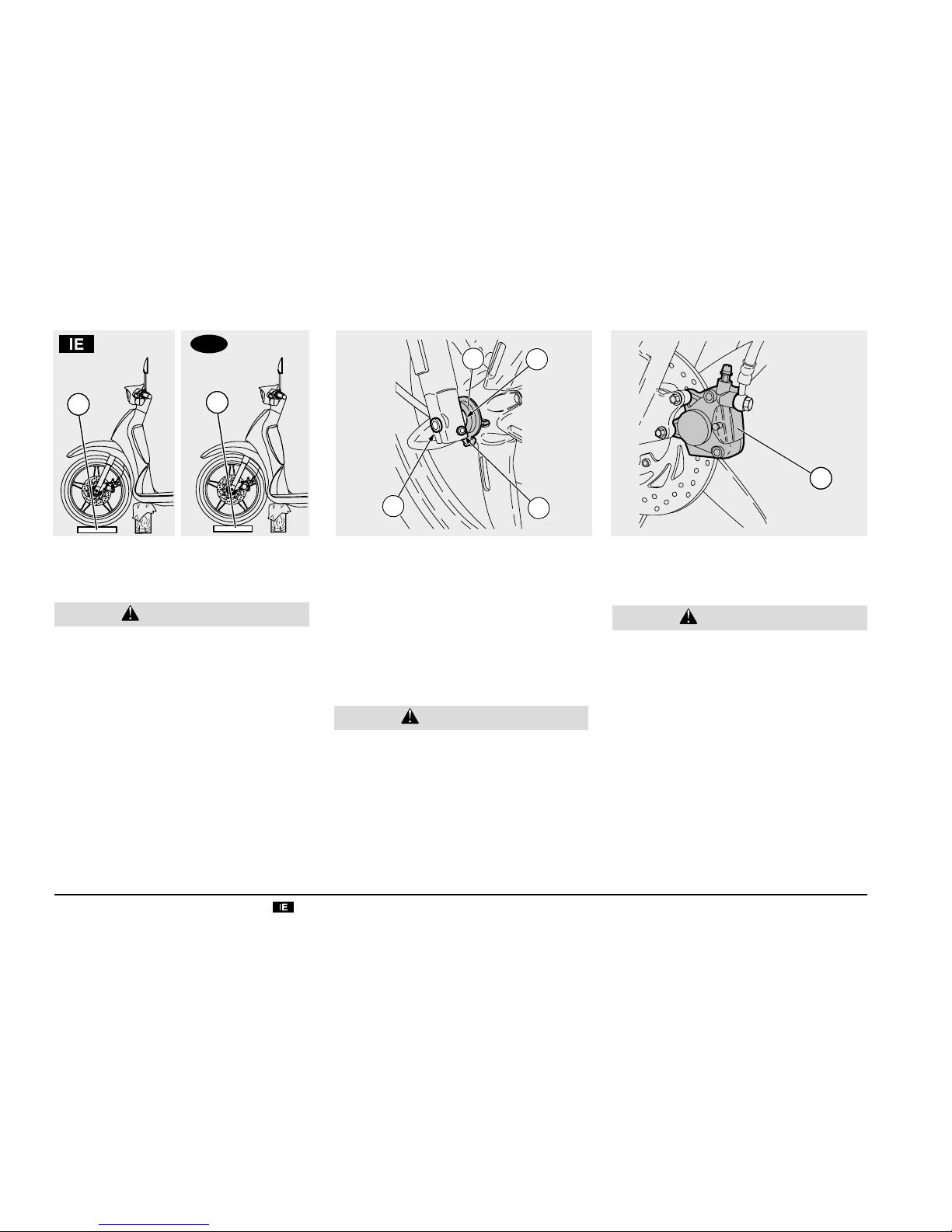

♦Put a suitable support (1) under the tyre to
hold the wheel in the right position, after
releasing it.
♦Unloose screw (2) of the wheel pin clamp.
♦Completely unscrew the wheel pin (3).
Wheel pin-nut driving torque:
50 Nm (5.0 kgm).
♦Hold the front wheel and manually remove
the wheel pin (3).
♦Keep the washer (4).
Do not actuate the front brake lever after
removing the wheel to prevent the caliper
pistons from falling out of their seats,
causing the brake fluid to leak out.
In this case, contact an aprilia Official
Dealer that will carry out the required
maintenance operations.
♦Move the front wheel forward until the disc
can be removed from the brake caliper (5).
♦Remove the front wheel.
♦Disable the odometer transmission (6).
FRONT WHEEL
DISASSEMBLY
The disassembly and reassembly opera-
tions of the front wheel may result diffi-
cult and complicated for an unskilled
operator.
Contact an aprilia Official Dealer if nec-
essary.
If you wish to perform this operation per-
sonally, follow the steps below.
Carefully read page 47 (MAINTENANCE).
Upon disassembly and reassembly of the
wheel, be careful not to damage the pipe-
line, discs and brake pads.
CAUTION
CAUTION
CAUTION
64
2
3
5
100
aprilia
1
1

59
use and maintenance Scarabeo 50 - Scarabeo 100 4T
REASSEMBLY
Carefully read page 47 (MAINTENANCE).
While reassembling the wheel, be careful
not to damage the brake pipe, the disc
and the pads.
To reassemble the front wheel, proceed as
follows:
♦Smear a thin layer of grease on the whole
length of the wheel pin (3), see page 90
(LUBRICANT CHART).
♦Position the wheel between the fork rods,
onto the support (1).
♦Insert the tang (8) of the odometer trans-
mission (7) in the seat on the wheel hub.
Risk of personal injury. Do not use your
fingers to align the holes.
♦Move the wheel to align the central hole
with the holes on the fork.
♦Make sure that the following components
are not dirty:
– tyre;
– wheel;
– brake discs.
After reassembly, pull the front brake le-
verrepeatedlyandcheckthecorrectfunc-
tioning of the braking system.
Check the wheel centering.
Have the driving torques, centering and
balancing of the wheel checked by your
aprilia Official Dealer, in order to avoid
accidents that may be harmful for you
and/or other people.
CAUTION
WARNING
♦Insert the wheel between the rods. Insert
with care the disc in the brake caliper.
♦Insert the washer (4) between the
odometer transmission (7) and the fork
right-hand rod.
♦Fully insert the wheel pin (3) and tighten it
manually.
♦Tighten the wheel pin (3).
Wheel pin nut driving torque:
50 Nm (5.0 kgm).
♦Pull the front brake lever and repeatedly
push down the handlebar to allow the fork
to sink.
This allows the fork rods to bed properly.
♦Tighten the screw (2) of the wheel pin
clamp.
Driving torque of the wheel pin clamp
screws: 12 Nm (1.2 kgm).
CAUTION
74
8
2
3

60
use and maintenance Scarabeo 50 - Scarabeo 100 4T
REAR WHEEL
DISASSEMBLY
The disassembly and reassembly opera-
tions of the rear wheel may result diffi-
cult and complicated for an unskilled op-
erator. Contact an aprilia Official Dealer
if necessary.
If you wish to perform this operation per-
sonally, follow the steps below.
Carefully read page 47 (MAINTENANCE).
Before performing the following opera-
tions, allow the engine and silencer to
cool down to the ambient temperature in
order to avoid burns.
On disassembly and reassembly of
the wheel, be careful not to damage the
pipeline, disc and brake pads.
♦Position the vehicle on the centre stand,
on a solid and level surface.
♦Remove the silencer, see page 66 (RE-
MOVING THE EXHAUST SILENCER).
♦Remove the cover (1).
♦Withdraw the wheel.
NOTE Use aprilia Genuine Spare Parts
only.
♦After reassembly, make sure that the fol-
lowing components are not dirty:
– tyre;
– wheel;
–brake discs.
After reassembly, pull the rear brake le-
ver repeatedly and check the correct func-
tioning of the braking system. Check the
wheel centering.
Have the driving torques, centering and
balancing of the wheel checked by your
aprilia Official Dealer, in order to avoid
accidentsthatmaybeharmfulforyouand/
or other people.
CAUTION

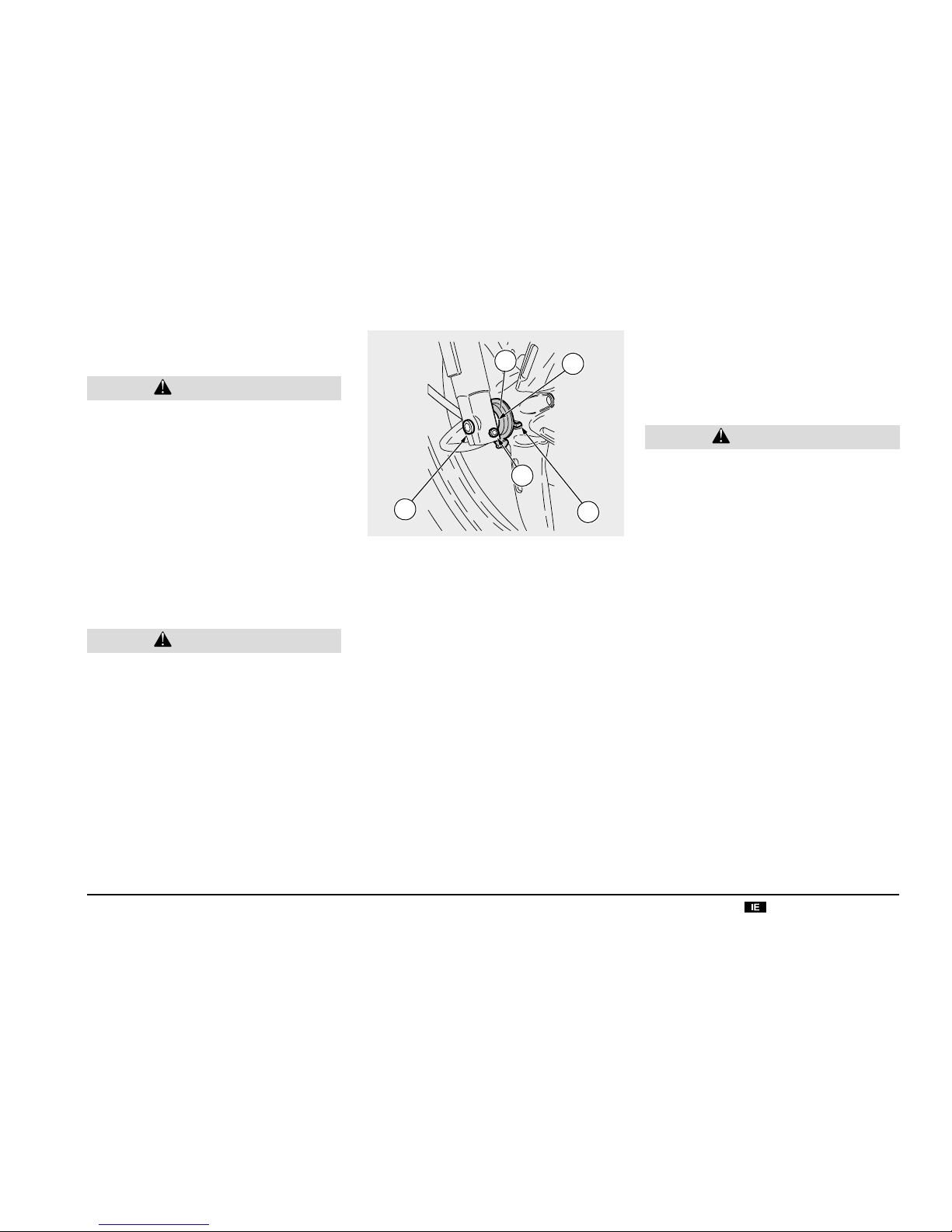

NOTETo be able to unloose the wheel nut
(2) it is necessary to block the wheel.
♦ Completely pull the rear brake lever (3),
interposing a card (4), and keep it pulled
by means of a plastic clamp (5).
♦Unscrewandremovethe wheel nut (2) and
the washer.
NOTEUponreassembly, change the wheel
nut (special type).
Wheel nut (2) driving torque:
110 Nm (11 kgm).
♦Release the rear brake lever.
♦
100
Unloose the splash guard, see page
57.
♦
100
Withdraw the wheel.
♦Remove the rear brake caliper, see
page64 (REMOVING THE REARBRAKE
CALIPERS ).
CAUTION
100
1
2
1
2
4
5
3

61
use and maintenance Scarabeo 50 - Scarabeo 100 4T
CHECKING THE BRAKE PAD
WEAR
Carefully read page 31 (BRAKE FLUID -
recommendations), page 32 (DISC
BRAKES), page 47 (MAINTENANCE).
Check the brake pad wear after the first 500
km (312 mi) and successively every 2000
km (1250 mi).
The wear of the brake pads depends on the
use, on the kind of drive and on the road.
The wear will be greater when the vehicle is
driven on dirty or wet roads.
Check the wear of the brake pads espe-
cially before every trip.
To carry out a rapid checking of the wear of
the front pads, proceed as follows:
♦Position the vehicle on the centre stand,
on a solid and level surface.
♦Remove the brake caliper cover (1).
♦Carry out a visual check between brake
disc and pads.
The excessive wear of the friction mate-
rial would cause the contact of the pad
metal support with the disc, with conse-
quent metallic noise and production of
sparks from the caliper; braking effi-
ciency, safety and soundness of the disc
would thus be negatively affected.
♦Ifthethicknessofthe friction material (even
of one pad only) has reduced to about 1.5
mm, replace both pads.
Have the pads changed by your aprilia
Official Dealer.
WARNING
WARNING
WARNING
1

62
use and maintenance Scarabeo 50 - Scarabeo 100 4T
CHECKING THE BRAKE SHOES
WEAR
100
Carefully read the instructions on page
33 (REAR DRUM BRAKE
100
) and
page 47 (MAINTENANCE).
Check the rear brake shoes wear after the
first 1000 km (625 mi) and then every 4000
km (2500 mi).
INSPECTING THE FRONT AND
REAR SUSPENSIONS
Carefully read page 47 (MAINTENANCE).
Check the tightening of all the parts and the
functioning of the front and rear suspension
articulated joints after the first 1000 km (625
mi), and then every 4000 km (2500 mi).
If you notice irregularities in the opera-
tion or if the help of a qualified techni-
cian is necessary, contact your aprilia
Official Dealer.
CAUTION
100
♦Remove the rear wheel, see page 60
(REAR WHEEL).

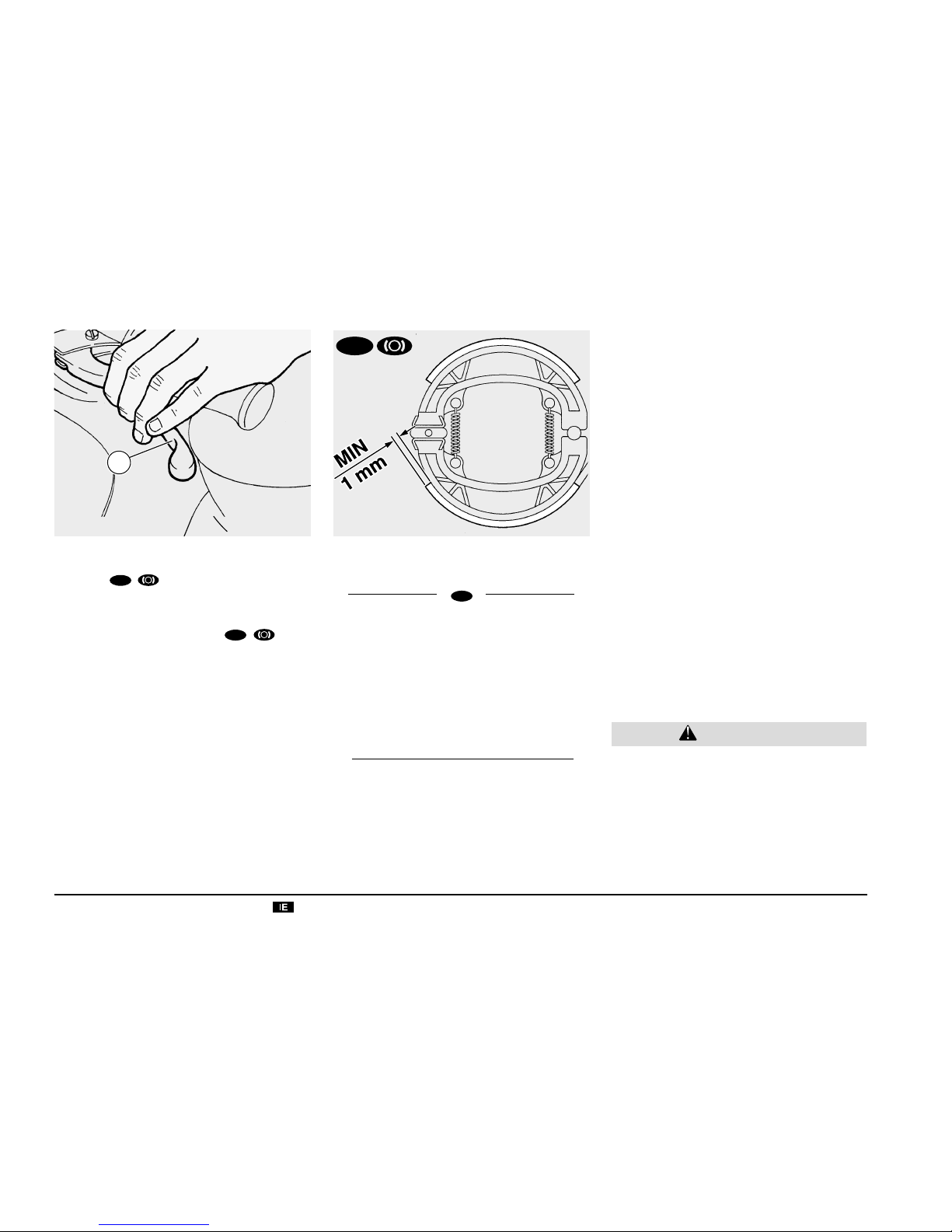

♦Nowcheck the thickness ofthe friction ma-
terial,thatshouldneverbelowerthan1mm.
If the thickness of the friction material has
reachedthe limit value, ifyounotice irregu-
larities in the operation or if the parts are
damaged, contact an aprilia Official
Dealer that will see to their replacement.
To check the rear brake shoes wear follow
the steps below:
1
100

63
use and maintenance Scarabeo 50 - Scarabeo 100 4T
♦Place the support under the vehicle and a
spongy cloth between them, so that the
front wheel can move freely and the vehi-
cle cannot fall down.

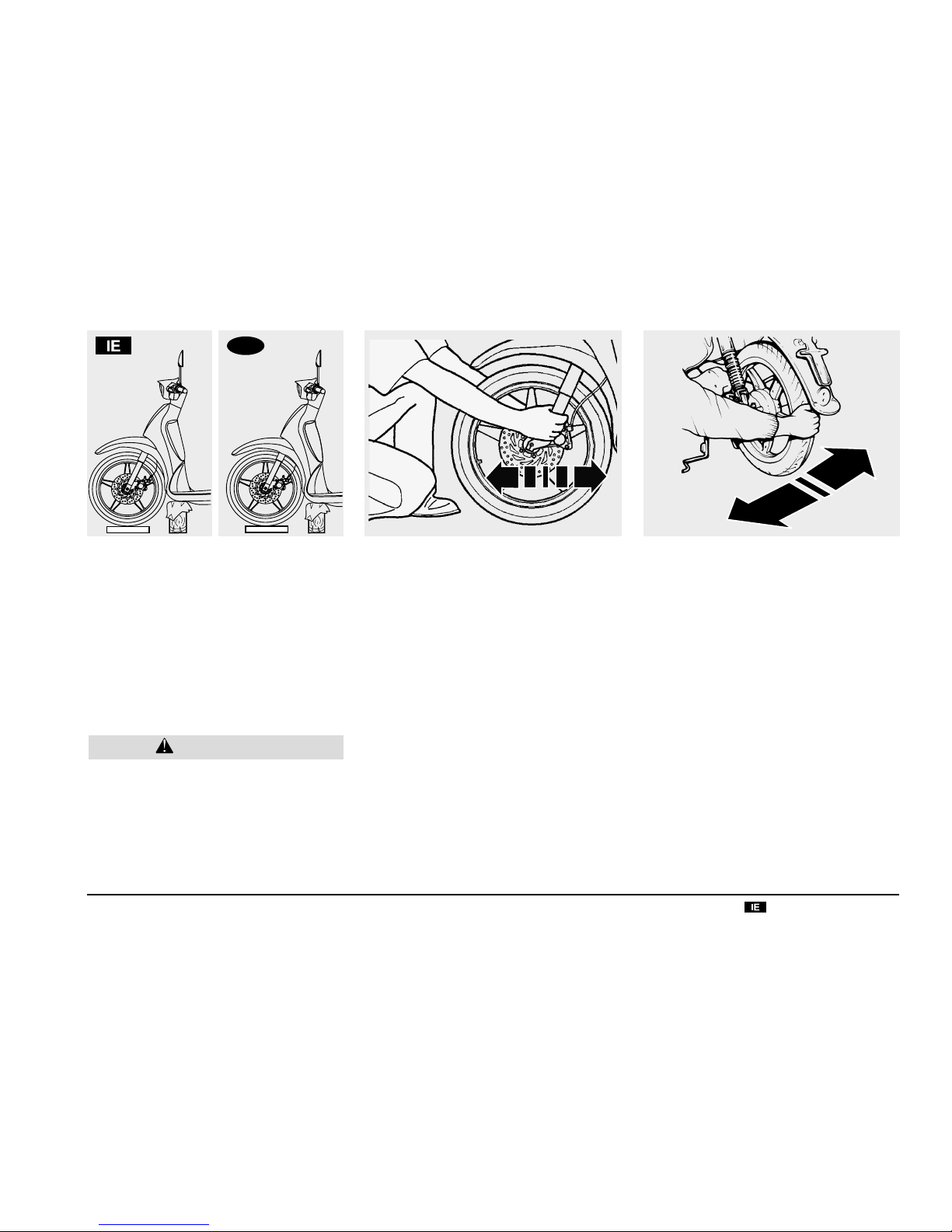

♦Shake the fork in the direction of travel.
NOTE Do not shake the fork excesively,
otherwise you may take in consideration the
movement of the stand, thus observing an
incorrect slack.
Repeat the previous operation more than
once.
♦Ifyoufindthatthereisaconsiderableslack,
contactyour aprilia Official Dealer to re-
store the optimal steering conditions.
CHECKING
THE ENGINE FULCRUM AXIS
Carefully read page 47 (MAINTENANCE).
Periodicallychecktheslackexistingbetween
the engine pin bushes and the engine pin.
To carry out this operation, proceed as fol-
lows:
♦Position the vehicle on the centre stand,
on a solid and level surface.
♦Shakethewheel transversally withrespect
to the riding direction.
♦Ifyoufindthatthereisaconsiderableslack,
contactyouraprilia Official Dealer, to re-
store the optimal operating conditions.
CAUTION
100
aprilia
CHECKING THE STEERING
Carefully read page 47 (MAINTENANCE).
Checkthe steering playevery now and then.
To check the steering it is necessary to:
♦Position the vehicle on the centre stand,
on a solid and level surface.
NOTE Arrange for a support with base of
200x200mm and of a suitable height.
Make sure that the vehicle is stable.

64
use and maintenance Scarabeo 50 - Scarabeo 100 4T
REMOVING THE
REAR BRAKE CALIPER
Carefully read page 47 (MAINTENANCE).
When disassembling the brake caliper, be
careful not to damage the pipeline, disc
and brake pads.
♦ Position the vehicleon the centrestand on
a solid and level surface.
♦ Unloose and remove the two screws (1).
Tightening torque of brake caliper screws
(1): 27 Nm (2.7 kgm).
On reassembly of the brake caliper, re-
placethecaliperfixingscrews(1)withtwo
new screws of the same type.
Do not actuate the rear brake lever after
removing the brake caliper to prevent the
pistons from falling out of their seats,
causing the brake fluid to leak out.
In this case, contact an aprilia Official
Dealer that will carry out the required
maintenance operations.
♦Carefully withdraw the brake caliper (2)
from the brake disc.
After reassembling, repeatedly actuate
the rear brake lever and check the brak-
ing system functioning.
CAUTION
WARNING
CAUTION
WARNING
REMOVING
THE REAR-VIEW MIRRORS
Carefully read page 47 (MAINTENANCE).
♦ Position the vehicle on the centre stand,
on a solid and level surface.
♦ Lift the protective case (3).
Hold the rear-view mirror (4), to prevent
it from accidentally falling down.
♦ Hold the screw (5) and unloose the nut (6)
completely.
♦ Remove the rear-view mirror (4).
CAUTION
2
1
4
3
65

65
use and maintenance Scarabeo 50 - Scarabeo 100 4T
REMOVING THE LOWER
HANDLEBAR COVER
Carefully read page 47 (MAINTENANCE).
♦Position the vehicle on the centre stand,
on a solid and level surface.
♦Unscrew and remove the two screws (1)
shown by the arrows.
♦Unscrew and remove the two screws (2).
Proceed with care to avoid damaging the
tang (4) seat (3).
♦★Using a small screwdriver, lift the tang
(4) found inside the front handlebar cover
(5).
♦★Repeat the above operation also on the
lower part of the handlebar cover.
Handlethe plastic or painted components
with care and avoid scraping or damag-
ing them.
♦Remove the front handlebar cover (5) tak-
ing care not to break the tangs.
NOTEOnreassembly,checkthatthetangs
are fitted properly.
REMOVING
THE INSPECTION COVER
Carefully read page 47 (MAINTENANCE).
Handle the painted components with care
and avoid scraping or damaging them.
♦Position the vehicle on the centre stand,
on a solid and level surface.
♦★Unscrew and remove the screw (6).
♦Remove the inspection cover (7).
CAUTION
CAUTION
CAUTION
2
1
1
5
4
3
7
6
