APT TFT 750C-Bluetooth Owner's manual

Tianjin APT Science and Technology Co., Ltd.
1001, Building 5 HuaDing, No.1 HuaKe 3 Road,
Binhai hi-tech Industrial Development Zone, Tianjin, China
1TEL: [phone]
FAX: [phone]
Email: [email protected]
Product Specification
08/2018
Product TFT Display
Mode APT TFT 750C-Bluetooth
Abbreviation 750C
Client
Customer
audit
Supplier Tianjin APT Science and Technology Co., Ltd.
1001, Building 5 HuaDing, No.1 HuaKe 3
Road, Binhai hi-tech Industrial Development
Zone, Tianjin, China
Tel TEL:[phone]
FAX:[phone]
Email [email protected]

Tianjin APT Science and Technology Co., Ltd.
1001, Building 5 HuaDing, No.1 HuaKe 3 Road,
Binhai hi-tech Industrial Development Zone, Tianjin, China
2TEL: [phone]
FAX: [phone]
Email: [email protected]
1．Product Name
TFT display
Model : APT TFT 750C-Bluetooth
2．Suppliers
Tianjin APT Science and Technology Co., Ltd.
Email : [email protected]m [email protected]
3．Electrical Parameters
3.2inch IPS screen
24V/36V/48V/52V battery supply
Rated operating current : 40mA
Off leakage current < 1uA
Max output current to controller : 100mA
Operating temperature : -20～70℃, Storage temperature : -30～80℃

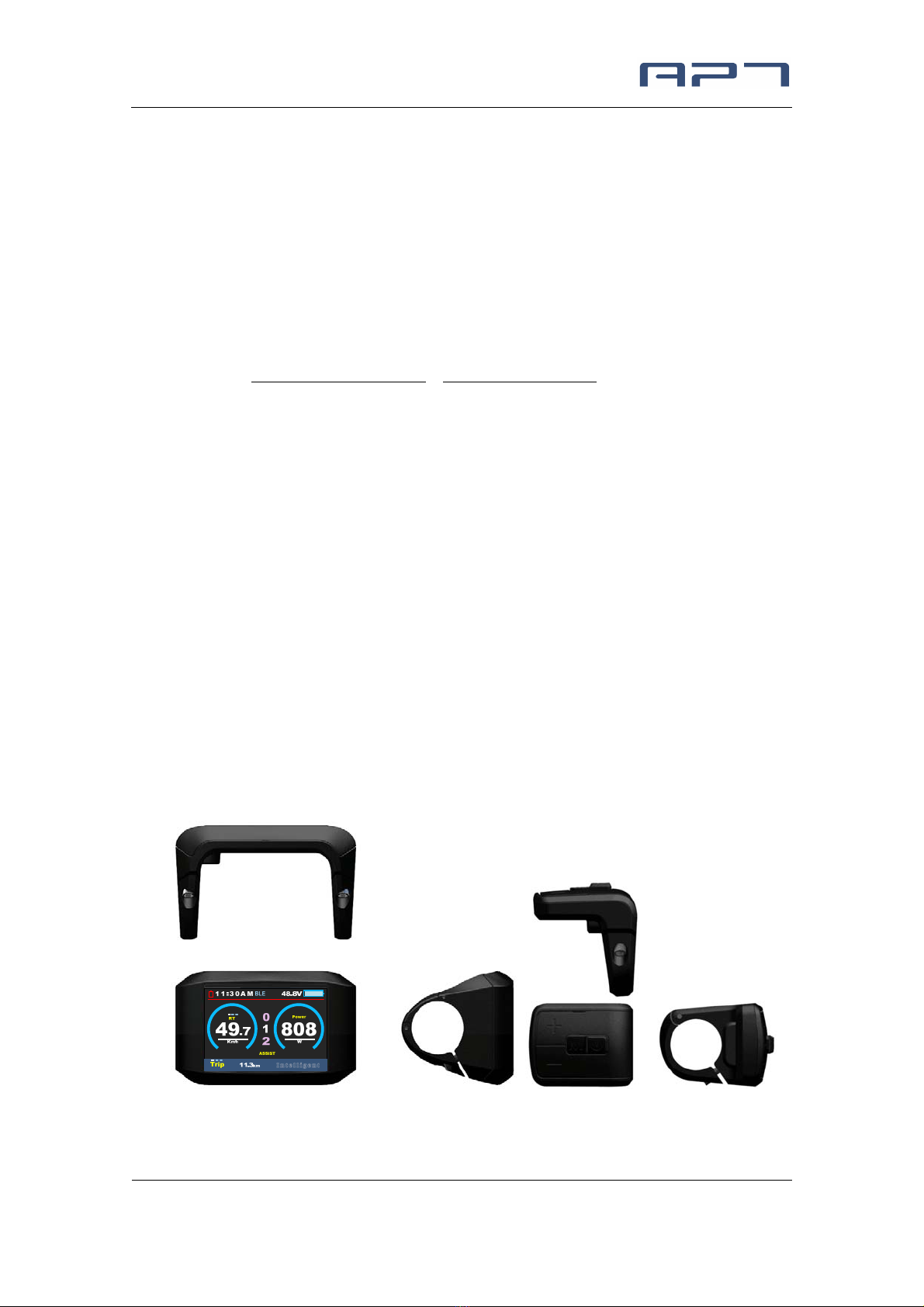

4．Dimensions & Material
Product shell is ABS, transparent window is made with high strength Acrylic.
Dimensions : host/L110mm*W68.2mm*H68mm
5．Features

Tianjin APT Science and Technology Co., Ltd.
1001, Building 5 HuaDing, No.1 HuaKe 3 Road,
Binhai hi-tech Industrial Development Zone, Tianjin, China
3TEL: [phone]
FAX: [phone]
Email: [email protected]
Suitable for low temperature，Max -20℃.
High-contrast 3.2inch IPS colorful matrix screen.
Ergonomic external button design, easy to operate.
Speed display: AVG SPEED, MAX SPEED, SPEED (Real-time).
Kilometer / Mile: Can be set according to customers’ habits.
Smart battery indicator: Provide a reliable battery indicator.
9-level Assist : 3-level/5-level/9-level /UBE（6-level）optional.
Mileage indicator: Odometer/ Trip distance/ Clock/ Riding time.
Power indicator: real time power indicator, digital or analog.
6km walking
Bluetooth & Mobile navigation
Phone battery indicator
Error code indicator.
Software upgraded: Software can be upgraded through UART.
6．TFT screen instructions
7．Functional Description

Tianjin APT Science and Technology Co., Ltd.
1001, Building 5 HuaDing, No.1 HuaKe 3 Road,
Binhai hi-tech Industrial Development Zone, Tianjin, China
4TEL: [phone]
FAX: [phone]
Email: [email protected]

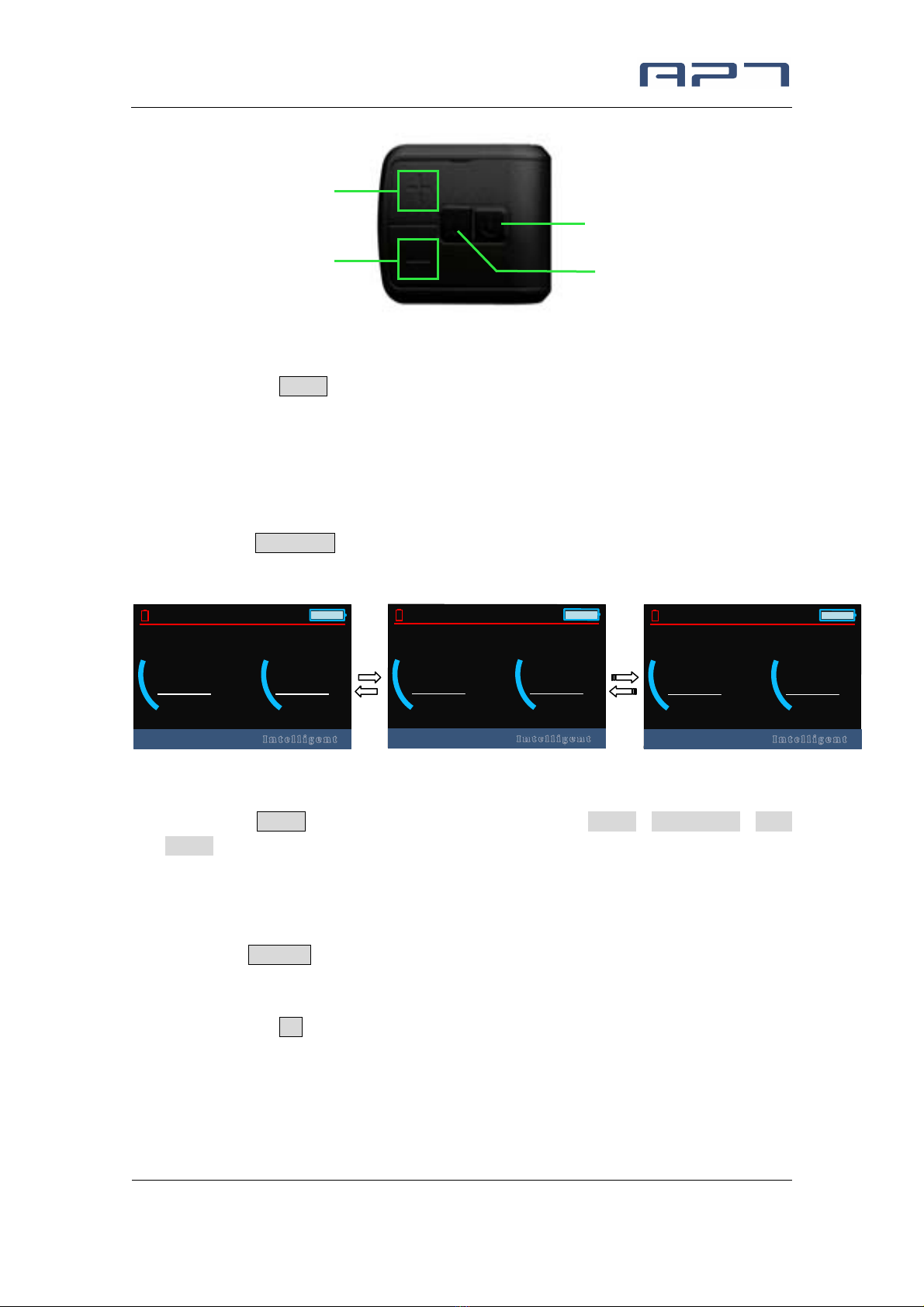

7.1 Power On/Off
Press and hold Power button for 1 second can turn on/off the display. The Display can
automatically shut down when there is no operate & ride for X minutes（X could be
0~9）.
*If the display has been set password power on, you need to input the right password before start.
7.2 Assist level operating
Short press UP/DOWN button can change the assist level. Top assist level is 9, 0 for
neutral. Level quantities can be adjusted according to the customer requirements.
7.3 Speed mode switch
Short press MENU button can change the speed mode, Speed->AVG Speed->MAX
Speed.
*If there is no operation for 5 seconds, display will return Speed (Real-Time) display automatically.
7.4Mileage mode switch
Short press POWER button can change the mileage mode, Trip->ODO-> Time.
7.5 Headlight/backlight On/Off
Press and hold UP button for 1 second can turn on/off the headlight, and the scree will
switch to the corresponding mode.
*The motor does not work when the battery voltage is low, Display still can keep the headlight on for a
while when E-bike is in riding.
10.5
Km/h
0192
W
Trip
---
48.8V
11.3 km
---
RT Power
ASSIST
1
11:30AM
BLE
10.5
Km/h
1192
W
Trip
---
48.8V
11.3 km
---
RT Power
ASSIST
2
0
11:30AM
BLE
10.5
Km/h
9192
W
Trip
---
48.8V
11.3 km
---
RT Power
ASSIST
8
11:30AM
BLE
UP
DOWN
POWER
MENU

Tianjin APT Science and Technology Co., Ltd.
1001, Building 5 HuaDing, No.1 HuaKe 3 Road,
Binhai hi-tech Industrial Development Zone, Tianjin, China
5TEL: [phone]
FAX: [phone]
Email: [email protected]
Daytime mode night mode
7.6 Walking mode (6km)
Press and hold DOWN button for 2 second can get into walking mode, out of the mode
when release the button.
* This feature needs to be supported by controller.
7.7 Bluetooth & mobile navigation
（1） After installing the I-bike mobile app, turn on the Bluetooth function of the
mobile phone, open the I-bike app, set the Scenes item in the instrument
menu settings to “Navigation”, click Search for device, the Meter name
defaults to APTTEST, and the icon is red, the icon BLE is light blue
(unconnected state).
（2） Connect the phone and meter: Find the meter by mobile phone, search
for the meter name “APTTEST”, click search the device, input these digits
in the mobile phone when the 6 digits appear on the meter, click pair and
after the successful pairing, the main interface of the mobile phone
MENU
|||||
System
Display Setting
EXIT
Basic Setting
Metric
Brightness
Auto off OFF
Scenes Navigation
Battery Ind Voltage
Clock
>
00 . 0
Km/h
1
---
---
RT Waiting
2
0
for
data！
04.7
Km/h
117
W
Trip
---
48.8V
11.3
km
---
RT Power
ASSIST
2
0
11:30AM
BLE
10.5
Km/h
1192
W
Trip
---
48.8V
11.3
km
---
RT Power
ASSIST
2
0
11:30AM
BLE
10.5
Km/h
1
W
Trip
---
48.8V
11.3 km
---
RT Power
ASSIST
2
0192
11:30AM
BLE
10.5
Km/h
1192
W
Trip
---
48.8V
11.3
km
---
RT Power
ASSIST
2
0
11:30AM
BLE

Tianjin APT Science and Technology Co., Ltd.
1001, Building 5 HuaDing, No.1 HuaKe 3 Road,
Binhai hi-tech Industrial Development Zone, Tianjin, China
6TEL: [phone]
FAX: [phone]
Email: [email protected]
displays the I-bike information interface of the meter, and the MAIN
interface, the navigation interface (Navi) and the more information
interface (More). The meter displays the battery indicator of the phone,
and the icon BLE is dark blue (connected).
（3） In the mobile navigation interface, enter Location and choose destination,
then the mobile phone displays the map navigation path, distance and
usage time information. After clicking start, the meter displays the
navigation icon , or and distance information.

Tianjin APT Science and Technology Co., Ltd.
1001, Building 5 HuaDing, No.1 HuaKe 3 Road,
Binhai hi-tech Industrial Development Zone, Tianjin, China
7TEL: [phone]
FAX: [phone]
Email: [email protected]
（4） Mobile phone I-bike interface display information.
7.8Data cleanup
Press and hold UP & DOWN buttons together for 1 second can reset several temporary
data, temporary data include AVG Speed / MAX Speed / Trip / Time.
* These temporary data can’t be erased by power off.
8．Parameter setting
Double press MENU button (press interval less than 0.3 second) can get into setting menus,
press POWER button to change Display Setting / Basic setting, press UP/DOWN buttons to
change the parameter setting, press MENU button can switch to next item. Double press
00 . 0
Km/h
1
---
---
RT
2
0
00 . 0
Km/h
1
---
---
RT
2
0
75m
00 . 0
Km/h
1
---
---
RT
2
0
29m

Tianjin APT Science and Technology Co., Ltd.
1001, Building 5 HuaDing, No.1 HuaKe 3 Road,
Binhai hi-tech Industrial Development Zone, Tianjin, China
8TEL: [phone]
FAX: [phone]
Email: [email protected]
MENU button will exit from menu.
* Display will automatically quit menu when there is no operation for 30 seconds.
* For safety reasons, display can’t get into MENU when riding.
* Display will quit MENU when start riding.
The order of parameters are as follow.
8.1 System : Press Up / Down button to switch between Metric / Imperial.
8.2 Brightness : Press Up / Down button to change the brightness of the backlight, ׀is
darkness，׀׀׀׀׀ is brightness. The daytime mode defaults to ׀׀׀׀׀, and the night mode
defaults to ׀׀.
8.3 Auto off : Press UP/DOWN button to change the auto power off time, from 1 to 9 or
OFF, the number represent time (minutes) to shutdown, default value is 5 minutes.
8.4 Scenes: Press UP/DOWN button to change the scenes, Navigation / M-power.
MENU
|||||
System
Display Setting
EXIT
Basic Setting
Metric
Brightness
Auto off OFF
Scenes Navigation
Battery Ind Voltage
Clock
>
MENU
|||||
System
Display Setting
EXIT
Basic Setting
Metric
Brightness
Auto off 9min
Scenes Navigation
Battery Ind Voltage
Clock
>
MENU
|||||
System
Display Setting
EXIT
Basic Setting
Metric
Brightness
Auto off 1min
Scenes Navigation
Battery Ind Voltage
Clock
>
MENU
|||||
System
Display Setting
EXIT
Basic Setting
Metric
Brightness
Auto off OFF
Scenes Navigation
Battery Ind Voltage
Clock
>
MENU
|
System
Display Setting
EXIT
Basic Setting
Metric
Brightness
Auto off OFF
Scenes Navigation
Battery Ind Voltage
Clock
>
MENU
|||||
System
Display Setting
EXIT
Basic Setting
Metric
Brightness
Auto off OFF
Scenes Navigation
Battery Ind Voltage
Clock
>
MENU
|||||
System
Display Setting
EXIT
Basic Setting
Imperial
Brightness
Auto off OFF
Scenes Navigation
Battery Ind Voltage
Clock
>
System Brightness Auto off
Scenes
Battery Ind
Clock

Tianjin APT Science and Technology Co., Ltd.
1001, Building 5 HuaDing, No.1 HuaKe 3 Road,
Binhai hi-tech Industrial Development Zone, Tianjin, China
9TEL: [phone]
FAX: [phone]
Email: [email protected]

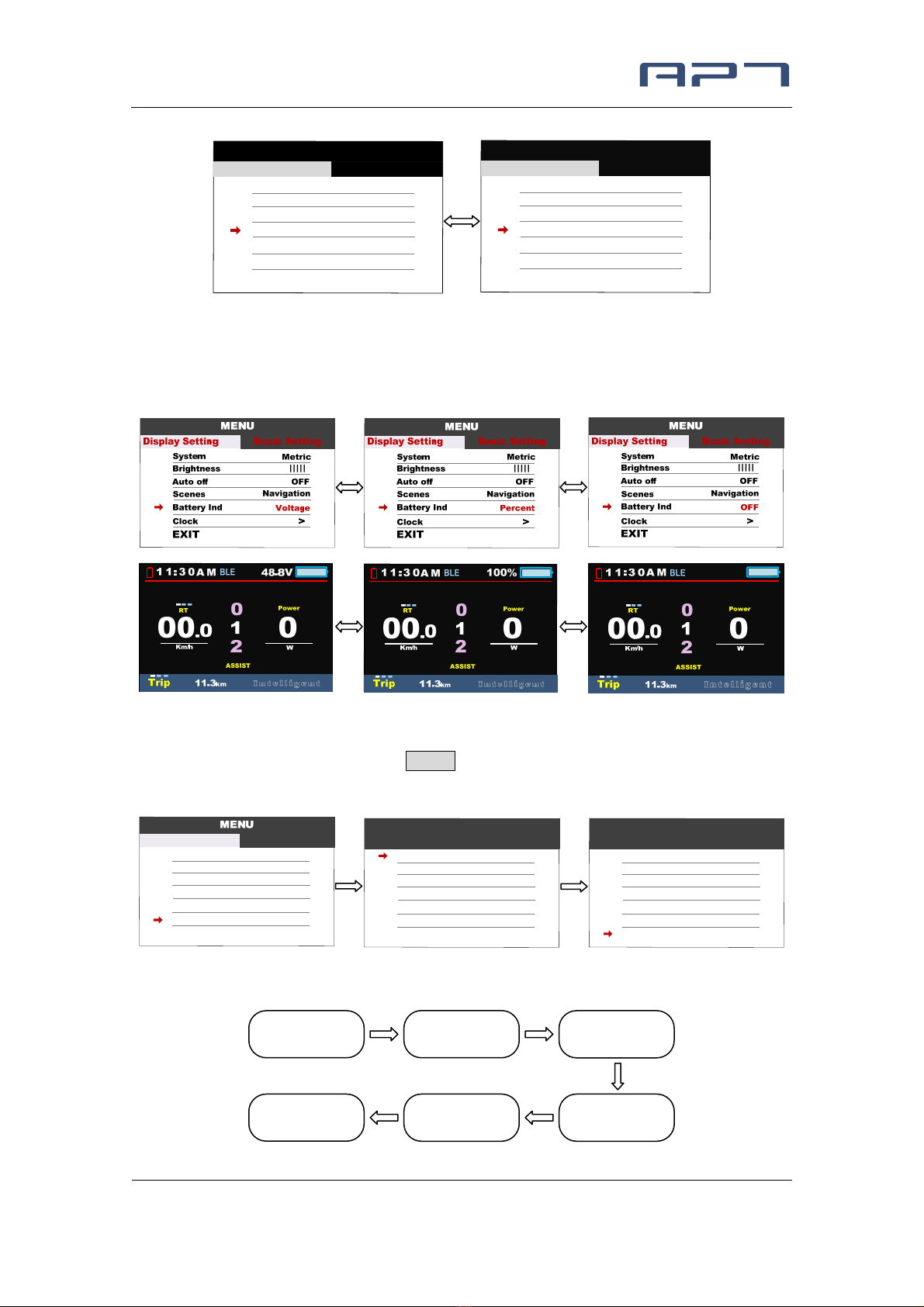

8.5 Battery Ind : Press UP/DOWN button to change the battery indicator, Voltage /
Percentage / OFF.
*Accurate percentage needs communication with battery.
Voltage Percentage OFF
8.6 Clock : Clock setting, press MENU button get into the clock setting menu, press
UP/DOWN button to set Year/Month/Day/Hour/Min/Sec.
Basic Setting
16:23PM
|||||
System
Display Setting
EXIT
Basic Setting
Metric
Brightness
Auto off OFF
Scenes Navigation
Battery Ind Voltage
Clock >
16:23PM
Display Setting
Year
BACK
Clock
2018
Month
Date
Hour
Minitue
Second
07
13
20
45
34
16:23PM
Display Setting
Year
BACK
Clock
2018
Month
Date
Hour
Minitue
Second
07
13
10
45
34
MENU
|||||
System
Display Setting
EXIT
Basic Setting
Metric
Brightness
Auto off OFF
Scenes M-power
Battery Ind Voltage
Clock
>
MENU
|||||
System
Display Setting
EXIT
Basic Setting
Metric
Brightness
Auto off OFF
Scenes Navigation
Battery Ind Voltage
Clock
>
Wheel
Advance setting
Battery
Factory setting
Information
Start password

Tianjin APT Science and Technology Co., Ltd.
1001, Building 5 HuaDing, No.1 HuaKe 3 Road,
Binhai hi-tech Industrial Development Zone, Tianjin, China
10 TEL: [phone]
FAX: [phone]
Email: [email protected]

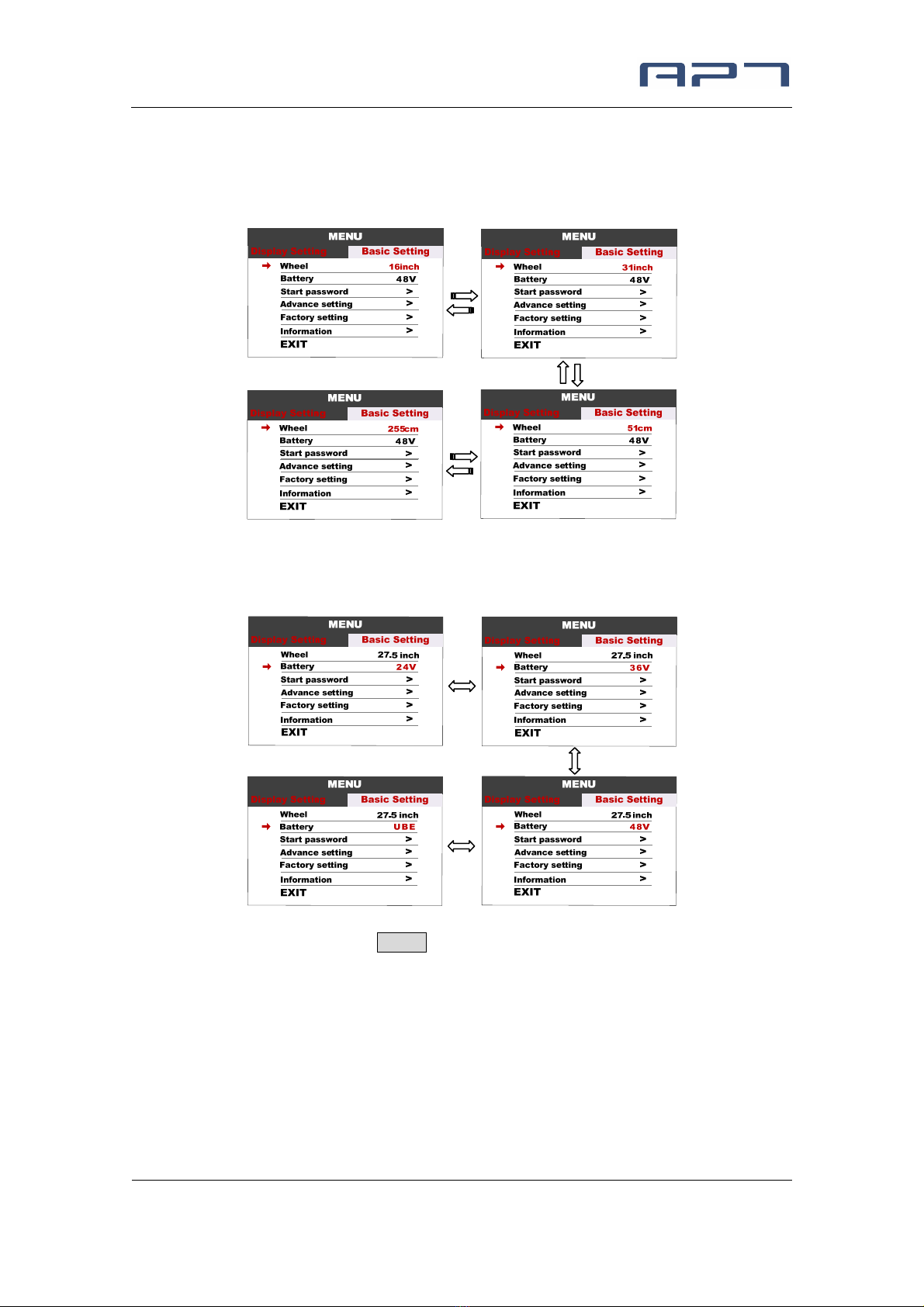

8.7 Wheel : Press UP/DOWN can change the wheel setting, optional wheel diameter is
16/18/20/22/24/26/27/27.5/28/29/30/31 inch, 51cm~255cm represent wheel
circumference (this needs controller support).
8.8 Battery : Press UP/DOWN will change battery voltage setting, optional value is
24V/36V/48V/UBE，UBE means user define value.

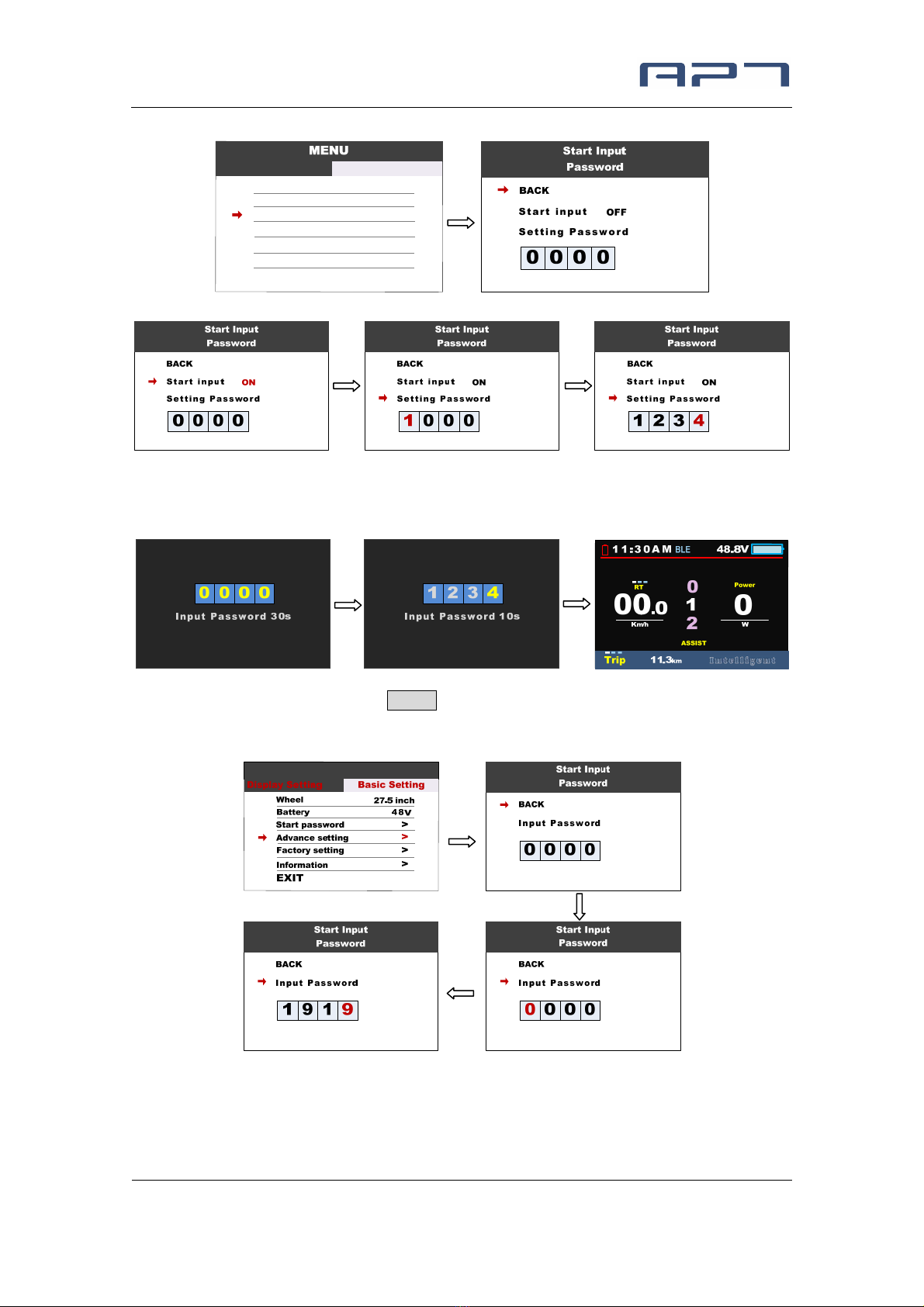

8.9 Start password : Press MENU button get into the password setting menu. If you
had set Start input ON, you must input right password before power on, password is
accorded to your setting.
