APV W+10/8 User manual

FORM NO.: L453147GB REVISION: 06/2013
CENTRIFUGAL PUMP
OPERATING MANUAL
W+
READ AND UNDERSTAND THIS MANUAL PRIOR TO OPERATING OR SERVICING THIS PRODUCT.

GB
Form no.: L453147GB– revision 06/2013
Table of contents Page
For spare parts, see separate spare parts list.
1. General description 2
1.1 Intended use 2
2. Sectional drawing 3
3. Warnings 4
4. Introduction 6
4.1 The W+ range 6
4.2 The W+ pump, standard and auxiliary equipment 6
4.3 Identicationofpumpmodels 6
4.4 Identicationofmotormodels 6
4.5 Handling and transport 7
4.6 Weights 7
5. Installation of pump 8
5.1 Positioning 8
5.2 Lining up the pipe system 8
5.3 Power supply 8
5.4 Liquidsupplyforushedshaftseal 8
5.5 Connectingsteamandsteamcondensateforasepticuse 8
6. Start-up and operation 9
6.1 Checkingthepumpforforeignmaterial 9
6.2 Checkingthepump 10
6.3 Starting the pump 10
6.4 Flushing liquid 10
7. Service and maintenance 11
7.1 Checkingtheshaftseal 11
7.2 Replacingtheshaftseal 11
7.3 Replacingthemotor 13
7.4 Recommendedinventoryofspareparts 14
8. Technical data 15
8.1 Soundpressureandsoundeffectlevel 15
8.2 MaximumpermissibleoutletpressureforW+pumps 16
8.3 Tightening torques 16
8.4 Cleaningrecommendation 16
1
APV

GB
Form no.: L453147GB– revision 06/2013
1. General description
Thisoperatingmanualshouldbereadcarefullybythecompetent
operatingandmaintenancepersonnel.
Itmustbepointedoutthatwewillnotacceptanyliabilityfordamage
orfaultsresultingfromfailingtocomplywiththisoperatingmanual.
Descriptionsanddatagivenhereinaresubjecttotechnicalchanges.
1.1 Intended use
TheW+centrifugalpumpisexclusivelyintendedforpumping
liquids,especiallyinfoodandbeverageinstallations.
Refrainfromusingthepumpinamannerwhichexceedsthescope
andspecicationsstatedbelow.
Anyuseexceedingthemarginsandspecicationssetforthis
consideredtobenotintended.
Themanufacturerisnotliableforanydamageresultingfromsuch
activities.
Theuserwillbearthefullrisk.
Caution! Improperuseofthepumpleadsto:
- damage
-leakage
-destruction
-potentialfailuresintheproductionprocess
2
APV

GB
Form no.: L453147GB– revision 06/2013

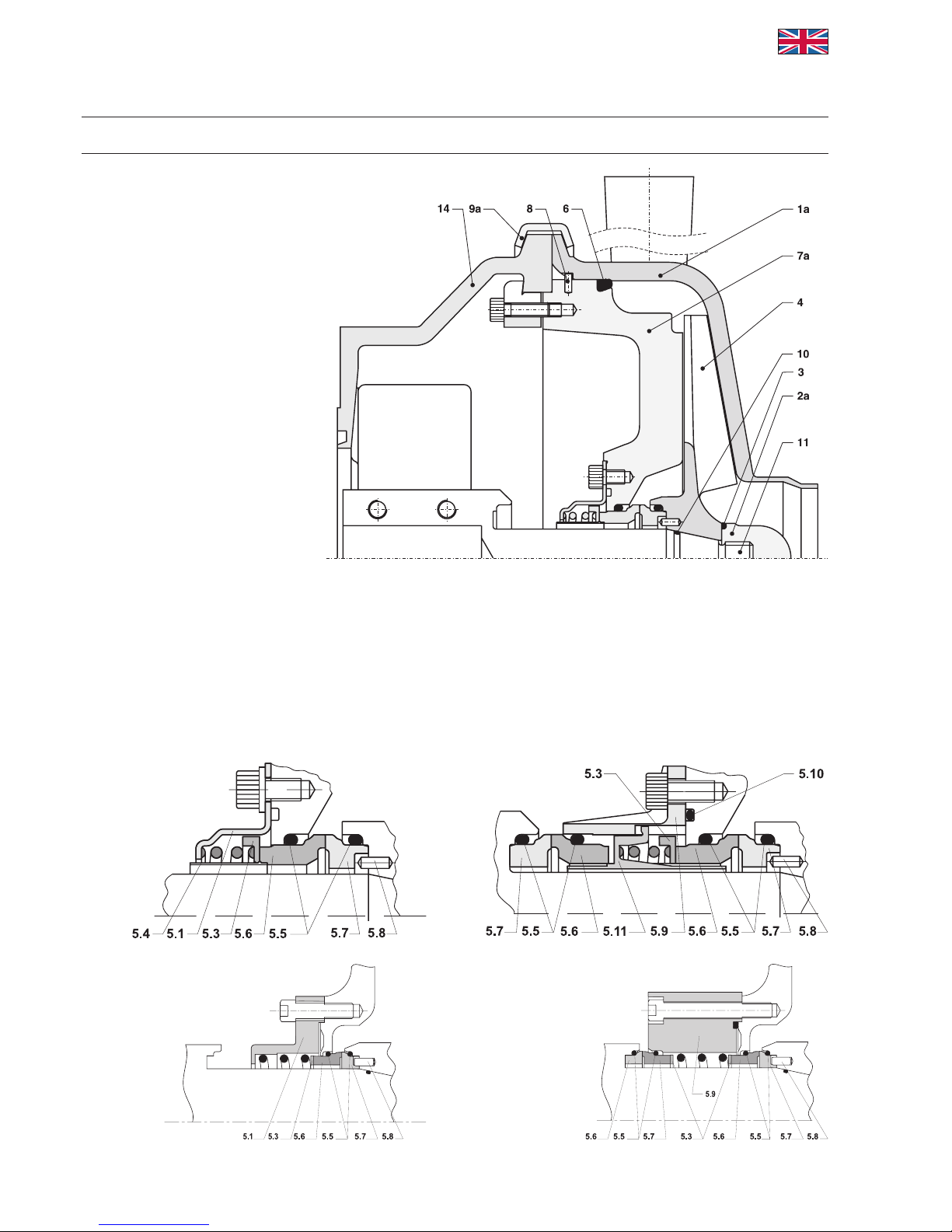

2. Sectional drawing
1a Pump housing
2a Cap nut
3 O-ring
4 Impeller
6 O-ring
7a Backplate
8Locatingpin
9a Clamp ring
10 O-ring
11 Shaft
14 Extensionframe
5.1 Fasteningkitforsingle
mech.seal
5.3 Pressure ring
5.4 Drain pipe
5.5 O-ring
5.6 Stationarysealface
5.7 Rotarysealface
5.8 Pin
5.9 Fasteningkitfordouble
mech.seal
5.10 O-ring
5.11 Pressure ring
Section1:SinglemechanicalshaftsealforshaftsofØ25andØ35
Section2:DoublemechanicalshaftsealforshaftsofØ25andØ35
Section3:SinglemechanicalshaftsealforshaftsofØ55
Section4:DoublemechanicalshaftsealforshaftsofØ55
Section 1
Section 3
Section 2
Section 4
3
APV

GB
Form no.: L453147GB– revision 06/2013
3. Warnings
1. Readthroughtheinstructionsbeforeinstallingthepumpand
startingitup.Ifindoubt,contactyourlocalSPXFlowTechnology
representative.
2. Checkthatthespecicationsofthemotorandmotorcontrolunitare
correct.Thisappliesinparticulartoapplicationswhichcarryariskof
explosion.
3. Observethatapumpmaybeunstableandmaytilttotheforeontoits
inlet port when having a relatively small motor and being assembled
onbracketsinsteadofbeingequippedwithaframewithadjustable
feet.Becarefulduringtheinstallationofsuchapump.(Forthis
reason, the W+50/600 pump is equipped with an anti-tilting unit.)
4. Donotstartthepumpbeforeallpipeconnectionshavebeentted
carefullyandtightened.Specialprecautionsmustbetakenwhen
thepumpisusedtopumphotand/orhazardousliquids.Insuch
casesfollowthelocalregulationsforpersonalsafetywhenworking
withtheseproducts.
5. Donotstartthepumpbeforethemotorshroudorshaftguardhasbeen
securelytted.
6. Thepumpcontainsrotatingparts.Neverputyourhands,ngersor
objectsintoapumpwhileitisinoperation.
7. Nevertouchtheshroudduringoperation,asitcanbecomeveryhot.
8. Nevertouchthepumpbodyduringoperationifthepumpisbeingused
forhotmedia,asthereisariskofbeingburnt.
9. Ifthepumpisoperatingwithliquidmediabuthasnocirculation,the
liquidwillheatupandmayturnintovapour,whichcouldcausean
explosion.
10. Alwaysremoveallassemblyandauxiliarytoolsfromthepumpbefore
starting it up.
11. Neverhosedownorcleantheelectricmotordirectlywithwater
orcleaninguid.
12. Neverliftthepumpattheshroud,asitisnotdesignedtocarrythe
weightofthemotor.Removetheshroudbeforeliftingthepump.
Alwaysusesecurelyttedliftingstrapswhenliftingwithacrane
orsimilarliftinggear.
13. Neverdismantlethepumpbeforethemotorhasbeendisconnected
fromthepowersupply.Removethefusesanddisconnectthecable
fromthemotorterminalbox.
14. Theinstallationofallelectricalpartsmustbecarriedoutbyqualied
personnel.
4
APV

GB
Form no.: L453147GB– revision 06/2013
3. Warnings
15. Neverdismantlethepumpuntilthepipesystemhasbeen
drained.Rememberthatliquidwillalwayscollectinthepump
body.Ifthepumpistobeusedforhotand/orhazardousliquids,
specialprecautionsmustbetaken.Insuchcasesfollowthelocal
regulationsforpersonalsafetywhenworkingwiththeseproducts.
16. Thefollowingvaluesspeciedforthepermissiblepressure
mustnotbeexceeded:
Max. 18 bar W+10/8, W+22/20, W+30/80, W+35/55, W+35/35,
W+110/130
Max. 14 bar W+25/210, W+30/120,W+50/600, W+50/8,
W+55/35, W+55/60, W+60/110, W+65/350,
W+70/40, W+80/80
Thea.m.valuesarealsovalidforthecorrespondingmodelsinthe
Wa+ and Wi+ ranges. It is important to remember that the maximum
outletpressurevaluesapplywhenwaterisatatemperatureof20°C.
5
APV

SPX Flow Technology
Hermana Frankego 9, 85-862 Bydgoszcz POLAND
XXXXXX
W+22/20 125
3412032
GB
Form no.: L453147GB– revision 06/2013
4. Introduction
4.1 The W+ range
ThismanualcoversthestandardversionsoftheW+pumpaswell
astheasepticversions:Wa+andpumpswithaninducer(Wi+).
Checkthepump'snameplatetodeterminewhetheryouhave
oneofthesemodels.TheWHP+andW+140/50aredescribed
inaseparatemanualwhichissuppliedwiththepump.TheWK+
(pedestalpumpversion)isdescribedinasupplementarymanual.
4.2 The W+ pump, standard and auxiliary equipment
Standard options:
- Withorwithoutmotorcover.
- Withframeandfeetorrmsupports.
- Withshaftsealincarbon/SiCorSiC/SiC.
- Witho-ringsinEPDMorFPM(Viton).
- Withsinglemechanicalordoublemechanicalseal,ttedforwater-
ushedorsteam-ushedshaftseal(Wa+)
Additional options:
- Heating/coolingjacket.
- Casing drain.
- Soundabsorbingmotorcover.
- Pumpcart.
- Inducer(Wi+).
- DoubleO-ringsealforpumphousing,ttedforsterileushing
purposes.
- Heavydutyclampringwhichincreasesthepump'smaximum
permissibleoutletpressureto25bar(availableforW+30/120,
W+55/35,W+55/60,W+60/110,W+70/40)orto20bar(availablefor
W+80/80).
- W+pumpscanbesuppliedwithallstandardweldedferrules,e.g.
unions,clamprings,anges.
4.3 Identification of pump models
AnameplateasshowninFig.1isttedontheextensionframe.
Example
TypeW+22/20: Speciesthepumpmodel(W+22/20).
125: Indicatesthediameteroftheimpeller.
Serialno.: IndicatesthepumpIDnumber.
Orderno.: SpeciestheSPXFTordernumber.
Year: Showstheyearofmanufacture.
Theemptyeldcanbeusedtoidentifythepumpwithinanoverall
system.
4.4 Identification of motor models
Theplateindicatesthemotortypeandheightofconstruction
(item2),motorcapacity(kW;item1),speed,etc.
Fig. 1
Fig. 2
6
APV

GB
Form no.: L453147GB– revision 06/2013
4. Introduction
4.5 Handling and Transport
Actwithcautionwhenliftingthepump.Allpartswithaweightof
morethan20kgmustbehandledwithasuitablehoistingdevice.
Useacrane,forklifttruckorothersuitableliftinggear,andalways
use2hoistingbeltsinconjunctionwiththis.(Fig.3).
Placethehoistingbeltsaroundtherearpartofthemotorand
aroundtheextensionframe.Takecarethatthebeltsareevenly
loadedwhenthepumpislifted.
Caution! Alwaysuse2hoistingbeltsandneverfastenat
thefrontofthepumpbody.
4.6 Weights
Fig. 3
Pump type
Motor
80 90 100 112 132 160 180 200 225 250 280
0.75 kW
1.1 kW
1.5 kW
2.2 kW 3.0 kW 4.0 kW 5.5 kW 7.5 kW
11.0 kW
15.0 kW
18.5 kW
22.0 kW 30.0 kW
37.0 kW 45.0 kW 55.0 kW 75.0 kW 90.0 kW
W+10/8 20
20 --- --- --- --- --- --- --- --- --- ---
W+22/20 28
29
33
36 41 46 57 62 --- --- --- --- --- ---
W+30/80 --- 53
56 61 66 77 82
117
127
138
--- --- --- --- ---
W+25/210* --- --- --- --- ---
169
184
194
212 282
295 349 --- ---
W+35/35 --- 36
39 44 49 60 65
100
109
117
--- --- --- --- ---
W+35/55 --- 51
51 59 64 75 80
114
123
133
--- --- --- --- ---
W+30/120 --- 59
62 67 71 83 88
125
135
145
170 236
249 --- --- ---
W+50/600 --- --- --- --- --- --- 295 360
381 426 485 570 605
W+50/8 --- 45
48 53 58 69 73 --- --- --- --- --- ---
W+55/35 --- 54
59 66 71 82 87
127
136
147
--- --- --- --- ---
W+55/60 --- 61
64 71 76 88 93
127
136
146
171 226
251 --- --- ---
W+60/110 --- 68
71 76 82 94 99
132
141
151
176 225
250 295 --- ---
W+65/350 --- --- --- --- 132
137
171
180
190
220 295
330 363 420 505 540
W+70/40 --- 75
78 83 87 99 104
138
148
158
183 238
263 --- --- ---
W+80/80 --- 83
83 89 95 107 112
146
155
165
190 265
280 335 395 ---
W+110/130 --- --- 105 109 118
123
160
173
183
218 276
300 355 415 500 535
* 1500 rpm only
Theweightsmayvarydependingonaccessoriesandttings,and
arethereforeintendedonlyasareferencevalueforhandling,
transportandpackagingactivities.
7
APV

GB
Form no.: L453147GB– revision 06/2013
5. Installation of pump
5.1 Positioning
Thefollowingmustbeobserved:
Thepumpmustbepositionedsothatthesuctionpipeisasshortas
possibleandthereisaslopinggradienttowardsthesuctionportof
the pump.
Keepthenumberofvalves,bendsandtee-piecesonthesuction
side to an absolute minimum.
Theremustbesufcientspacearoundthepumpforpipingand
accessformaintenance.
5.2 Lining up the pipe system
Ensure that the pipe system is adequately underpinned with pipe
supportssothatthepumpbodyisnotsubjecttostrainfromorthe
weightofthepipesystem.
Caution! Duringthesuctionprocess,thepumpmaytend
tovibrate.Apipesupportshouldbeplacedclose
tothepumpsuctiontopreventpipeworkvibration
creatingexcessivenoise.
5.3 Power supply
Themotormustbeconnectedviaacontrolcabinettothenetworkin
compliancewiththelocalregulations.Moreover,themotormustbe
connectedinaccordancewiththeinstructionsindicatedintheinner
sideoftheconnectingboxlidofthemotor.
Themotorshouldbeconnectedinsuchawaythatthemotorand
thereforetheimpellerareanti-clockwisewhenviewedfromthefront
inthedirectionofthesuctionportofthepumpbody.(Fig.4).
5.4 Liquid supply for flushed shaft seal
PumpswithaushedshaftsealarettedwithtwoPTFEhose
connectorsonthesealingange.Thehoseconnectorsare1/8inch
andt6.0mmhoses.Therequiredowquantityamountsto15–30l/h.
The maximum permissible pressure is 7 bar.
Thehoseconnectionshouldalwaysbepositionedverticallywith
theuidinletbelowandtheoutletabove(Fig.5).
Fluidconsumptioncanbelimitedbyinstallingasolenoidvalveon
thesupplyside.Theopen/closefunctionofthesolenoidvalvecan
becontrolledbythepump'sstart/stopsequence.
Donotusesteamorsteamcondensateontheconnectionfor
ushingliquids.Ifyouwishtousesteamasasealant,aspecial
asepticpipeconnectormustbeused.
Forconnectorssee5.5.
5.5 Connecting steam and steam condensate for aseptic use
Whenstaticdoublesealsareused,theconnectionforsteamor
steamcondensateatthepumpbodyisprovidedwithttingsfor
8 mm stainless steel pipes.
Steamofupto150°Cand5barcanbeused.
Fig. 4
Fig. 5
8
APV

GB
Form no.: L453147GB– revision 06/2013
6. Start-up and operation
Beforestartingthepump,dismantleandcleanthesuctionpipe.
Anyforeignmaterialinthepumpshouldberemoved.
6.1 Checking the pump for foreign material
Removethepumpbodyasdescribedbelow.Thesectionaldrawing
(page3)istobeusedforreferencepurposes.
1. Disconnectthepowersupply.
2. Removethepumpbody(items1a,1b)byunscrewingtheclampring
(item9a)orbodyscrews,andcarefullyextractfromthebody.
3. Turntheimpeller(item4)toensurethatthereisnoforeignmaterial
behind it.
4. Removeanyforeignmaterialfrominsidethepump.
5. Whenthepumpbodyiscleanandfreeofforeignmaterial,reassemble
the pump.
Mountthepumpbodyasdescribedbelow:
6. Checkthatthelocatingpin(item8),whichisinstalledinthetopofthe
backplate,tswiththedetentinthepumpbodyandcarefully(to
avoiddamagetotheO-ring)pressthepumpbody(item1a,1b)
insoitcoverstheO-ring(item6).Thenfastenwiththeclampring
(item9a)orbodyscrewsandapplythecorrecttighteningtorque.
M10: max.35Nm(25ft-lb)
7. Checkthatthepipeunionshavebeentightenedproperlyandthatthe
pipesupportshavebeentted.
Tofacilitatethettingofthefrontcoverandpumphousing,we
recommendthattheO-ringislubricatedwithathinlayeroffood-
friendly,acid-freegreaseorsoap.
9
APV

GB
Form no.: L453147GB– revision 06/2013
6. Start-up and operation
6.2 Checking the pump
Tocheckthatthepumpisworkingsatisfactorily,pourwaterinto
thepumpandstartitmomentarily.Checkthedirectionofrotation.
Fig.6.Listenforanyunusualnoises.
Inpumpswithwater-ushedorsteam-ushedshaftseals,theseal
chambermustbelledwithwater/steam.
Caution! Neverallowthepumptorunwithoutliquid,asthis
willruintheshaftseal.
6.3 Starting the pump
Checkthefollowingbeforestartingthepump:
- Thattheshaftguardhasbeenttedproperly.
- Thatthereisunobstructedaccessforliquidandthatthepumpis
primed.
- Thatthevalveonthedischargesideisclosed.
Thevalveonthedischargesideisclosedduringstart-uptoprevent
themotorfromoverloading,butshouldbeopenedagainassoonas
the pump has been started.
Note! Thepumpshouldnotbeleftrunningtoolongwithoutpumping
(typically15minutesifthepumpedliquidisnot
hot),becauseitwillgetwarmandthepriming
liquid will evaporate.
6.4 Flushing liquid
Inpumpswithaushedshaftseal,checkthatthesupplyinletfor
theushingmediumisopenandthattheowofthemediumis
adequate(approx.15-30litres/hour).
Fig. 6
10
APV

GB
Form no.: L453147GB– revision 06/2013
7. Service and maintenance
7.1 Checking the shaft seal
Checkthepump'sshaftsealforleaksonaregularbasis.Iftheshaft
sealisleaking,replaceitoritsrelevantpartsasdescribedbelow.
7.2 Replacing the shaft seal
Thesectionaldrawing(page3)showsthepositionandconstruction
oftheshaftseal(applyingbothtoordinarysealsandsealswith
liquid/steamushing).
Toreplacetheshaftsealitisnecessarytodismantlethepump.
Followthestepsdescribedbelowandrefertothesectional
drawing(page3).
1. Disconnectthepowersupplyinthemotorisolatorbyremoving
thefusesanddisconnectingthecables.
2. Turnoffthesteamandushingliquidsupply.
3. Closethepumpsuctionanddischargepointanddrainthepump
housing.Ifthepumpisusedforhotand/oraggressiveliquids,
specialprecautionsmustbetaken.Insuchcases,observethe
localregulationsforpersonalprotectionwhenworkingwiththese
products.
4. Opentheclampring(item9a)orthehousingscrewsoncetheinlet
and outlet pipes have been properly isolated.
Dismantlethepumphousing(item1a,1b)andremovetheimpeller
(item4).
5. Takethestationarysealface(item5.6)installedinthebackplate
(item7a,7b)outwithyourngers.
6. Removetheo-ring(item5.5)fromthestationarysealface.
7. Useyourngerstoremovetherotarysealface(item5.7)ttedin
theimpeller(item4).
8. Removetheo-ring(item5.5)fromtherotarysealface.
9. Cleanthechambersofthestationaryandrotarysealfacewithair
or water.
9a Therearstationarysealface(item5.6)ismountedonthepressure
ring*(item5.11).Therotarysealface(item5.7)ismountedonthe
shaft(item11).Theseareremovedinthesamewayasthefront
sealcomponents.
*TheW+50/600pumphas2identicalpressurerings.
Dismantling the pump
Dismantling the shaft seal
11
APV

GB
Form no.: L453147GB– revision 06/2013
7. Service and maintenance
10. ChecktheO-ringsforsignsofstiffness,lackofelasticity,brittleness
and/orchemicalcorrosion.Replacewornordamagedparts.
11. Checkthestationaryring(item5.6)androtaryring(item5.7)for
signsofwear.Wearsurfacesmustbecompletelyfreeofcracks.If
thisisnotthecase,boththestationaryringandtherotaryringmust
bereplaced.
11aInthecaseofwater-ushedshaftsealsandasepticshaftseals,
checktherearsealrings(item5.6,5.7)forwear,andreplaceif
necessary.
12. Fitthenewo-ringsonthestationarysealfaceandrotarysealface.
Caution! Remember to moisten these with water.
13. Fittherotarysealfaceontheimpellerwithoutusingtools.
Note! Thenotchintherotarysealfacemustbeinstalled
sothatittswiththedrivingpin(item5.8)inthe
impeller hub.
13aInthecaseofdoublemechanicalshaftseals,alsotarotaryseal
face(item5.7)witho-ring(item5.5)inthelocationontheshaft–
again without using tools.
14. Fitthestationarysealfaceinthebackplatewithoutusingtools.
Note! Installthestationarysealfacesothatittswith
thepininthebackplate.Checkthatthestationary
sealfaceispositionedsothatitslidesbackand
fortheasilywithinthebackplate.
14aWhenttingnewdoublemechanicalshaftseals,removethedrain
pipe(item5.4)beforettingtheminthepressurering(item5.9)or
backplate(item7a,7b).
* The W+50/600 pump is not equipped with a drain pipe.
15. Aftertting,cleanthesurfacessubjecttowear.
15aFordoublemechanicalshaftseals,re-mountthebackplate
(item7a,7b).
16. Fittheimpeller(item4).Remembertousethepropertightening
torque.
M10: 45Nm(33ft-lb)
M14: 70Nm(52ft-lb)
M20: 200Nm(148ft-lb)
17. Checkthatthelocatingpin(item8)inthetopofthebackplatets
with the detent in the pump body. To prevent damage to the O-ring,
carefullypressthepumpbody(item1a,1b)insothatitcoversthe
O-ring(item6).Thenfastentheclampring(item9).
Remember to use the proper tightening torque:
M10: max.35Nm(25ft-lb)
Checking parts for wear
Fitting
12
APV

GB
Form no.: L453147GB– revision 06/2013
7. Service and maintenance
7.3 Replacing the motor
ThestandardmotoroftheW+pumphasalockedfrontbearing.
Ifthemotorisreplaced,thenewmotormustalsohavealocked
frontbearing.Themotorbearingisenclosedandpermanently
lubricated.
A"smallange"(B34)forframesizesanda"largeange"(B35)in
caseoflargeconstructions.
Whenreplacingthemotor,followtheinstructionsbelow.For
thereplacementofbearings,seethemotorsupplier'sservice
instructions.
1. Switchoffthepowersupply,andthendisconnectthepumpand
motorfromthesystem.
2. Remove the pump body. See 7.2, paragraph 1-4.
3. Dismantle the impeller.
4. Removethemotorshroudand,ifpossible,placethepumpvertically
onthemotor'sfancover.Fig.7.
5. Releasethefourmotorangescrewsandremovethem(Fig.7).
6. Liftthebackplate(item7)andextensionframe(whicharestill
boltedtogether)offtheshaft.SeeFig.10.
Removethespacerange(item17)(wheretted).
7. SeeFig.8.Loosenthescrewsatthebaseoftheshaft,removethe
shaftandreplacethemotor.
8. SeeFig.9.Beforemountingthenewpumpshaft,removeanydirt
andgreasefromthemotorshaftandthebase'sinternalclamping
surfaces.Looselymountthepumpshaft.Positionthebalancehole
overthekeyway.
9. Fitthebackplateandextensionframeovertheshaft.
10. Tighten the bolts.
11. Standthepumpbackonitslegs/brackets.
12. Fittheimpellerandsecureitwiththecapnut/inducer.
Remember to use the proper tightening torque:
M10: 45Nm(33ft-lb)
M14: 70Nm(52ft-lb)
M20: 200Nm(148ft-lb)
Fig. 7
Fig. 8
Fig. 9
Rearange
Screw
Extensionframe
Motor
Shaft
Screw
Motor
Keyway
Motorshaft
Balancehole
Pumpshaft
13
APV

GB
Form no.: L453147GB– revision 06/2013
7. Service and maintenance
13. Placetheplasticstaragainsttheimpeller.Fig.10.
14. Fitthepump/screwhousingandfastenwiththeclampring.
15. Pushtheshaftforwarduntiltheimpelleristouchingtheplasticstar.
See Fig. 11.
16. Tightentheshaftscrews(item11).
Remember to use the proper tightening torque:
M8: 30Nm(22ft-lb)
M10: 55Nm(41ft-lb)
M12: 80Nm(59ft-lb)
M16: 180Nm(132ft-lb)
17. Remove the star by pulling it out through the inlet.
7.4 Recommended inventory of spare parts
Seal kits
ThesealkitfortheW+pumpconsistsofthewearpartsforthe
pumpasspeciedinthesparepartslist.
Numberofpumpsinservice
0–5 5–20 >20
Sealkits number number kits/10
pumps
Normaloperation 231
Specialneeds 362
Service kits
Theservicekitconsistsofseveralmainpumpcomponentswhich
arenotconsideredwearpartsbutmayneverthelessneedtobe
replaced:theshaft,impeller,capnutandxingkit.
Numberofpumpsinservice
0–5 5–20 >20
Servicekits number number kits/10
pumps
Normaloperation 0 1 1
Specialneeds 1 2 1
Fig. 10
Impeller
Plasticstar
Pump body
Fig. 11
14
APV

GB
Form no.: L453147GB– revision 06/2013
8. Technical data
8.1 Sound pressure and sound effect level
MeasurementshavebeencarriedoutinaccordancewithISO3743,
Grade2andISO3746,Grade3.Tolerance:±3dB.
LpAindBreferstothesoundpressurelevelatadistanceofone
metrefromthesurfaceofthepumpataheightof1.6maboveoor
level(cf.ECDirective(89/392/EEC).
LwAindicatesthesoundpowerlevel.
OperatingconditionsA,BandCaredenedasfollows:
a) Nominalowandmax.permissibleoperatingpressure
b) Nominalowand60%operatingpressure
c) 60%owandmax.permissibleoperatingpressure
Thenominalowandmax.permissibleoperatingpressureinthe
caseoftheW+55/60,forexample,are60m³/hratanoperating
pressureof5.5bar,andsoon.
ThisinformationonlyappliesifthemotorusedisanABBaluminium
motorandthesizeofthemotormatchesthepowerrequirementof
the pump.
Thenoiselevelmayincreaseconsiderablyifreducers(reduction/
expansionttings)aremountedontheinlet/outlet.
Thevaluesshownapplywhenthepumpsoperateat2900rpmand
thereisashroudoverthemotor.Ifthepumpsoperateat1450rpm,
thevaluesarereducedbyapprox.20dB.Thevaluesforthe
W+25/210 apply at 1450 rpm.
Operating
conditions
LpA LwA
ABCABC
W+10/8 65 62 60 79 77 74
W+22/20 67 65 61 81 79 75
W+30/80 75 73 68 89 87 82
W+25/210 69 68 64 83 82 78
W+35/35 69 67 64 83 81 78
W+35/55 72 70 67 86 84 81
W+30/120 76 74 72 90 88 86
W+50/8 69 68 64 83 82 78
W+50/600 75 75 73 89 89 87
W+55/35 69 68 68 83 82 82
W+55/60 74 70 68 88 84 82
W+60/110 76 74 72 87 85 84
W+65/350 86 88 82 100 102 98
W+70/40 75 69 69 89 83 83
W+80/80 75 73 72 89 87 86
W+110/130 79 76 76 93 90 90
Please note that the sound emitted by a pump may vary
considerably.Itdependsonthepumpdesign(size/speed/shroud/
installation)aswellasontheliquidtypeandpumpingconditions.
15
APV

GB
Form no.: L453147GB– revision 06/2013
8. Technical data
8.2 Maximum permissible outlet pressure for W+ pumps
Themaximumpumpoutletpressurespeciedbelowmustnotbe
exceeded(appliestowaterat20°C).
Max. 18 bar: W+10/8, W+22/20, W+30/80, W+35/55,
W+35/35, W+110/130
Max. 14 bar: W+25/210, W+30/120, W+50/600, W+50/8,
W+55/35, W+55/60, W+60/110, W+65/350,
W+70/40, W+80/80
TheabovevaluesalsoapplytothecorrespondingWa+andWi+
models.
8.3 Tightening torques
Requiredtorquestotightenthepumpshaftonthemotorshaft:
M8: 30Nm(22ft-lb)
M10: 55Nm(41ft-lb)
M12: 80Nm(59ft-lb)
M16: 180Nm(132ft-lb)
Caution! Ensurethatthekeygrooveinthemotorshaft
canbeseenthroughtheholeinthestubshaft.
Fig. 12.
Requiredtorquetotightenthecapnutandtheinducer:
M10: 45Nm(33ft-lb)
M14: 70Nm(52ft-lb)
M20: 200Nm(148ft-lb)
Requiredtorquetotightentheclampconnectionatthepumpbody
andbodycover:
M10: max.35Nm(25ft-lb)
8.4 Cleaning recommendation
Thepartsofthepumpswhichbecomewetasaresultofmediaare
cleanedusingthecleaningagentintheconnectedpipelines.
Cleaningagents,timesandcyclesmustbemodiedaccording
toindividualapplicationdependingonthedegreeandnatureof
contamination.
Verifythecompatibilityoftheindividuallyselectedcleaning
processesandagentswiththesealmaterialsbeingused.
Subjecttochange.
Fig. 12
16
APV

W+
CENTRIFUGAL PUMP
Original operating manual
SPX Flow Technology Poland sp. z o.o.
Hermana Frankego 9
85-862 Bydgoszcz, Poland
P: ([phone]
F: ([phone]
SPX reserves the right to incorporate design and material changes
without notice or further obligation.
Design features, materials of construction and dimensional data,
as described in this bulletin, are provided for your information only
and should not be relied upon unless confirmed in writing. Please
contact your local sales representative for product availability in
your region.
For more information please visit www.spx.com.
ISSUED 06/2013 –
COPYRIGHT © 2013 SPX Corporation
