UNIT IDENTIFICATION

2 Aqua Control, Inc. 60 Hz. Evolution Series Owner’s Manual
SAFETY INSTRUCTIONS
IMPORTANT: Reading and understanding these instructions and warranty disclaimer
are necessary prior to product installation and operation.
• Under NO circumstances should anyone enter the water with the electrical equipment plugged in.
• NEVER run the unit out of the water. It may damage the motor seals.
• NEVER lift or drag the fountain by the power or light cord.
• Suitable for FRESHWATER applications only.
• The fountain suction screen should be inspected for clogging on a monthly basis. If matted weeds,
leaves or plastic bags are present, remove them with a bristle brush. Failure to keep the suction
screen clear of blockages will cause low water flow and may cause premature motor failure. This
type of failure is NOT covered under the Aqua Control, Inc. Manufacturer’s Warranty.
• In freezing conditions, the fountain must be removed from the water body and stored in an area
above 32°F.
• Aqua Control, Inc. or its distributors are not liable for electrician’s fees incurred for troubleshooting
electrical issues.
TABLE OF CONTENTS
Assembling Your Floating Evolution 3
Control Box Installation 4
• Timer Programming
• StartUp
Accessory Installation 5
• Nozzle Installation
• Converting to a Torrent Pattern
• Light Set Installation
Evolution Parts List 6
Light Kit (optional) Parts List 7
Stationary Evolution Parts List 8
Troubleshooting Guide 9
Warranty Disclaimer 10
Parts Included
• 1/2HP Fountain (with Tornado and Torrent Spray Pattern capabilities) (1)
• Motor Cord or Quick Disconnect (1)
• Control Box (1)
• Mooring Rope (100’)
• Mooring Stakes (2)
Optional Accessories
• Lighting Kits
• Nozzle Kits

3Aqua Control, Inc. 60 Hz. Evolution Series Owner’s Manual

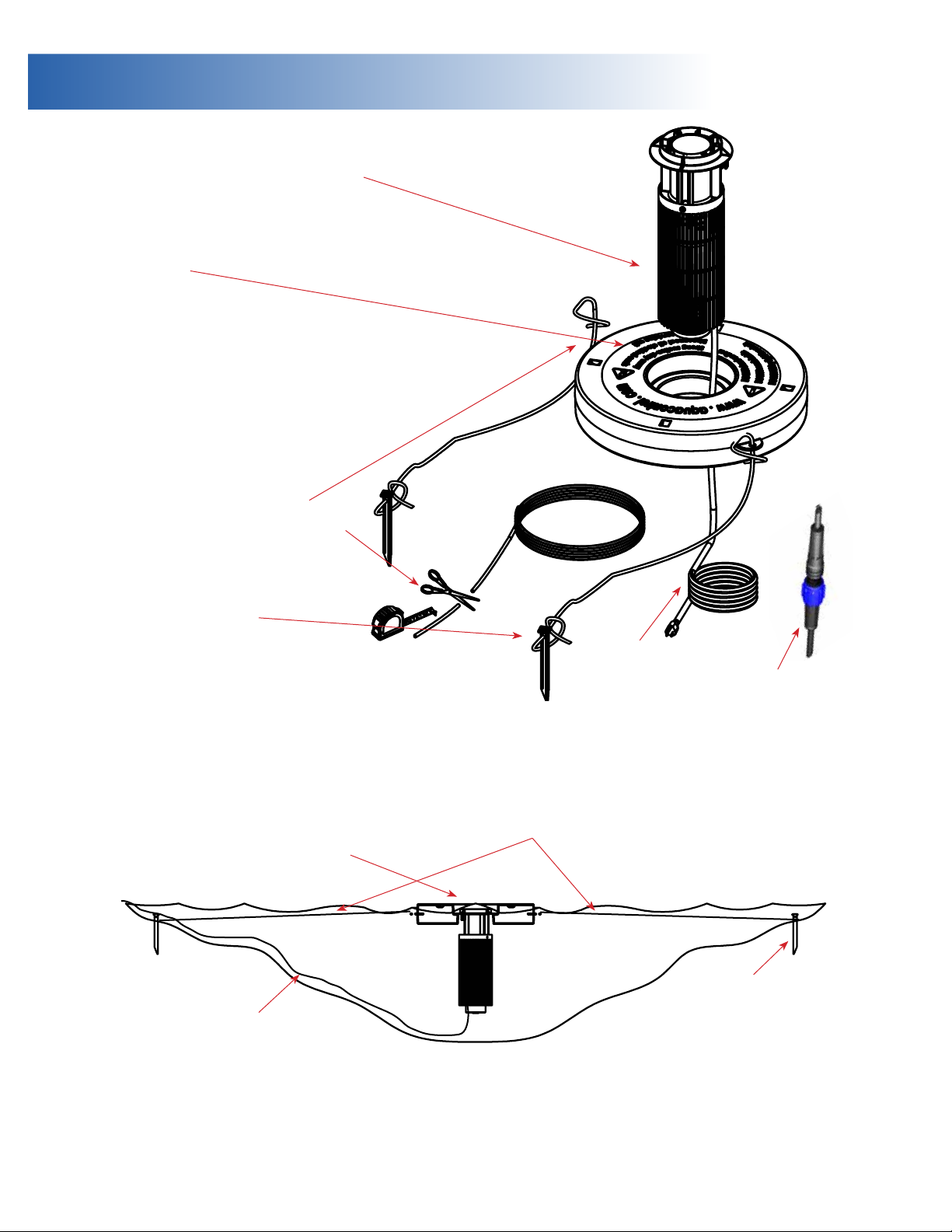

ASSEMBLING YOUR FLOATING EVOLUTION
Step #1
Place motor cord and fountain
pump thru the center of float.
Align notch on fountain pump
with slot in float.
Float should be positioned print
side up.
Step #5
Continue to ‘Control Box
Installation’ to complete startup
and installation.
Step #4
Place fountain in pond and
pull to desired location in
pond. Drive in mooring
stakes. (Note: Keep motor
and lighting cord plugs dry)
Step #3
Tie mooring (rope) lines to
mooring stakes.
If an optional nozzle or light
set were purchased see page
5 before putting unit in the
water.
Step #2
Measure and cut the
mooring rope into two
lengths. Tie to tabs on float.
OR
Motor Cord
Mooring Lines
Motor Cord
Quick Disconnect
Mooring Stake

4 Aqua Control, Inc. 60 Hz. Evolution Series Owner’s Manual

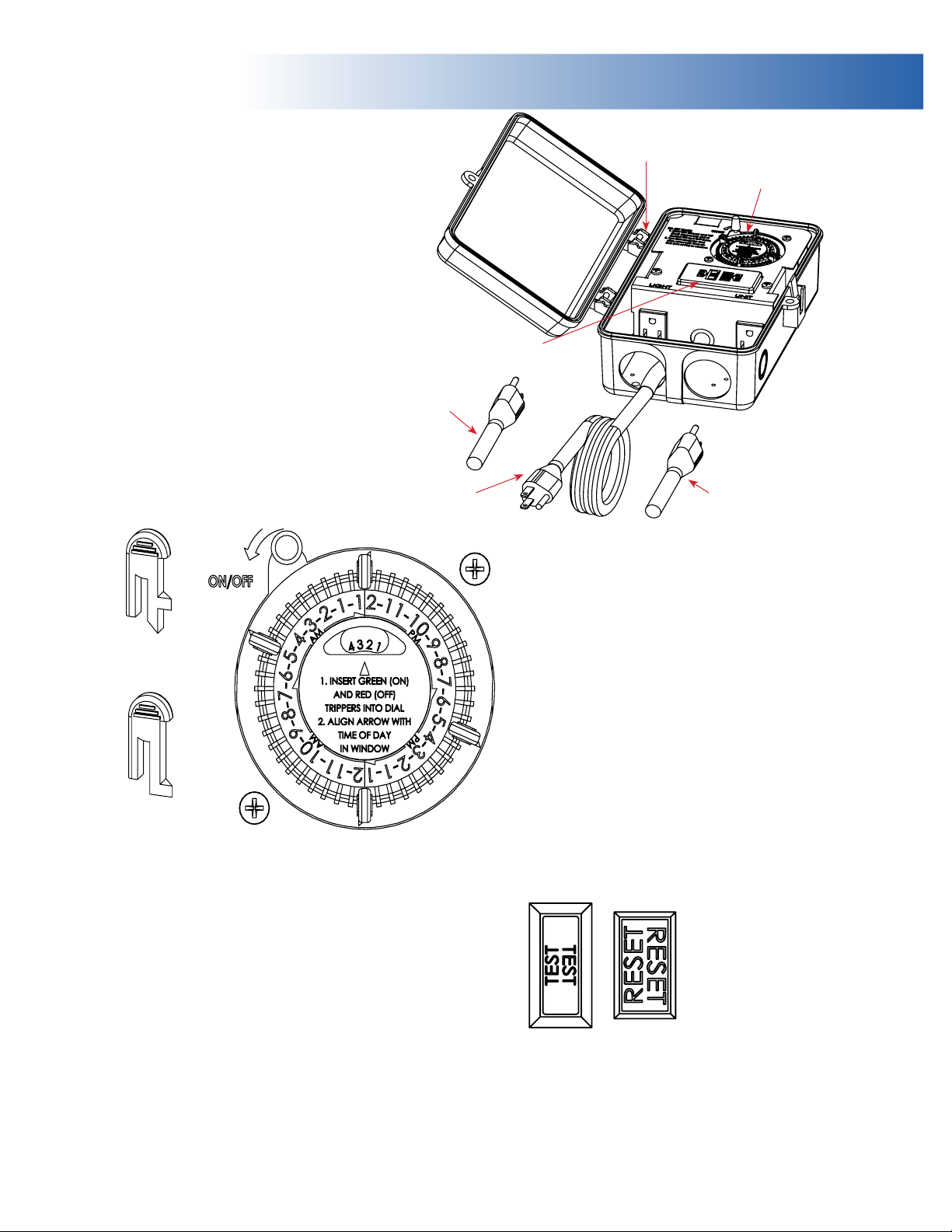

CONTROL BOX INSTALLATION
Step #1
Plug fountain motor cord
& light set cord (optional)
into the control box.
Receptacles in the control
box are labeled ‘LIGHTS’
& ‘FOUNTAIN’. Do not
reverse the plugs. The
photo cell controls the
light receptacle.
Step #2
Set ON/OFF times using
tripper pins. Insert ON
(Green) and OFF (Red)
trippers into dial at desired
times. Turn dial clockwise
and align arrow with Time-
of-Day (AM or PM) in
window.
Step #3
Plug control box cord into
standard 115V household
outlet.
Step #4
Turn on control and test
GFCI (Push ‘TEST’ button
and then Push ‘RESET’).
NOTE: Install control box in an area with natural light. Placing the control box in a
shaded area or an area that is lit at night will not allow the photo cell to properly
operate an otional light set.
Light Set Cord
Fountain Motor Cord
Control Box Cord
GFCI Reset
Timer with Pins
Photo Cell
ON
GREEN
OFF
RED

5Aqua Control, Inc. 60 Hz. Evolution Series Owner’s Manual

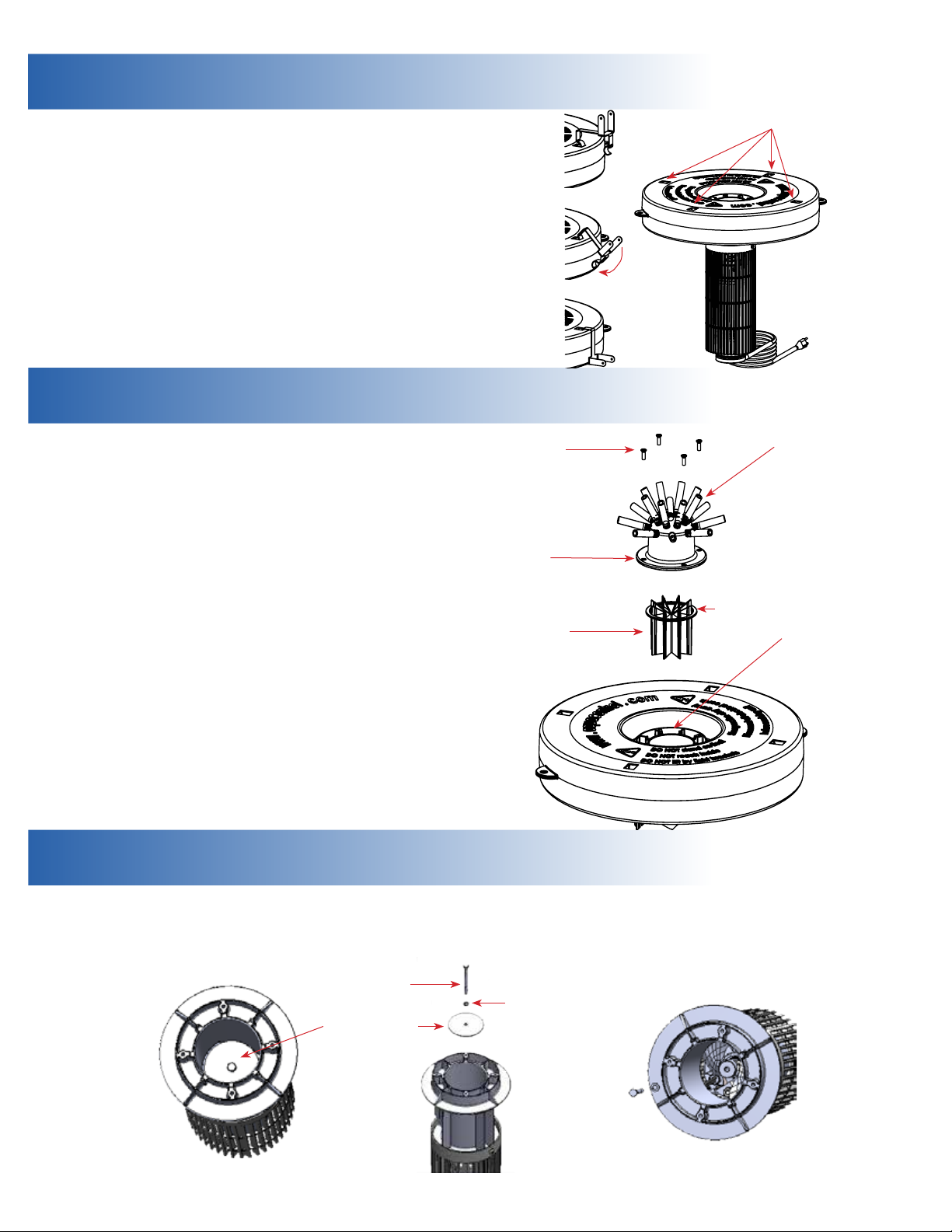

OPTIONAL NOZZLE INSTALLATION
OPTIONAL LIGHT SET INSTALLATION
Step #1
Disconnect the unit from power.
Step #2
Insert Flow Straightener in throat
with reinforcing ring at top.
Step #3
Place nozzle onto throat, aligning
screw holes in nozzle flange with
those in throat.
Step #4
Insert (4) screws through nozzle
flange, into throat & tighten.
Nozzle
Reinforcing Ring
Throat
Flow Straightener
Nozzle Flange
Pan Head Screws
Upper Bracket Slots
Step #1
Place bracket in upper bracket slot,
rotate bracket down and snap into
lower bracket slot (bottom of float).
Light fixture not shown.
Step #2
Plug light set cord into control box.
Place
Rotate
Snap
CONVERTING TO A TORRENT PATTERN
Step #1
Disconnect the unit
from power.
Step #2
Remove prop washer,
prop bolt & lock washer.
Step #3
Reinstall prop bolt & lock
washer without prop
washer & tighten.
Prop Bolt
Lock Washer
Prop Washer

6 Aqua Control, Inc. 60 Hz. Evolution Series Owner’s Manual
EVOLUTION PARTS LIST
ITEM PART DESCRIPTION QTY.
OPTIONAL NOZZLE KITS
1N EVN-0.5-ARU 1/2HP ARUM NOZZLE KIT -
EVN-0.5-CLA 1/2HP CLUSTER ARCH NOZZLE KIT -
EVN-0.5-FLE 1/2HP FLEUR DE LIS NOZZLE KIT -
EVN-0.5-MET 1/2HP METRO NOZZLE KIT -
EVN-0.5-SAR 1/2HP SPIDER & ARCH NOZZLE KIT -
EVN-0.5-TIA 1/2HP TIARA NOZZLE KIT -
EVN-0.5-G2 1/2HP GUSHER 2 NOZZLE KIT (STATIONARY ONLY) -
EVN-0.5-G4 1/2HP GUSHER 4 NOZZLE KIT (STATIONARY ONLY) -
EVN-0.5-G6 1/2HP GUSHER 6 NOZZLE KIT (STATIONARY ONLY) -
2N EVN-FS EVOLUTION FLOW STRAIGHTENER INCLUDED (1)
3N 80-BHL-0.25X0.75 1/4-15X3/4 PANHEAD HI-LO SCREW INCLUDED (4)
FOUNTAIN PARTS
1H 80NH-0.31-24 5/16-24 HEX NUT 4
2H 80WL-0.31 5/16” LOCK WASHER 4
3H 80WF-0.31 5/16” FLAT WASHER 4
1U EVU-THROAT EVOLUTION THROAT 1
4H 80BH-0.25-2.25 1/4-20X2.25 HEX HEAD 1
5H 80WL-0.25 1/4” LOCK WASHER 1
2U EV-H-FW-PROP PROPELLER WASHER 1
3U EVU-PROP-1 1/2HP EVOLUTION PROPELLER 1
4U EVU-SPACER EVOLUTION MOTOR SPACER (FRANKLIN MOTOR ONLY) 1
MOTOR & CORD OPTIONS
M EVU6-M-0.50-00 1/2HP MOTOR OPTION (1)
MC EVU6-M-0.50-02 1/2HP MOTOR WITH QUICK DISCONNECT (MOTOR CORD SOLD SEPERATELY) OPTION (1)
MC EVU6-M-0.50-050 1/2HP MOTOR WITH 50’ OF CORD & MOLDED PLUG OPTION (1)
MC EVU6-M-0.50-100 1/2HP MOTOR WITH 100’ OF CORD & MOLDED PLUG OPTION (1)
MC EVU6-M-0.50-175 1/2HP MOTOR WITH 175’ OF CORD & MOLDED PLUG OPTION (1)
C EVU6-MCD-(LENGTH) EVOLUTION MOTOR CORD WITH QUICK DISCONNECT & MOLDED PLUG
(SOLD IN 25’ INCREMENTS)
OPTION (1)
C EVU6-A-MC-050-F 50’ MOTOR CORD ASSY & MOLDED PLUG OPTION (1)
C EVU6-A-MC-100-F 100’ MOTOR CORD ASSY & MOLDED PLUG OPTION (1)
C EVU6-A-MC-175-F 175’ MOTOR CORD ASSY & MOLDED PLUG OPTION (1)
5U EVU-SCREEN EVOLUTION SUCTION SCREEN 1
6H 80BHL-0.25X0.75 1/4-15X3/4 PANHEAD HI-LO SCREW 2
6U EVU-FLOAT EVOLUTION FLOAT 1
7U EVU6-CB EVOLUTION SERIES CONTROL BOX 1
8U EVU-ANCHOR MOORING ANCHOR 2
9U EVU-ROPE 100’ #6 BLACK MOORING ROPE 1
3N
1N
2N
1H
2H
3H
1U
4H
5H
2U
3U
4U
M
C
5U
6H
6U
7U
9U
8U

7Aqua Control, Inc. 60 Hz. Evolution Series Owner’s Manual
OPTIONAL LIGHT KIT PARTS LIST
ITEM PART DESCRIPTION QTY.
OPTIONAL LIGHT KITS
- EVL6-L3-000 3W 4 LIGHT 120V WITH QUICK DISCONNECT* -
- EVL6-L3-050 3W 4 LIGHT 120V WITH 50’ LIGHTING CORD* -
- EVL6-L3-100 3W 4 LIGHT 120V WITH 100’ LIGHTING CORD* -
- EV6L-L3-175 3W 4 LIGHT 120V WITH 175’ LIGHTING CORD* -
- EVL6-L9-000 9W 4 LIGHT 120V WITH QUICK DISCONNECT* -
- EVL6-L9-050 9W 4 LIGHT 120V WITH 50’ LIGHTING CORD* -
- EVL6-L9-100 9W 4 LIGHT 120V WITH 100’ LIGHTING CORD* -
- EVL6-L9-175 9W 4 LIGHT 120V WITH 175’ LIGHTING CORD* -
- EVL6-L9RGB-000 9W RGB 4 LIGHT 120V WITH QUICK DISCONNECT* -
- EVL6-L9RGB-050 9W RGB 4 LIGHT 120V WITH 50’ LIGHTING CORD* -
- EVL6-L9RGB-100 9W RGB 4 LIGHT 120V WITH 100’ LIGHTING CORD* -
-EVL6-L9RGB-175 9W RGB 4 LIGHT 120V WITH 175’ LIGHTING CORD* -
LIGHTING CORD OPTIONS
LC EVL6-LCD-(LENGTH) EVOLUTION LIGHT CORD WITH QUICK DISCONNECT & MOLDED PLUG (SOLD
IN 25’ INCREMENTS)
OPTION (1)
LC EVL6-LCS-050 50’ LIGHT CORD ASSY & MOLDED PLUG OPTION (1)
LC EVL6-LCS-100 100’ LIGHT CORD ASSY & MOLDED PLUG OPTION (1)
LC EVL6-LCS-175 175’ LIGHT CORD ASSY & MOLDED PLUG OPTION (1)
LIGHT KIT PARTS
1L EVL-3WF 3W EVOLUTION LIGHT REPAIR ASSEMBLY (BULB NOT INCLUDED) OPTION (1)
2L EVL-9W-SPL 9W LIGHT REPAIR ASSEMBLY - SPECIFY COLOR (INCLUDES 16/3 SPLICE KIT) OPTION (1)
3L EVL-9WF-RGB 9W RGB LIGHT REPAIR ASSEMBLY (INCLUDES 16/3 SPLICE KIT) OPTION (1)
4L EVL-BKT-1 EVOLUTION LIGHT BRACKET (FOR 3W & 9W, FLOATING UNITS) 4
5L 80WF-05 5MM FLAT WASHER 8
6L 80WL-05 5MM LOCK WASHER 8
7L 80NC-05 5MM ACORN NUT 8
3W EVOLUTION LIGHT FIXTURE PARTS
1F EV-H-MSF-4X16 4MM X 16 FLAT HEAD MACHINE SCREW 3
2F EVL-LENS 3W EVOLUTION CLEAR LENS 1
3F EVL-GSKT 3W EVOLUTION LIGHT GASKET 1
4F EVL-3WF-(COLOR) 3W LED BULB (SPECIFY COLOR) 1
EVOLUTION JUNCTION BOX
NOT SOLD SEPERATELY
4L
1L 2L 3L
LC
7L
6L
5L
1F
2F
3F
4F 1L
*Note: Replace ‘EVL6’ in all floating light set part numbers with ‘EVLS6’ if ordering lights for a Stationary
Evolution Series. See page 8 to view stationary light set brackets (included with stationary light sets) and
attachment information.

8 Aqua Control, Inc. 60 Hz. Evolution Series Owner’s Manual
STATIONARY EVOLUTION PARTS LIST
ITEM PART DESCRIPTION QTY.
STATIONARY STAND PARTS & HARDWARE
1S EVUS-FOOT STATIONARY EVOLUTION STAND FOOT 4
2S EVUS-LEG STATIONARY EVOLUTION STAND LEG 4
3S EVUS-RING STATIONARY EVOLUTION STAND RING 1
1H 80BH-0.25X0.63 1/4-20 X 5/8 HEX HEAD BOLT 24
2H 80NH-0.25-20 1/4-20 HEX NUT 24
3H 80WF-0.25 1/4” FLAT WASHER 24
4H 80WL-0.25 1/4” LOCK WASHER 24
4SL EVL-BKT-2 STATIONARY EVOLUTION STAND LIGHT BRACKET 4
1H
1H
1S 2S
3S
4SL
3H 2H
2H
4H
4H
STAND LEGS ASSEMBLED FOR
MAXIMUM WATER DEPTH
STAND LEGS ASSEMBLED FOR
MINIMUM WATER DEPTH

11.18.2016CS 9
Aqua Control, Inc. 60 Hz. Evolution Series Owner’s Manual
TROUBLE CHECK POSSIBLE SOLUTIONS
Fountain does not operate
-OR-
Starts then stops
Not plugged in
Cord must be plugged into a 3-wire outlet
that is protected by a GFCI or the suplied
Evolution Control Box.
GFCI Tripped
Reset GFCI. If GFCI will not reset or trips
immediately, unplug the pump & lights
and reset GFCI. If GFCI will still not
reset, there may be a problem with the
Evolution Control Box or the incoming
power. If the GFCI resets, plug the pump
in the Evolution Control Box. If the GFCI
trips, there may be a problem with the
pump cord. If the GFCI holds, plug in
the optional light kit. If the GFCI trips,
there may be a problem with the lights.
Contact Aqua Control Technical Support
to troubleshoot lights or pump
GFCI not tripped,
not running.
Disconnect power. Check propeller for
obstruction. These motors have internal
overloads. If the propeller is jammed,
the internal overload may trip. This
overload may require up to 10 minutes
to cool down & reset. If the motor
does not restart, there may be other
motor problems. Contact Aqua Control
Technical Support to troubleshoot the
pump.
Fountain spray pattern is not
reaching full size
Fountain intake clogged Disconnect power. Check suction screen
for obstruction & remove debris.
Nozzle clogged Disconnect power. Remove nozzle &
check for obstruction & remove debris.
EVOLUTION SERIES FOUNTAIN
TROUBLESHOOTING GUIDE
Aqua Control Technical Support
Available Monday thru Friday, 7:30AM - 5:00PM CST
Phone: [phone] or 1-815-664-4900
Email: [email protected]
-OR-
Contact Your Local Aqua Control Distributor
